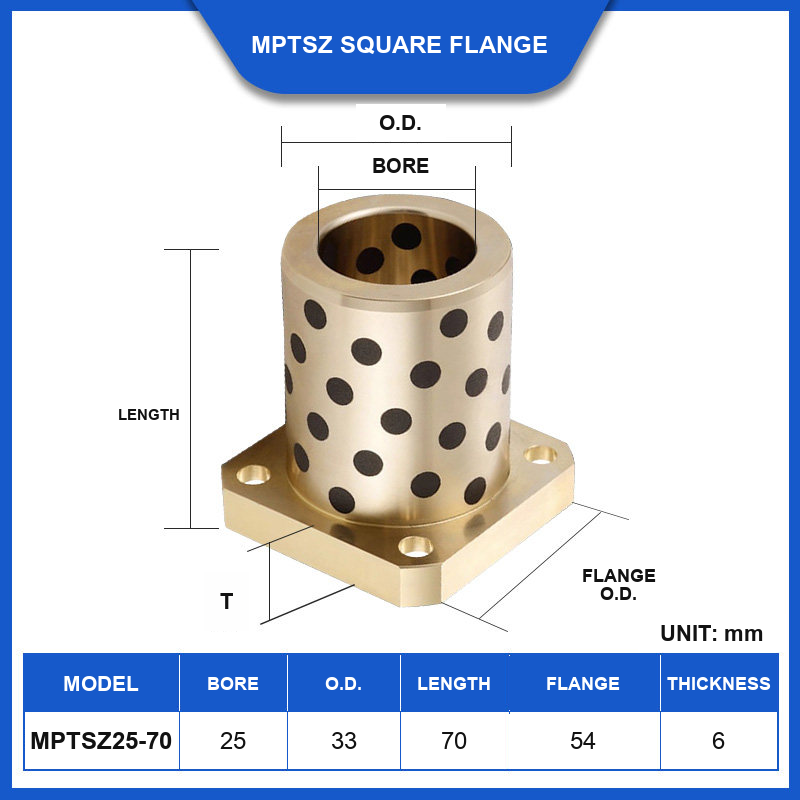

  • MPTSZ square flange graphite bronze bushing, 25 mm bore, 33 mm OD, 70 mm length
  • BOLTTE MPTSZ square flange graphite bronze self-lubricating bushing
  • MPTSZ square flange graphite bronze self-lubricating bushings
1 / 3

BOLTTE MPTSZ Square Flange Graphite Bronze Self-Lubricating Bushings - 6-60 mm Bore

$33.00 USD $24.75 USD 25% OFF
Shipping calculated at checkout.
BOLTTE MPTSZ Square Flange Graphite Bronze Self-Lubricating Bushings - 6-60 mm Bore
Size
Quantity
WhatsApp

BOLTTE MPTSZ Square Flange Graphite Bronze Self-Lubricating Bushings - 6-60 mm Bore

MPTSZ square-flange graphite bronze self-lubricating bushings combine a copper-alloy bearing body with solid graphite lubricant inserts for low-maintenance sliding and guiding applications.

Size selection

  • This product page covers 6-60 mm bore sizes.
  • Each selector entry shows flange diameter and thickness, followed by outside diameter, bore and overall length.
  • The corresponding technical image shows the model and the five principal dimensions in millimetres.
  • Standard and extended configurations are listed as separate selectable sizes.

Ordering and installation

  • Select the exact size shown in the selector and verify every dimension against the mating components.
  • Confirm fit, tolerance, load, speed, temperature, mounting details and operating environment before use.
  • For application-specific dimensions or requirements, include the details in the order requirements field.

Product Details and Material Features

MPTSZ square flange graphite bronze bushing product overview
MPTSZ square flange graphite bronze bushing size range
MPTSZ bushing high-strength brass material
MPTSZ bushing graphite solid lubrication

Model / configuration / SKU

BOLTTE MPTSZ Square Flange Graphite Bronze Self-Lubricating Bushings - 6-60 mm Bore
Model / configurationSKU
MPTSZ6-15 | Flange 25 x 4 / OD 10 x Bore 6 x L 15 mm 5883521724496
MPTSZ6-20 | Flange 25 x 4 / OD 10 x Bore 6 x L 20 mm 5883521724497
MPTSZ8-15 | Flange 27 x 4 / OD 12 x Bore 8 x L 15 mm 5883521724498
MPTSZ8-20 | Flange 27 x 4 / OD 12 x Bore 8 x L 20 mm 5883521724499
MPTSZ8-25 | Flange 27 x 4 / OD 12 x Bore 8 x L 25 mm 5883521724500
MPTSZ8-30 | Flange 27 x 4 / OD 12 x Bore 8 x L 30 mm 5883521724501
MPTSZ10-15 | Flange 29 x 4 / OD 14 x Bore 10 x L 15 mm 5883521724502
MPTSZ10-20 | Flange 29 x 4 / OD 14 x Bore 10 x L 20 mm 5883521724503
MPTSZ10-25 | Flange 29 x 4 / OD 14 x Bore 10 x L 25 mm 5883521724504
MPTSZ10-30 | Flange 29 x 4 / OD 14 x Bore 10 x L 30 mm 5883521724505
MPTSZ12-20 | Flange 36 x 5 / OD 18 x Bore 12 x L 20 mm 5883521724506
MPTSZ12-25 | Flange 36 x 5 / OD 18 x Bore 12 x L 25 mm 5883521724507
MPTSZ12-30 | Flange 36 x 5 / OD 18 x Bore 12 x L 30 mm 5883521724508
MPTSZ12-35 | Flange 36 x 5 / OD 18 x Bore 12 x L 35 mm 5883521724509
MPTSZ13-20 | Flange 37 x 5 / OD 19 x Bore 13 x L 20 mm 5883521724510
MPTSZ13-25 | Flange 37 x 5 / OD 19 x Bore 13 x L 25 mm 5883521724511
MPTSZ13-30 | Flange 37 x 5 / OD 19 x Bore 13 x L 30 mm 5883521724512
MPTSZ13-35 | Flange 37 x 5 / OD 19 x Bore 13 x L 35 mm 5883521724513
MPTSZ13-40 | Flange 37 x 5 / OD 19 x Bore 13 x L 40 mm 5883521724514
MPTSZ16-15 | Flange 40 x 5 / OD 22 x Bore 16 x L 15 mm 5883521724515
MPTSZ16-20 | Flange 40 x 5 / OD 22 x Bore 16 x L 20 mm 5883521724516
MPTSZ16-25 | Flange 40 x 5 / OD 22 x Bore 16 x L 25 mm 5883521724517
MPTSZ16-30 | Flange 40 x 5 / OD 22 x Bore 16 x L 30 mm 5883521724518
MPTSZ16-35 | Flange 40 x 5 / OD 22 x Bore 16 x L 35 mm 5883521724519
MPTSZ16-40 | Flange 40 x 5 / OD 22 x Bore 16 x L 40 mm 5883521724520
MPTSZ16-50 | Flange 40 x 5 / OD 22 x Bore 16 x L 50 mm 5883521724521
MPTSZ20-20 | Flange 49 x 6 / OD 28 x Bore 20 x L 20 mm 5883521724522
MPTSZ20-25 | Flange 49 x 6 / OD 28 x Bore 20 x L 25 mm 5883521724523
MPTSZ20-30 | Flange 49 x 6 / OD 28 x Bore 20 x L 30 mm 5883521724524
MPTSZ20-35 | Flange 49 x 6 / OD 28 x Bore 20 x L 35 mm 5883521724525
MPTSZ20-40 | Flange 49 x 6 / OD 28 x Bore 20 x L 40 mm 5883521724526
MPTSZ20-50 | Flange 49 x 6 / OD 28 x Bore 20 x L 50 mm 5883521724527
MPTSZ20-60 | Flange 49 x 6 / OD 28 x Bore 20 x L 60 mm 5883521724528
MPTSZ20-70 | Flange 49 x 6 / OD 28 x Bore 20 x L 70 mm 5883521724529
MPTSZ25-20 | Flange 54 x 6 / OD 33 x Bore 25 x L 20 mm 5883521724530
MPTSZ25-25 | Flange 54 x 6 / OD 33 x Bore 25 x L 25 mm 5883521724531
MPTSZ25-30 | Flange 54 x 6 / OD 33 x Bore 25 x L 30 mm 5883521724532
MPTSZ25-35 | Flange 54 x 6 / OD 33 x Bore 25 x L 35 mm 5883521724533
MPTSZ25-40 | Flange 54 x 6 / OD 33 x Bore 25 x L 40 mm 5883521724534
MPTSZ25-50 | Flange 54 x 6 / OD 33 x Bore 25 x L 50 mm 5883521724535
MPTSZ25-60 | Flange 54 x 6 / OD 33 x Bore 25 x L 60 mm 5883521724536
MPTSZ25-70 | Flange 54 x 6 / OD 33 x Bore 25 x L 70 mm 5883521724537
MPTSZ30-30 | Flange 63 x 8 / OD 38 x Bore 30 x L 30 mm 5883521724538
MPTSZ30-35 | Flange 63 x 8 / OD 38 x Bore 30 x L 35 mm 5883521724539
MPTSZ30-40 | Flange 63 x 8 / OD 38 x Bore 30 x L 40 mm 5883521724540
MPTSZ30-50 | Flange 63 x 8 / OD 38 x Bore 30 x L 50 mm 5883521724541
MPTSZ30-60 | Flange 63 x 8 / OD 38 x Bore 30 x L 60 mm 5883521724542
MPTSZ30-70 | Flange 63 x 8 / OD 38 x Bore 30 x L 70 mm 5883521724543
MPTSZ35-50 | Flange 69 x 8 / OD 44 x Bore 35 x L 50 mm 5883521724544
MPTSZ35-60 | Flange 69 x 8 / OD 44 x Bore 35 x L 60 mm 5883521724545
MPTSZ35-70 | Flange 69 x 8 / OD 44 x Bore 35 x L 70 mm 5883521724546
MPTSZ35-80 | Flange 69 x 8 / OD 44 x Bore 35 x L 80 mm 5883521724547
MPTSZ40-30 | Flange 82 x 10 / OD 50 x Bore 40 x L 30 mm 5883521724548
MPTSZ40-40 | Flange 82 x 10 / OD 50 x Bore 40 x L 40 mm 5883521724549
MPTSZ40-50 | Flange 82 x 10 / OD 50 x Bore 40 x L 50 mm 5883521724550
MPTSZ40-60 | Flange 82 x 10 / OD 50 x Bore 40 x L 60 mm 5883521724551
MPTSZ40-70 | Flange 82 x 10 / OD 50 x Bore 40 x L 70 mm 5883521724552
MPTSZ40-80 | Flange 82 x 10 / OD 50 x Bore 40 x L 80 mm 5883521724553
MPTSZ40-100 | Flange 82 x 10 / OD 50 x Bore 40 x L 100 mm 5883521724554
MPTSZ50-70 | Flange 94 x 10 / OD 62 x Bore 50 x L 70 mm 5883521724555
MPTSZ50-80 | Flange 94 x 10 / OD 62 x Bore 50 x L 80 mm 5883521724556
MPTSZ50-100 | Flange 94 x 10 / OD 62 x Bore 50 x L 100 mm 5883521724557
MPTSZ6 Extended | Flange 28 x 5 / OD 12 x Bore 6 x L 19 mm 5883521724558
MPTSZ8 Extended | Flange 32 x 5 / OD 15 x Bore 8 x L 24 mm 5883521724559
MPTSZ10 Extended | Flange 40 x 6 / OD 19 x Bore 10 x L 29 mm 5883521724560
MPTSZ12 Extended | Flange 42 x 6 / OD 21 x Bore 12 x L 30 mm 5883521724561
MPTSZ16 Extended | Flange 48 x 6 / OD 28 x Bore 16 x L 37 mm 5883521724562
MPTSZ20 Extended | Flange 54 x 8 / OD 32 x Bore 20 x L 42 mm 5883521724563
MPTSZ25 Extended | Flange 62 x 8 / OD 40 x Bore 25 x L 59 mm 5883521724564
MPTSZ30 Extended | Flange 74 x 10 / OD 45 x Bore 30 x L 64 mm 5883521724565
MPTSZ35 Extended | Flange 82 x 10 / OD 52 x Bore 35 x L 70 mm 5883521724566
MPTSZ40 Extended | Flange 96 x 13 / OD 60 x Bore 40 x L 80 mm 5883521724567
MPTSZ50 Extended | Flange 116 x 13 / OD 80 x Bore 50 x L 100 mm 5883521724568
MPTSZ60 Extended | Flange 134 x 18 / OD 90 x Bore 60 x L 110 mm 5883521724569
MPTSZ6 Extended | Flange 28 x 5 / OD 12 x Bore 6 x L 35 mm 5883521724570
MPTSZ8 Extended | Flange 32 x 5 / OD 15 x Bore 8 x L 45 mm 5883521724571
MPTSZK10 Extended | Flange 40 x 6 / OD 19 x Bore 10 x L 55 mm 5883521724572
MPTSZ12 Extended | Flange 42 x 6 / OD 21 x Bore 12 x L 57 mm 5883521724573
MPTSZ16 Extended | Flange 48 x 6 / OD 28 x Bore 16 x L 70 mm 5883521724574
MPTSZ20 Extended | Flange 54 x 8 / OD 32 x Bore 20 x L 80 mm 5883521724575
MPTSZ25 Extended | Flange 62 x 8 / OD 40 x Bore 25 x L 112 mm 5883521724576
MPTSZK30 Extended | Flange 74 x 10 / OD 45 x Bore 30 x L 123 mm 5883521724577
MPTSZ35 Extended | Flange 82 x 10 / OD 52 x Bore 35 x L 135 mm 5883521724578
