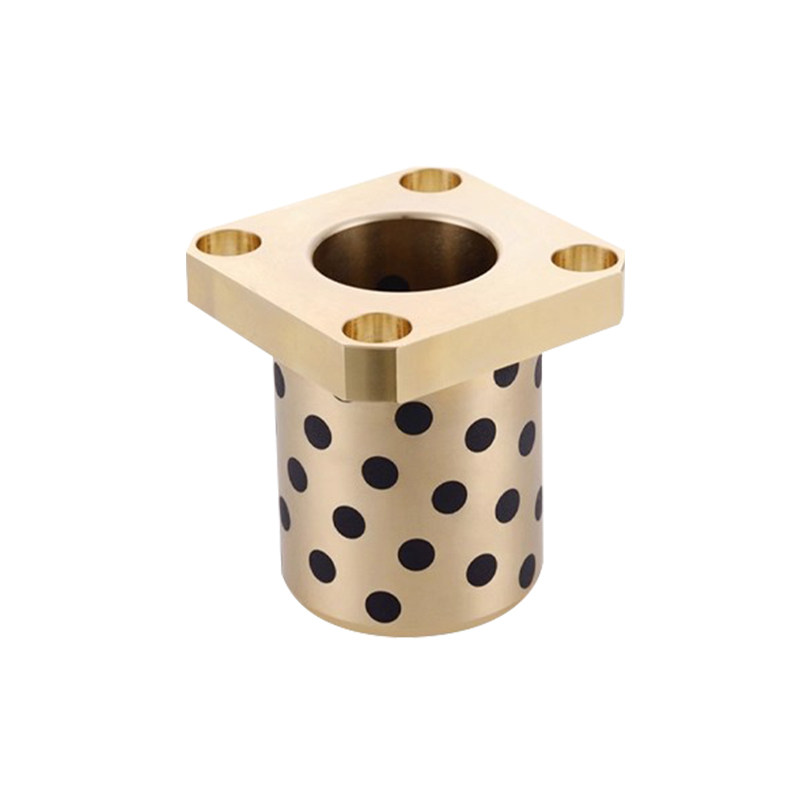

BOLTTE MPTSZ Square Flange Graphite Bronze Self-Lubricating Bushings - 6-60 mm Bore
MPTSZ square-flange graphite bronze self-lubricating bushings combine a copper-alloy bearing body with solid graphite lubricant inserts for low-maintenance sliding and guiding applications.
Size selection
- This product page covers 6-60 mm bore sizes.
- Each selector entry shows flange diameter and thickness, followed by outside diameter, bore and overall length.
- The corresponding technical image shows the model and the five principal dimensions in millimetres.
- Standard and extended configurations are listed as separate selectable sizes.
Ordering and installation
- Select the exact size shown in the selector and verify every dimension against the mating components.
- Confirm fit, tolerance, load, speed, temperature, mounting details and operating environment before use.
- For application-specific dimensions or requirements, include the details in the order requirements field.
