Mini ZP Foam Vacuum Suction Cups
Mini ZP BN, BS, UN and US models are available with black or red foam.
- Black and red foam versions are included in one model list
- Red versions are clearly identified by the Red prefix

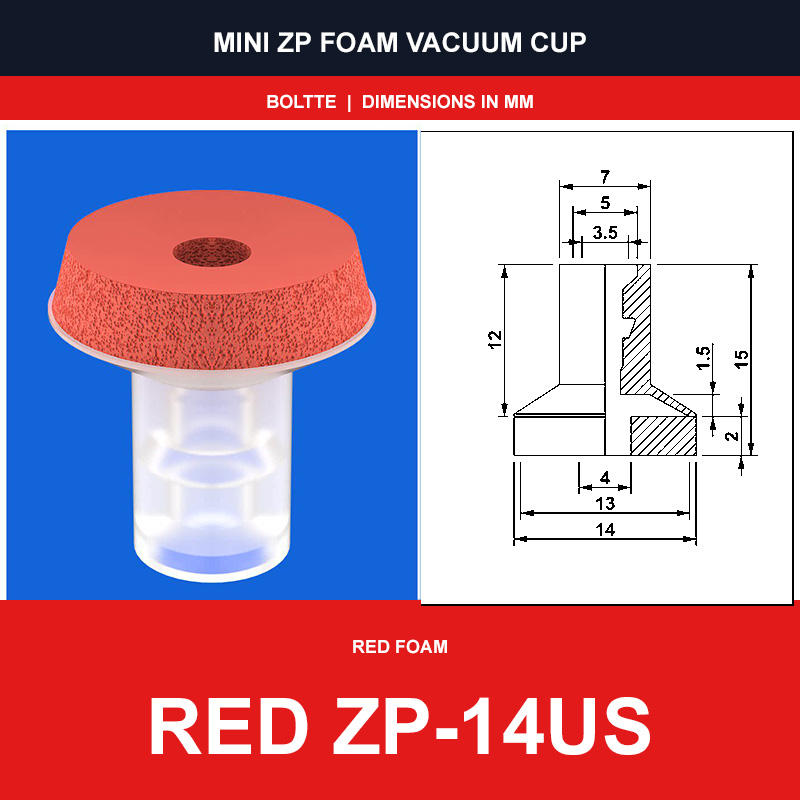

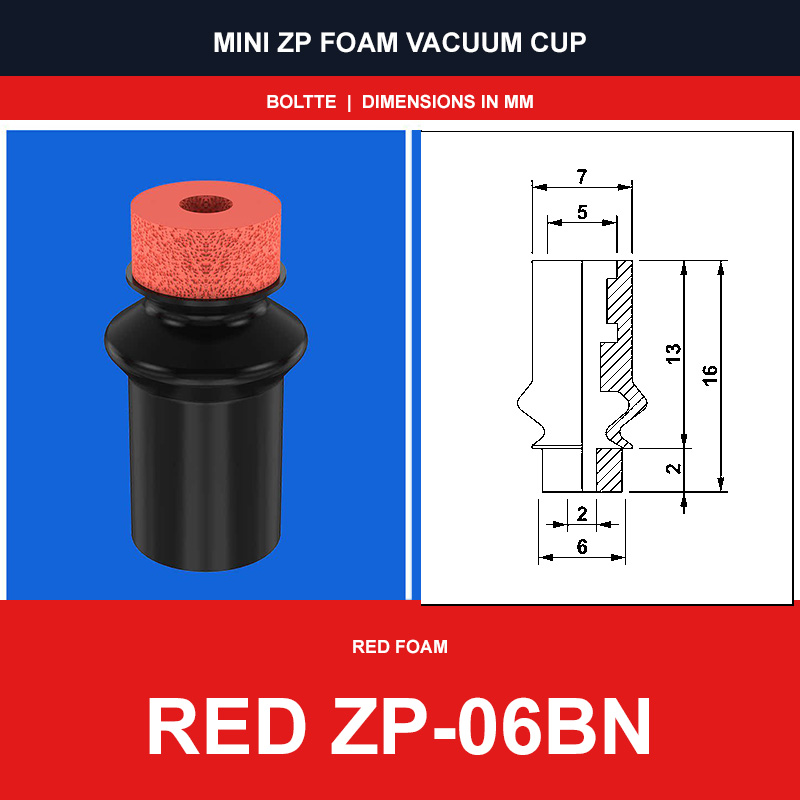

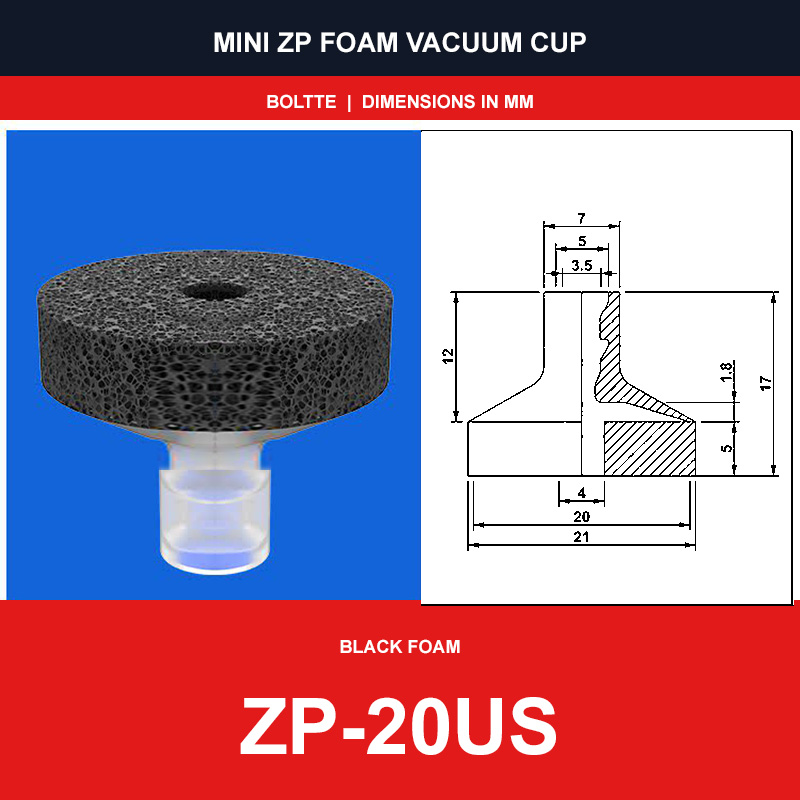

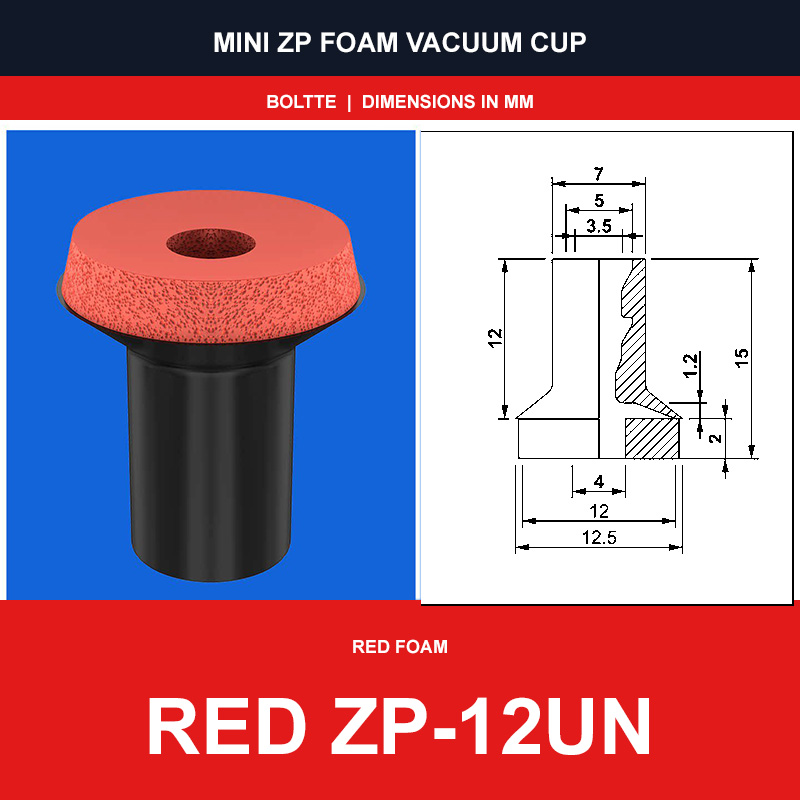

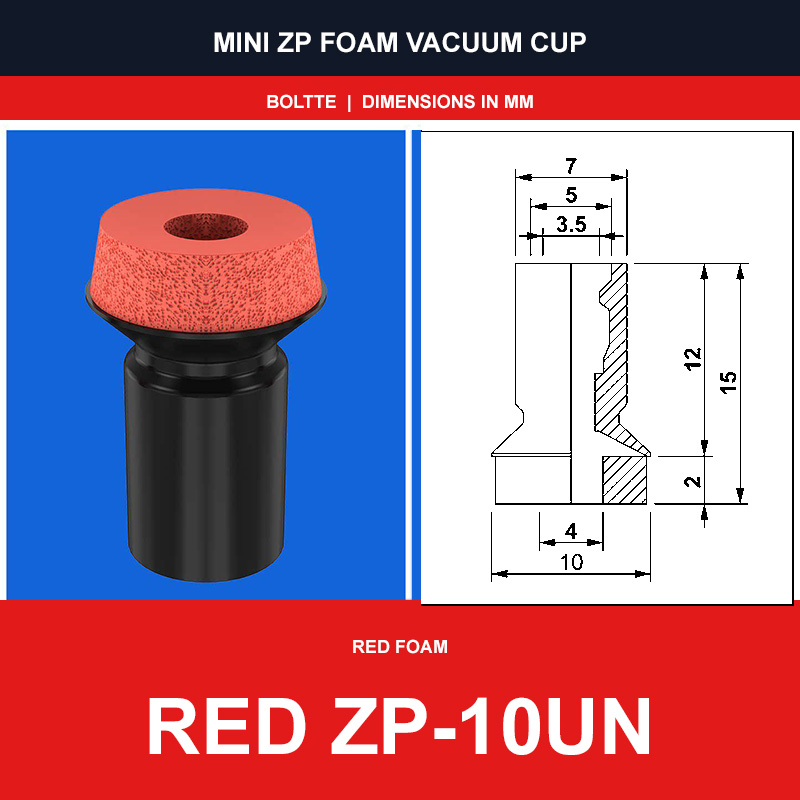

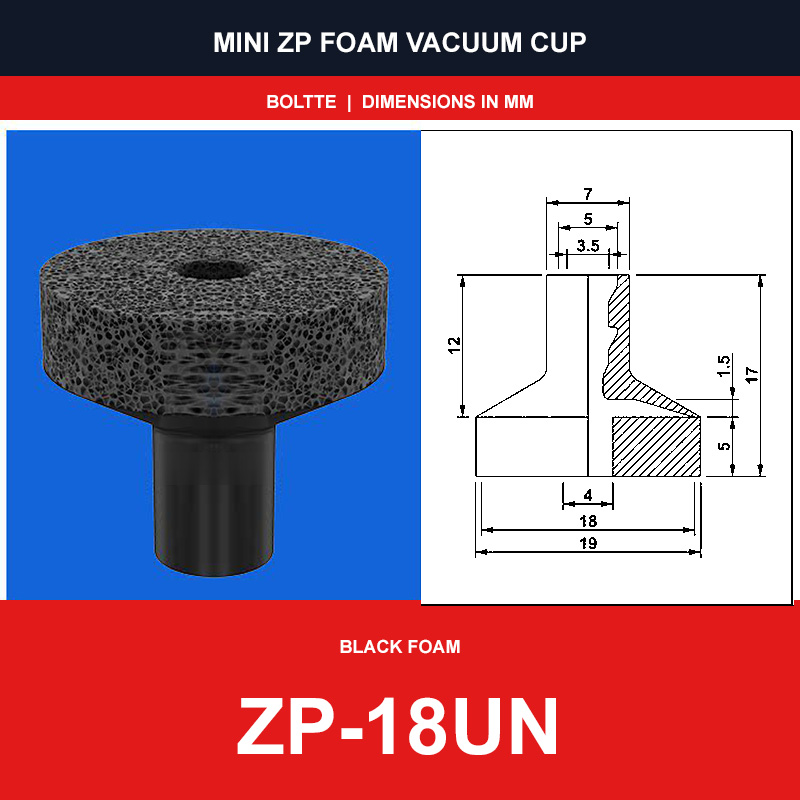

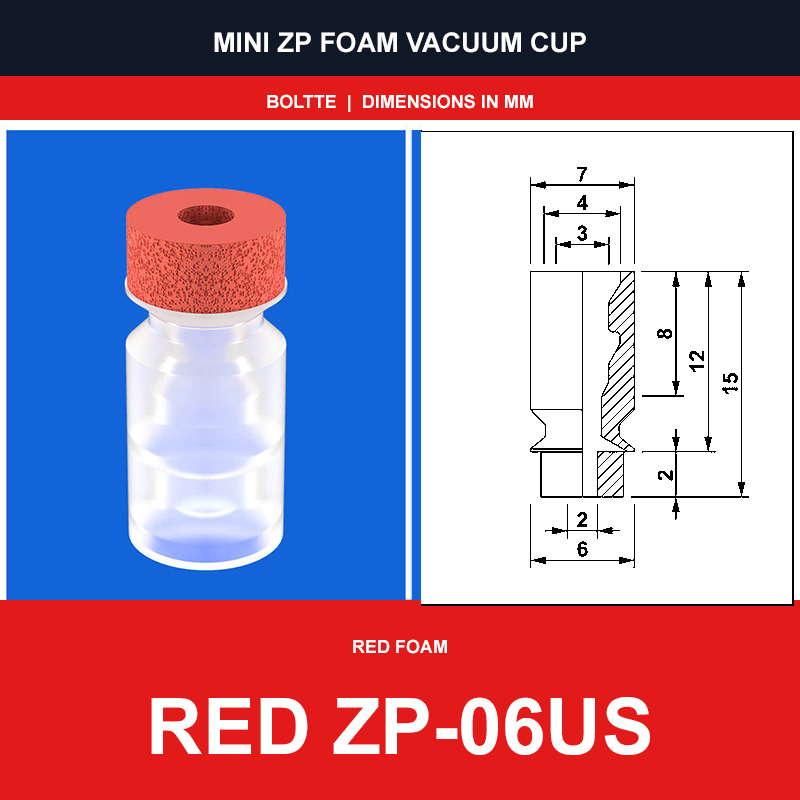

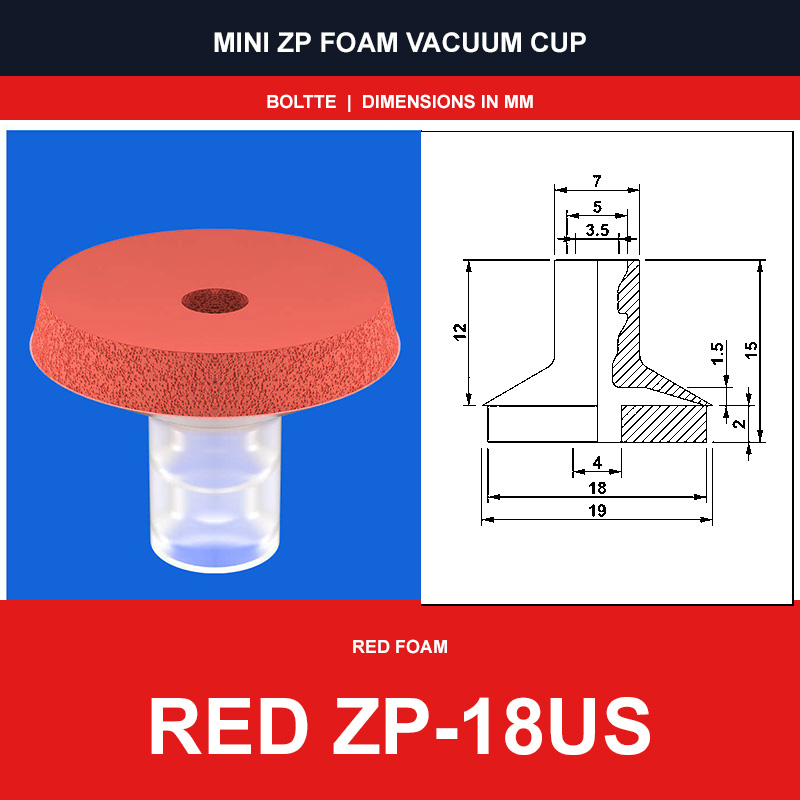

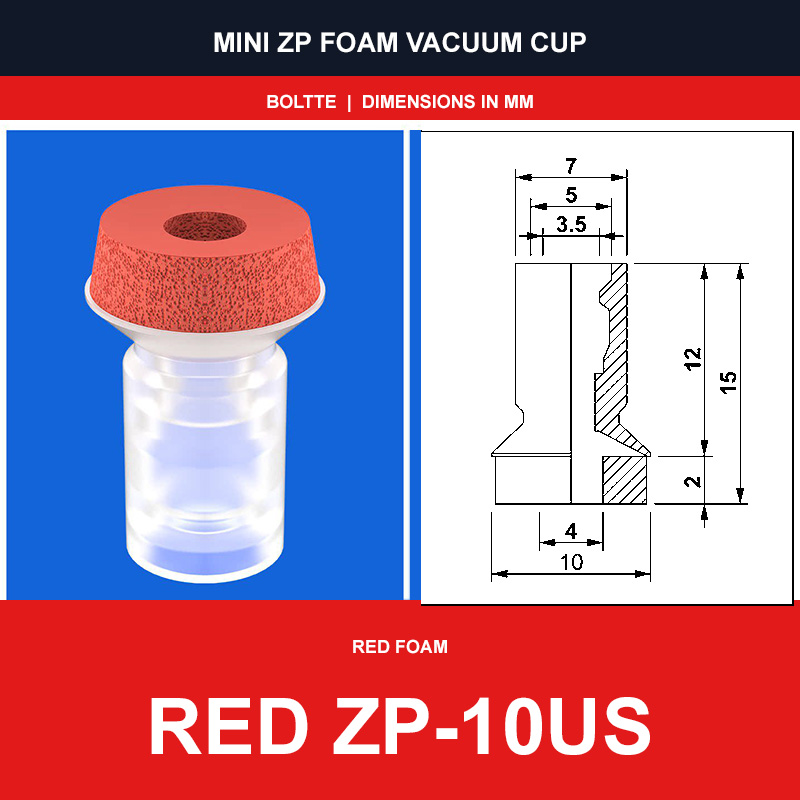

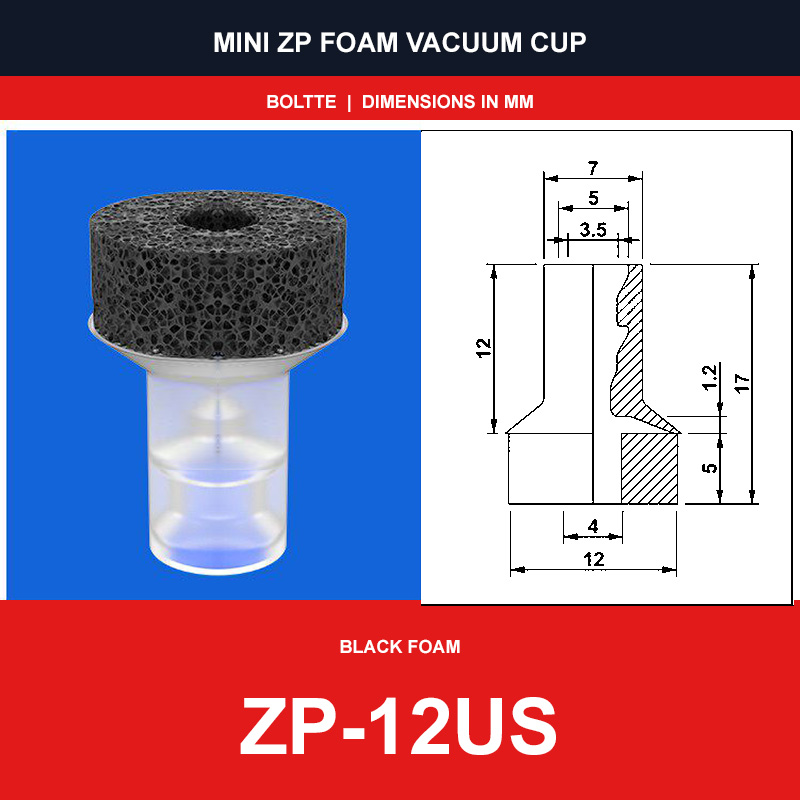

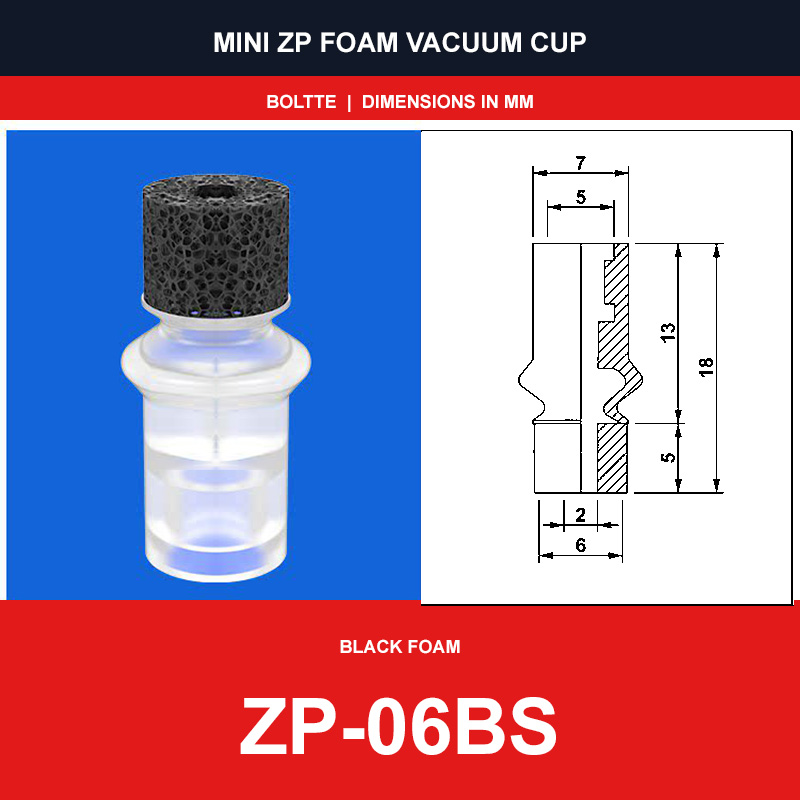

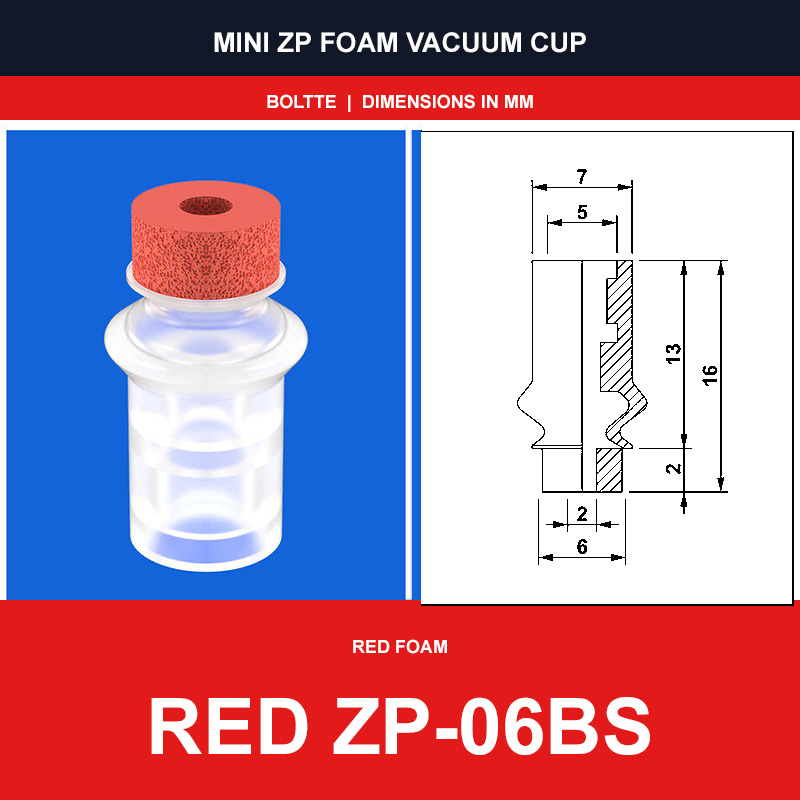

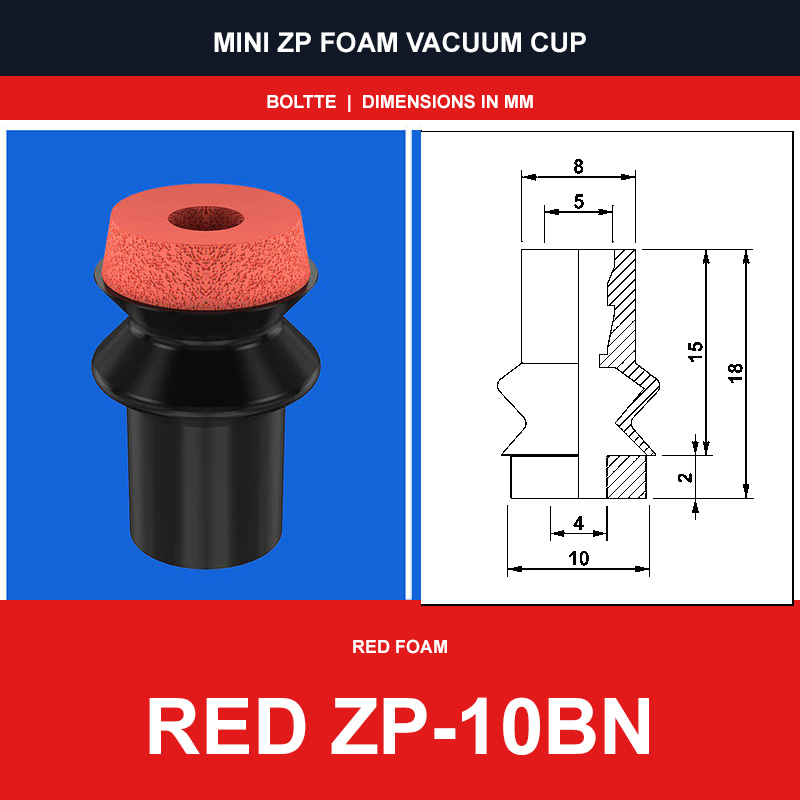

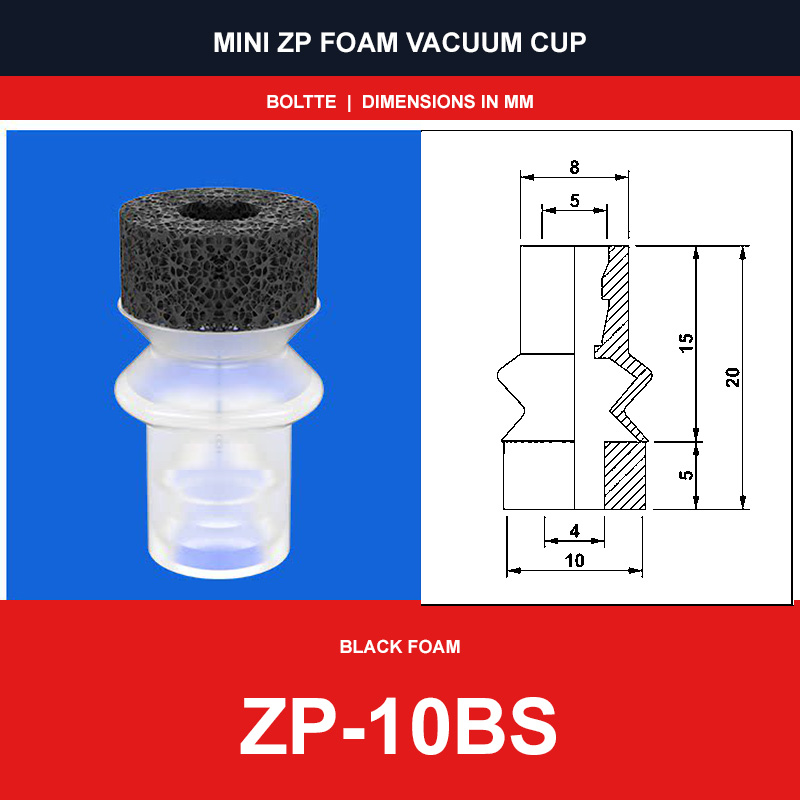

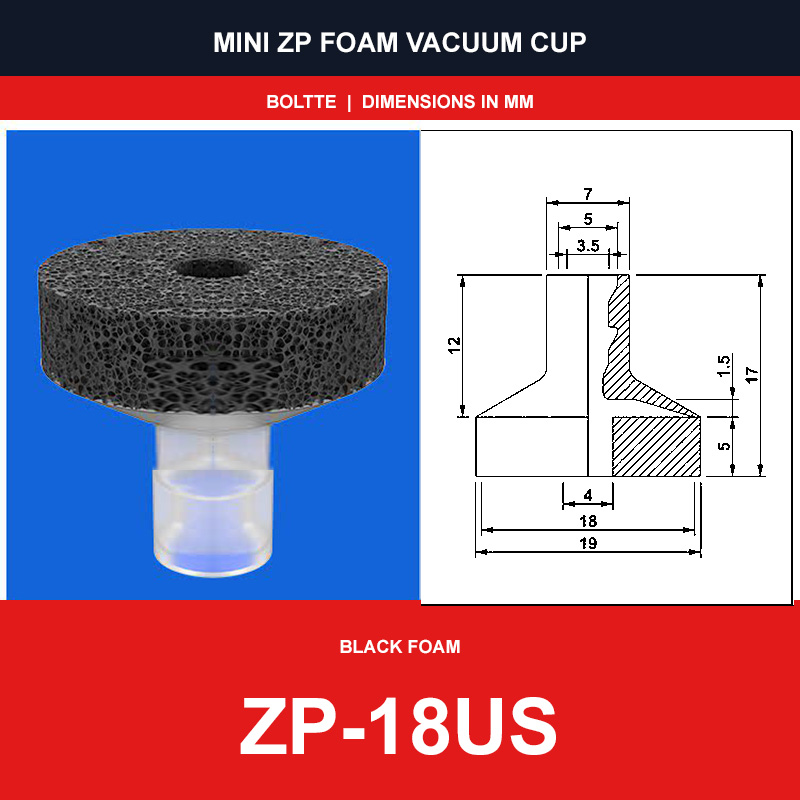

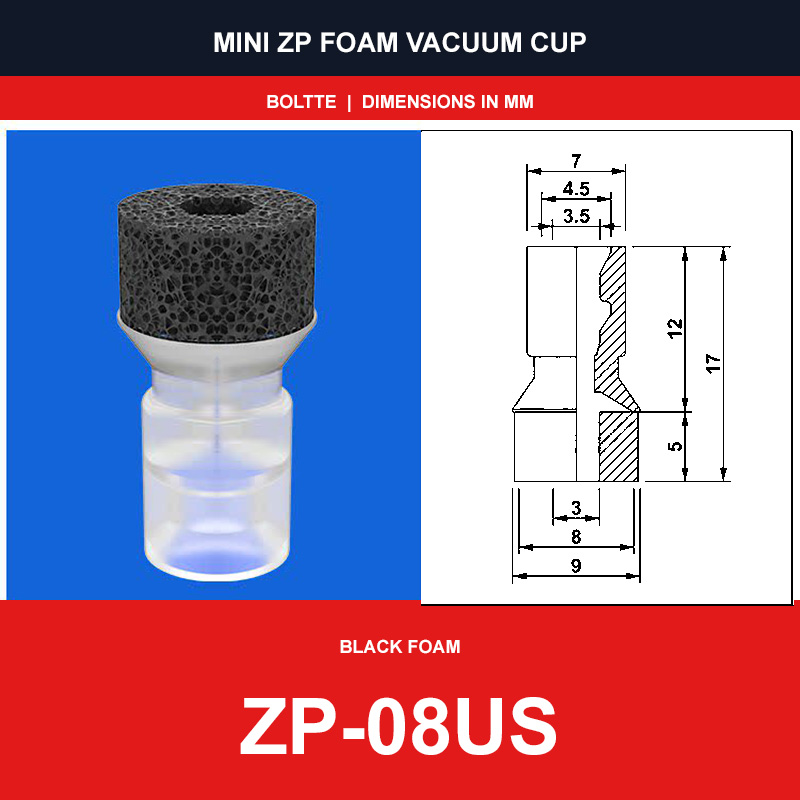

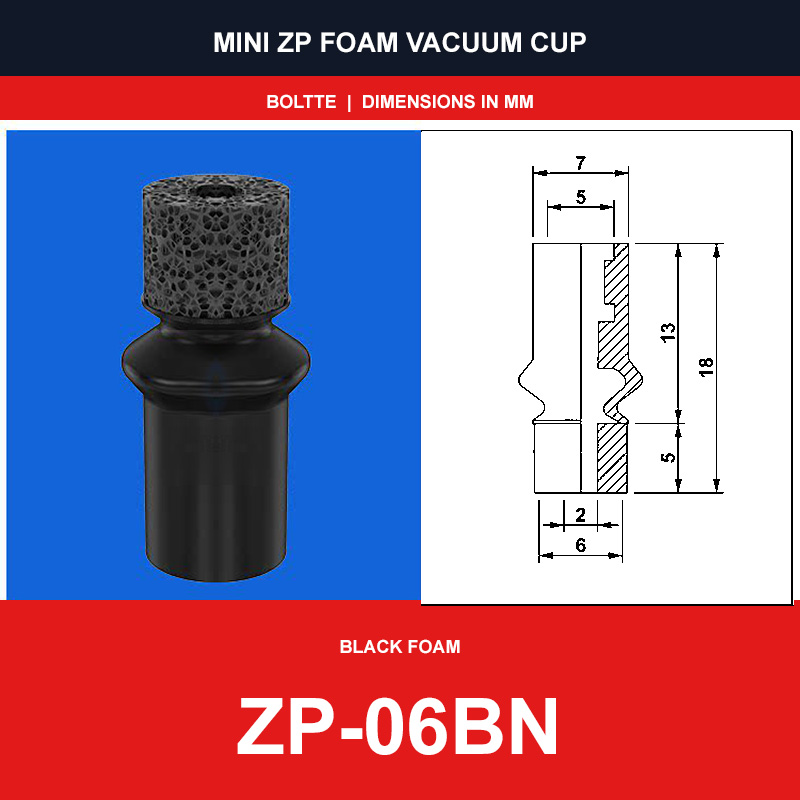

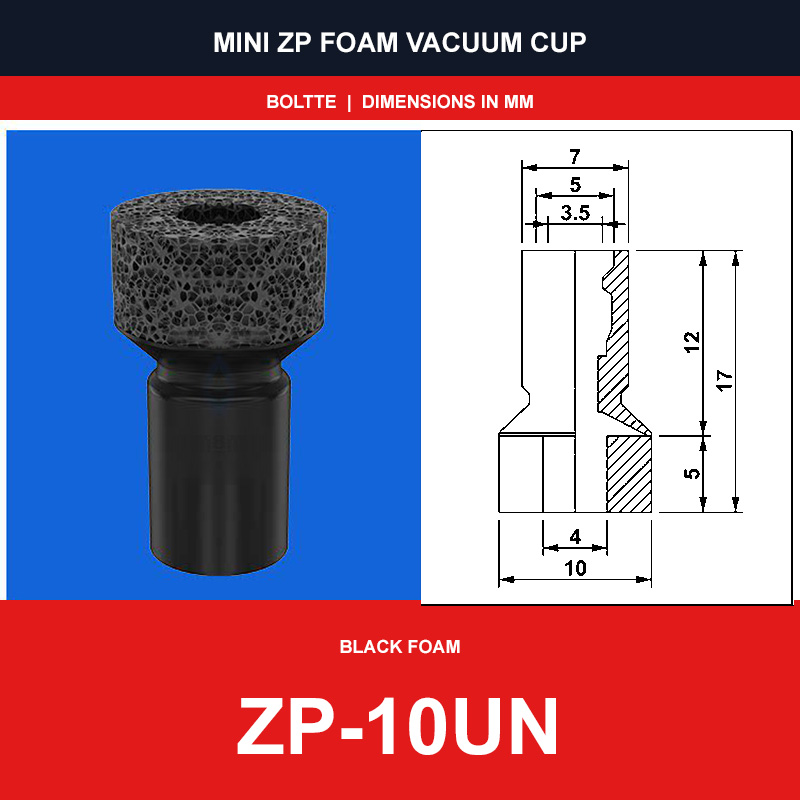

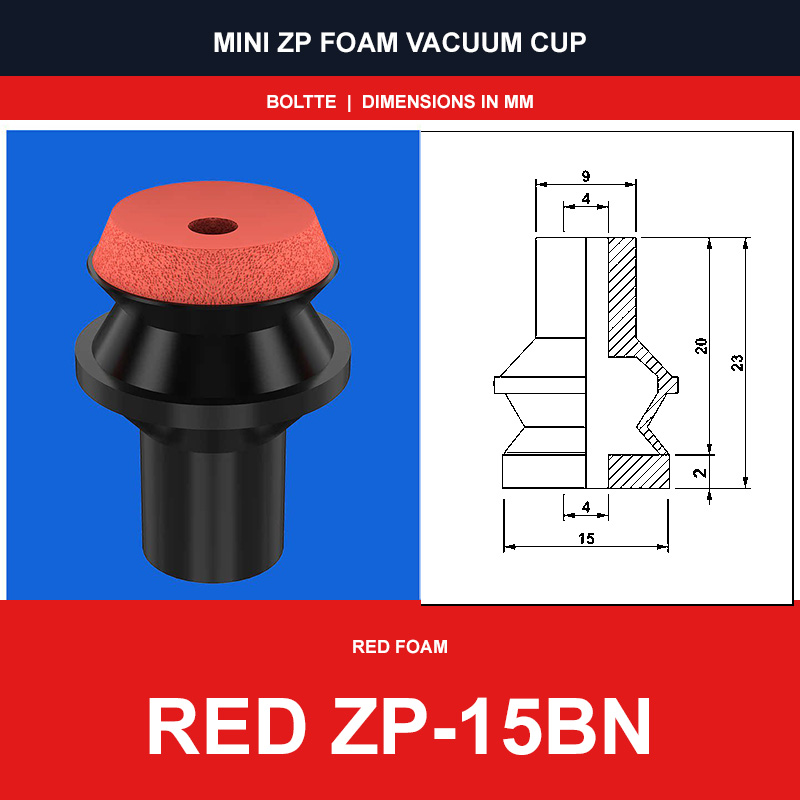

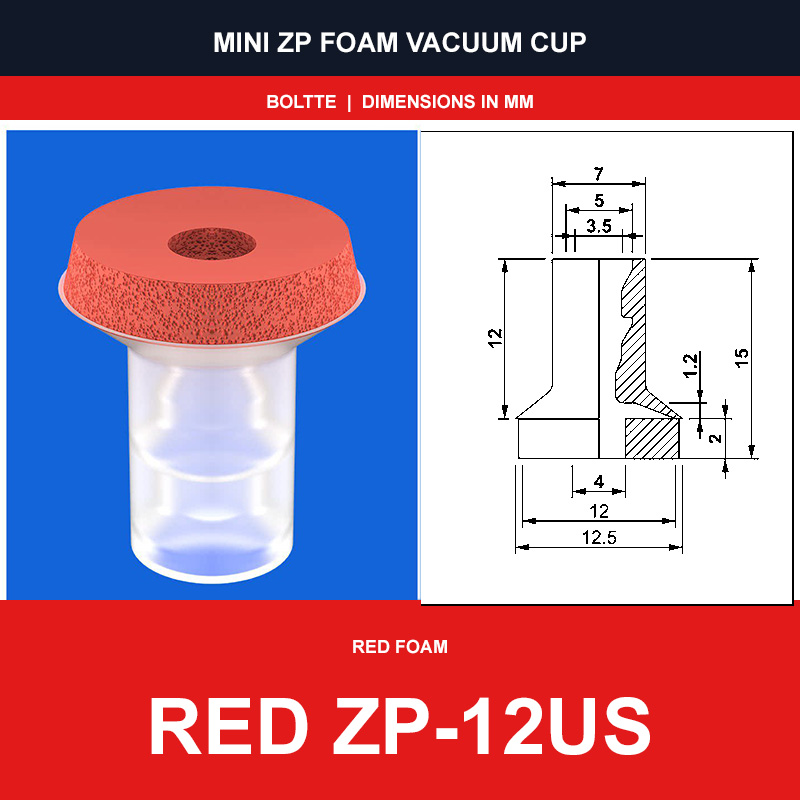

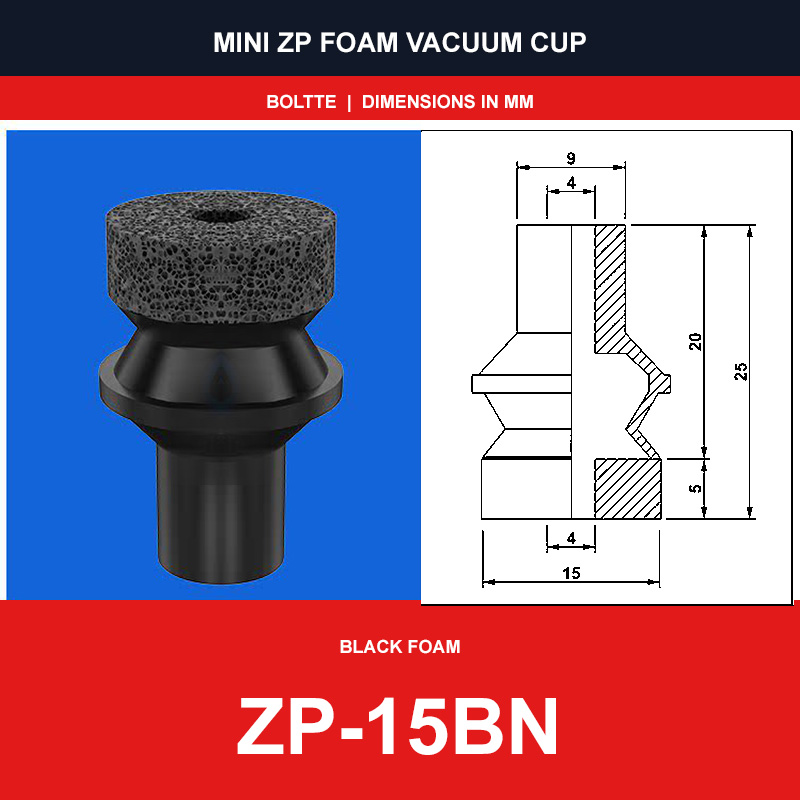

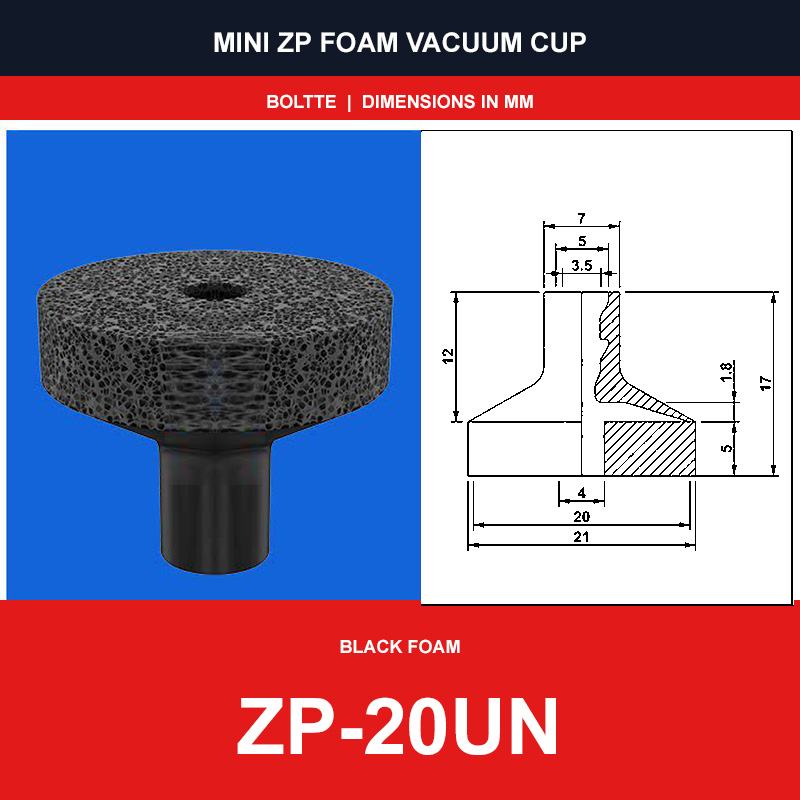

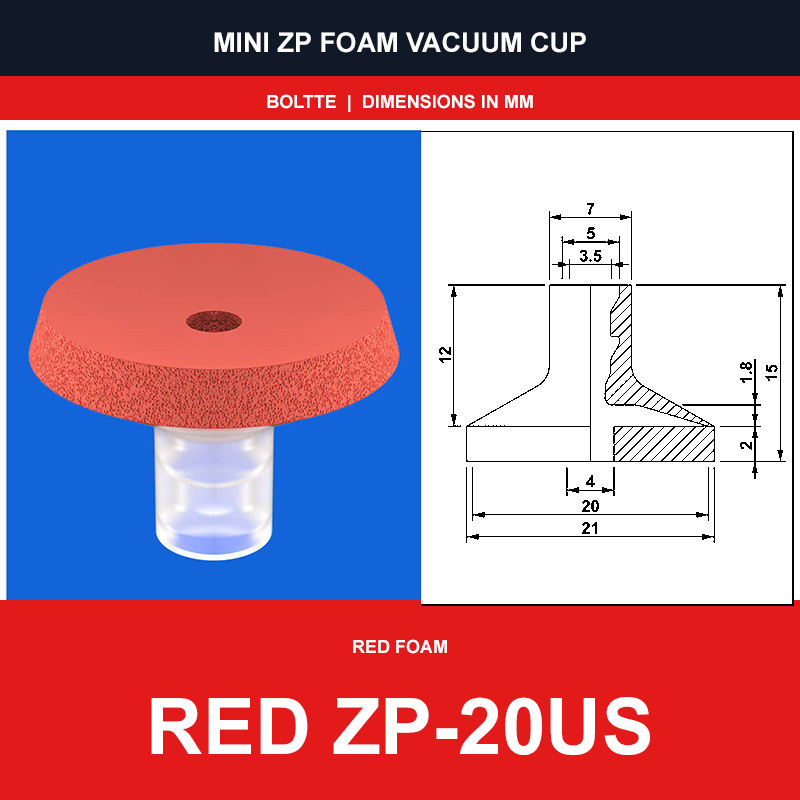

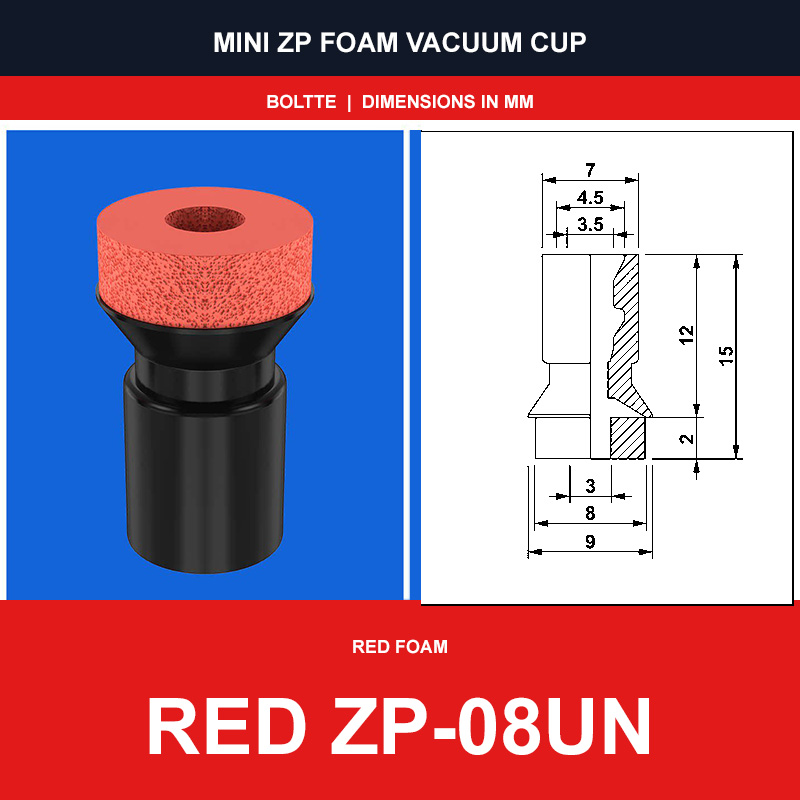

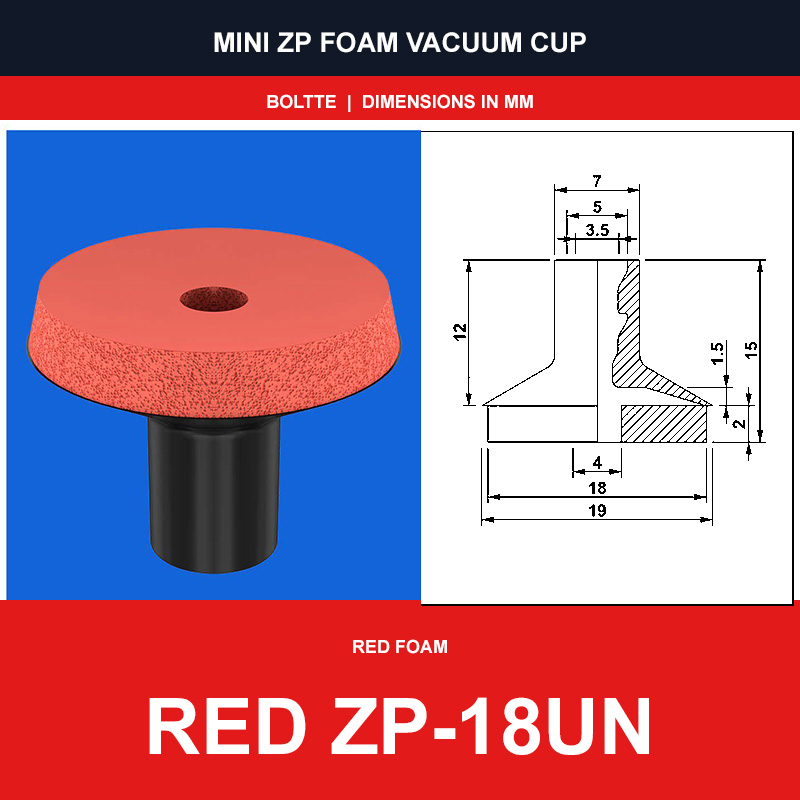

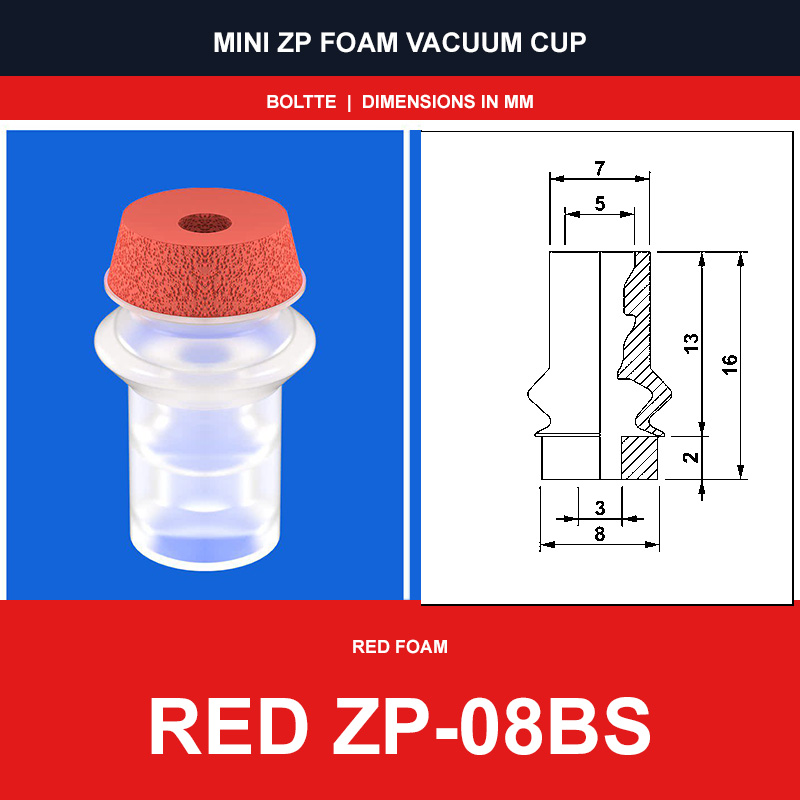

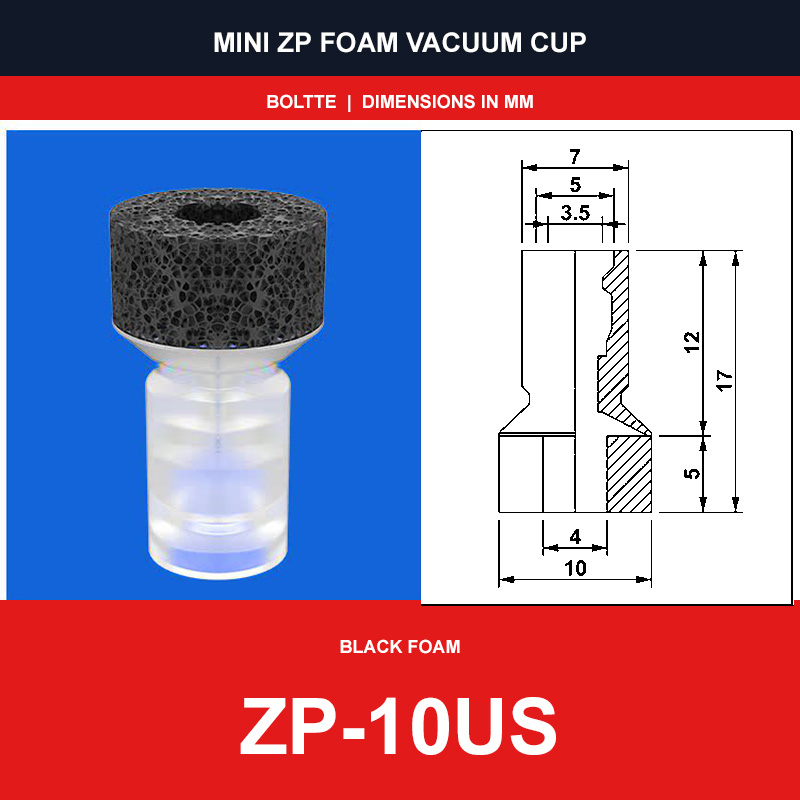

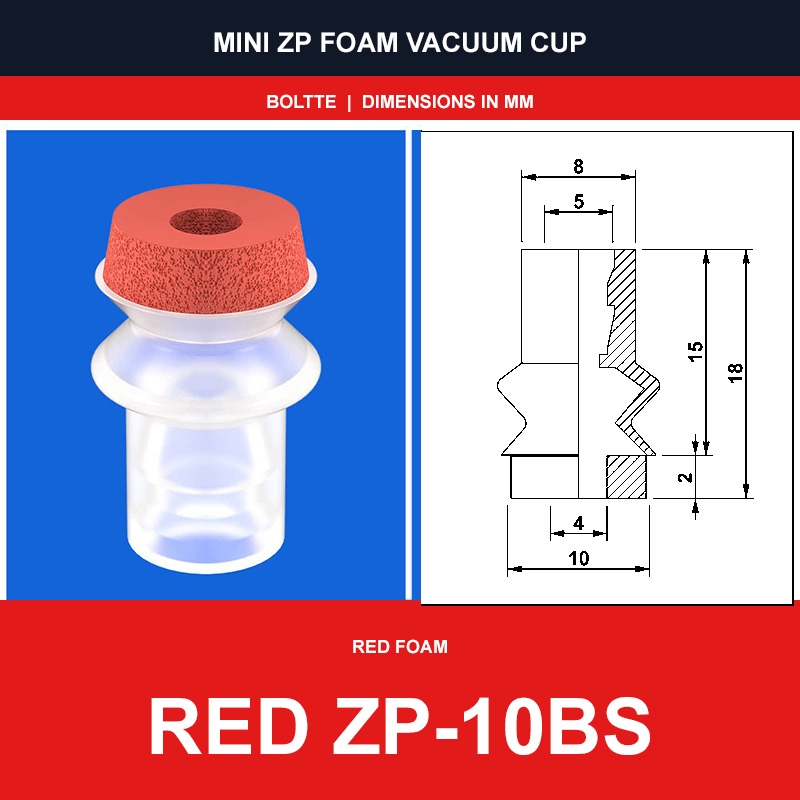

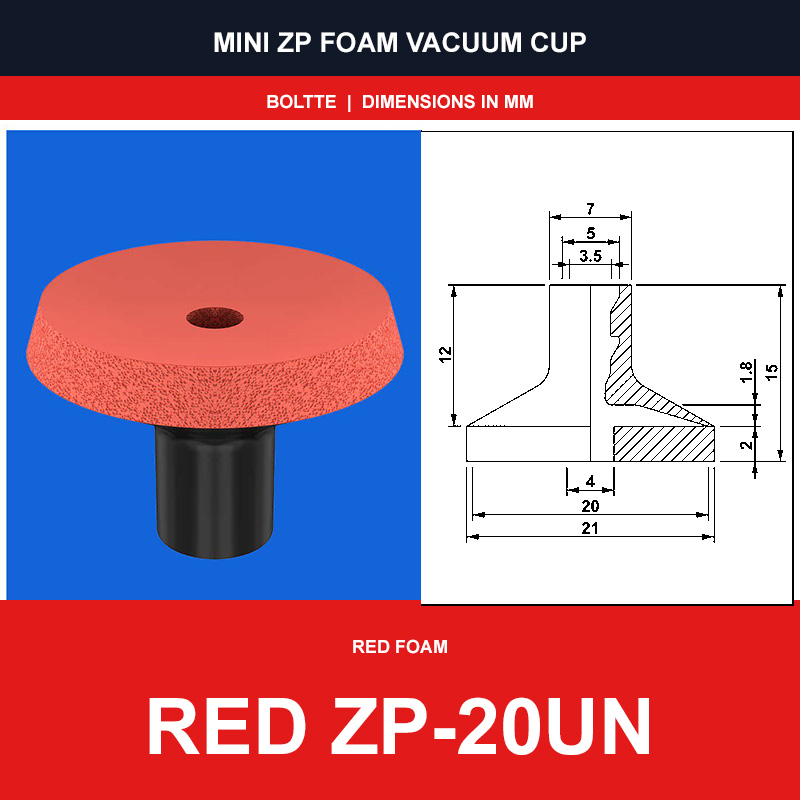

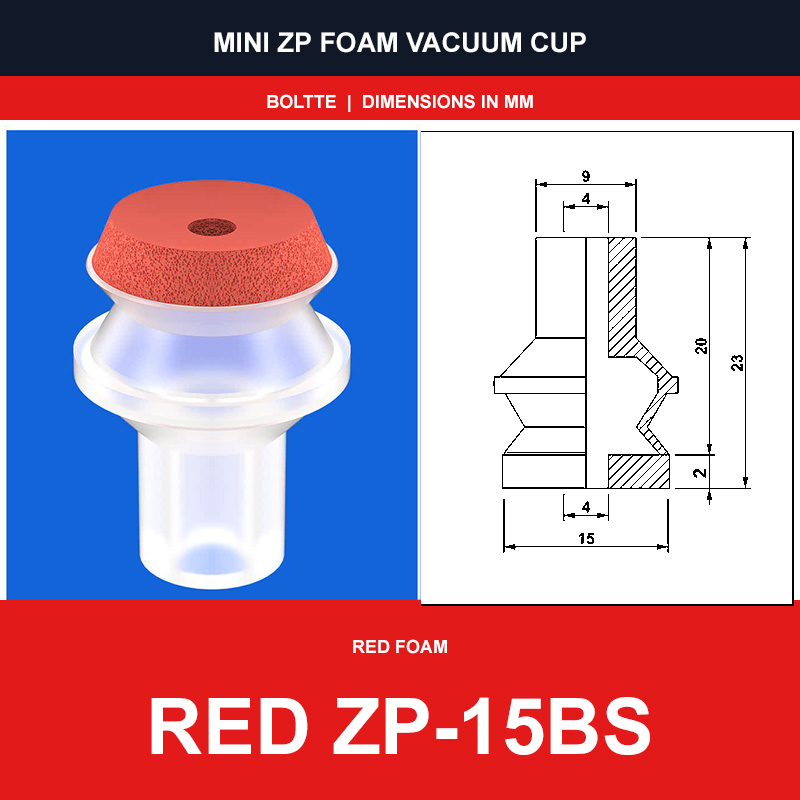

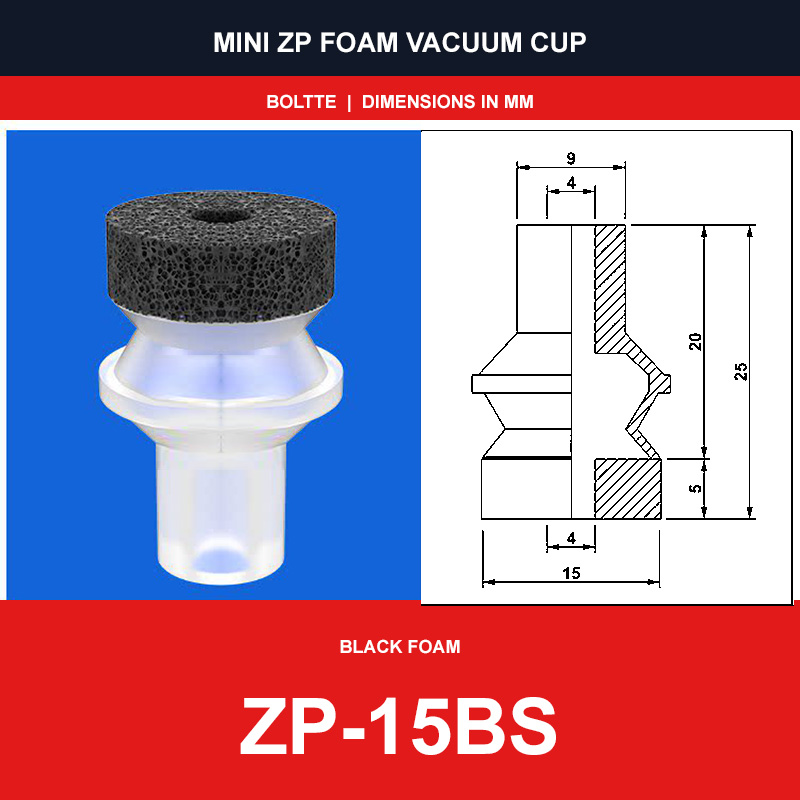

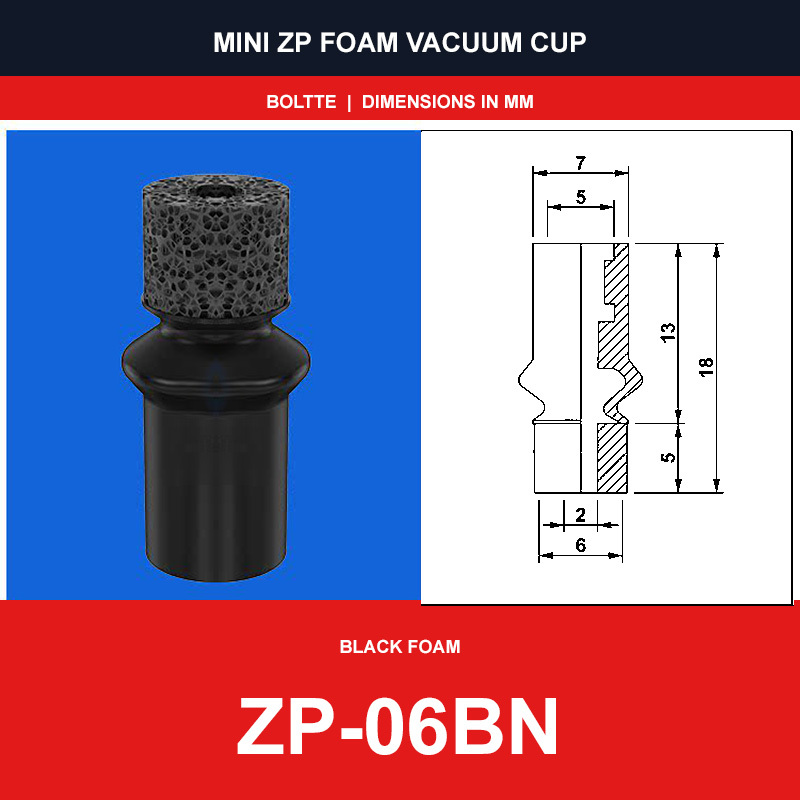

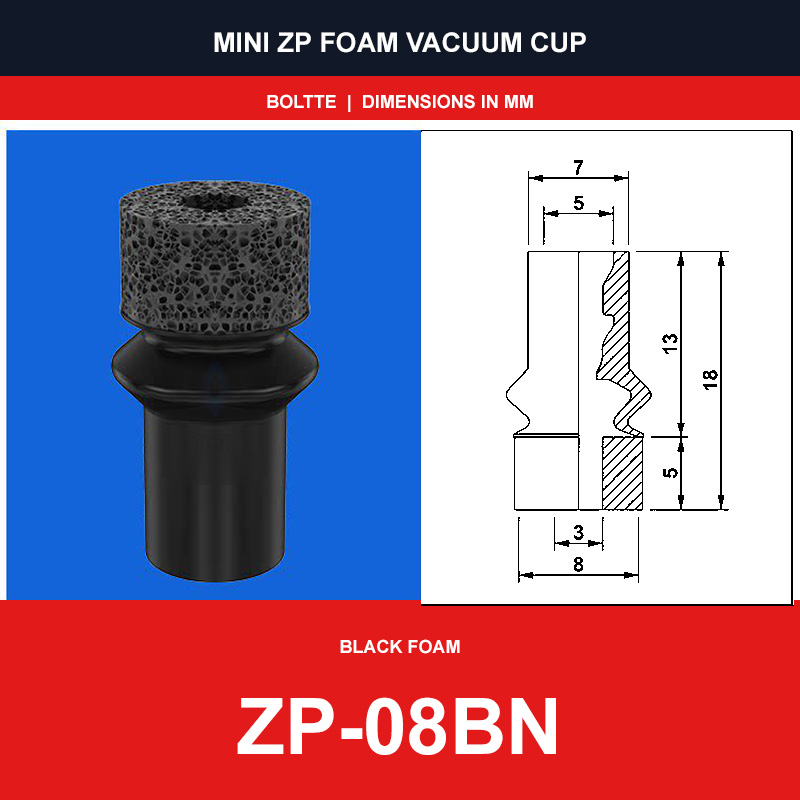

- Each model includes a corresponding dimensional drawing
Select the exact model and confirm the dimensions shown in its image before ordering.
Applications and Suitable Workpieces
Mini ZP Foam Vacuum Suction Cups | Black & Red Foam: Foam contact pads conform to textured, slightly uneven or mildly porous workpieces that are difficult to seal with a plain rubber lip.
Recommended applications
- Cardboard, cartons, coated or uncoated sheet material, textured plastic, wood panels, composites and other flat or slightly uneven parts.
- Robot grippers, palletizing, depalletizing, panel transfer, pick-and-place and general material-handling systems.
- Workpieces with small gaps, surface texture or height variation where the foam can bridge minor leakage paths.
Model and selection notes
- BN and BS identify different mini body or mounting configurations; UN and US identify the corresponding alternative profile. Match the exact code and drawing.
- Select the cup diameter and foam footprint according to the available contact area and required holding force.
- Single-, double- and multi-layer bodies provide progressively more stroke and height compensation; choose the model shown in the technical drawing.
- Foam wears during service and should be inspected regularly. Very porous stock may require a higher-flow vacuum source or multiple cups.
