MHS3 Three-Jaw Pneumatic Grippers, K8-3 Adjustable Jaws and Bases
MHS3-25D, MHS3-32D and MHS3-40D pneumatic grippers with blue silicone-padded adjustable jaws. Choose complete gripper sets, cylinders only, replacement jaw assemblies, lower bases or the separate D-Z73 reed sensor.
The cylinder body is aluminum alloy. The illustrated fixture supports three-point external gripping or internal expansion for suitable round workpieces. Each configuration is sold separately. Confirm the complete fixture, mounting, air supply and workpiece requirements before ordering.
What you receive
- K8-3 / Short upper jaws / Set of 3
- MHS3-25D + K8-40L / Full set / Cylinder + 3 jaw assemblies
- MHS3-25D / Cylinder only
- 25D-40 / Lower bases / 40 mm / Set of 3
- 25D K8-3-40L / Jaw assemblies / Set of 3
- MHS3-25D + K8-50L / Full set / Cylinder + 3 jaw assemblies
- 25D-50 / Lower bases / 50 mm / Set of 3
- 25D K8-3-50L / Jaw assemblies / Set of 3
- MHS3-32D + K8-50L / Full set / Cylinder + 3 jaw assemblies
- MHS3-32D / Cylinder only
- 32D-50 / Lower bases / 50 mm / Set of 3
- 32D K8-3-50L / Jaw assemblies / Set of 3
- MHS3-40D + K8-50L / Full set / Cylinder + 3 jaw assemblies
- MHS3-40D / Cylinder only
- 40D-50 / Lower bases / 50 mm / Set of 3
- 40D K8-3-50L / Jaw assemblies / Set of 3

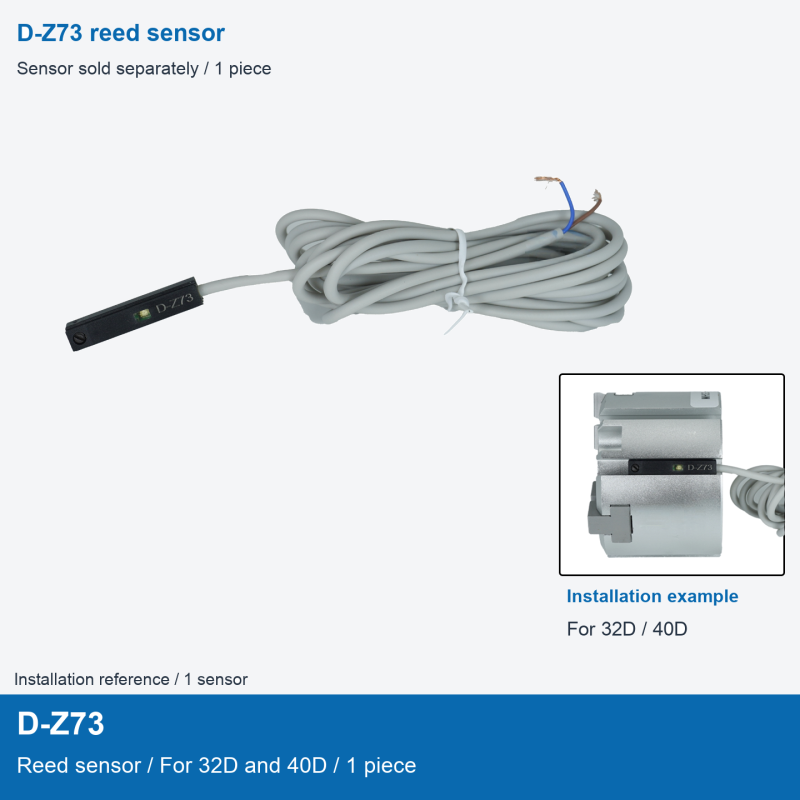

- D-Z73 / Reed sensor / For 32D and 40D / 1 piece
Full sets include one cylinder and three complete jaw assemblies. Cylinder-only options do not include extended jaw assemblies. Jaw and lower-base options are sets of three. D-Z73 is a separately sold reed sensor specified by the supplied source for 32D and 40D. The 25D drawings mention optional A6K/D-DF switches; this does not establish D-Z73 compatibility with 25D or include any switch in the gripper set.
Full-set reference values
All dimensions below are in millimeters. Grip ranges, force, stroke and weights are supplied-source references. The source does not state the pressure or test basis for force/stroke values; they are not independently verified load ratings.
| Full set | External small / large | Internal small / large | External / internal force (N) | One-side stroke | Weight (g) |
|---|---|---|---|---|---|
| MHS3-25D + K8-40L | 8-45 / 60-110 | 23-65 / 78-130 | 47 / 42 | 4 | 190 |
| MHS3-25D + K8-50L | 8-60 / 60-130 | 23-80 / 78-145 | 47 / 42 | 4 | 195 |
| MHS3-32D + K8-50L | 8-74 / 65-140 | 23-90 / 85-150 | 82 / 74 | 4 | 297 |
| MHS3-40D + K8-50L | 8-76 / 70-145 | 23-95 / 90-155 | 130 / 118 | 4 | 417 |
Mounting and component details

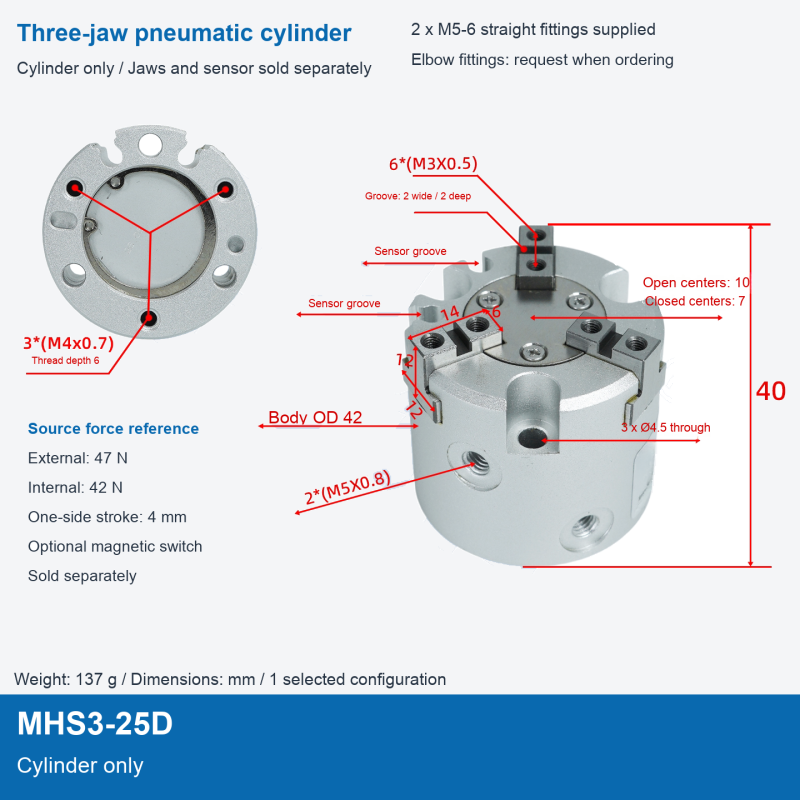

Full-set illustrated height/body height/body outside diameter: 25D 86/40/42; 32D 90/44/52; 40D 93/47/62. Bare-cylinder source weights: 25D 137 g, 32D 236 g, 40D 355 g. The cylinder drawings show 2 mm-wide, 2 mm-deep sensor grooves and two M5 x 0.8 air ports. The supplied source specifies two M5-6 straight fittings as standard; elbow fittings can be requested when ordering.
The common upper jaw drawings show 7.5, 8, 27, 23 and 10 mm dimensions. Short upper jaws have a 12.5 mm base height and 32 mm illustrated length. Complete jaw assemblies have a 20.5 mm base height and 40 or 50 mm base length as selected.
Lower bases are 40 or 50 mm long, 10 mm wide and 7.5 mm thick. 25D-40: two countersunk Ø5.5/through Ø3 holes, three M4 threads, six M3 screws. 25D-50: two countersunk Ø5.5/through Ø3 holes, four M4 threads, two M3 plus four M4 screws. 32D/40D-50: two countersunk Ø7/through Ø4 holes, five M4 threads, six M4 screws. 25D jaw assemblies show six M4 plus six M3 screws; 32D/40D assemblies show twelve M4 screws.
Bare-cylinder underside mounting: 25D and 32D three M4 x 0.7 threads, depth 6; 40D three M5 x 0.8 threads, depth 7.5. Top threads: 25D six M3 x 0.5; 32D and 40D six M4 x 0.7 as labeled by the source. Open/closed illustrated centers: 25D 10/7, 32D 12/8, 40D 13/9. Through holes: 25D/32D three Ø4.5, 40D three Ø5.5. The 40D drawing uses different top and underside thread sizes; both source labels are retained.
Installation and selection
Check the exact model, included components, hole pattern, stroke clearance, workpiece size and air/control-system compatibility. No verified operating pressure, temperature, cycle-life or sensor electrical rating is supplied. Do not use the illustrated grip-force values as a safe working-load specification. Application workpieces are not included.
