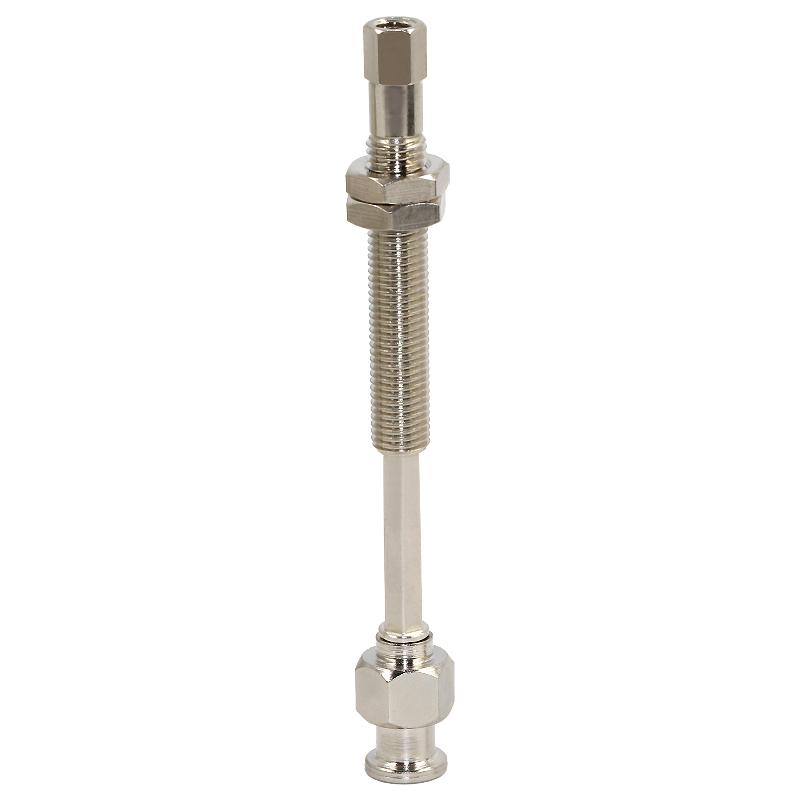

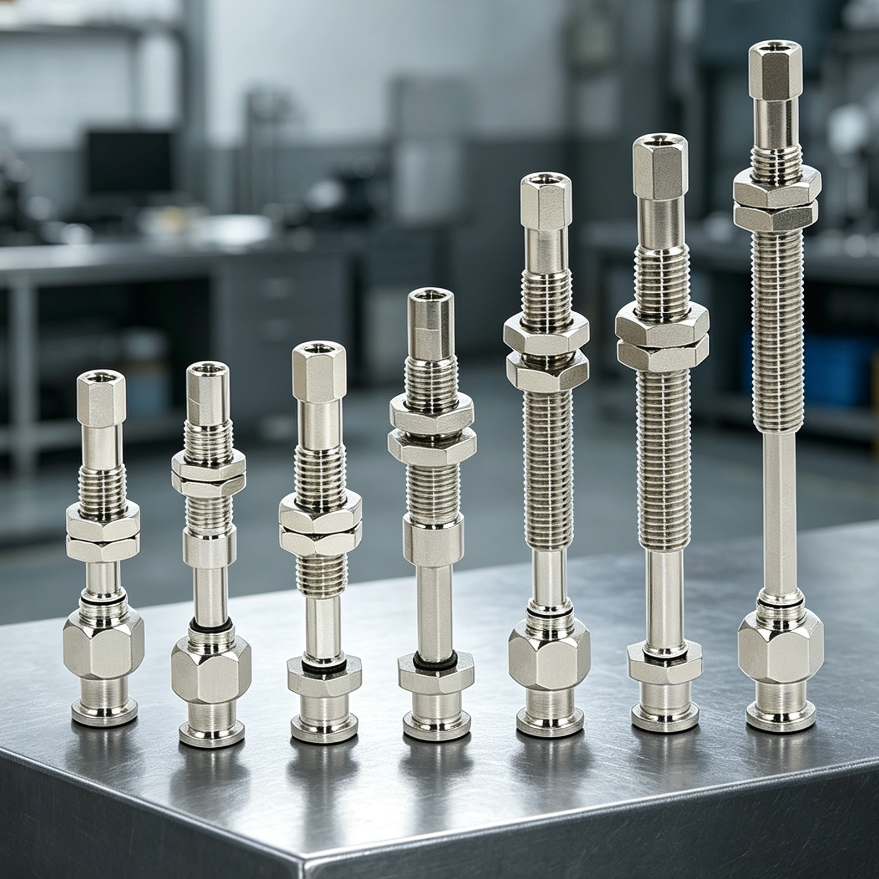

M8 Female-Thread Spring-Loaded Vacuum Cup Holders
Compact spring-loaded holders for industrial vacuum cups, robotic end-of-arm tooling and pneumatic pick-and-place assemblies. Axial compliance helps absorb pickup-height variation and soften contact with the workpiece.
- 32 selectable Long A and Short B configurations
- Rotatable and anti-rotation versions
- 6, 10, 13, 15 and 25 mm stroke options
- M8 x 1.0 mounting thread
- M5 x 0.8 air-port and cup-side connections
- Nickel-plated copper-alloy construction

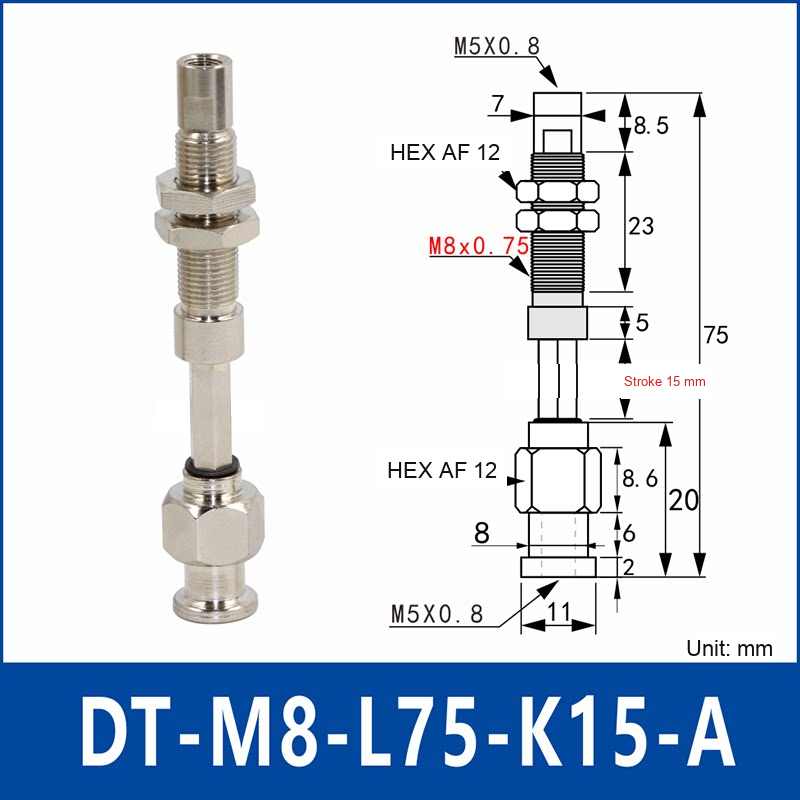

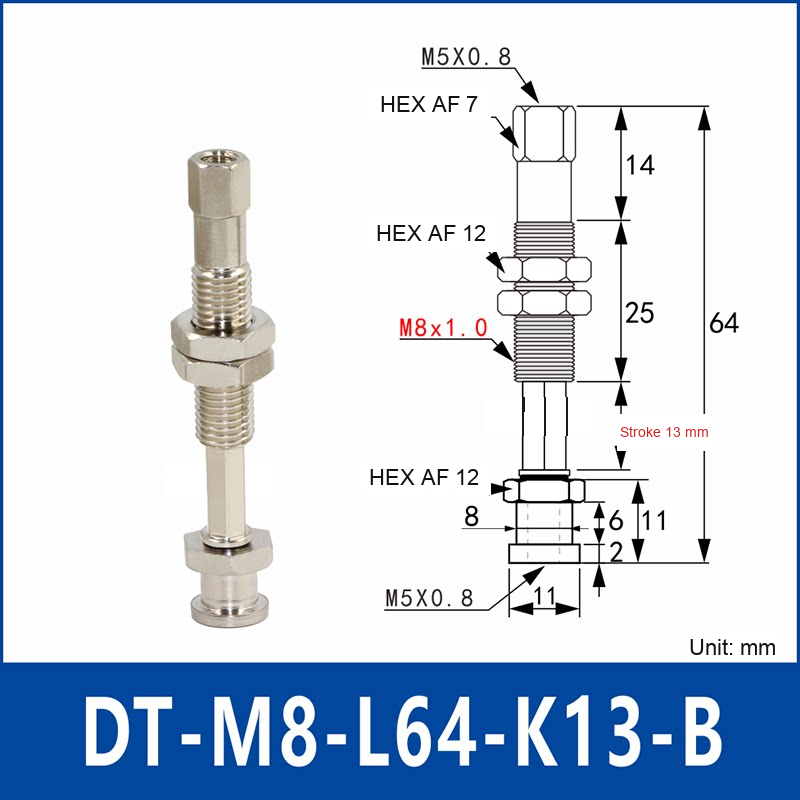

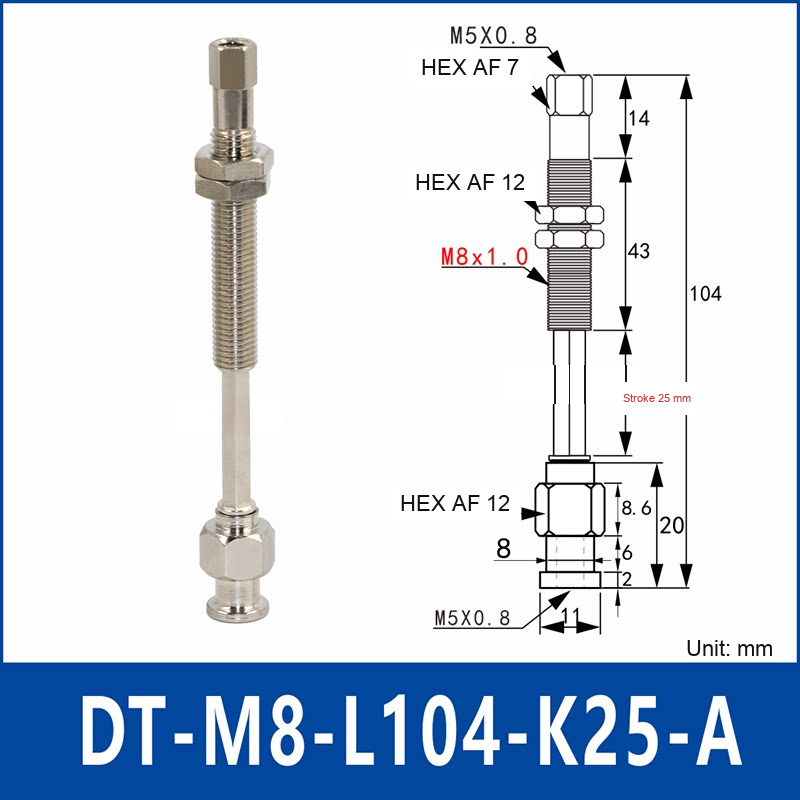

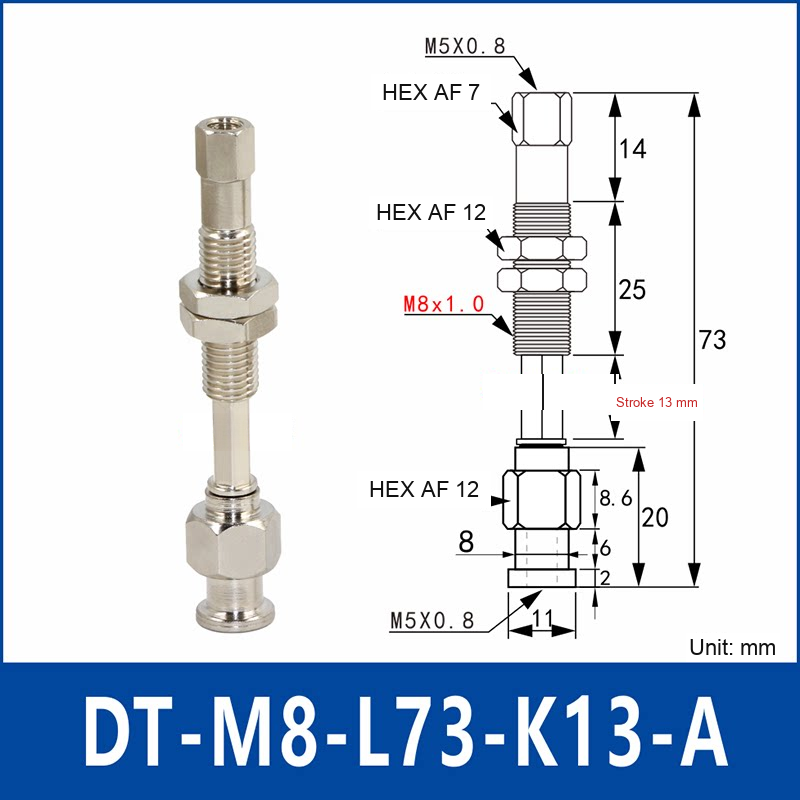

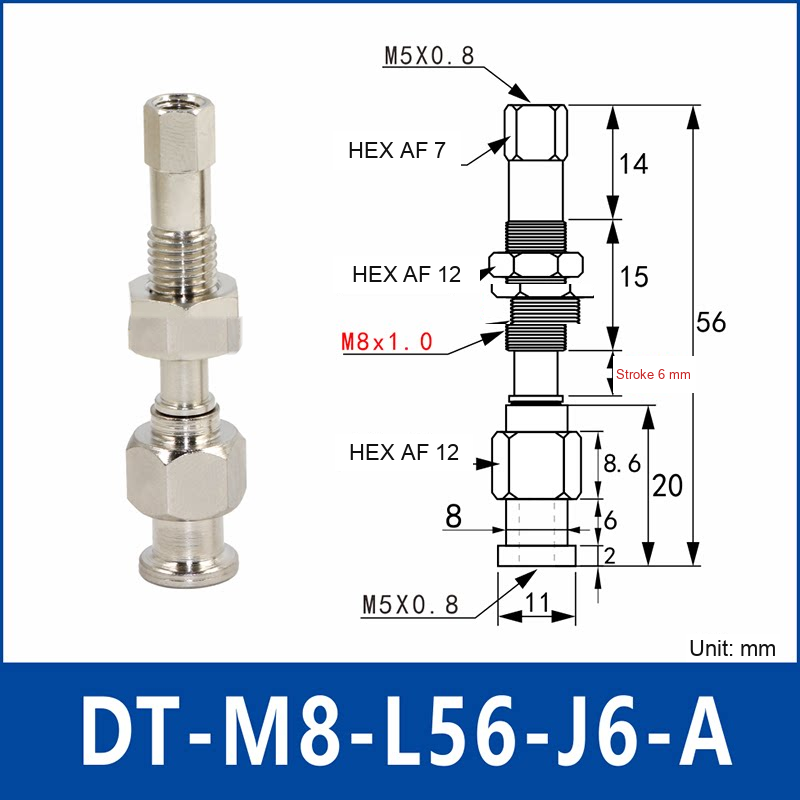

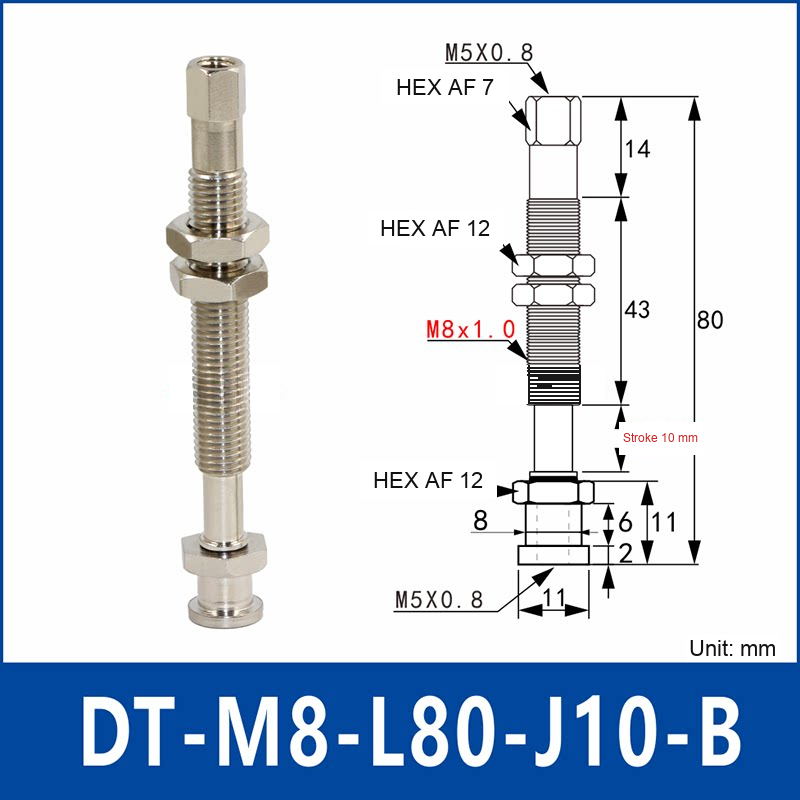

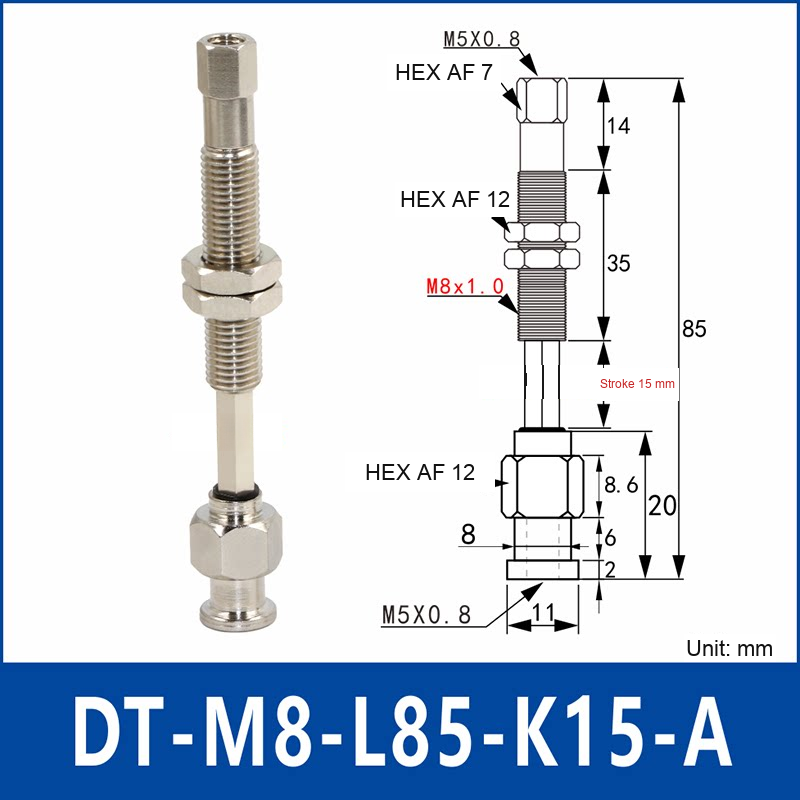

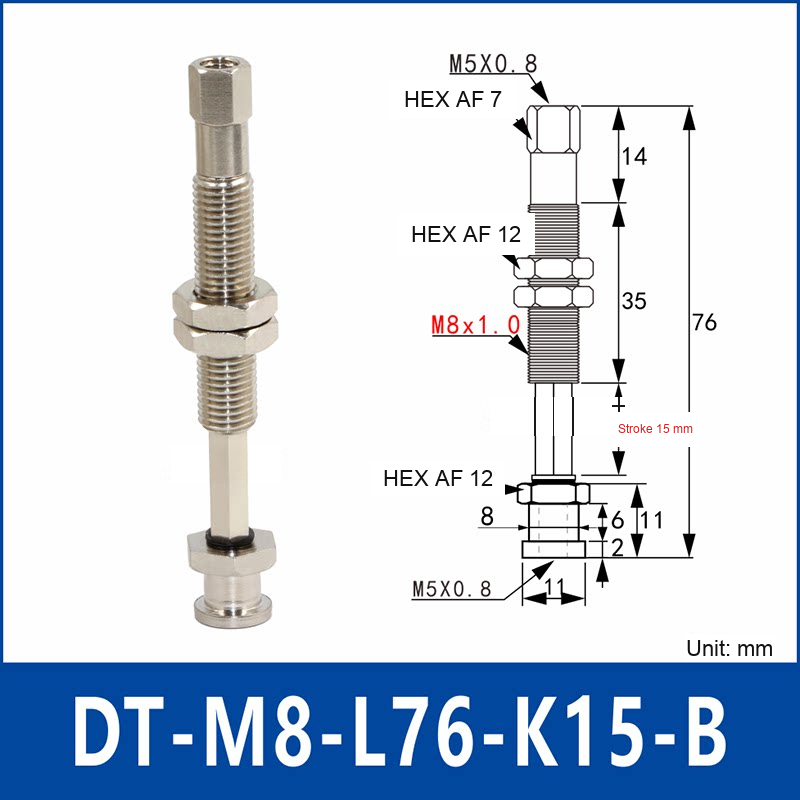

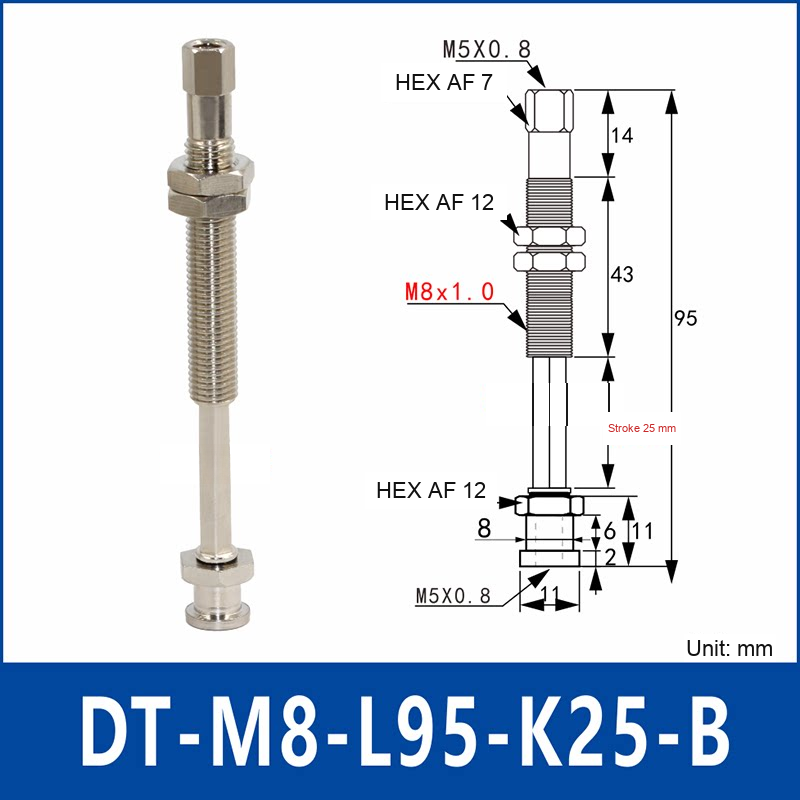

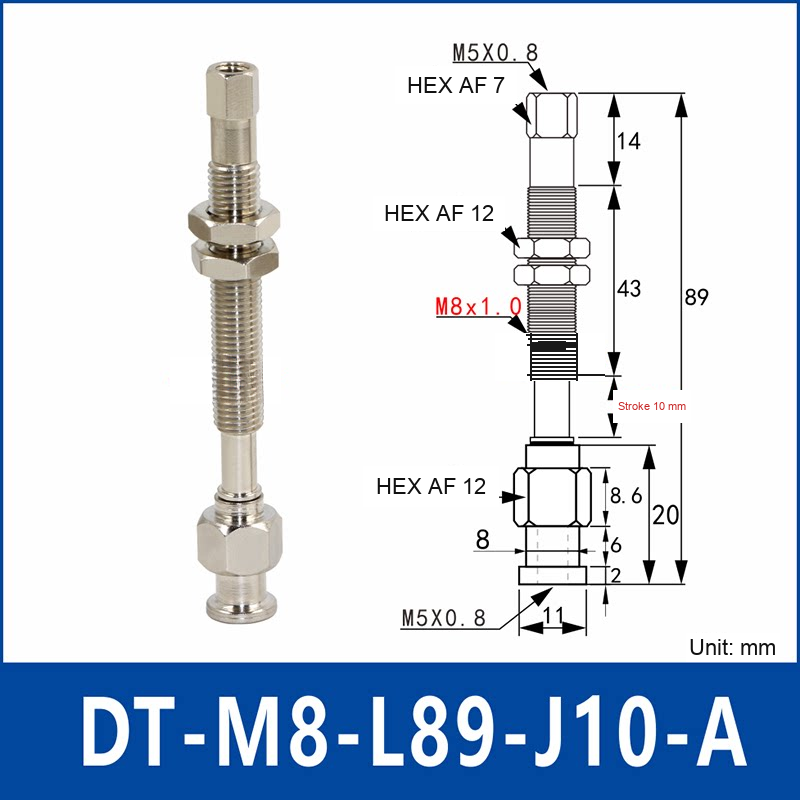

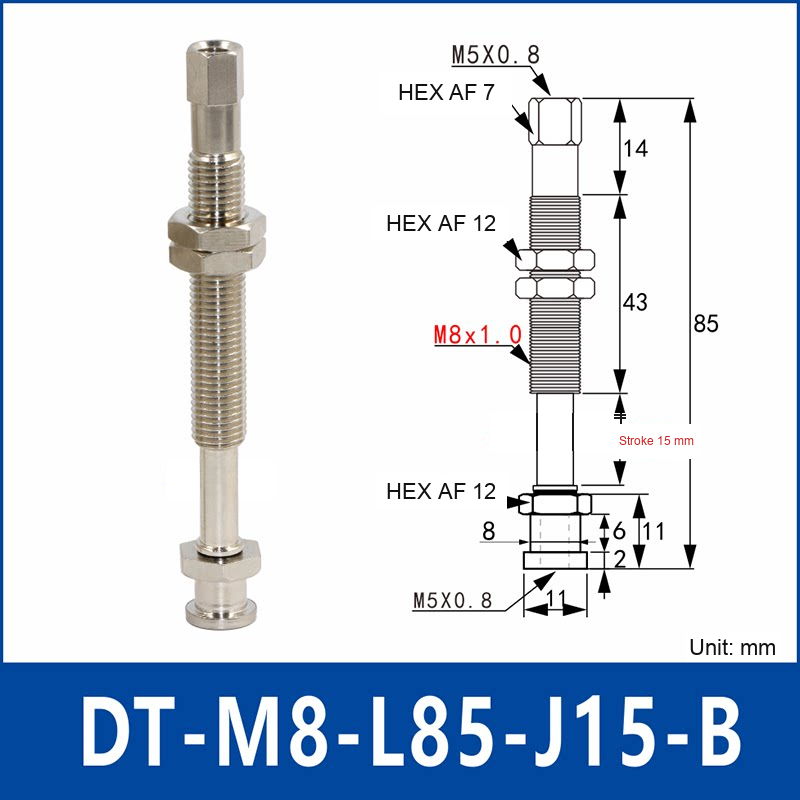

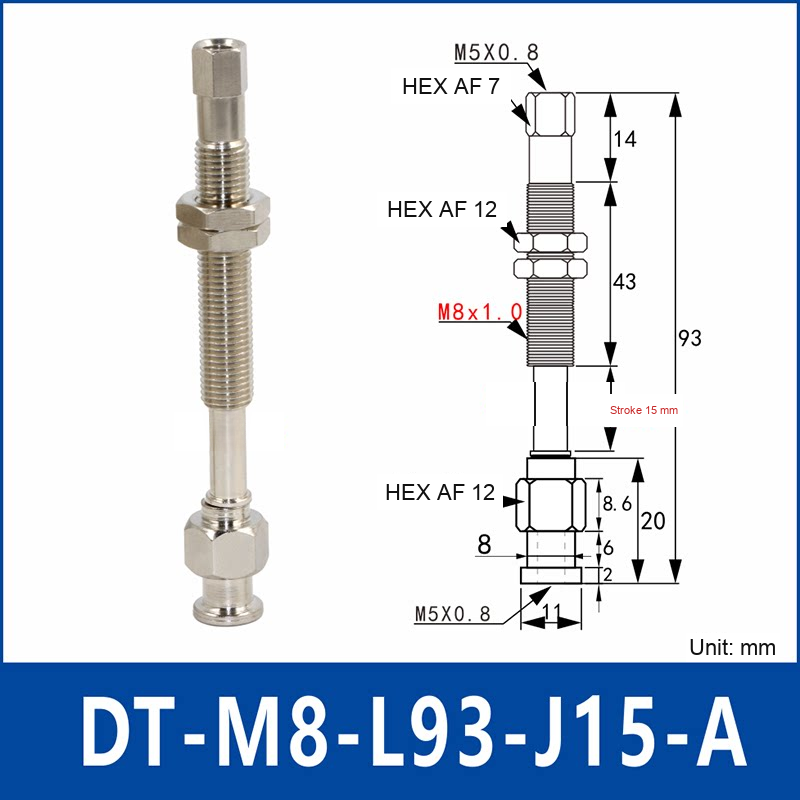

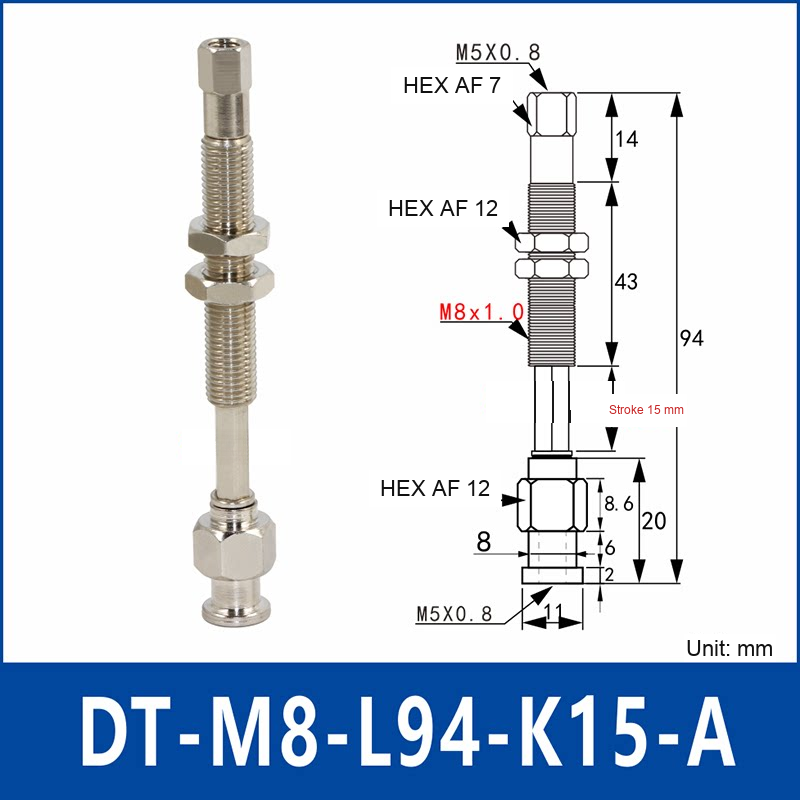

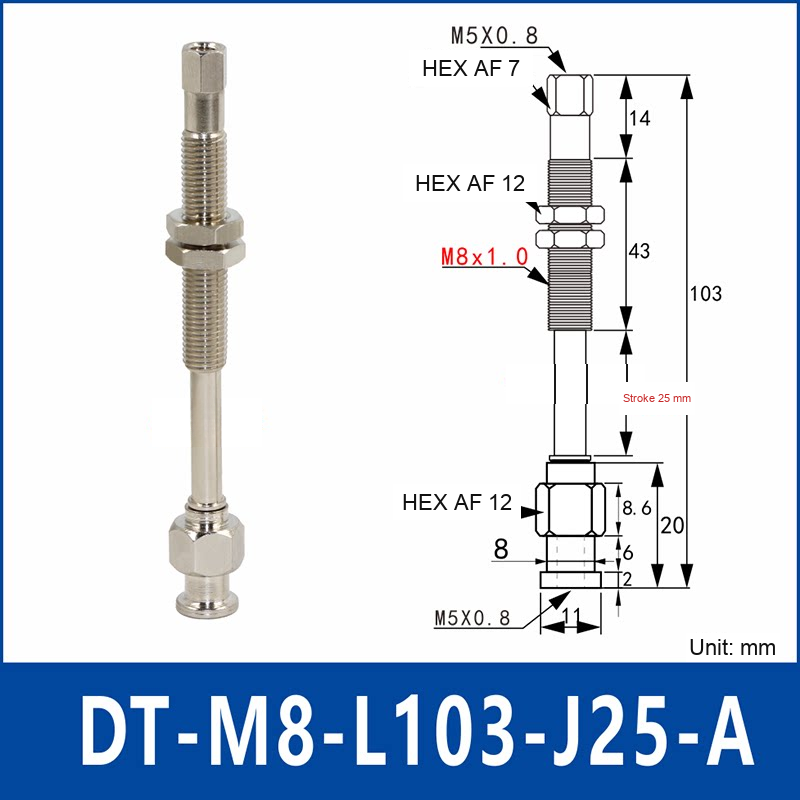

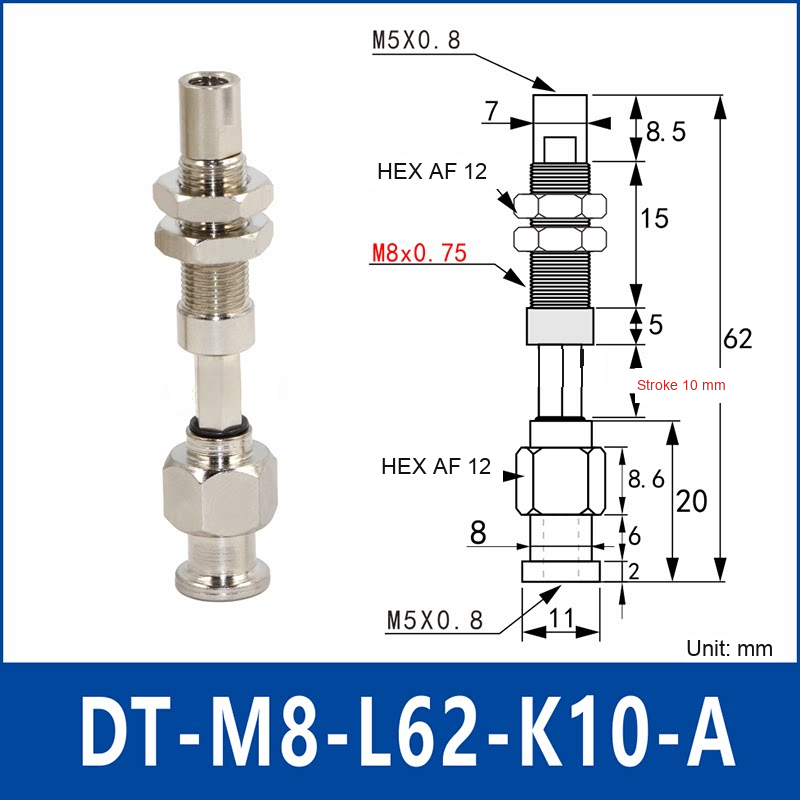

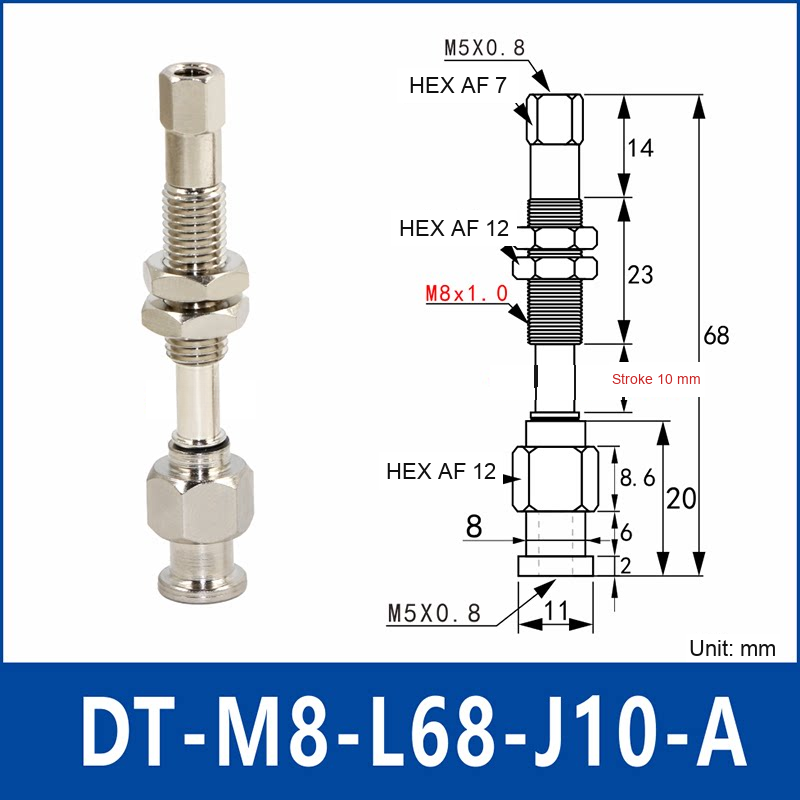

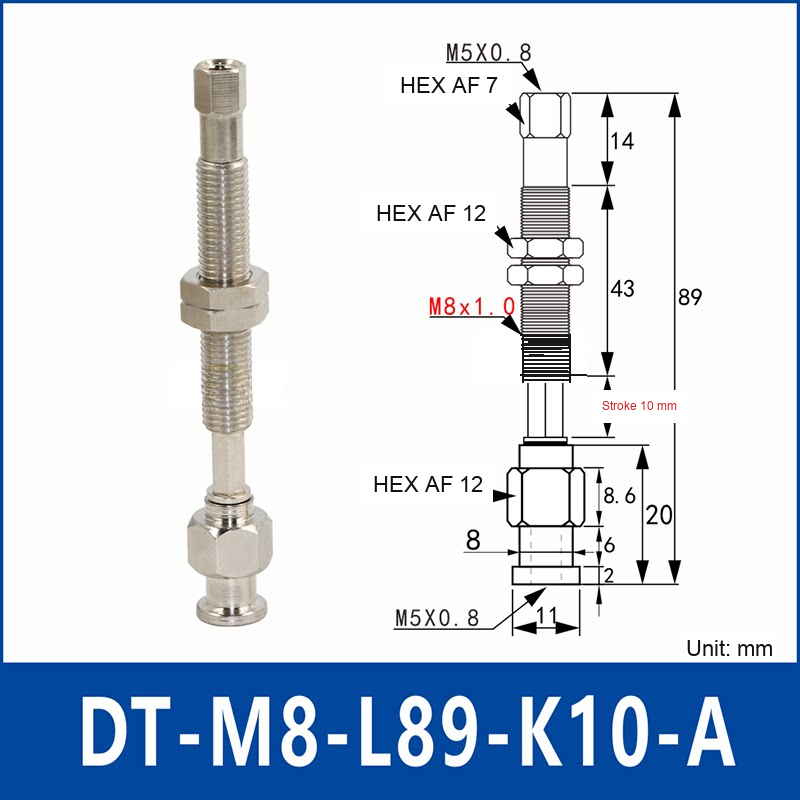

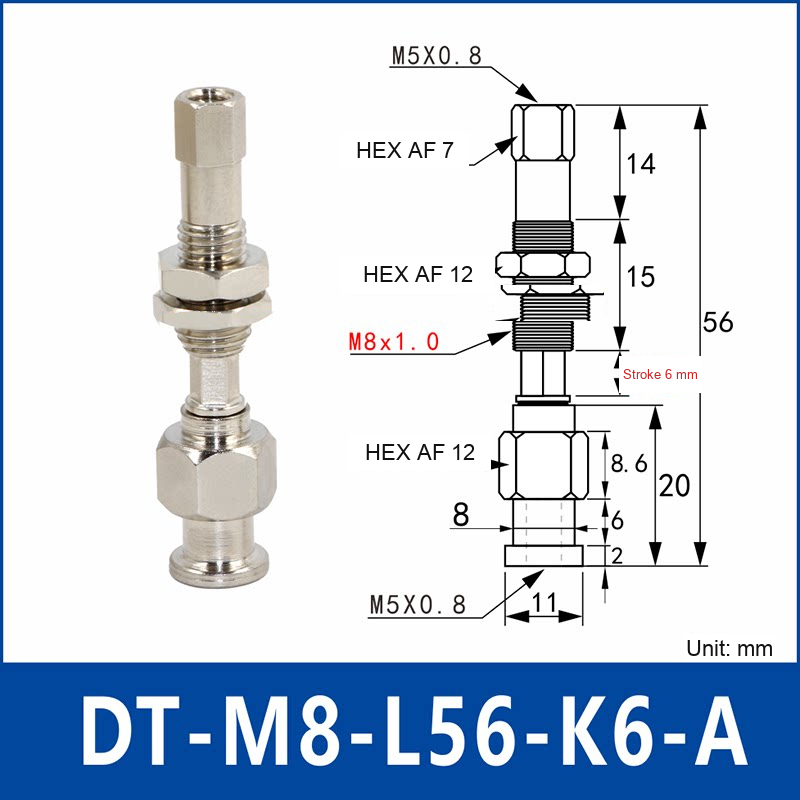

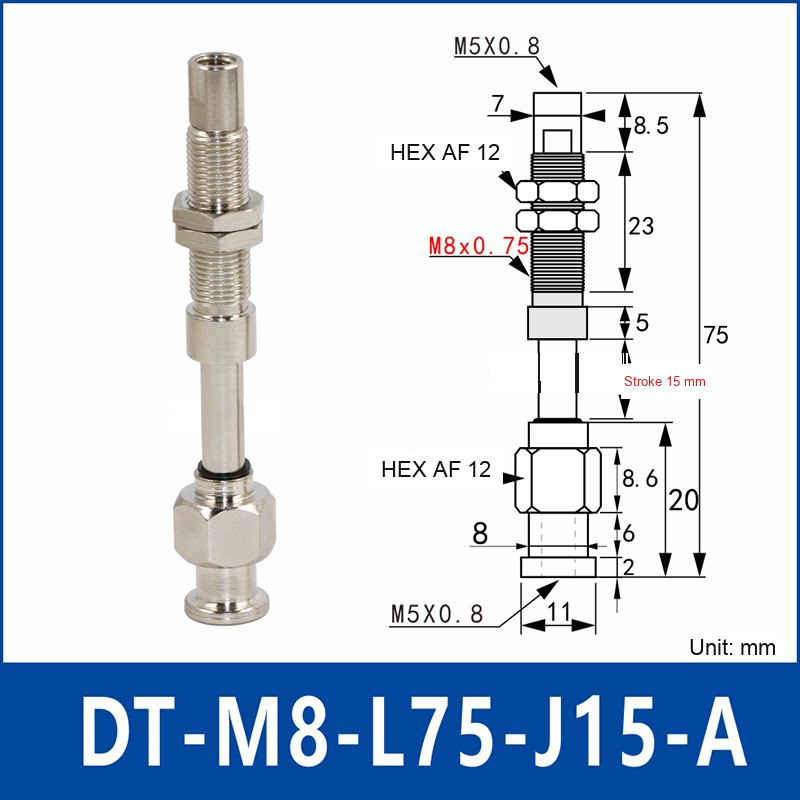

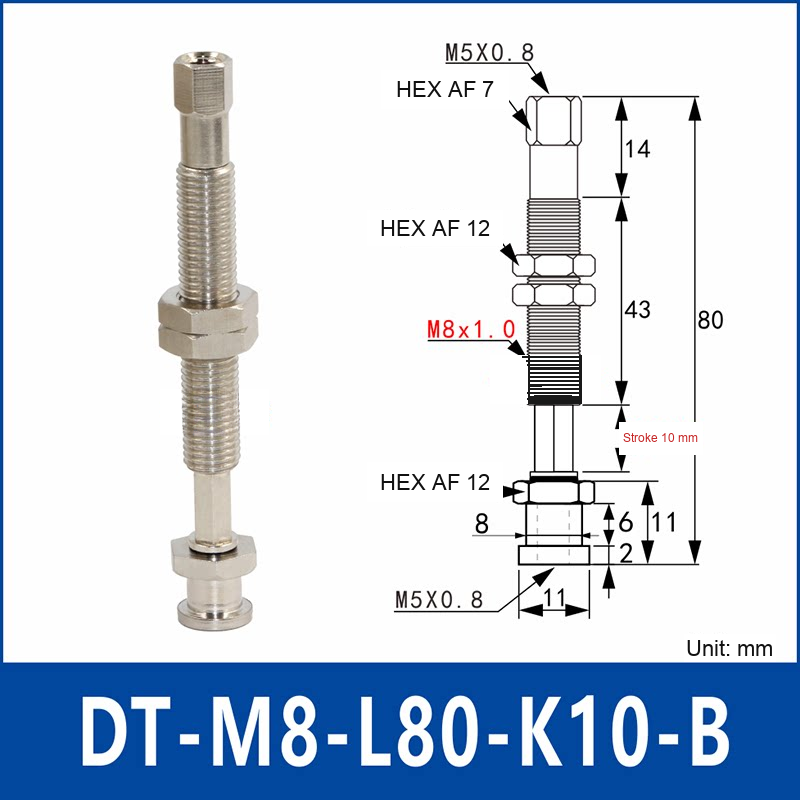

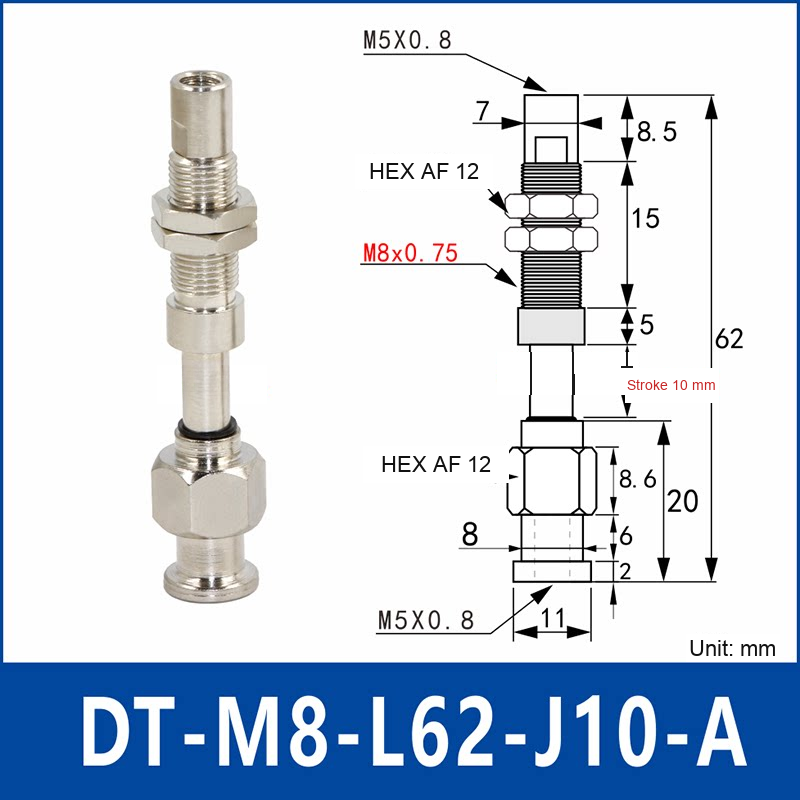

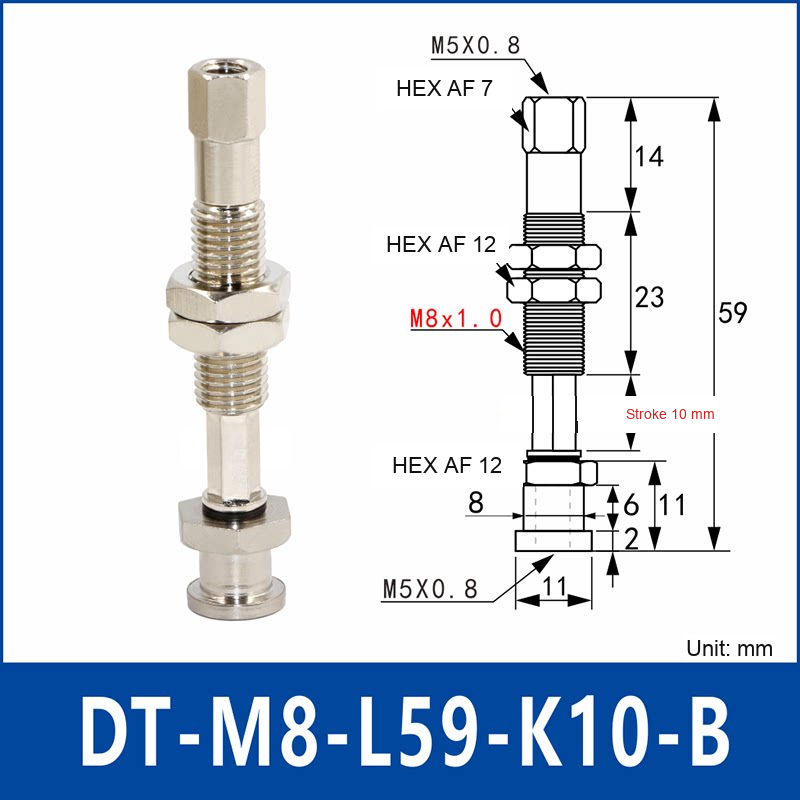

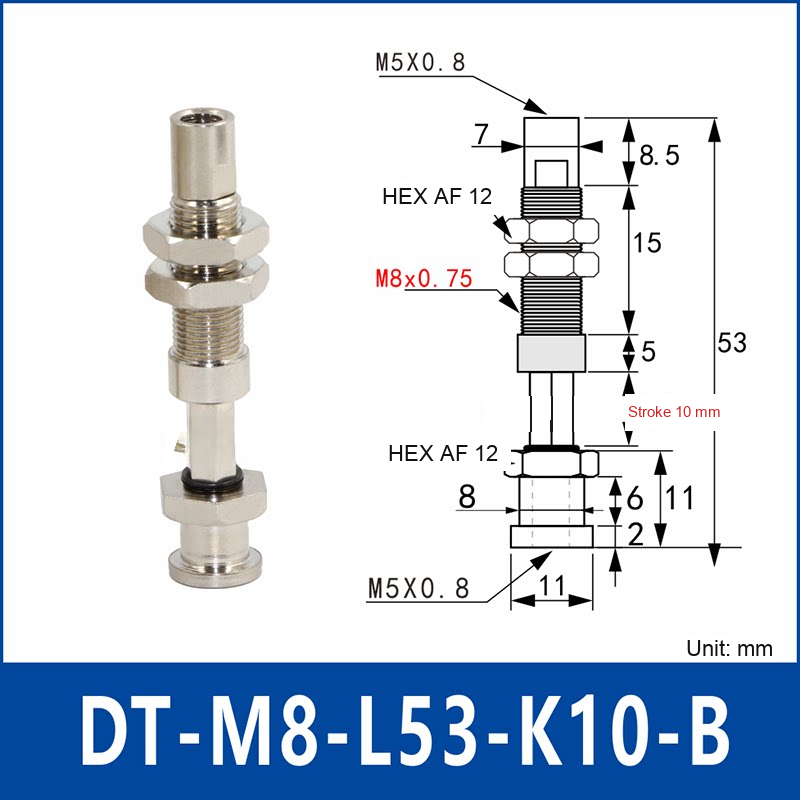

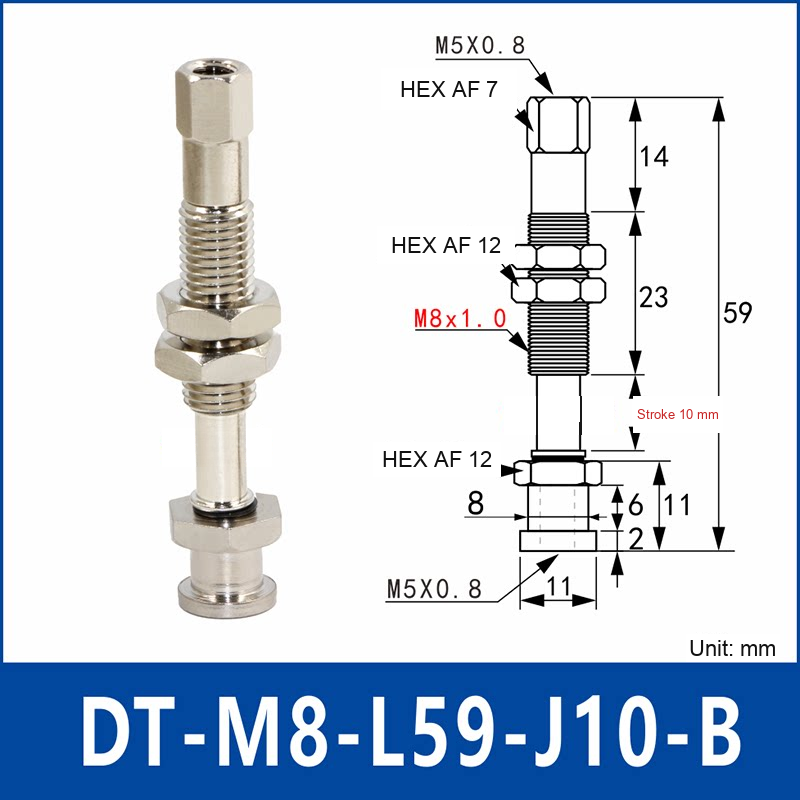

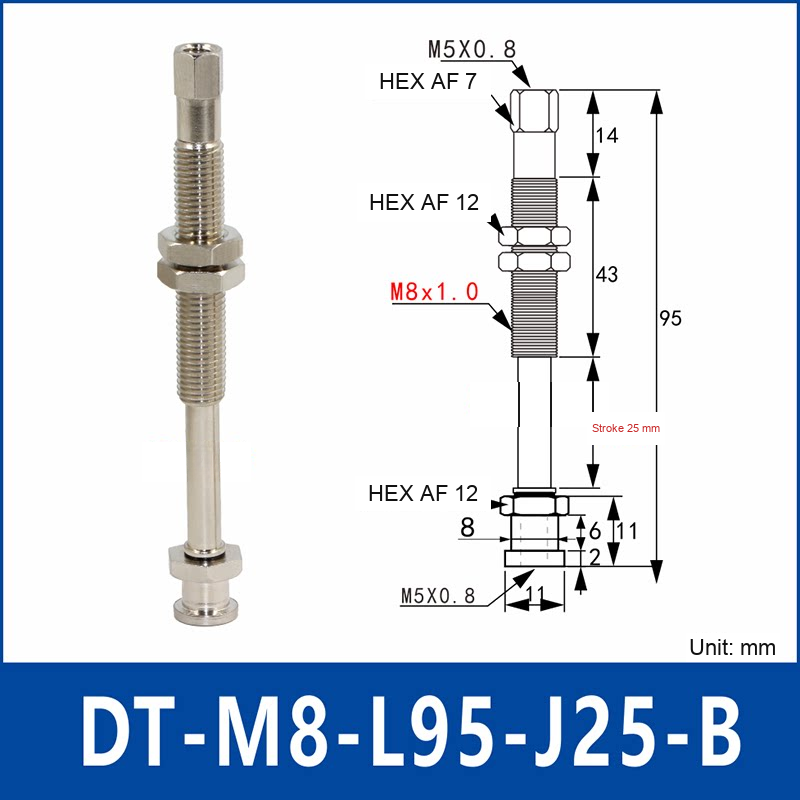

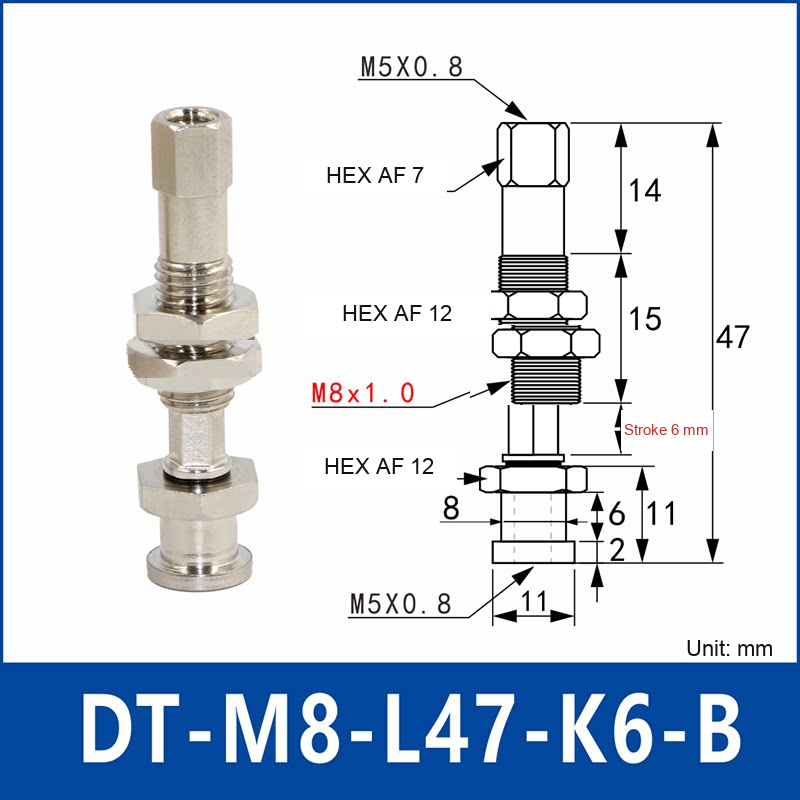

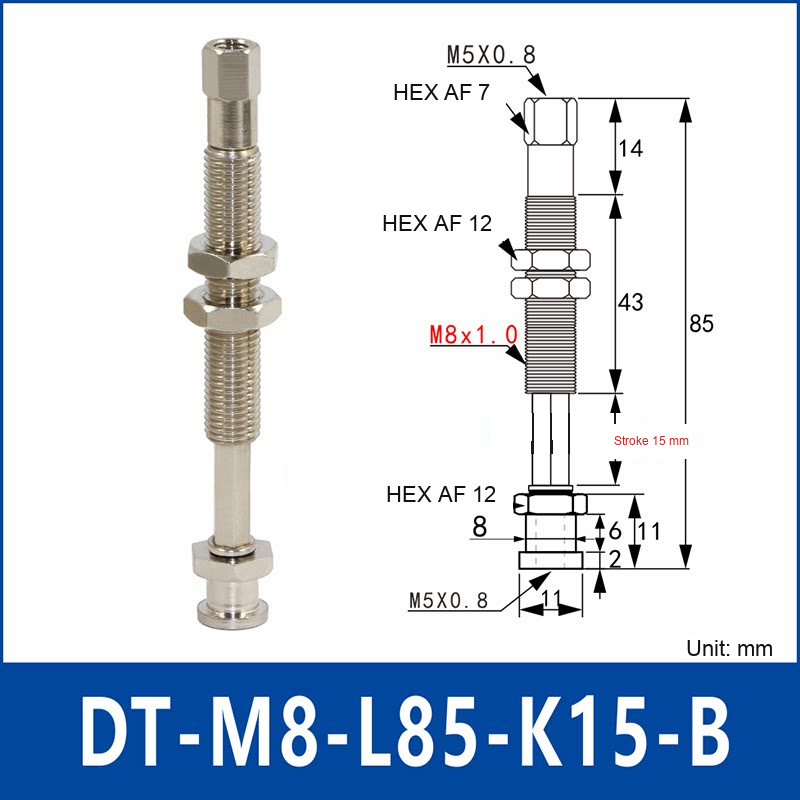

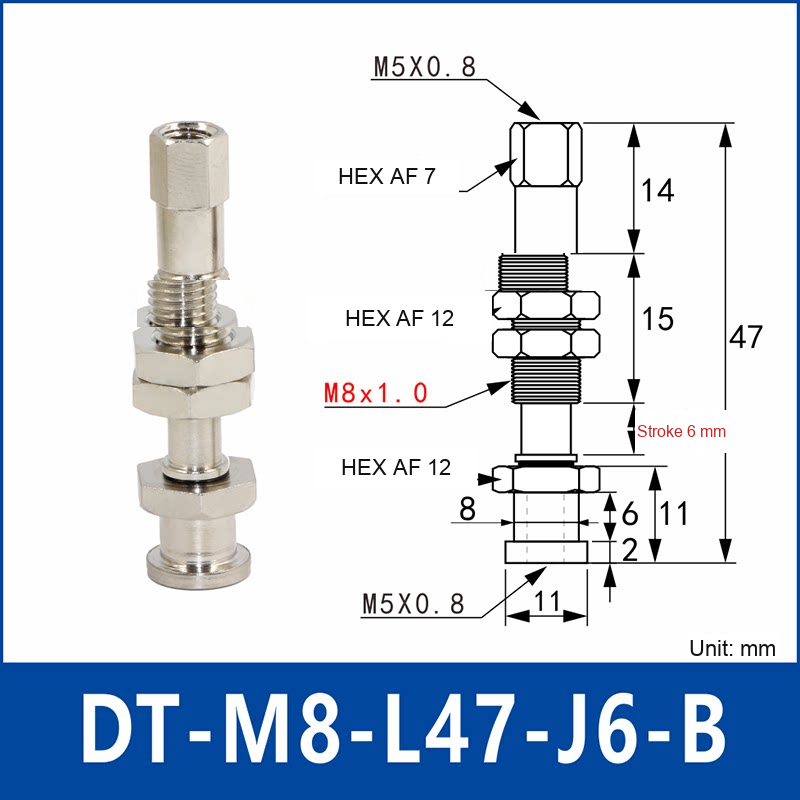

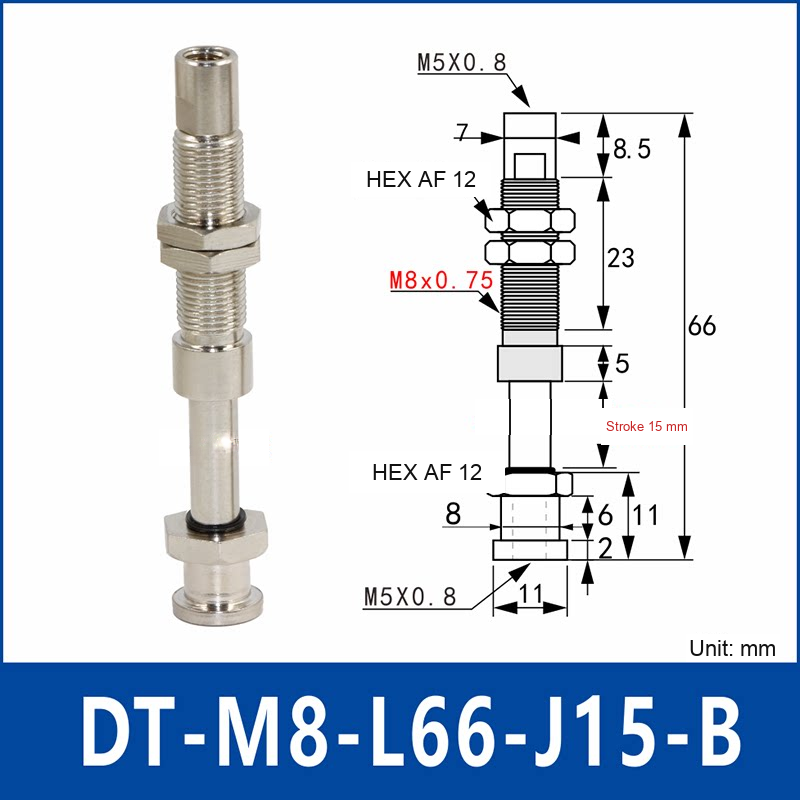

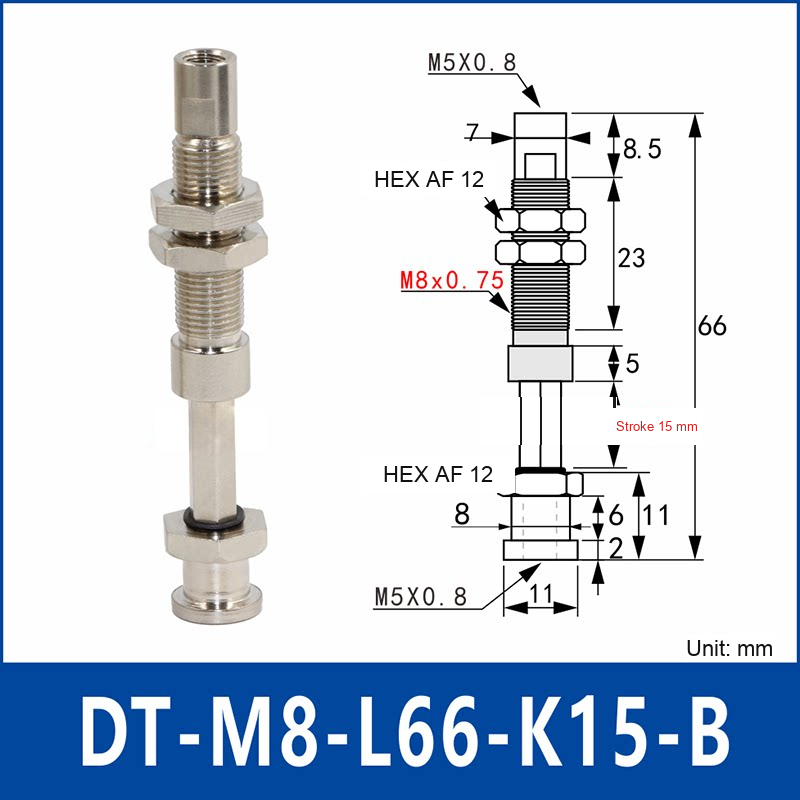

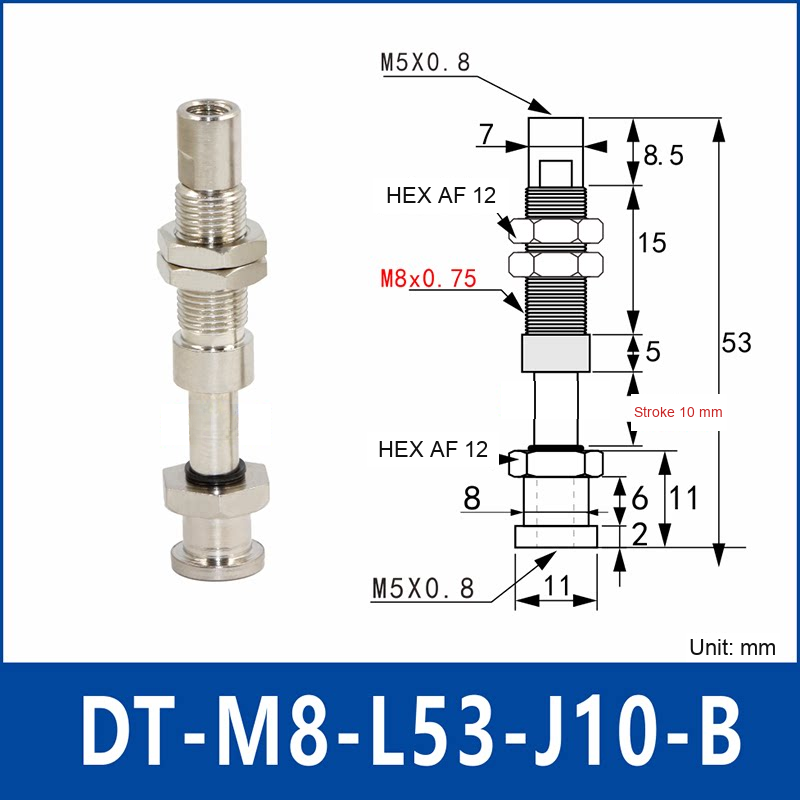

- Overall length, stroke, thread callouts and wrench-flat dimensions are shown for each selectable model
Applications / Suitable For
- Vacuum pick-and-place and component transfer
- Robotic end-of-arm tooling that needs compact axial compliance
- Packaging, assembly, sorting and general industrial automation
Confirm the selected model code, rotation type, connector length, stroke, threads, cup compatibility, vacuum level, payload, acceleration and operating environment before use. No food-contact, medical, lifting-safety or regulatory certification is claimed.
