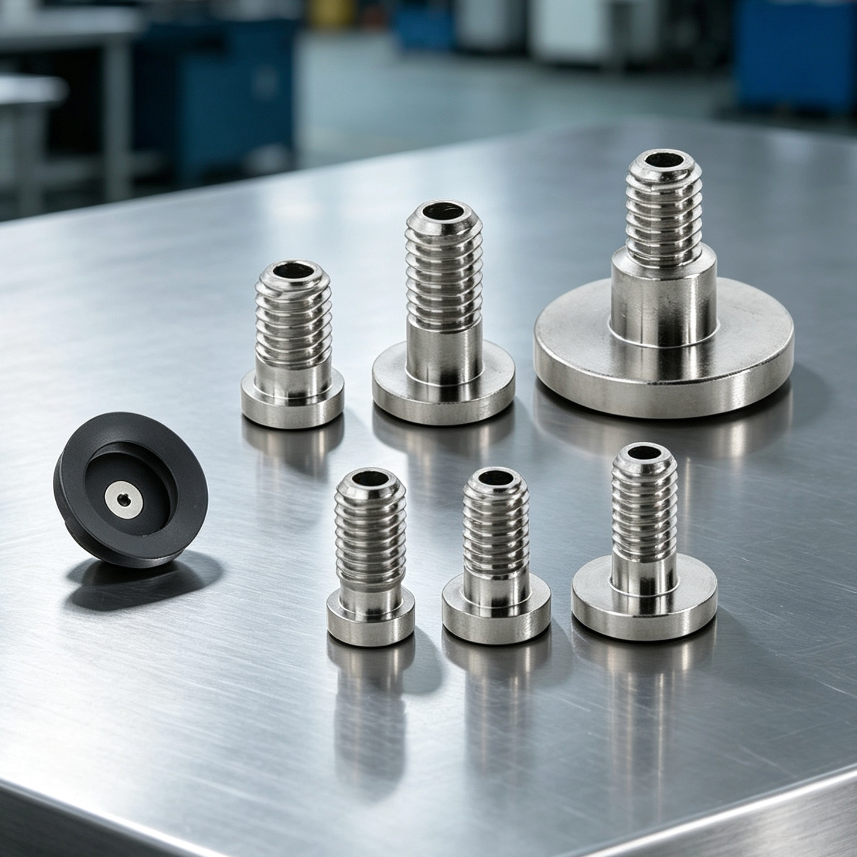

M5/M6 Vacuum Cup Threaded Fittings and G1/8 Adapter
Nickel-plated brass threaded fittings for compatible PFG/PJG-series vacuum cups and compact industrial vacuum handling assemblies. Select the exact model code and verify every dimension in its model-specific drawing before installation.
- 10 exact model configurations with M5 or M6 mounting threads
- Straight body codes 6, 8, 11, 15 and 20, plus extended 8L and 11L types

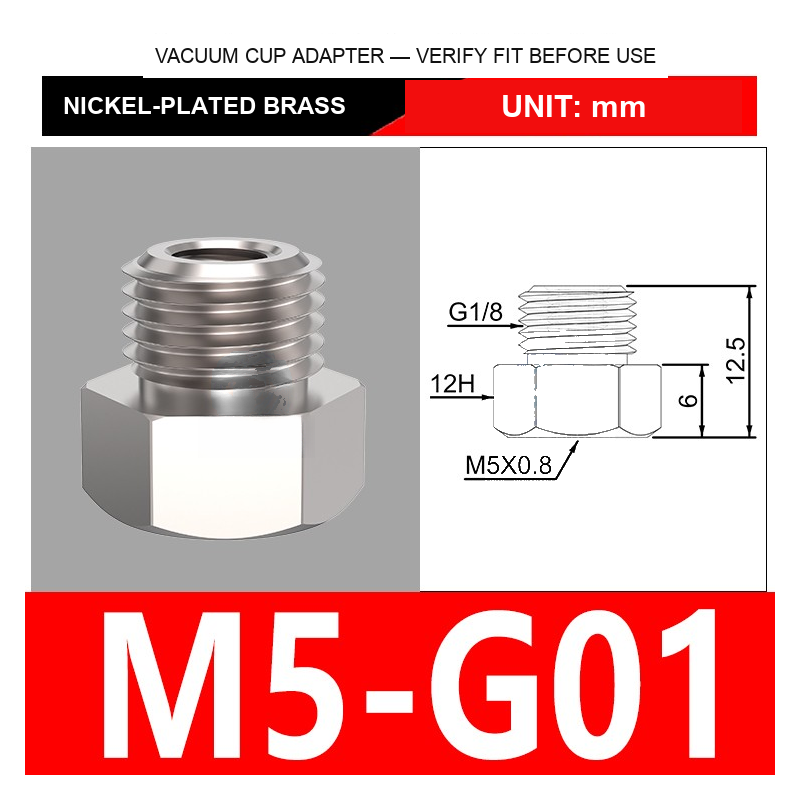

- M5-G01 adapter drawing shows G1/8, M5 x 0.8 and 12H specifications
- Nickel-plated brass construction
- Product images show technical dimensions, model codes and across-flat values
- Model-specific product and dimensional images are provided
M5/M6 fittings: straight, extended or adapter
This listing supplies threaded fittings rather than a complete vacuum gripping system. Select the straight-body, extended-body or M5-G01 adapter configuration that matches both mating components.
| Selection detail | What to check |
|---|---|
| M5-8 versus M5-8L | Compare the standard and extended body dimensions and thread engagement. |
| M5-G01 | Check the drawing's G1/8 and M5 x 0.8 interfaces; do not treat it as an ordinary straight M5 fitting. |
| M6-8 / M6-11 / M6-15 / M6-20 | Match length, thread pitch and tool access as well as the M6 designation. |
Does a matching thread diameter prove cup compatibility?
No. Thread pitch, gender, sealing face, engagement and the cup's mating geometry all need to match.
Related selection references
Compare the drawings and intended function; these references are not a statement of direct interchangeability.
Applications / Suitable For
- Compact pick-and-place, packaging and assembly equipment
- Robotic end-of-arm tooling using compatible threaded vacuum cups
- Replacement fittings and adapters for dimensionally compatible vacuum assemblies
Confirm the selected model drawing, thread pitch, across-flats dimension, mating part, sealing method, vacuum level, load, acceleration and operating environment before use. Compatibility is dimensional and must be verified; no food-contact, medical, lifting-safety or regulatory certification is claimed.
Model / configuration / SKU
| Model / configuration | SKU |
|---|---|

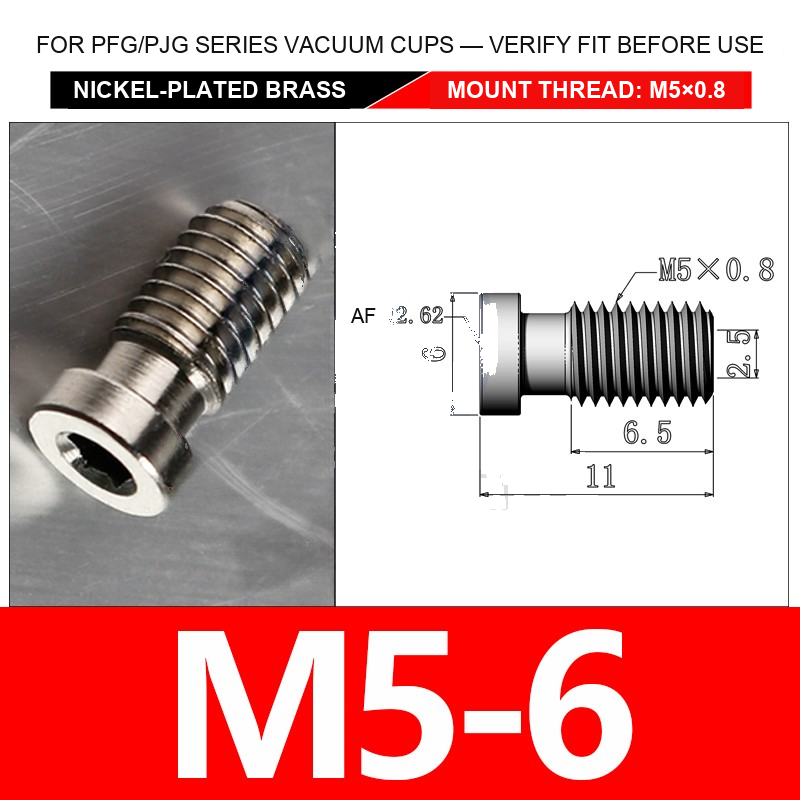

| M5-6 | 4548004417746 |

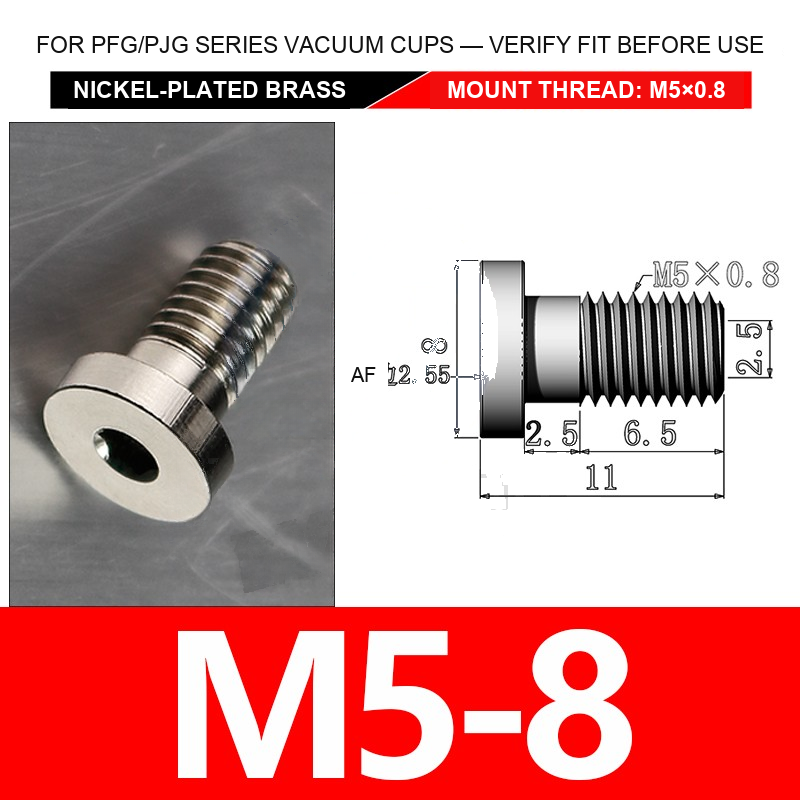

| M5-8 | 4548004417747 |

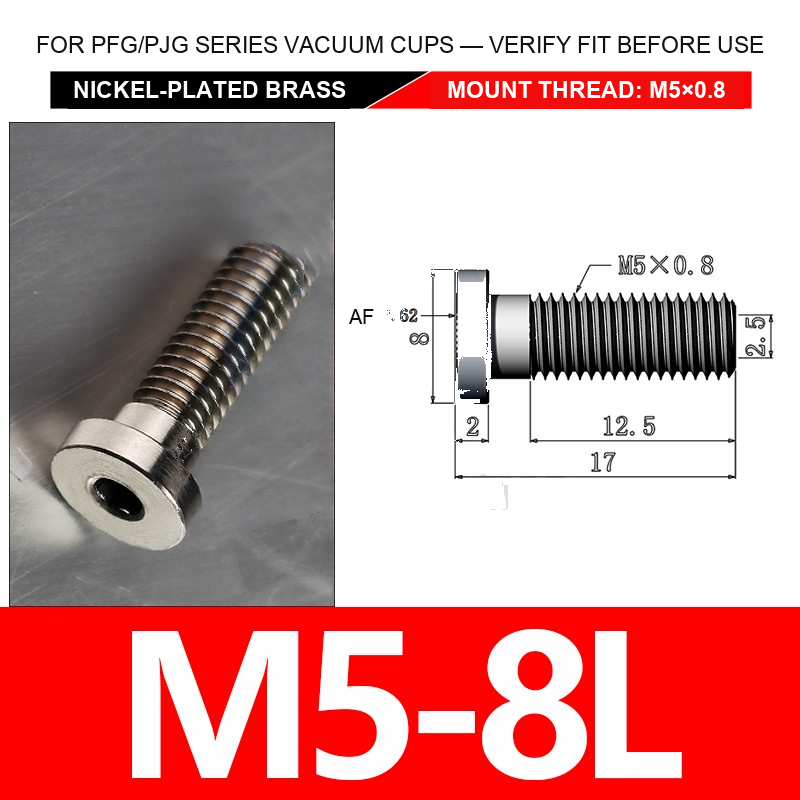

| M5-8L | 4924303411091 |

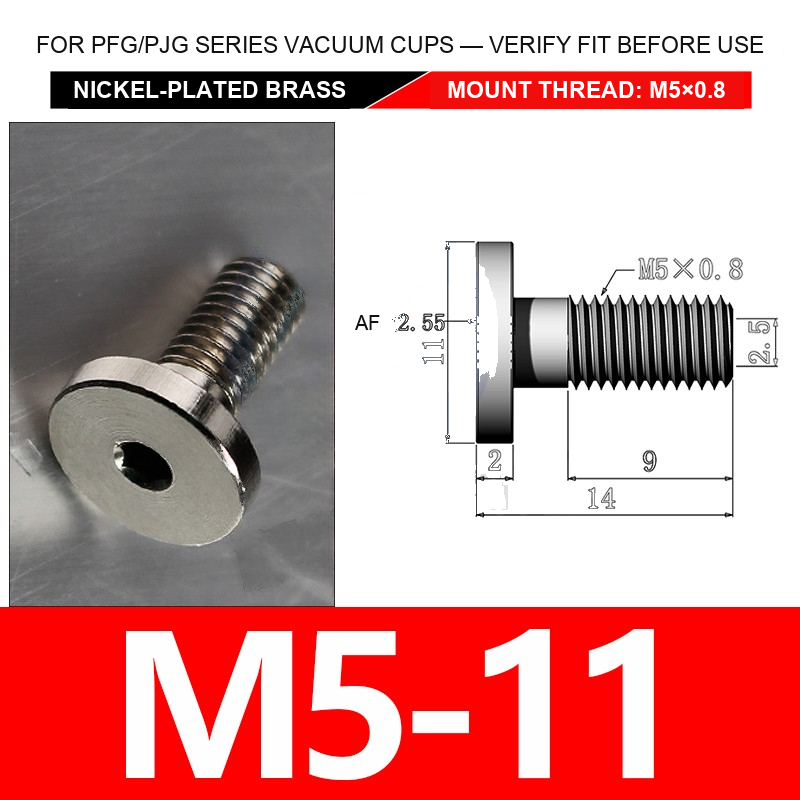

| M5-11 | 4548004417748 |

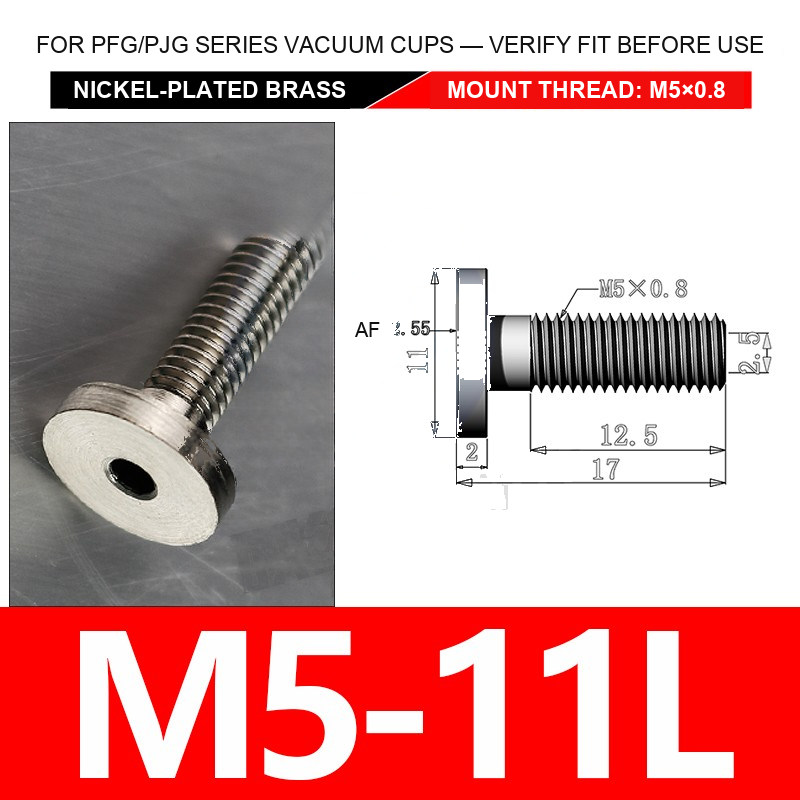

| M5-11L | 4924303411092 |
| M5-G01 | 5942989383061 |

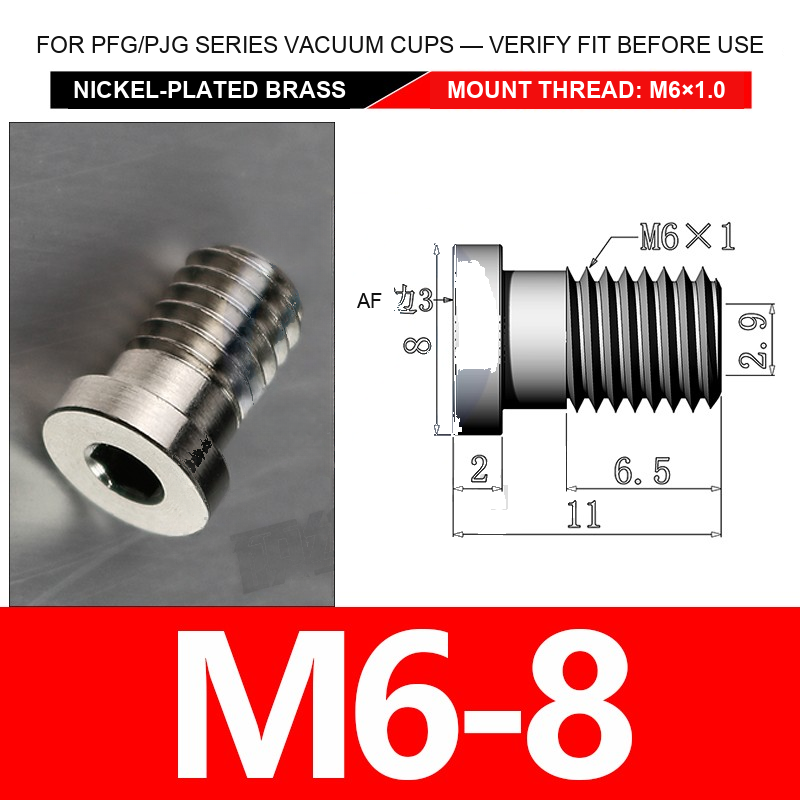

| M6-8 | 4548004417749 |

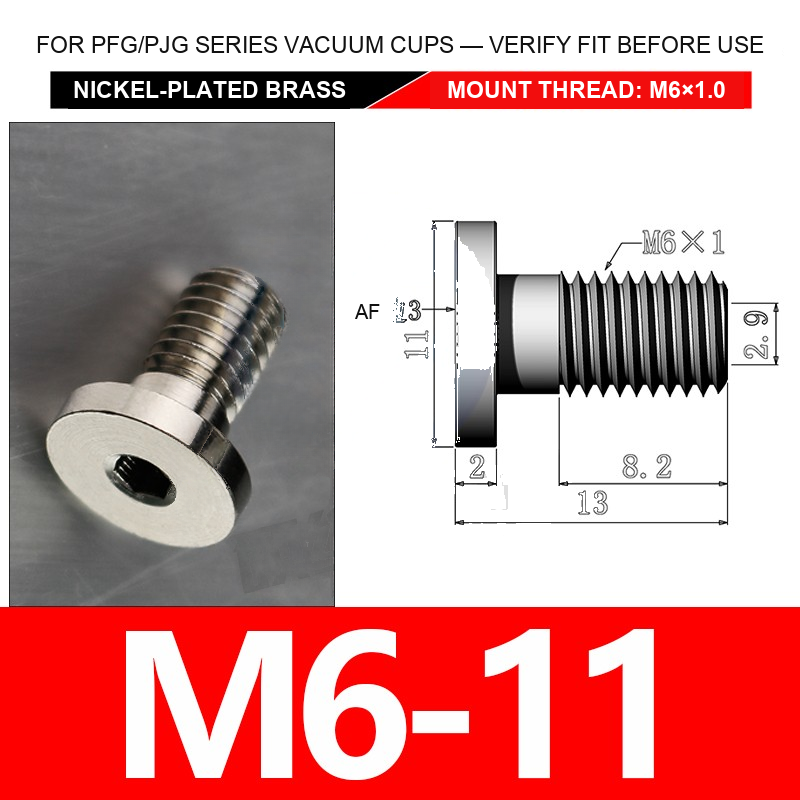

| M6-11 | 4548004417750 |

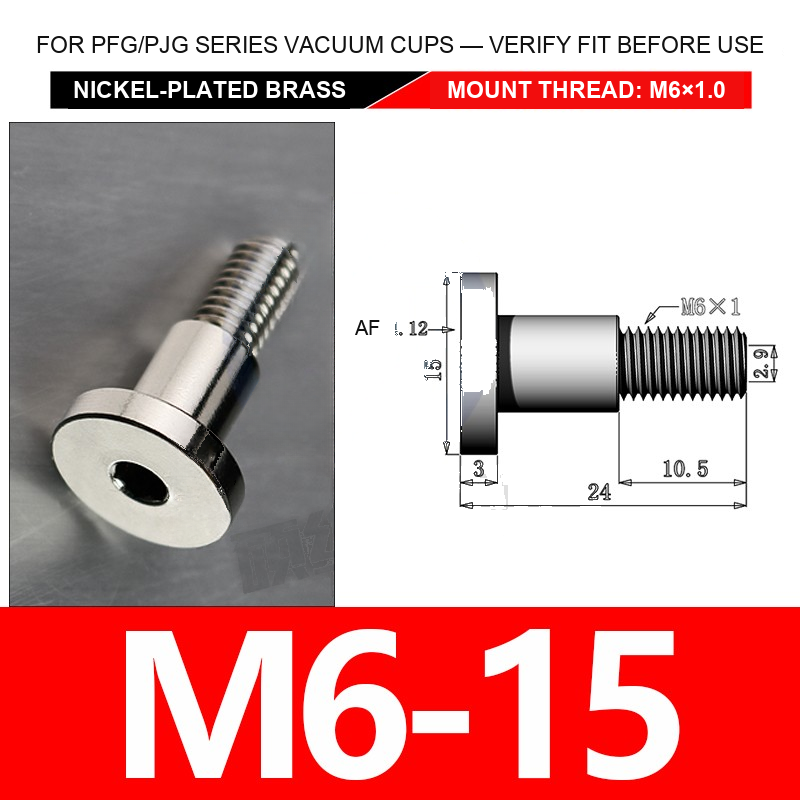

| M6-15 | 4861104698945 |

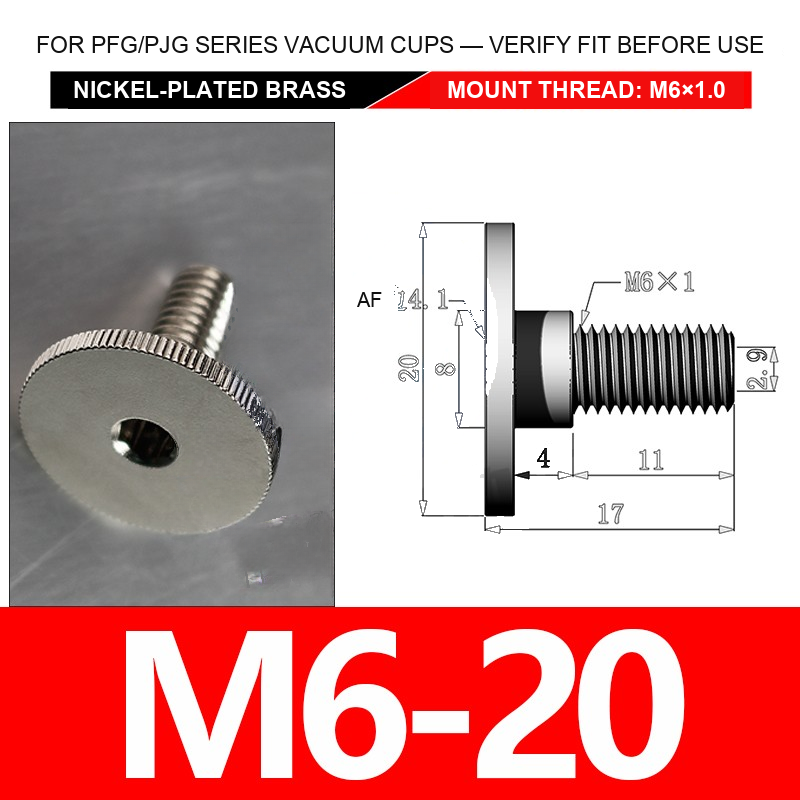

| M6-20 | 4548004417751 |
