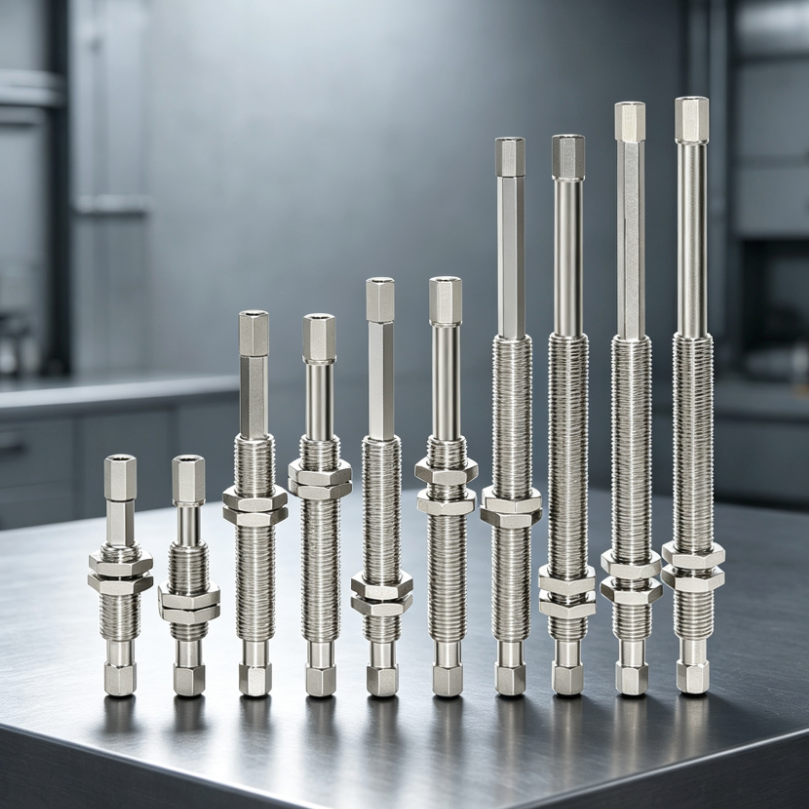

M5 Double-Female Spring-Loaded Vacuum Cup Holders, Swivel and Anti-Rotation, 10-51 mm Stroke

M5 Double-Female Spring-Loaded Vacuum Cup Holders

Compact spring-loaded holders for compatible industrial vacuum handling, robotic end-of-arm tooling and pick-and-place assemblies. Select a swivel J configuration for rotational compliance or an anti-rotation K configuration when the holder orientation must remain fixed.

• 11 selectable model configurations
• Spring stroke options shown in the drawings: 10, 21, 31, 41 and 51 mm
• Swivel J and anti-rotation K configurations
• B5 M5 x 0.8 female threaded connections at both ends
• M10 x 1 threaded mounting body
• Nickel-plated brass construction
• 7 mm and 14 mm across-flat wrench dimensions

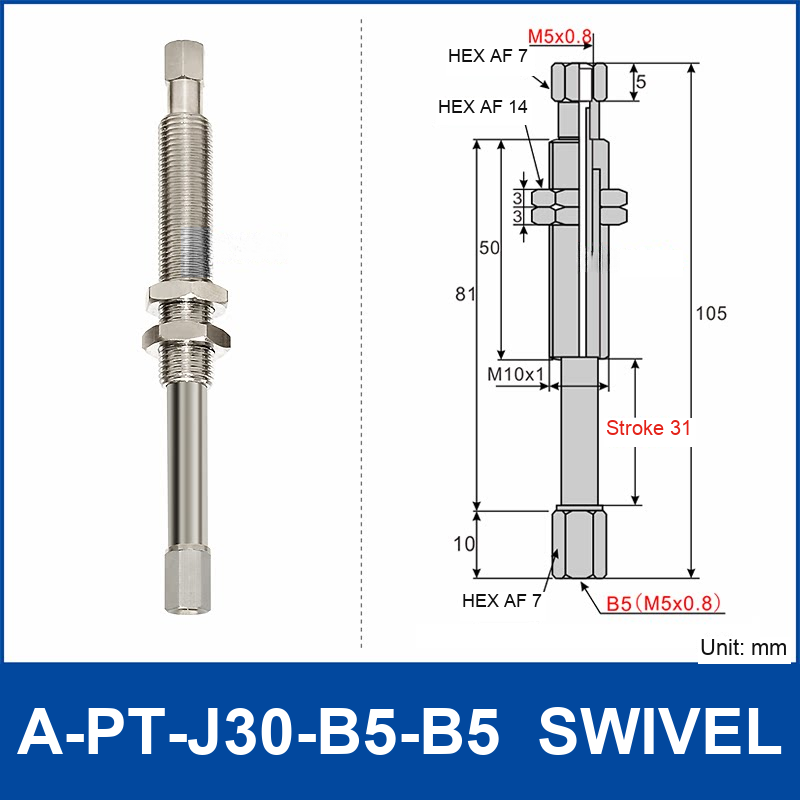

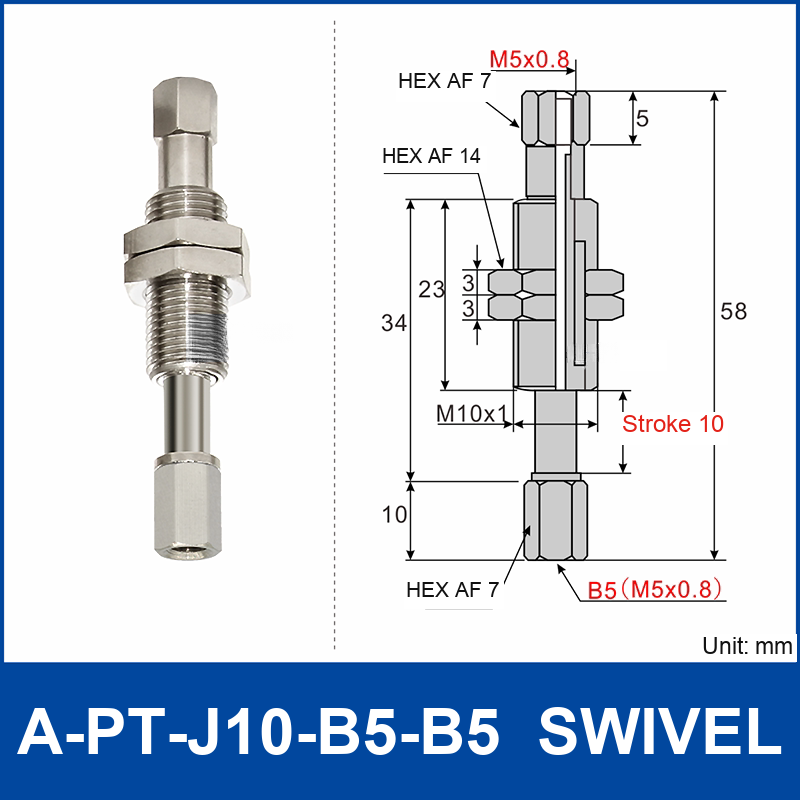

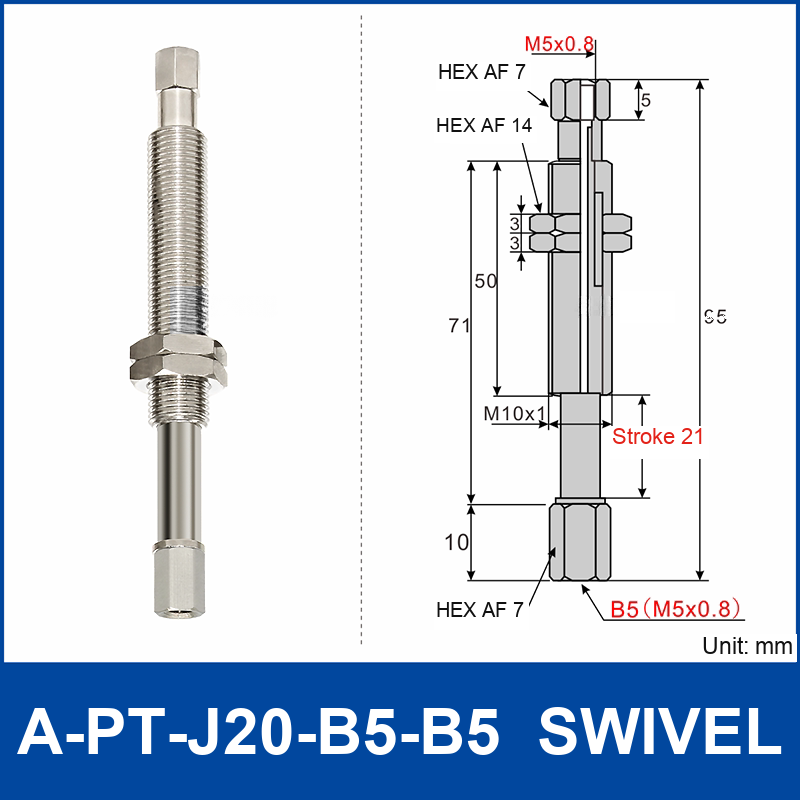

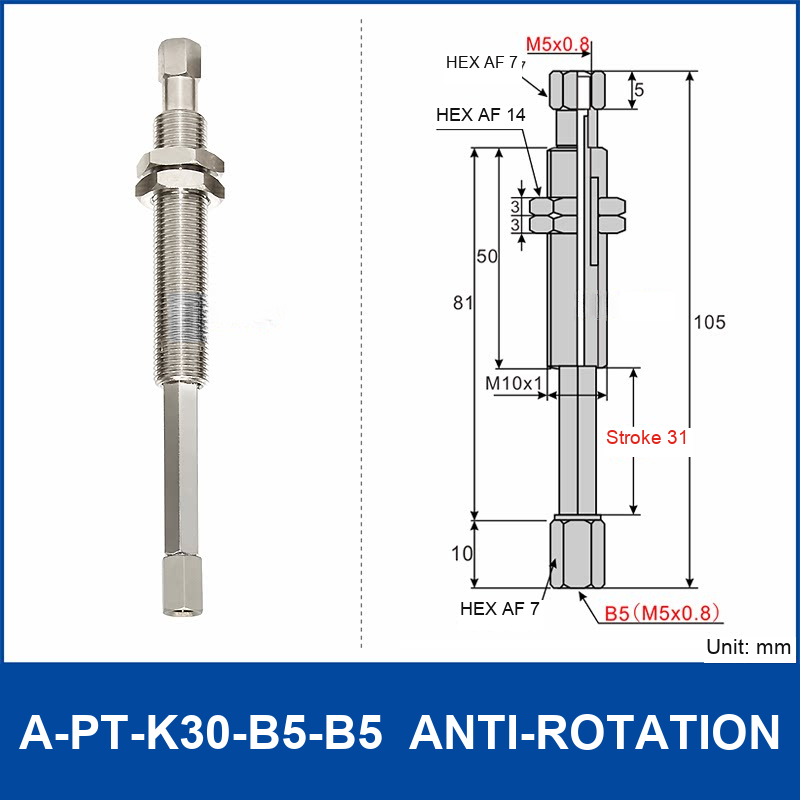

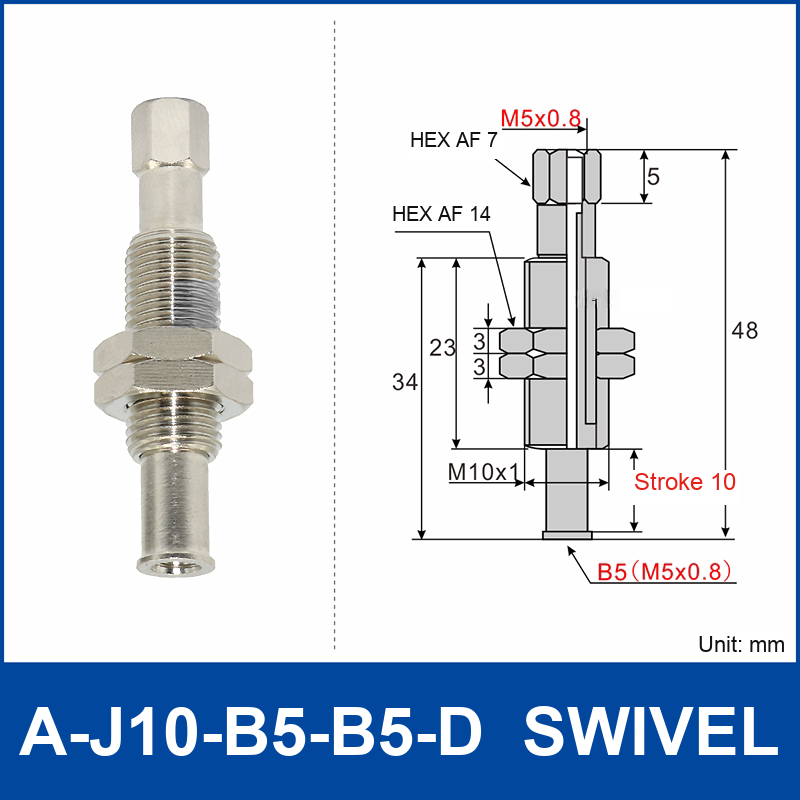

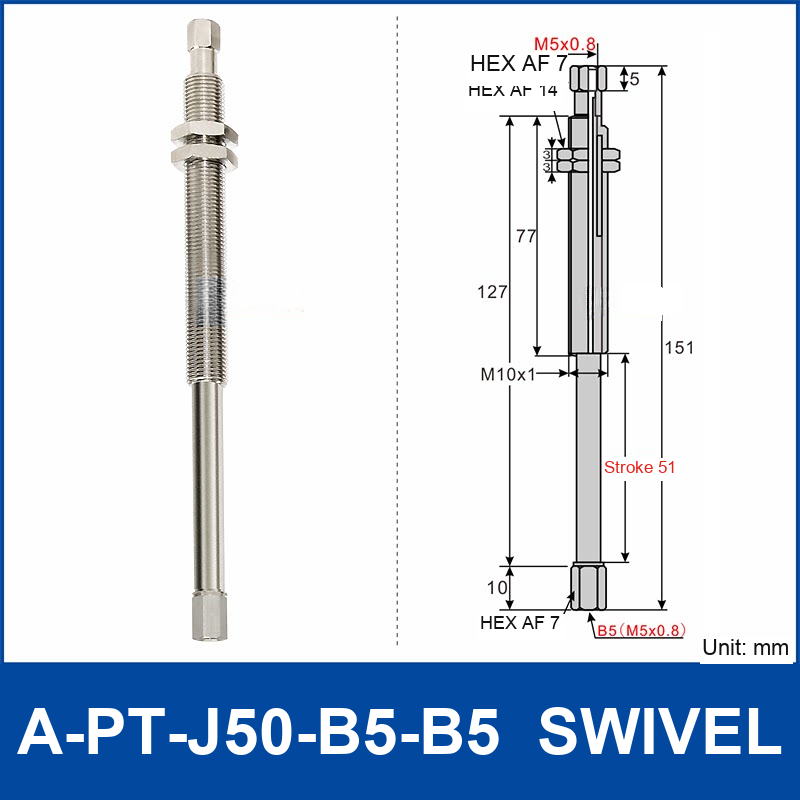

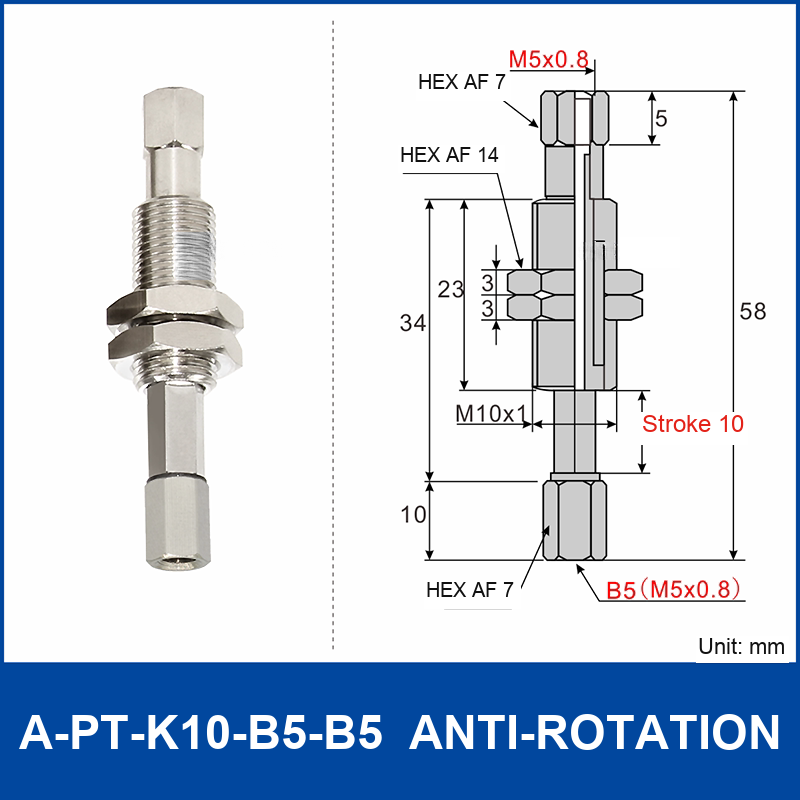

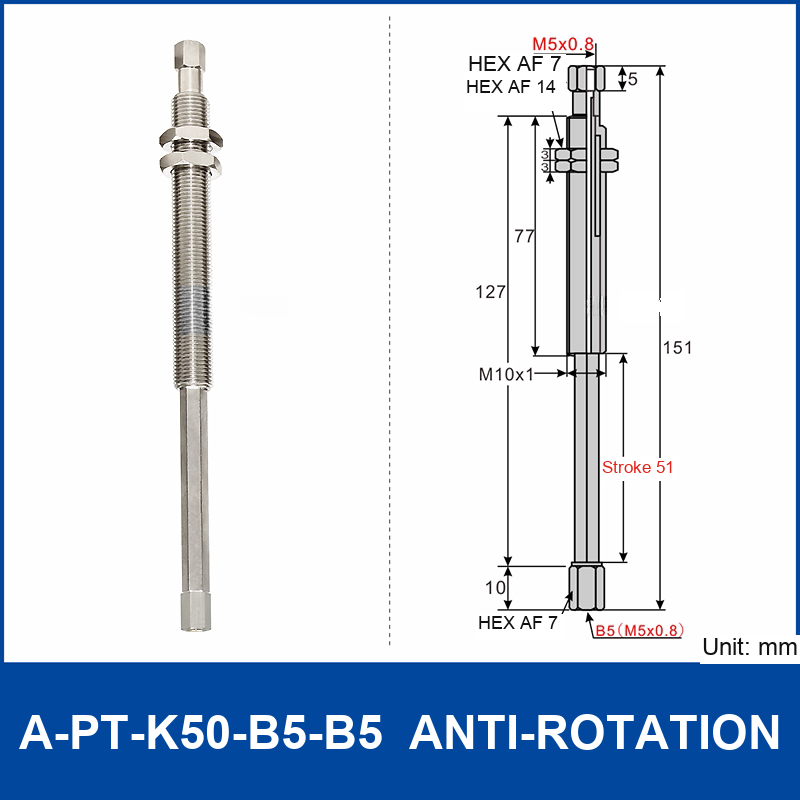

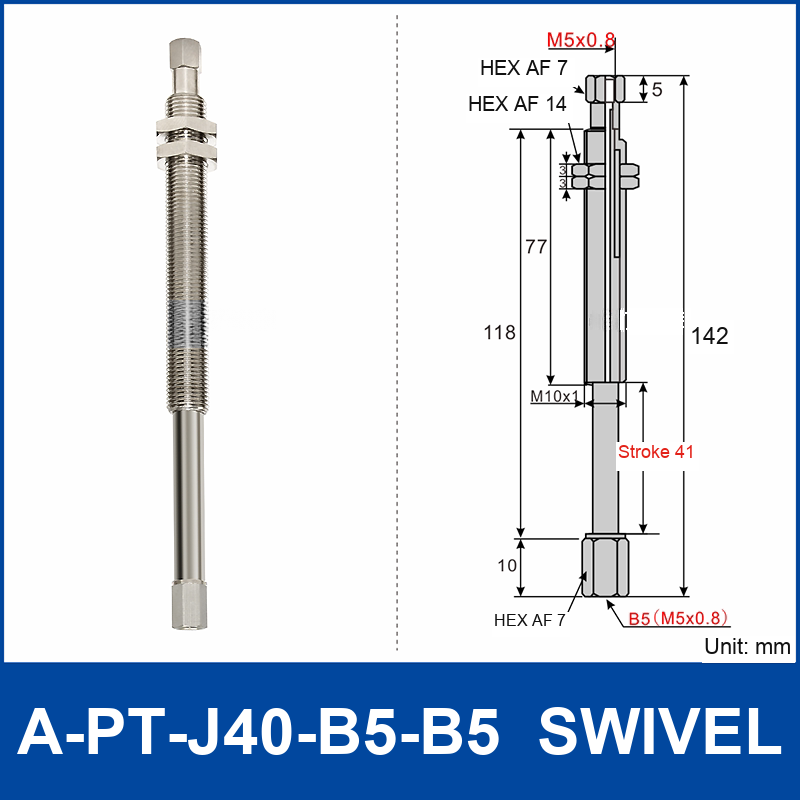

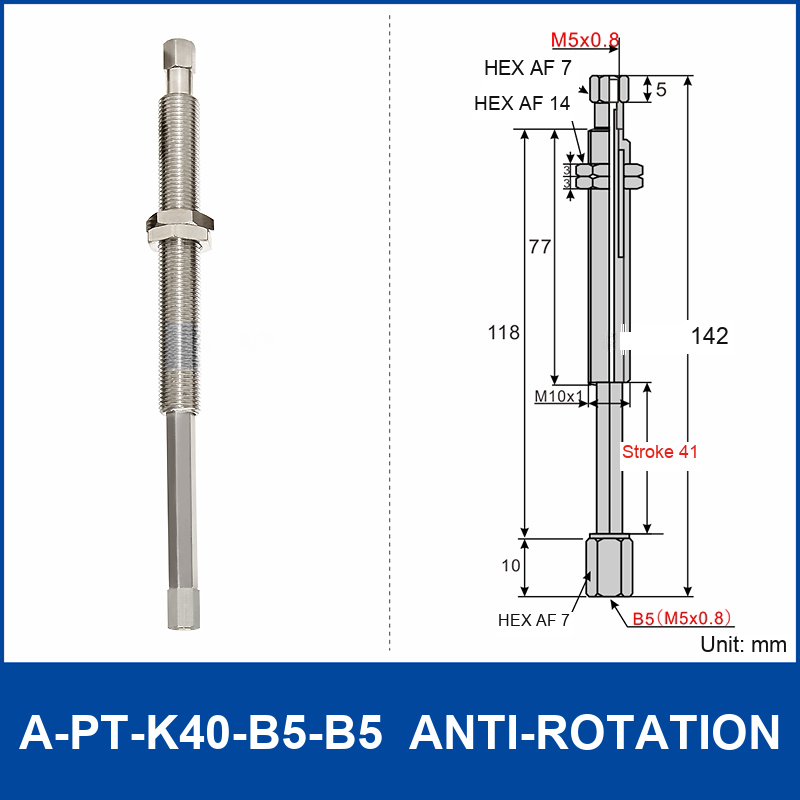

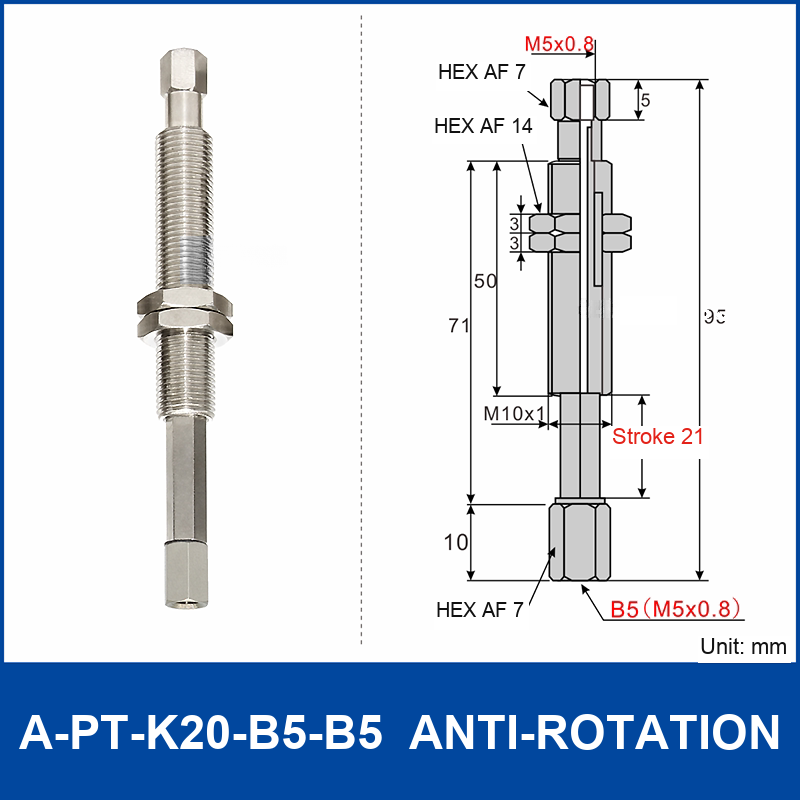

• Each selectable model includes its matching product photograph and technical drawing

Applications / Suitable For

• Robotic pick-and-place and packaging automation
• Vacuum end-of-arm tooling requiring spring compliance
• Model-specific replacement or new-build handling assemblies

Confirm the selected model code, drawing, stroke, thread, mating hardware, workpiece surface, vacuum level, payload, acceleration and operating environment before use. No food-contact, medical, lifting-safety or regulatory certification is claimed.
