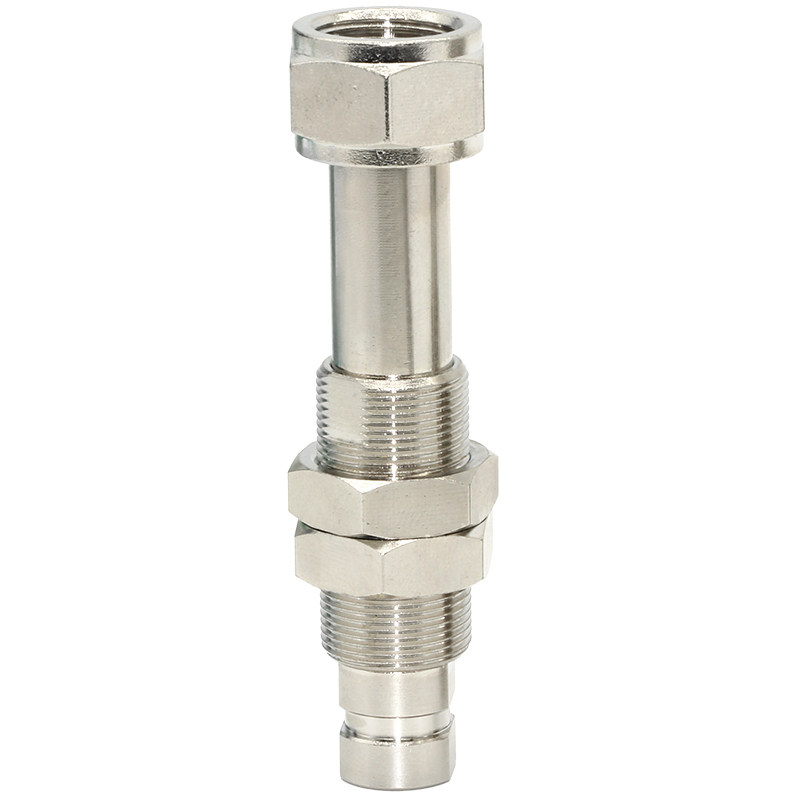

M18 Female-Thread Spring-Loaded Vacuum Cup Holders – G1/8, G1/4 and G3/8

M18 Female-Thread Spring-Loaded Vacuum Cup Holders

Spring-loaded M18 holders for industrial vacuum cups, robotic end-of-arm tooling and pneumatic pick-and-place assemblies. The axial stroke helps absorb height variation and contact impact during handling.

• 10 selectable M18 and KI1850-V-A18 configurations
• 20, 25, 30 and 50 mm stroke options
• G1/8, G1/4 and G3/8 female cup-side connection options
• G1/8 female air-port connection
• M18 x 1.0 mounting thread
• Nickel-plated brass models plus one stainless-steel configuration

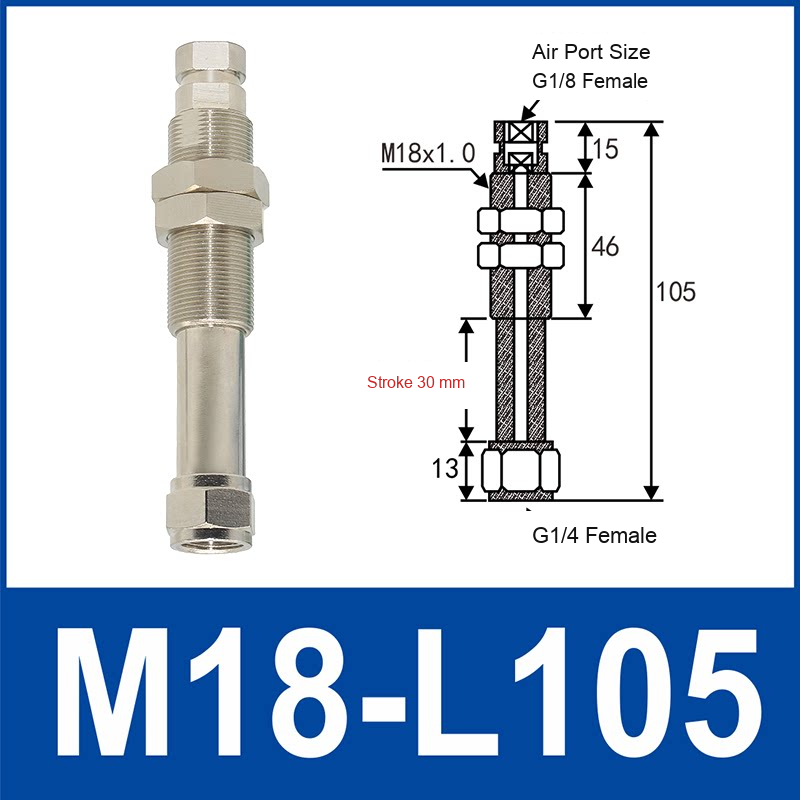

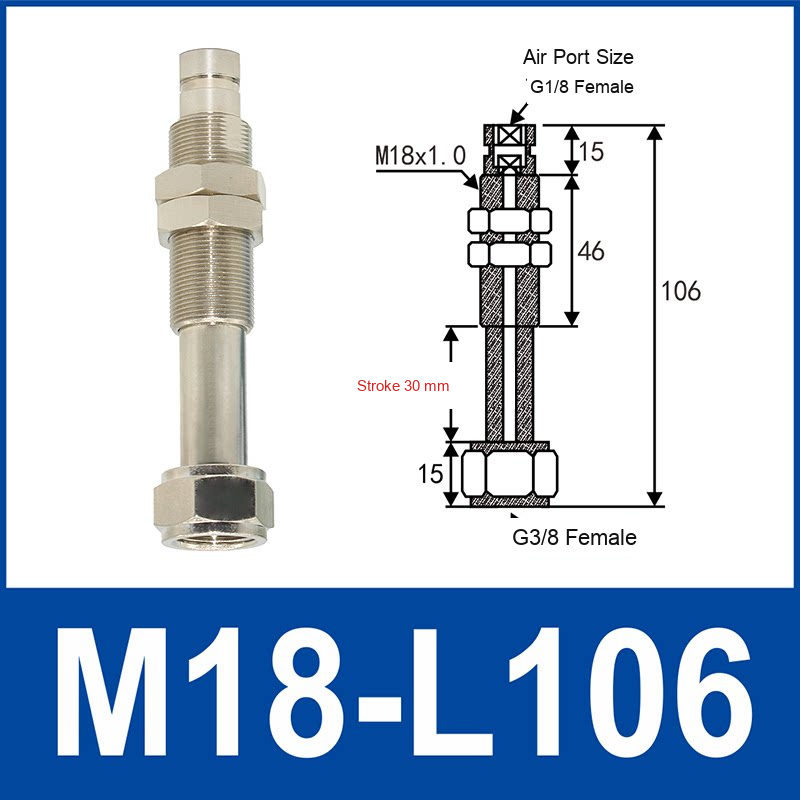

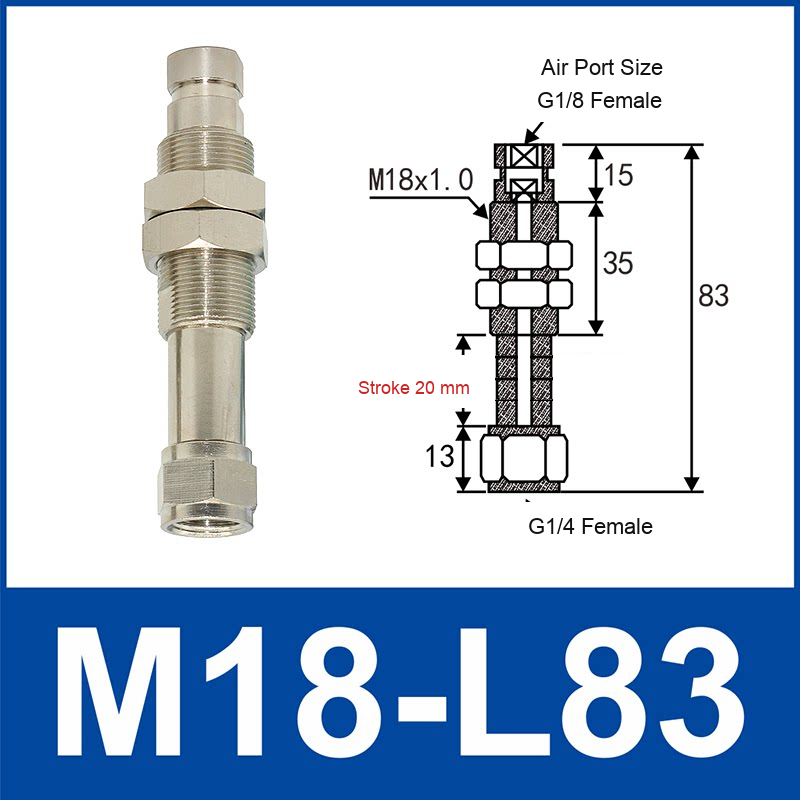

• Overall length, thread callouts, stroke and wrench-flat dimensions are shown for the applicable models

Applications / Suitable For

• Vacuum pick-and-place and component transfer
• Robotic end-of-arm tooling that needs axial compliance
• Packaging, assembly, sorting and general industrial automation

Confirm the selected model code, thread sizes, stroke, material, cup compatibility, vacuum level, payload, acceleration and operating environment before use. No food-contact, medical, lifting-safety or regulatory certification is claimed.
