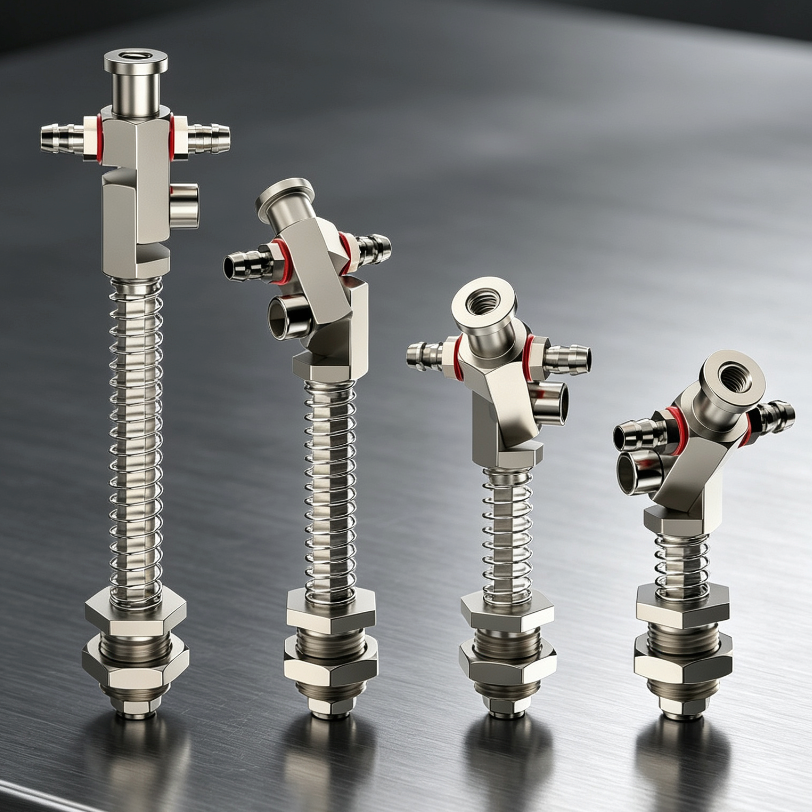

M10/M12 180° Adjustable Swivel Vacuum Cup Holders with Spring Buffer

M10/M12 180° Adjustable Swivel Vacuum Cup Holders

Adjustable vacuum cup holders with a spring buffer for industrial pick-and-place systems and robotic end-of-arm tooling. The swivel joint helps align the cup with angled or height-varying workpieces, while the spring section softens initial contact.

• 18 selectable M10 and M12 configurations
• Overall lengths from 65 to 120 mm
• 180° swivel adjustment
• Spring buffer with hex anti-rotation feature
• Nickel-plated steel construction
• Dual-side air-inlet arrangement

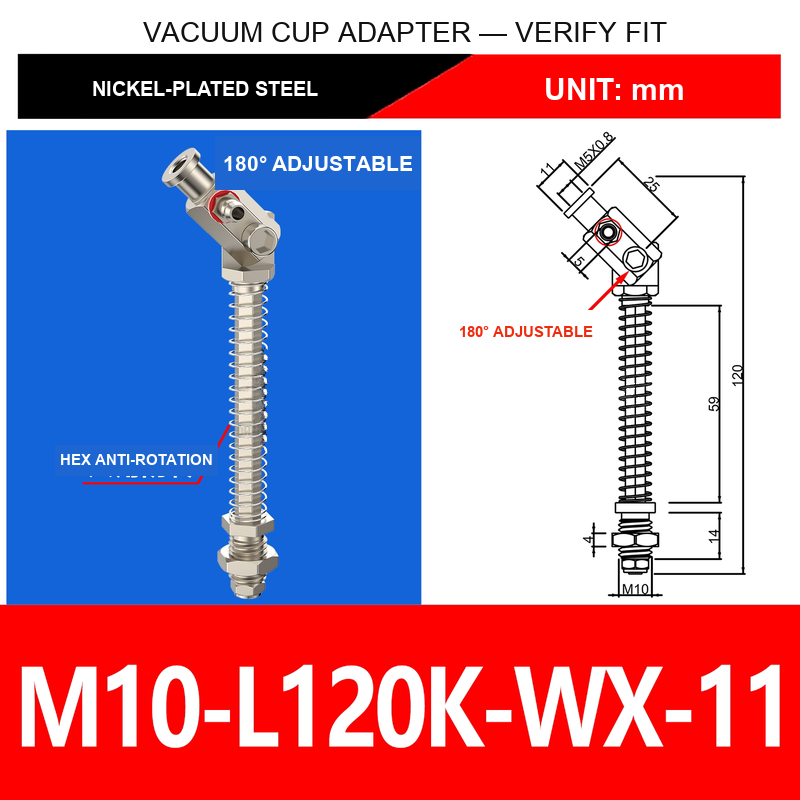

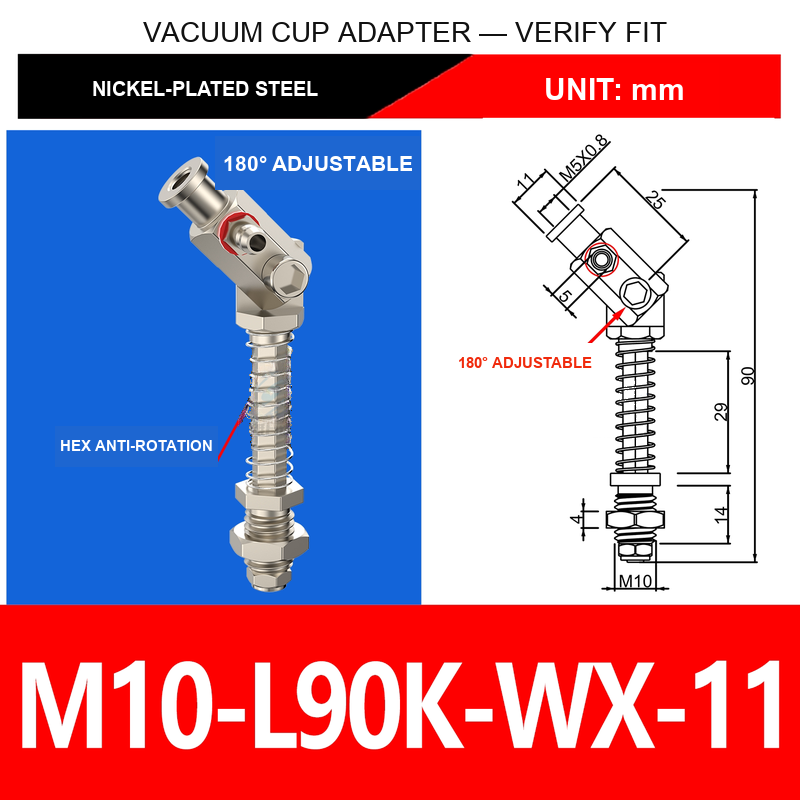

• Model code, mounting thread and technical dimensions are shown for each option

Applications / Suitable For

• Vacuum pick-and-place and component transfer
• Robotic end-of-arm tooling for angled or uneven pickup surfaces
• Packaging, assembly, sorting and general industrial automation

Confirm the selected model code, mounting thread, overall length, cup-adapter fit, vacuum level, payload, acceleration and operating environment before use. No food-contact, medical, lifting-safety or regulatory certification is claimed.
