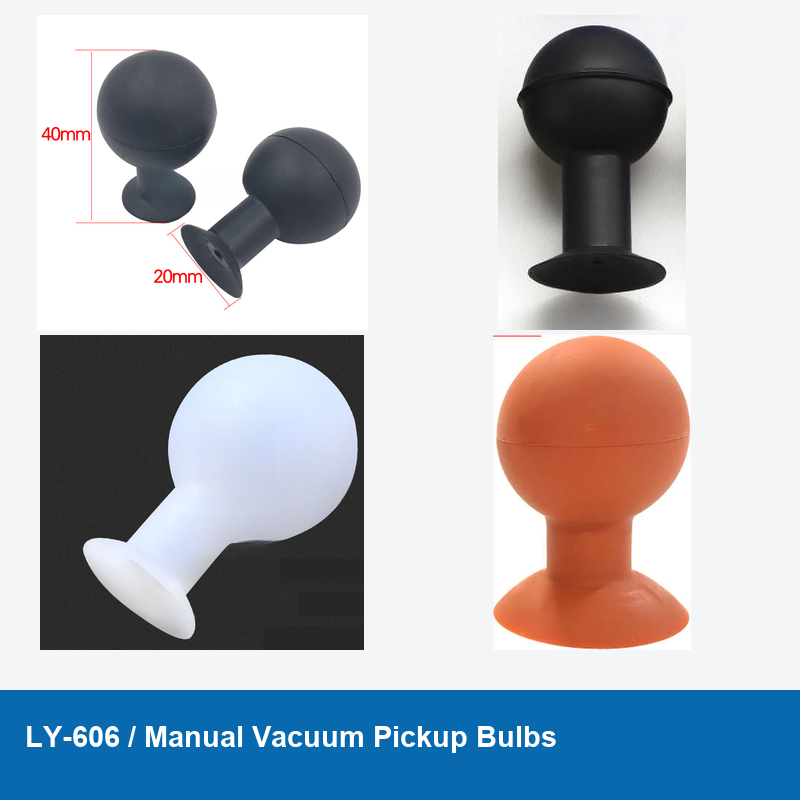

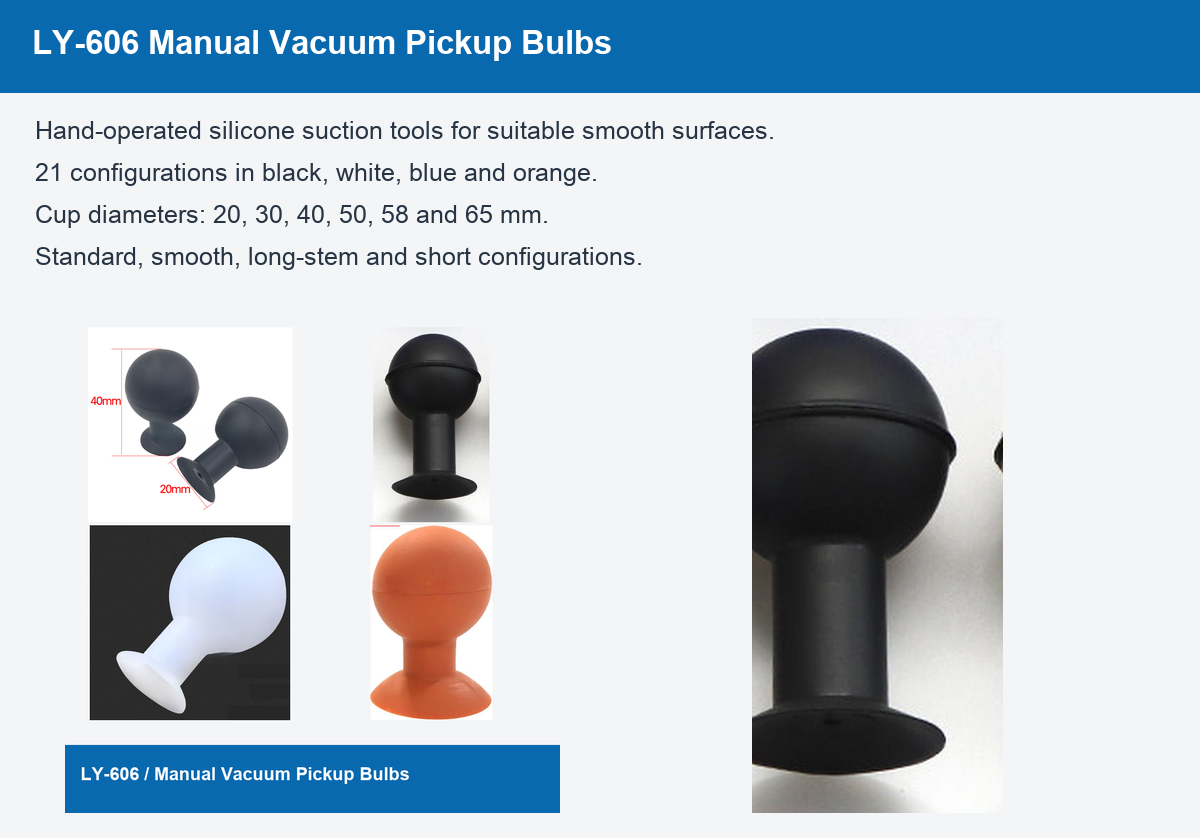

LY-606 Manual Vacuum Pickup Bulbs
Hand-operated silicone pickup bulbs for suitable clean, smooth glass, LCD panels and cover surfaces. This source group identifies the model as LY-606 and its item number as LY-65. Select the color, cup diameter and construction listed for each option. Each configuration is sold separately.

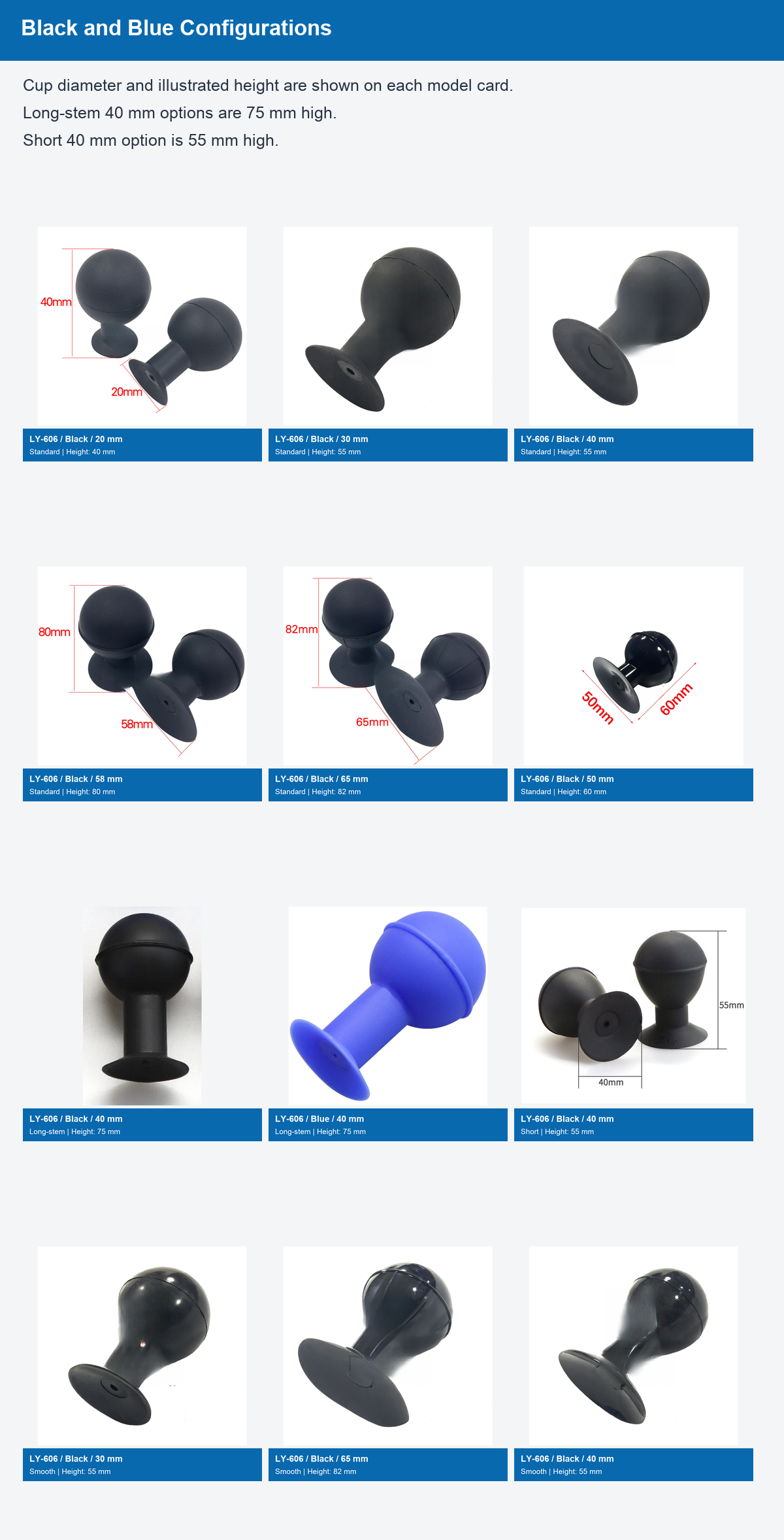

Configuration dimensions
| Configuration | Cup diameter | Illustrated height |
|---|---|---|

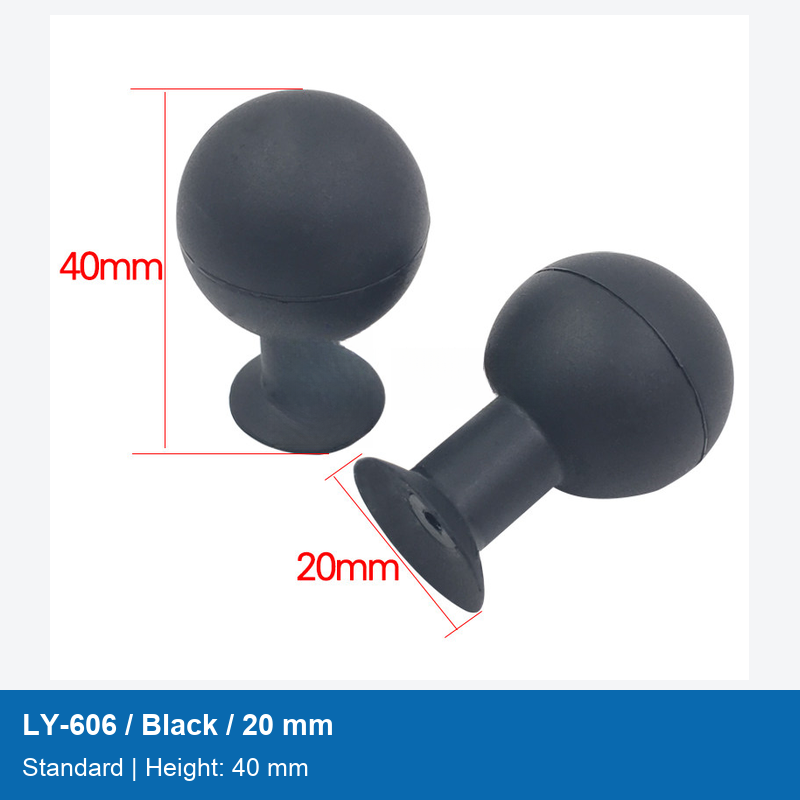

| Black / Standard | 20 mm | 40 mm |

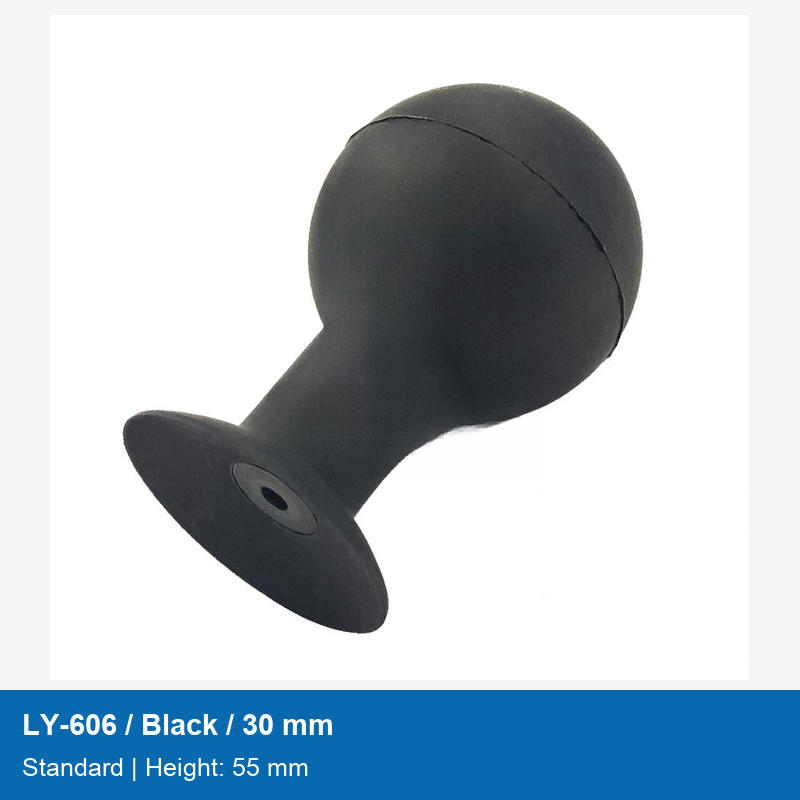

| Black / Standard | 30 mm | 55 mm |

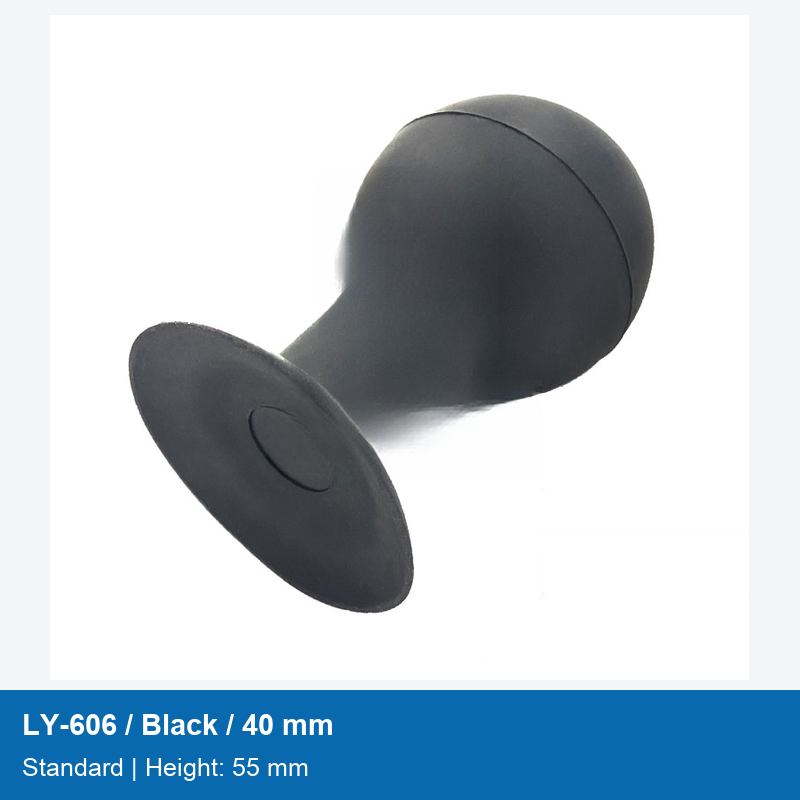

| Black / Standard | 40 mm | 55 mm |

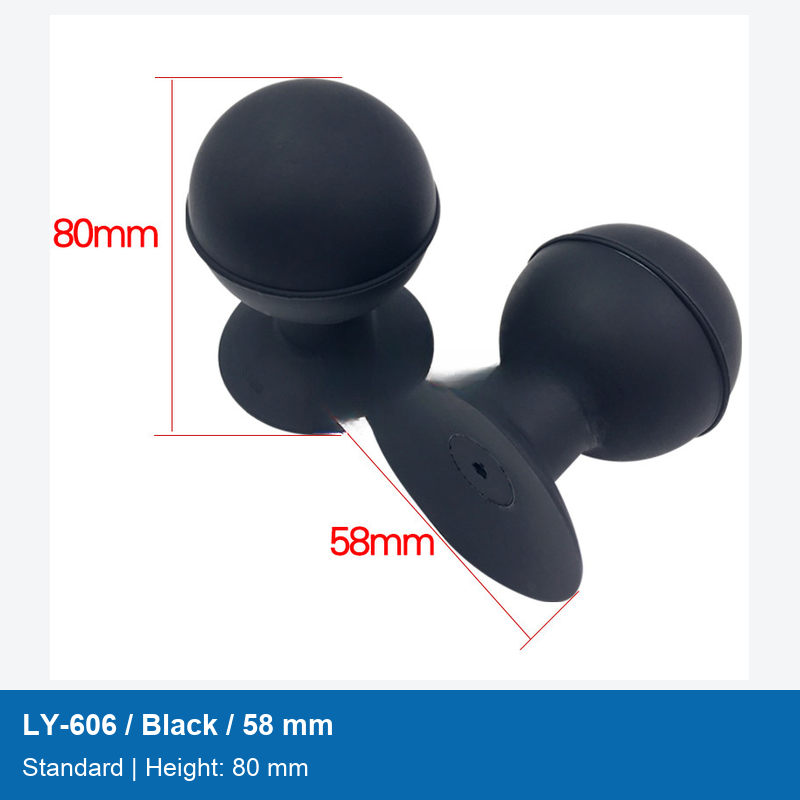

| Black / Standard | 58 mm | 80 mm |

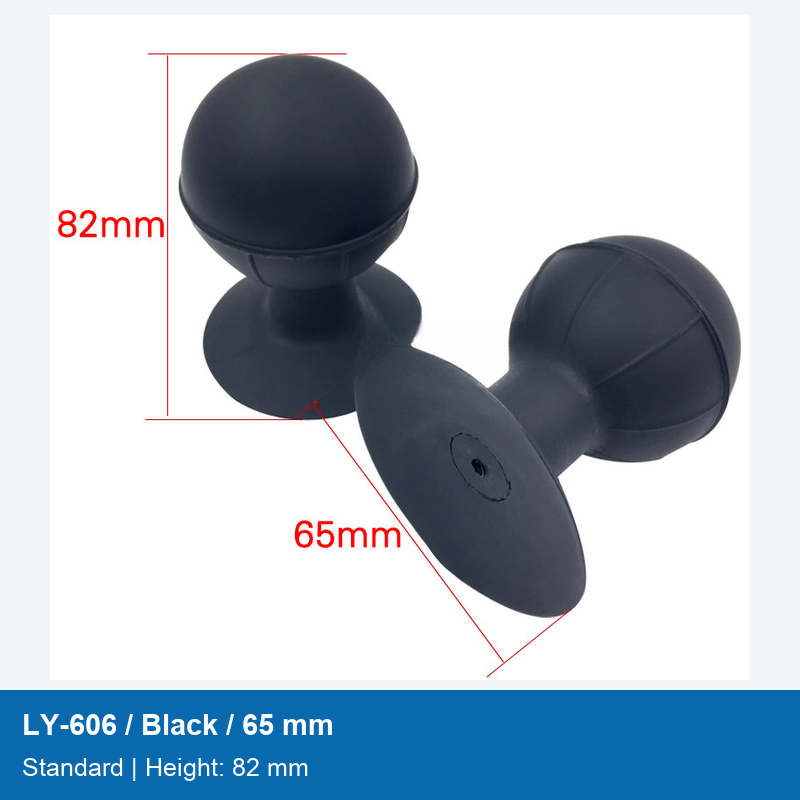

| Black / Standard | 65 mm | 82 mm |

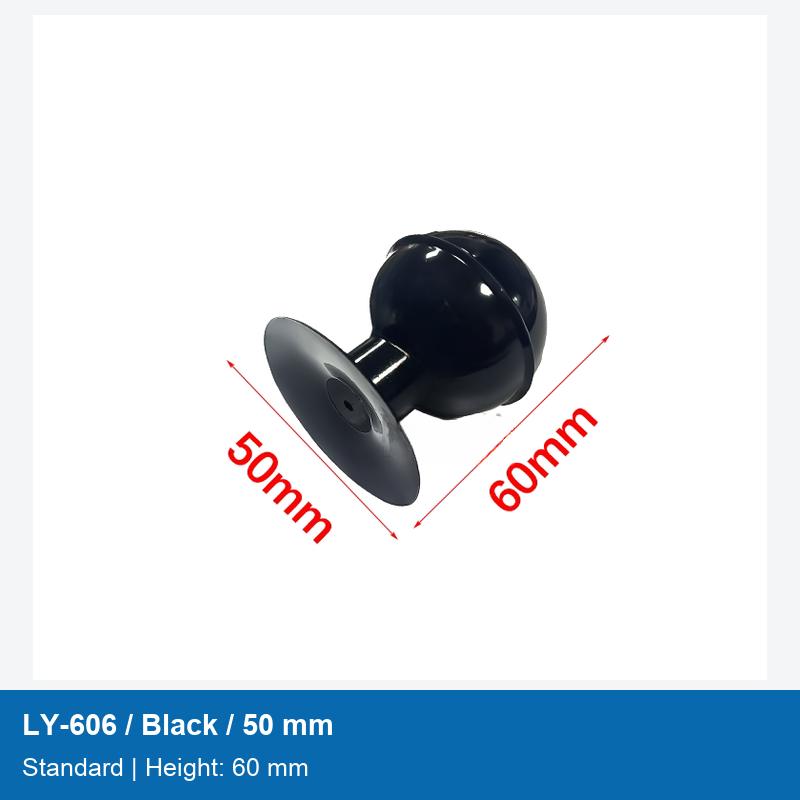

| Black / Standard | 50 mm | 60 mm |

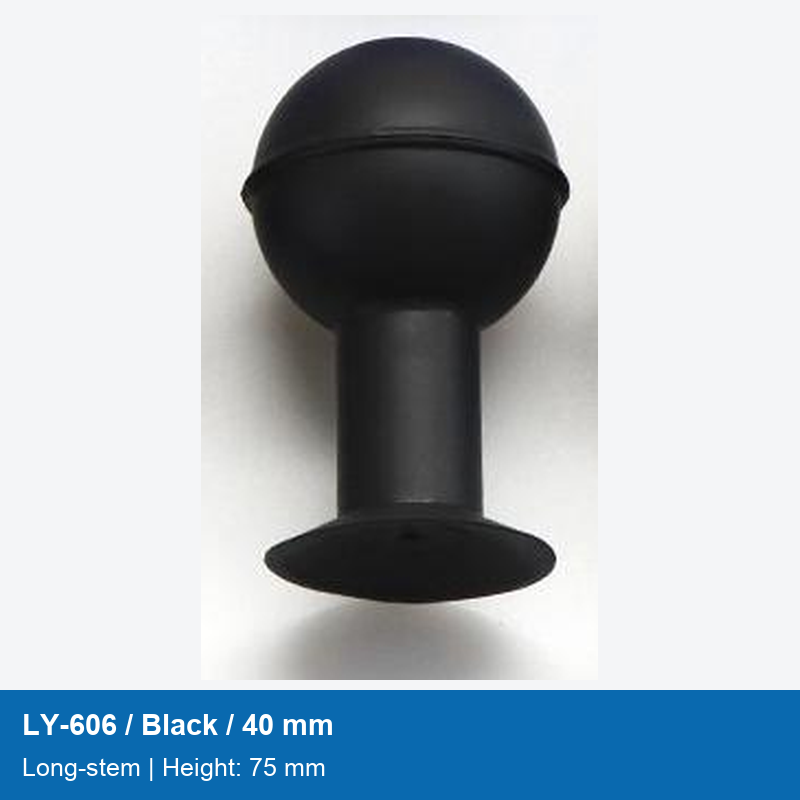

| Black / Long-stem | 40 mm | 75 mm |

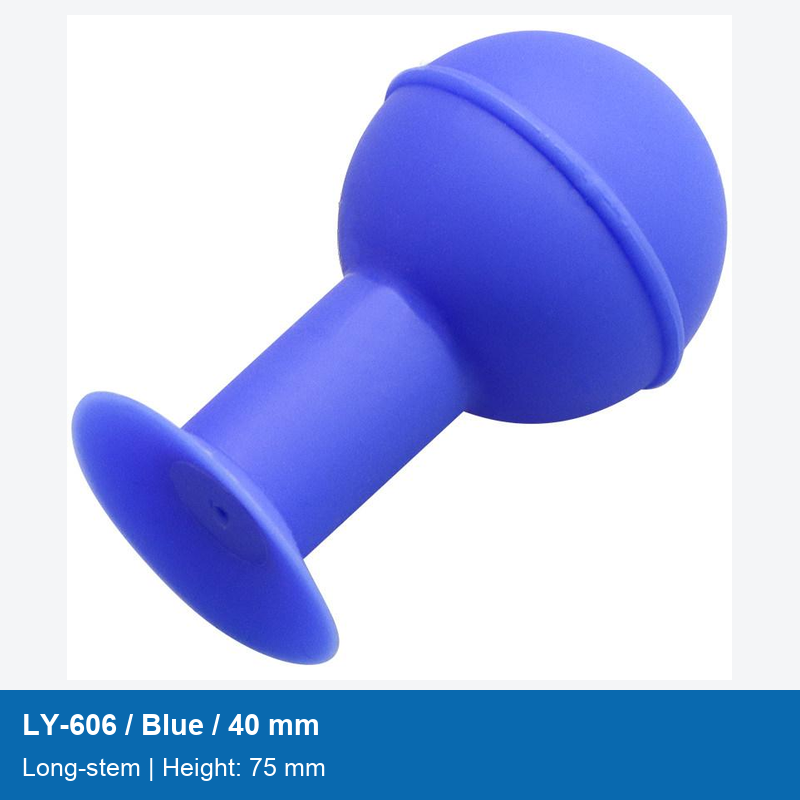

| Blue / Long-stem | 40 mm | 75 mm |

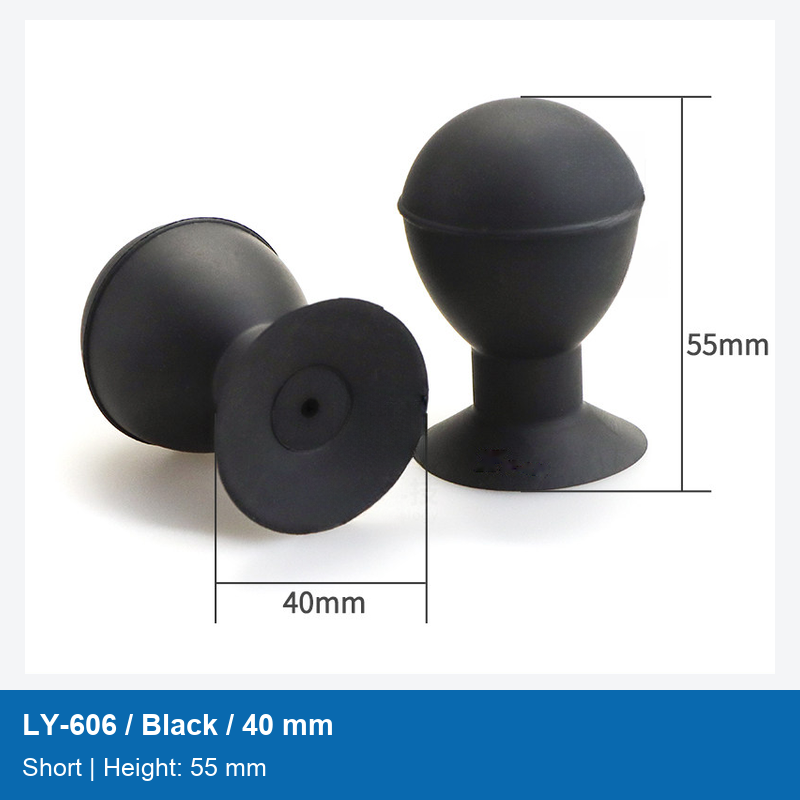

| Black / Short | 40 mm | 55 mm |

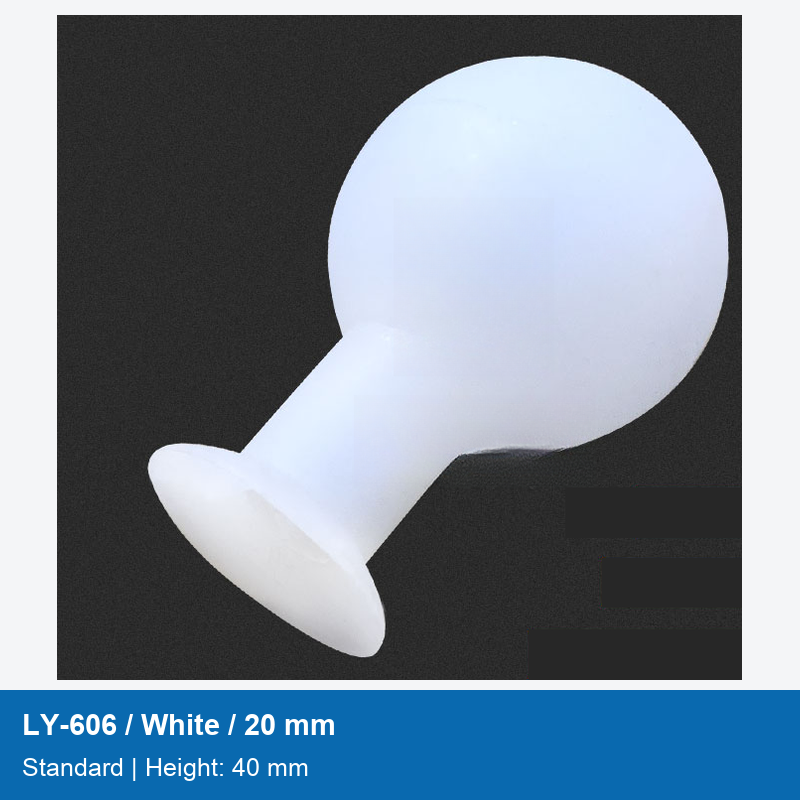

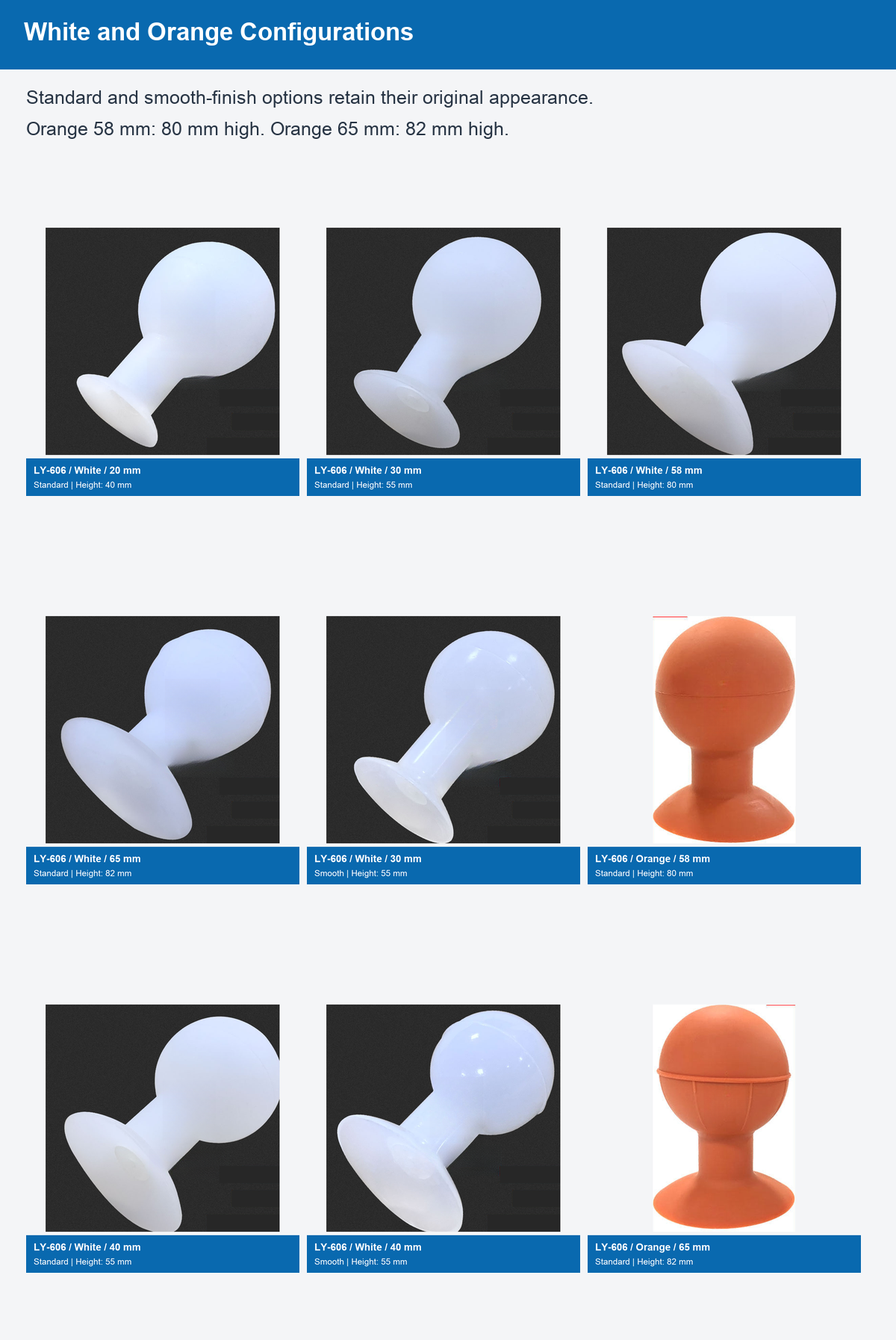

| White / Standard | 20 mm | 40 mm |

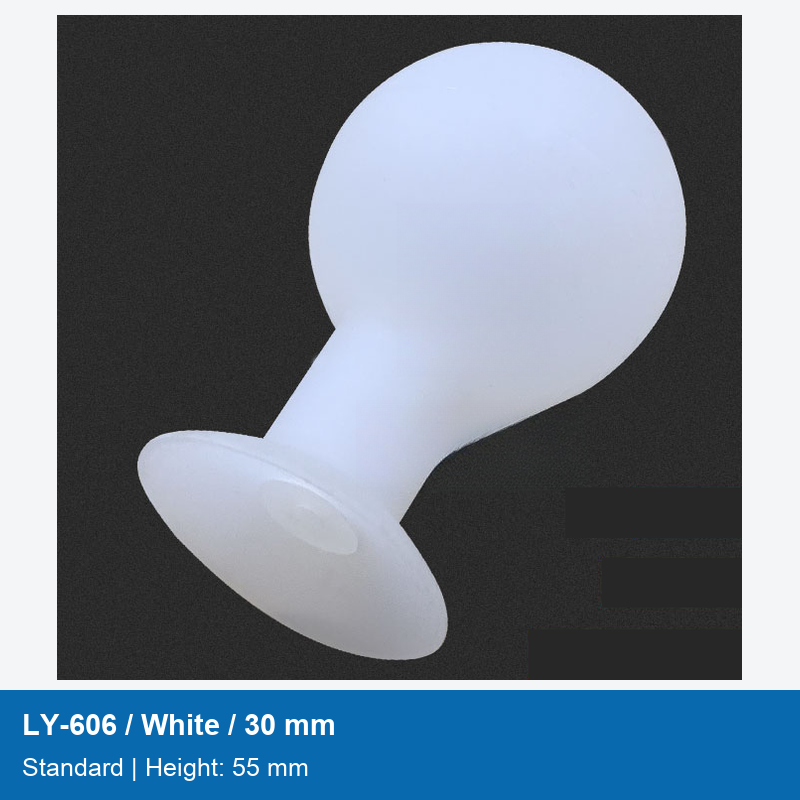

| White / Standard | 30 mm | 55 mm |

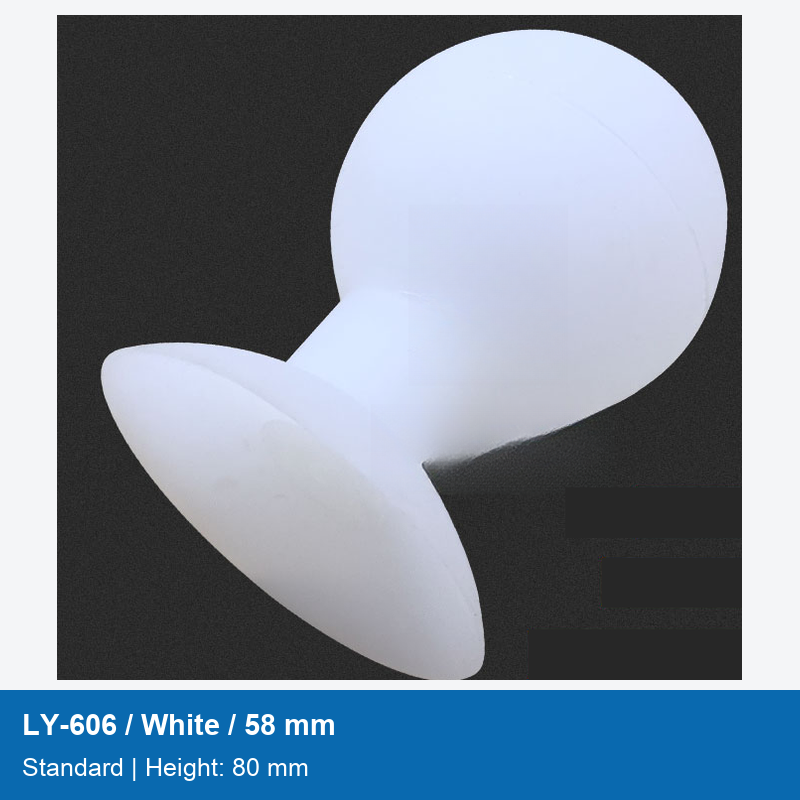

| White / Standard | 58 mm | 80 mm |

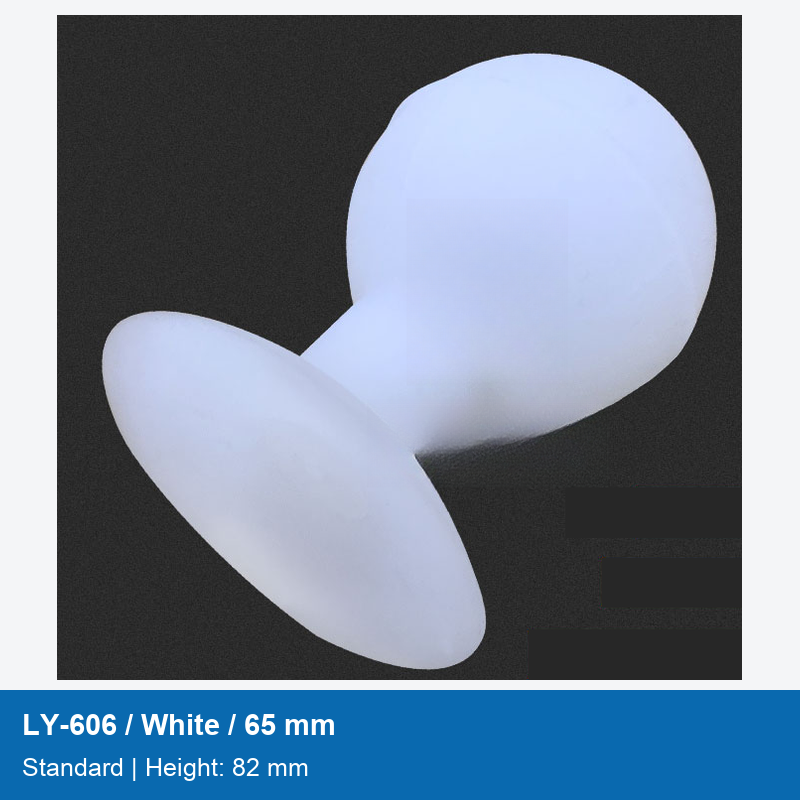

| White / Standard | 65 mm | 82 mm |

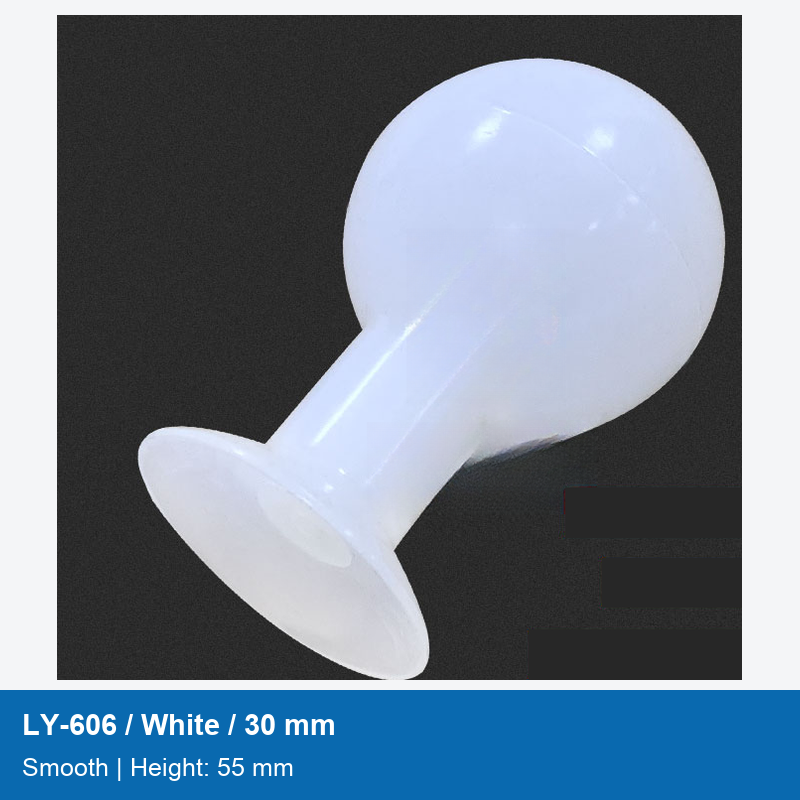

| White / Smooth | 30 mm | 55 mm |

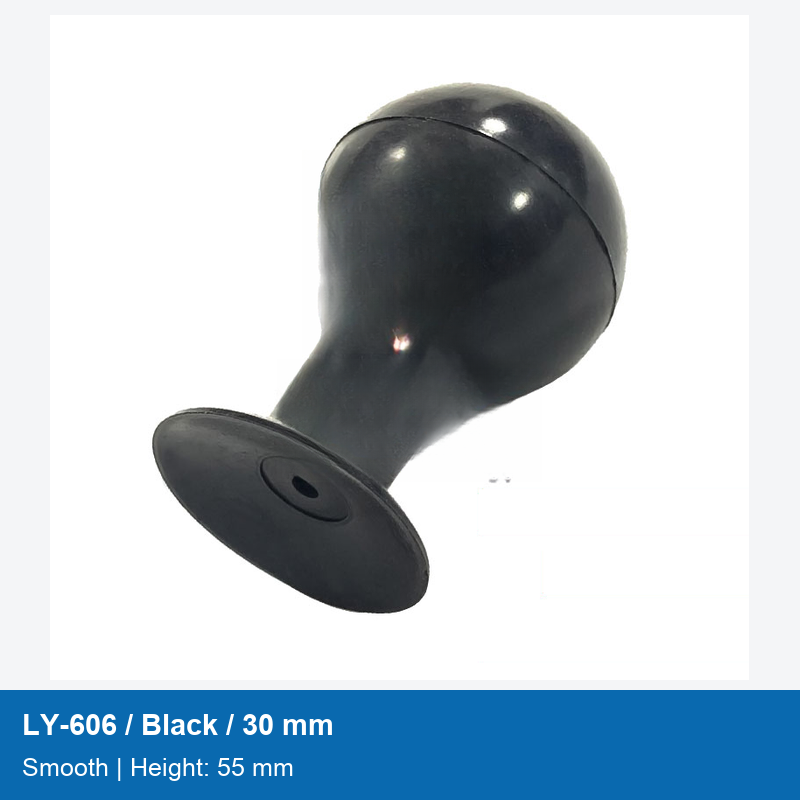

| Black / Smooth | 30 mm | 55 mm |

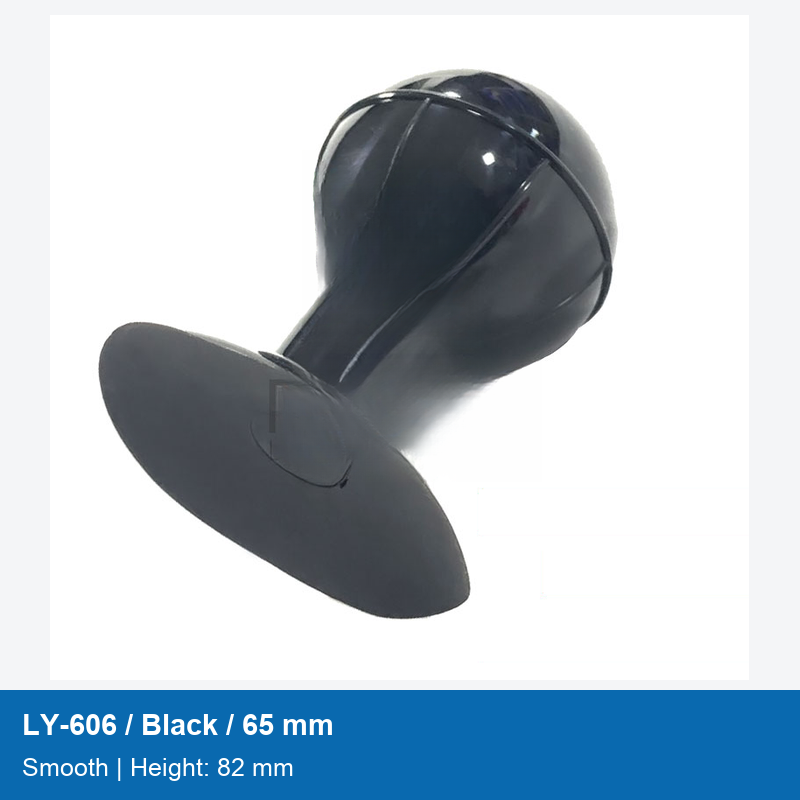

| Black / Smooth | 65 mm | 82 mm |

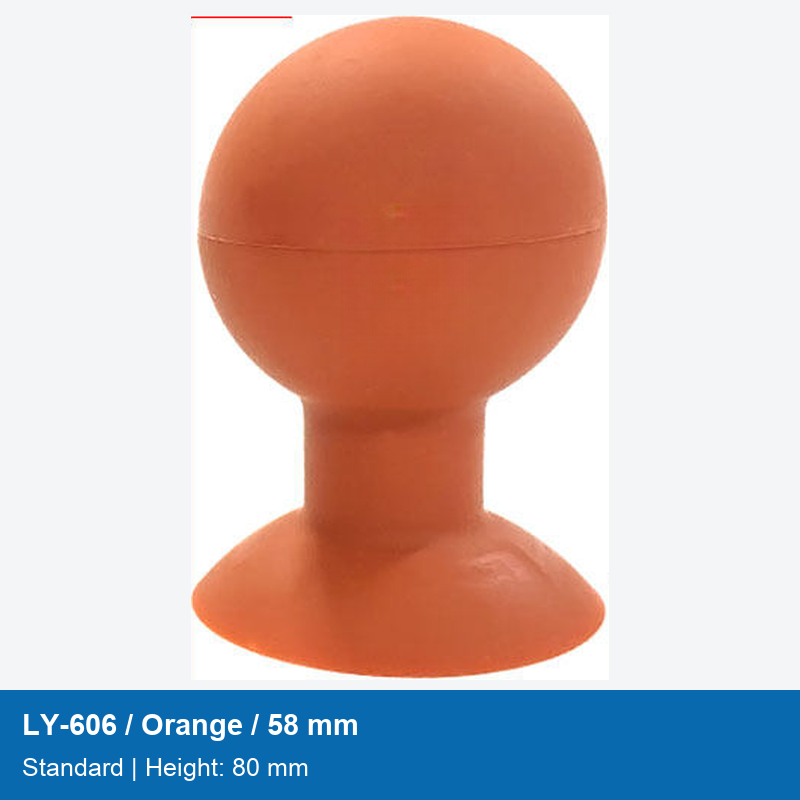

| Orange / Standard | 58 mm | 80 mm |

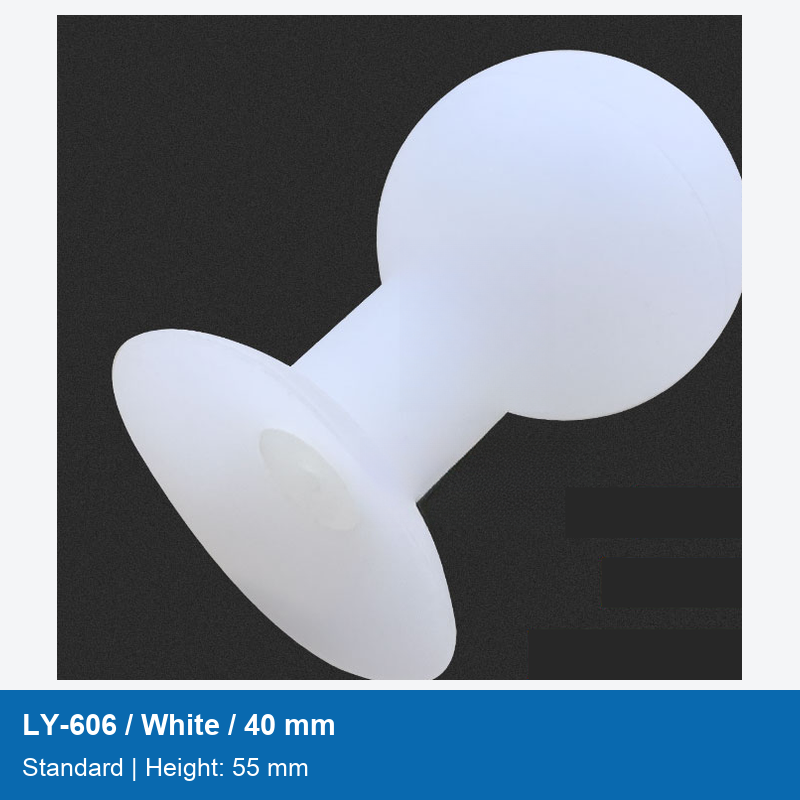

| White / Standard | 40 mm | 55 mm |

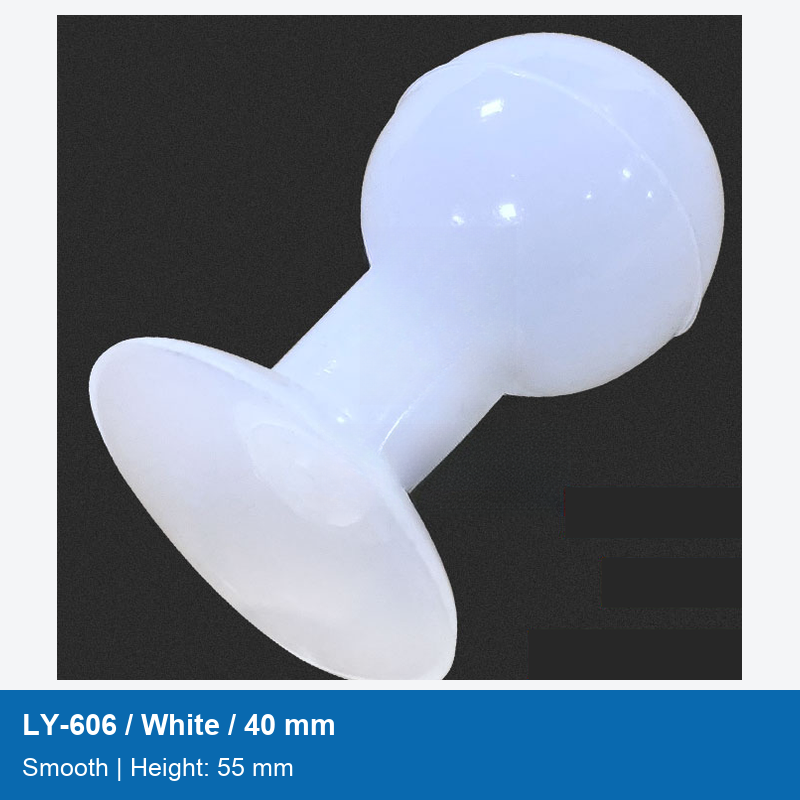

| White / Smooth | 40 mm | 55 mm |

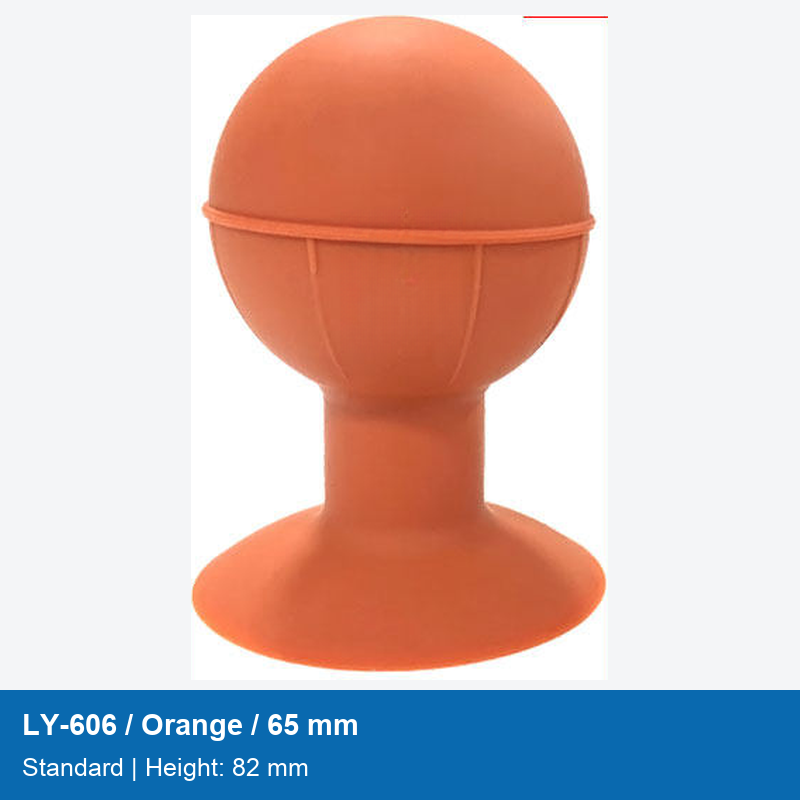

| Orange / Standard | 65 mm | 82 mm |

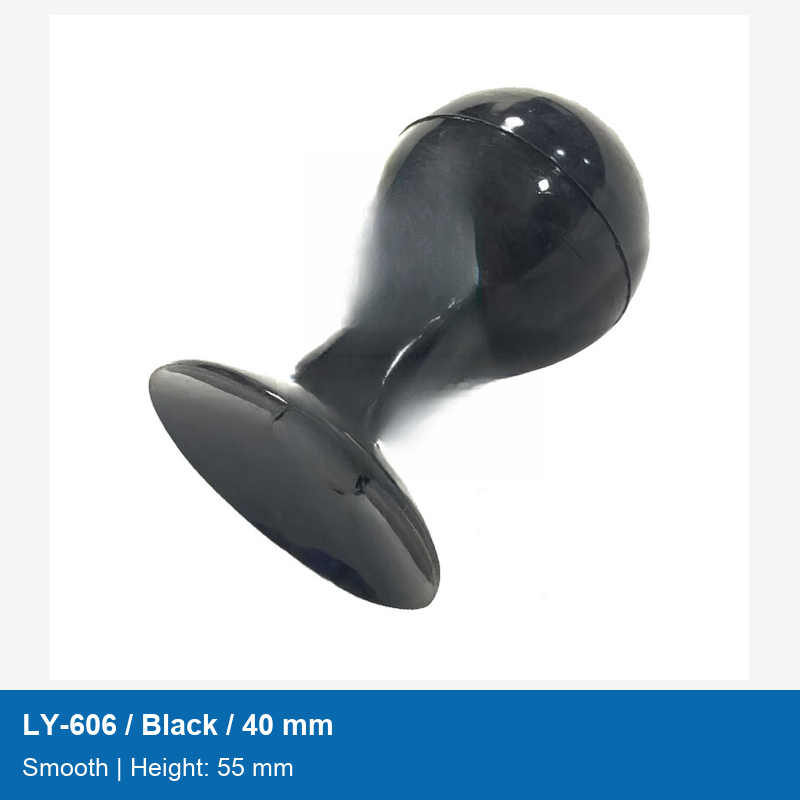

| Black / Smooth | 40 mm | 55 mm |

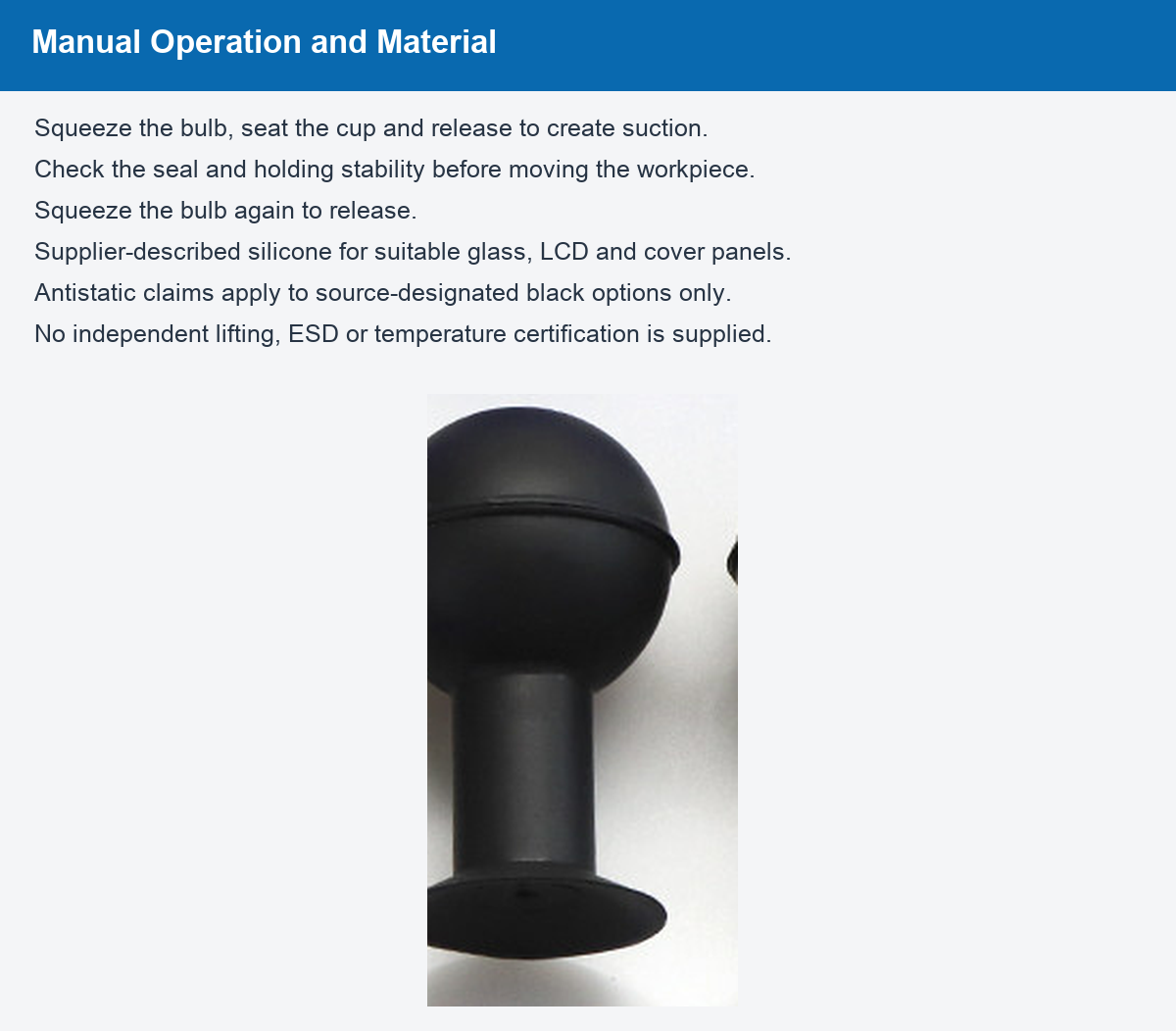

Squeeze the flexible bulb, seat the cup and release to create suction. Check stability before moving a workpiece. Squeeze again to release. Holding performance depends on the surface, seal and handling. Black options designated antistatic by the source are not independently certified here. No verified numerical load or temperature limit is supplied.
