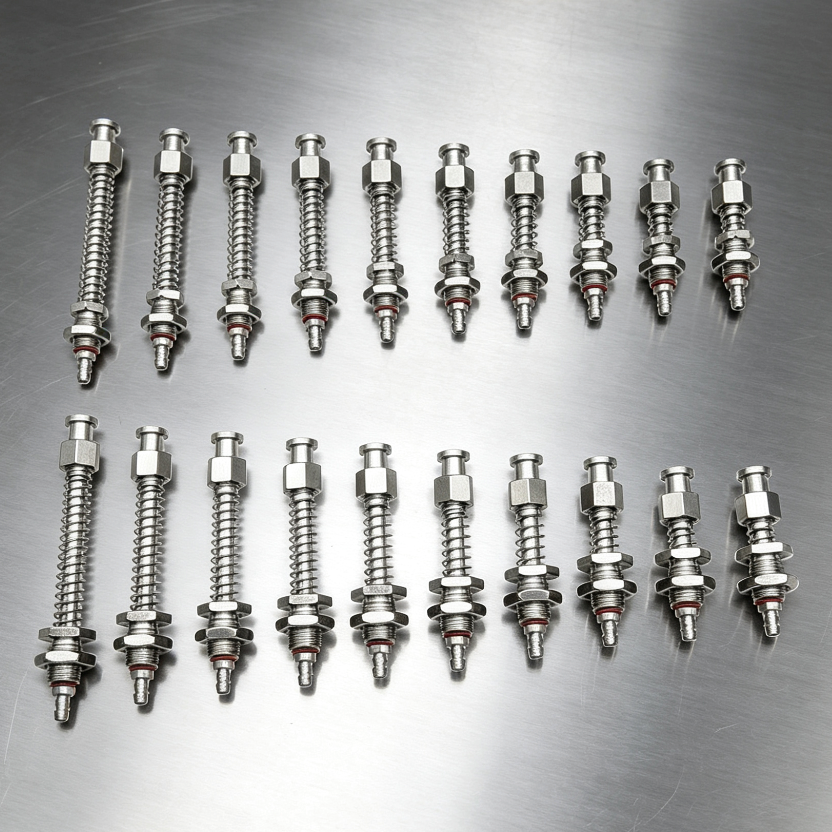

Large-Head Rear Air-Inlet Vacuum Cup Buffer Mounts (L55–L100)
Large-Head Rear Air-Inlet Vacuum Cup Buffer Mounts
Spring-loaded vacuum cup buffer mounts for compatible industrial vacuum systems, robotic end-of-arm tooling and automated handling equipment. Select the required length, mounting thread and rear air-inlet configuration from the model code and drawing.
Quick selection
- Choose the length: L55, L60, L65, L70, L75, L80, L85, L90 or L100 indicates the model length shown in the drawing.
- Choose the mounting thread: M10 × 1.0 or M12 × 1.0, according to the selected model.
- Confirm the connections: the drawing shows an M5 female thread and a 6 mm air-tube connection.
- Verify before ordering: check the full model code, dimensions, mating vacuum cup and installation clearance.
Model code guide
L[length]-M[thread]-11-RAI: length, M10 or M12 mounting thread, 11 series code and rear-air-inlet configuration. Each option displays its corresponding technical drawing and product view.
Suitable for
- Industrial vacuum pick-and-place and packaging automation
- Robot end-effectors that require spring compliance
- Vacuum cup mounting, replacement and fixture assembly
- Dimensionally compatible automated handling equipment
Before use
Confirm the selected model code, technical drawing, thread, hose connection, compatible vacuum cup, vacuum level, payload, acceleration and operating environment. No food-contact, medical, lifting-safety or regulatory certification is claimed.
FAQ
How do I select M10 or M12? Match the mounting thread shown in the selected model drawing to the mating component. Does length change the connection? Check the selected drawing; all offered models show the rear air-inlet connection, while mounting thread and length vary by option.
