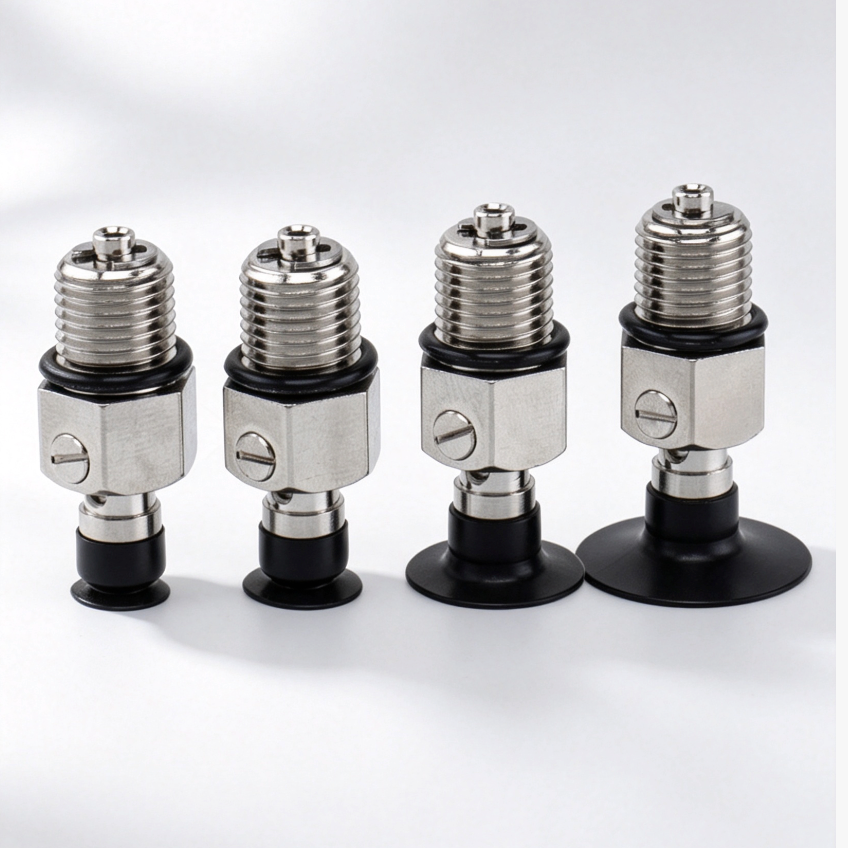

J-WEU76 Vacuum Cup Holders — D8–D20

J-WEU76 Vacuum Cup Holders — D8–D20

Compact threaded vacuum cup holder assemblies for industrial pick-and-place and compatible vacuum automation systems.

Quick Model Finder

• Available nominal diameters: D8, D10, D15 and D20.

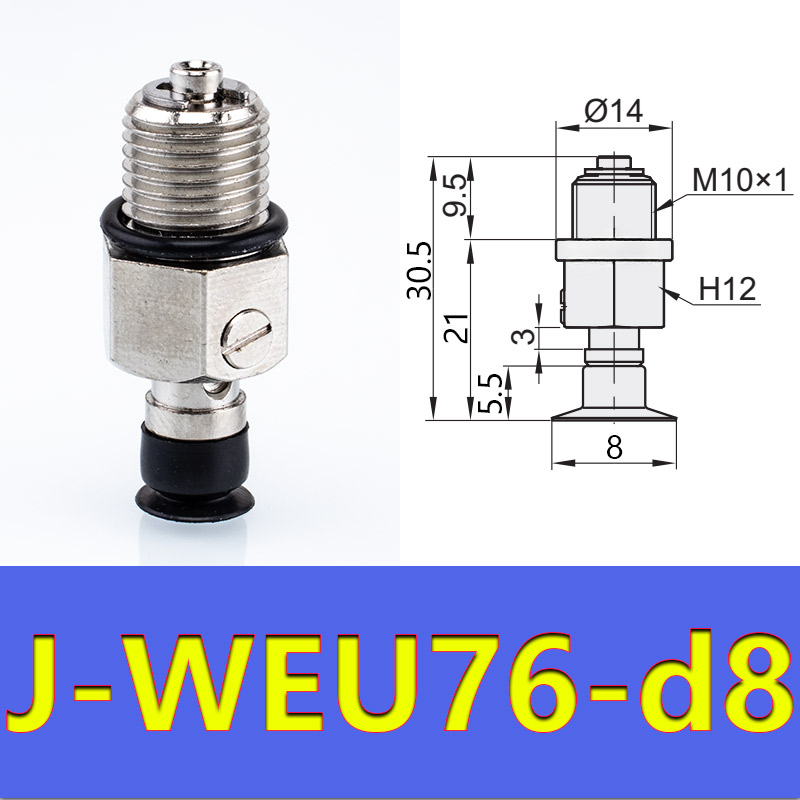

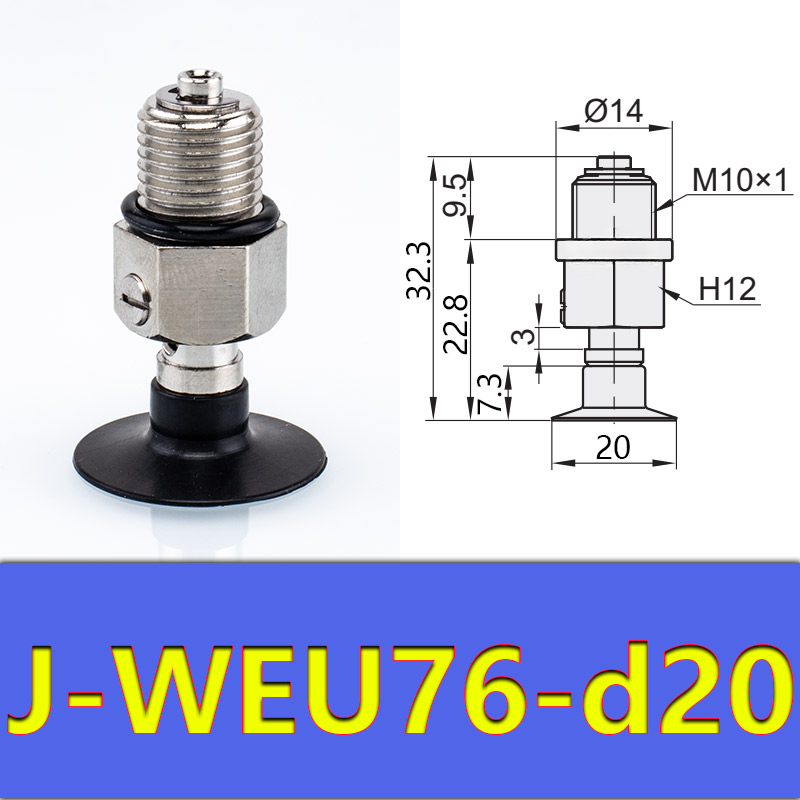

• Mounting thread: M10×1, as shown in the selected engineering drawing.
• Hex body: H12 callout; overall height and lower dimensions vary by model.
• Choose the complete J-WEU76 model code and confirm every dimension on its selected drawing before ordering.

Model-code guide

J-WEU76-D[diameter] identifies the holder family and nominal cup diameter. Every selectable model has its own product view and dimensional drawing.

Suitable for

• Industrial robotic pick-and-place
• Packaging, sorting and assembly equipment
• Compatible compact vacuum gripping systems

Before Use

Confirm the complete model code, selected drawing, mounting thread, vacuum connection, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
