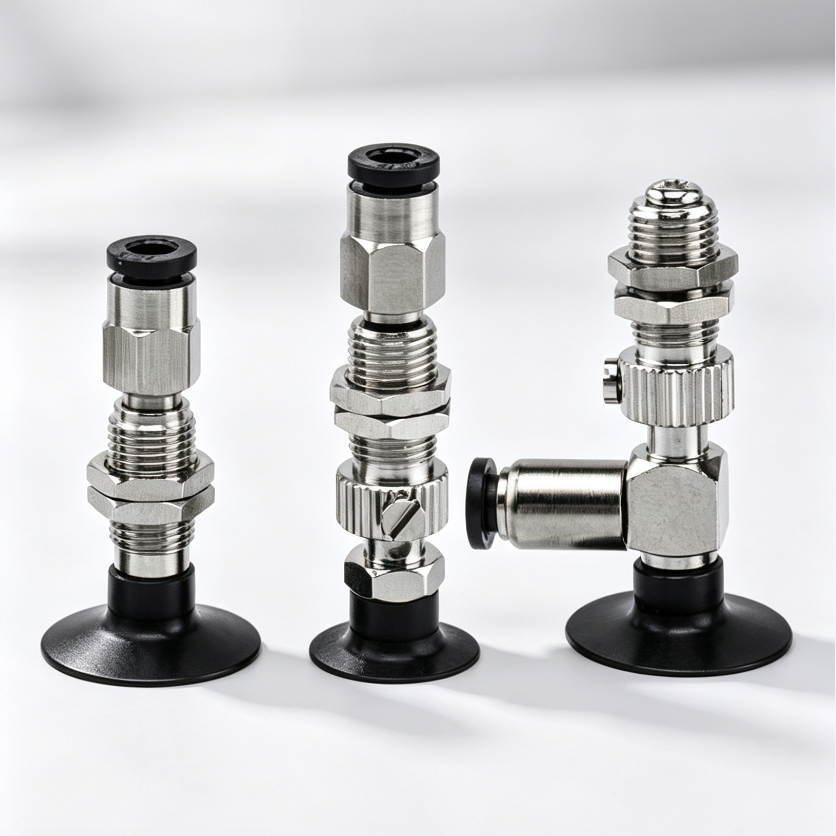

J-WEU61 / 66 / 71 Vacuum Cup Holders — M8×0.75, D8–D20

J-WEU61 / 66 / 71 Vacuum Cup Holders — M8×0.75, D8–D20

J-WEU vacuum cup holders for industrial vacuum gripping, automation fixtures and compatible replacement work. Select the complete model by holder configuration and nominal cup diameter, then confirm the matching drawing before ordering.

Quick Model Finder

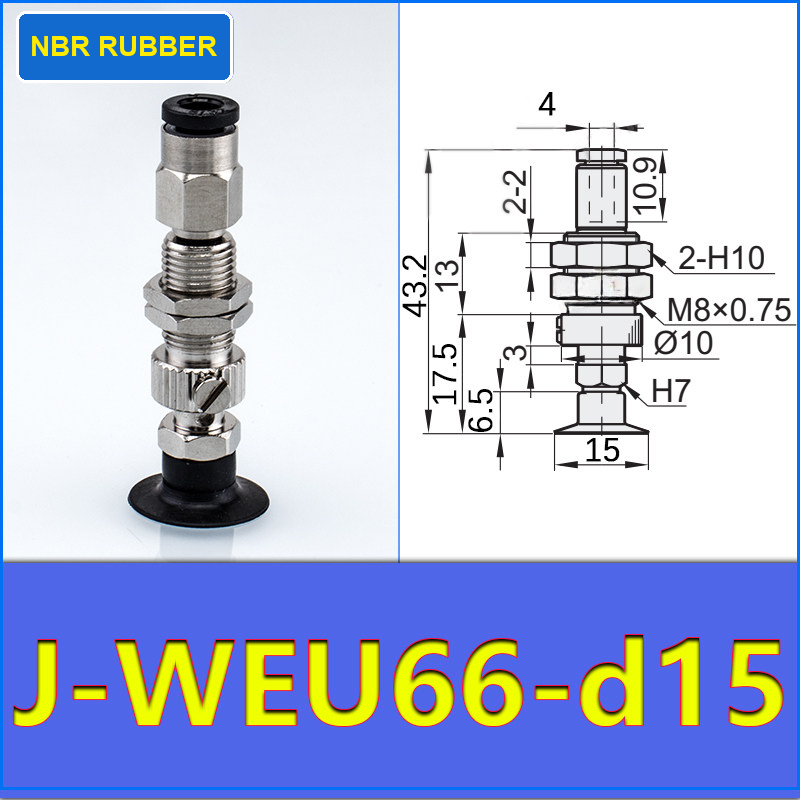

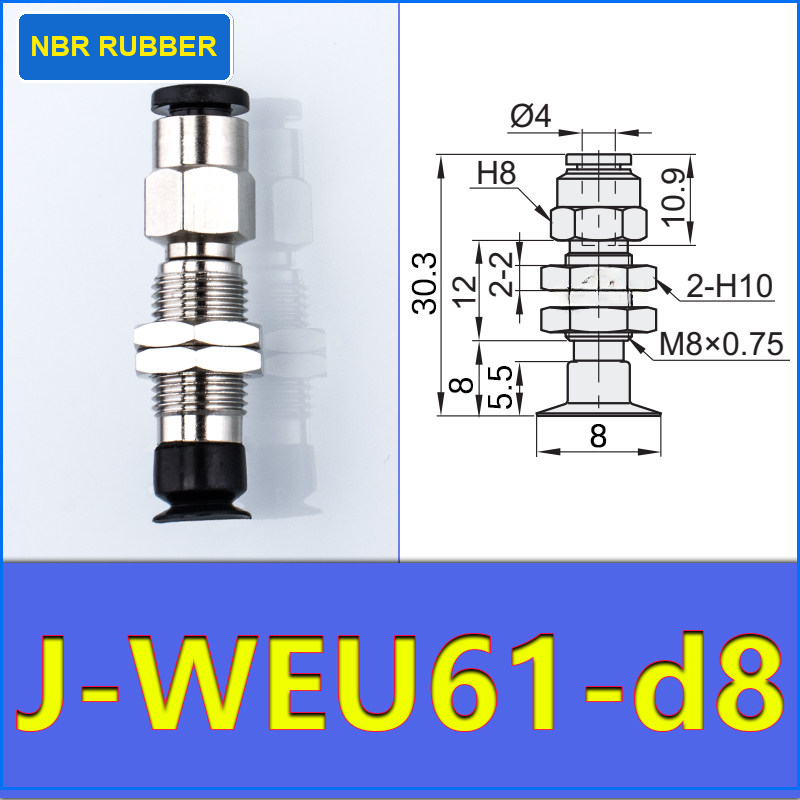

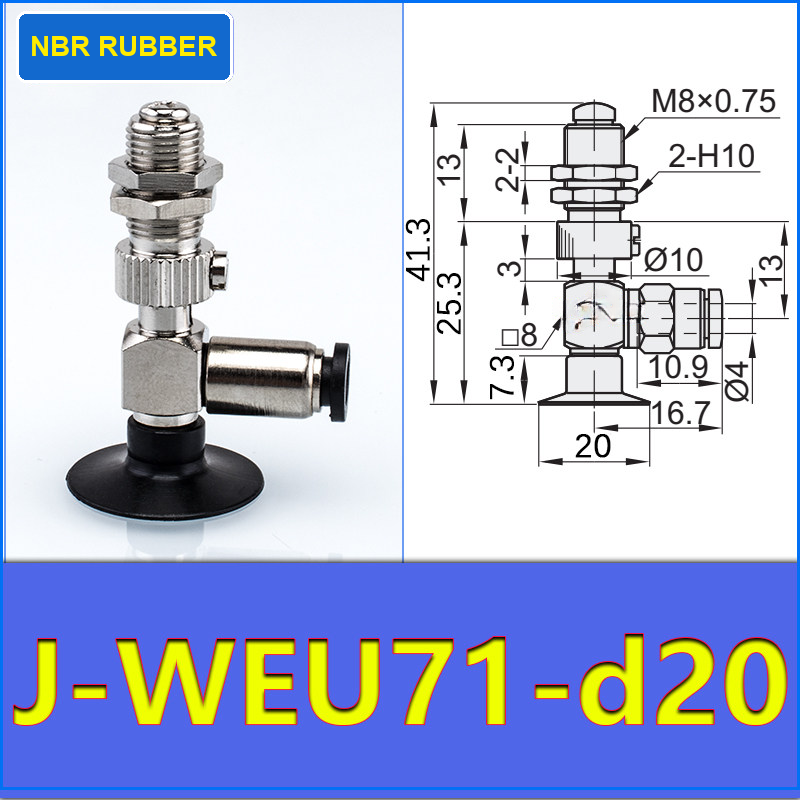

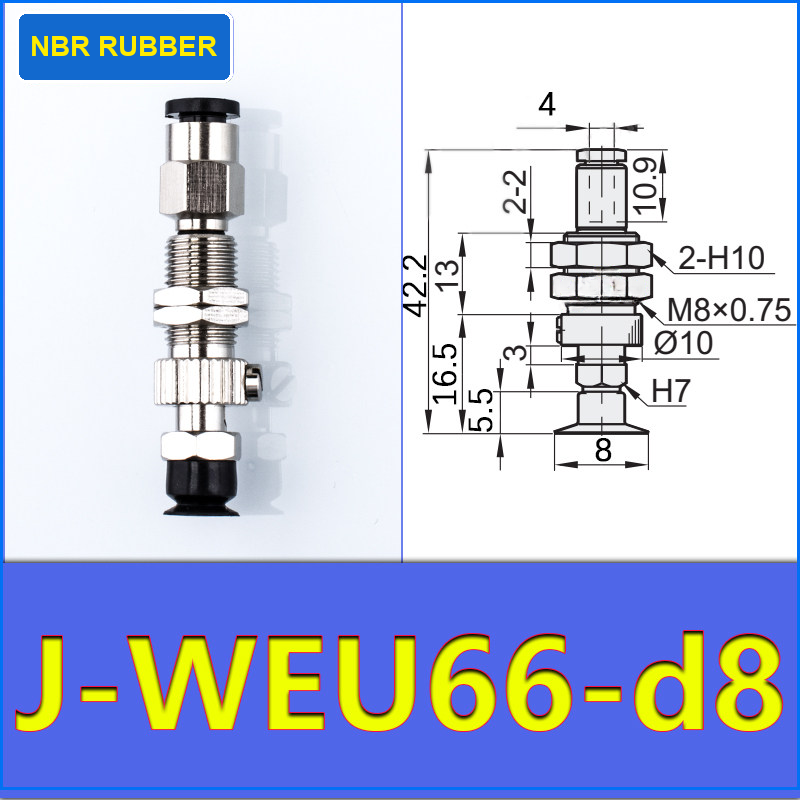

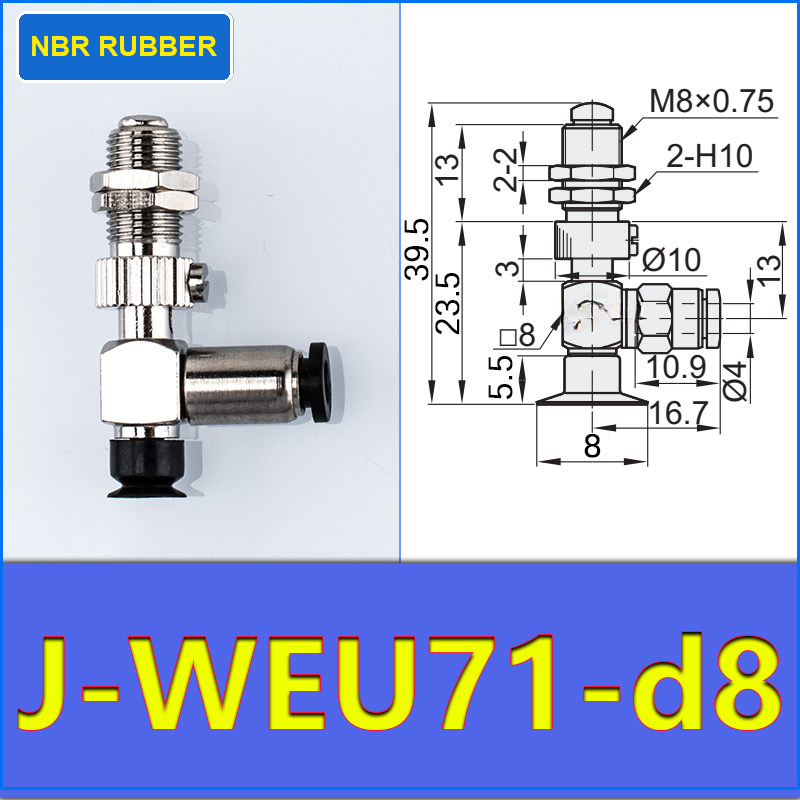

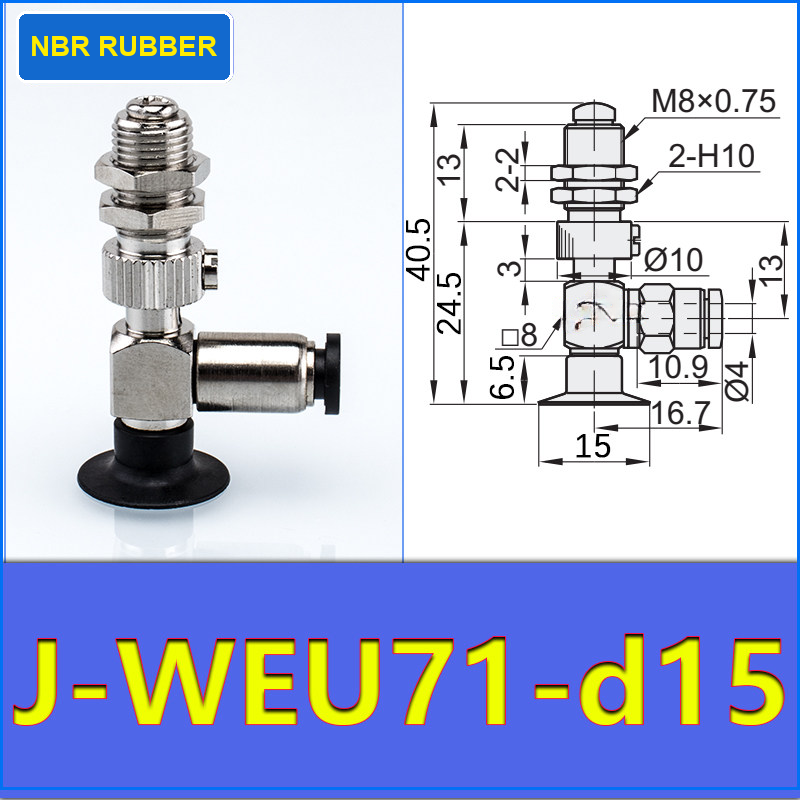

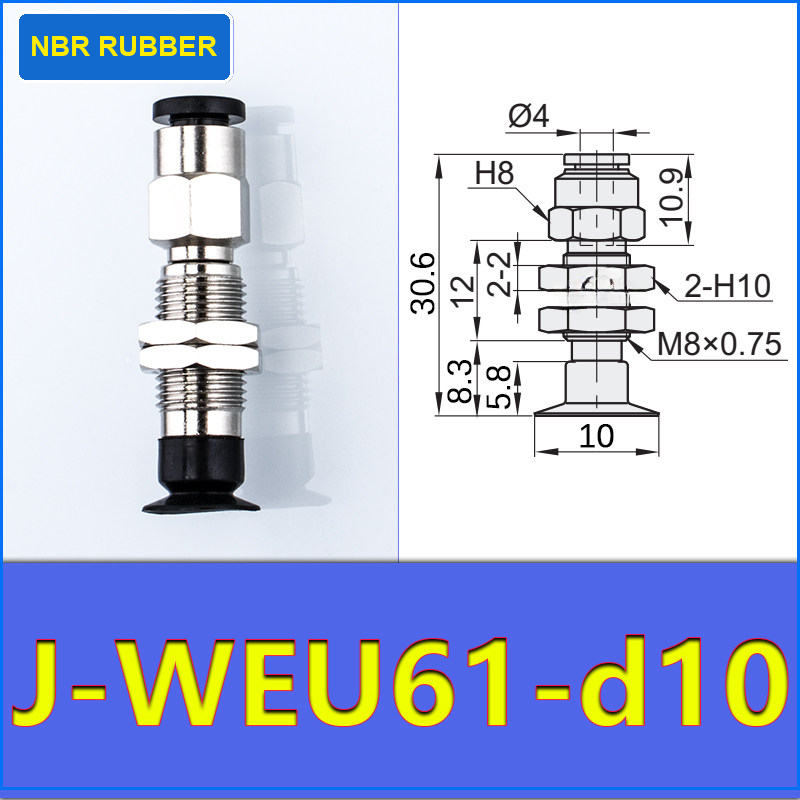

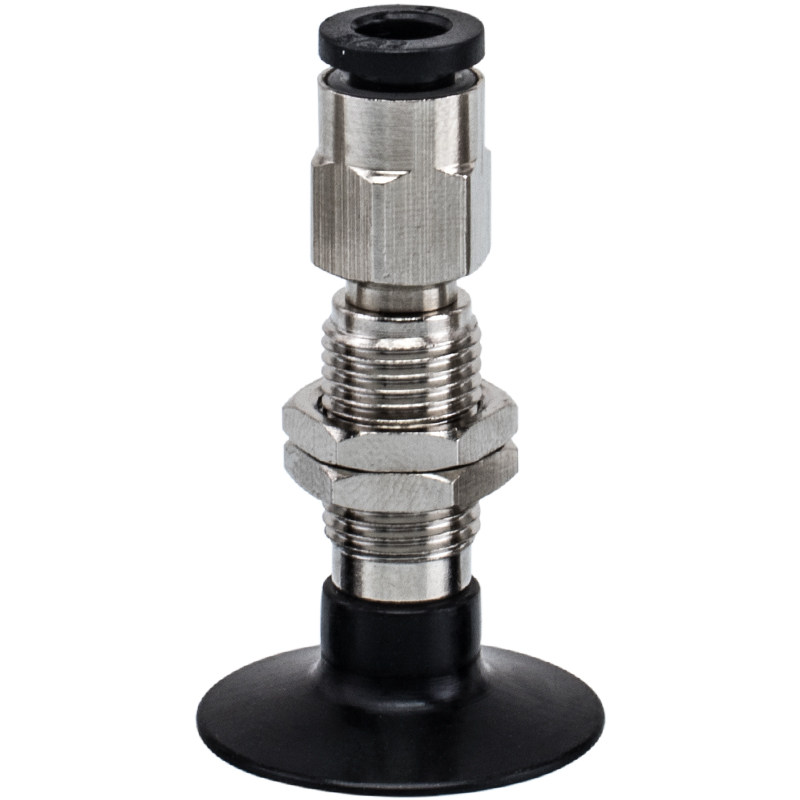

1. Choose the holder configuration: J-WEU61 is the straight holder; J-WEU66 is the extended straight holder; J-WEU71 is the side-port holder.
2. Choose the nominal diameter: select D8, D10, D15 or D20 based on the complete model and drawing.

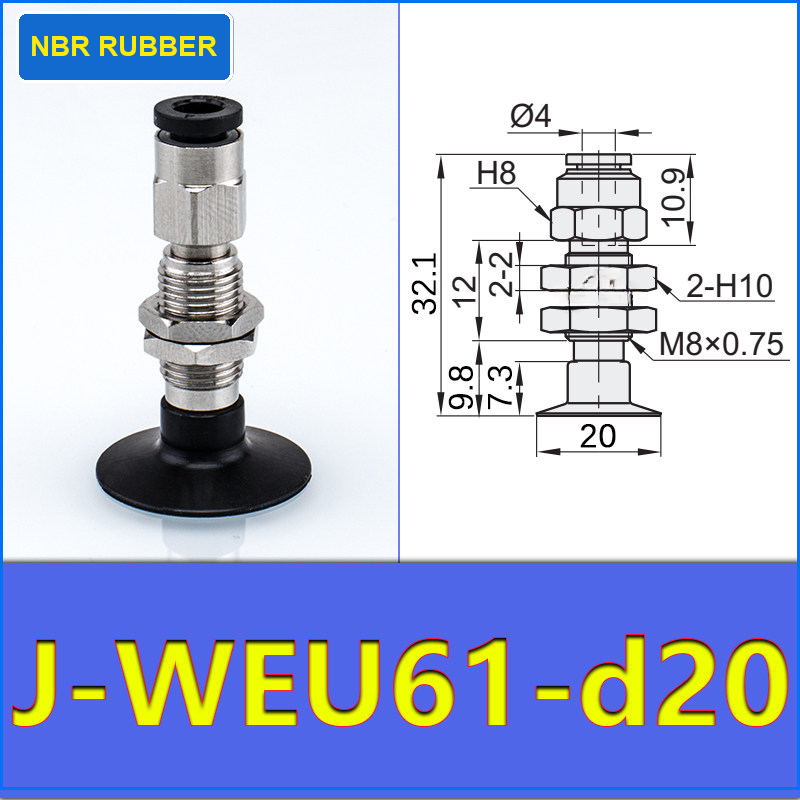

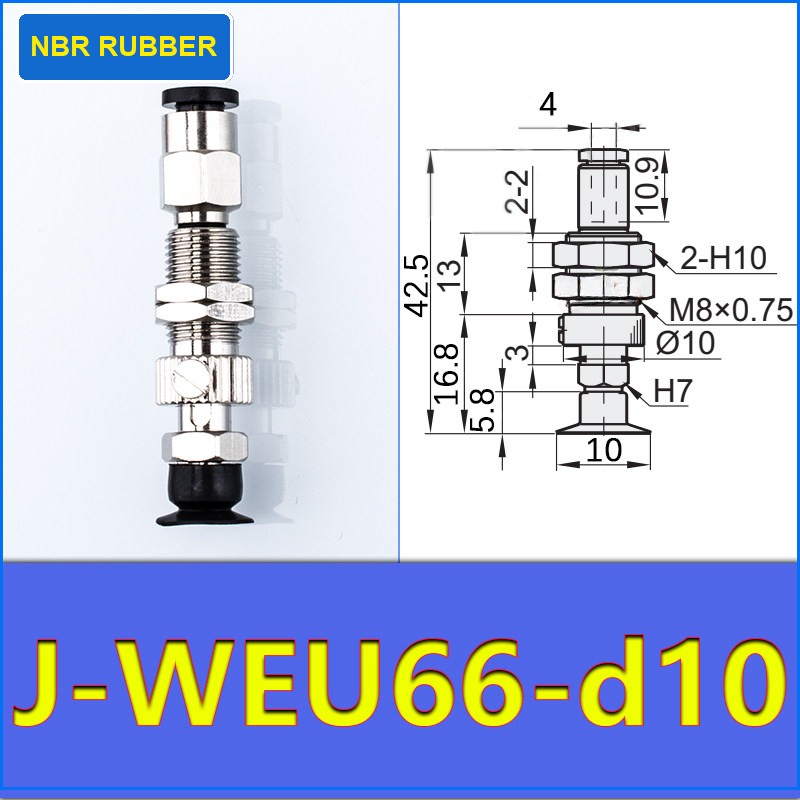

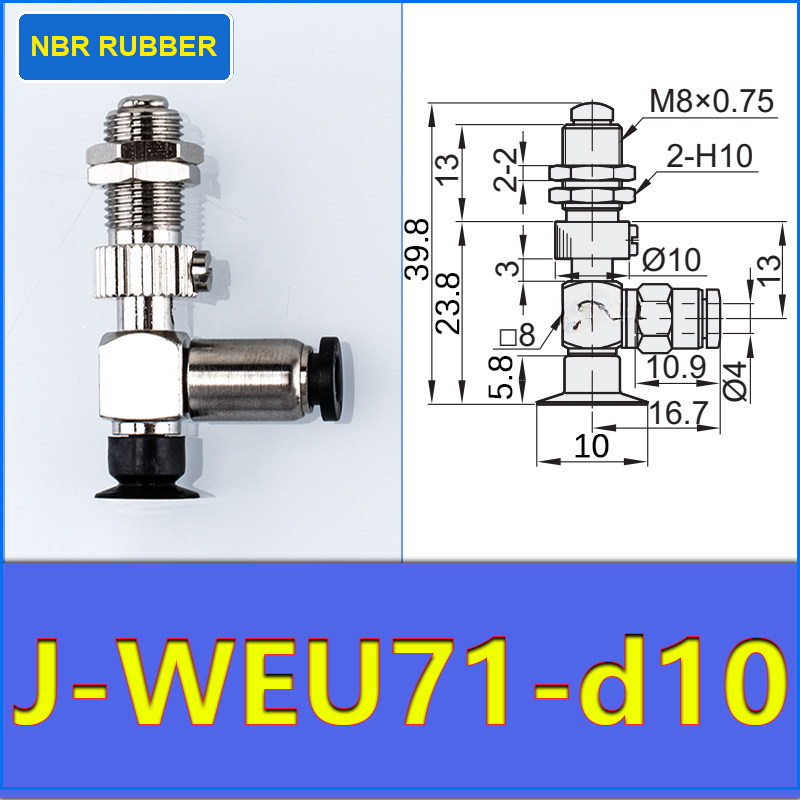

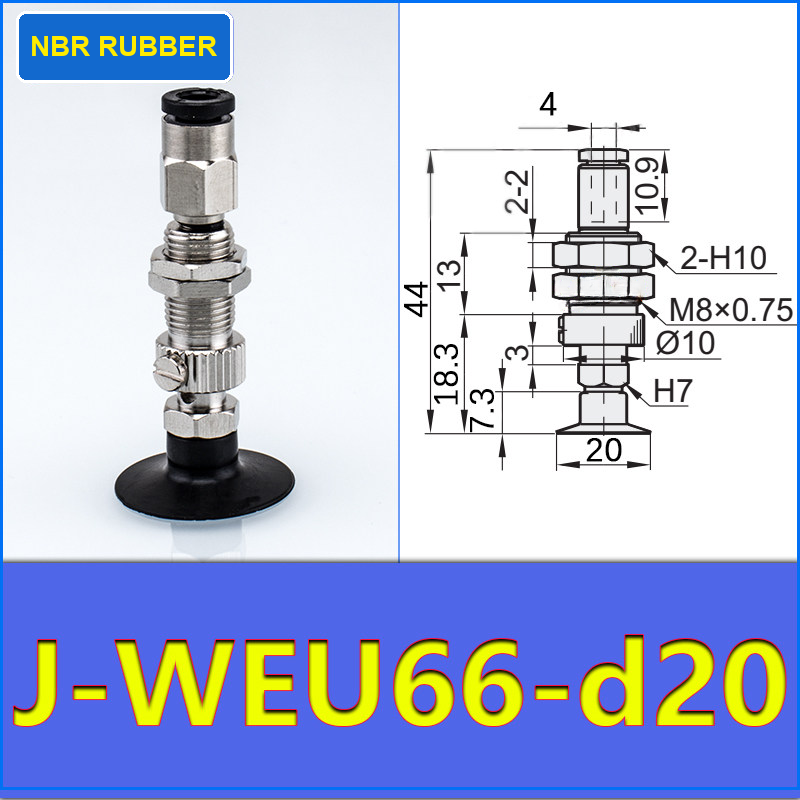

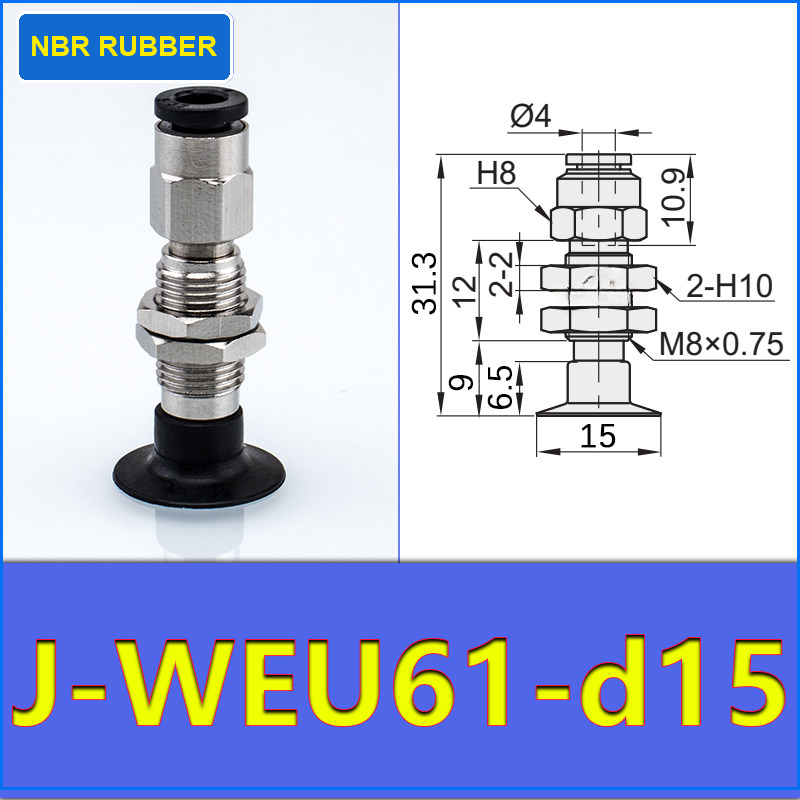

3. Confirm the interface: check the selected drawing for the M8×0.75 thread, 2-H10 callout, overall dimensions and installation clearance.
4. Select the complete code: choose one listed J-WEU model exactly as shown; do not combine dimensions from different variants.

Model-code guide

J-WEU[family]-D[diameter] identifies the holder configuration and nominal diameter. Every selectable model has its own product view and dimensional drawing.

Suitable for

• Industrial vacuum pick-and-place and packaging automation
• Robotic end-effectors and compatible vacuum gripping fixtures
• Replacement work where the complete model and installation drawing have been confirmed

Before use

Confirm the complete model code, selected drawing, cup interface, mounting thread, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
