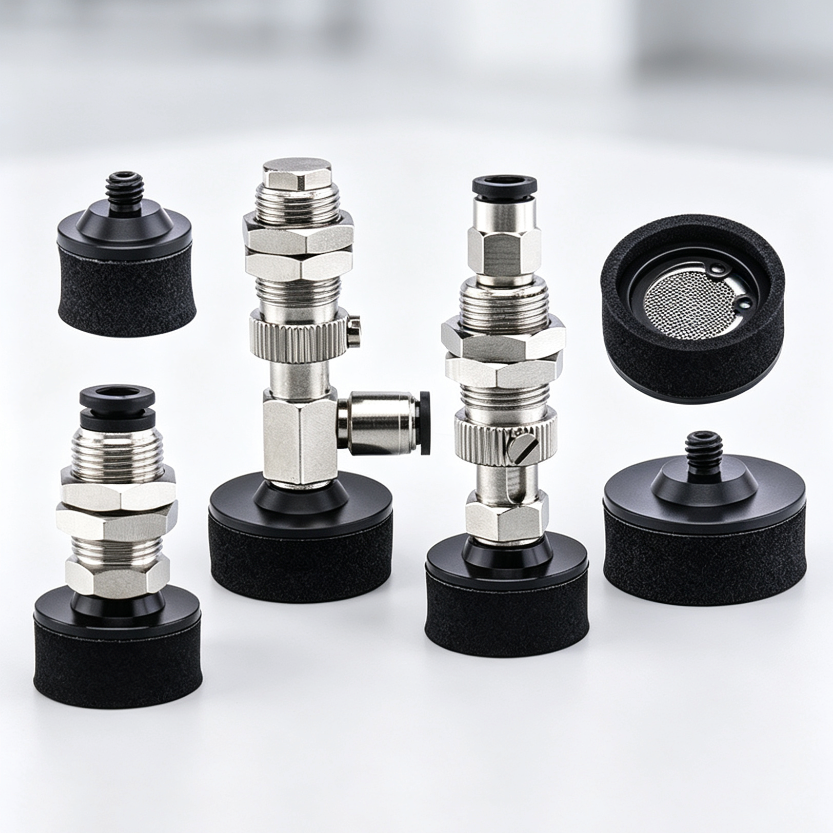

J-WEP and J-WET chloroprene-rubber sponge vacuum cups for compatible industrial vacuum gripping, automation tooling and replacement work. Select the complete model by mounting configuration and nominal cup diameter, then confirm the matching drawing and interface before ordering.

Quick Model Finder

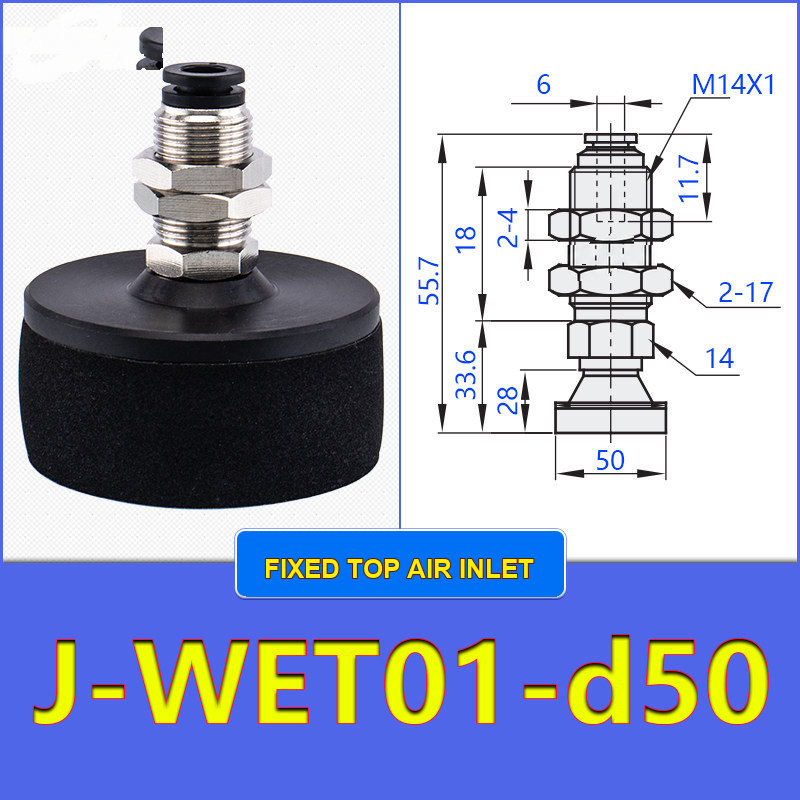

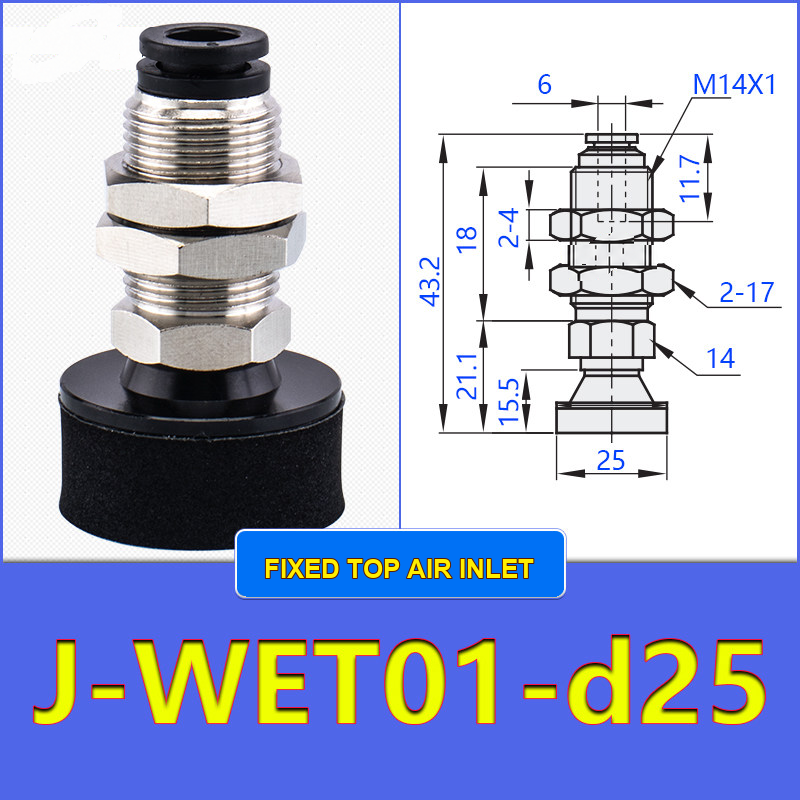

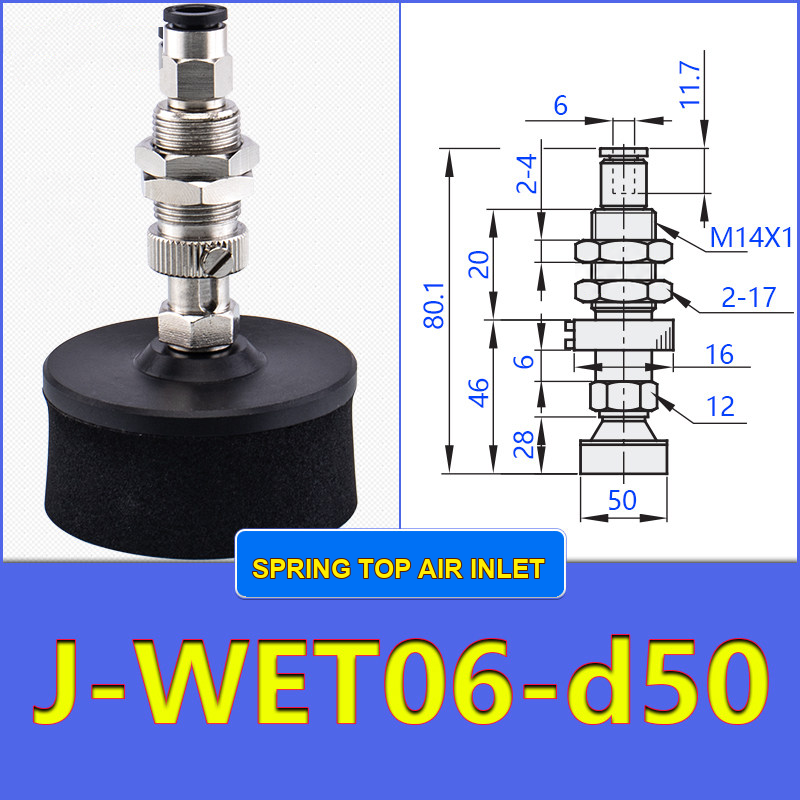

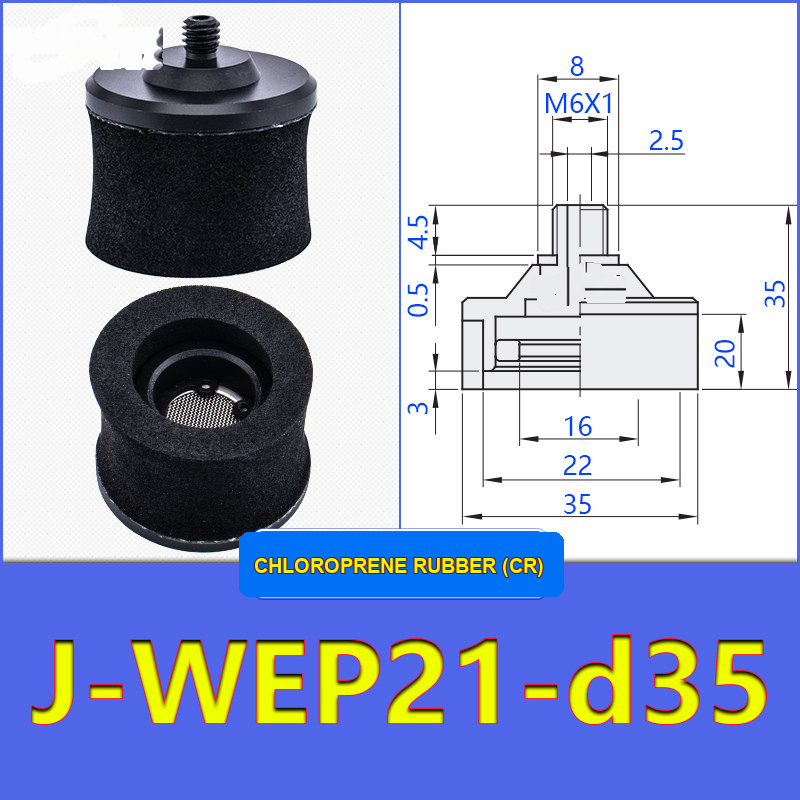

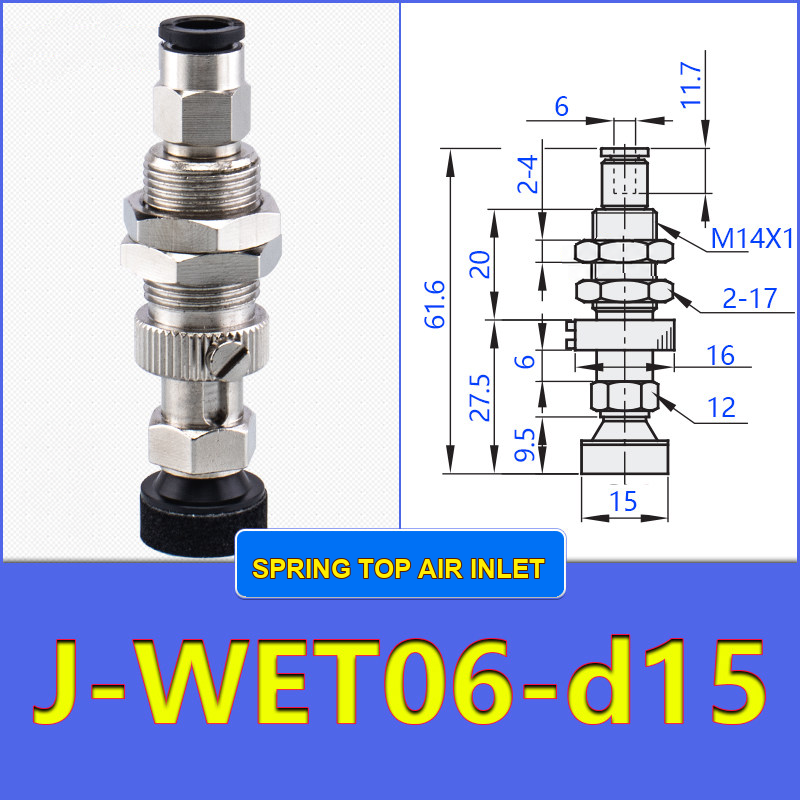

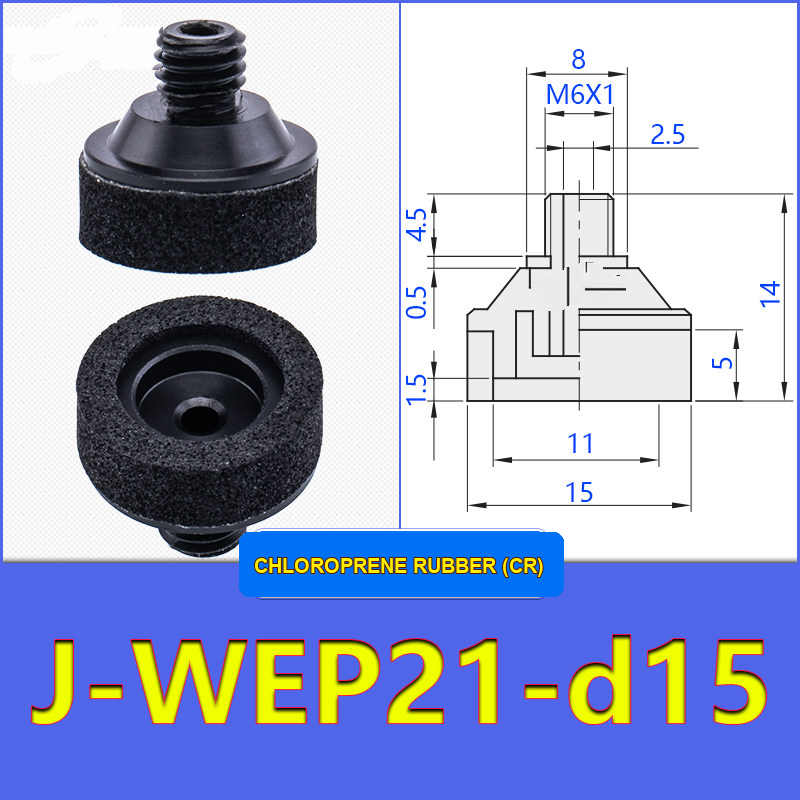

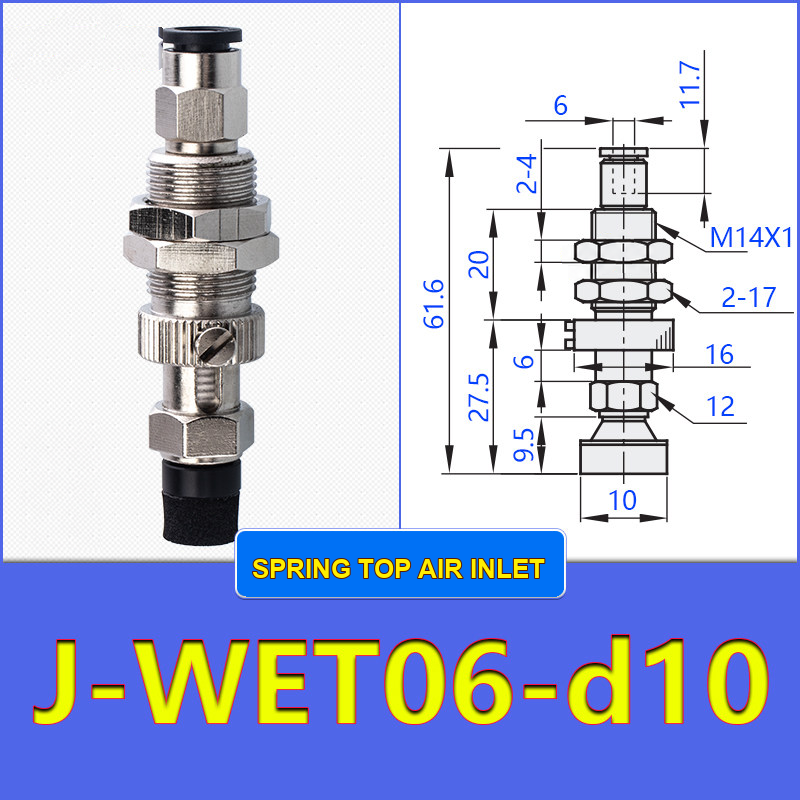

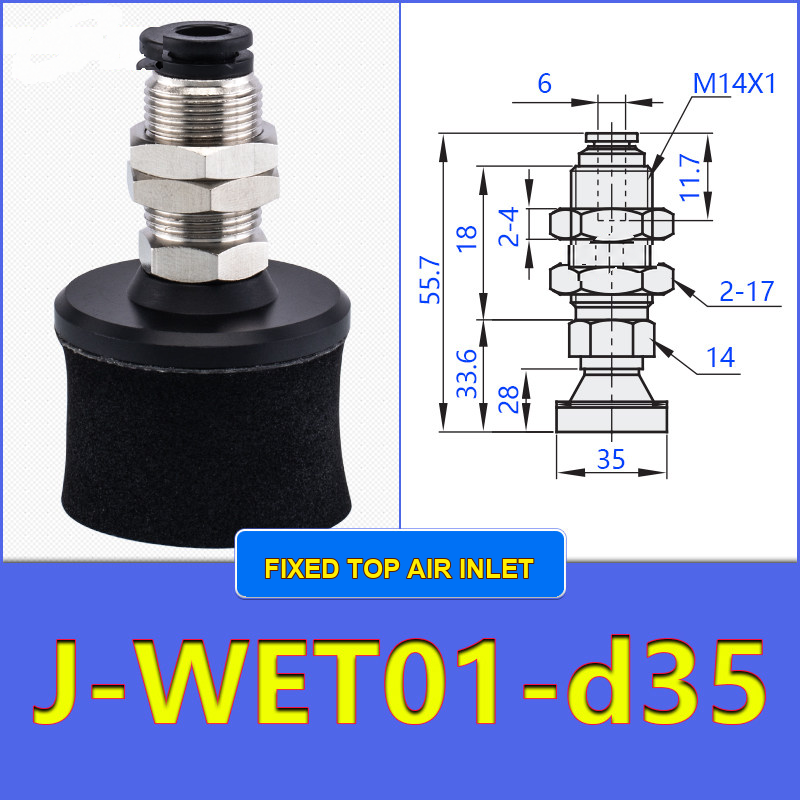

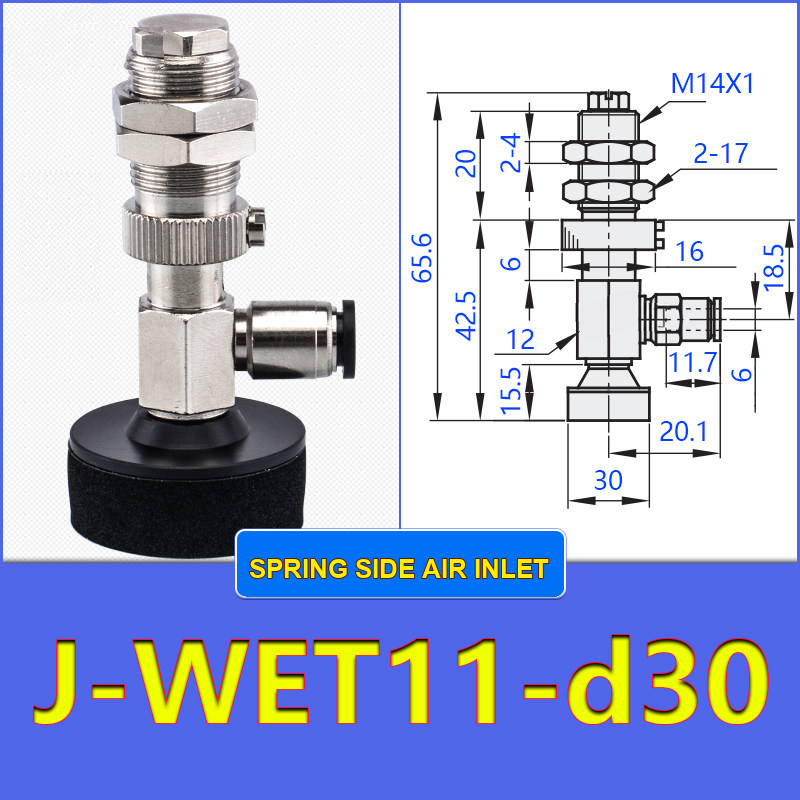

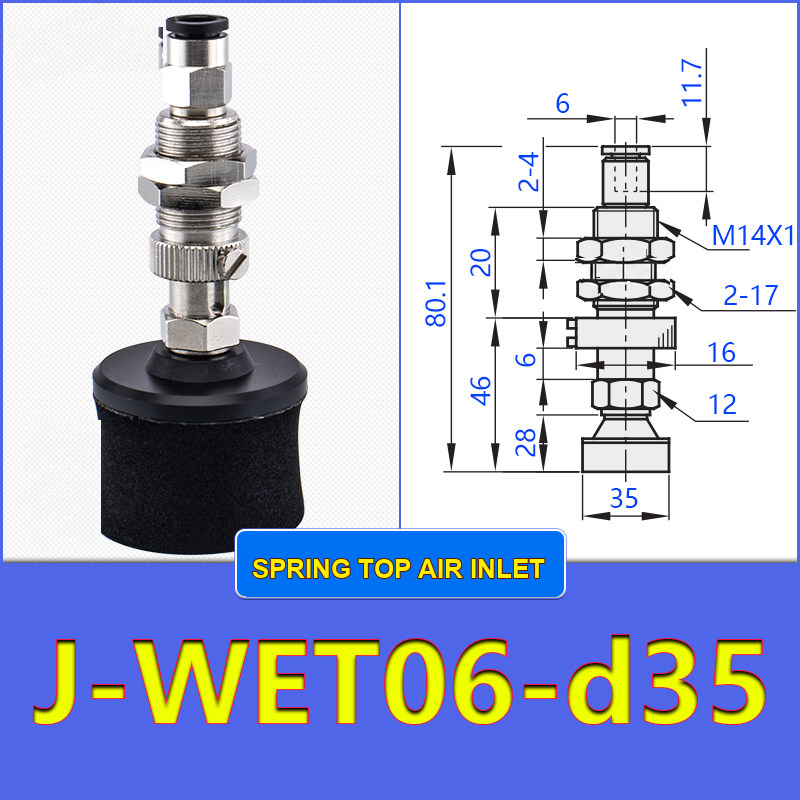

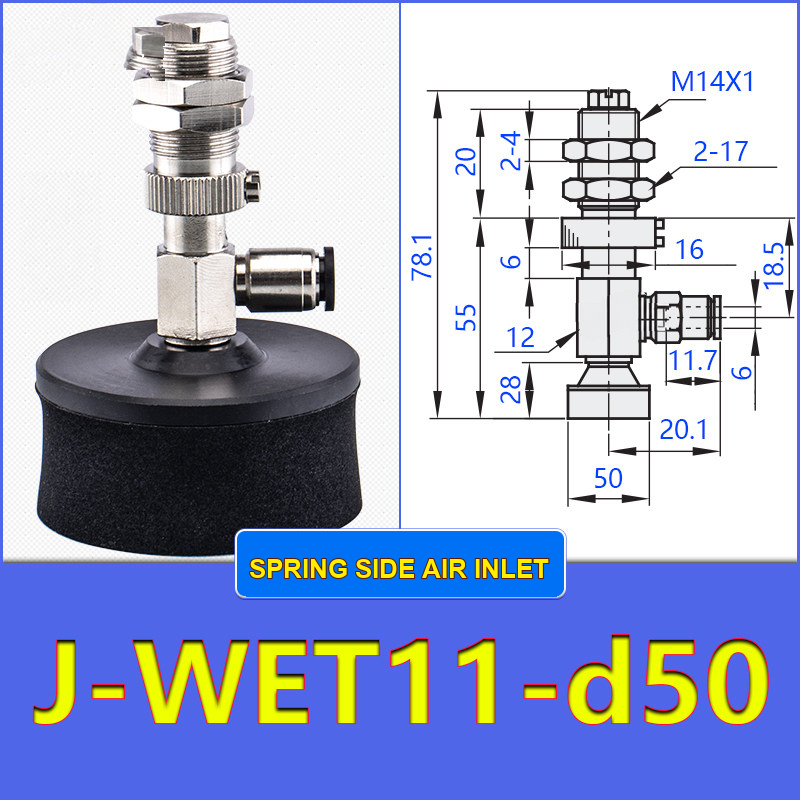

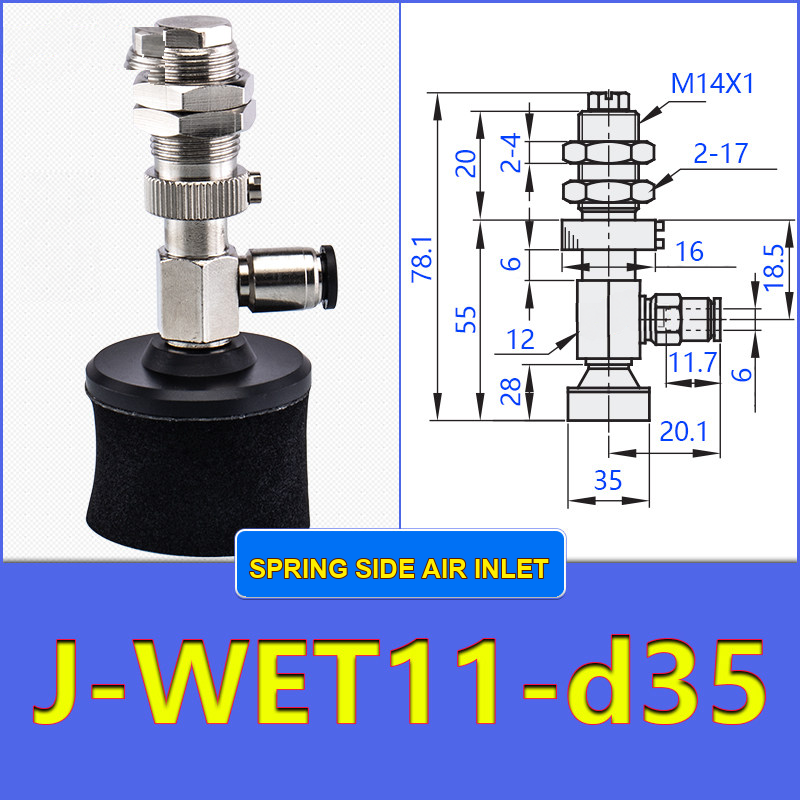

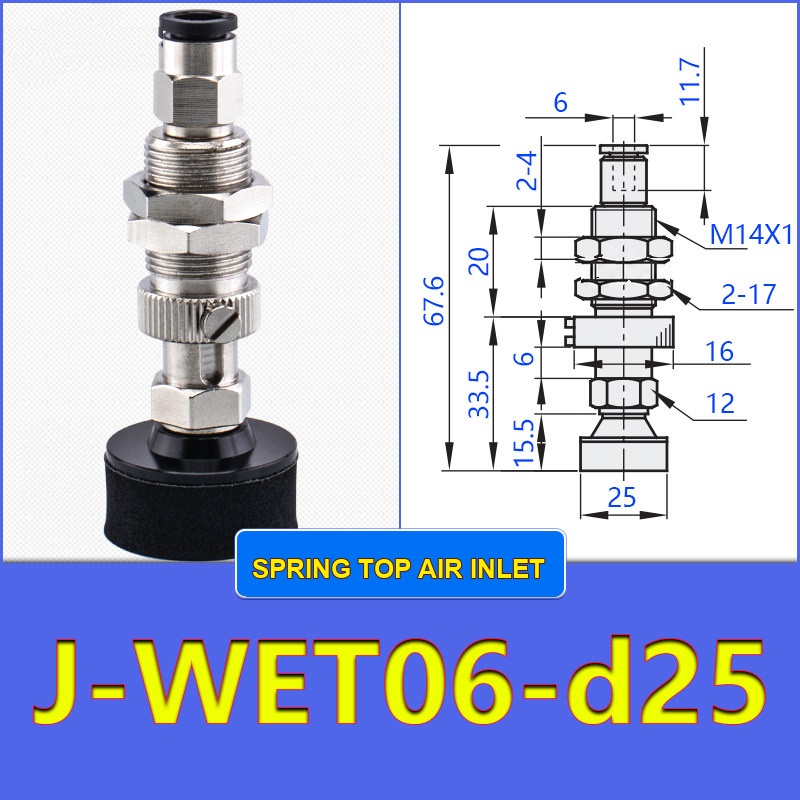

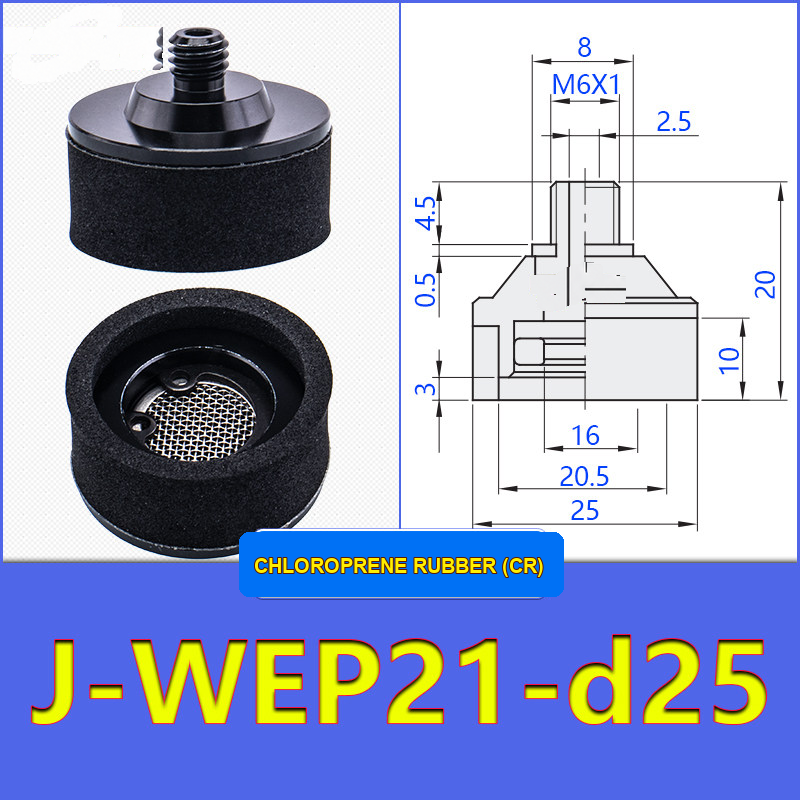

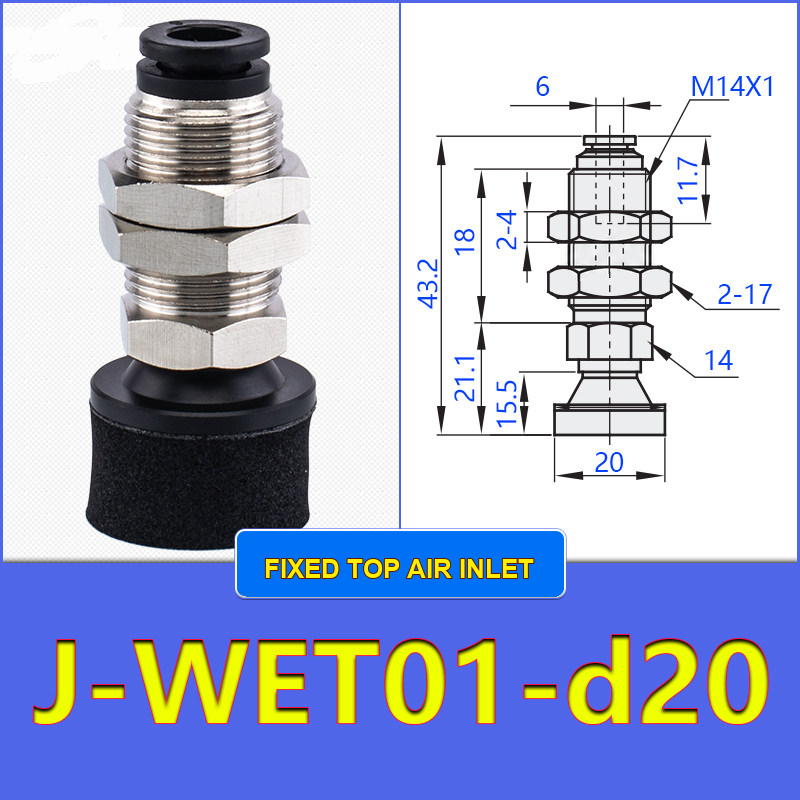

1. Choose the configuration: J-WEP21 is the external-thread sponge-cup type; J-WET01 is a fixed top vacuum port; J-WET06 is a spring top vacuum port; and J-WET11 is a spring side vacuum port.
2. Choose the diameter: select D10, D15, D20, D25, D30, D35 or D50 according to the required nominal cup diameter and installation envelope.
3. Confirm the interface: verify the complete code, mounting interface, vacuum connection and applicable dimensional drawing for the selected model before ordering.
4. Select the complete code: choose one listed J-WEP or J-WET model exactly as shown; do not combine attributes from different variants.

Material

All listed variants use chloroprene rubber (CR) sponge cups.

Suitable for

• Industrial vacuum pick-and-place and packaging automation
• Robotic end-effectors and compatible vacuum gripping fixtures
• Replacement work where the full model, interface and drawing have been confirmed

Before use

Confirm the complete model code, selected drawing, mounting interface, vacuum connection, cup diameter, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
