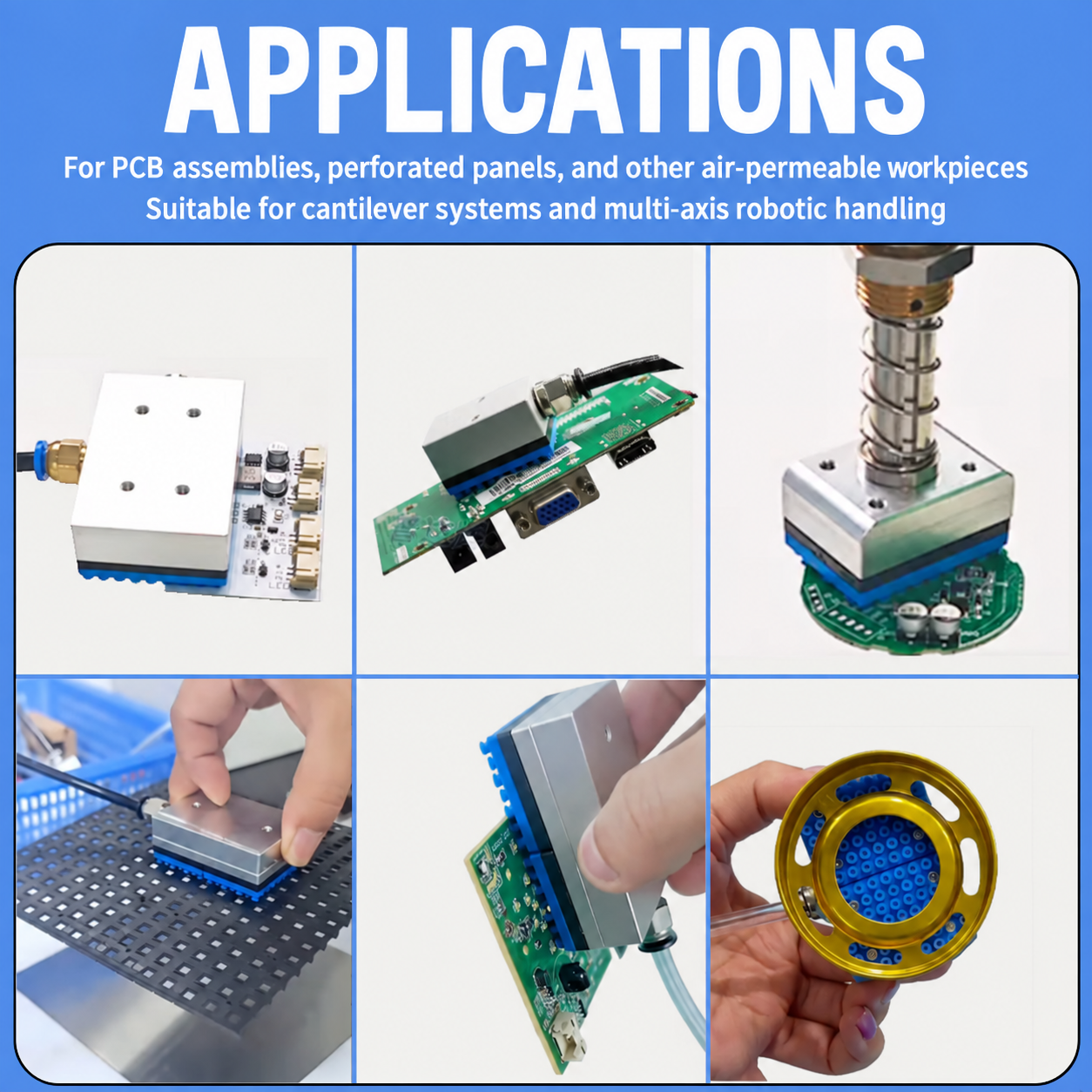

Integrated industrial vacuum pads for PCB handling, perforated workpieces, and small-part automation. Choose from compact 30 × 42 mm units through 169 × 30 mm rectangular pads, with standard fittings, mounting-block configurations, and four-inlet G1/8 options.
Select the required model and verify its overall dimensions, mounting arrangement, air-inlet configuration, and equipment compatibility before ordering.
Model / configuration / SKU
| Model / configuration | SKU |
|---|---|

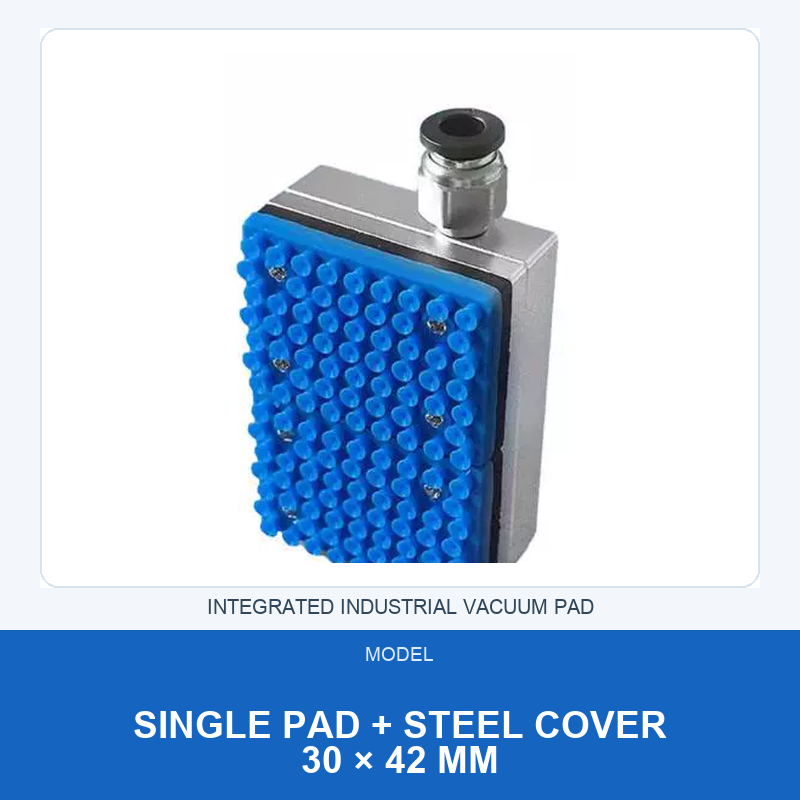

| Single Suction Pad + Steel Cover Plate (30 × 42 mm) | 5670606760250 |
| Integrated Vacuum Pad (30 × 42 mm) | 6046572253689 |
| Integrated Vacuum Pad + Mounting Block (30 × 42 mm) | 5670606760249 |
| Integrated Vacuum Pad (60 × 42 mm) | 6046572253690 |
| Integrated Vacuum Pad + Mounting Block (60 × 42 mm) | 5670606760248 |
| Integrated Vacuum Pad (30 × 84 mm) | 5670606760247 |

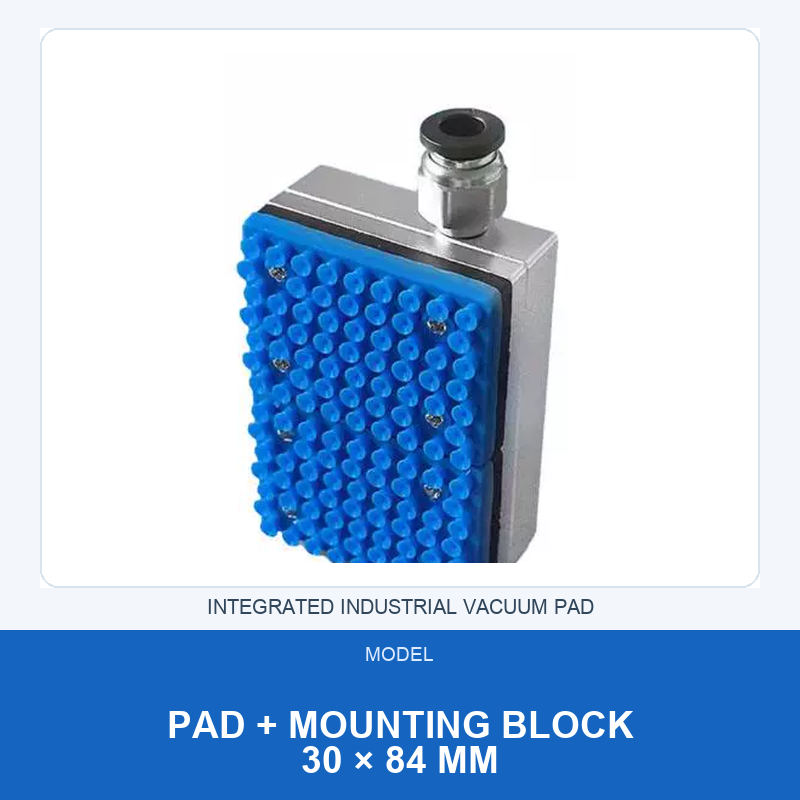

| Integrated Vacuum Pad + Mounting Block (30 × 84 mm) | 6259637238875 |
| Integrated Vacuum Pad, 4 × G1/8 Air Inlets (30 × 42 mm) | 6259637238876 |
| Integrated Vacuum Pad, 4 × G1/8 Air Inlets (60 × 42 mm) | 6259637238877 |

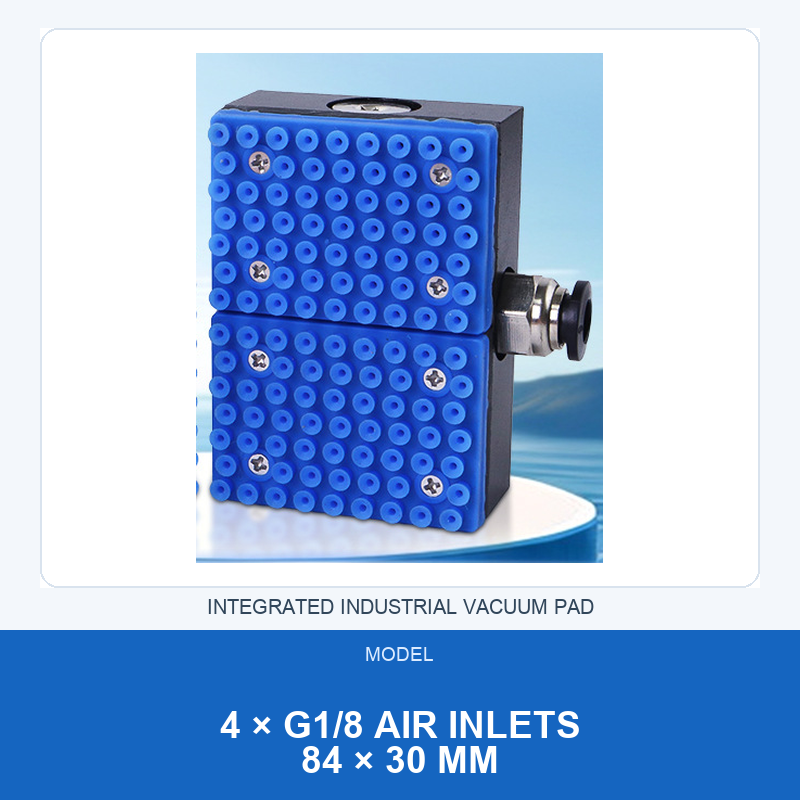

| Integrated Vacuum Pad, 4 × G1/8 Air Inlets (84 × 30 mm) | 6046572253685 |

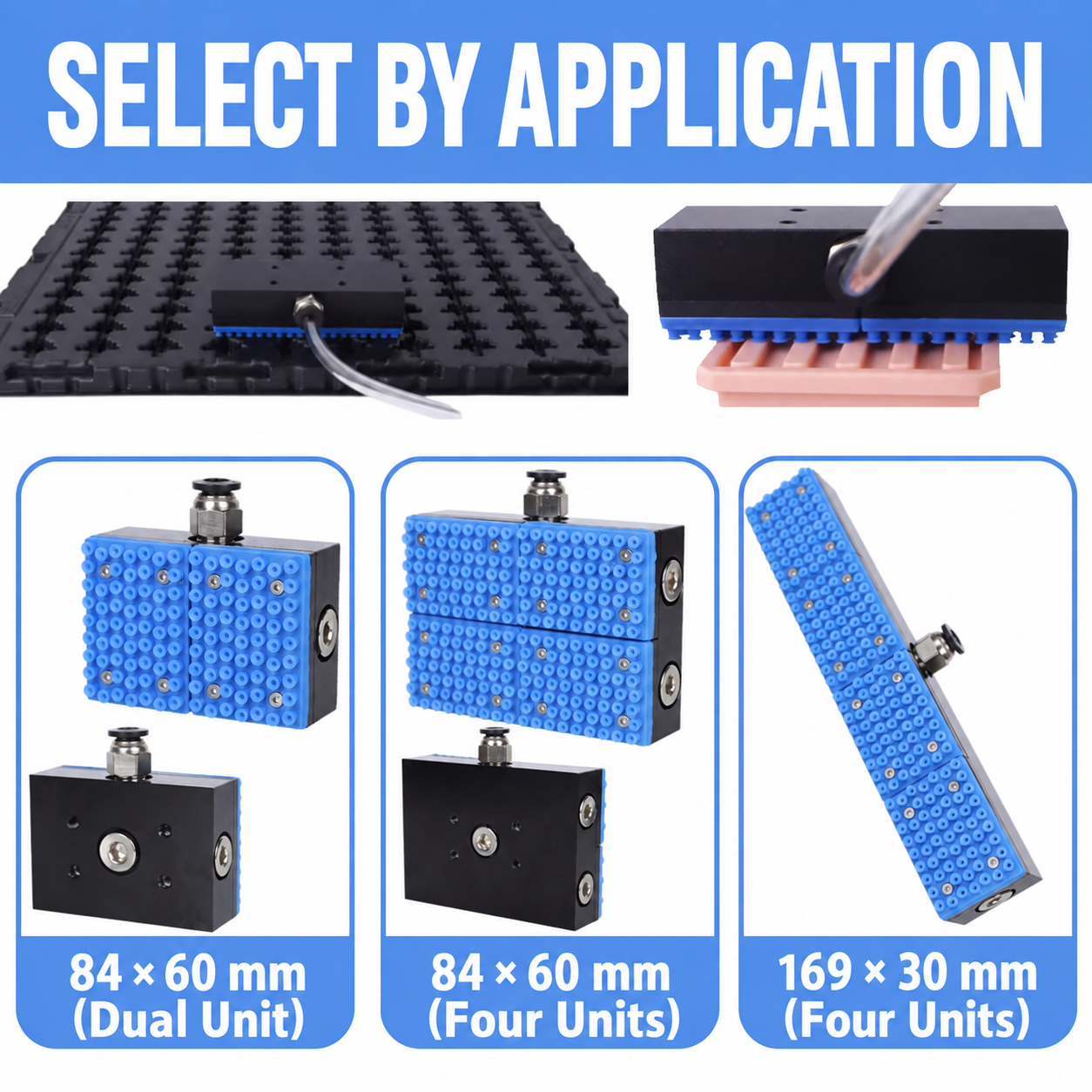

| Integrated Vacuum Pad, 4 × G1/8 Air Inlets (84 × 60 mm) | 6046572253686 |
| Integrated Vacuum Pad, 4 × G1/8 Air Inlets (169 × 30 mm) | 6046572253687 |
