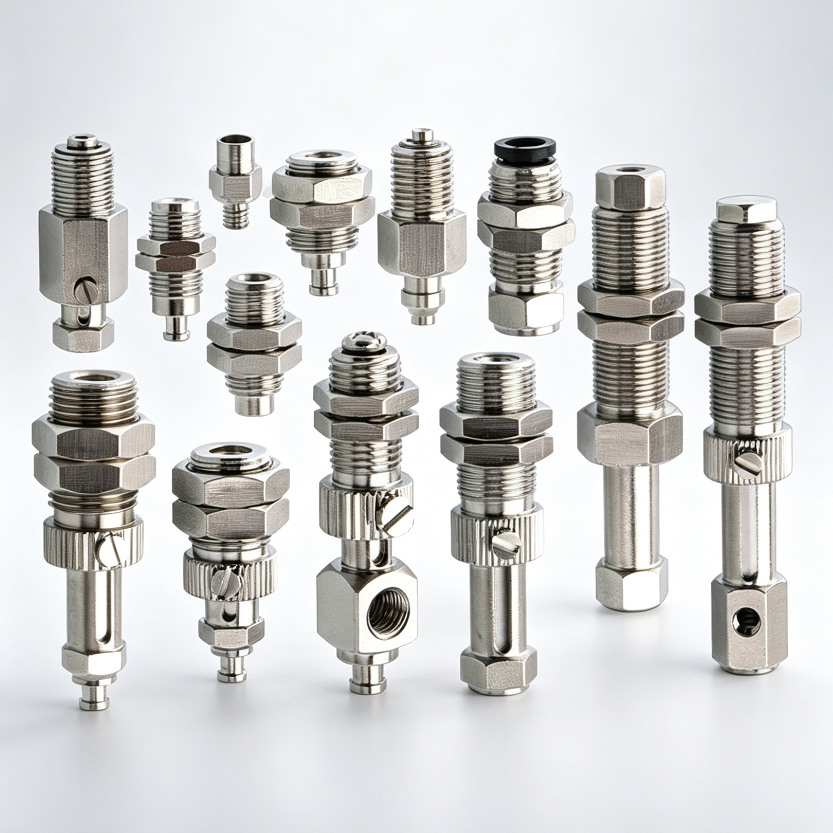

Heavy-Duty Vacuum Cup Holders — Side and Top Port

Heavy-Duty Vacuum Cup Holders — Side and Top Port

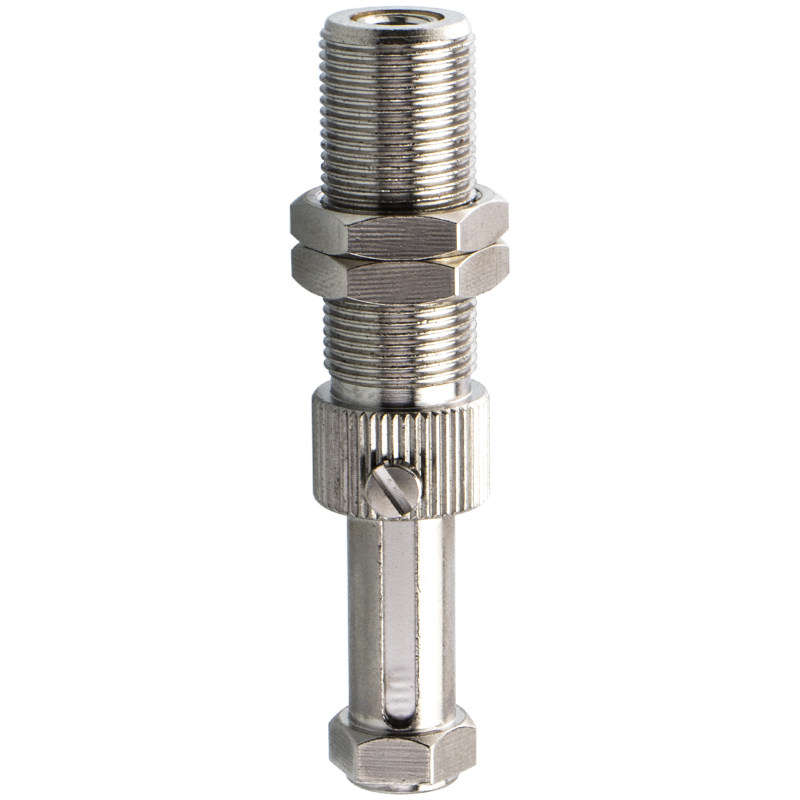

Nickel-plated brass vacuum cup holder assemblies for industrial robots and compatible vacuum handling systems, with model-specific side-port and top-port configurations.

Quick Model Finder

• Y-series: Y-M10-B8 and Y-M16-J10, J30 or J50 configurations.
• T-series: T-M10-14IG, T-M10-M16, T-M14-J15, T-M16-J10, J30, J50, J25-B01 and J50-B01 configurations.
• Thread callouts: M8×1.25, M10×1.25, M14×1.5, M16×1.5, G1/8 or G1/4 are shown where applicable.
• Select the complete model code and confirm port direction, thread, stroke and every installed dimension on its selected drawing before ordering.

Suitable for

• Industrial robotic pick-and-place
• Packaging, sorting and assembly equipment
• Compatible vacuum suction cup mounting systems

Before Use

Confirm the complete model code, selected drawing, mounting interface, vacuum connection, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
