Heavy-Duty Vacuum Cup Buffer Mounts — Top or Side Port

Heavy-Duty Vacuum Cup Buffer Mounts — Top or Side Port

Heavy-duty buffer mounts for industrial vacuum cups, robot end-effectors and automated handling fixtures. Select the complete model code, then use the selected dimensional drawing to confirm the connection and mounting fit.

Quick Model Finder

1. Choose the entry arrangement: use the listed Top Port Entry or Side Port Entry family reference, then select the complete ZPT or ZPX model required for the installation.

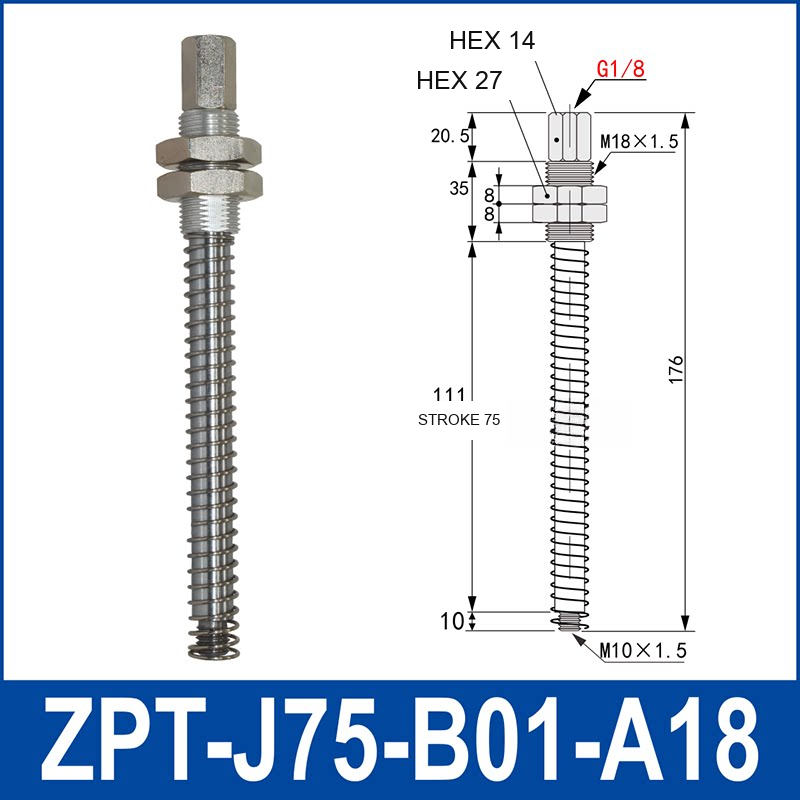

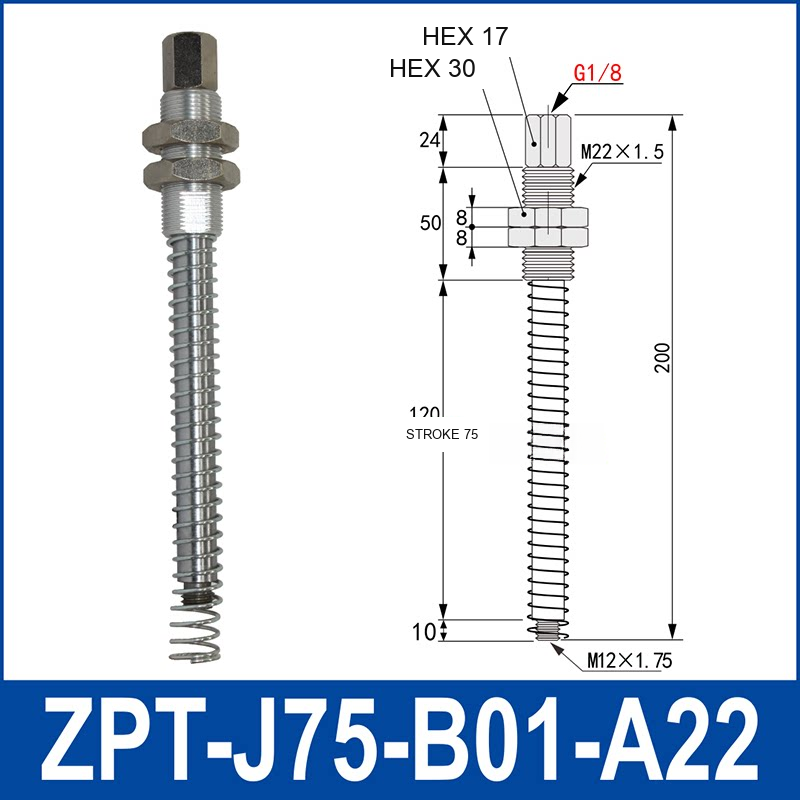

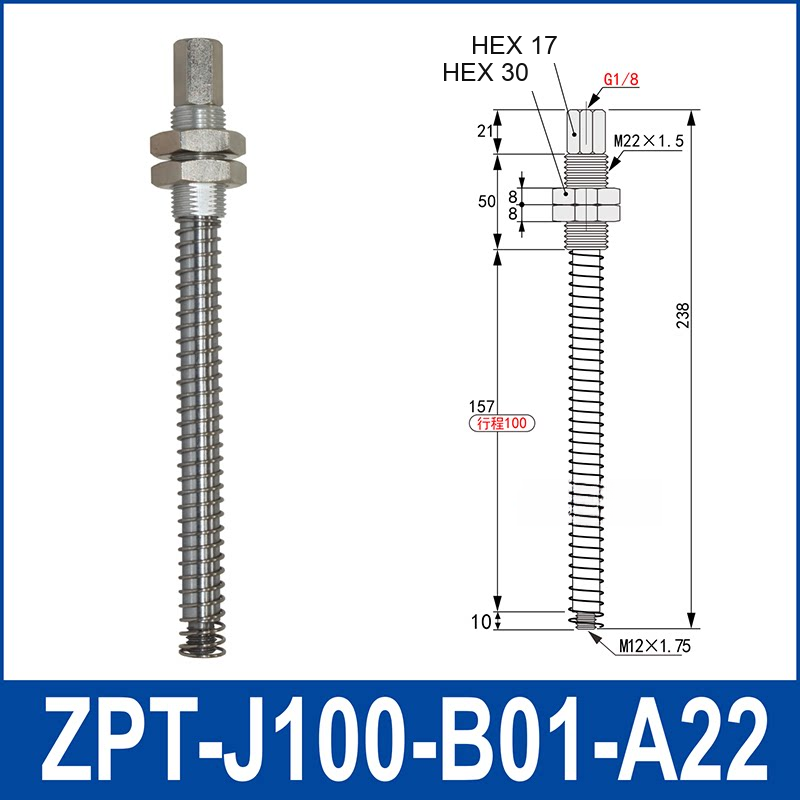

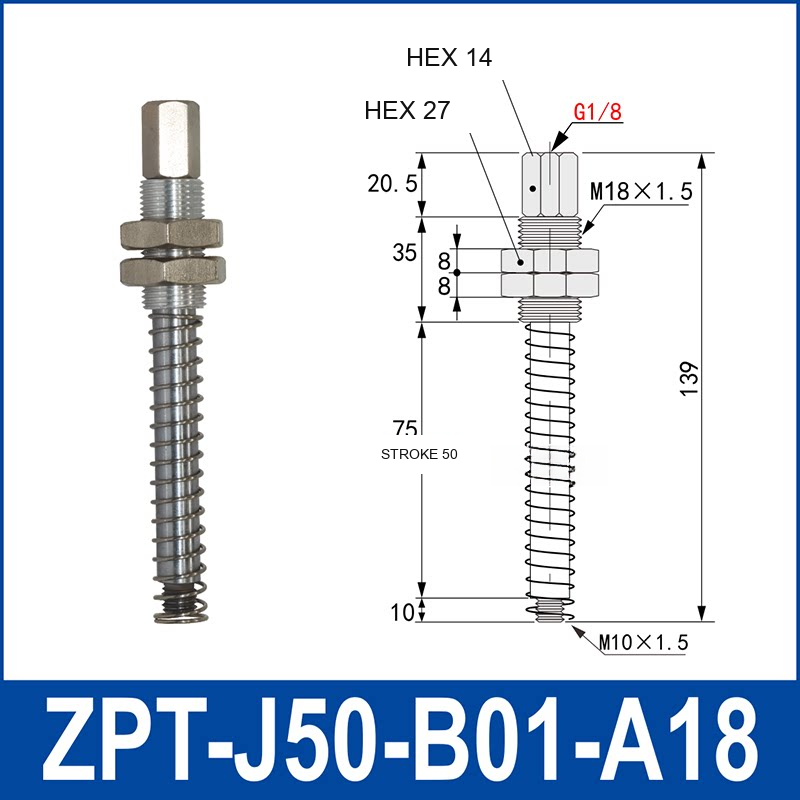

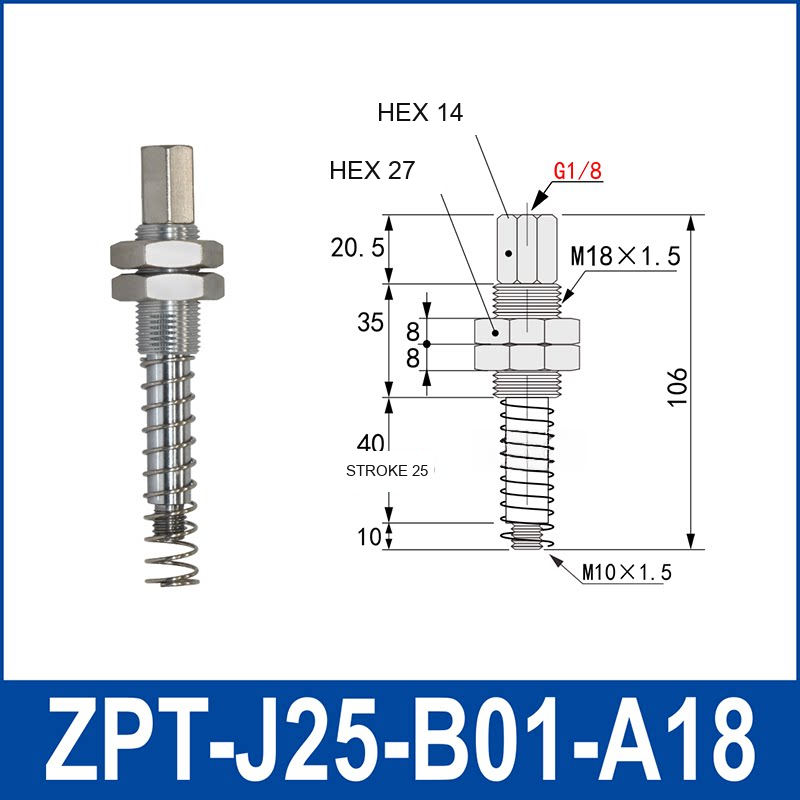

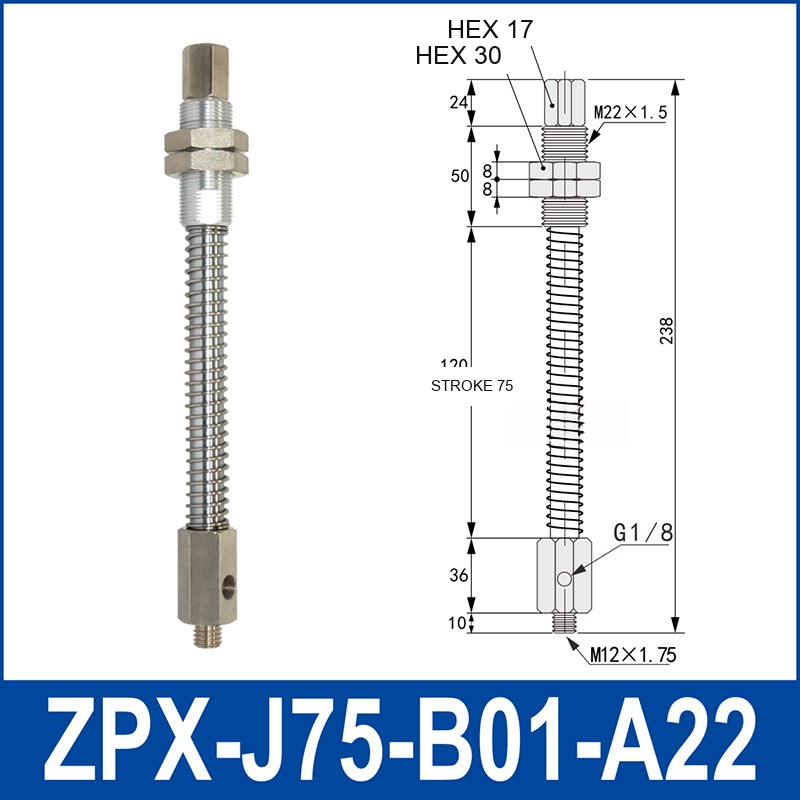

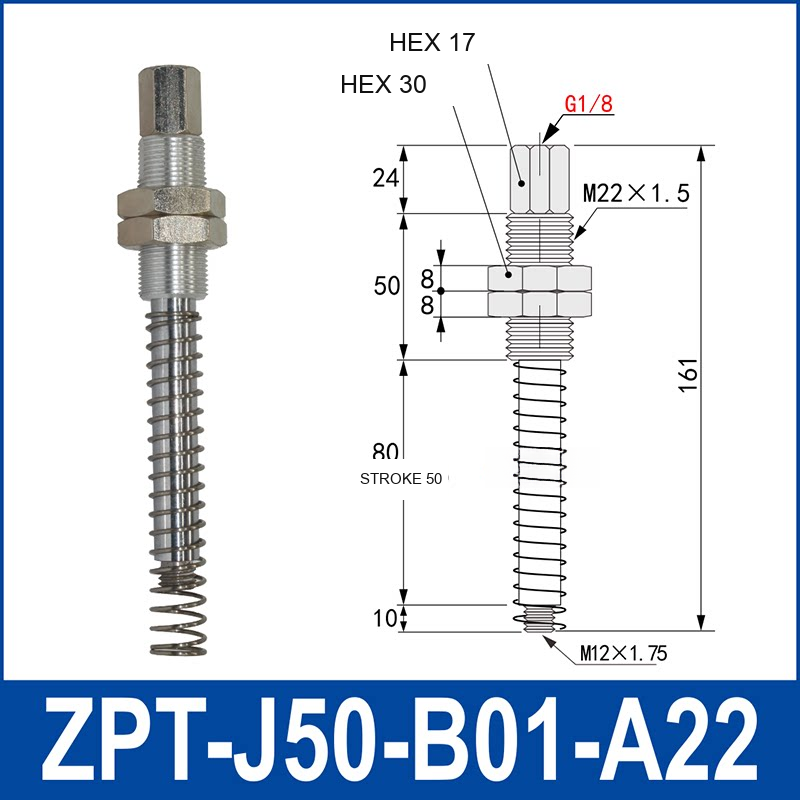

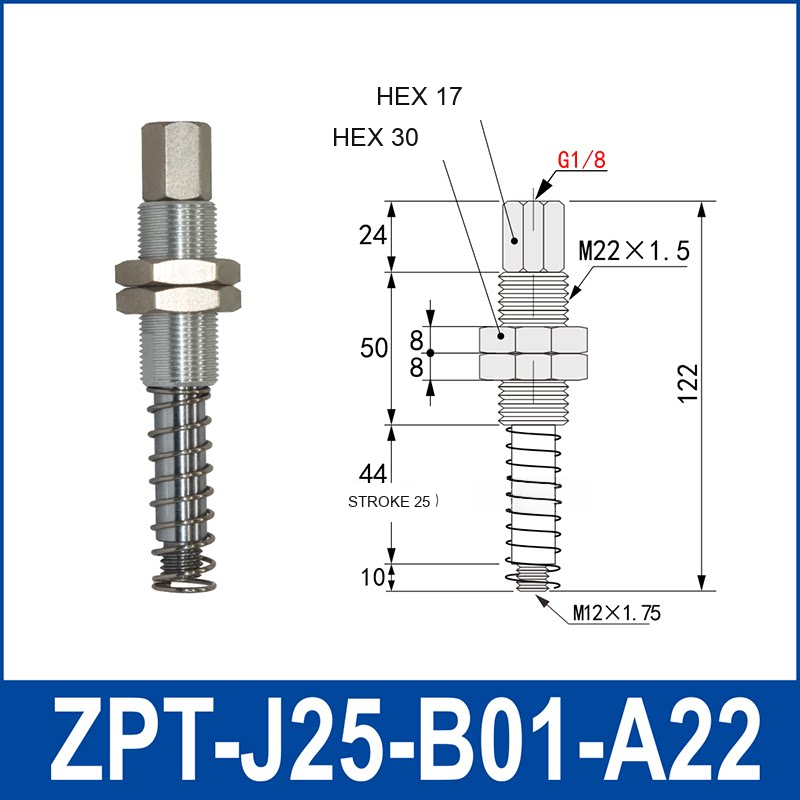

2. Choose the size and stroke code: J25, J26, J50, J51, J75, J76 and J100 are distinct configurations. Confirm the overall dimension, stroke, hex size and drawing callouts for the selected model.

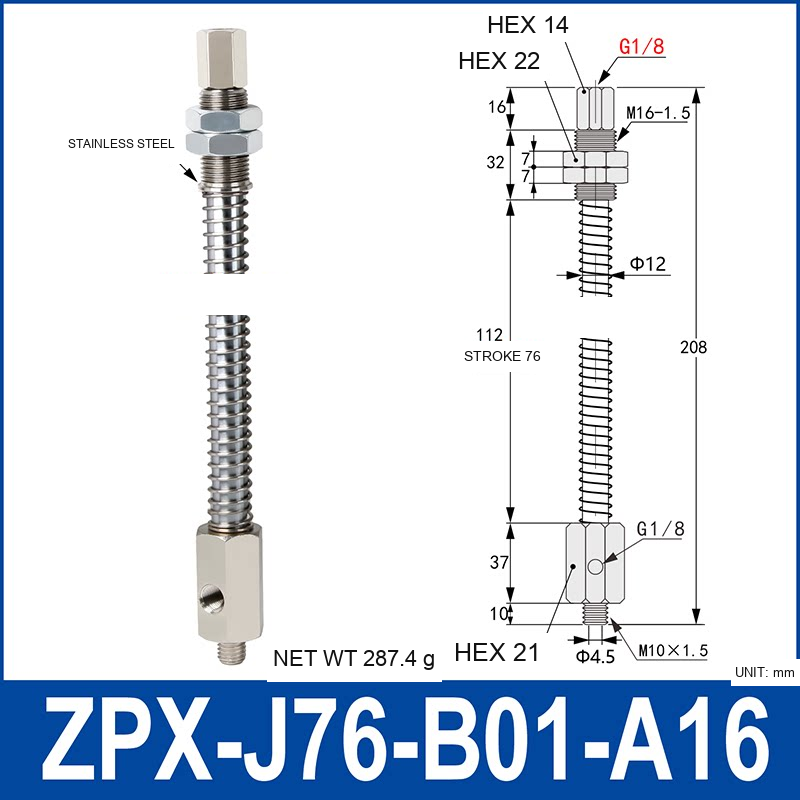

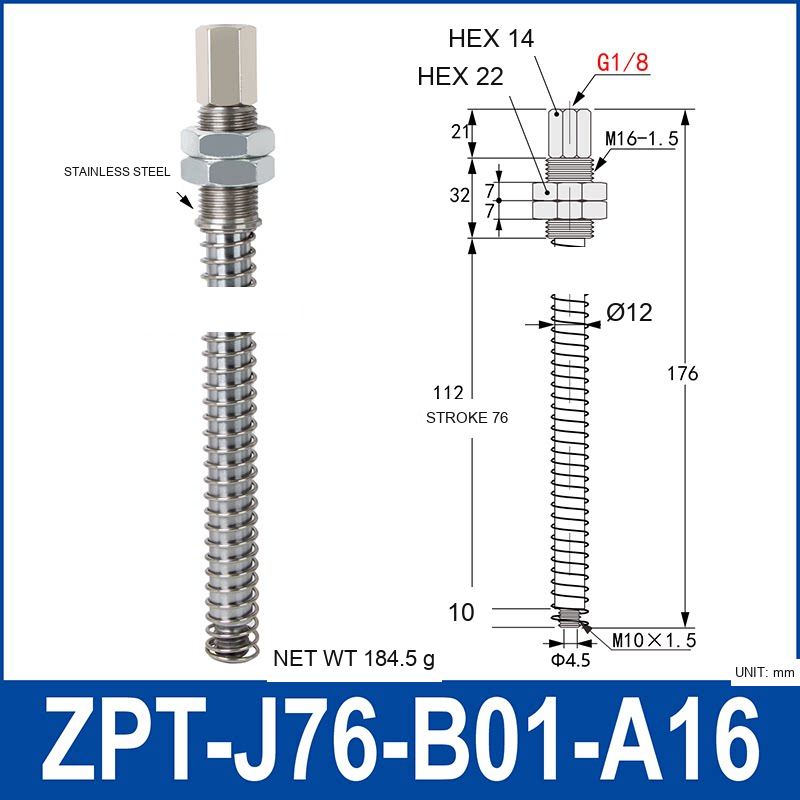

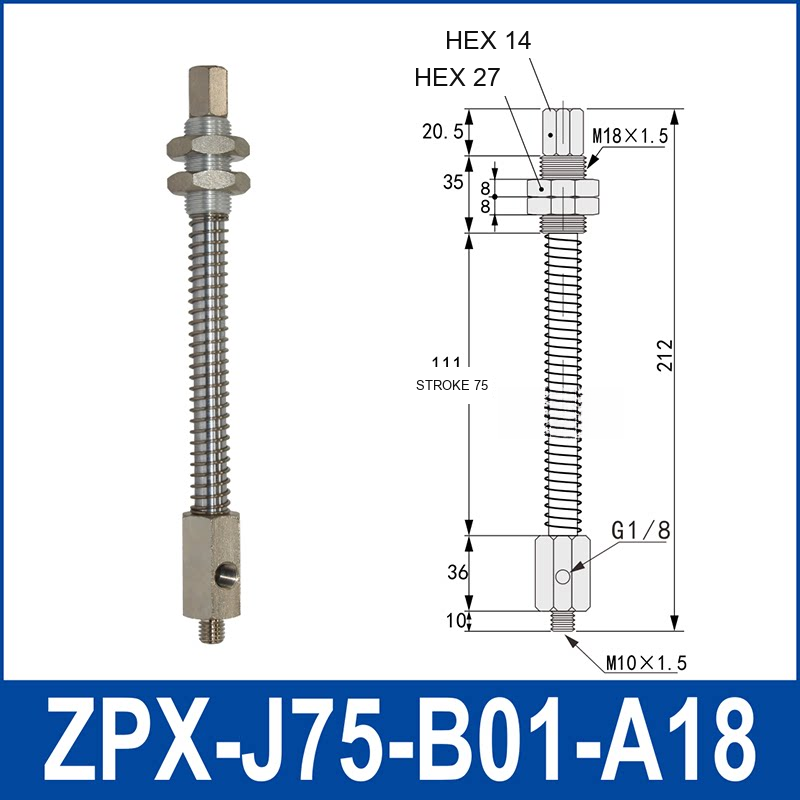

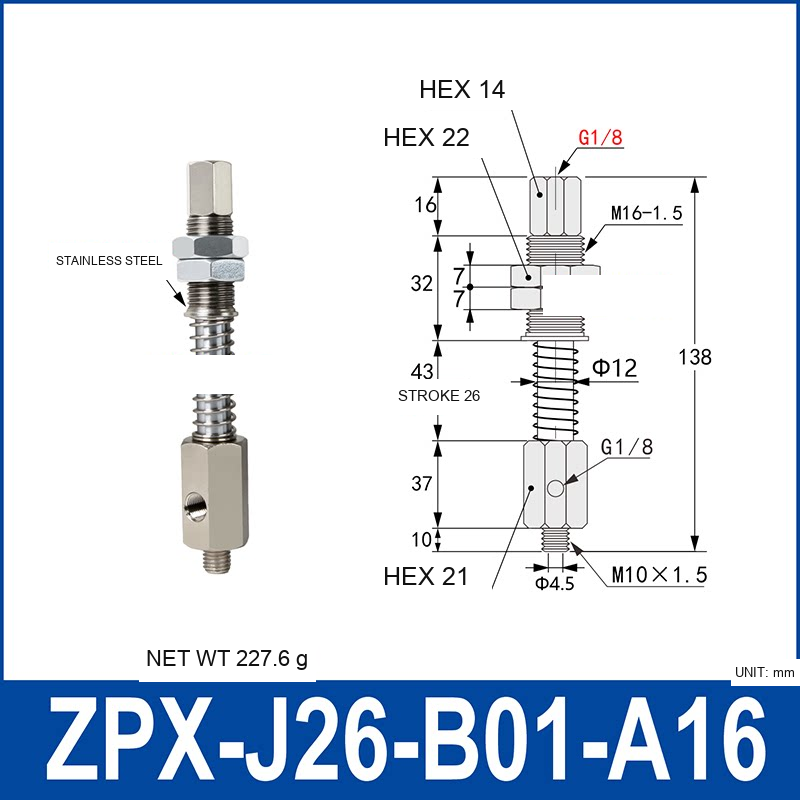

3. Choose the interface code: A16, A18 and A22 are separate listed configurations. Check the selected drawing for the exact thread, G1/8 connection where shown, cup-side interface and mounting clearance.
4. Confirm fit before ordering: compare the full model code, dimensional drawing, threads, vacuum-cup compatibility, tube routing, load path and installation space with the existing assembly.

Suitable for

• Industrial vacuum cup mounting and vibration buffering
• Robot end-effectors, pick-and-place fixtures and automated handling equipment
• Replacement work where the complete model and interfaces are verified

Before use

Verify the complete model code, selected drawing, thread interfaces, cup compatibility, mounting clearance, vacuum level, workpiece, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
