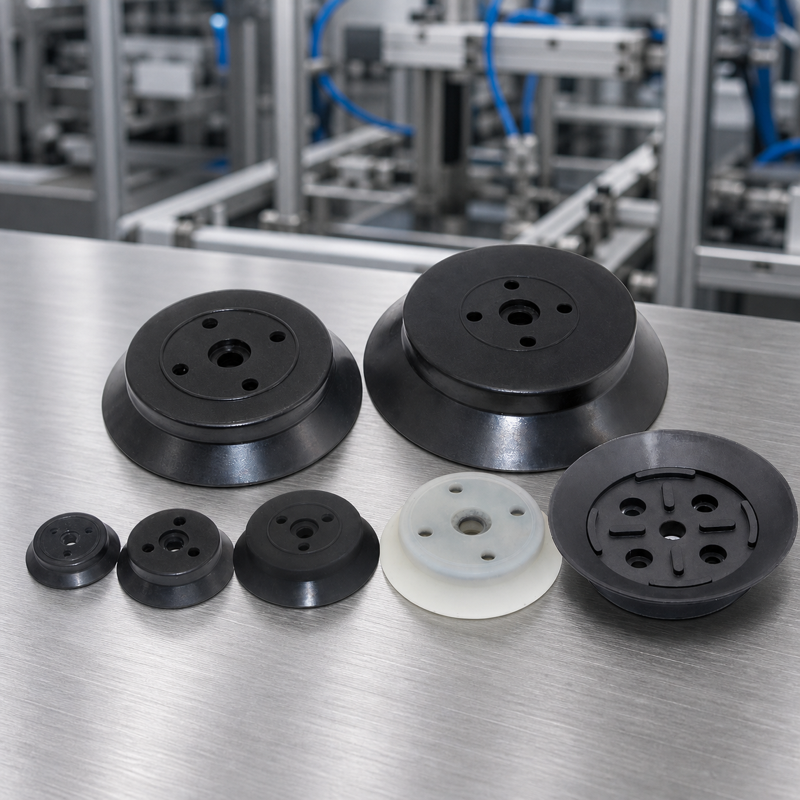

H Series Heavy-Duty Flat Vacuum Suction Cups
Heavy-duty single-layer flat vacuum cups for industrial automation, available in model-specific white silicone, black nitrile rubber and FKM configurations.
- Nominal cup sizes from H32 to H125
- White silicone versions for broad temperature capability
- Black nitrile rubber versions for wear- and oil-resistant handling applications

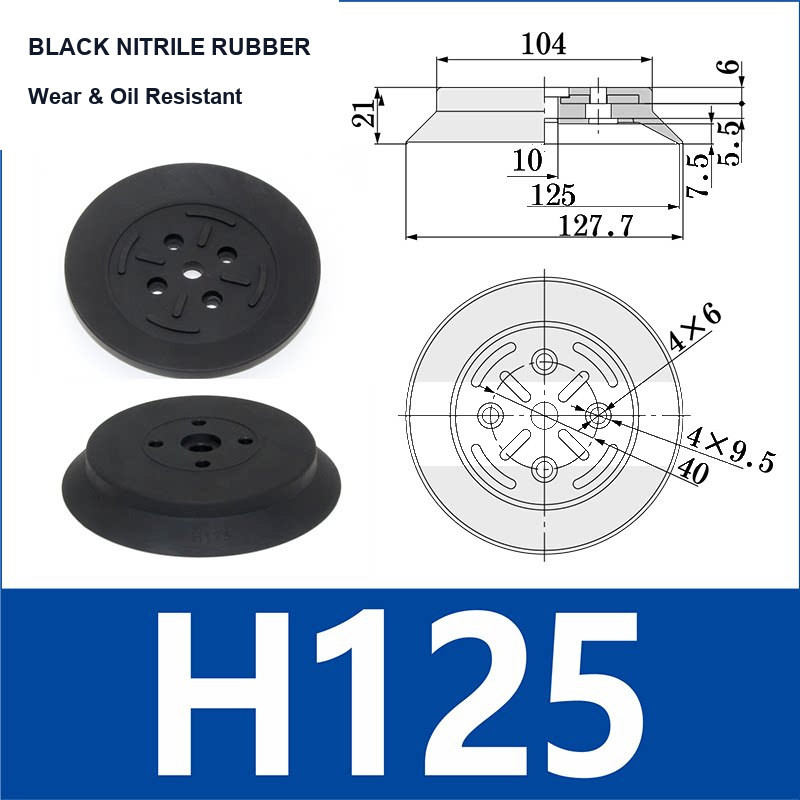

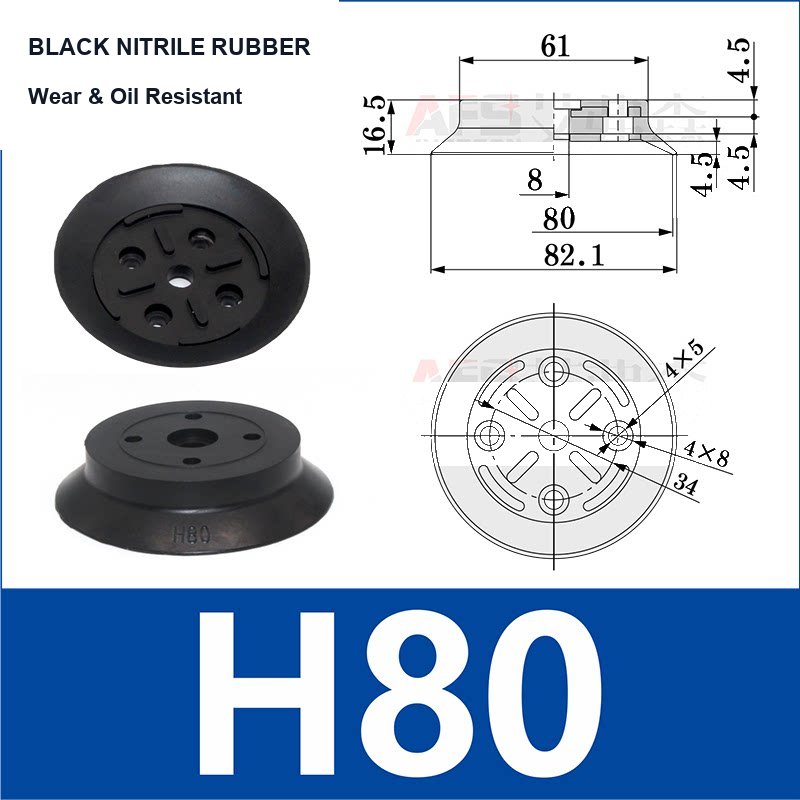

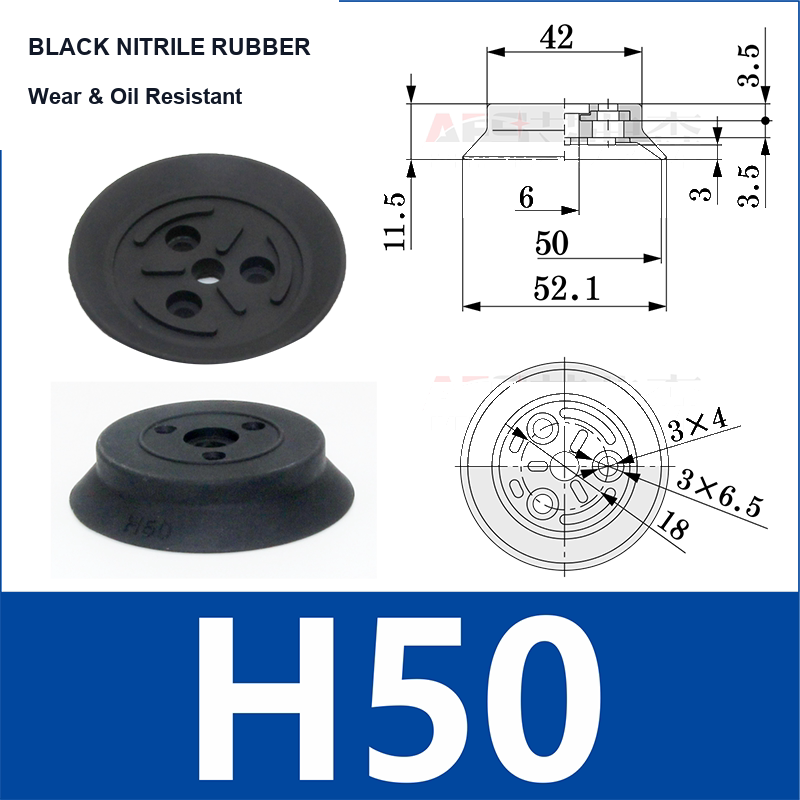

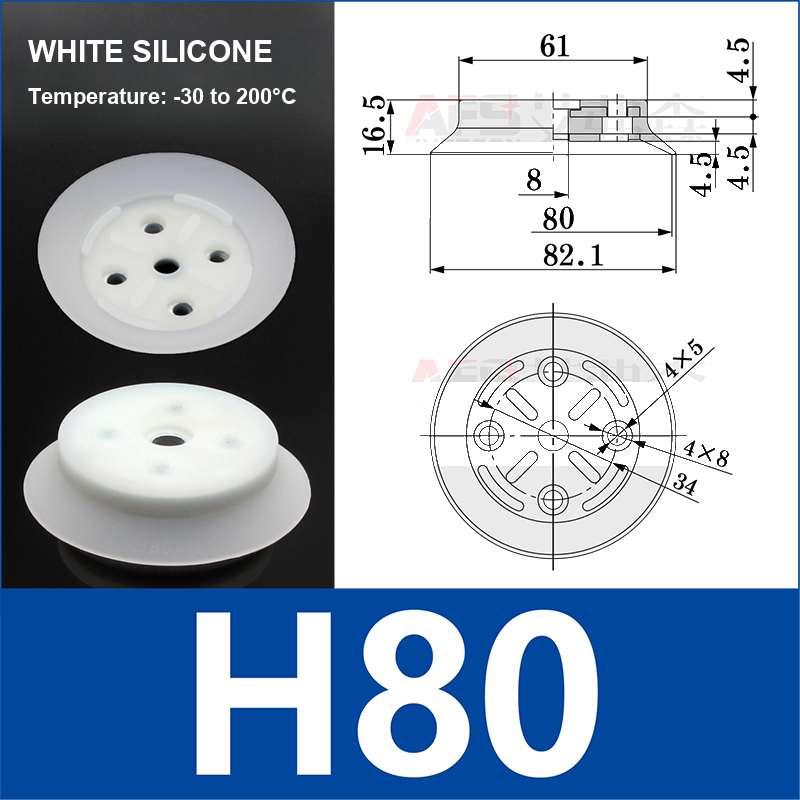

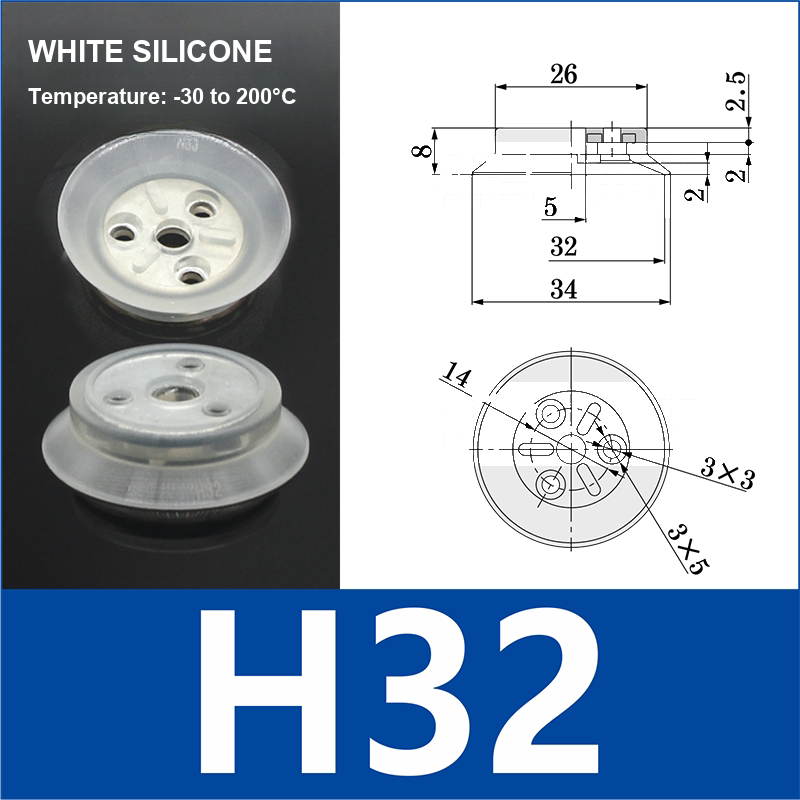

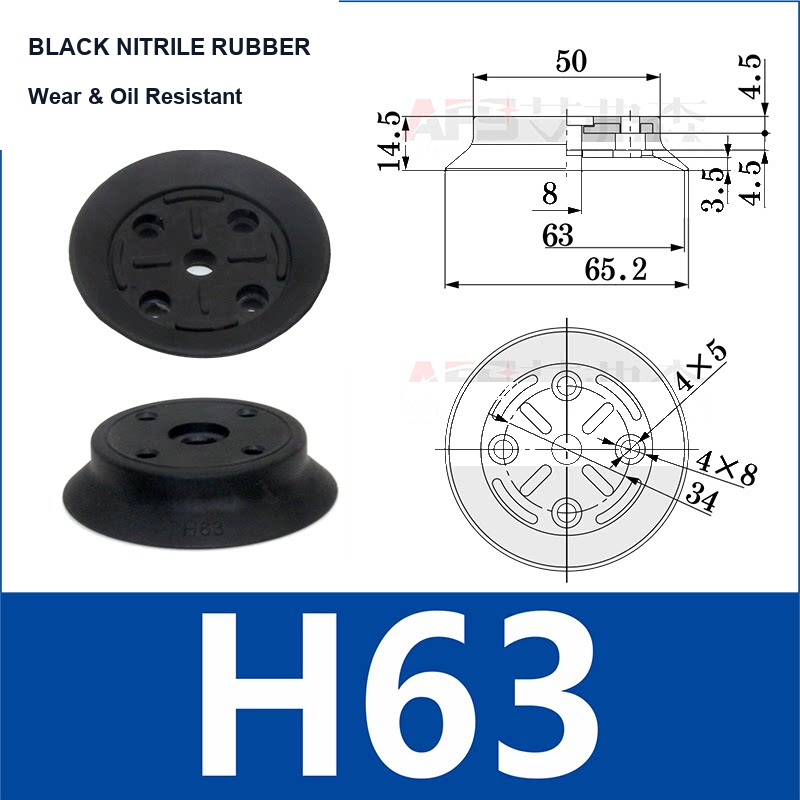

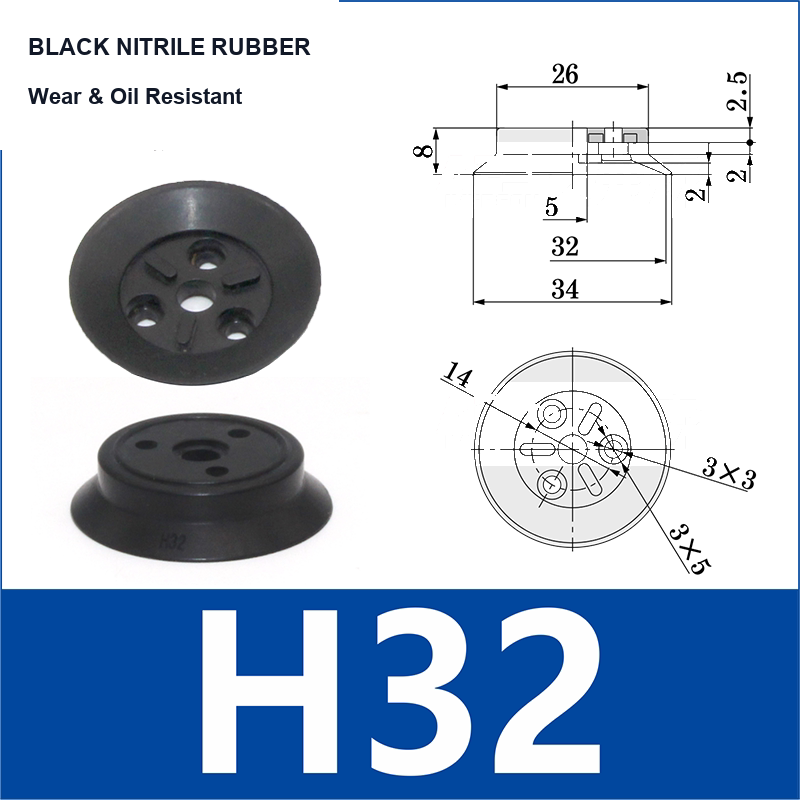

- Model-specific product views and technical dimensions are provided for selection
H-series model selection checks

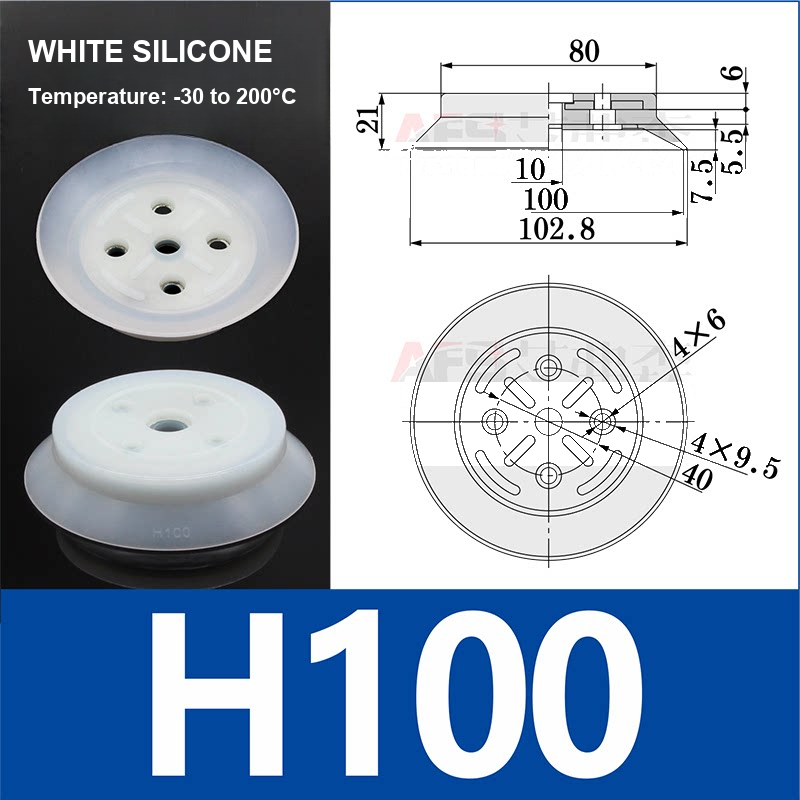

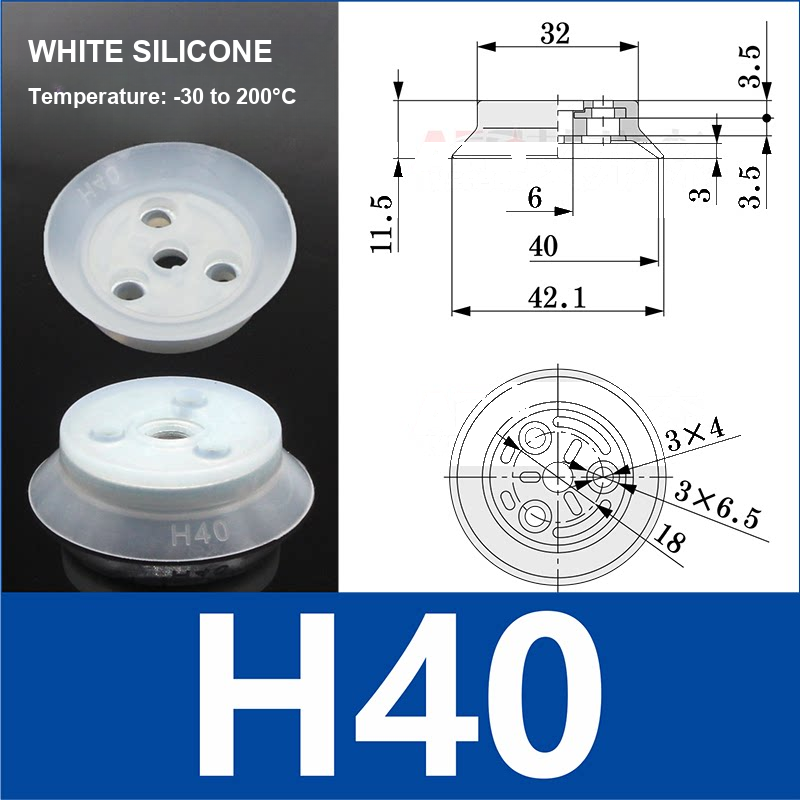

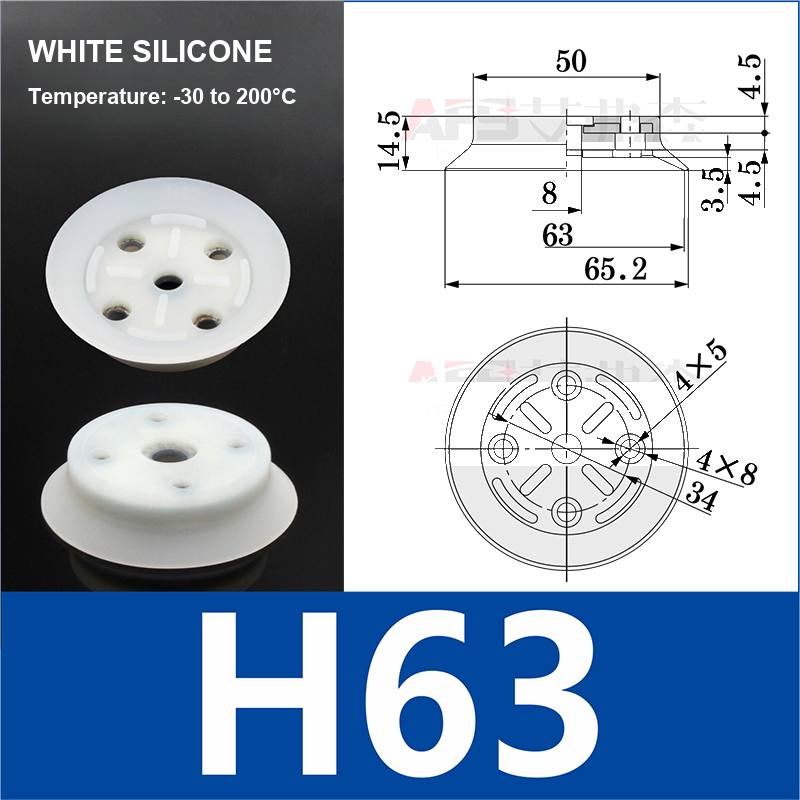

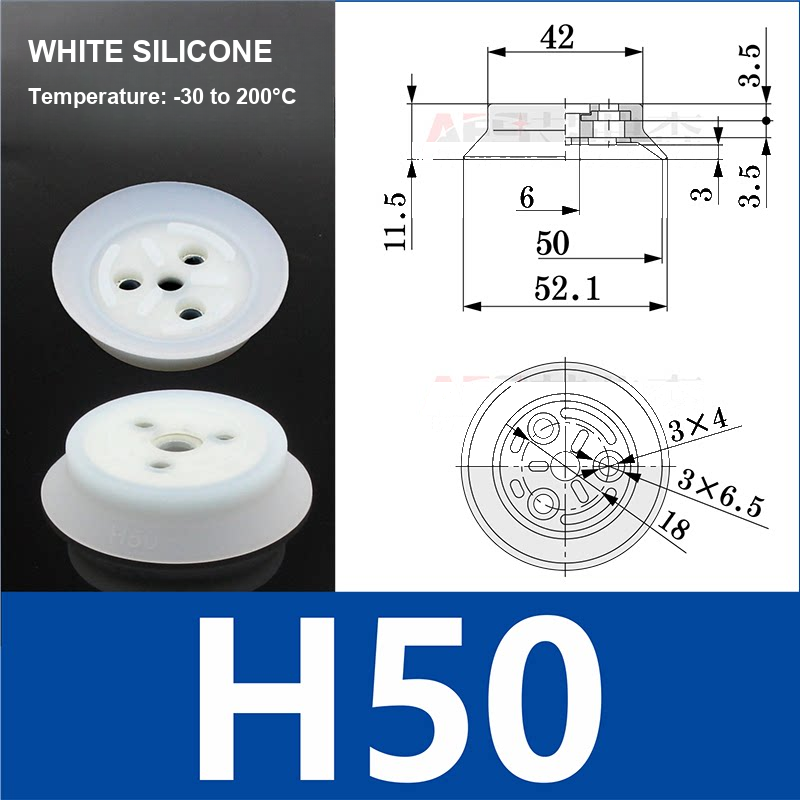

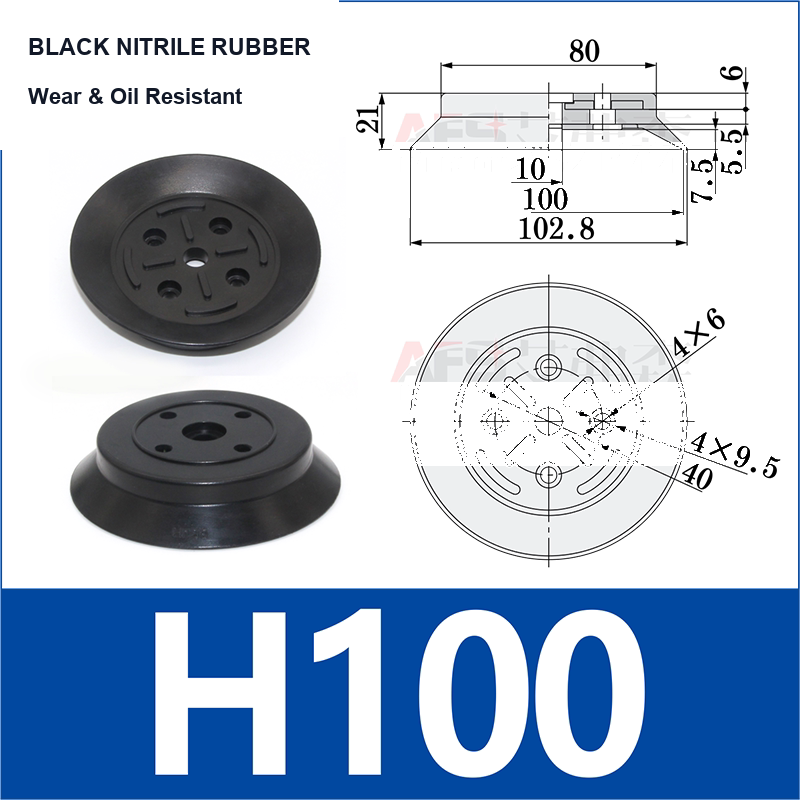

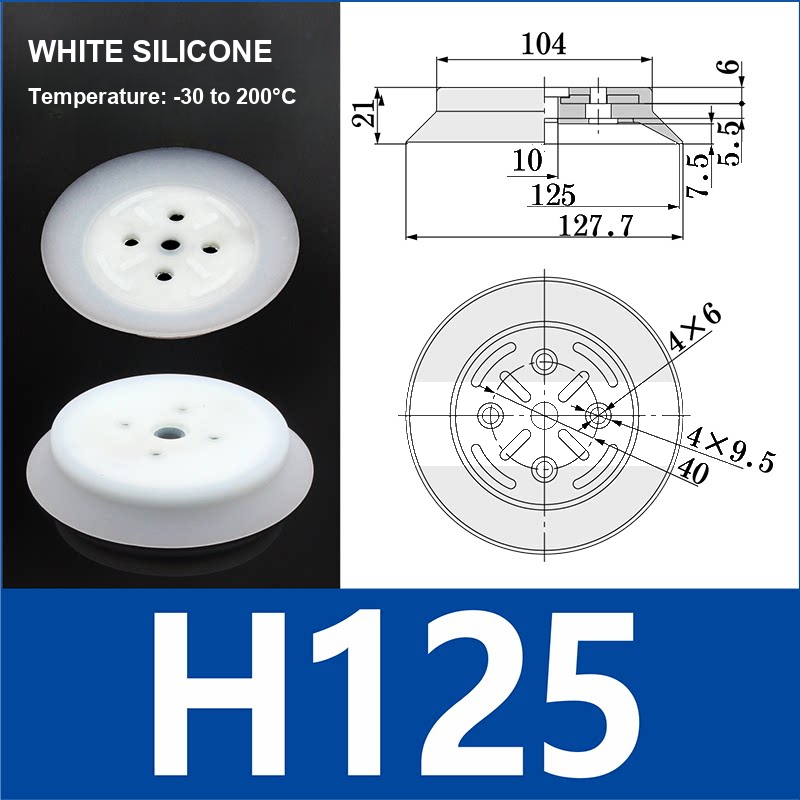

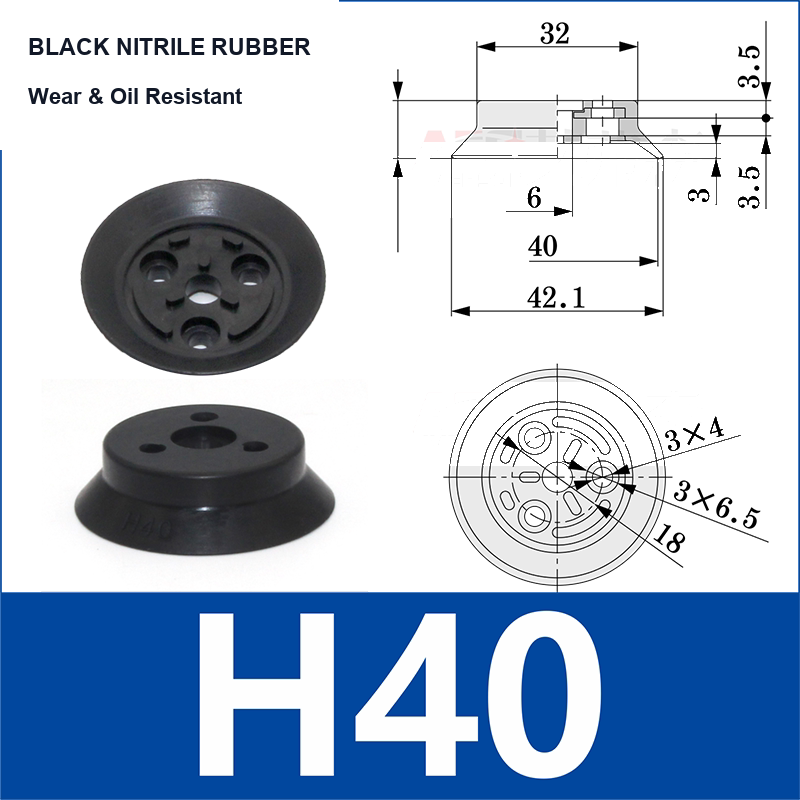

The current selector lists H32, H40, H50, H63, H80, H100 and H125 in white silicone and black nitrile rubber. Match the exact model drawing, available contact area and mounting dimensions before ordering.
| Check | Why it matters |
|---|---|
| Cup profile and available surface | The entire sealing lip must fit the intended pickup area. |
| Exact material and model | Select a material actually listed for the required model. |
| Holding-force validation | The Heavy-Duty series name is not a numerical payload rating. |
| Motion and surface conditions | Verify vacuum, acceleration, load direction and actual workpiece sealing. |
For an FKM requirement, ask BOLTTE to confirm the exact model and supporting material information before ordering.
Applications / Suitable For
- Handling sheet metal, glass, wood panels and compatible flat workpieces
- Robotic pick-and-place, transfer, loading, unloading and positioning equipment
- Heavy-duty automation where the workpiece surface, cup size and material have been verified
Confirm the selected model drawing, workpiece surface, vacuum level, load, acceleration, temperature and material compatibility before use. No regulatory or food-contact certification is claimed.
Model / configuration / SKU
| Model / configuration | SKU |
|---|---|
| H32 White Silicone | 4439307543765 |
| H32 Black Nitrile Rubber | 4439307543772 |
| H40 White Silicone | 4439307543766 |
| H40 Black Nitrile Rubber | 4439307543773 |
| H50 White Silicone | 4439307543767 |
| H50 Black Nitrile Rubber | 4439307543774 |
| H63 White Silicone | 4439307543768 |
| H63 Black Nitrile Rubber | 4439307543775 |
| H80 White Silicone | 4439307543769 |
| H80 Black Nitrile Rubber | 4439307543776 |
| H100 White Silicone | 4439307543770 |
| H100 Black Nitrile Rubber | 4439307543777 |
| H125 White Silicone | 4439307543771 |
| H125 Black Nitrile Rubber | 4439307543778 |
| ZP40HF Black Fluoro Rubber | 6124495976428 |
