FGA Series Double-Layer Vacuum Suction Cups & Fittings
$1.50 USD
FGA Series Double-Layer Vacuum Suction Cups & Fittings
Quantity

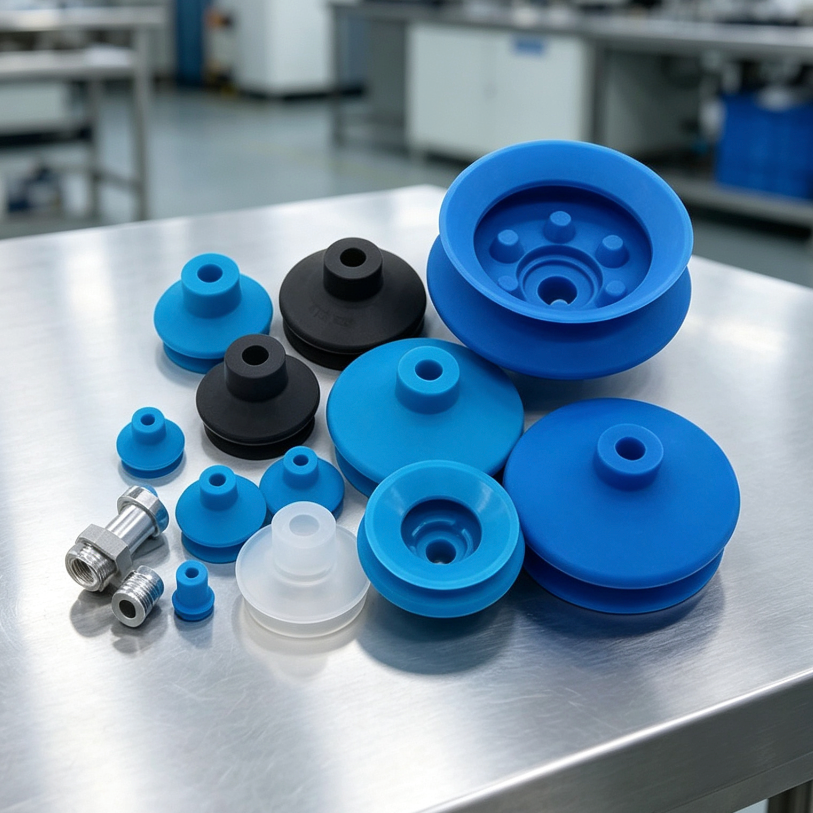

FGA Series Double-Layer Vacuum Suction Cups
Double-layer vacuum suction cups and compatible aluminum fittings for industrial automation, robotic handling, and vacuum systems. Available in blue and white silicone or black nitrile rubber, with model-specific product views and dimensional drawings.
- Models: FGA-11 through FGA-78
- Materials: silicone and nitrile rubber
- Compatible aluminum fittings are included as selectable variants
Applications and Suitable Workpieces
FGA Series Double-Layer Vacuum Suction Cups & Fittings: Bellows suction cups provide vertical stroke, damping and contour adaptation for parts with height variation, curvature or sensitive surfaces.
Recommended applications
- Curved or slightly uneven plastic parts, cartons, packaged goods, formed panels, glass and general industrial components.
- Mold unloading, machine tending, sorting, assembly and robotic pick-and-place where gentle contact is required.
- Multiple-cup grippers handling parts with small differences in height or position.
Model and selection notes
- FGA11 through FGA78 identify diameter. Blue/white silicone and black NBR versions have different material behavior; fittings are selected by cup size and thread.
- More bellows layers provide greater stroke and height compensation but can allow more lateral movement; select the profile for the required stability.
- Use the exact model dimensions and thread configuration shown in the product image when matching an existing holder.
- Holding force depends on sealing area, vacuum level, surface condition, acceleration and safety factor; test the actual workpiece.
