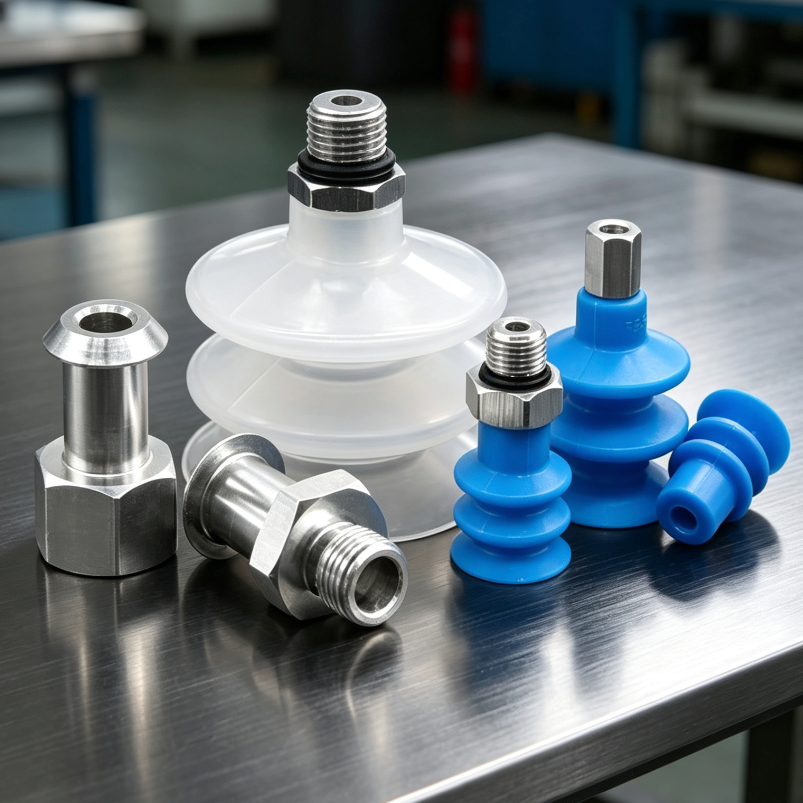

FG Series Triple-Bellows Vacuum Suction Cups & Fittings

$2.50 USD $2.00 USD 20% OFF
FG Series Triple-Bellows Vacuum Suction Cups & Fittings
Model
Quantity
FG Series Triple-Bellows Vacuum Suction Cups

Flexible triple-bellows vacuum cups and compatible mounting fittings for automated handling, packaging equipment and pick-and-place applications.

  • Blue and white silicone options for flexible sealing
  • Black nitrile rubber options for wear and oil resistance
  • Matching aluminum and threaded mounting fittings

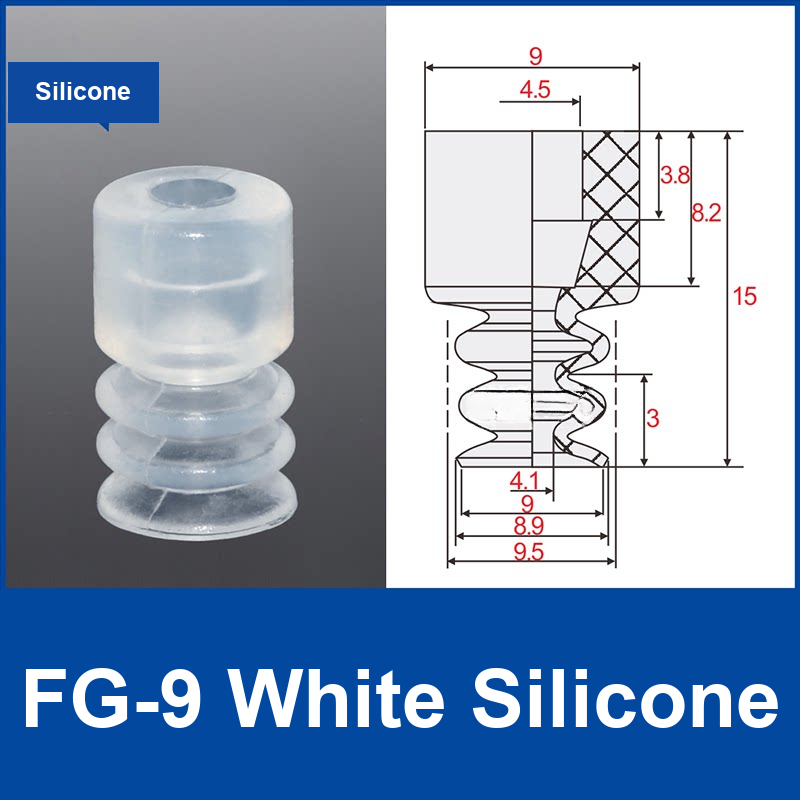

  • Model-specific images retain dimensional drawings and technical data

Applications and Suitable Workpieces

FG Series Triple-Bellows Vacuum Suction Cups & Fittings: Bellows suction cups provide vertical stroke, damping and contour adaptation for parts with height variation, curvature or sensitive surfaces.

Recommended applications

  • Curved or slightly uneven plastic parts, cartons, packaged goods, formed panels, glass and general industrial components.
  • Mold unloading, machine tending, sorting, assembly and robotic pick-and-place where gentle contact is required.
  • Multiple-cup grippers handling parts with small differences in height or position.

Model and selection notes

  • FG triple-bellows diameter and material determine the cup. Aluminum and threaded fittings must match the cup and machine interface.
  • More bellows layers provide greater stroke and height compensation but can allow more lateral movement; select the profile for the required stability.
  • Use the exact model dimensions and thread configuration shown in the product image when matching an existing holder.
  • Holding force depends on sealing area, vacuum level, surface condition, acceleration and safety factor; test the actual workpiece.
