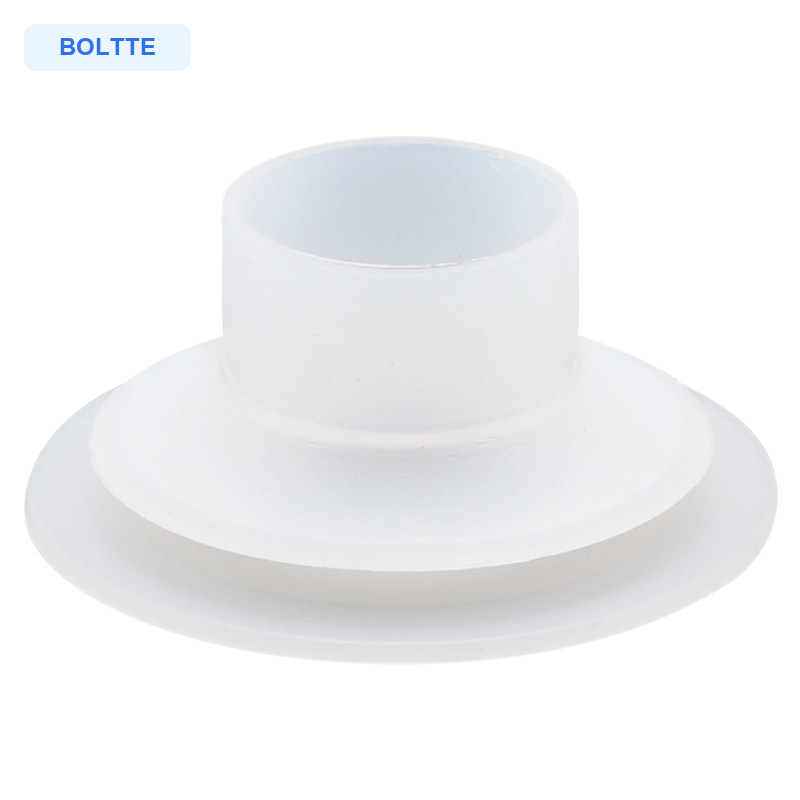

BOLTTE Down-Filling Silicone Vacuum Cups, 60 mm and 84 mm

BOLTTE Down-Filling Silicone Vacuum Cups, 60 mm and 84 mm

Double-layer silicone vacuum cups for down-filling machines and compatible industrial automation equipment.

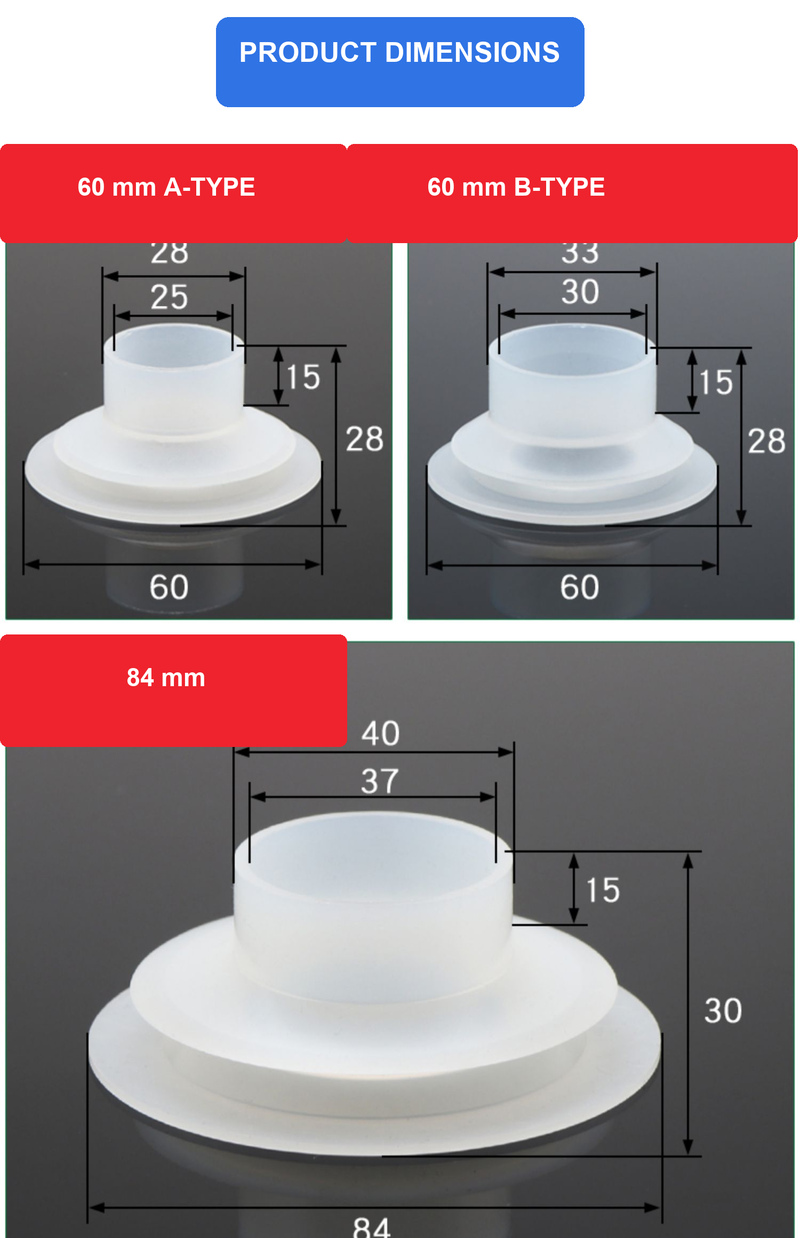

Quick Model Finder

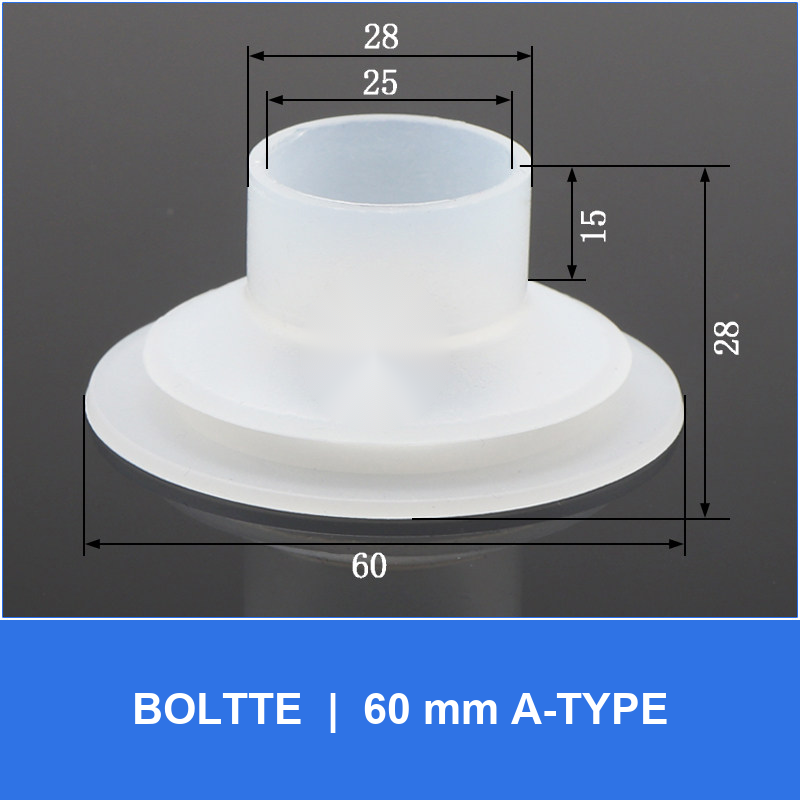

• 60 mm A-Type: silicone vacuum cup with 25 mm inner opening and 28 mm overall height.

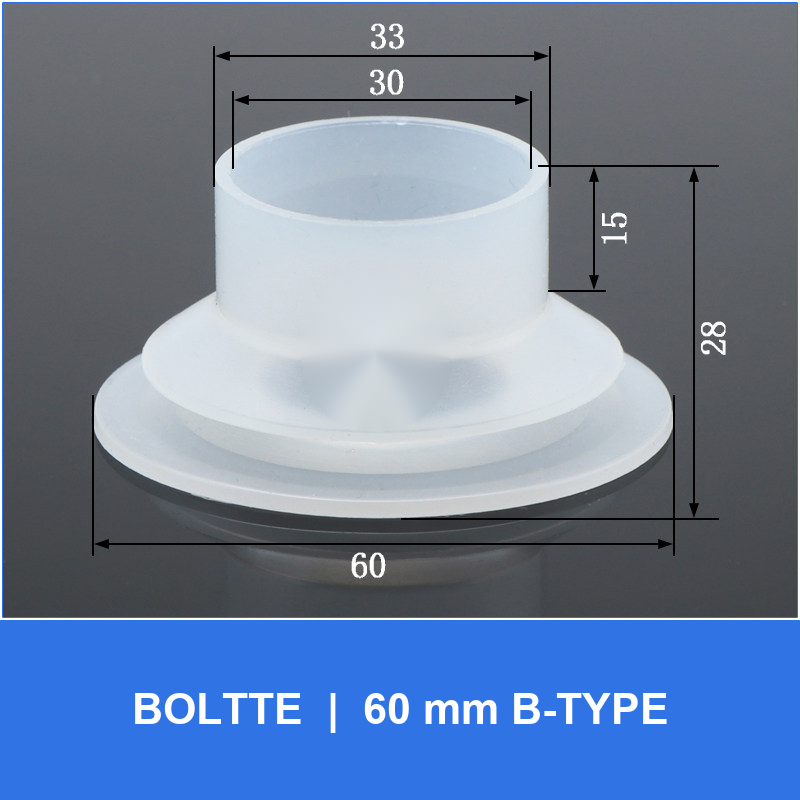

• 60 mm B-Type: silicone vacuum cup with 30 mm inner opening and 28 mm overall height.

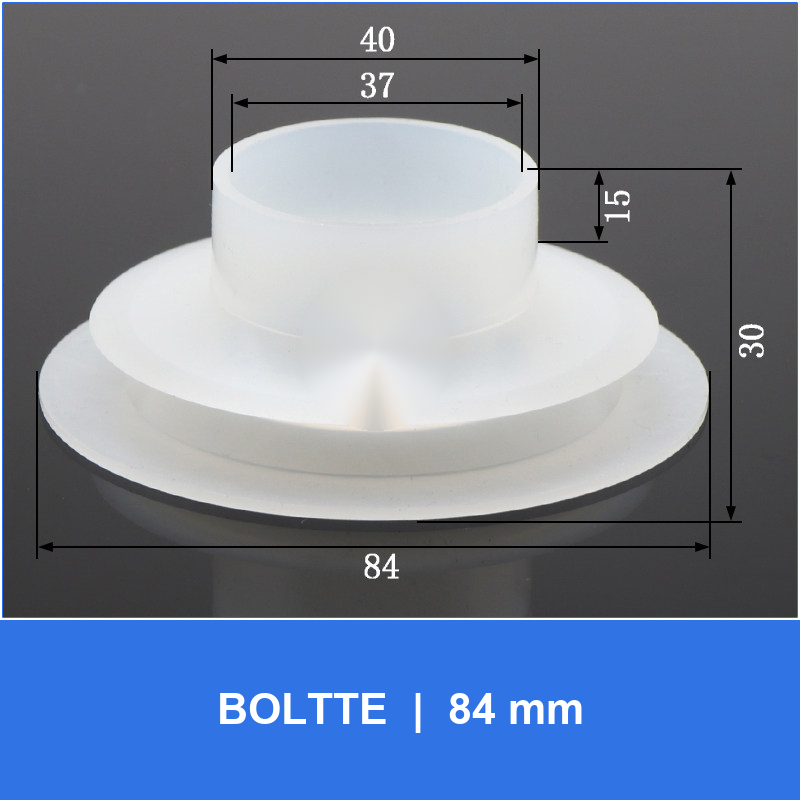

• 84 mm: silicone vacuum cup with 37 mm inner opening and 30 mm overall height.

Construction and Applications

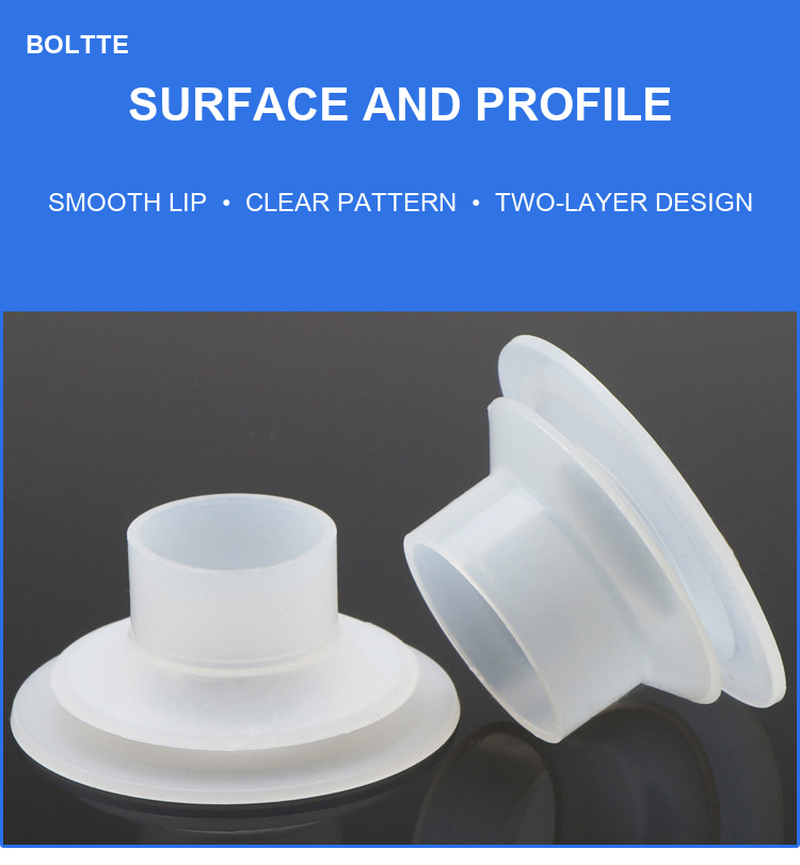

• Flexible silicone body with a double-layer sealing profile.
• Designed for down-filling machine tooling and pneumatic vacuum handling.
• Use the selected model drawing to confirm the opening, outer diameter and height before installation.

Before Use

Confirm the selected model, dimensions, material, vacuum level, workpiece surface, leakage, acceleration, temperature and operating environment before installation. Actual holding force depends on system conditions and the workpiece.
