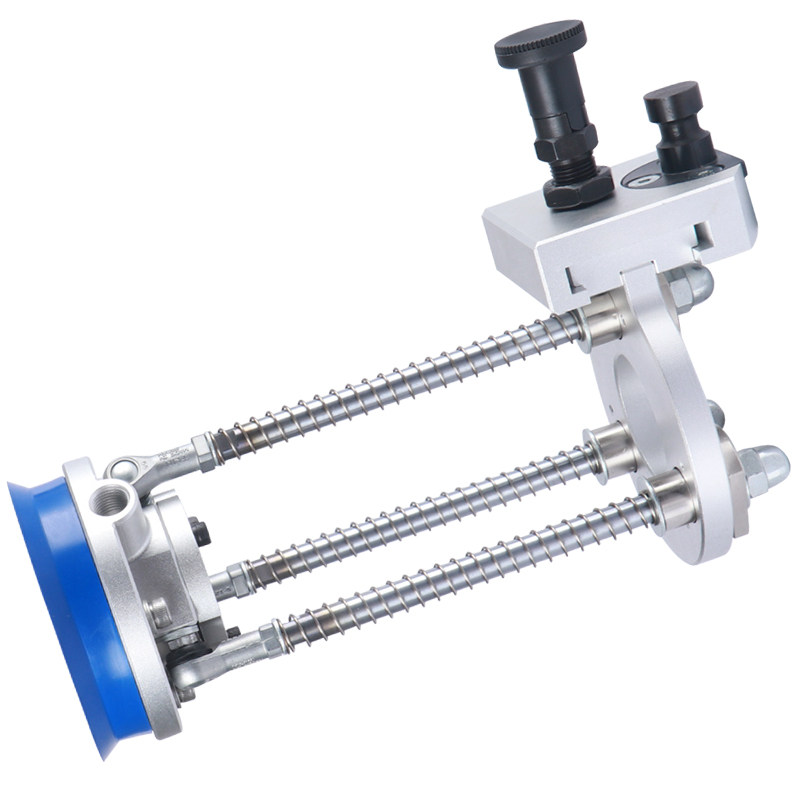

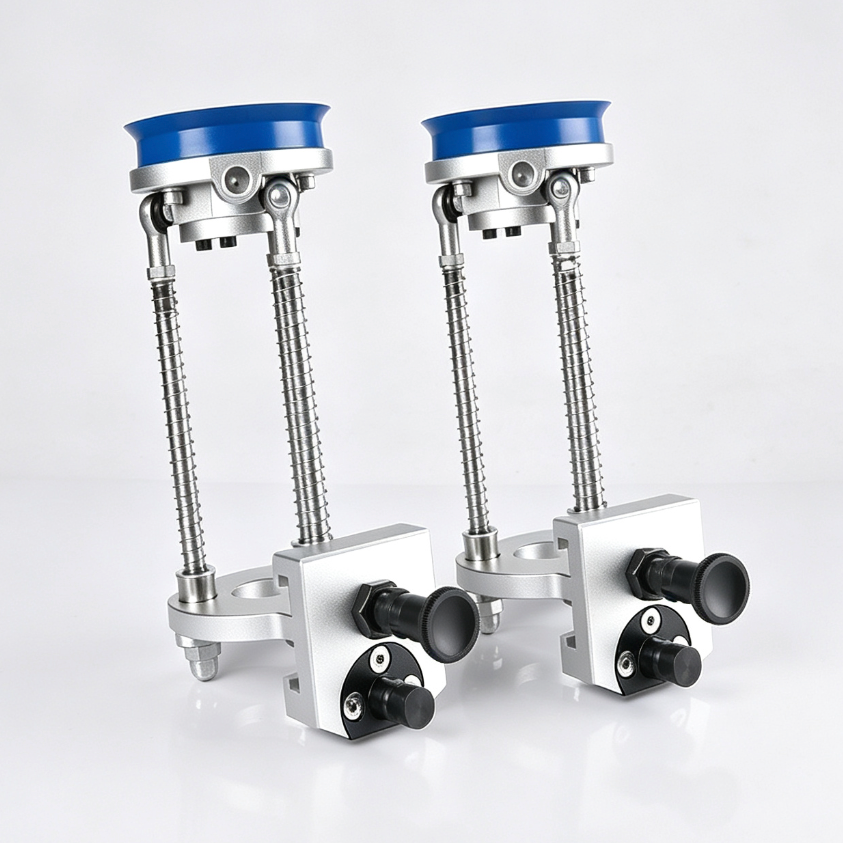

DBD Double-Sheet Detection Bracket Vacuum Cup Assembly, 100 mm

DBD Double-Sheet Detection Bracket Vacuum Cup Assembly

Vacuum-cup bracket assembly and replacement suction cup for industrial robotic handling applications that require double-sheet or double-material detection.

Model Selection

• DBD-100xL100-M42: complete bracket and vacuum-cup assembly. Use the selected engineering drawing to confirm the 100 mm cup diameter and all installation dimensions.

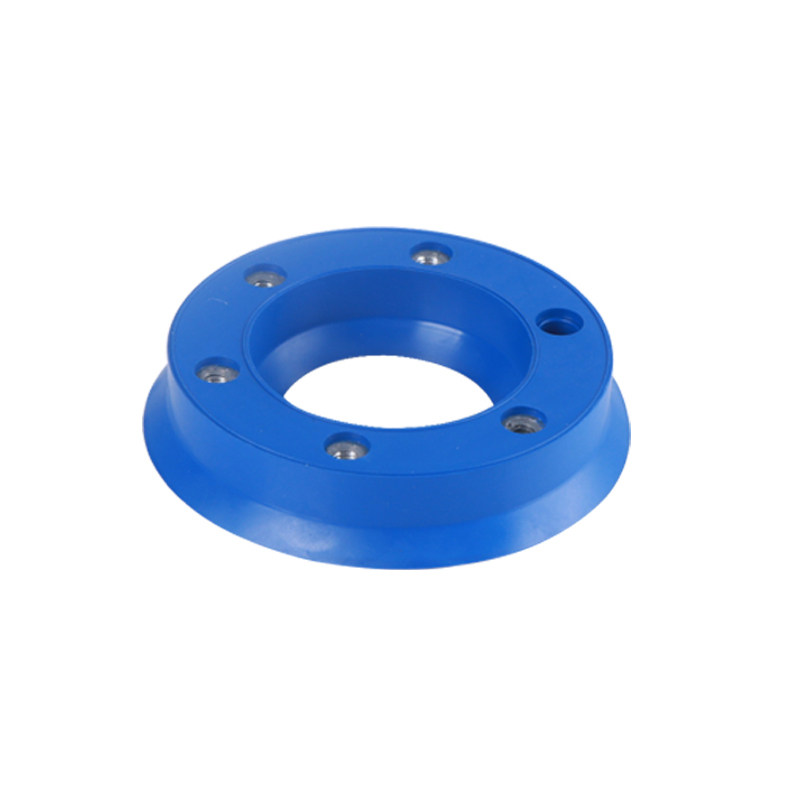

• SR-DBD100NBR: replacement NBR suction cup for the compatible DBD100 assembly.

Key Features

• Removable, replaceable suction-cup design
• Aluminum-alloy bracket body on the complete assembly
• Intended for industrial manipulators and automated material handling

Before Ordering

Confirm the complete model code, selected drawing, cup diameter, mounting interface, vacuum connection, material compatibility, workpiece surface, payload, acceleration and operating environment. The complete assembly and replacement cup are separate selectable models. No food-contact, medical, lifting-safety or regulatory certification is claimed.
