D70 Heavy-Duty Aluminum Vacuum Cup Mounting Blocks — M8 Base

D70 Heavy-Duty Aluminum Vacuum Cup Mounting Blocks — M8 Base

Heavy-duty aluminum mounting blocks for compatible industrial vacuum cup assemblies, robot end-effectors and automated handling equipment. Select the exact model by the mounting thread and dimensional drawing before ordering.

Quick selection

1. Choose the full model code: match the code printed on the selected drawing to the required assembly.
2. Choose the mounting thread: M10 × 1.5, M12 × 1.75, M16 × 1.5, M16 × 2 or G1/2, according to the selected model.
3. Check the drawing dimensions: compare the length, block geometry, M8 base connection and installation clearance with the mating components.
4. Confirm compatibility: verify the vacuum cup, threaded interfaces and application requirements before purchase.

Model code guide

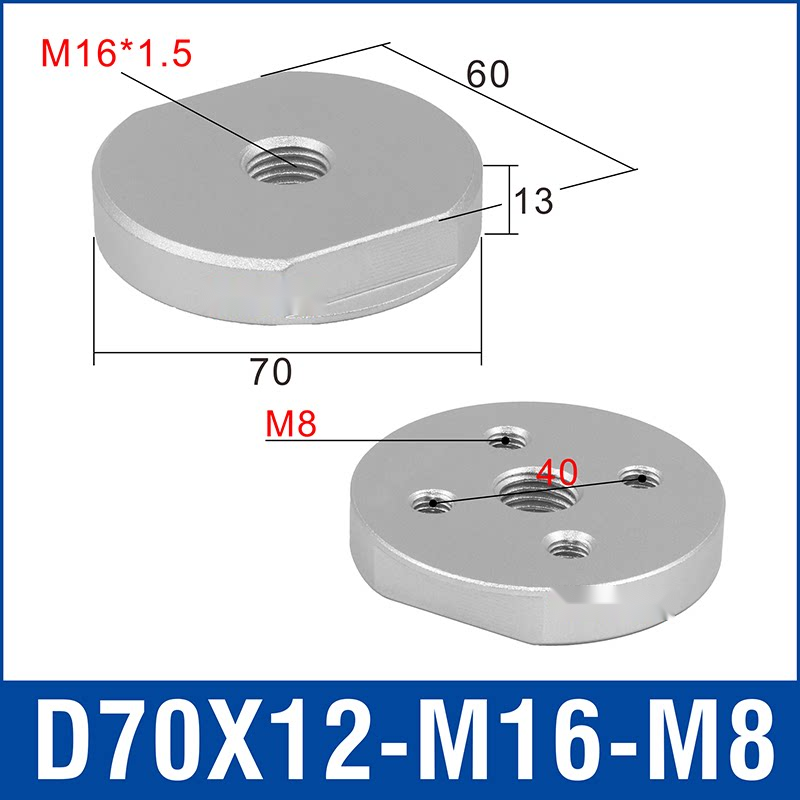

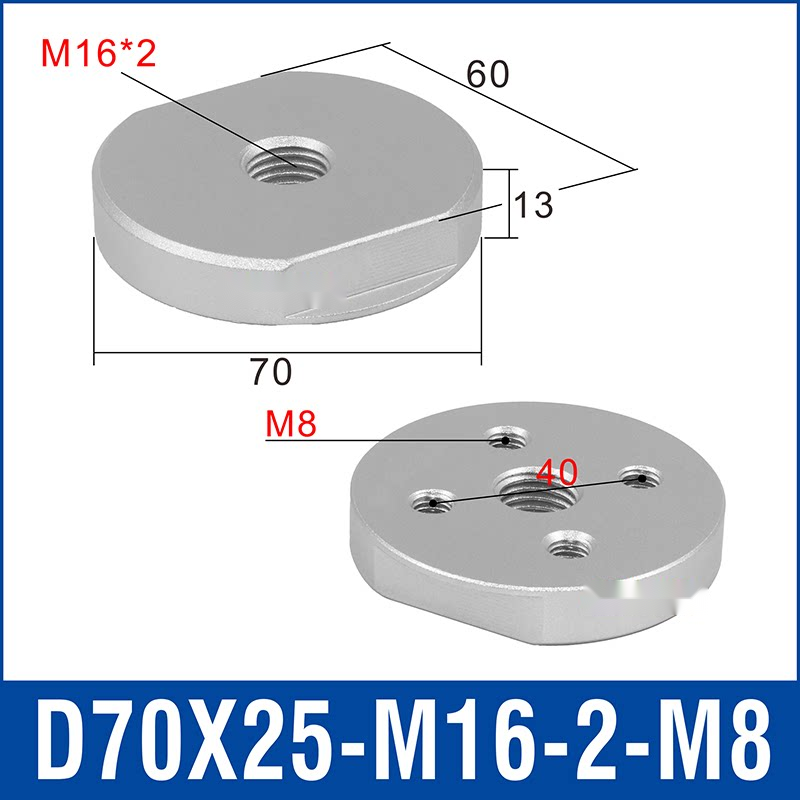

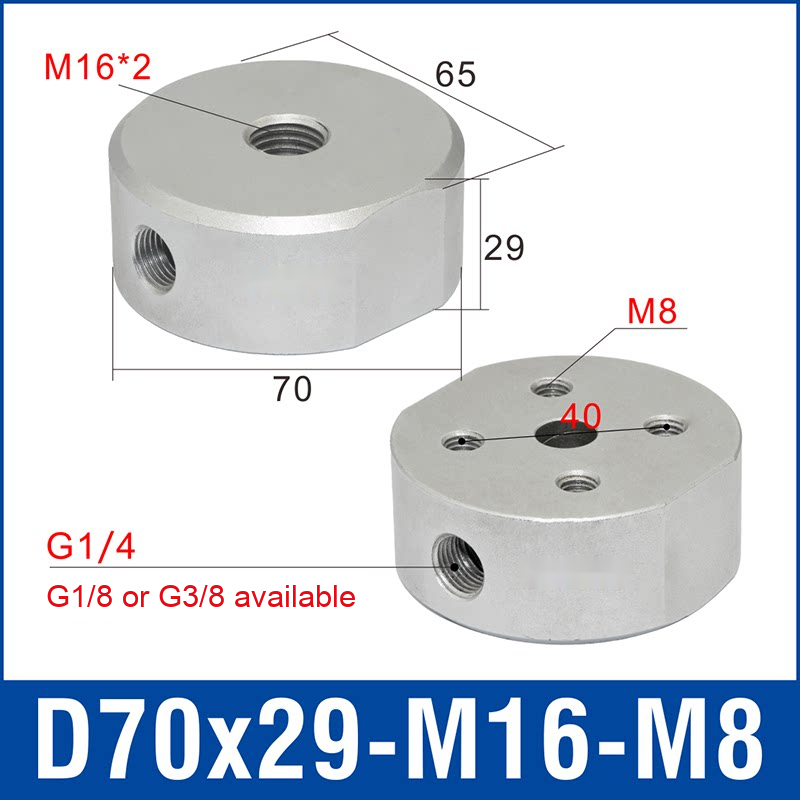

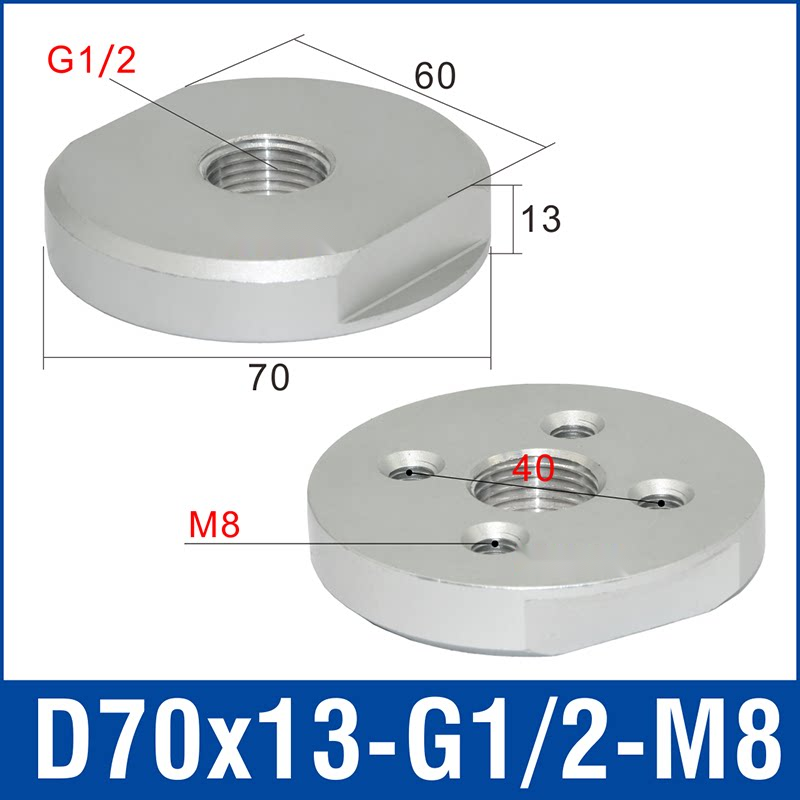

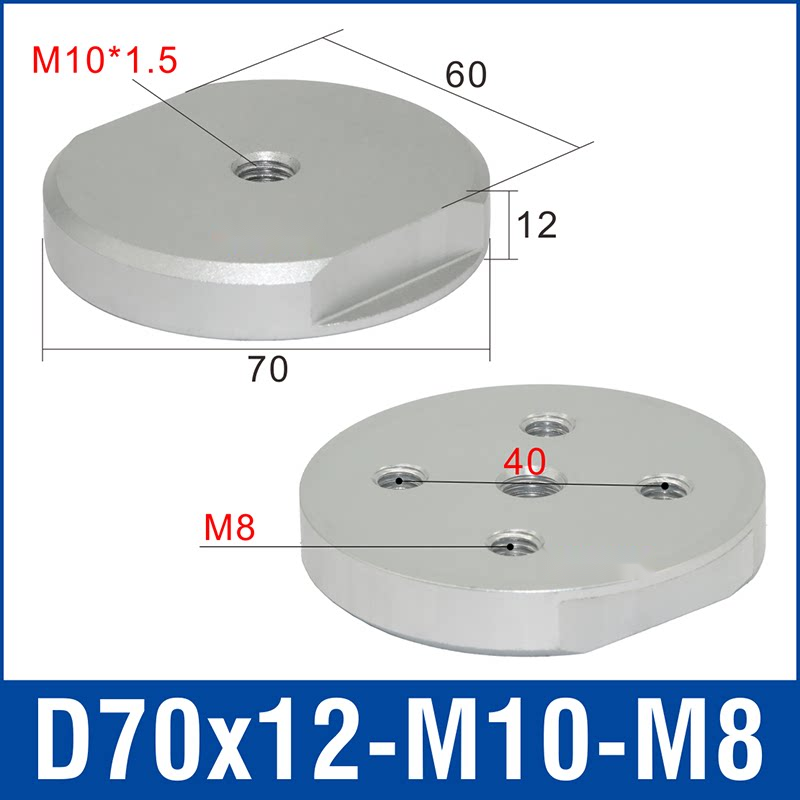

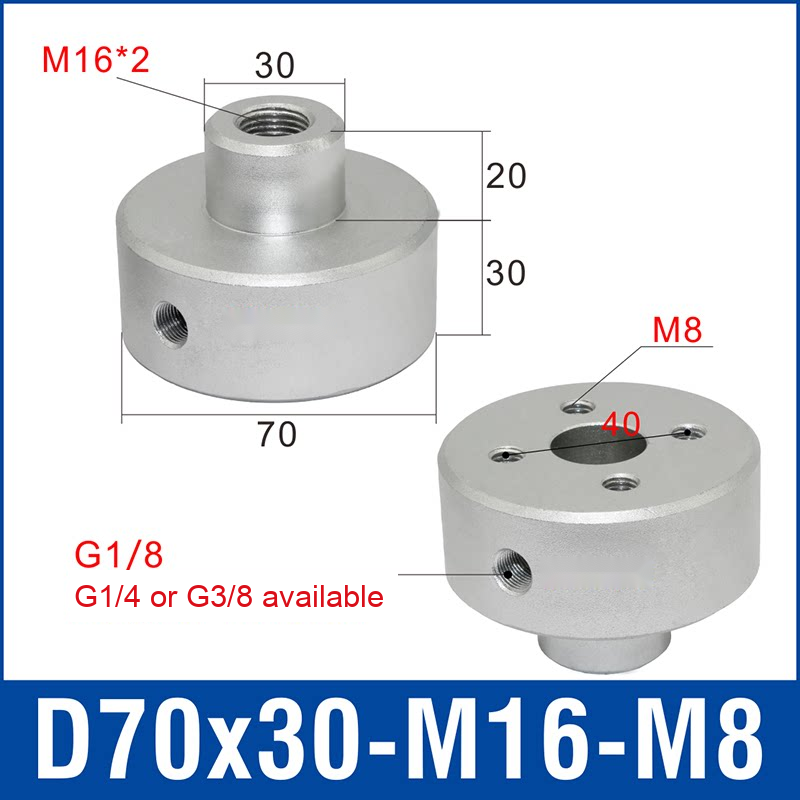

D70X[length]-[mounting thread]-M8: D70 series mounting block, the length or configuration indicated by the model code, the specified mounting thread and an M8 base connection. Each option displays its corresponding product view and dimensional drawing.

Suitable for

• Industrial vacuum pick-and-place and packaging automation
• Compatible robot end-effectors and fixture assemblies
• Vacuum cup mounting, replacement and configuration work
• Dimensionally compatible automated handling equipment

Before use

Confirm the full model code, selected drawing, mounting thread, M8 base connection, mating vacuum cup, dimensions, installation clearance, load, acceleration and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.

FAQ

How do I choose between M10, M12, M16 and G1/2? Select the thread shown in the drawing that matches the mating component. Are models with different length codes interchangeable? Check the complete drawing and assembly clearance; do not assume they are interchangeable.
