Custom Non-Standard Graphite Bronze Bushings
Manufactured to your drawings, samples and written technical requirements. This page covers custom graphite-plugged bronze bushings and sliding components for machinery, tooling, automation, guide systems and other engineered applications.
Quotation required before ordering: the displayed US$9,990.00 is a placeholder reference price only. It is not a final or binding quotation. Final price, minimum order quantity, lead time, material, tooling, inspection, packaging and shipping are confirmed in writing after BOLTTE reviews the project requirements.
Non-standard custom manufacturing scope
- Straight bushings and sleeve bearings
- Round- or square-flanged bushings
- Thrust washers, wear plates and slide plates
- Split bushings, guide sleeves and special bearing shapes
- Replacement parts based on drawings or approved samples
- Prototype, small-batch and repeat production
Material options may include cast bronze or other copper-alloy substrates with solid-lubricant plugs, subject to application review. The bronze grade, graphite arrangement, hardness, counterface, lubrication conditions, documentation and compliance requirements must be confirmed in the approved drawing and written quotation.

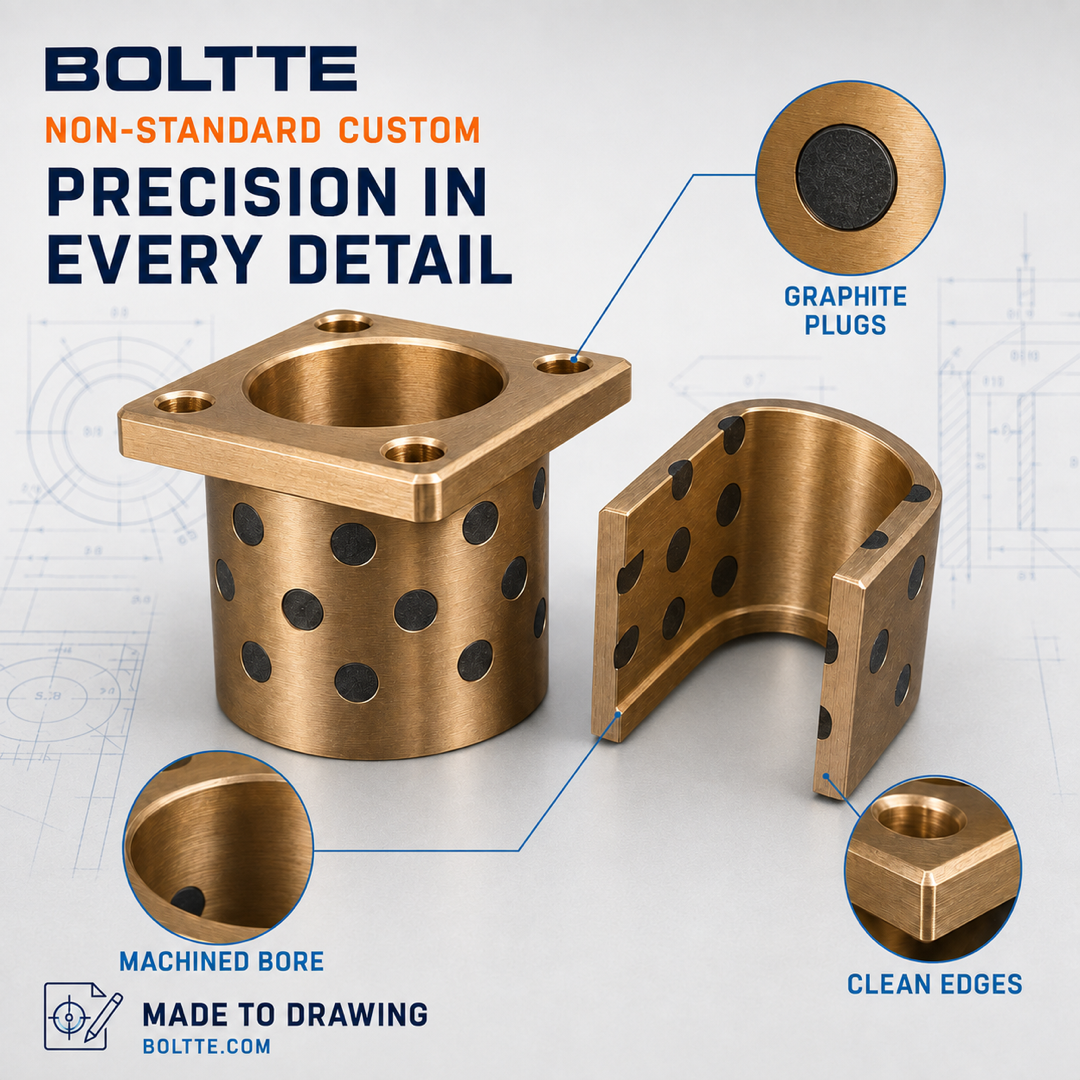

The images show representative custom products only. They do not define a standard model, fixed dimensions, guaranteed material grade or ready-stock specification. Production follows the approved drawing revision and written order requirements.
Information required for quotation
- Drawing or model: dimensioned PDF plus STEP/STP, IGES, DWG or DXF files when available. State the controlling drawing number and revision.
- Application: machine type, installation position, sliding direction, mating components and whether the part is a new design or replacement.
- Dimensions: bore, outside diameter, length, flange dimensions, bolt pattern, mounting holes, grooves, slots, chamfers and special features.
- Fits and tolerances: shaft and housing fits, dimensional tolerances, datums, concentricity, runout, flatness and other critical controls.
- Operating conditions: static and dynamic load, speed, stroke, duty cycle, temperature, environment, contamination and expected service life.
- Material and lubrication: required bronze grade, solid-lubricant pattern, counterface material, surface hardness, lubrication method and any material certificates.
- Surface and inspection: roughness, edge condition, coating or treatment, critical-dimension reports, first-article inspection and traceability.
- Quantity and delivery: prototype quantity, order quantity, repeat demand, requested delivery date and destination.
Custom order process
- Send the drawing, 3D model, sample information and application requirements.
- BOLTTE reviews manufacturability, material, lubrication design, tolerances, inspection scope and quantity.
- Both parties confirm the approved drawing revision, final quotation and lead time in writing.
- Production, inspection and packaging follow the approved requirements.
Please do not place an order based only on the placeholder price. Request and confirm a project-specific quotation first.
Representative custom graphite bronze parts
Request a project quotation
Upload drawings and project requirements, or contact BOLTTE with your application, material, tolerances and quantity.
