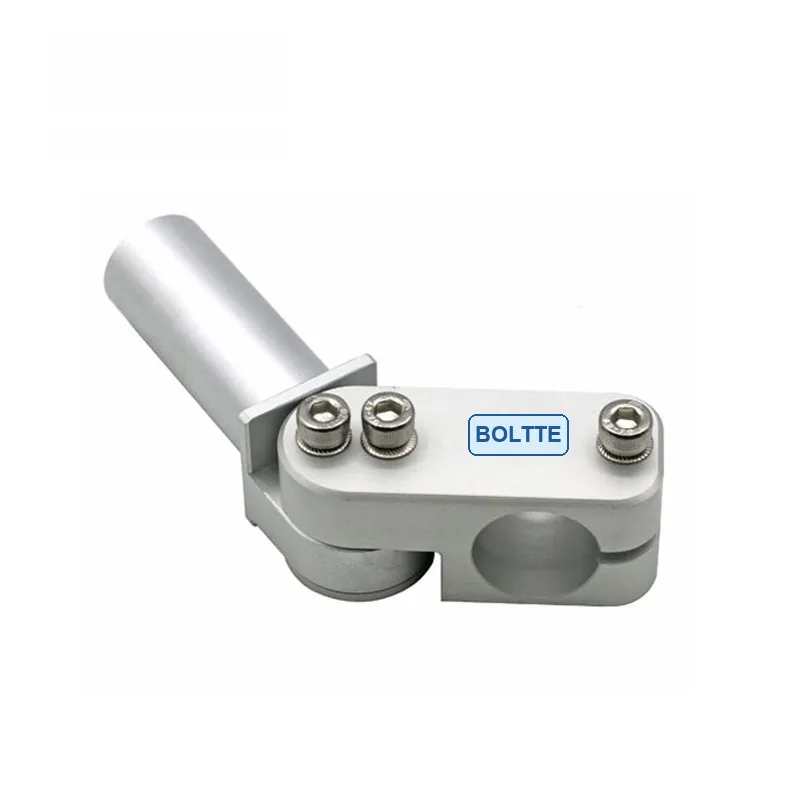

BOLTTE SEAH Adjustable Heavy-Duty Elbow Arm Clamps

BOLTTE SEAH Adjustable Heavy-Duty Elbow Arm Clamps

Adjustable elbow arm clamps for compatible pneumatic handling, robotic tooling and automated workholding systems. Select the exact SEAH model shown in the corresponding engineering drawing.

Model selection

• SEAH-2020: 20 mm body diameter with 50, 100 or 150 mm arm length.
• SEAH-3030: 30 mm body diameter with 80, 140 or 200 mm arm length.

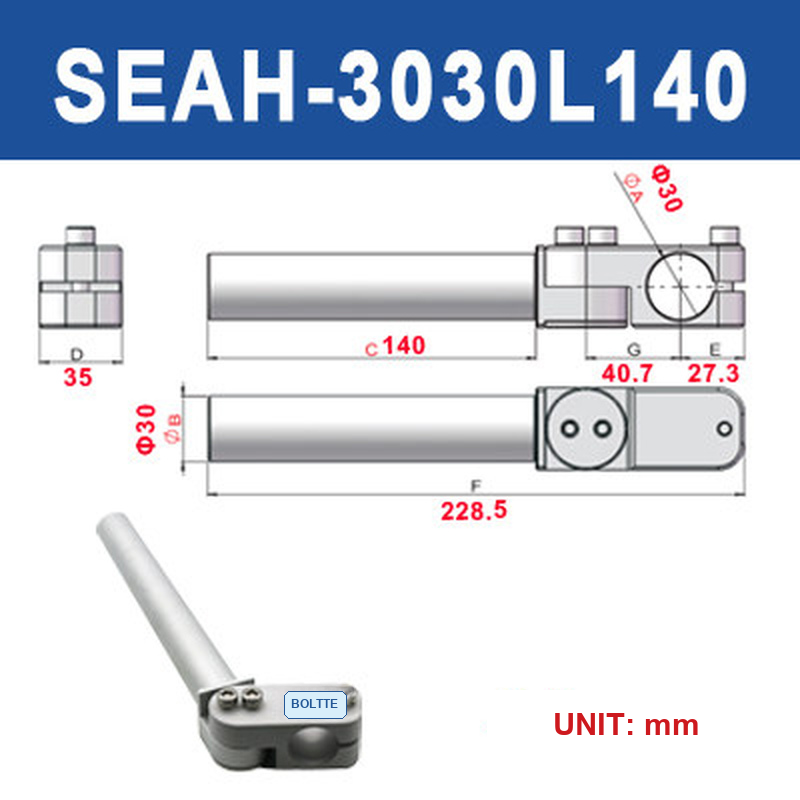

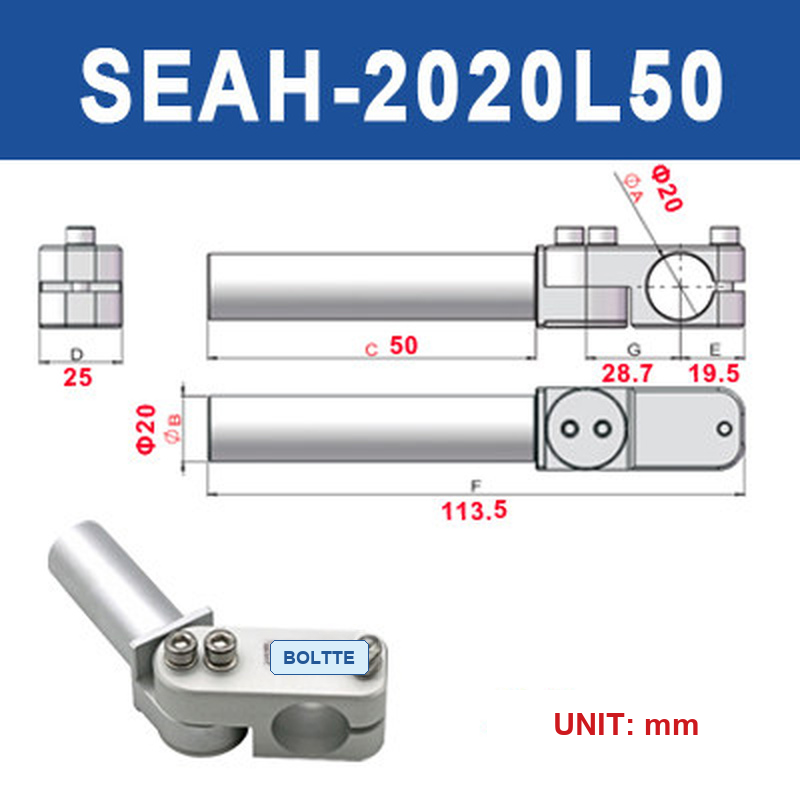

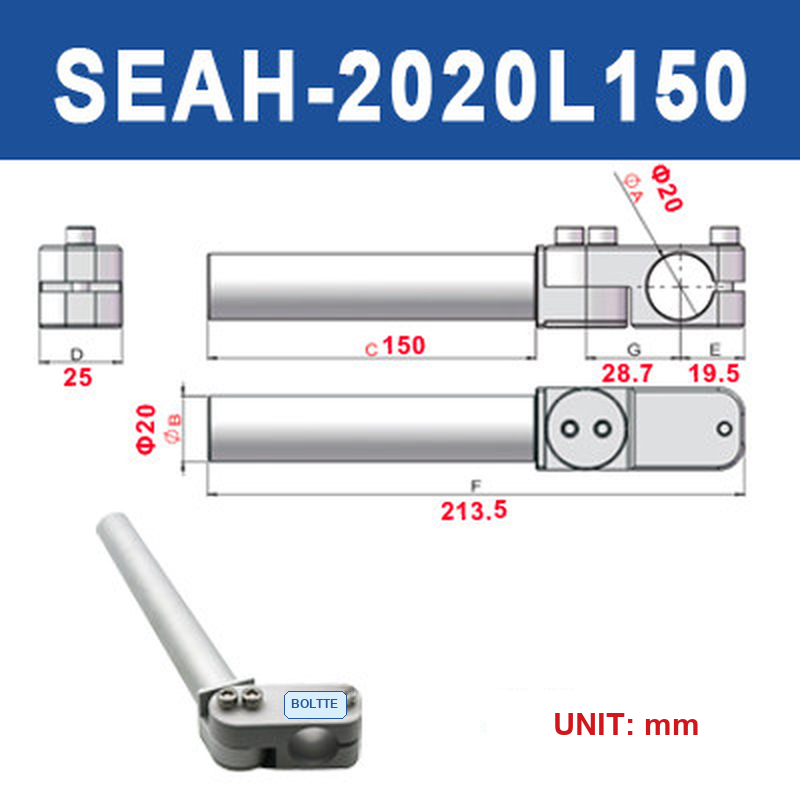

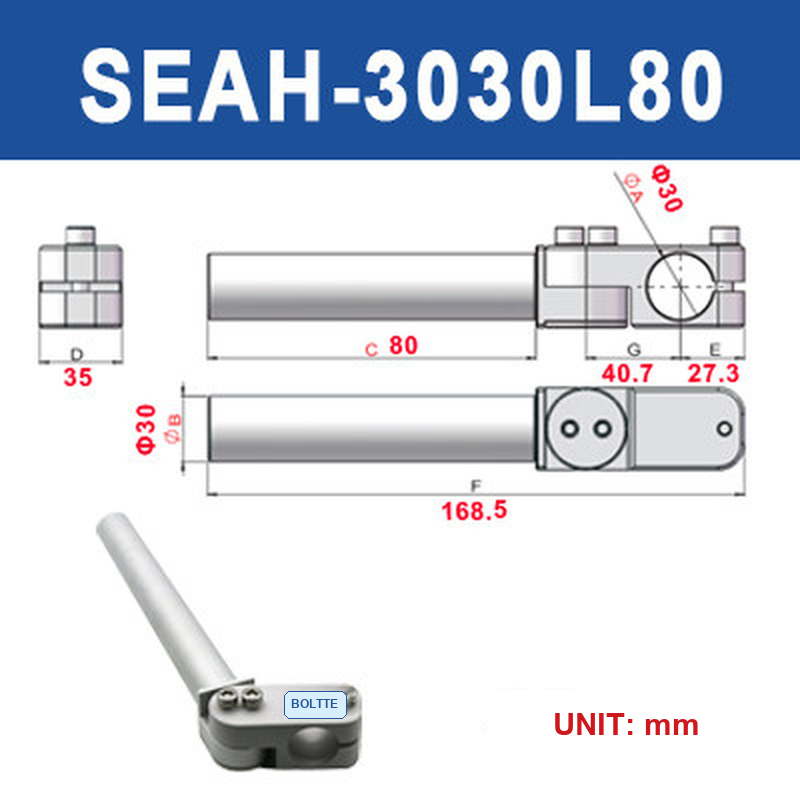

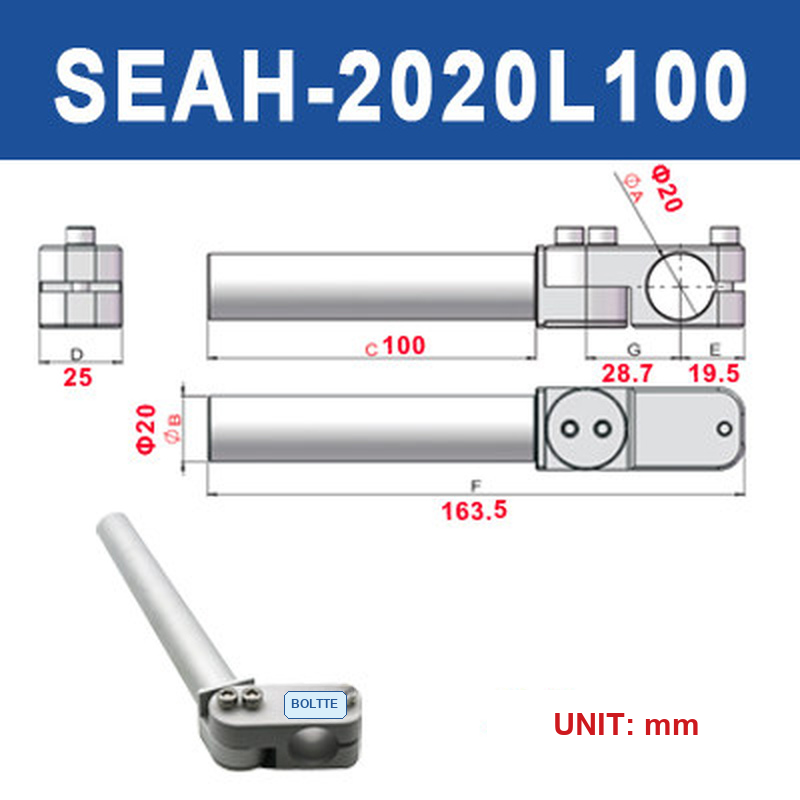

• Each model image shows the applicable arm length, body diameter, mounting dimensions and connection details.

Before ordering

Confirm the complete model code, arm length, body diameter, mounting pattern, shaft clearance, payload, acceleration, temperature and installation space against the selected drawing. Actual performance depends on the complete pneumatic system and application conditions.

Technical information

• Dimensions and connection callouts are shown in millimetres unless otherwise marked.
• Product images correspond to the selectable model and are for technical identification.
• Use compatible pneumatic components and follow the requirements of the complete machine system.

Product Overview and Technical Applications
