BOLTTE Magnetic Vacuum Components — SC30–SC70 Cups and QLF Fitting
$110.00 USD
$49.50 USD
55% OFF
BOLTTE Magnetic Vacuum Components — SC30–SC70 Cups and QLF Fitting
Quantity
BOLTTE Magnetic Vacuum Components — SC30–SC70 Cups and QLF Fitting

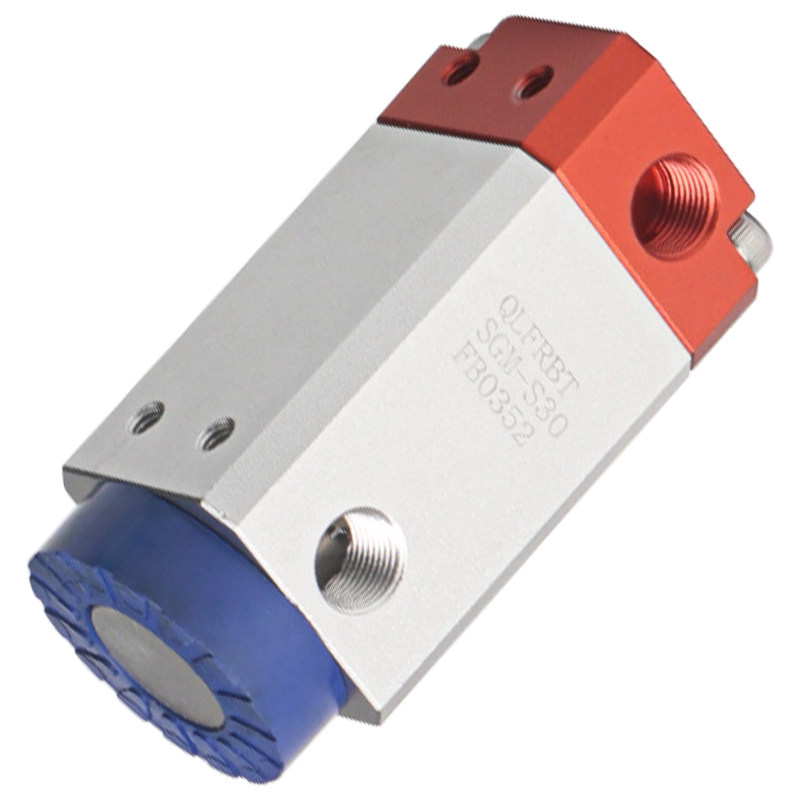

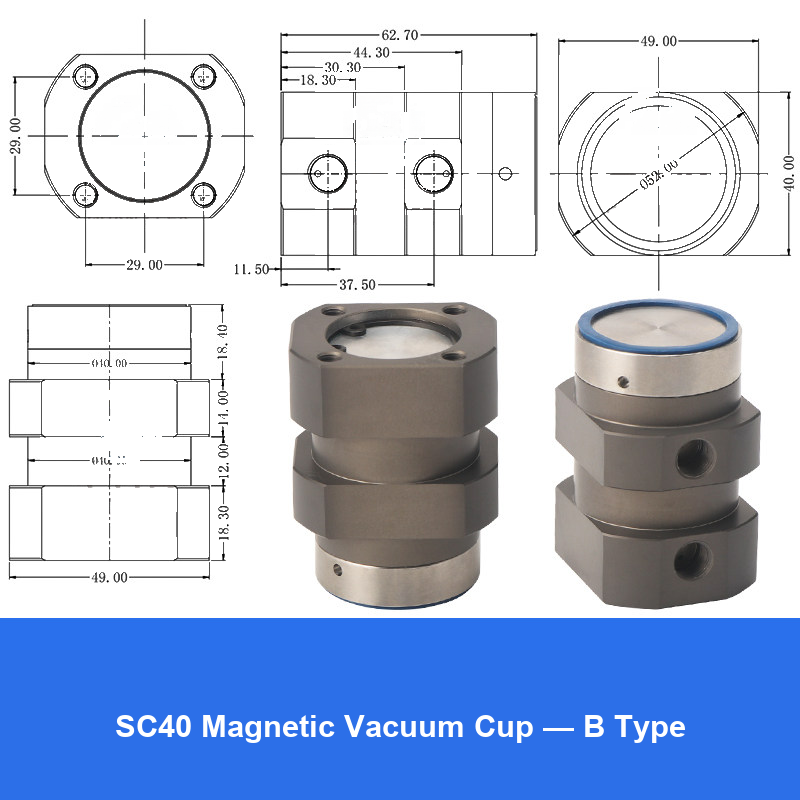

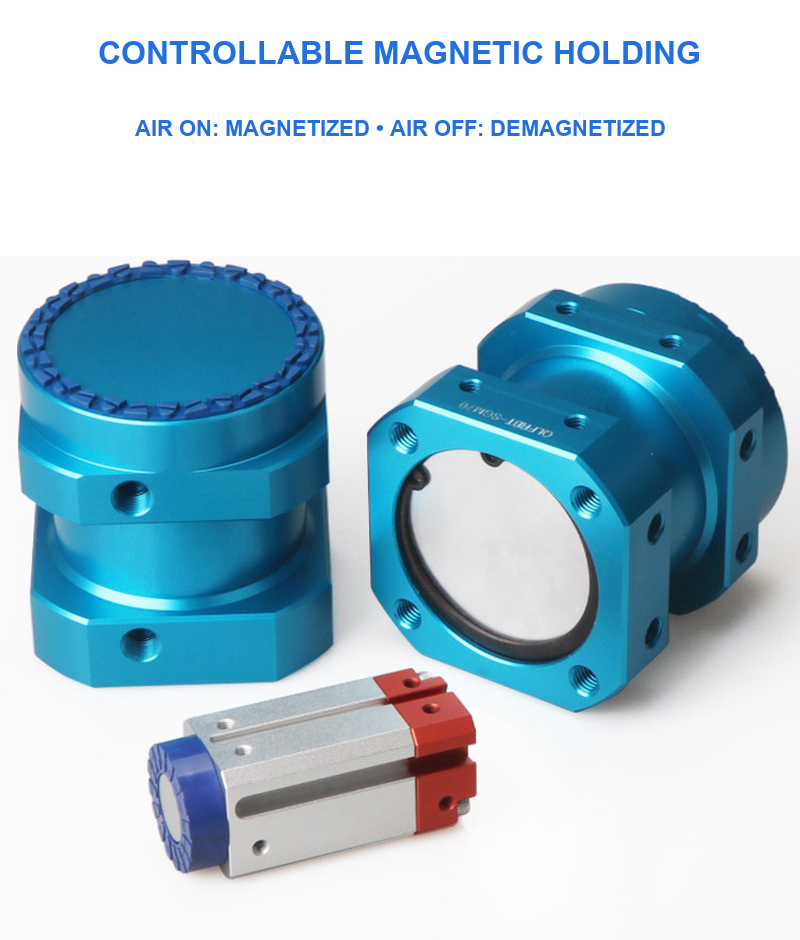

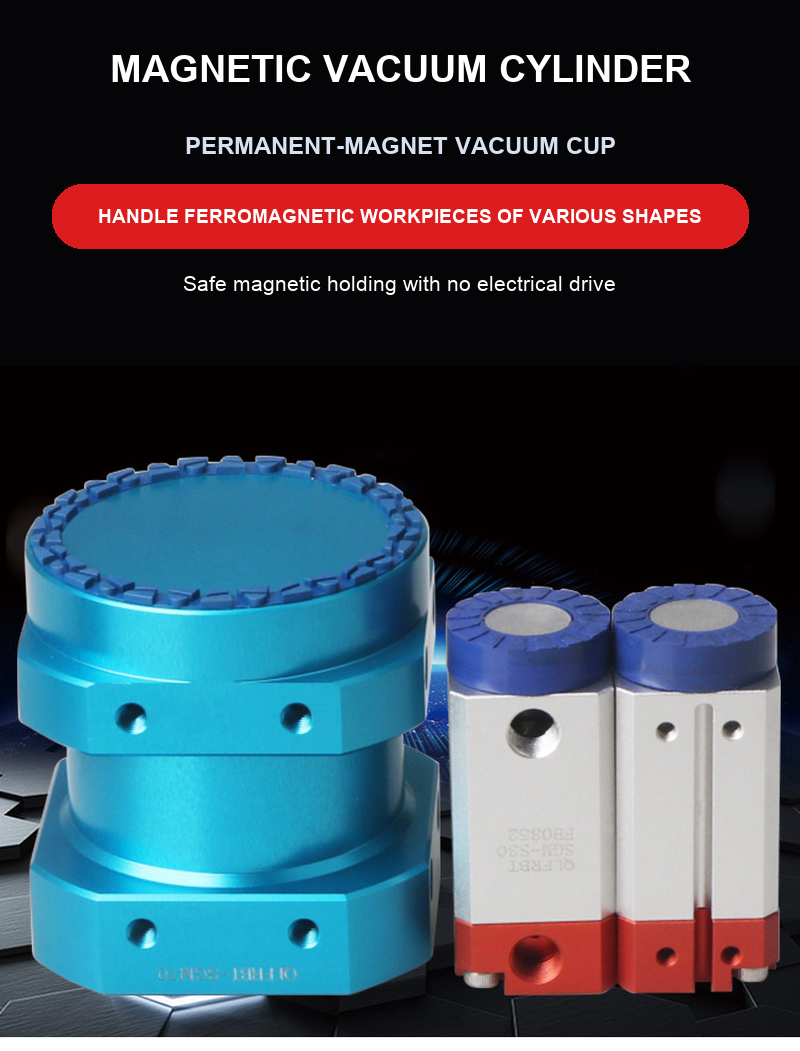

Industrial magnetic vacuum cups and a matching threaded fitting for compatible pneumatic handling systems, robotic tooling and automated workholding. Select the exact model shown in the corresponding engineering drawing.
Model selection

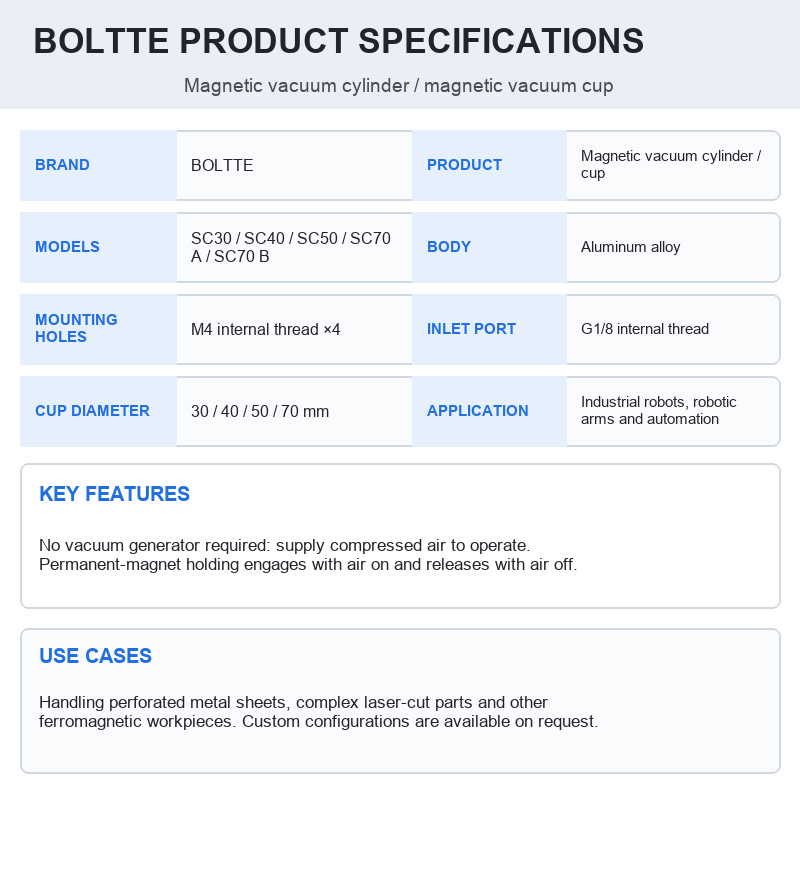

- SC30, SC40 and SC50: compact magnetic vacuum cup configurations with the dimensions shown in each model image.
- SC70: A, B and C configurations with different body and connection arrangements.
- DGHZ-70: larger magnetic vacuum cup configuration with its own mounting dimensions.
- QLF-1/8-15-A14: threaded fitting with a fixed M14×1.0 stud and 67 mm overall length.
Before ordering
Confirm the complete model code, port thread, mounting pattern, cup diameter, workpiece surface, payload, acceleration, temperature and available installation clearance against the selected drawing. Actual performance depends on the complete pneumatic system and application conditions.
Technical information
- Dimensions and connection callouts are shown in millimetres unless otherwise marked.
- Product images correspond to the selectable model and are for technical identification.
- Use compatible pneumatic components and follow the requirements of the complete machine system.

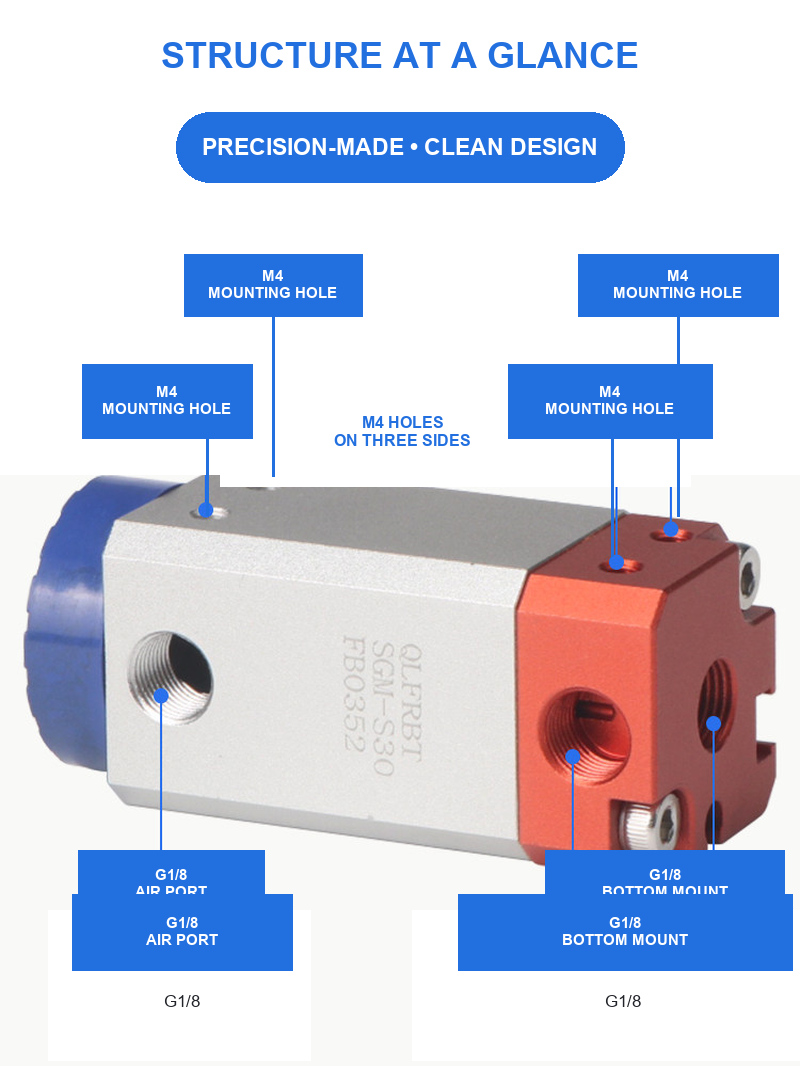

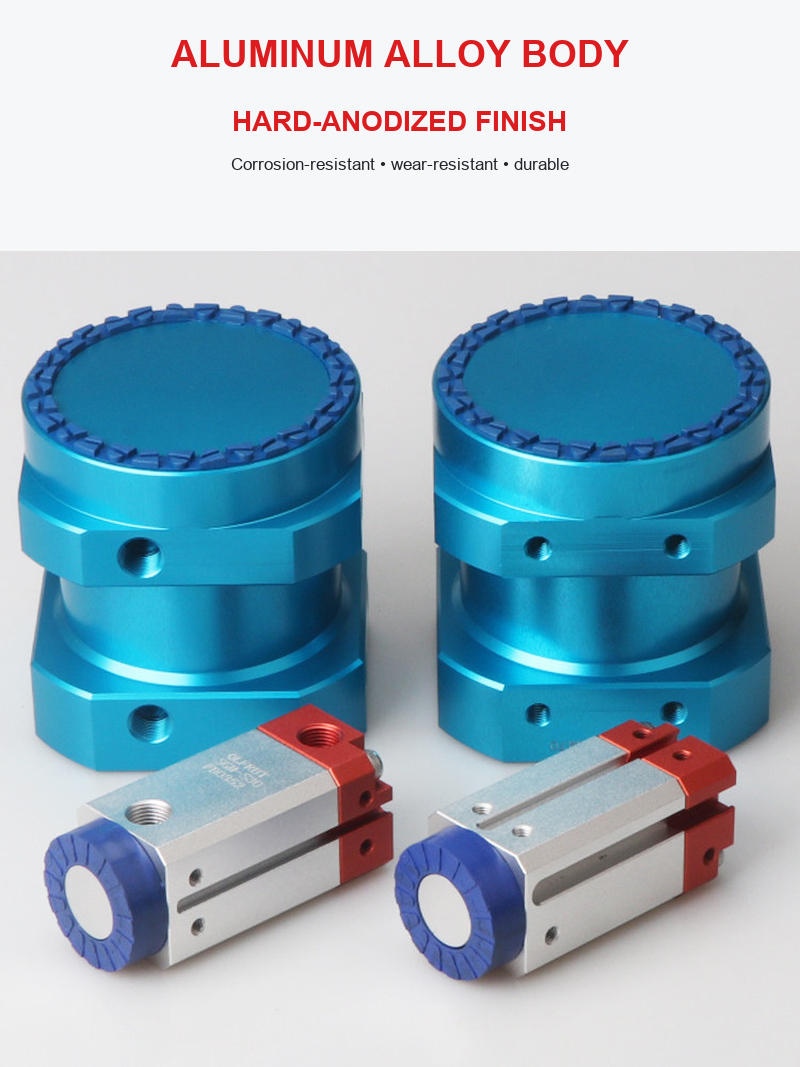

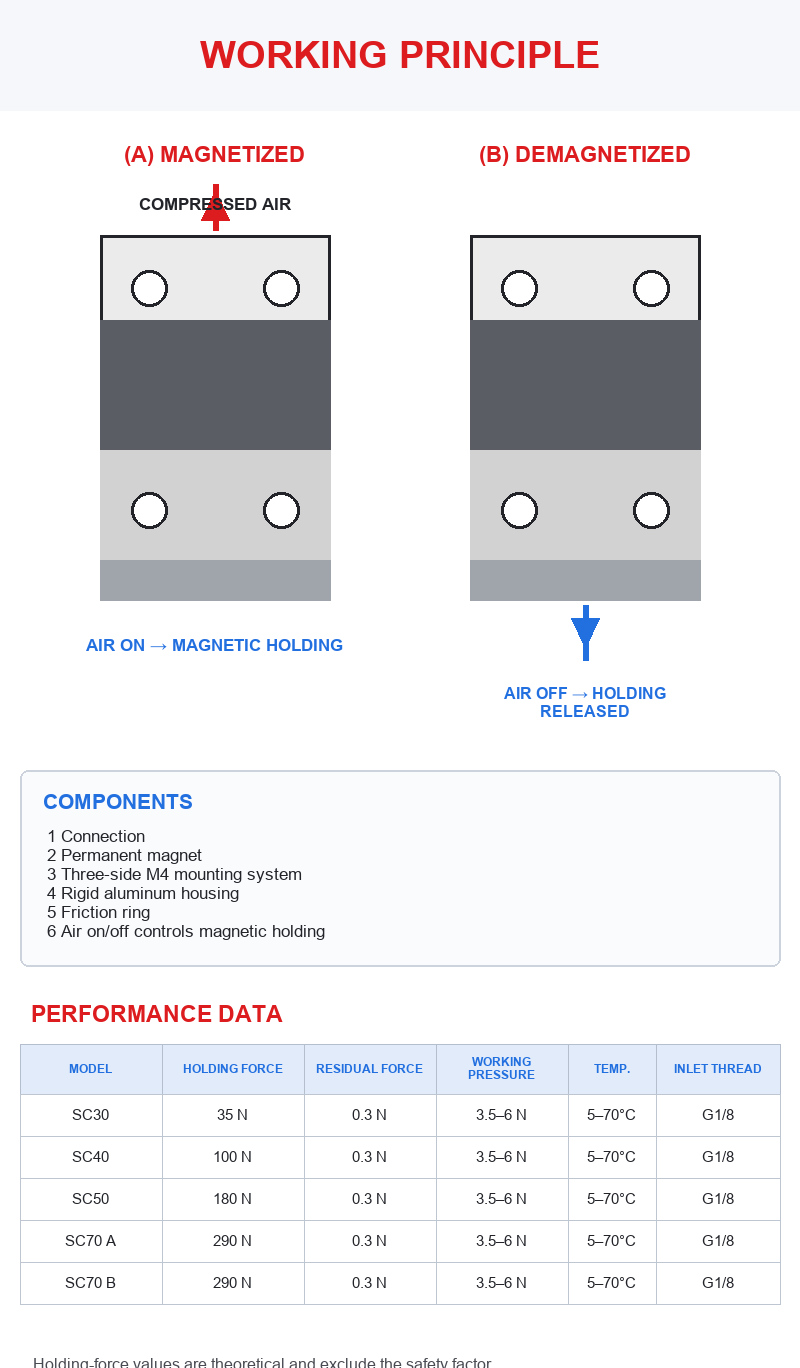

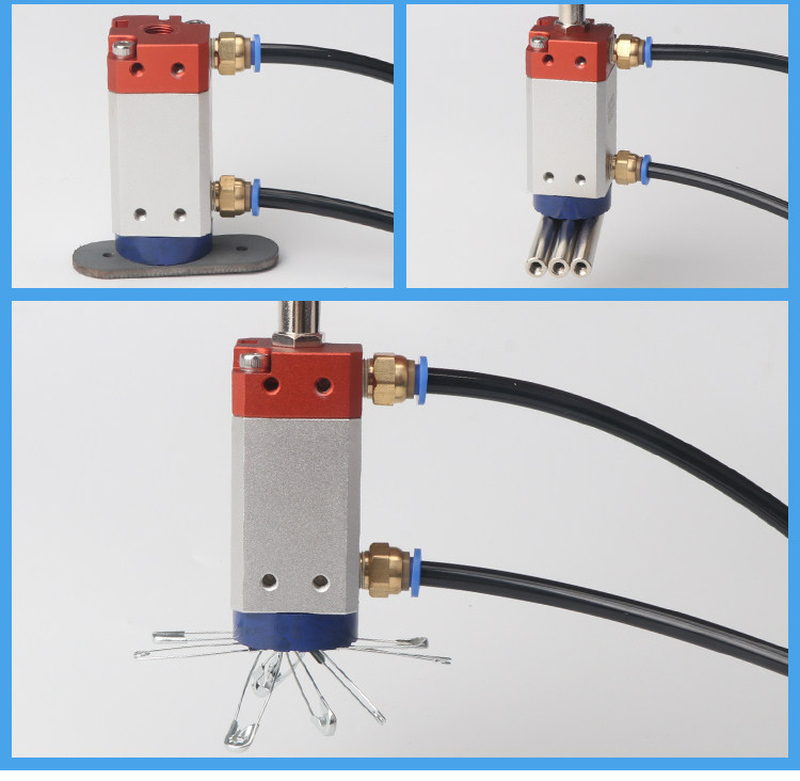

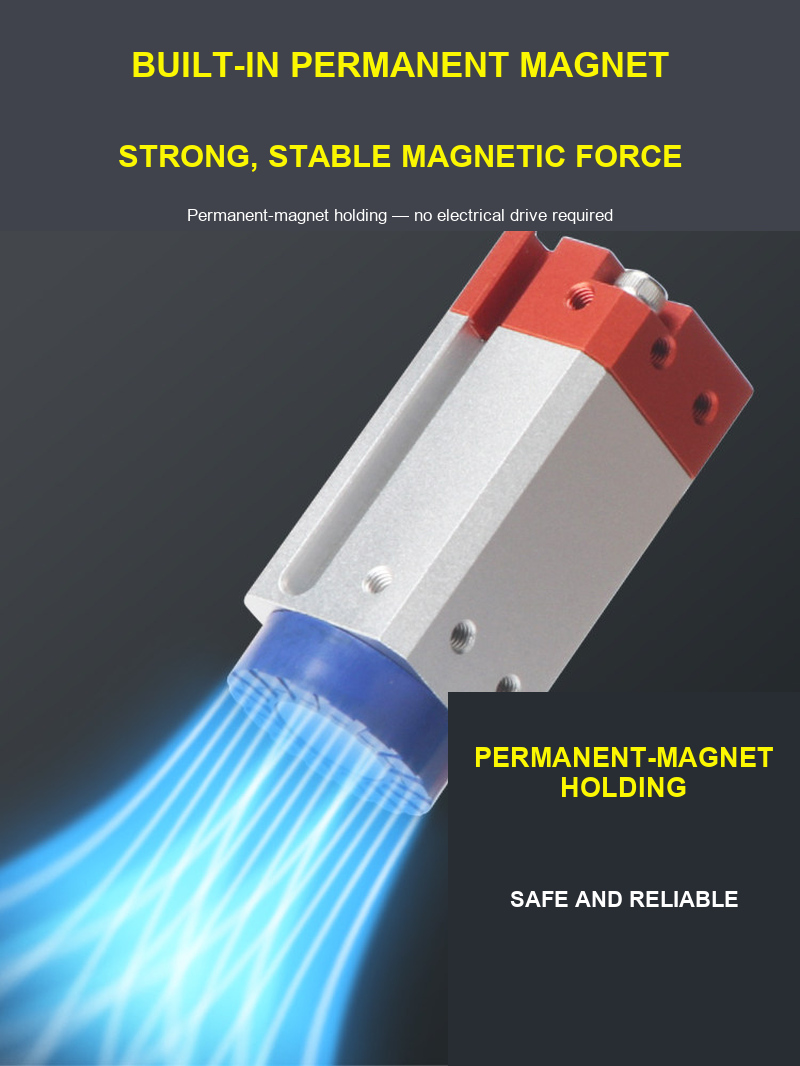

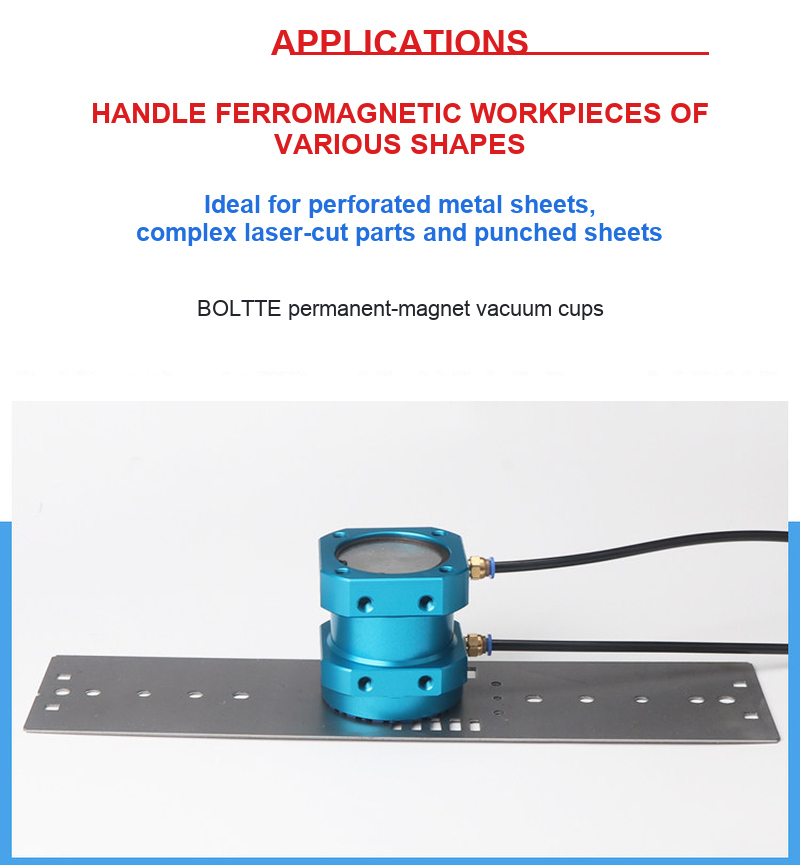

Product Overview, Features and Technical Data
