Black Aluminum Quick-Change Fixture Plates, A/B Set and Spare Plates

Quick-change fixture plates for robot tooling

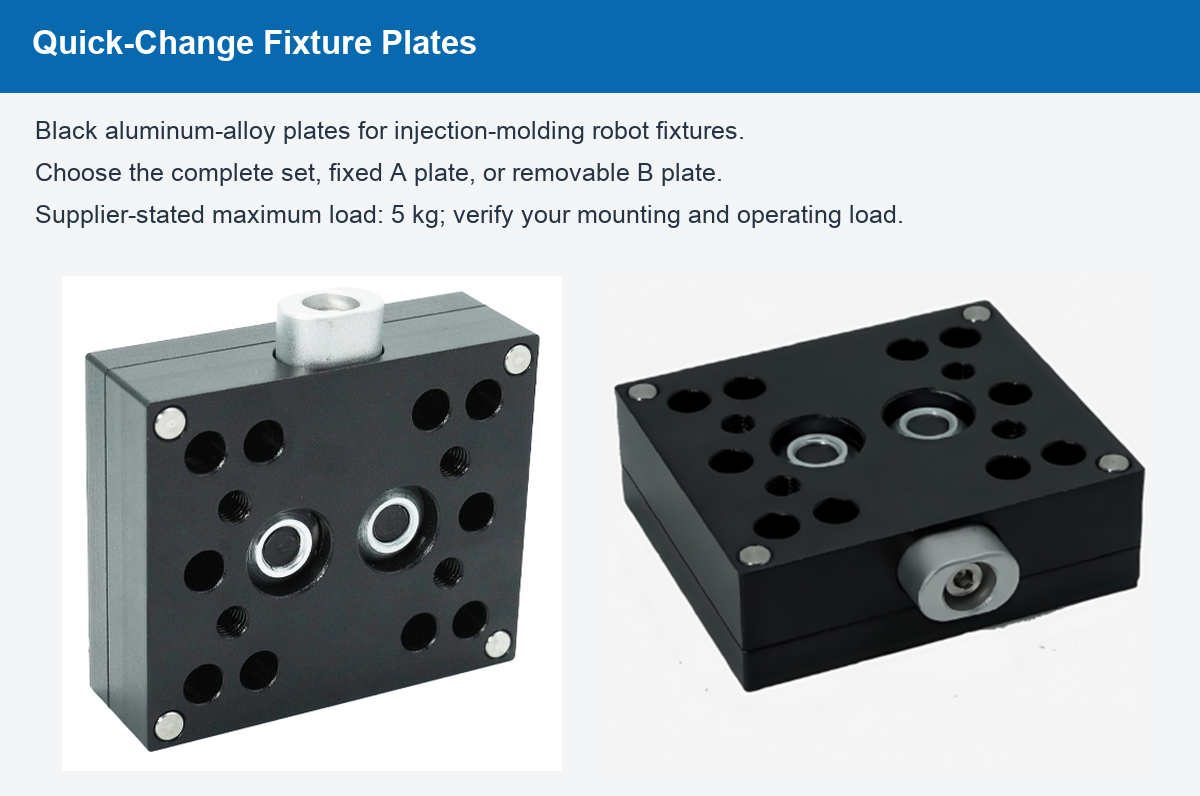

Black aluminum-alloy fixture plates for injection-molding robot assemblies. Select the complete set or the required replacement plate. Each variant is a separate purchasing configuration, not a complete robot fixture.

Configuration guide

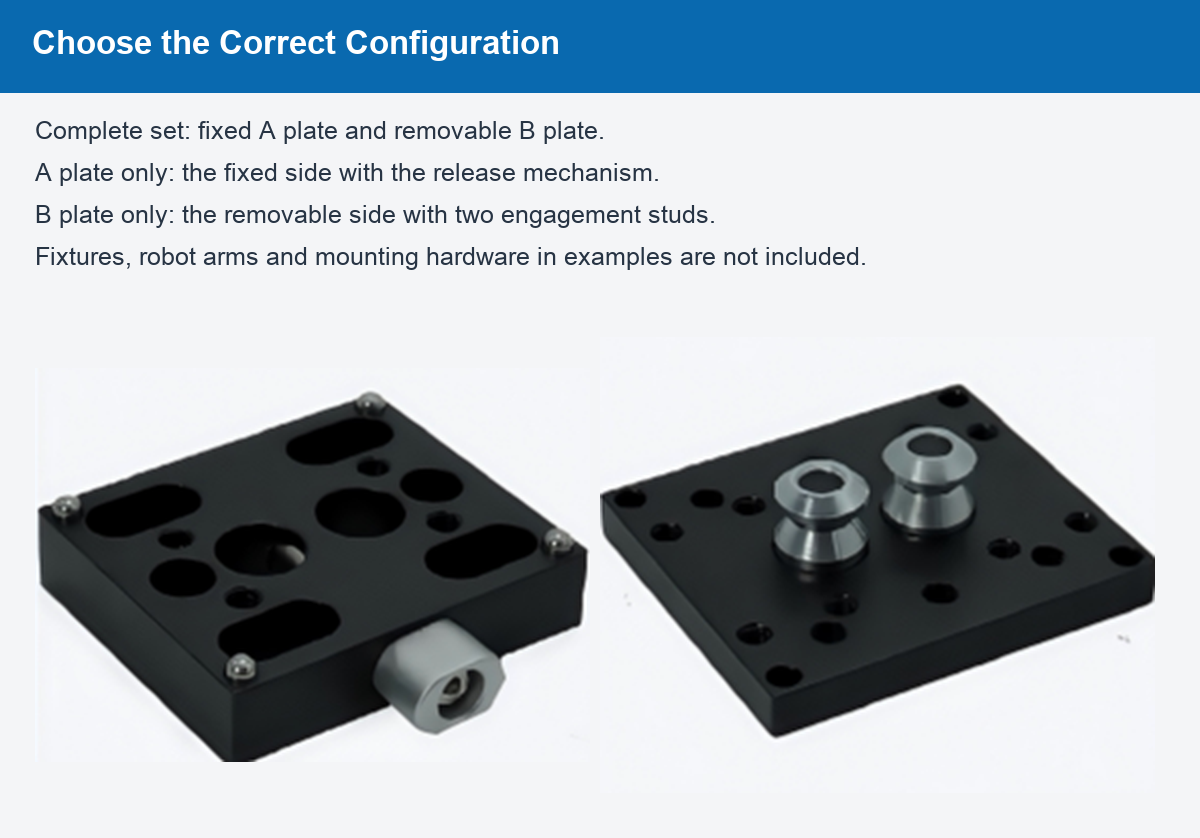

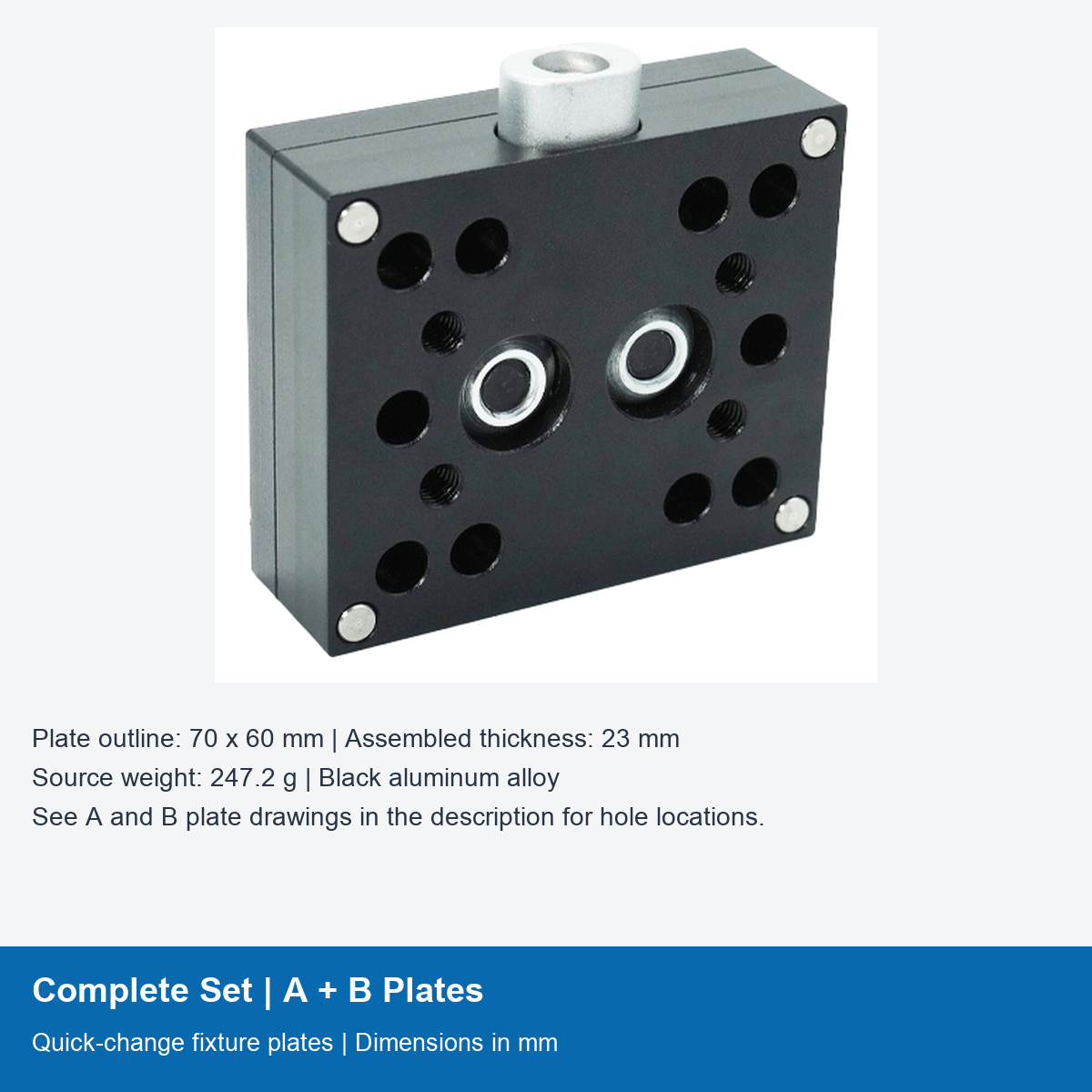

• Complete set: fixed A plate plus removable B plate.

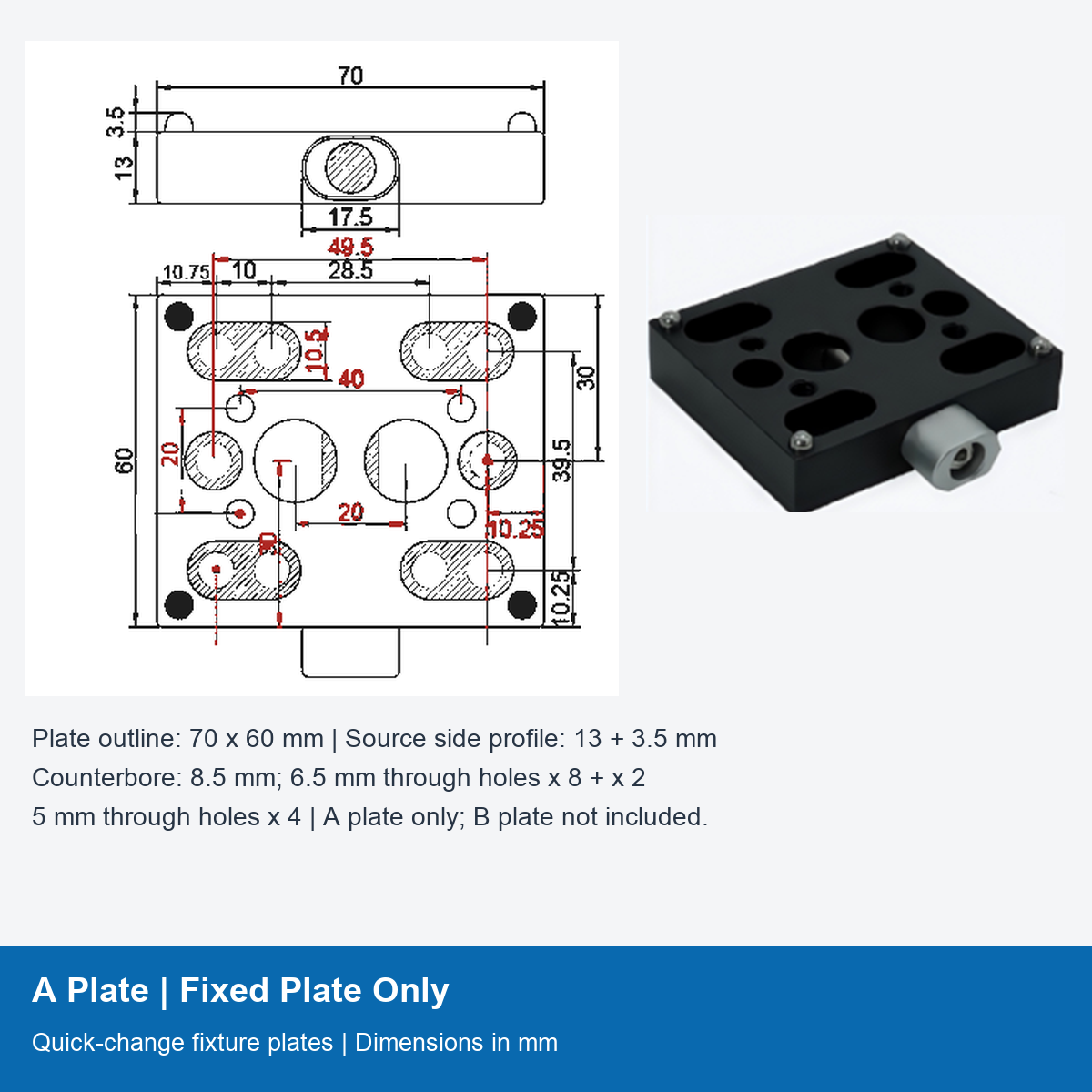

• A plate only: fixed plate; B plate is not included.

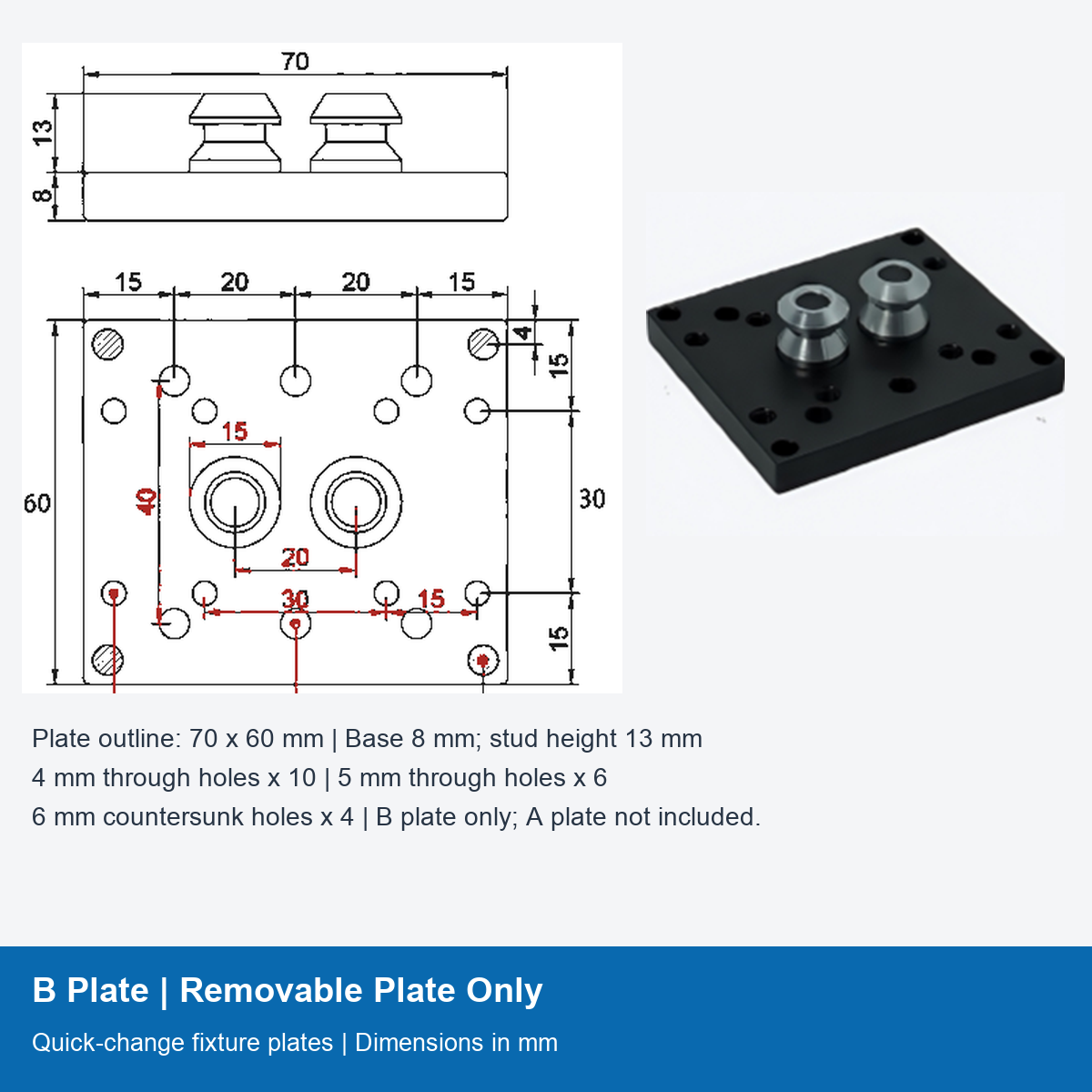

• B plate only: removable plate; A plate is not included.

Source specifications

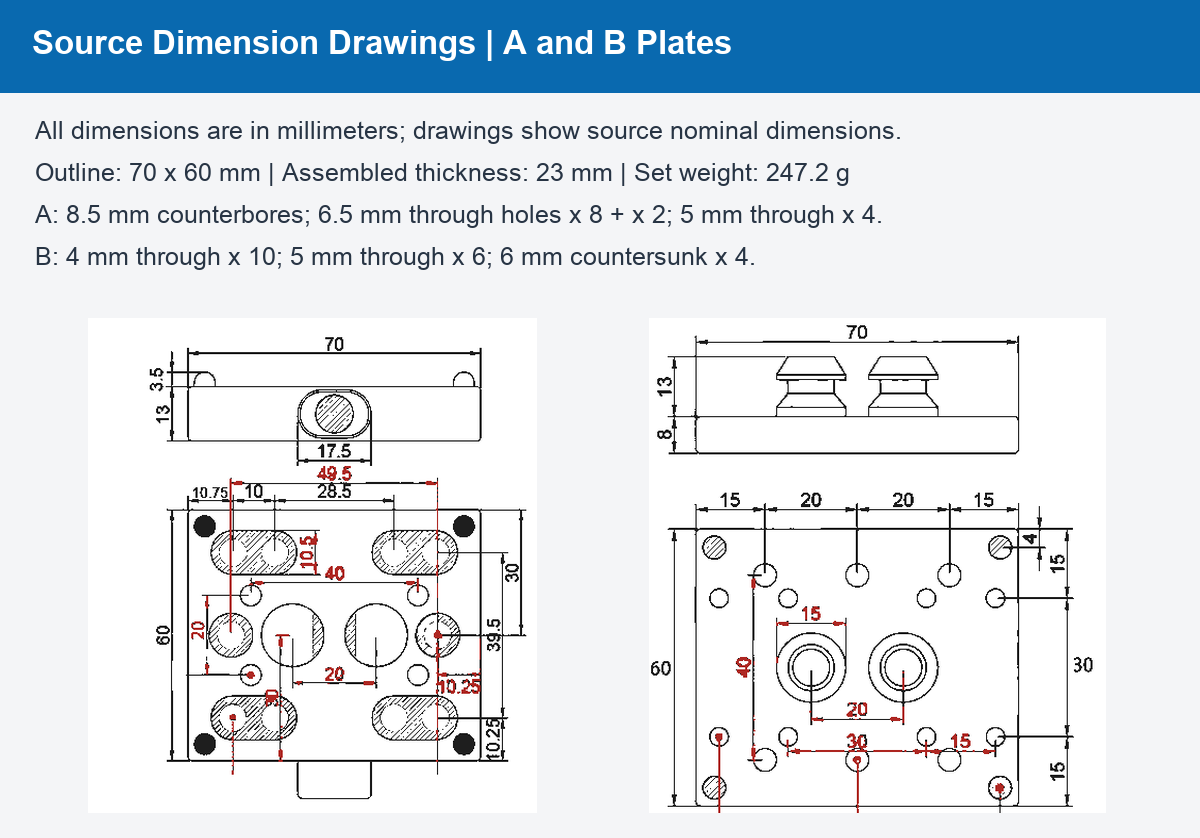

• Plate outline: 70 × 60 mm.
• Assembled thickness: 23 mm; source set weight: 247.2 g.
• Material: aluminum alloy; finish: black.
• Supplier-stated maximum load: 5 kg. Check actual load, mounting and operating conditions.

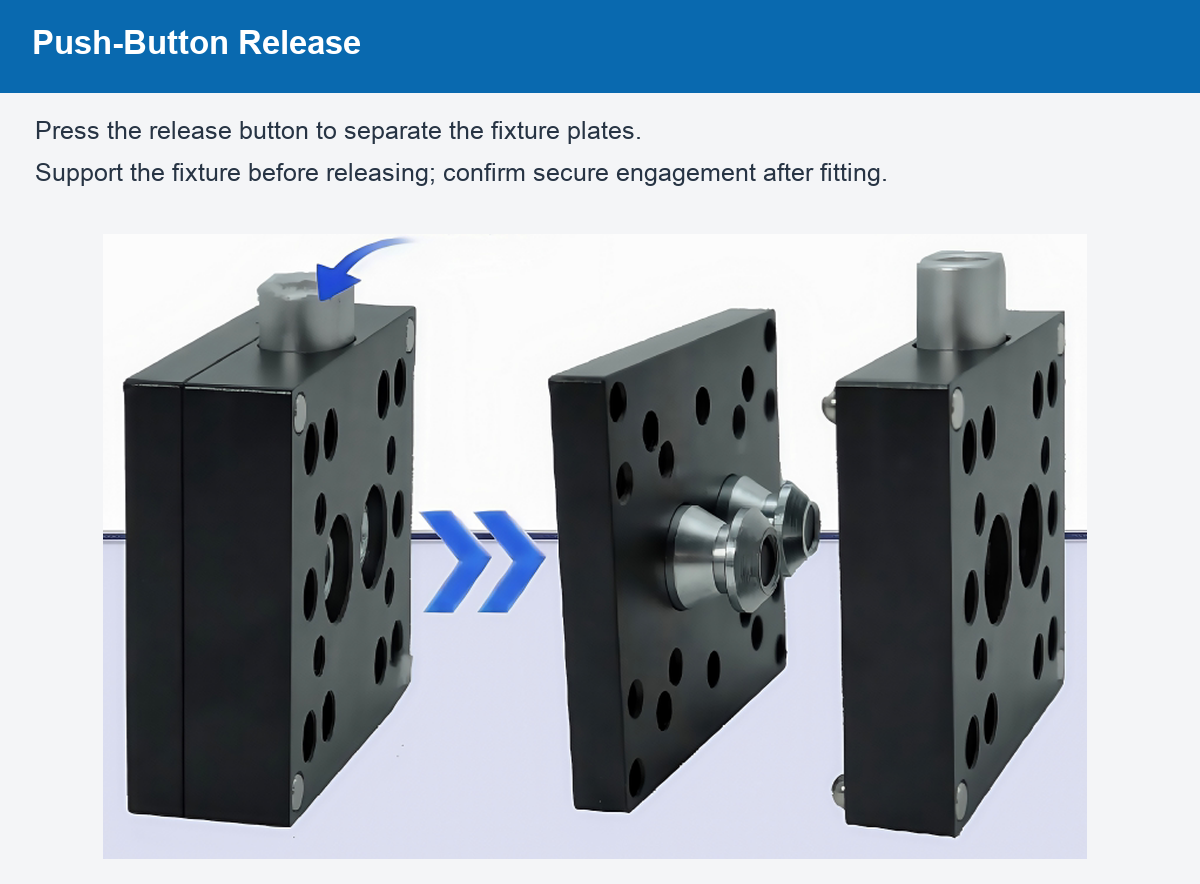

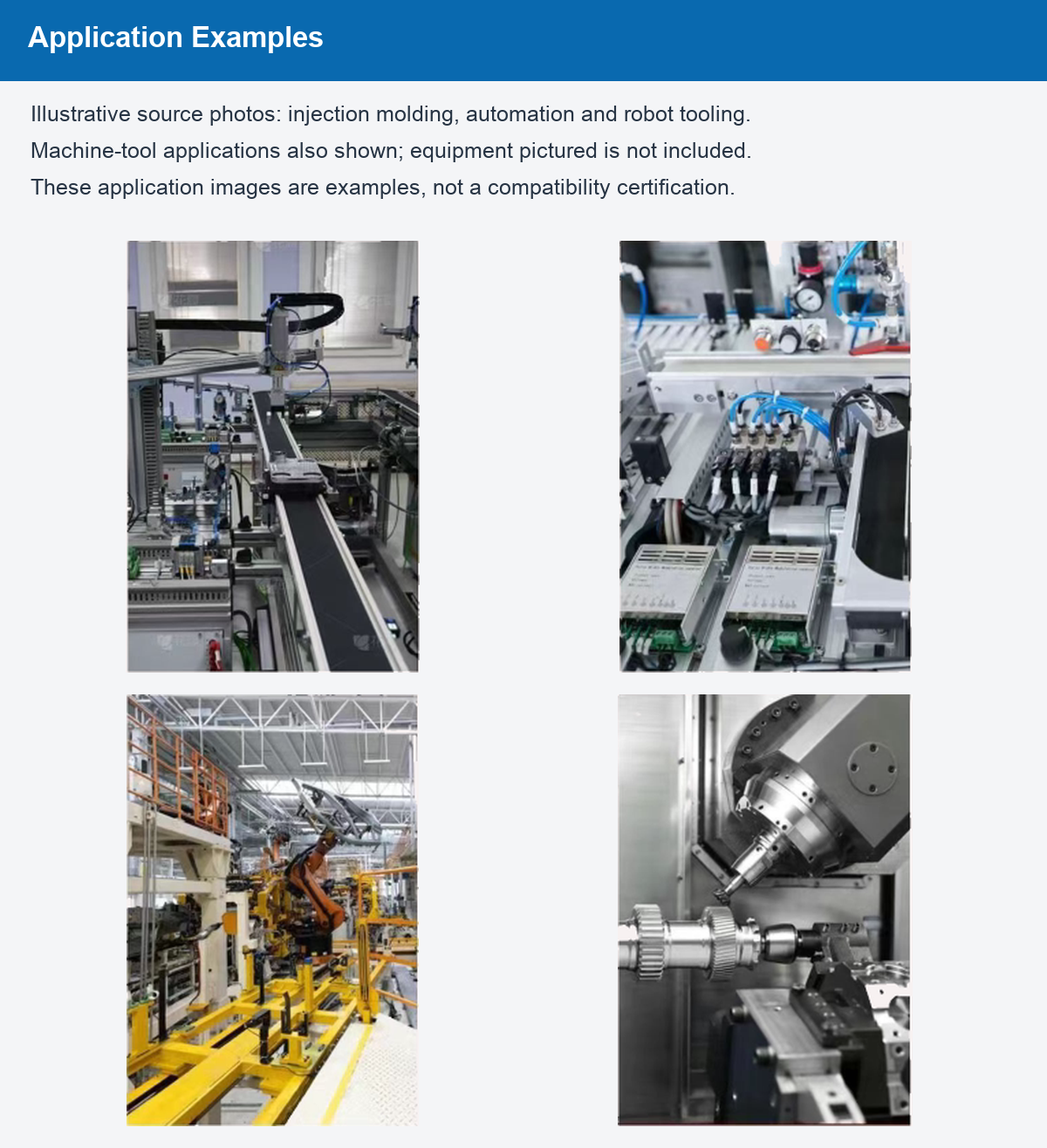

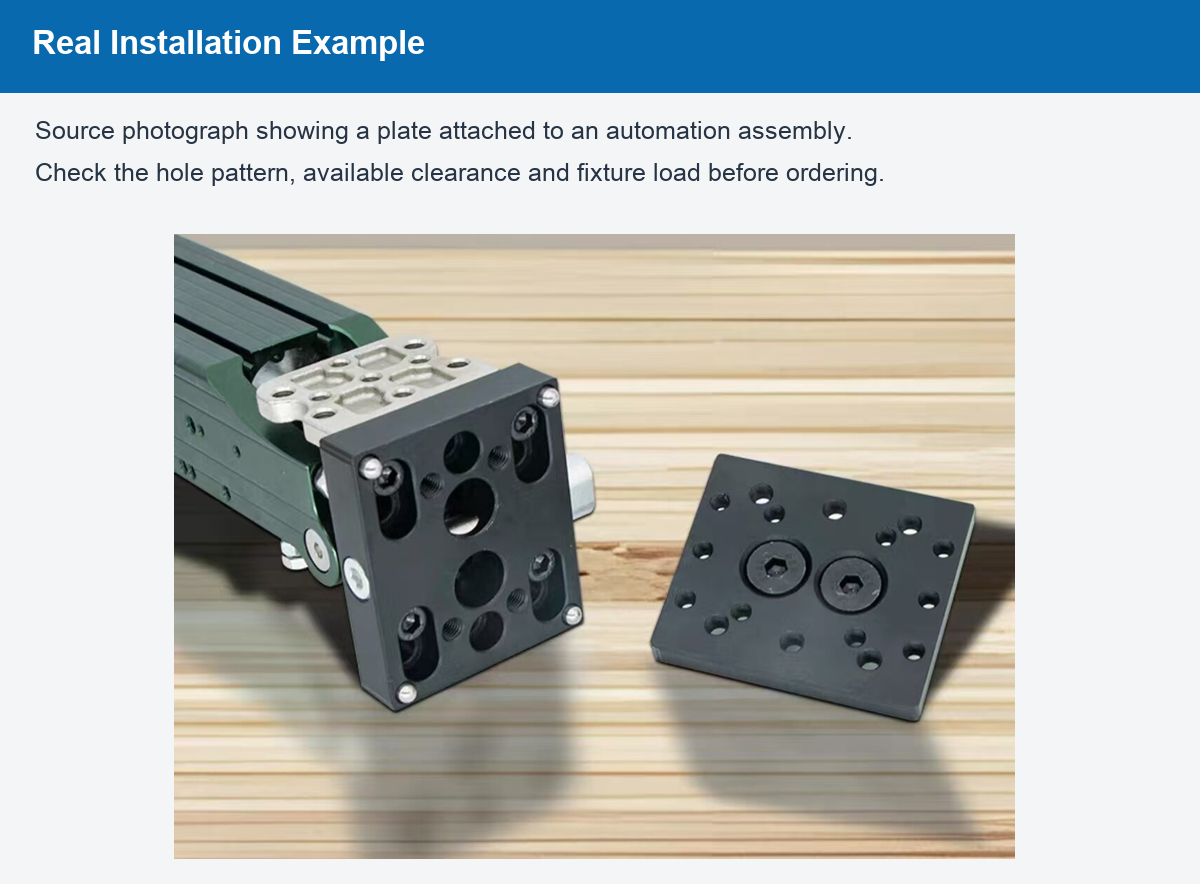

All dimensional values are source nominal measurements, not independently tested tolerances. Confirm hole positions and installation clearance before ordering. Support the fixture before pressing the release button, and check that the plates engage securely after installation. Equipment shown in application photographs is illustrative and is not supplied.
