Bernoulli Non-Contact Vacuum Cups, Assemblies and Fittings — Q30–QLF-180A
$28.50 USD
Bernoulli Non-Contact Vacuum Cups, Assemblies and Fittings — Q30–QLF-180A
Quantity
Bernoulli Non-Contact Vacuum Cups, Assemblies and Fittings
Non-contact vacuum cups, cup assemblies and matching fittings for compatible pneumatic pick-and-place and robotic handling equipment. Select the exact model shown in its product image and confirm the dimensional drawing before installation.
- 54 selectable model configurations

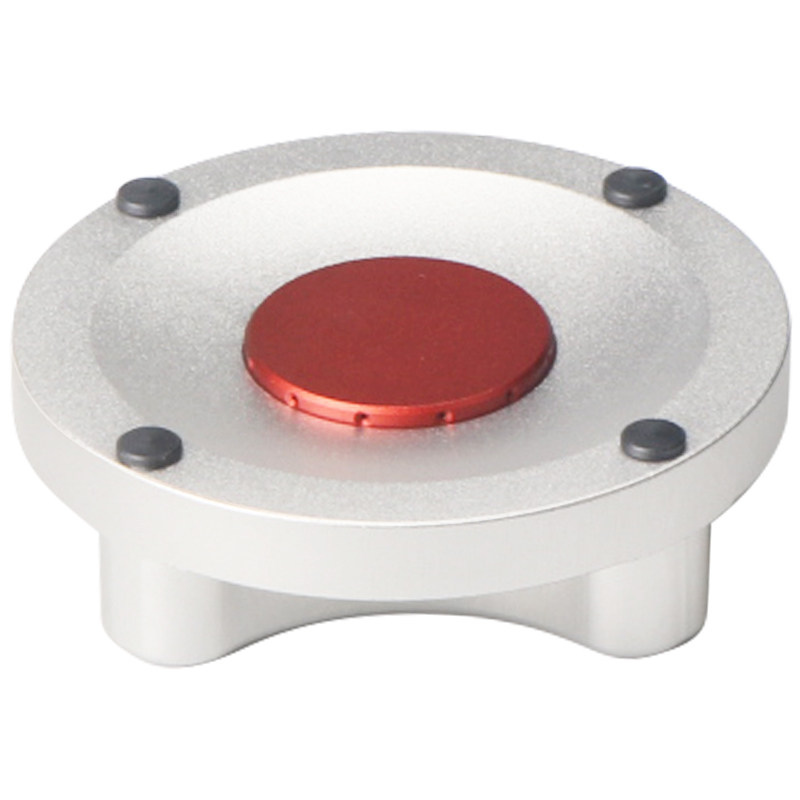

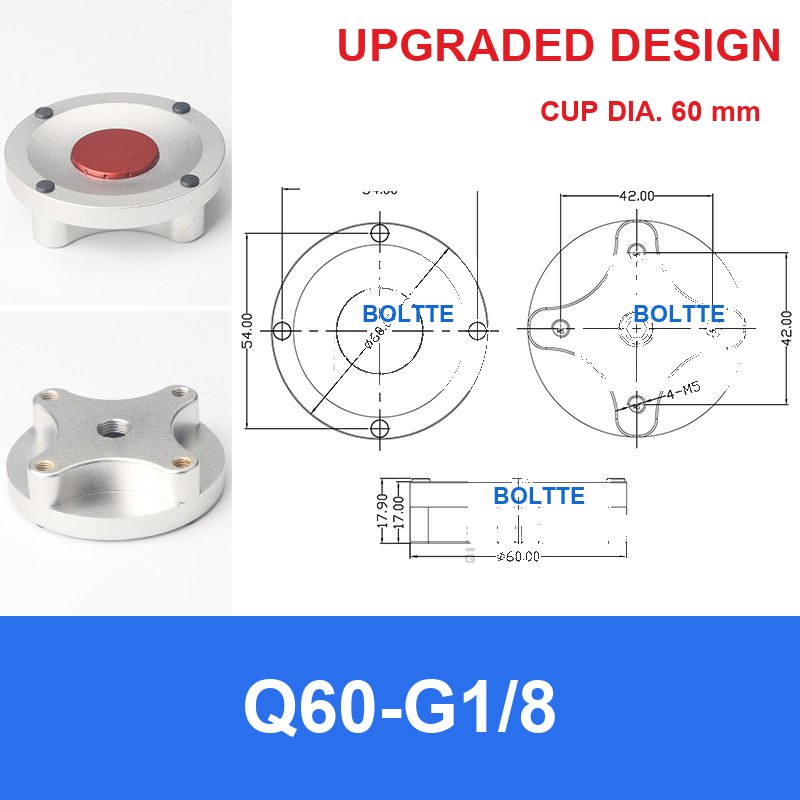

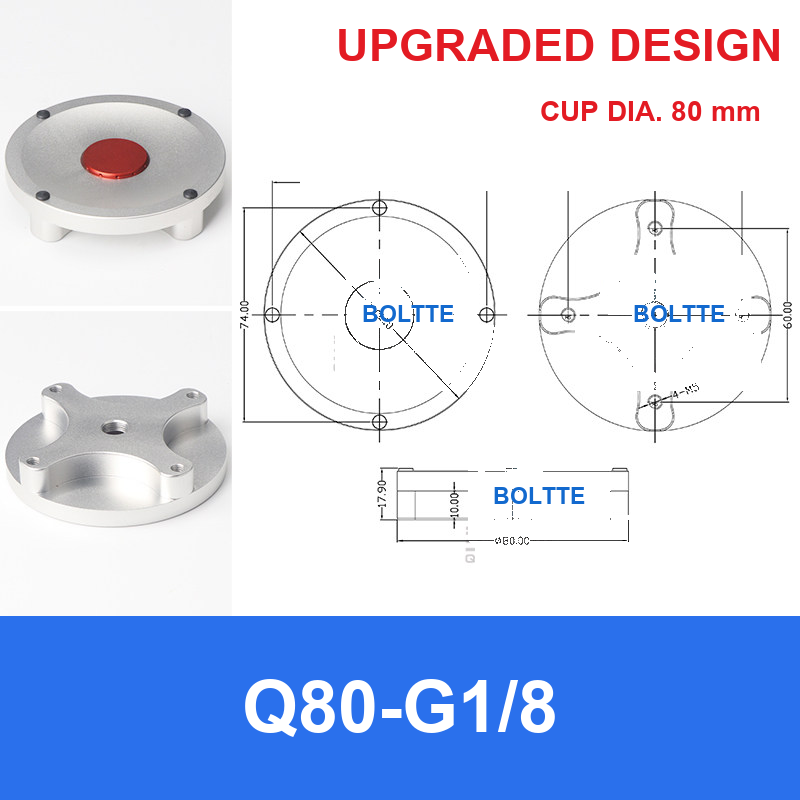

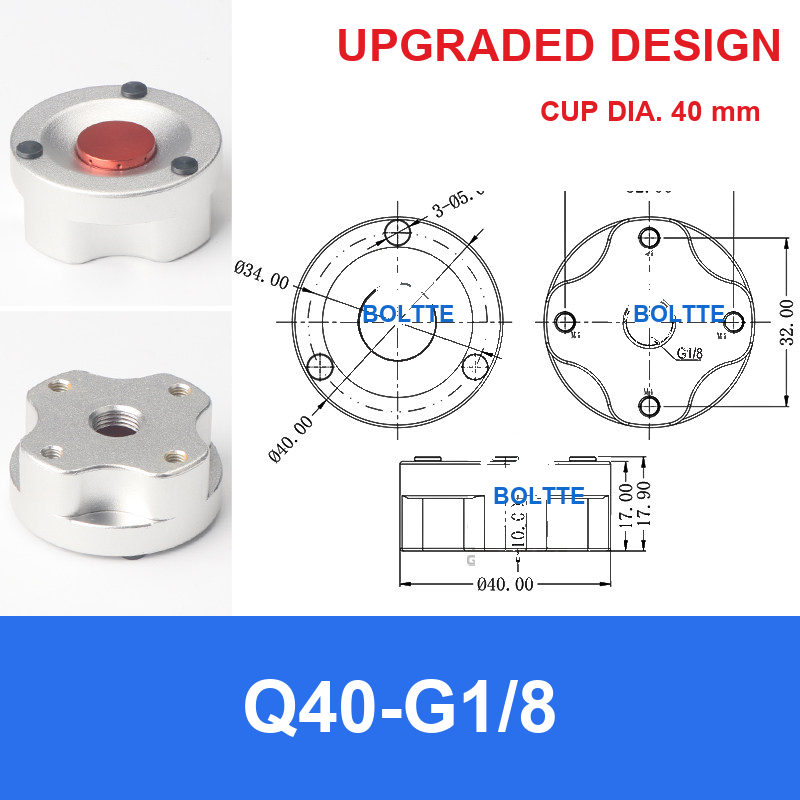

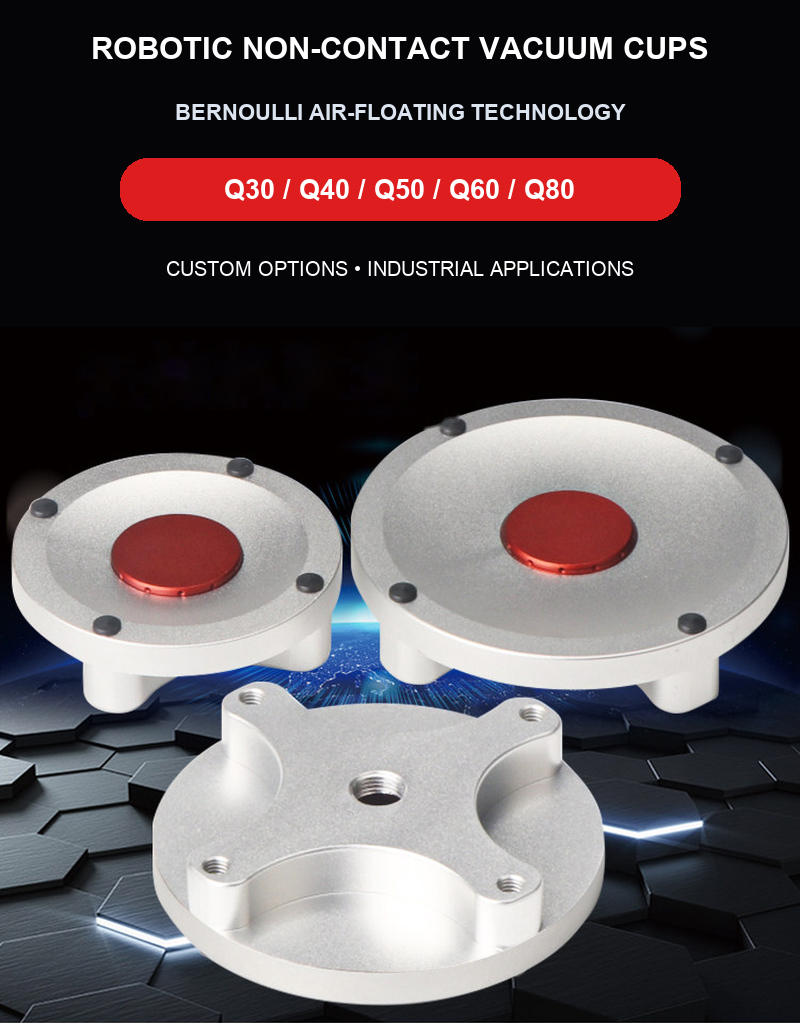

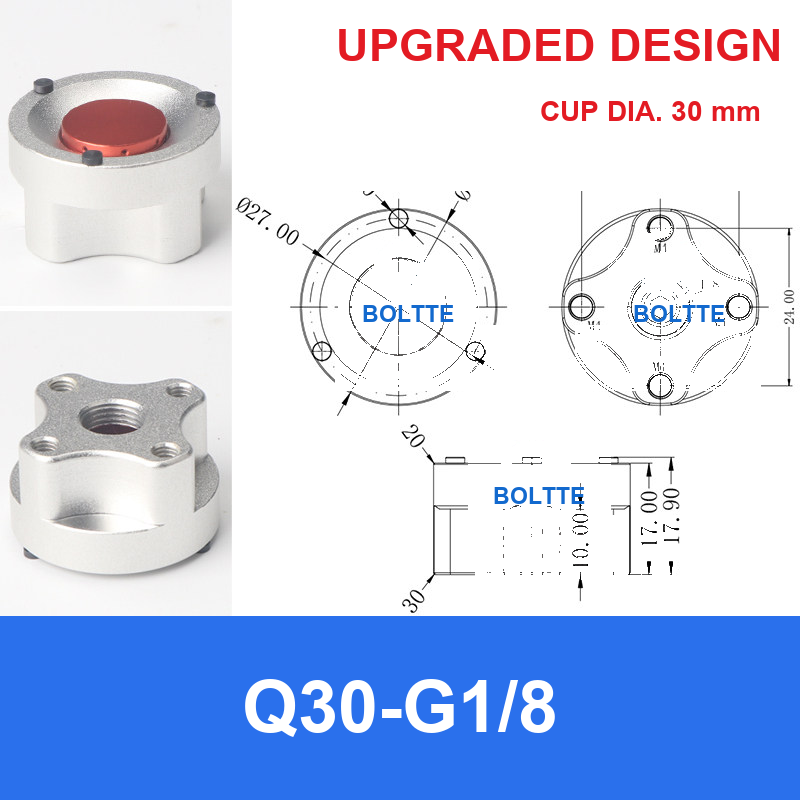

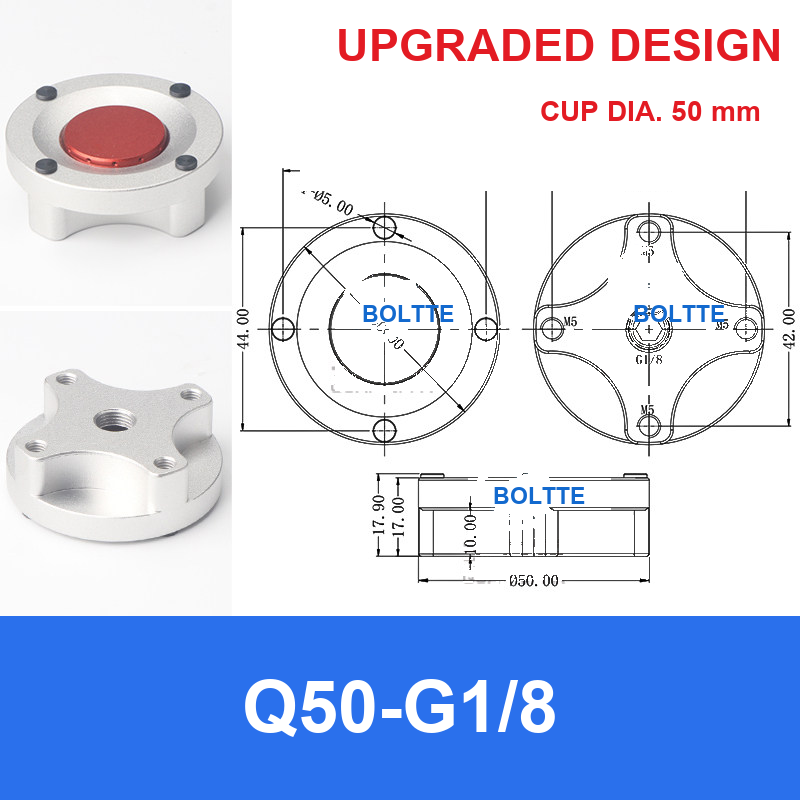

- Q30, Q40, Q50, Q60 and Q80 non-contact cup sizes

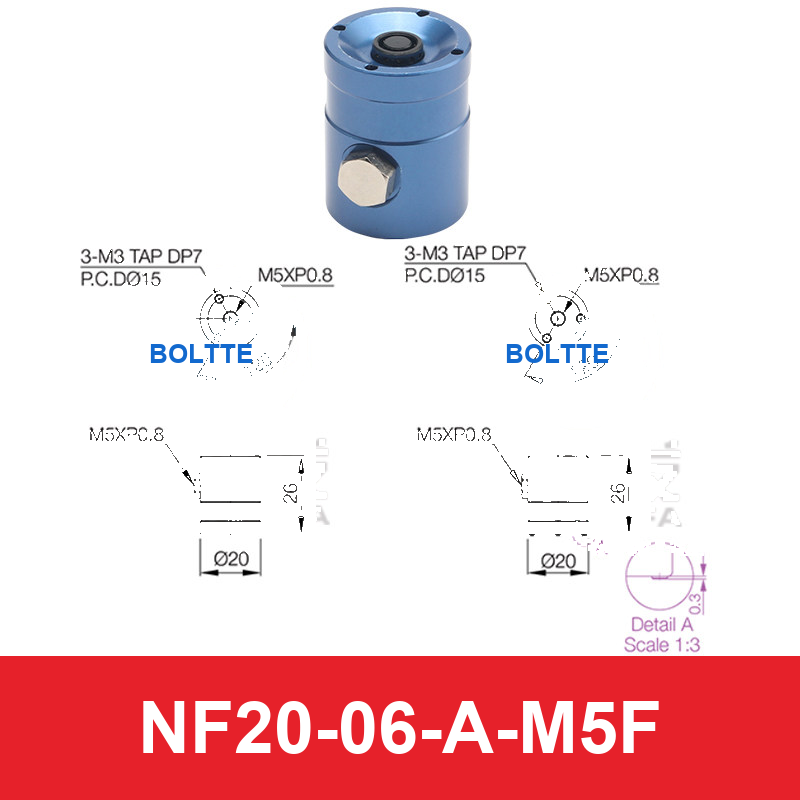

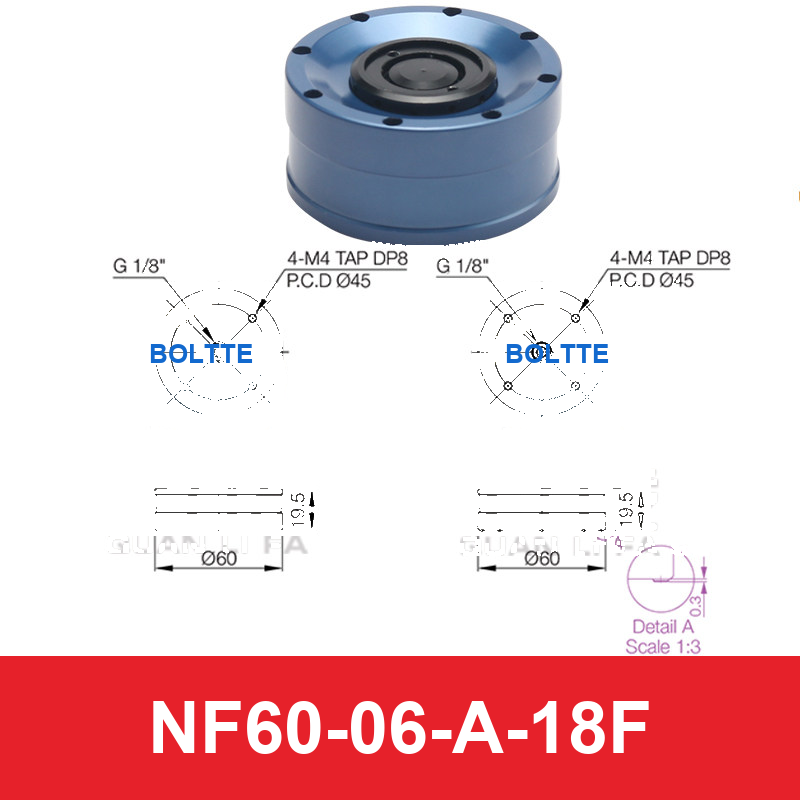

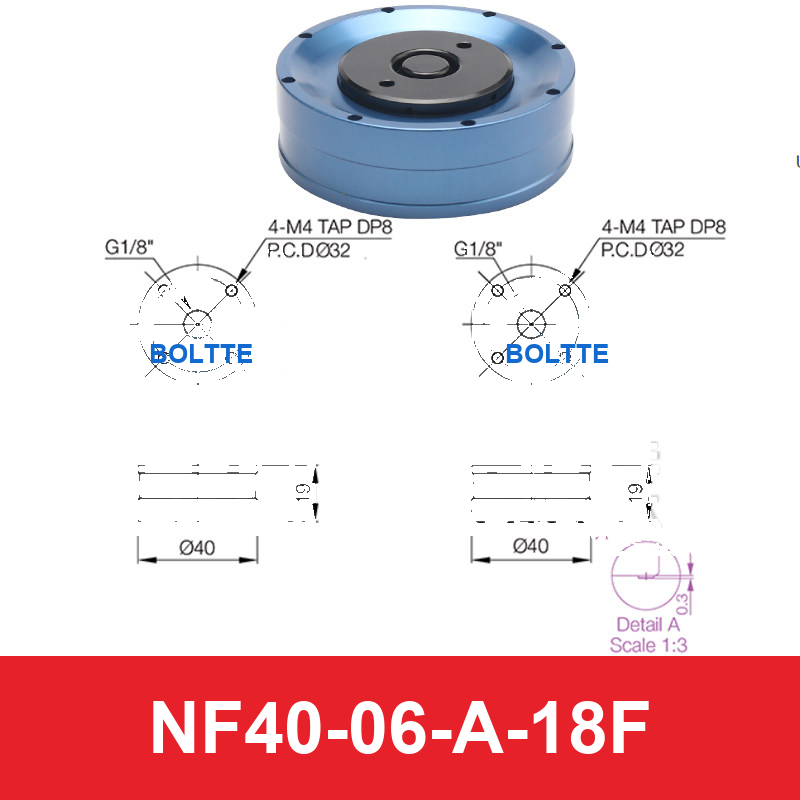

- NF20, NF40 and NF60 double-sided high-flow units

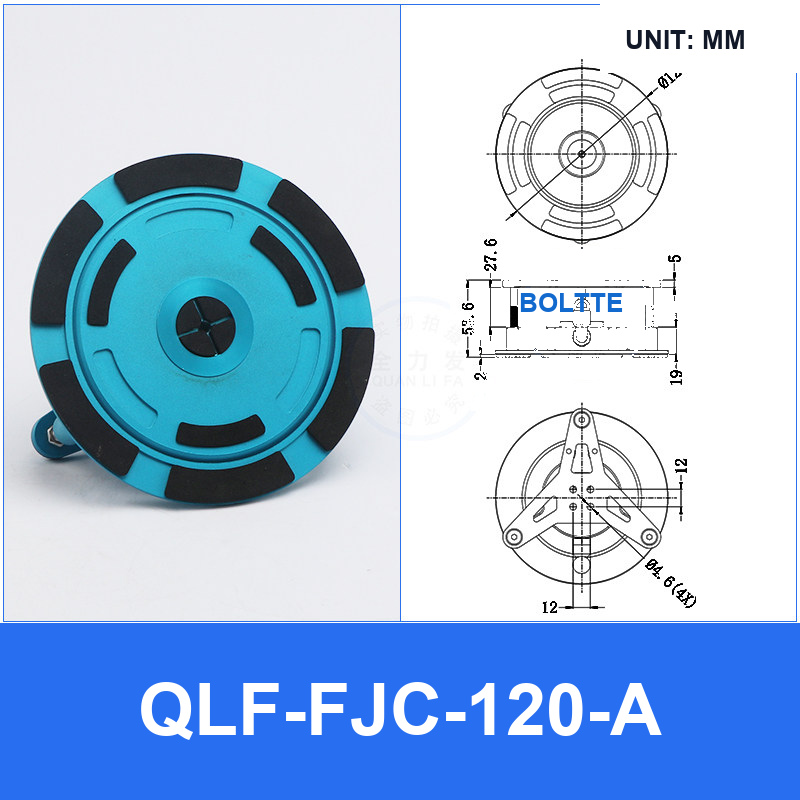

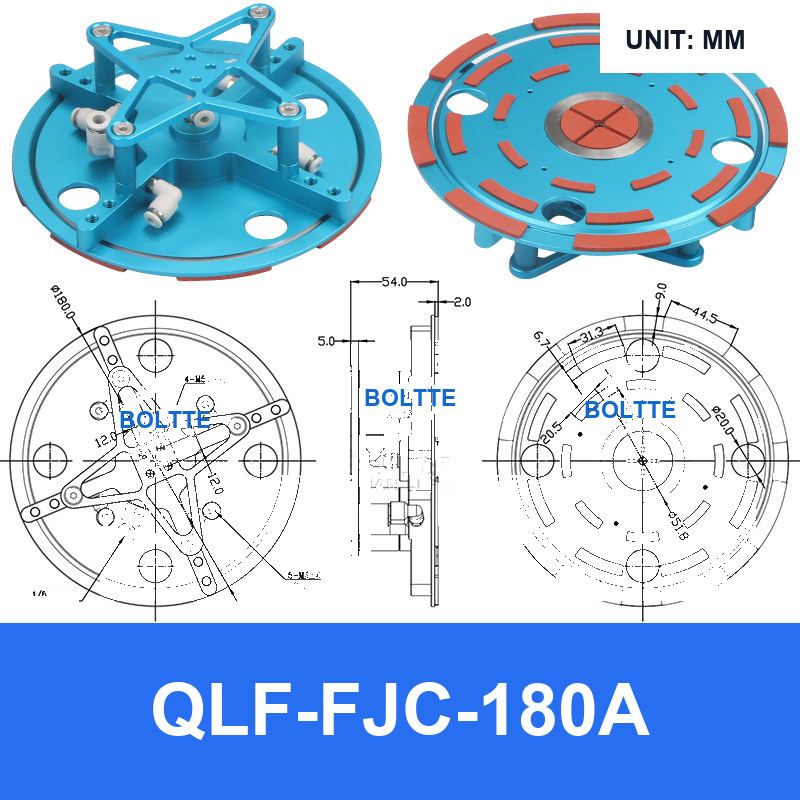

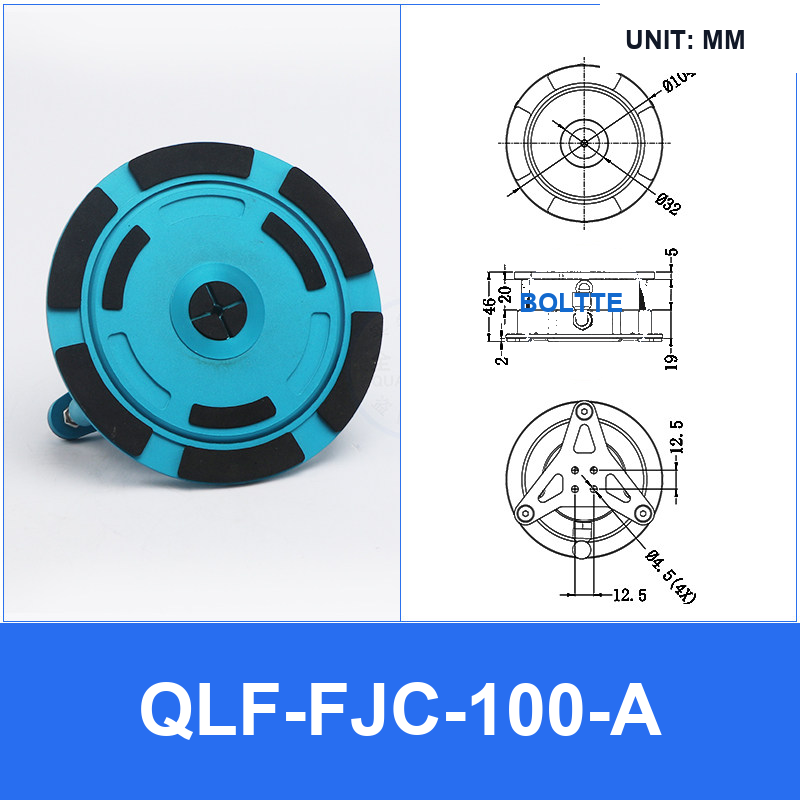

- QLF-FJC 100A, 120A and 180A assemblies

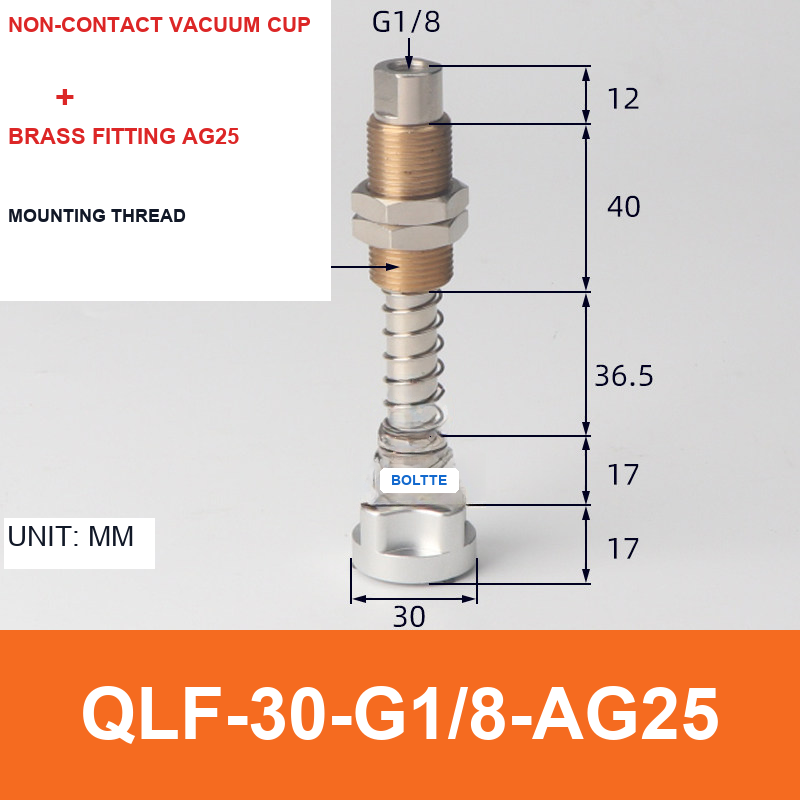

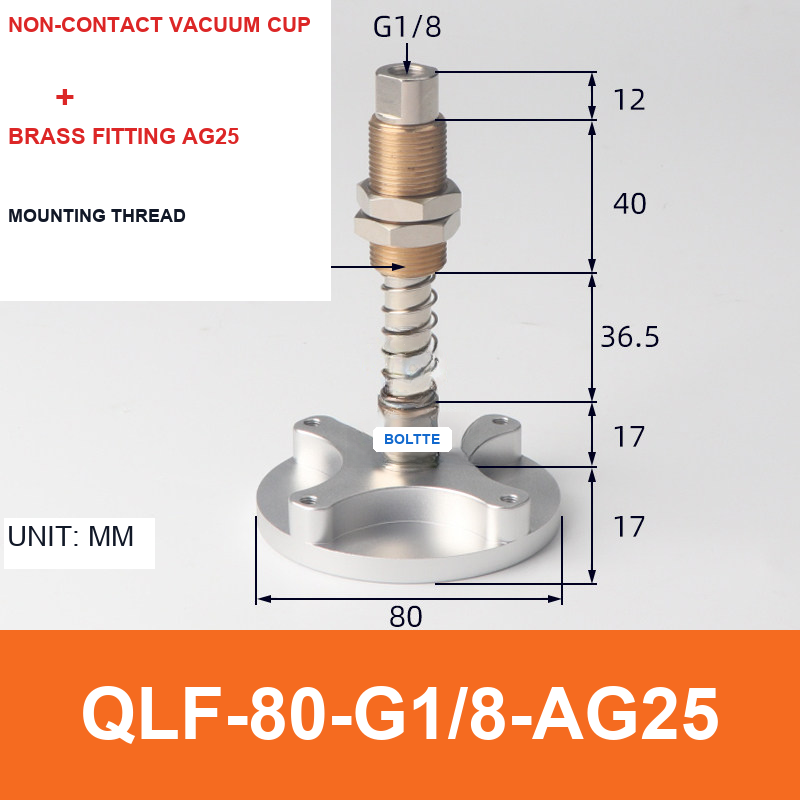

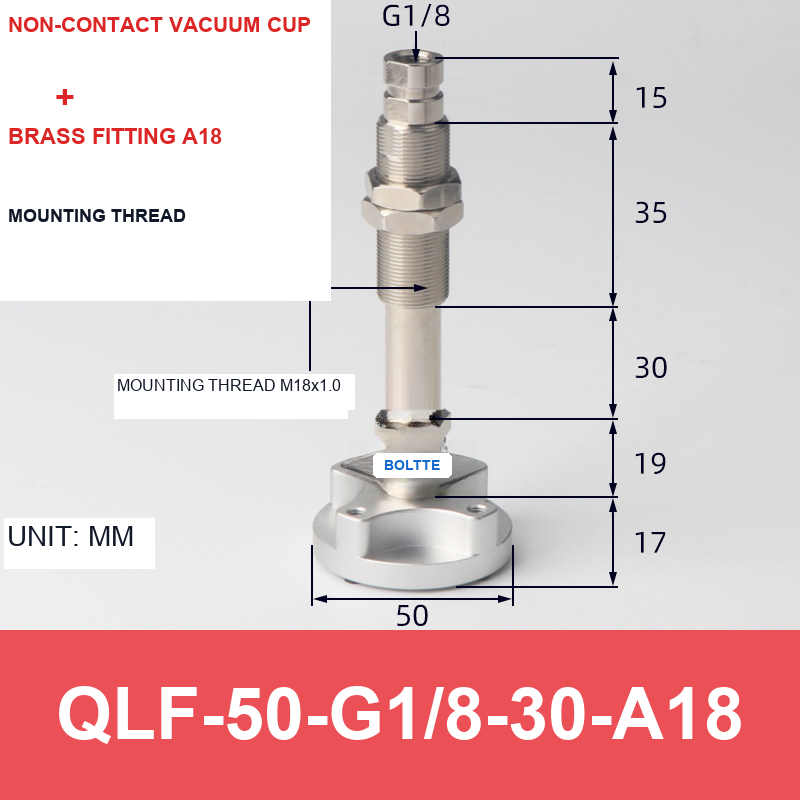

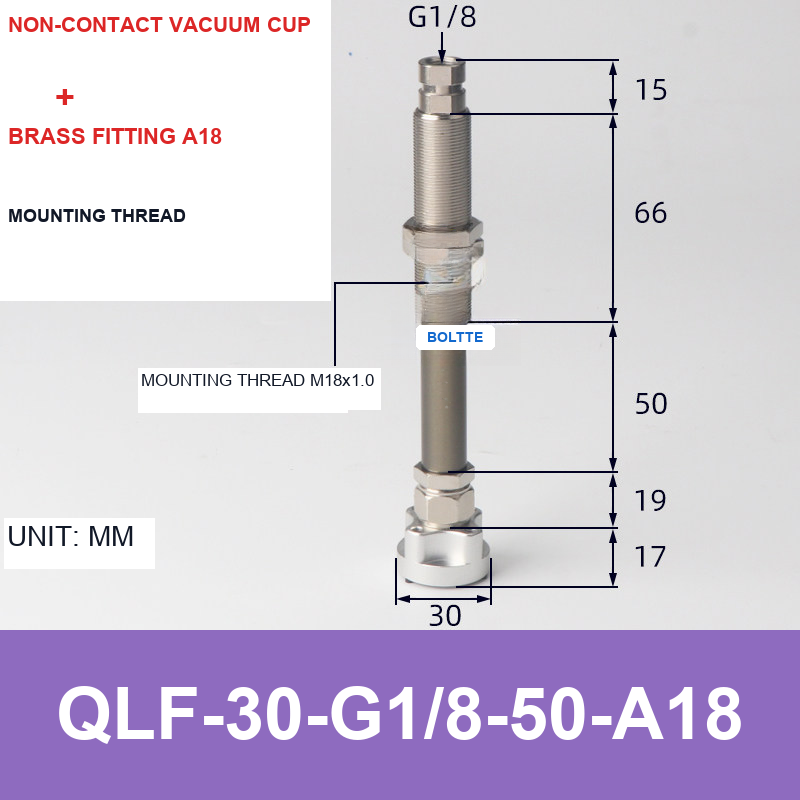

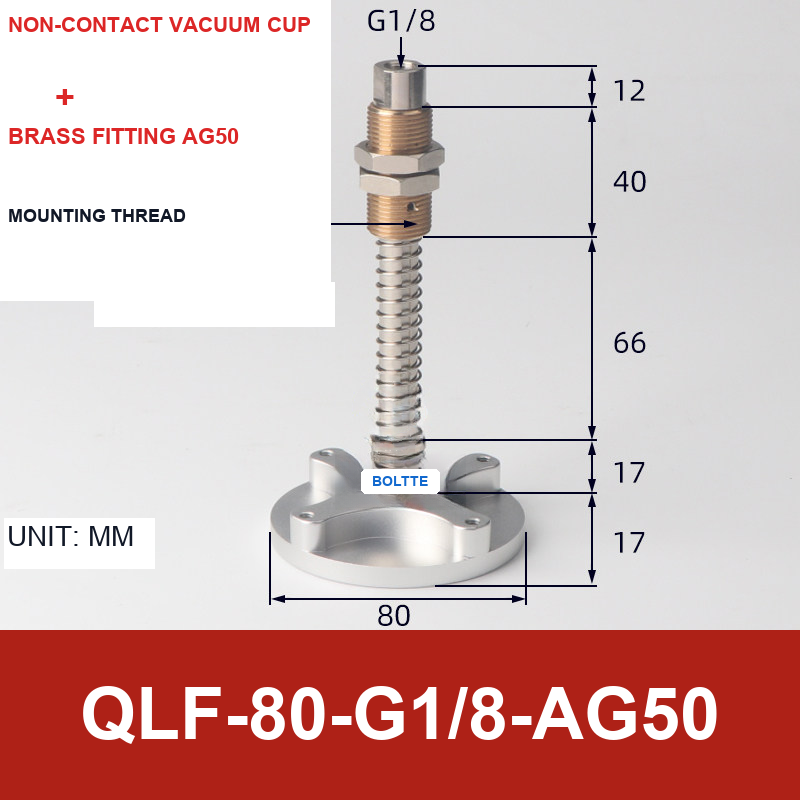

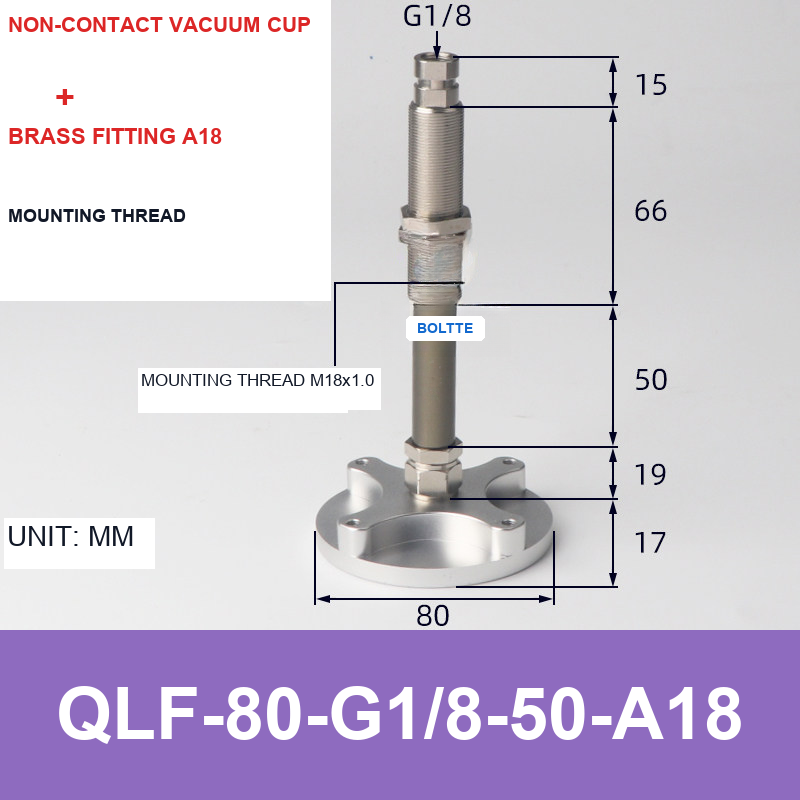

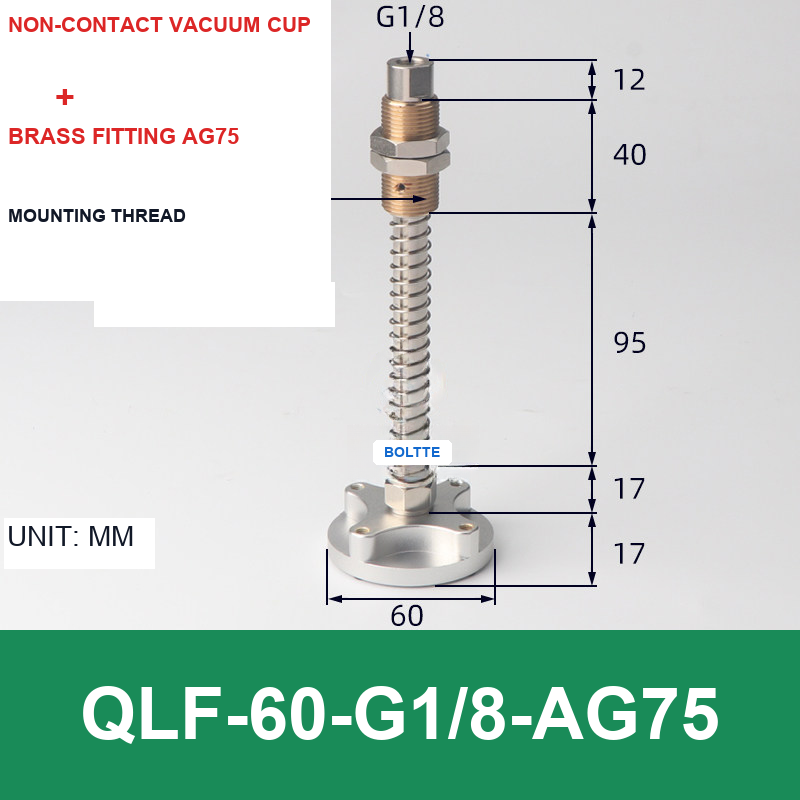

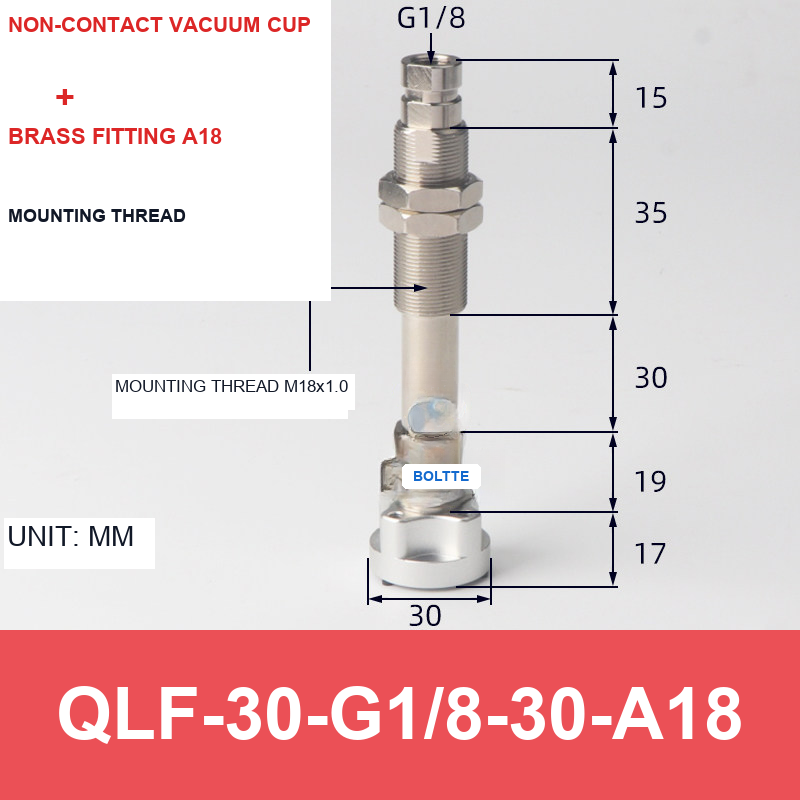

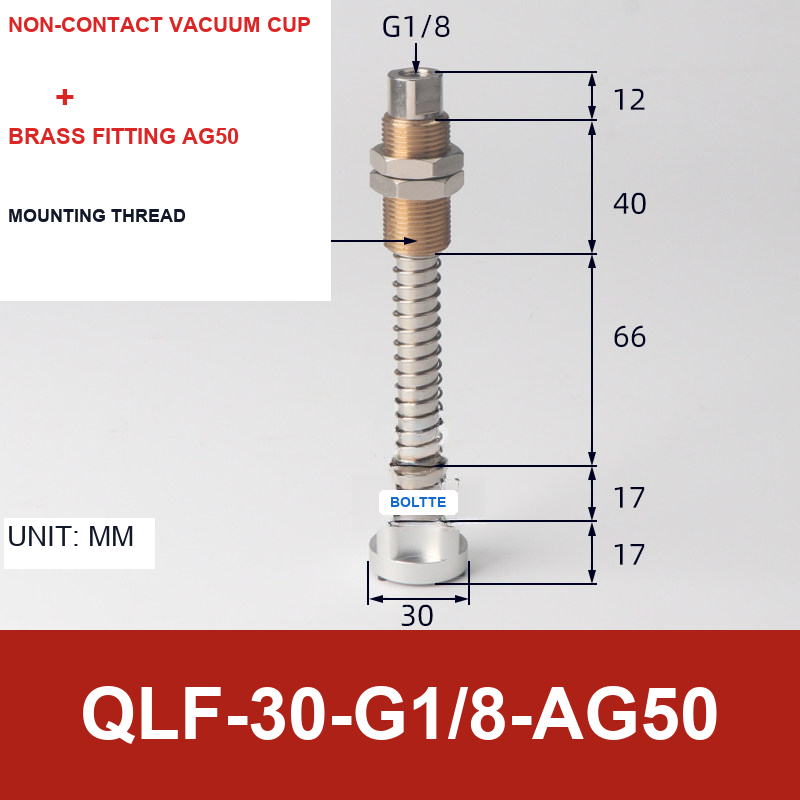

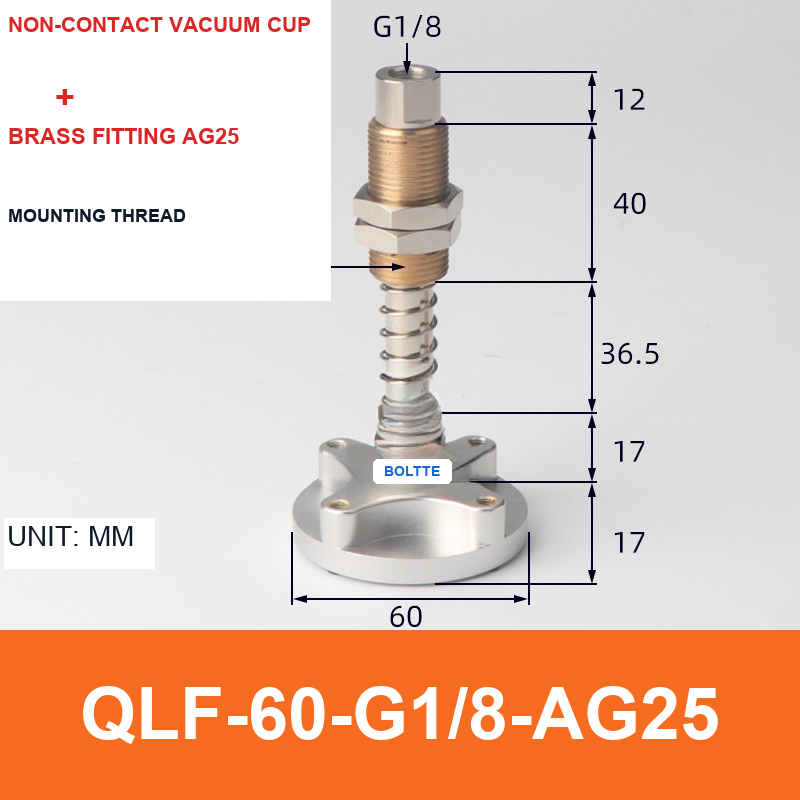

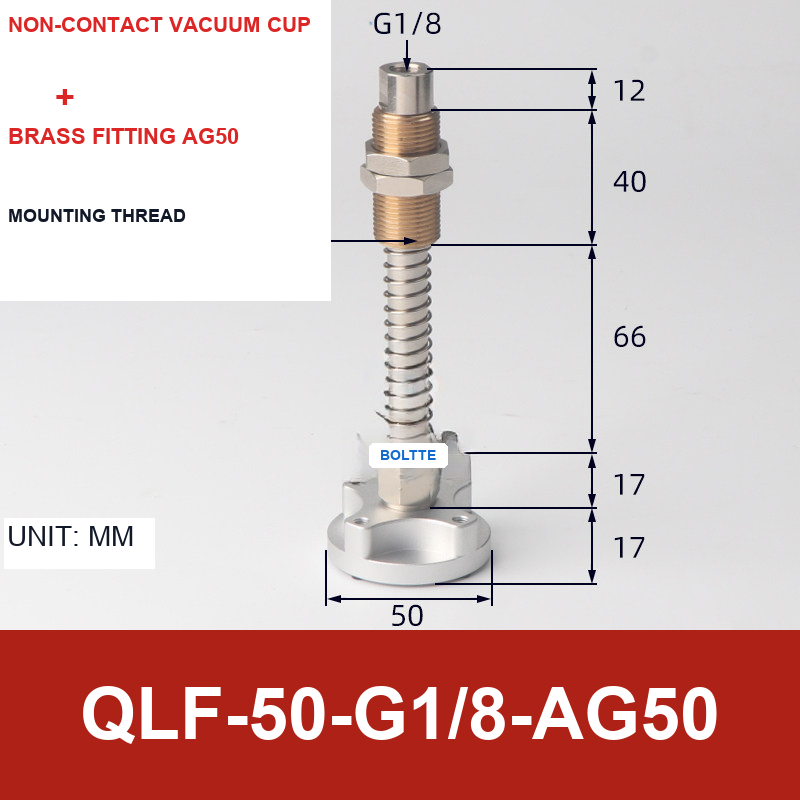

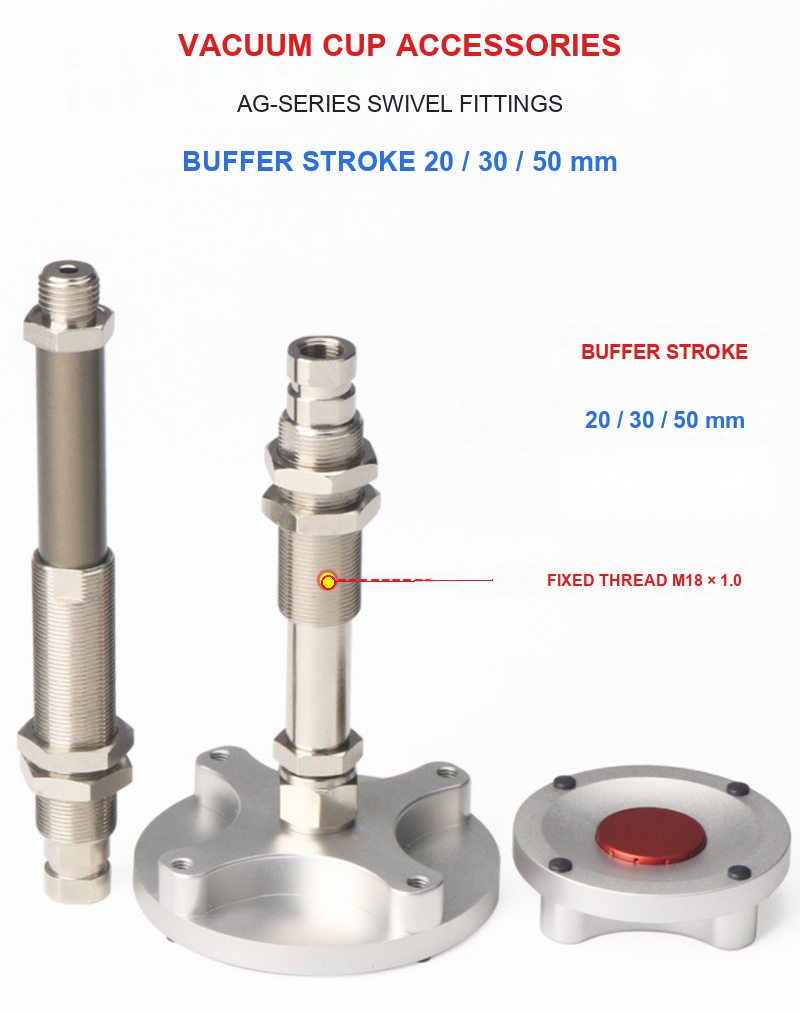

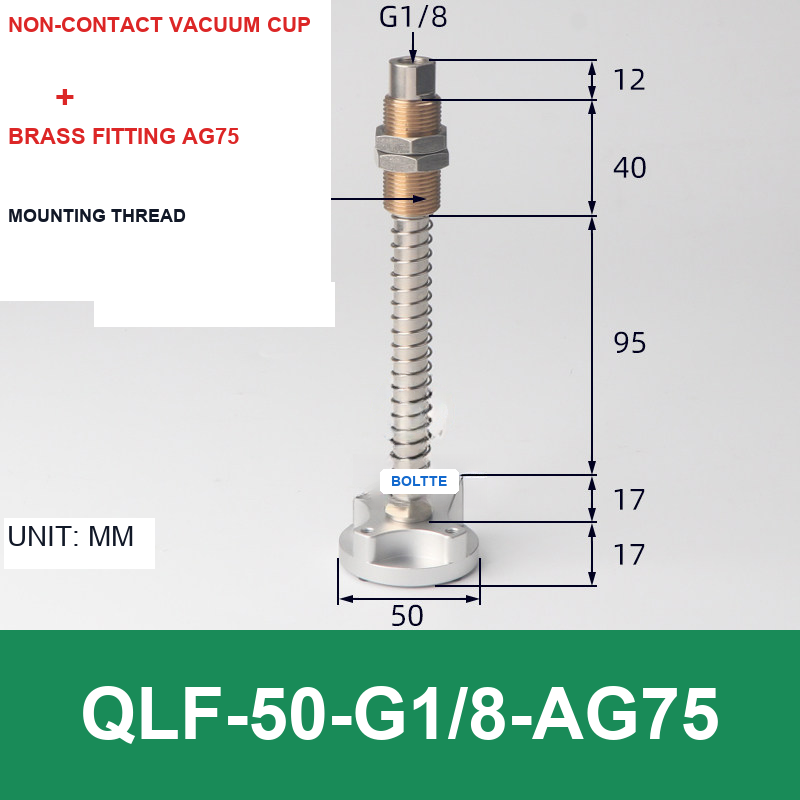

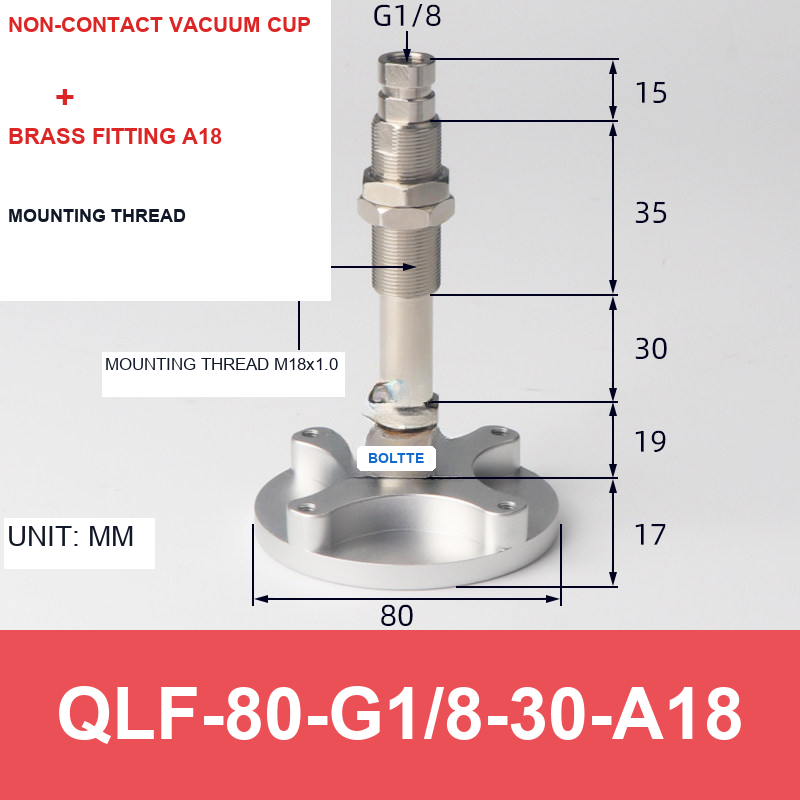

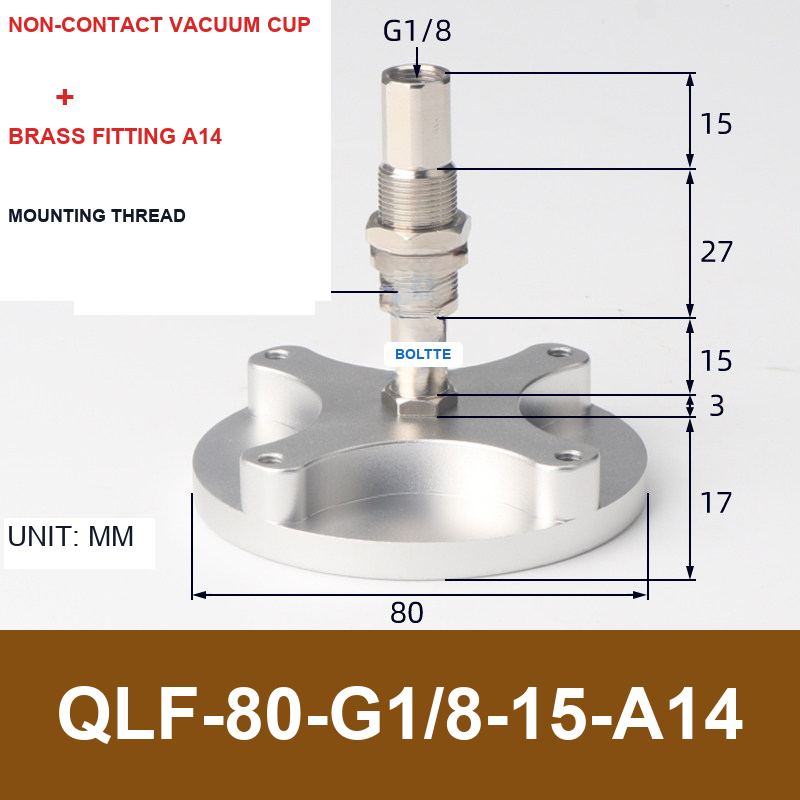

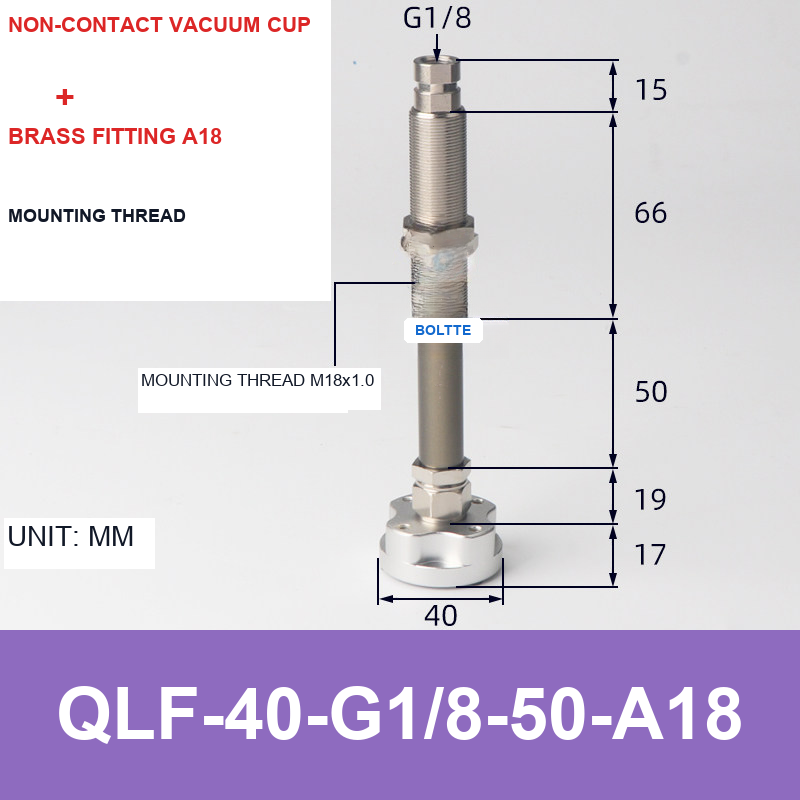

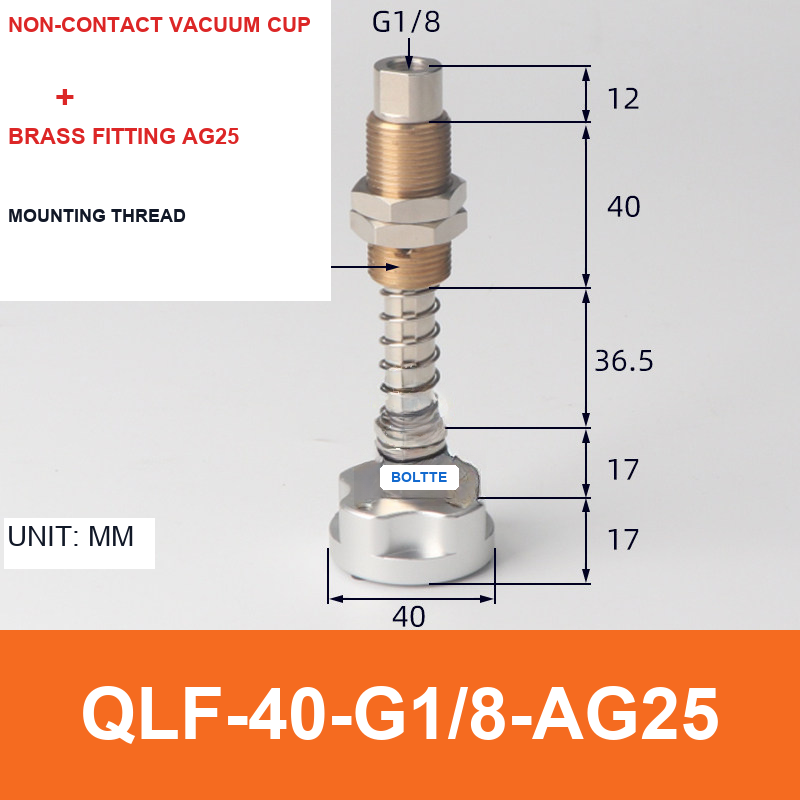

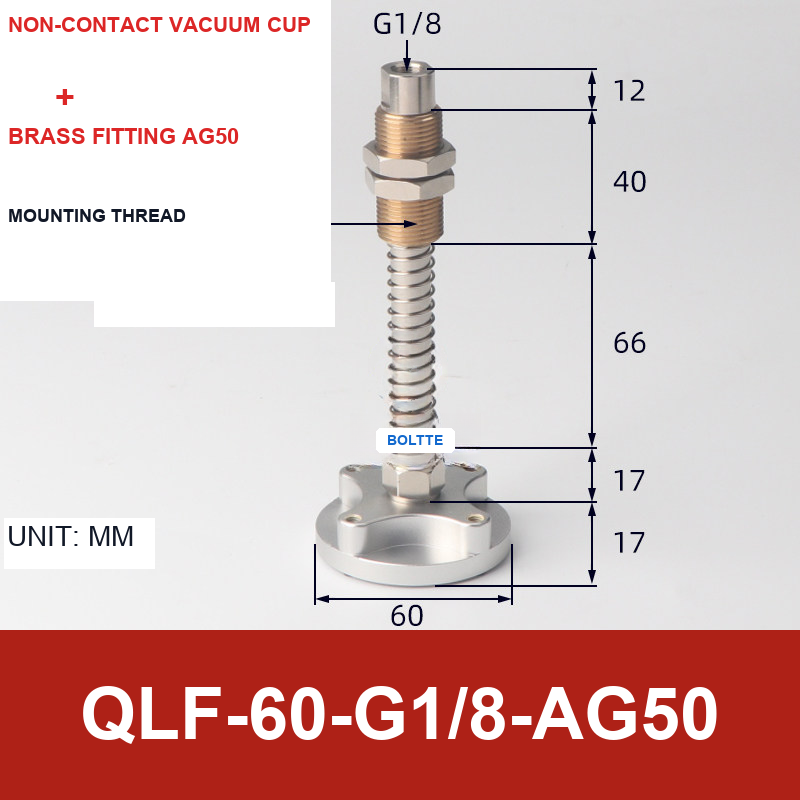

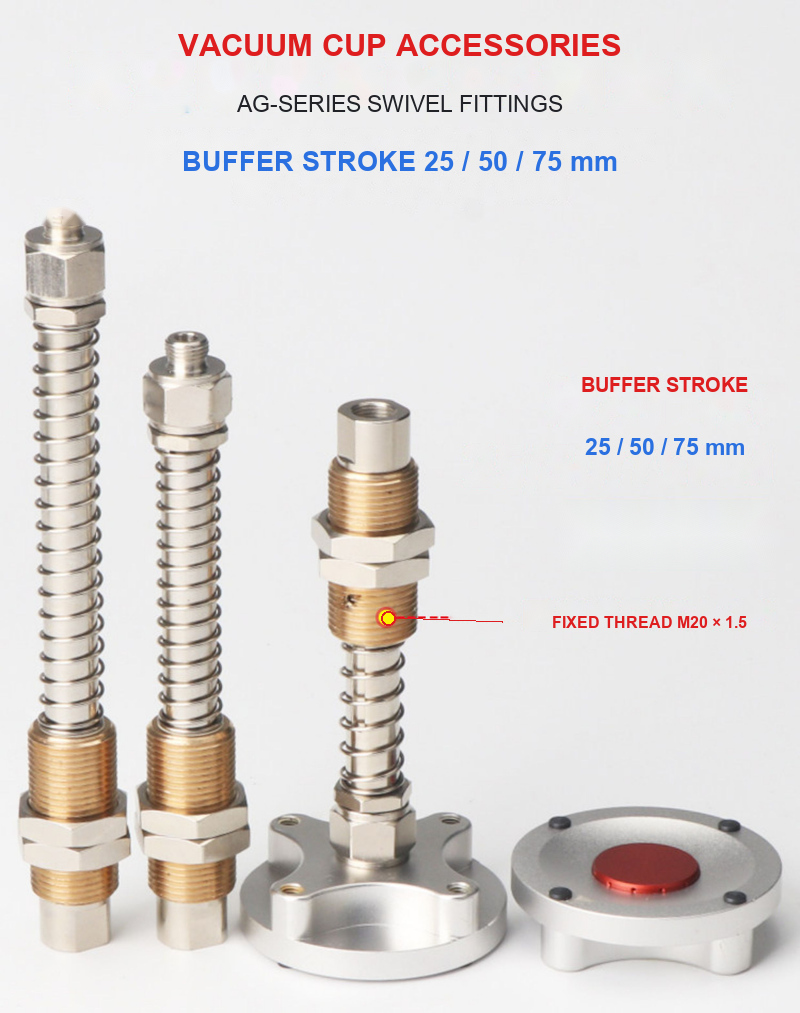

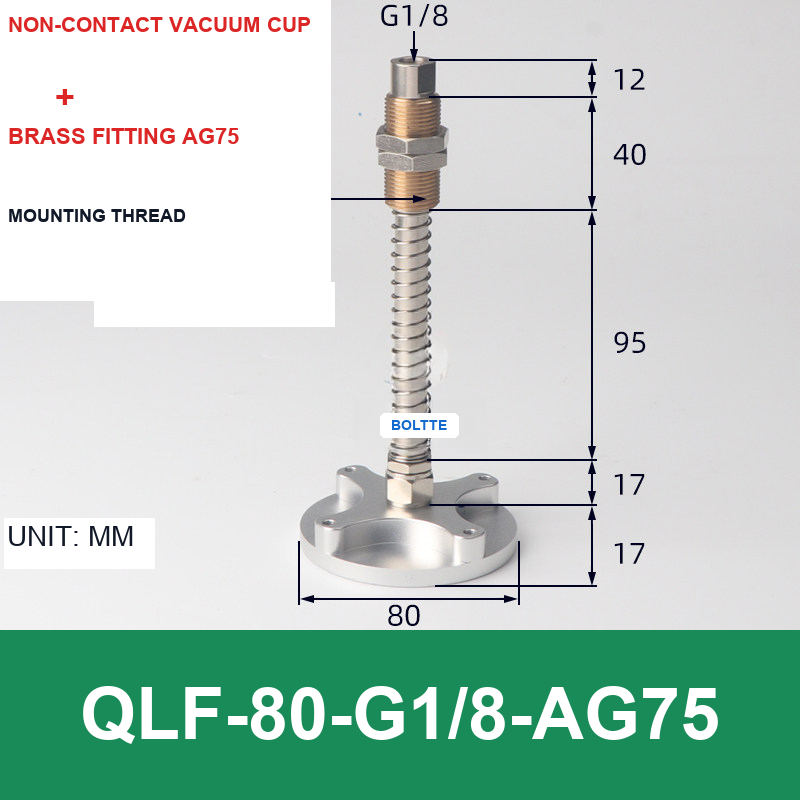

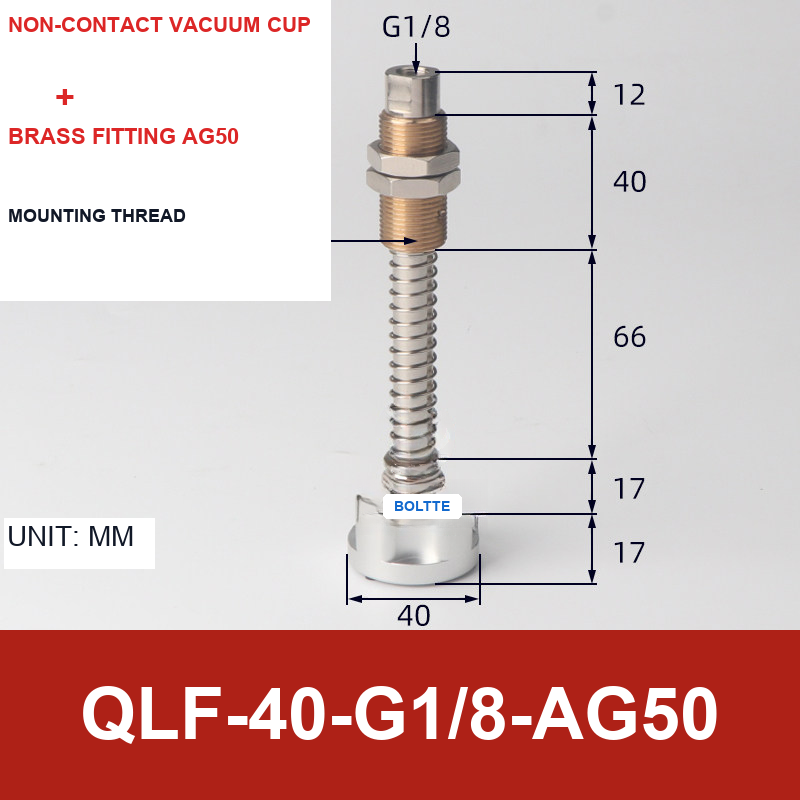

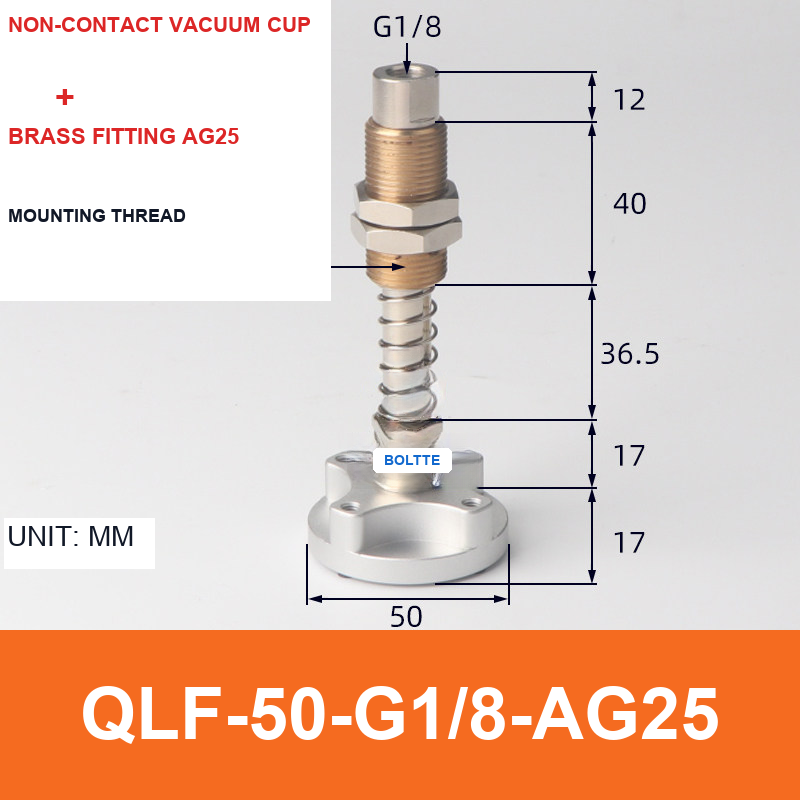

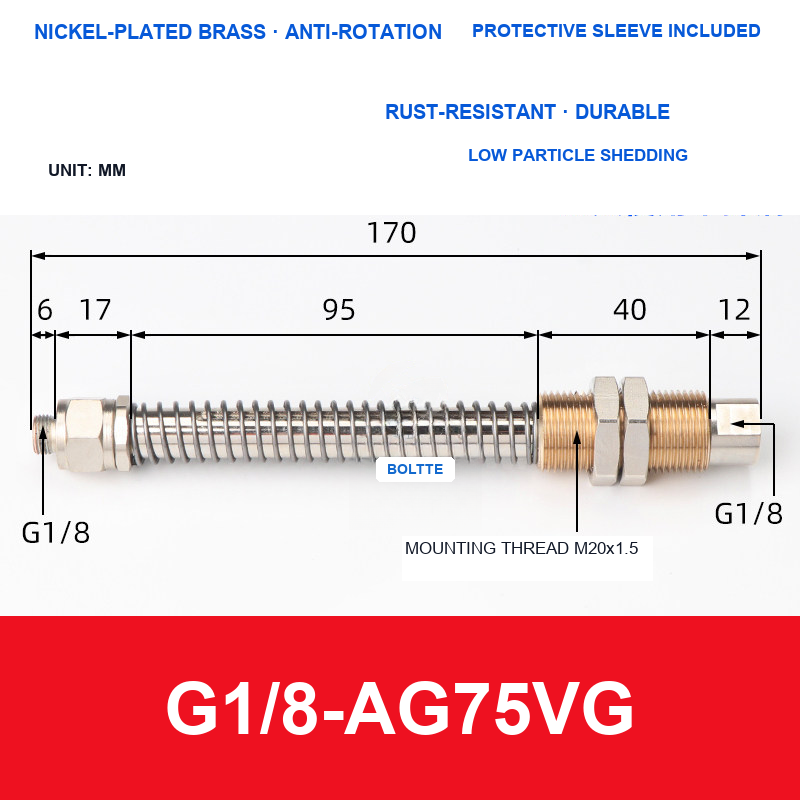

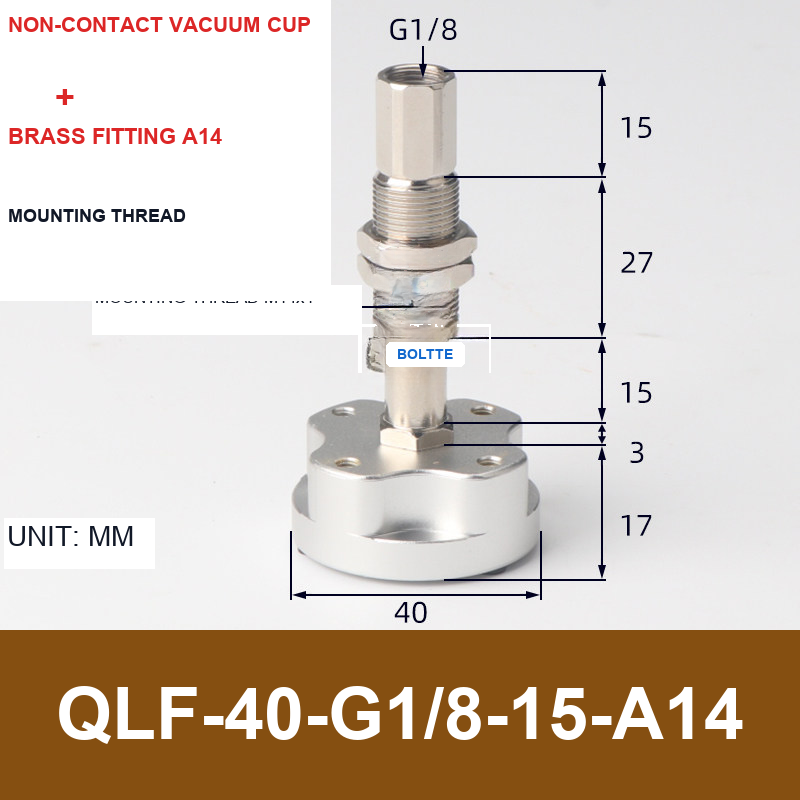

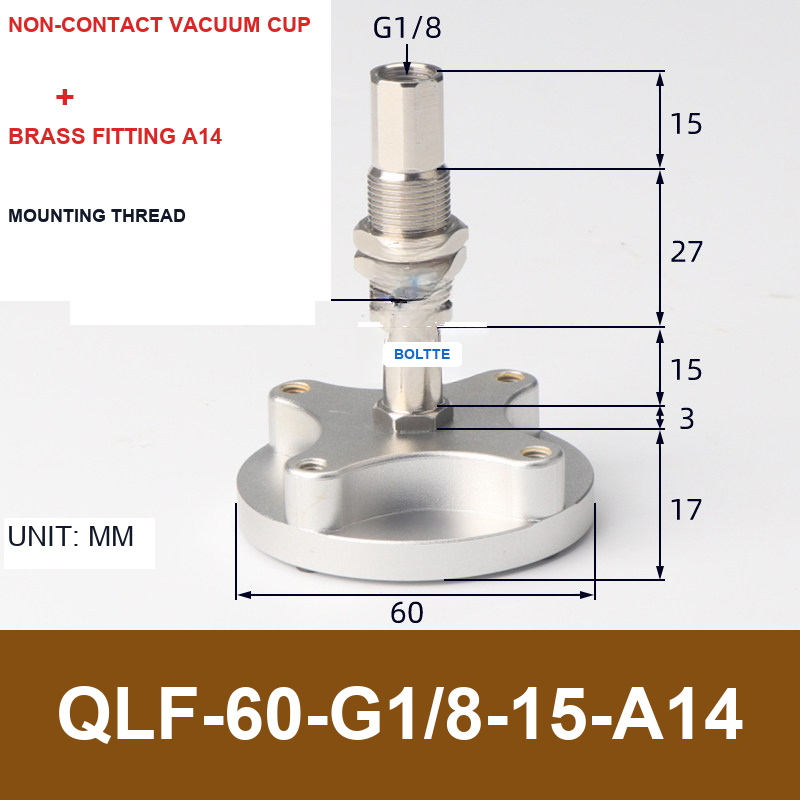

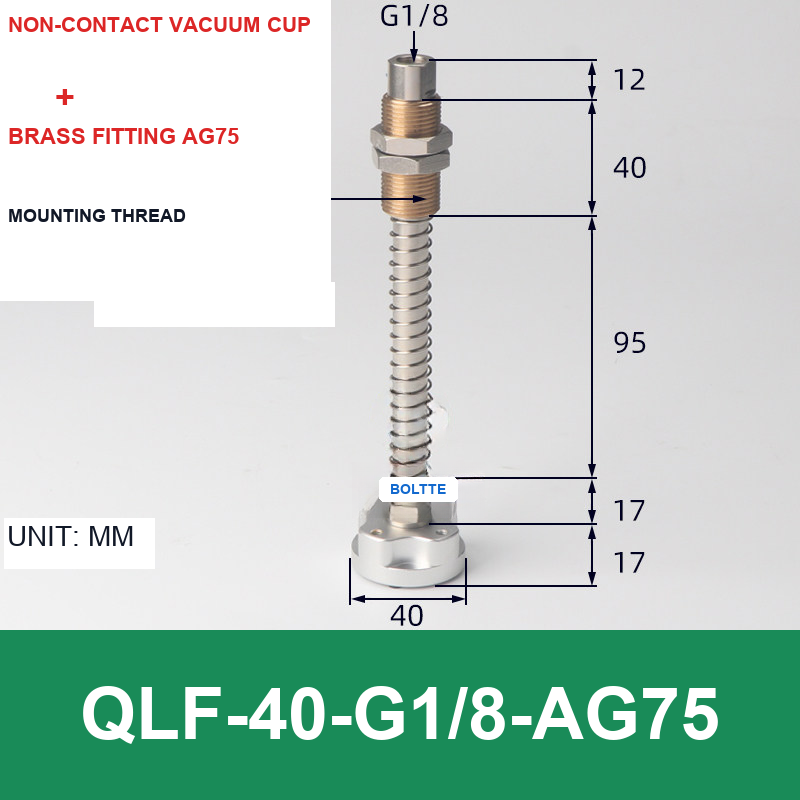

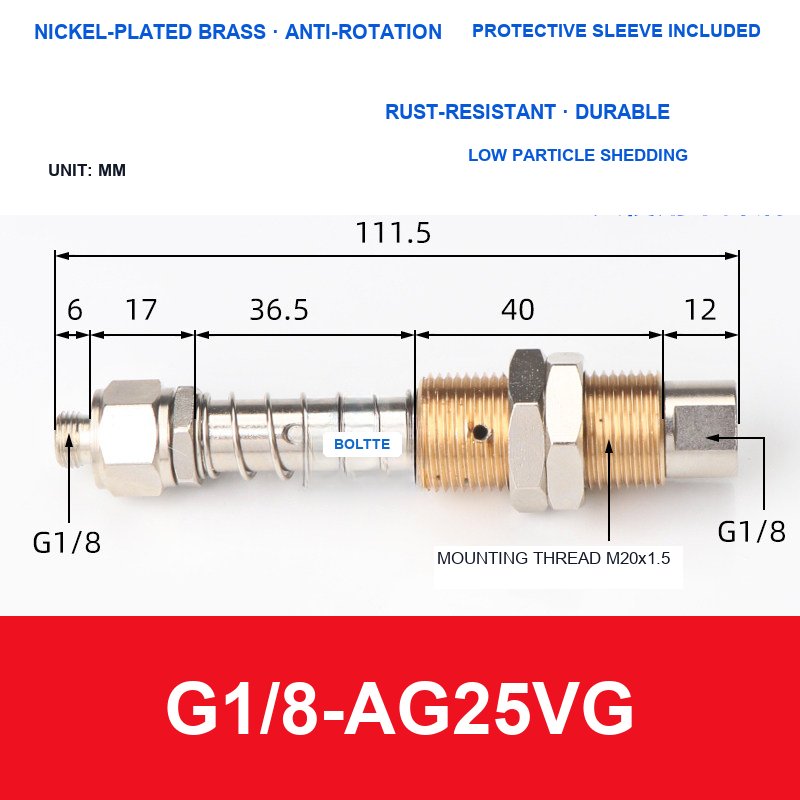

- QLF cup-and-fitting assemblies with AG25, AG50 and AG75 fitting sizes

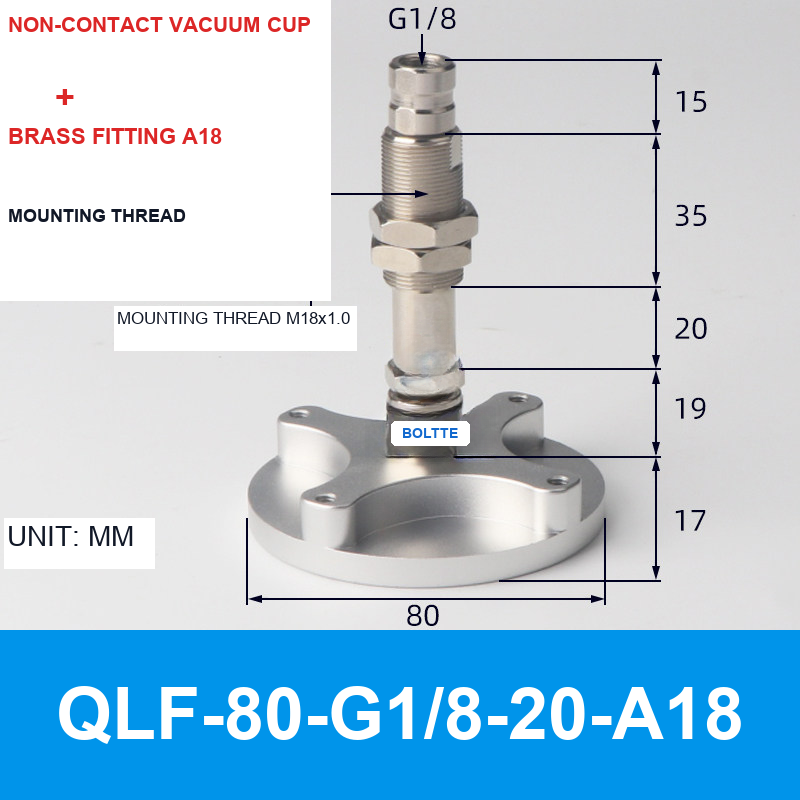

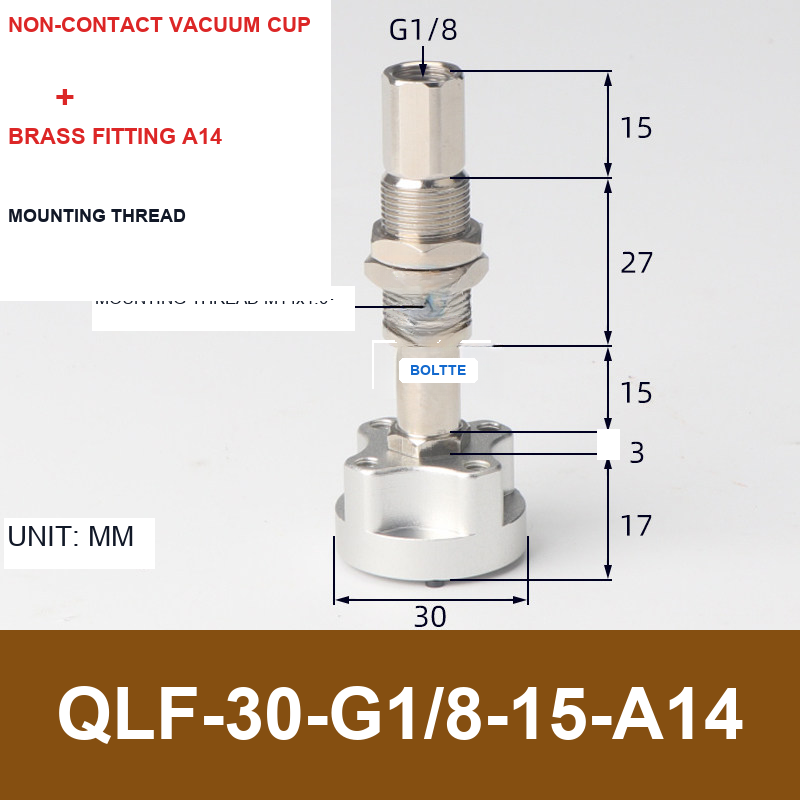

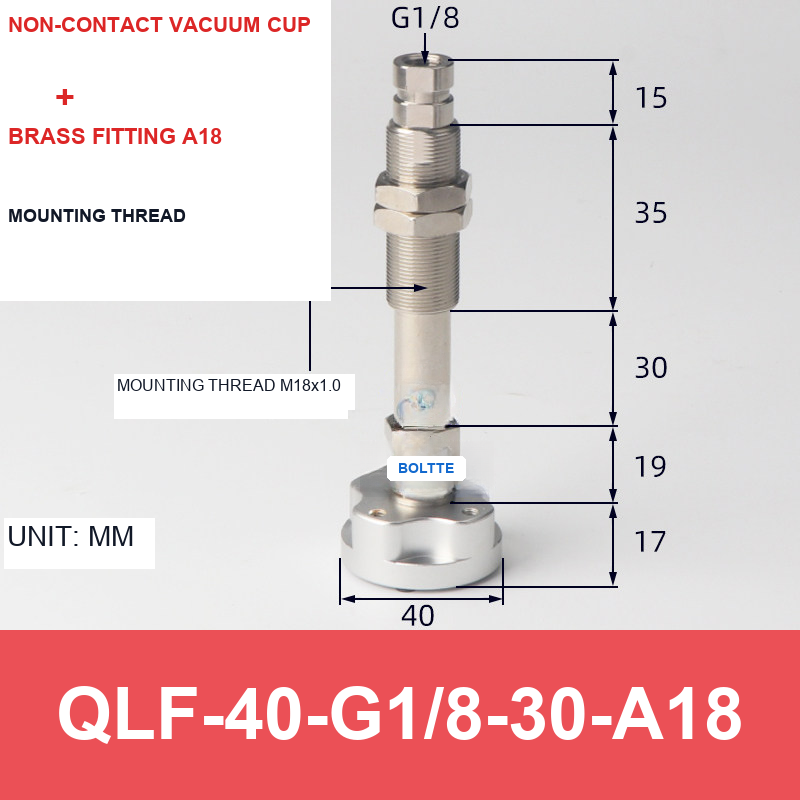

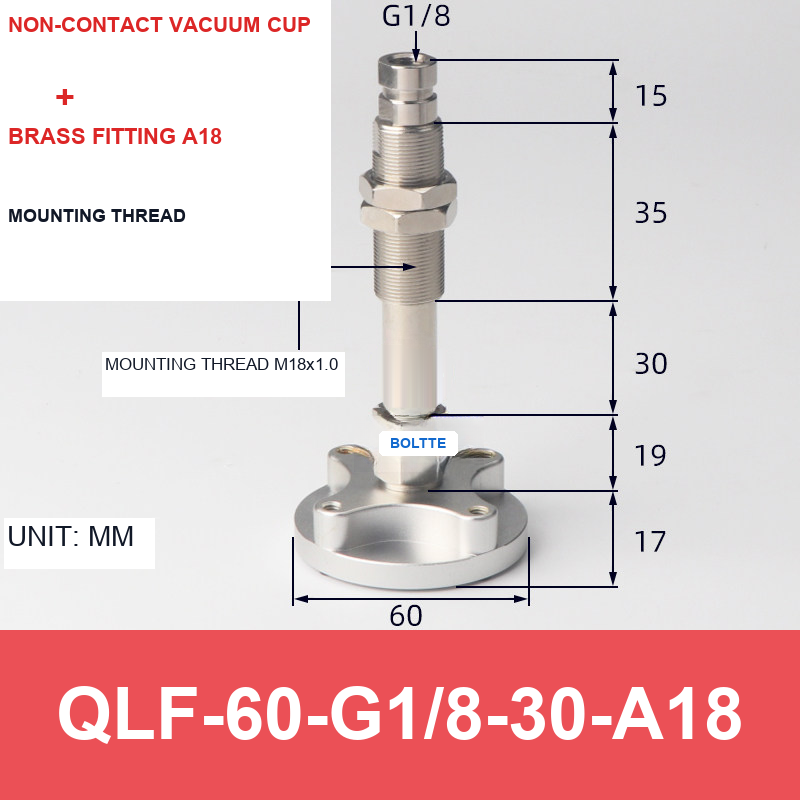

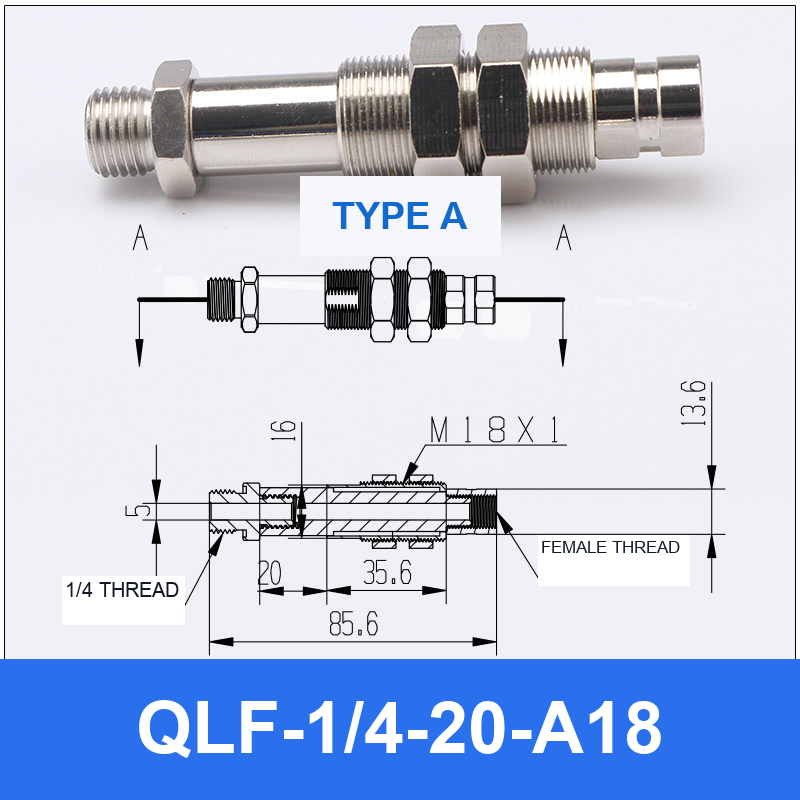

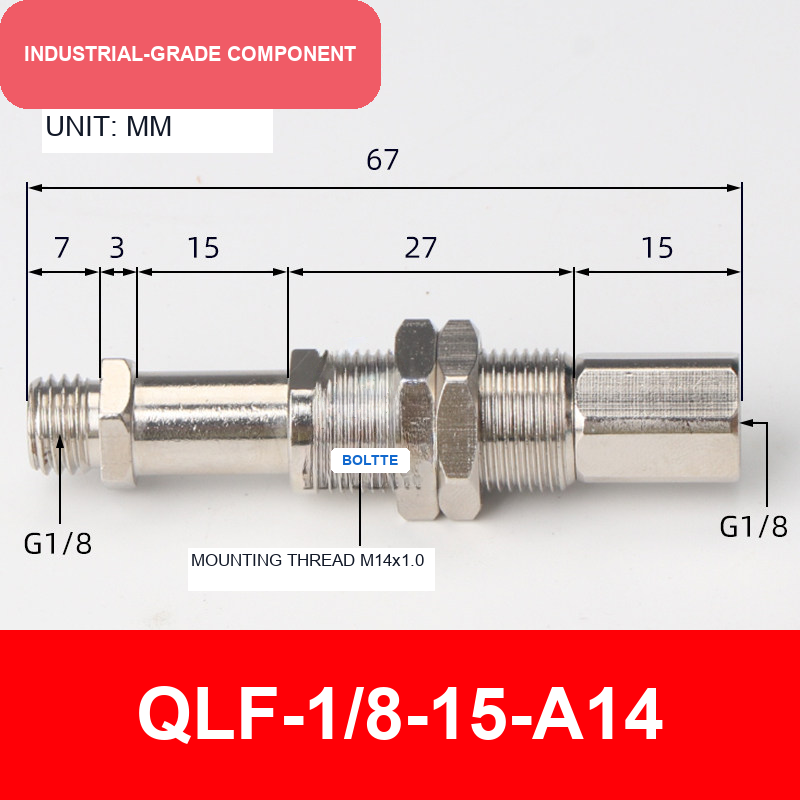

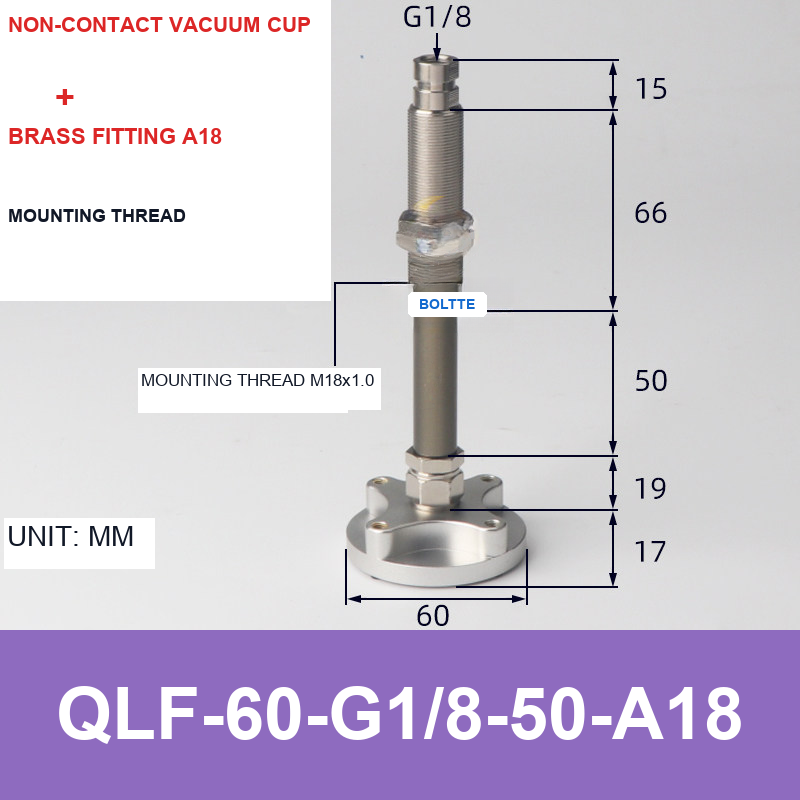

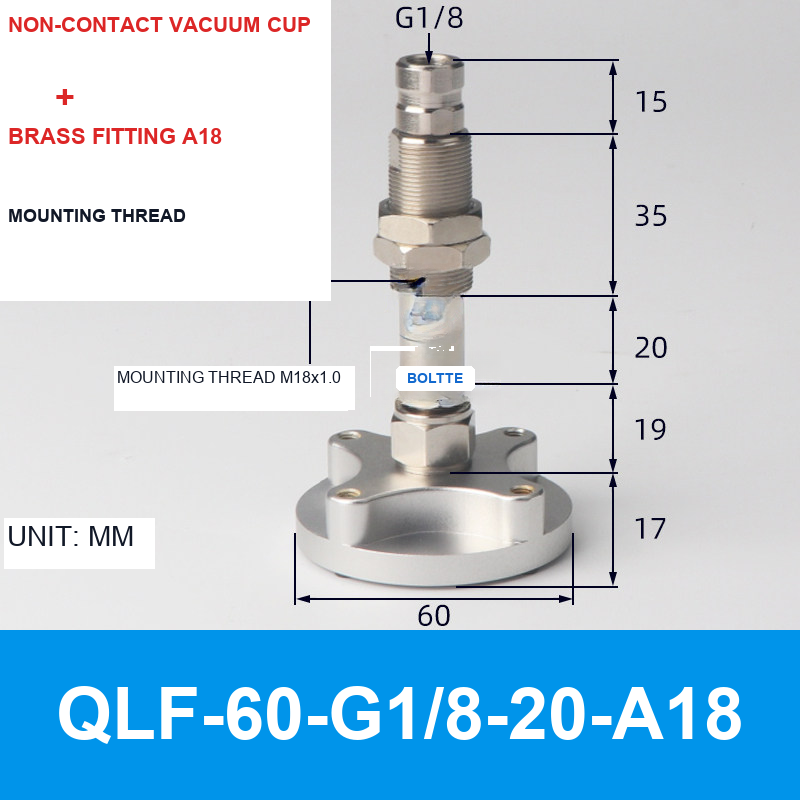

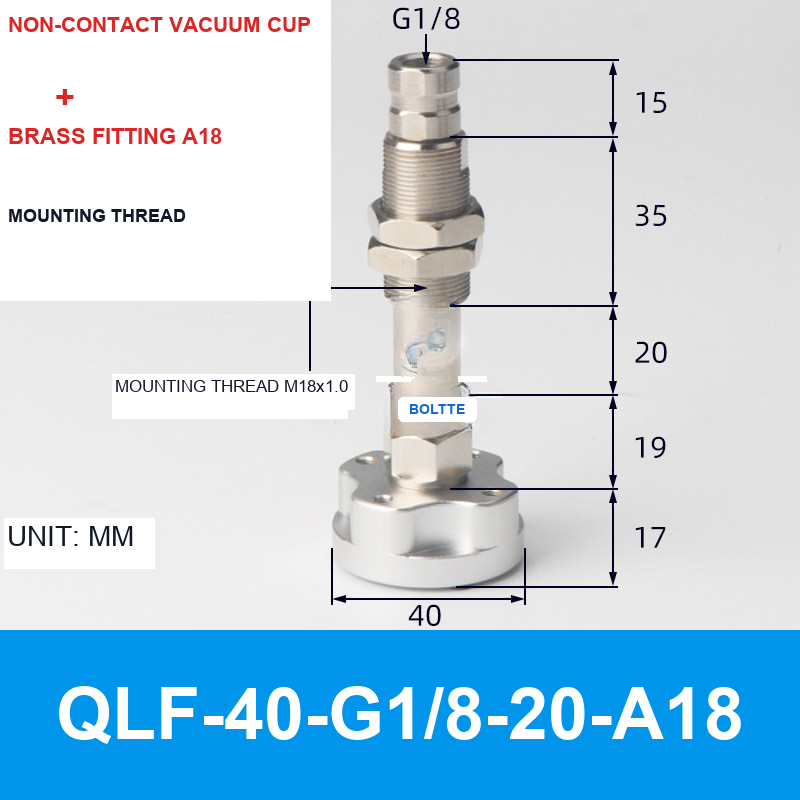

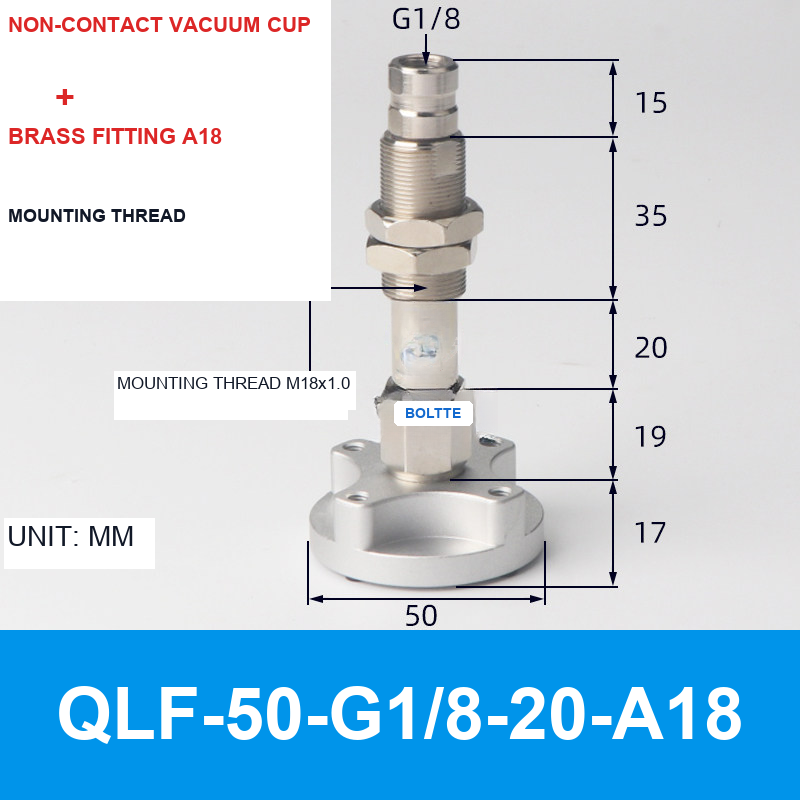

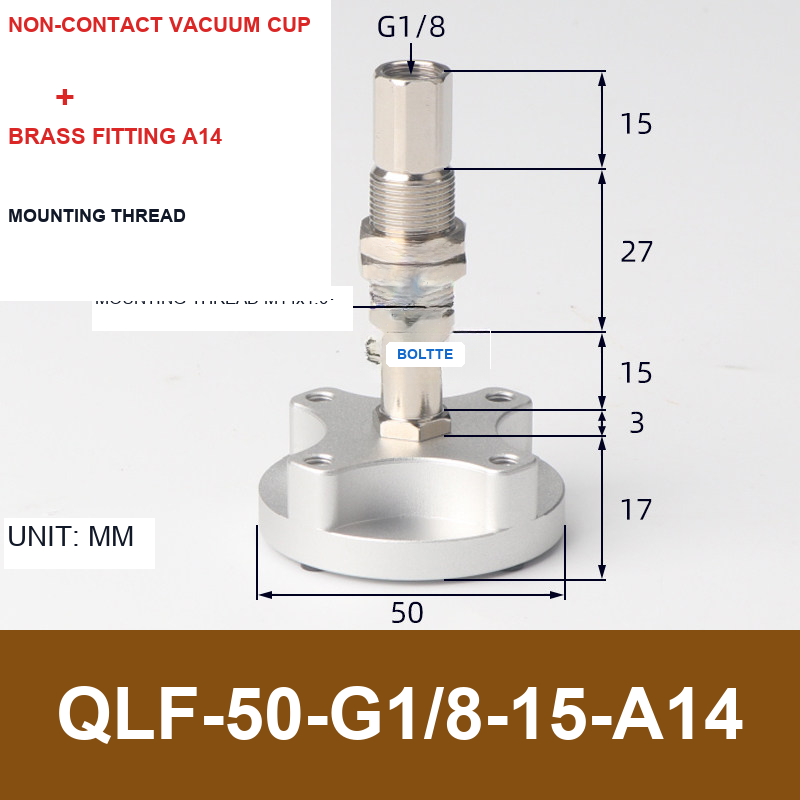

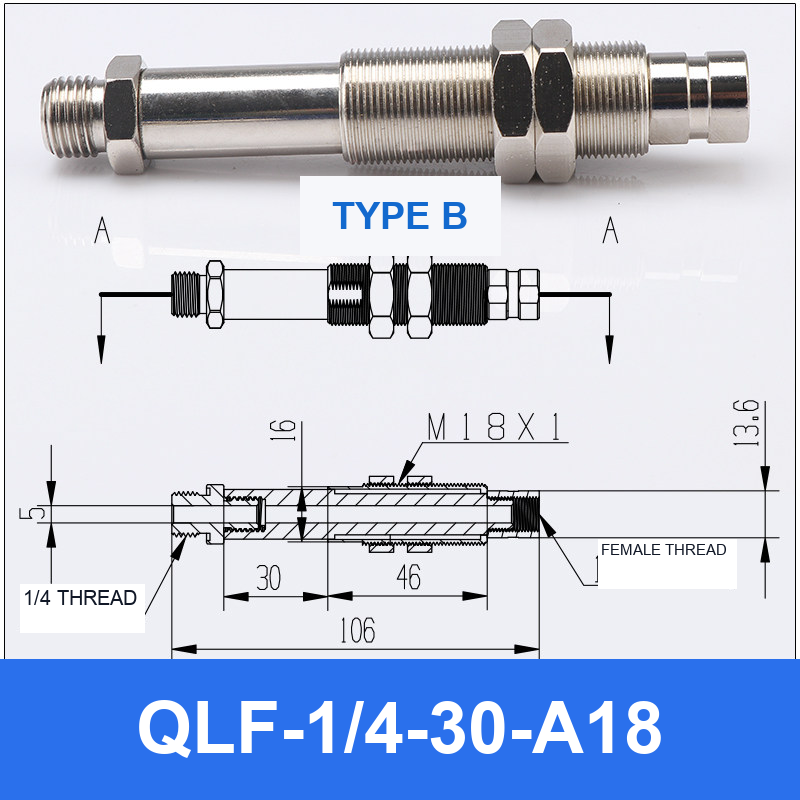

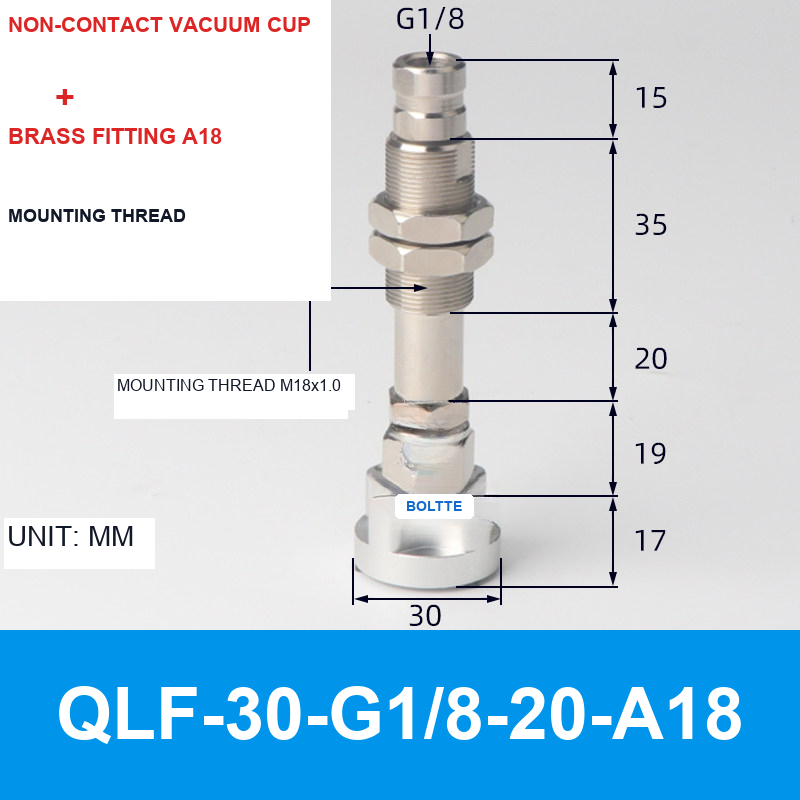

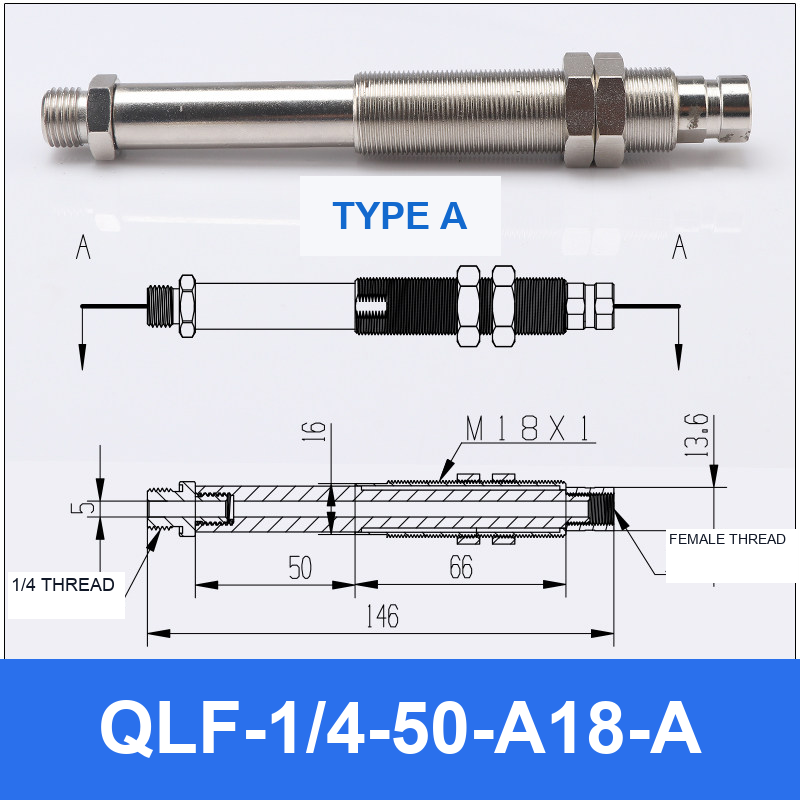

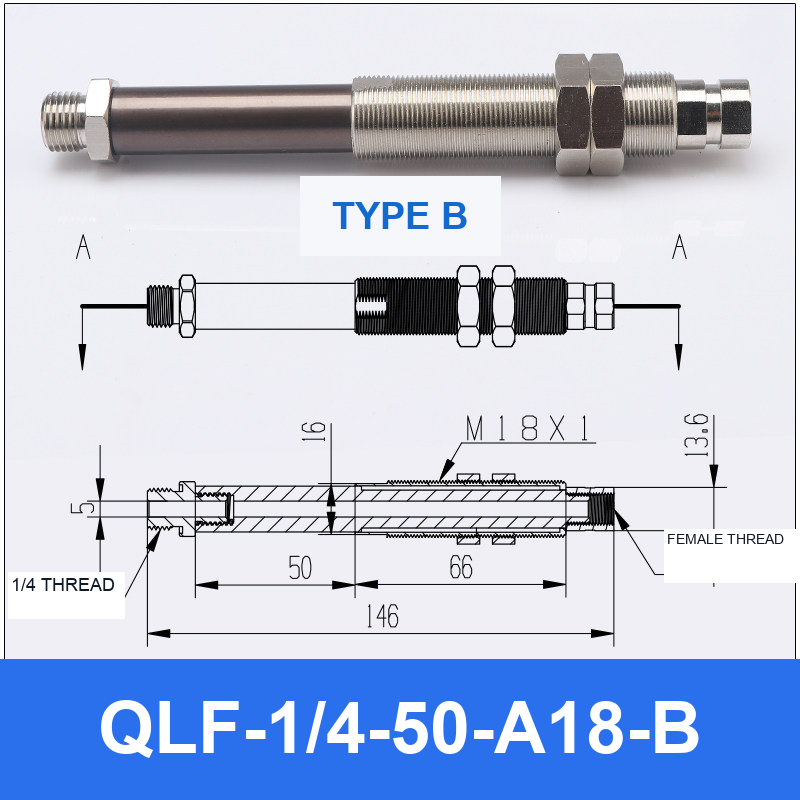

- QLF threaded shaft fittings in A18 and A14 configurations

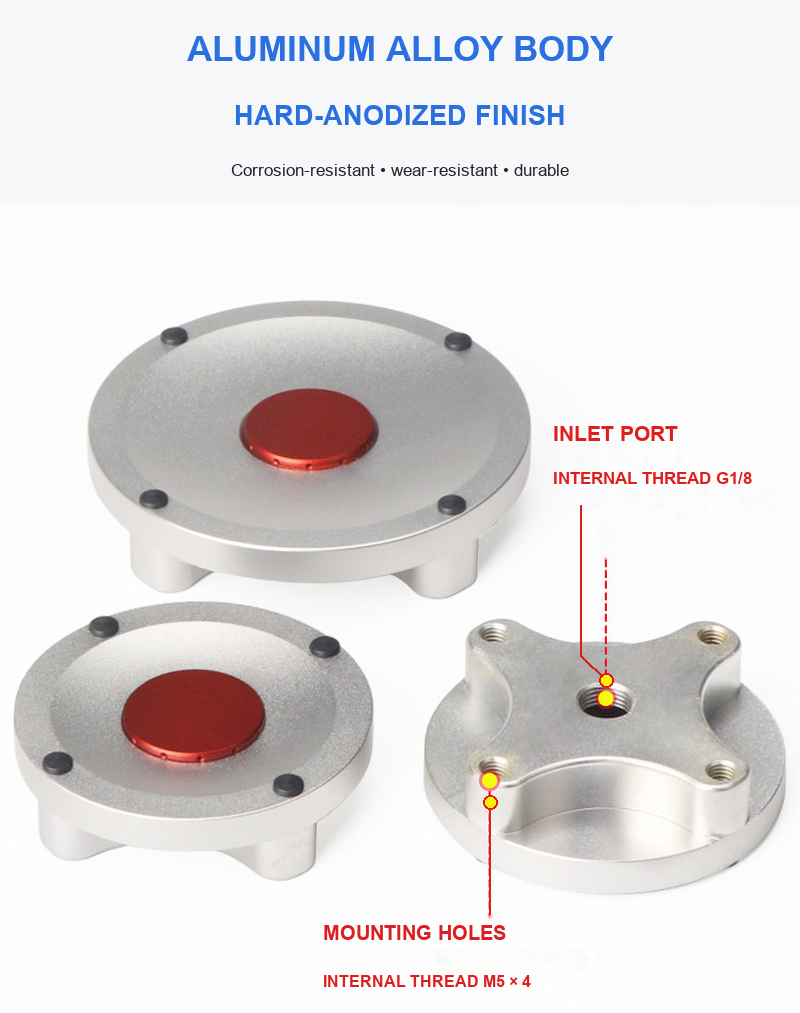

- Stainless-steel, nickel-plated brass and spring-loaded components where shown
- Thread, stroke, overall dimensions and connection callouts are shown in the model image

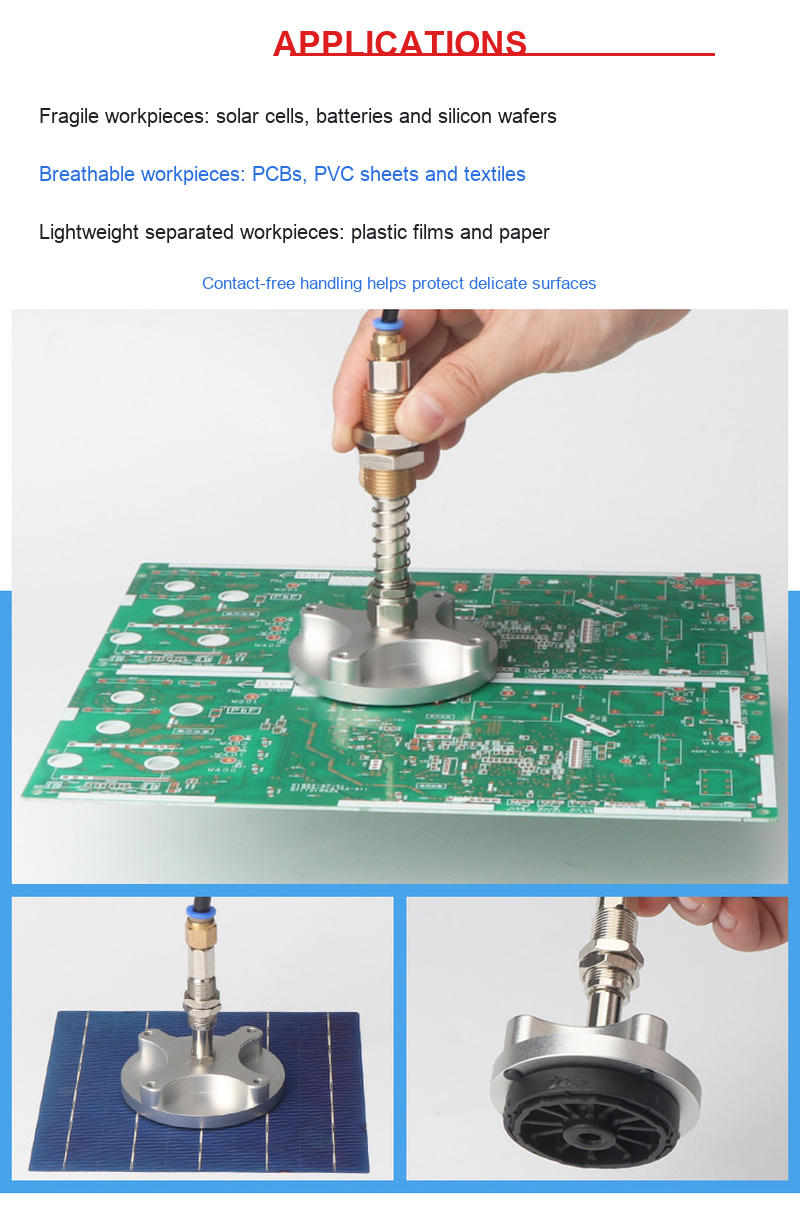

Applications / Suitable For
- Sheet, panel, glass and component transfer systems
- Packaging, assembly, sorting and automated material handling
- Robotic end-of-arm tooling with model-specific vacuum connections
Confirm the selected model code, cup diameter, fitting, thread, stroke, workpiece surface, vacuum level, payload, acceleration and operating environment before use. No food-contact, medical, lifting-safety or regulatory certification is claimed.
Applications, Materials and Product Parameters
