Bag-Opening Vacuum Cups and M5 Fittings, KD-27, APEX-20 and F Series

€2,67 EUR €2,00 EUR 25% OFF
Shipping calculated at checkout.
Bag-Opening Vacuum Cups and M5 Fittings, KD-27, APEX-20 and F Series
Model
Quantity
WhatsApp

Vacuum Cups for Bag-Opening Packaging Machines

Model-specific vacuum cups for opening PE bags, film bags and mask pouches. Choose the required cup or a separate mounting fitting from the model selector.

Available models

  • KD-27 and 20-2: blue or white, with dots.
  • APEX-20: blue or white, without dots.
  • KD-27B: white with dots, 11.5 mm mounting bore.
  • K-33: blue low-profile cup; K30-3: white cup.
  • F-18, F-22, F-26 and F-33: blue silicone cups.
  • M5 male fittings: type A and type B for KD/APEX, plus an F-series fitting.

Selection guide

Cups and fittings are separate selections, not a bundled kit. Match the drawing, mounting bore and fitting shape to your machine before ordering. Model names are identifiers, not a substitute for the dimensions shown in each model image. Dimensions are in millimeters.

Model / selectionSKU
KD-27 Blue - With Dots4822039680761
KD-27 White - With Dots4822039680762
20-2 Blue - With Dots4822039680763
20-2 White - With Dots4822039680764
APEX-20 Blue - No Dots4822039680765
APEX-20 White - No Dots4822039680766
KD-27B White - With Dots - 11.5 mm Bore4848696881890
K-33 Blue - Low Profile5556668572529
K30-3 White5996950124141
M5 Male Fitting Type B - KD/APEX5547821801497
M5 Male Fitting Type A - KD/APEX5547821801498
F-18 Blue4869873820011
F-22 Blue5833691268886
F-26 Blue4869873820012
F-33 Blue4869873820013
F-Series M5 Male Fitting5465612098711

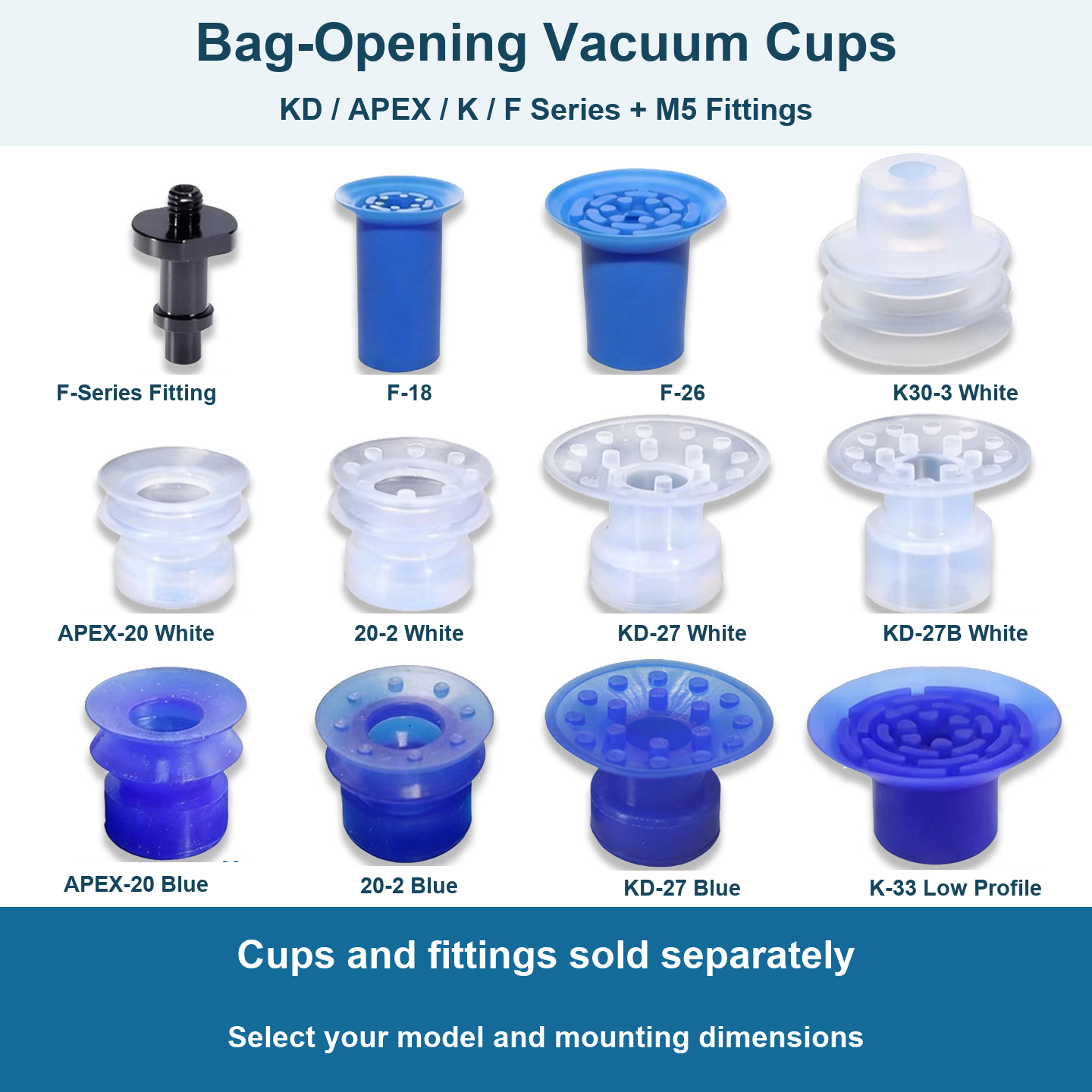

Bag-opening cups & mounting fittings

A visual guide to cup shapes, measurement points and example installations. Select the exact cup or fitting from the model selector.

Bag-opening vacuum cups and separate M5 fittings overview

Application examples

Examples of vacuum handling on different surfaces. Suitability depends on cup selection, the workpiece surface and the vacuum system; test your application before use.

Curved container surface
Curved container surface
Carton surface
Carton surface
Flat disc surface
Flat disc surface
Flexible packaging pouch
Flexible packaging pouch

How to check the dimensions

Measure the cup diameter, mounting bore and overall height. These photos illustrate measurement points only; the displayed caliper readings are not specifications for every model. Use the model-specific reference images below.

Cup outside diameter
Cup outside diameter
Mounting bore
Mounting bore
Overall height
Overall height

Installation examples

Cups and M5 fittings are separate selections, not a bundled kit. Spring holders, rails, tubing and other machine components shown below are for illustration and are not included with the selected cup or fitting.

Example cups on spring holders
Example cups on spring holders
Example rail-mounted arrangement
Example rail-mounted arrangement
Example multi-cup arrangement
Example multi-cup arrangement
Cup shapes and an example holder assembly
Cup shapes and an example holder assembly

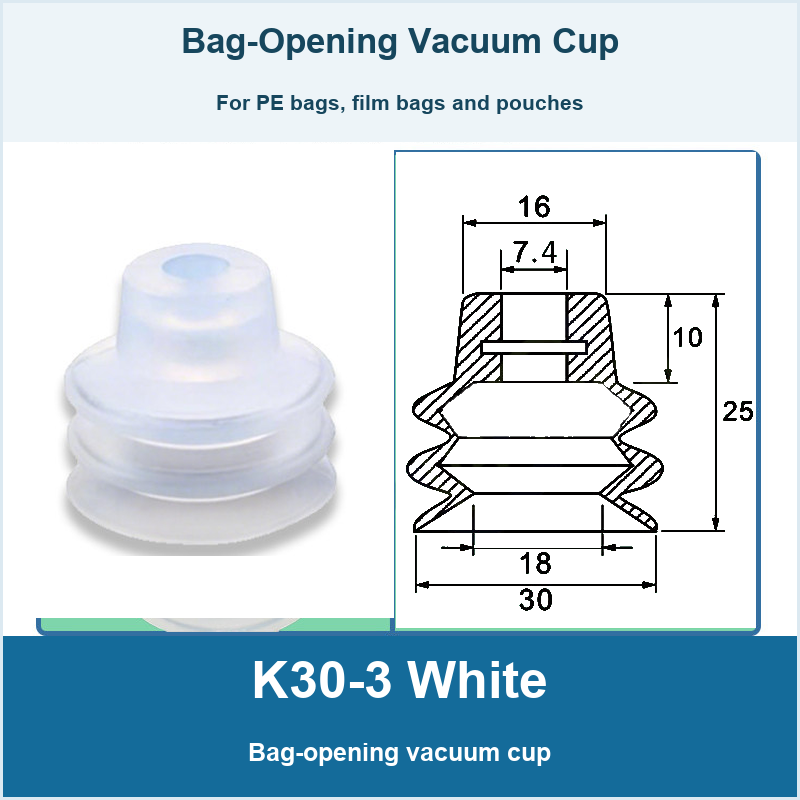

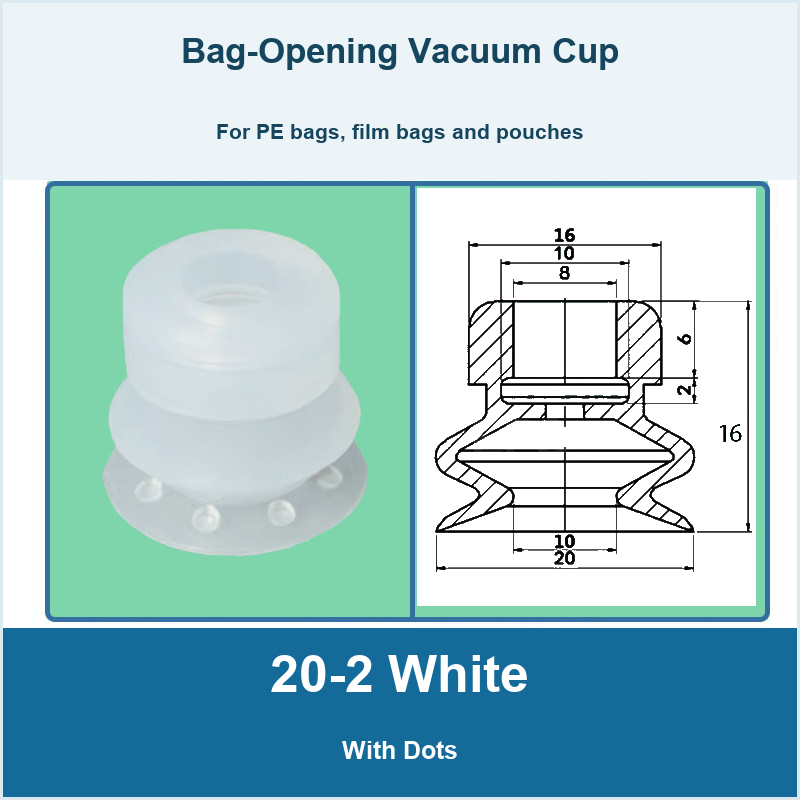

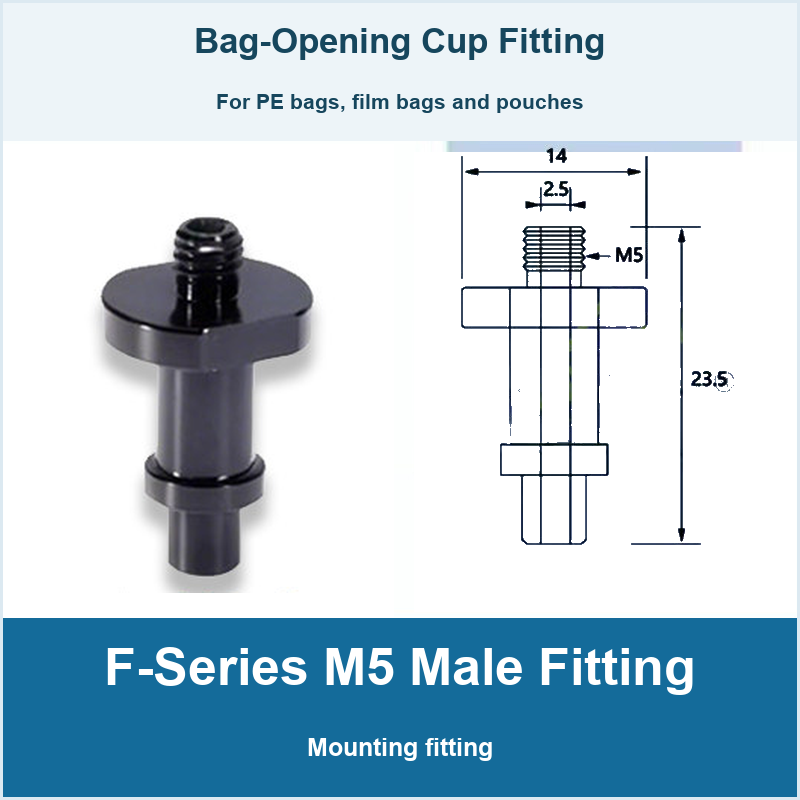

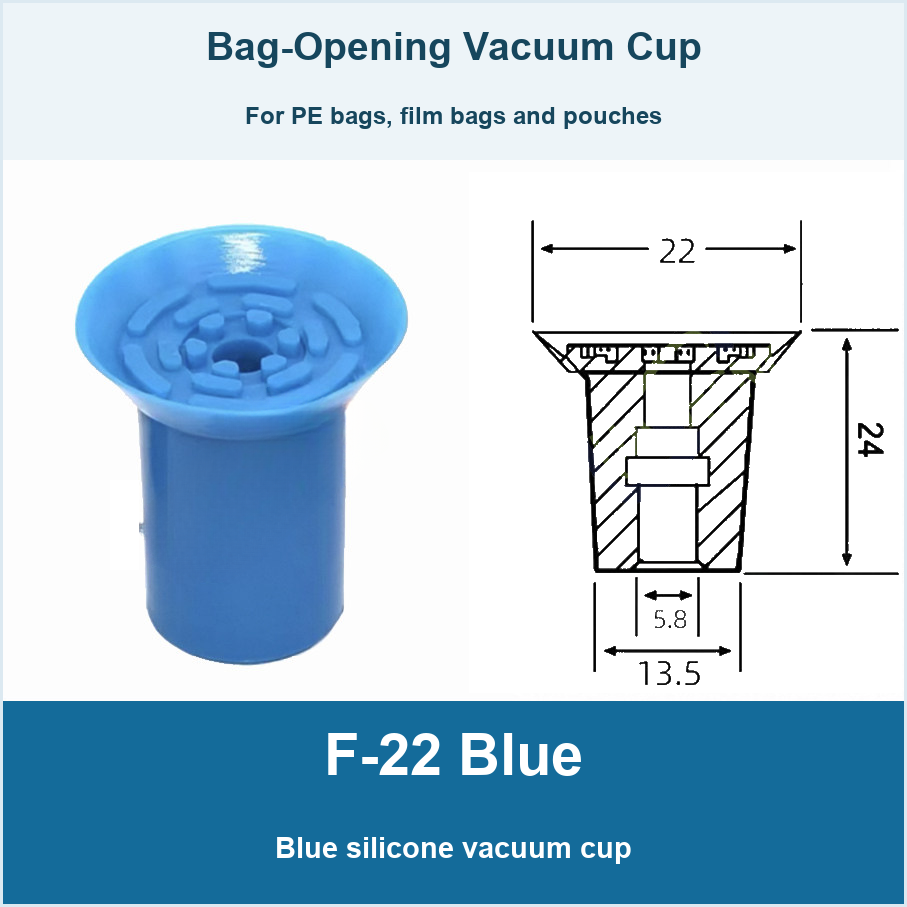

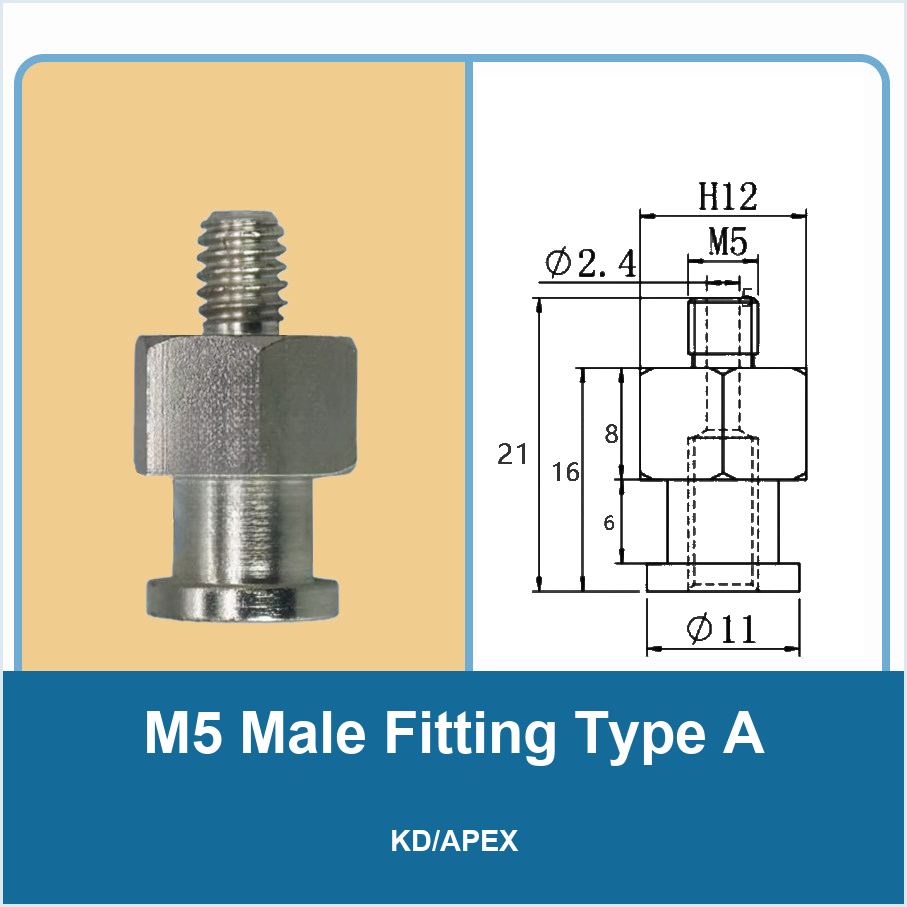

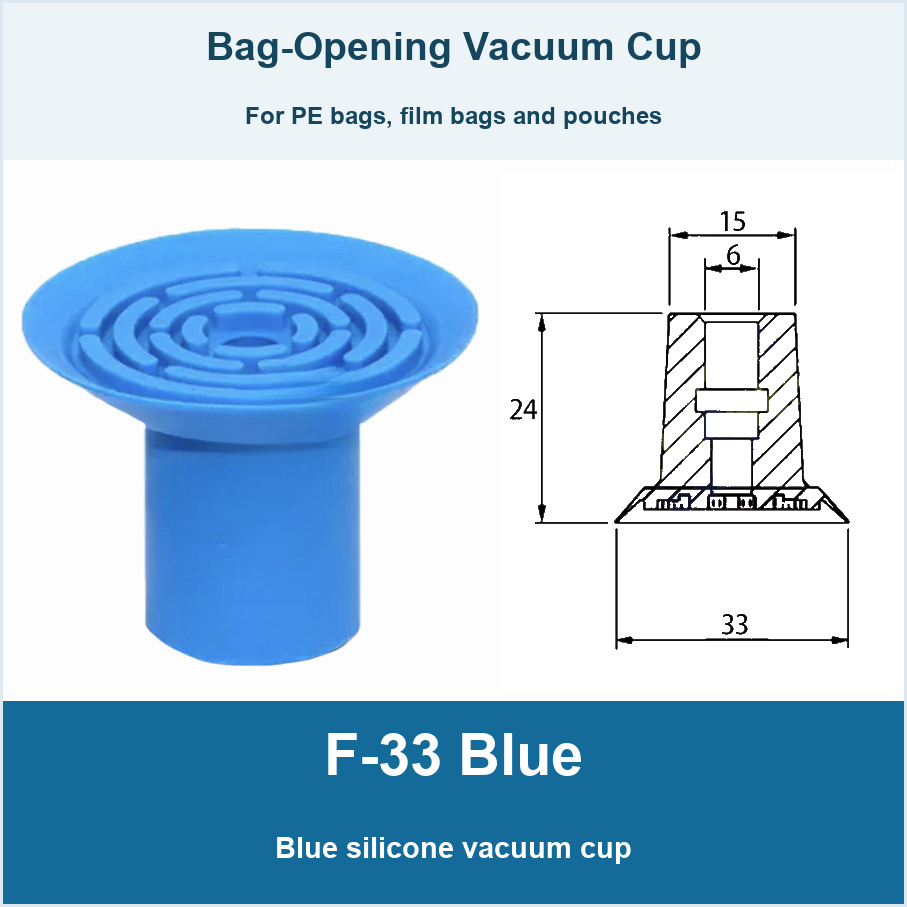

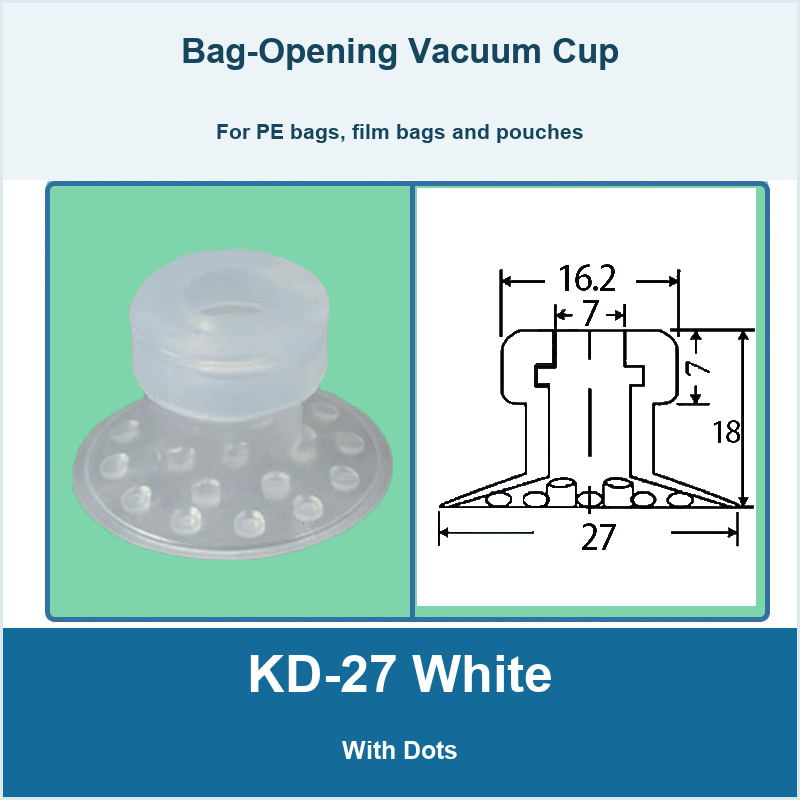

Model-specific dimensions

Dimensions are in millimeters. Model names are identifiers; compare the drawing and mounting geometry before ordering. Open a model below to view its reference image.

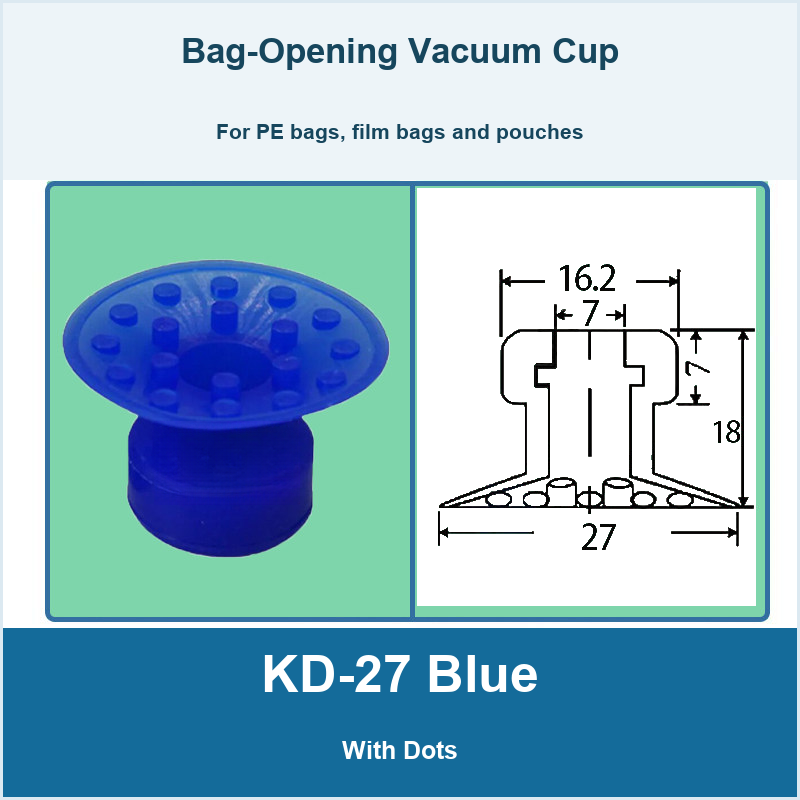

KD-27 Blue - With DotsKD-27 Blue - With Dots model reference and dimensions
KD-27 White - With DotsKD-27 White - With Dots model reference and dimensions

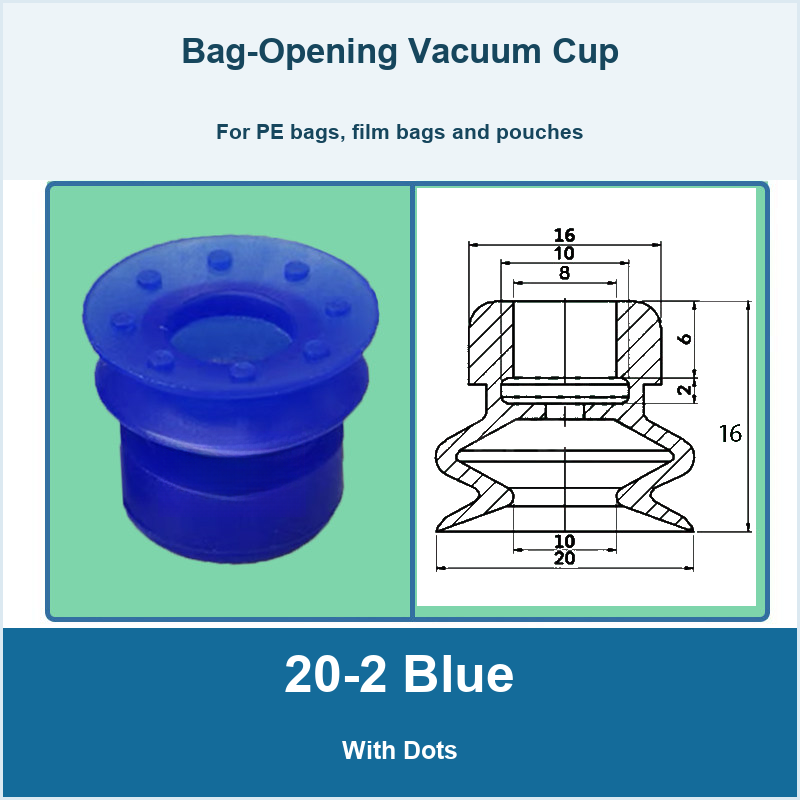

20-2 Blue - With Dots20-2 Blue - With Dots model reference and dimensions
20-2 White - With Dots20-2 White - With Dots model reference and dimensions

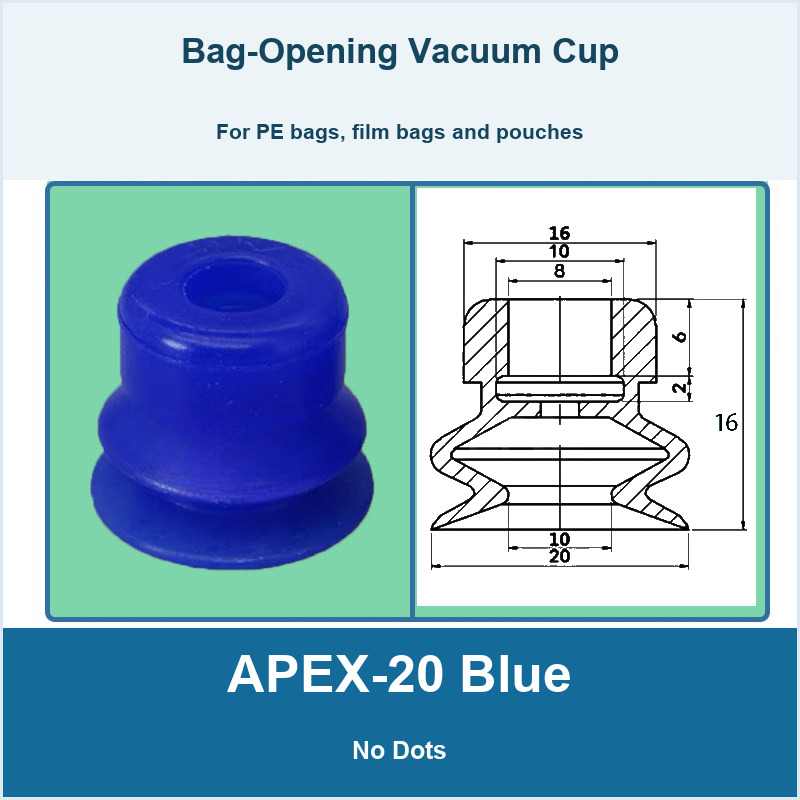

APEX-20 Blue - No DotsAPEX-20 Blue - No Dots model reference and dimensions

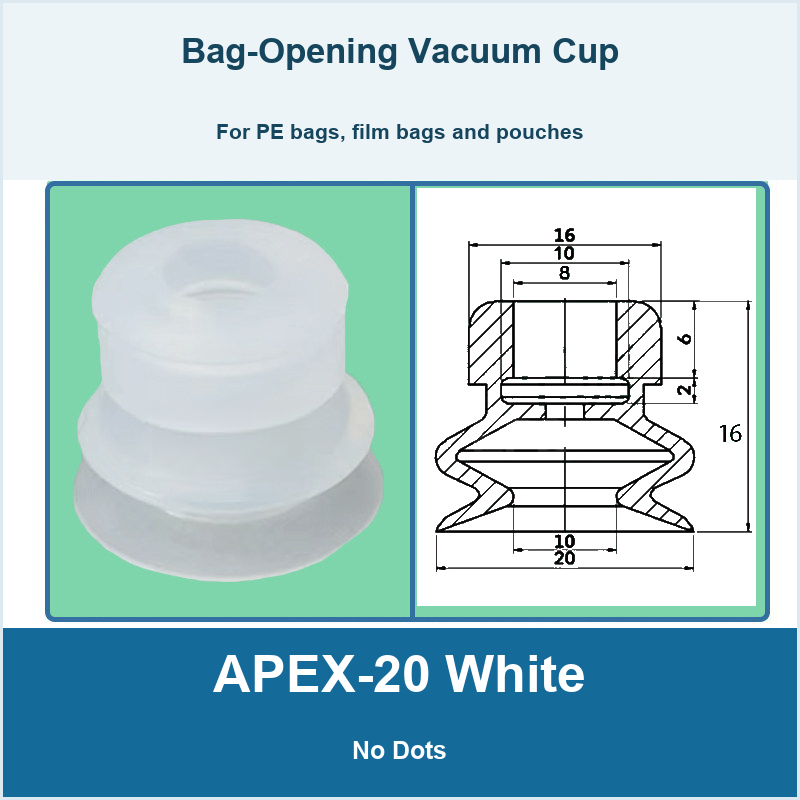

APEX-20 White - No DotsAPEX-20 White - No Dots model reference and dimensions

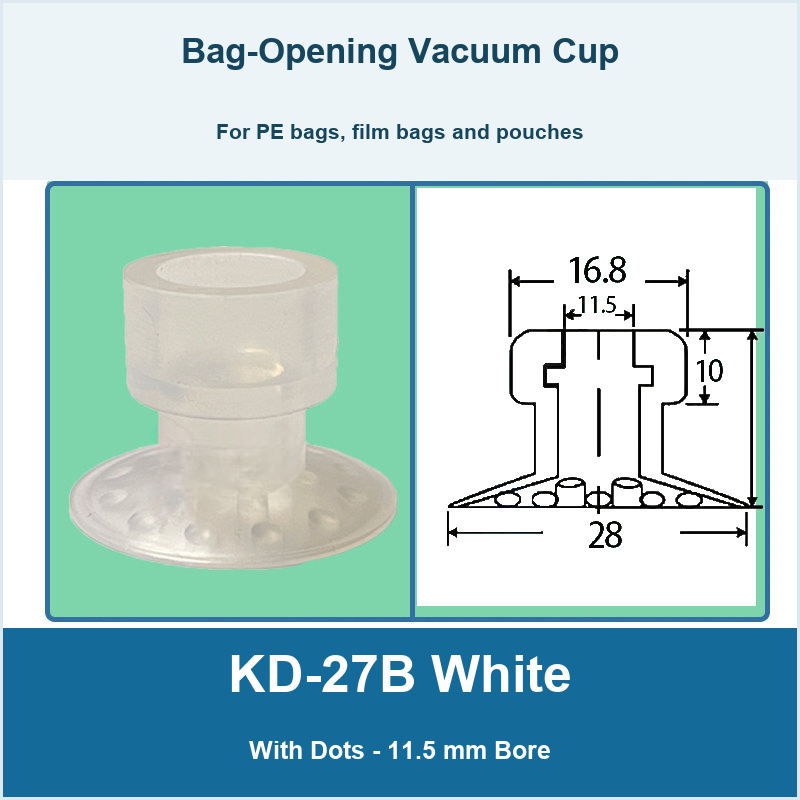

KD-27B White - With Dots - 11.5 mm BoreKD-27B White - With Dots - 11.5 mm Bore model reference and dimensions

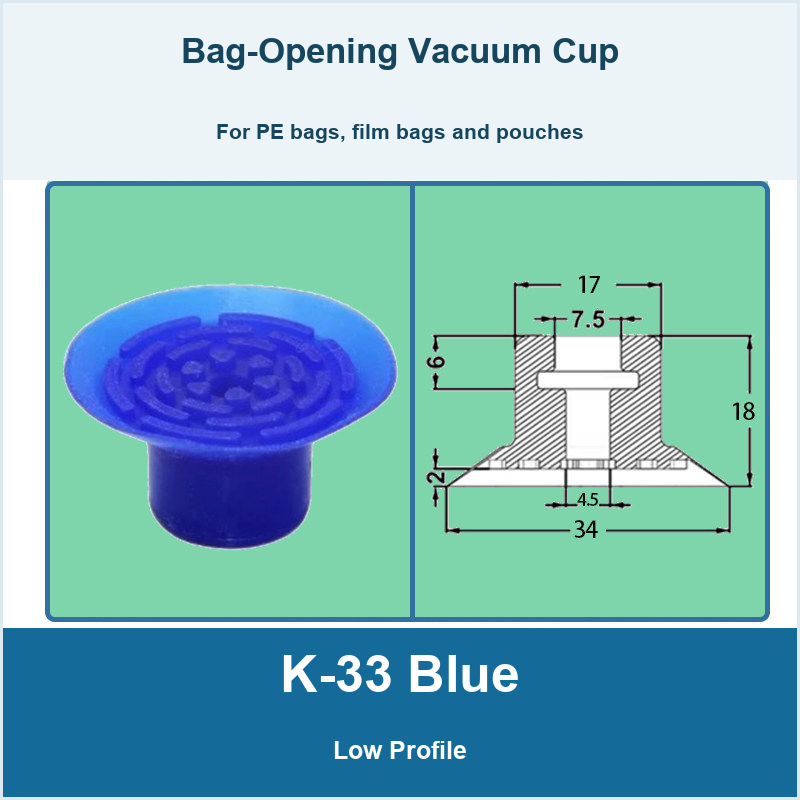

K-33 Blue - Low ProfileK-33 Blue - Low Profile model reference and dimensions
K30-3 WhiteK30-3 White model reference and dimensions

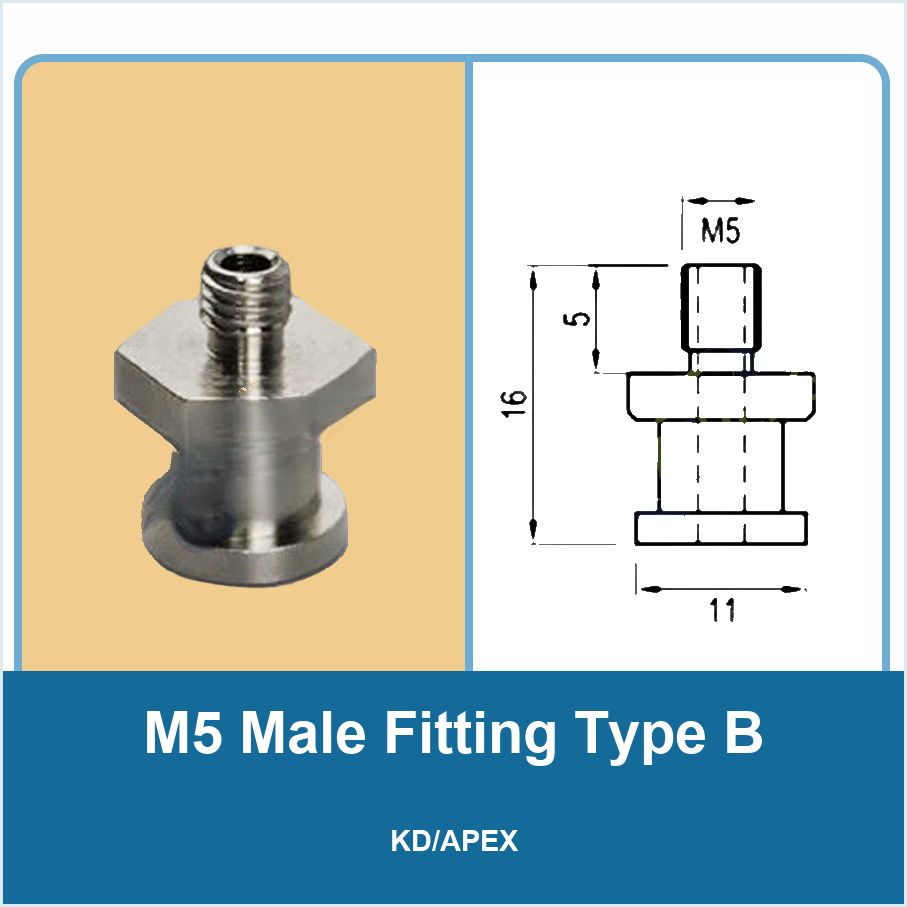

M5 Male Fitting Type B - KD/APEXM5 Male Fitting Type B - KD/APEX model reference and dimensions
M5 Male Fitting Type A - KD/APEXM5 Male Fitting Type A - KD/APEX model reference and dimensions

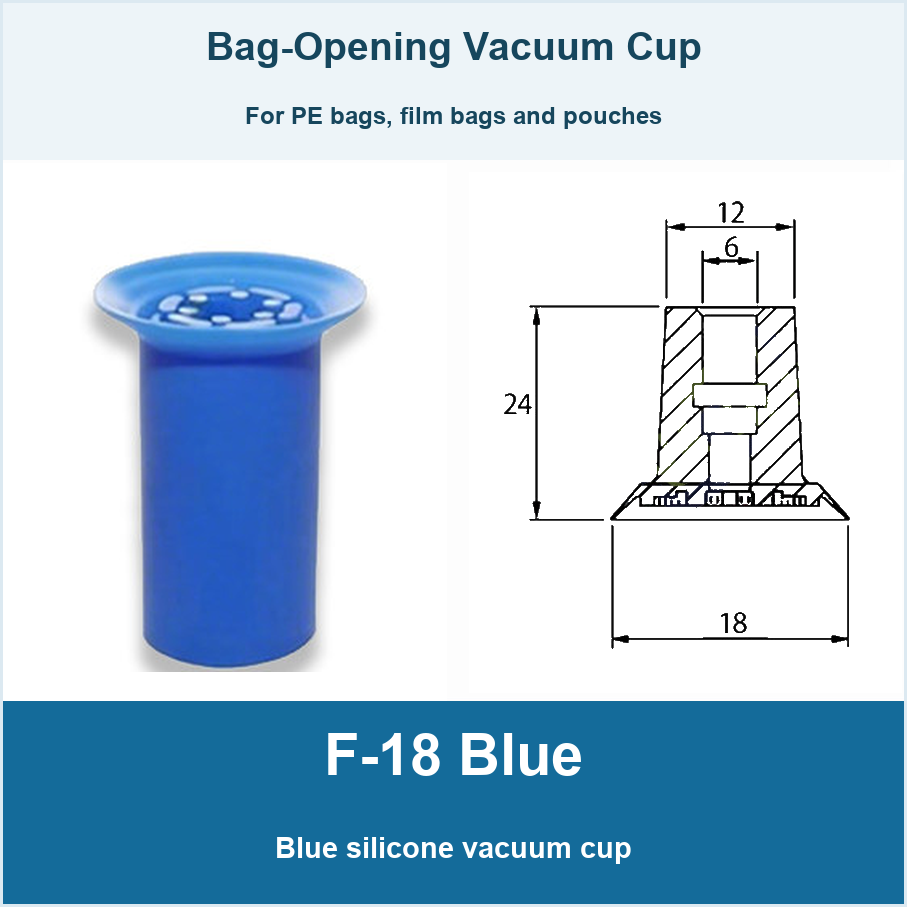

F-18 BlueF-18 Blue model reference and dimensions
F-22 BlueF-22 Blue model reference and dimensions

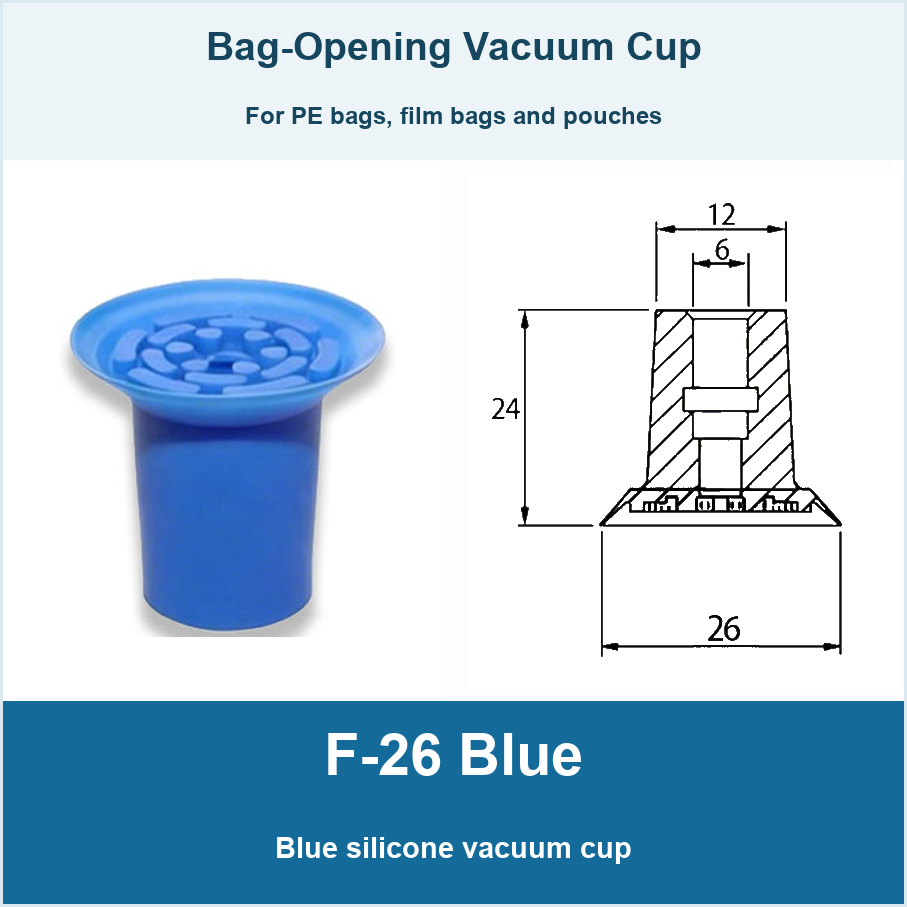

F-26 BlueF-26 Blue model reference and dimensions
F-33 BlueF-33 Blue model reference and dimensions
F-Series M5 Male FittingF-Series M5 Male Fitting model reference and dimensions

Model / configuration / SKU

Bag-Opening Vacuum Cups and M5 Fittings, KD-27, APEX-20 and F Series
Model / configurationSKU
KD-27 Blue - With Dots 4822039680761
KD-27 White - With Dots 4822039680762
20-2 Blue - With Dots 4822039680763
20-2 White - With Dots 4822039680764
APEX-20 Blue - No Dots 4822039680765
APEX-20 White - No Dots 4822039680766
KD-27B White - With Dots - 11.5 mm Bore 4848696881890
K-33 Blue - Low Profile 5556668572529
K30-3 White 5996950124141
M5 Male Fitting Type B - KD/APEX 5547821801497
M5 Male Fitting Type A - KD/APEX 5547821801498
F-18 Blue 4869873820011
F-22 Blue 5833691268886
F-26 Blue 4869873820012
F-33 Blue 4869873820013
F-Series M5 Male Fitting 5465612098711
