A-XT Compact Spring-Loaded Vacuum Cup Holders (10–50 mm)

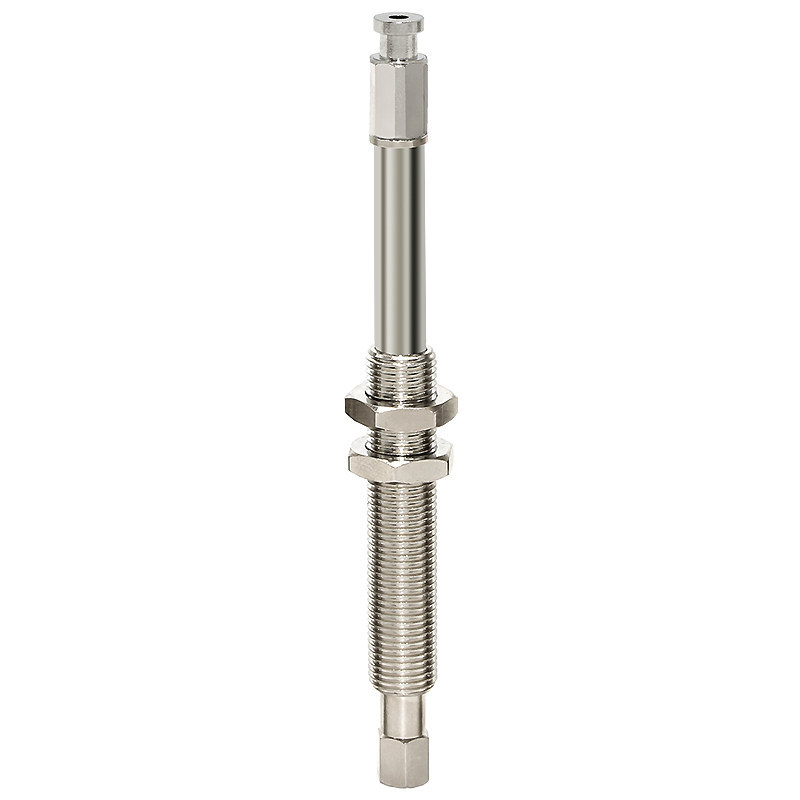

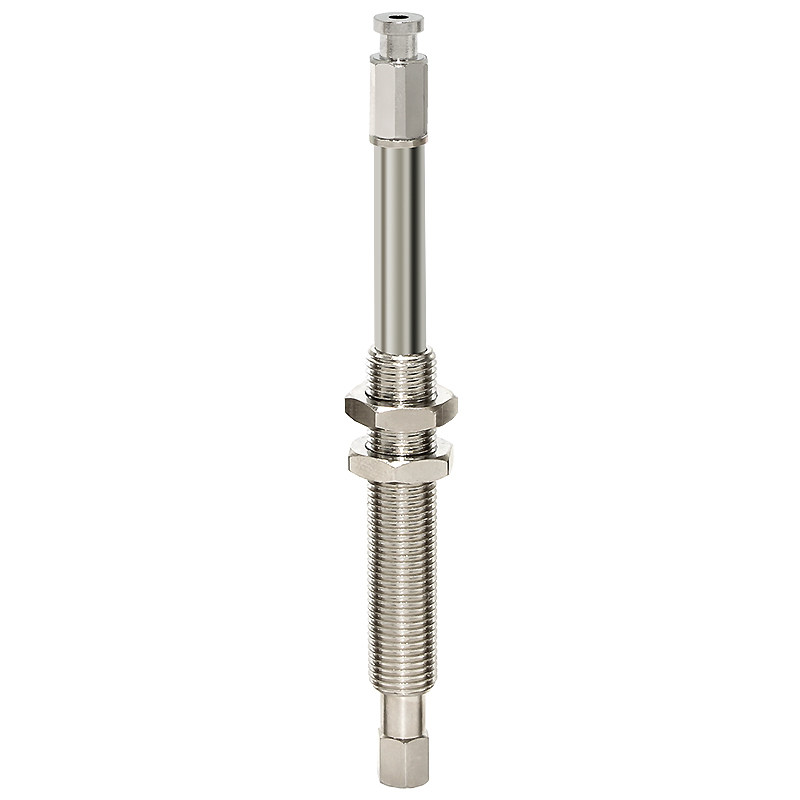

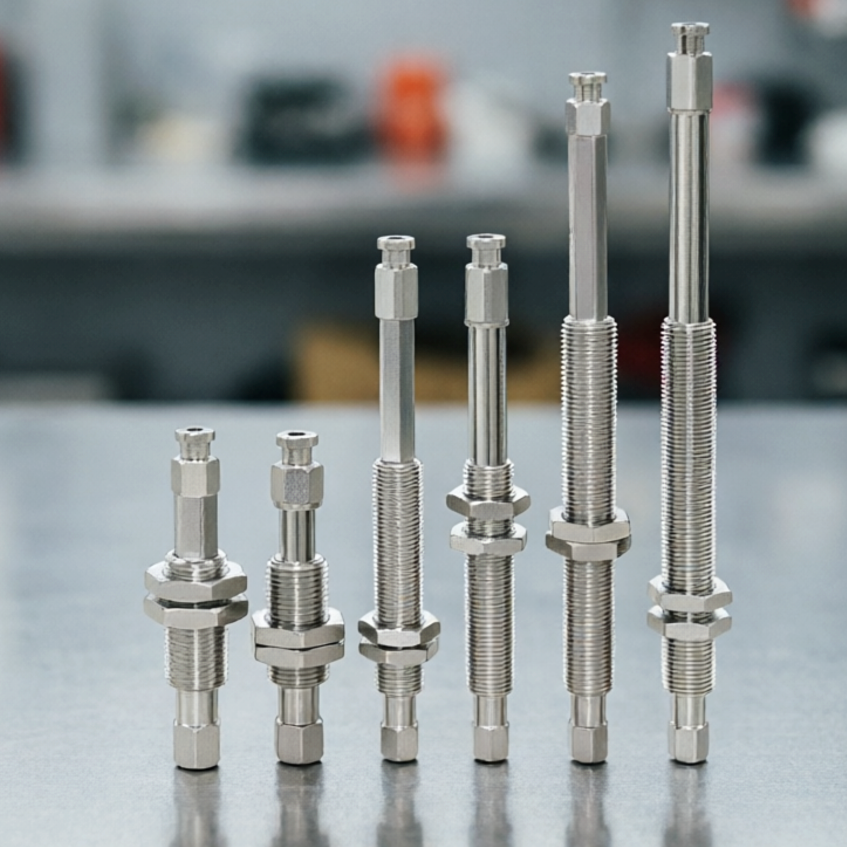

A-XT Compact Spring-Loaded Vacuum Cup Holders
Compact A-XT spring-loaded holders for compatible industrial vacuum cups, automated handling equipment and robotic end-effectors. Select the complete model according to motion type, length, configuration and the dimensional drawing.
Quick selection
- Choose motion type: J is revolving; K is fixed.
- Choose nominal size: 10 mm, 20 mm, 30 mm, 40 mm or 50 mm in A or B configuration.
- Review the drawing: verify thread callouts, across-flats dimensions, stroke, overall length and installation clearance for the selected model.

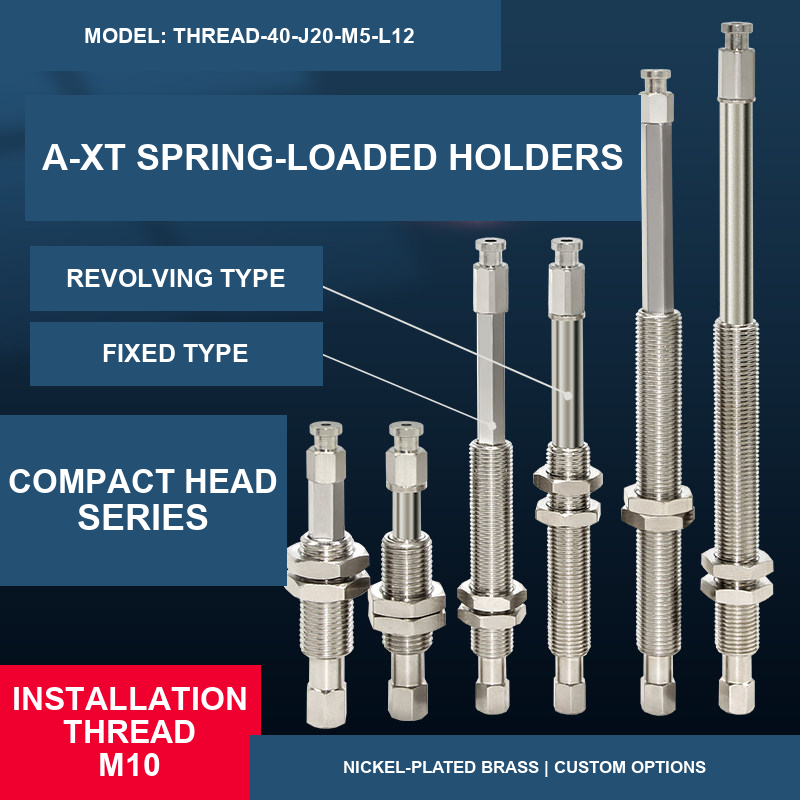

- Special configurations: select the complete model code shown for Thread 40–J20–M5–L12 or M5–L12–J18–A10–L80 when those configurations are required.
Model code guide

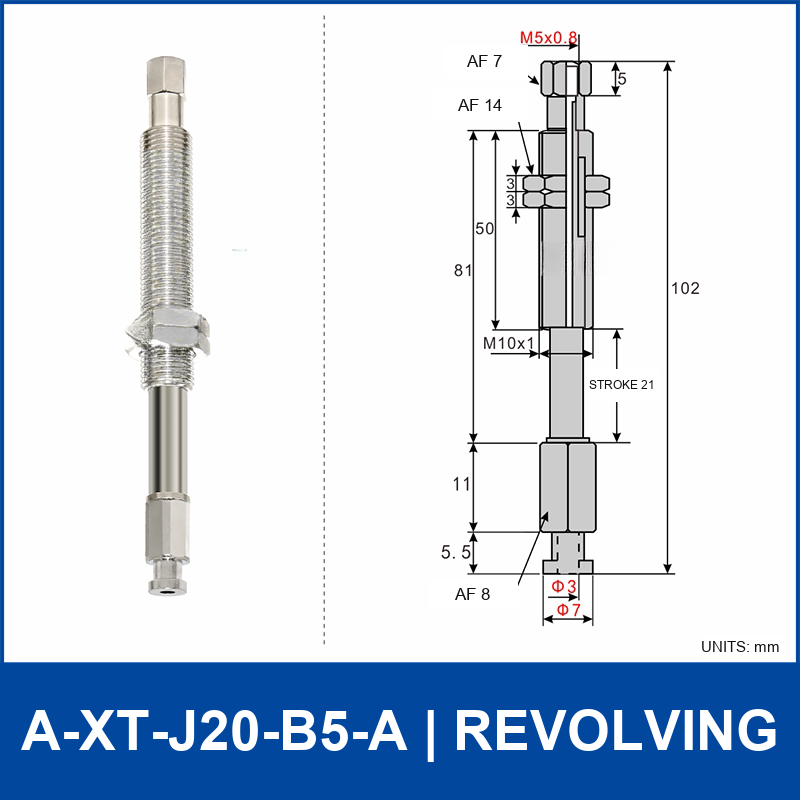

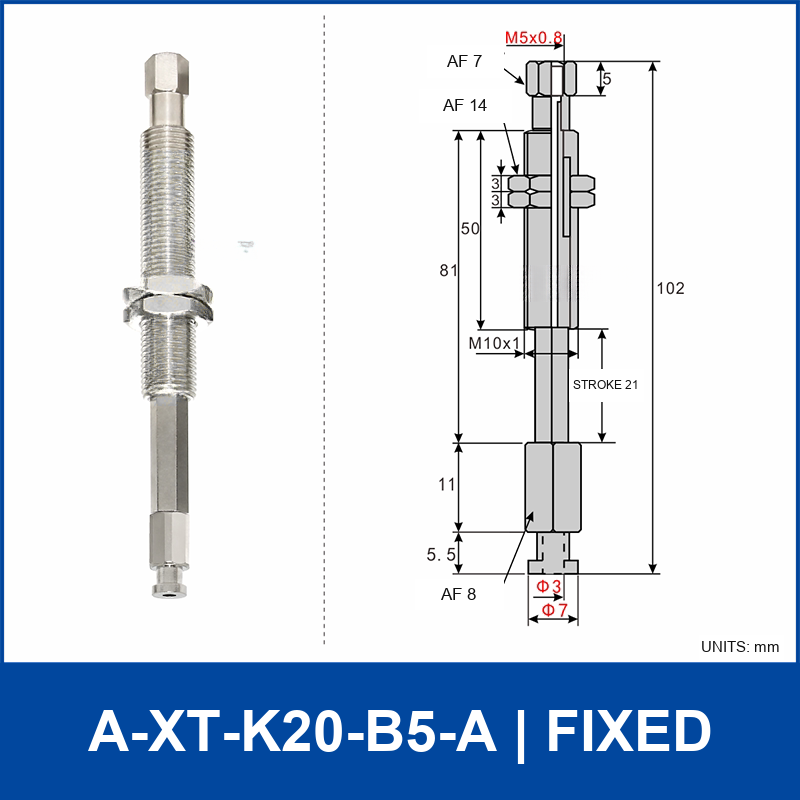

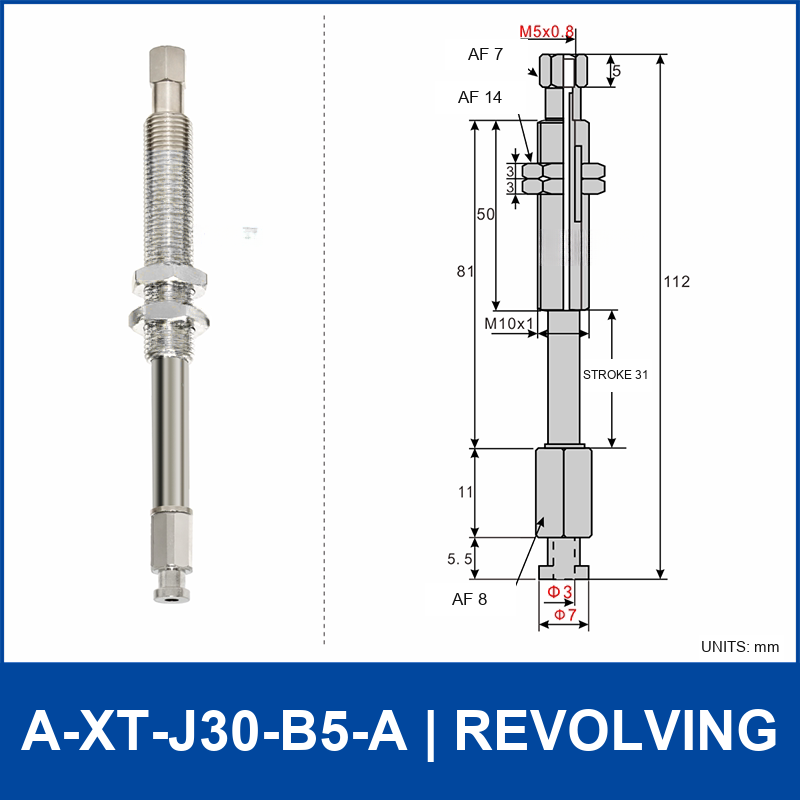

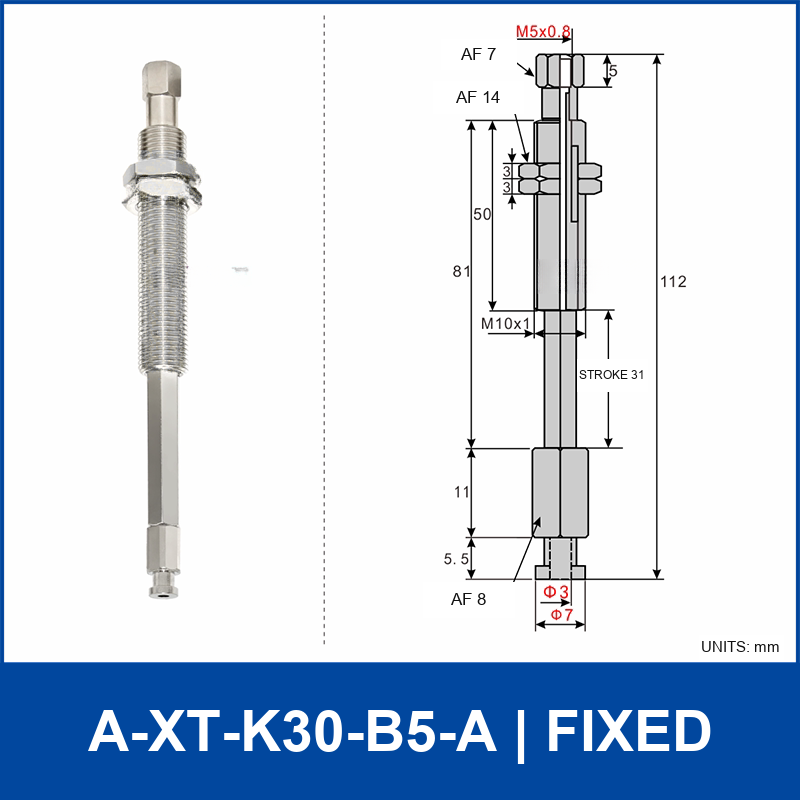

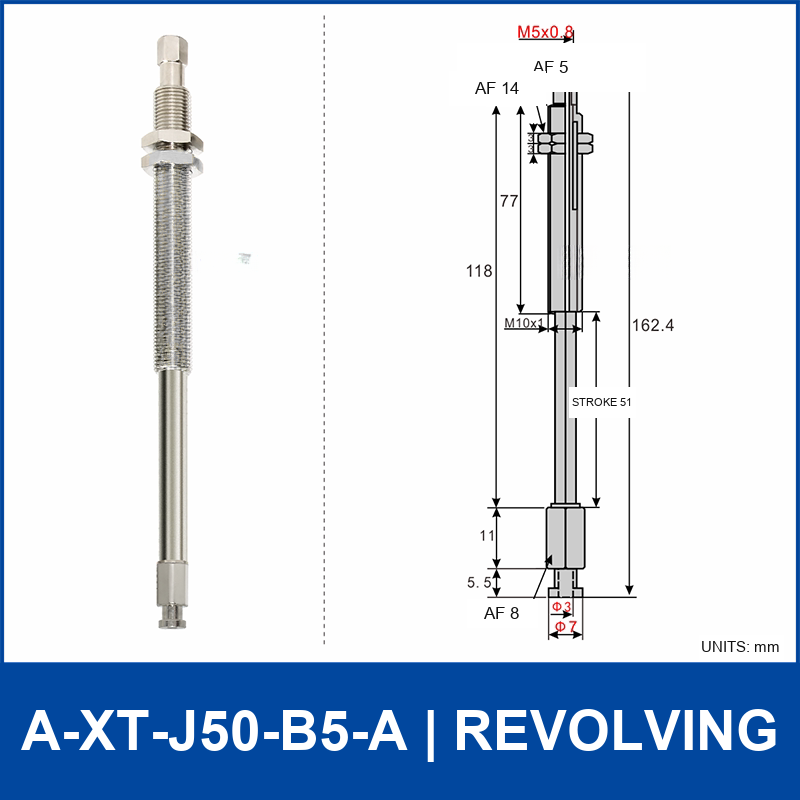

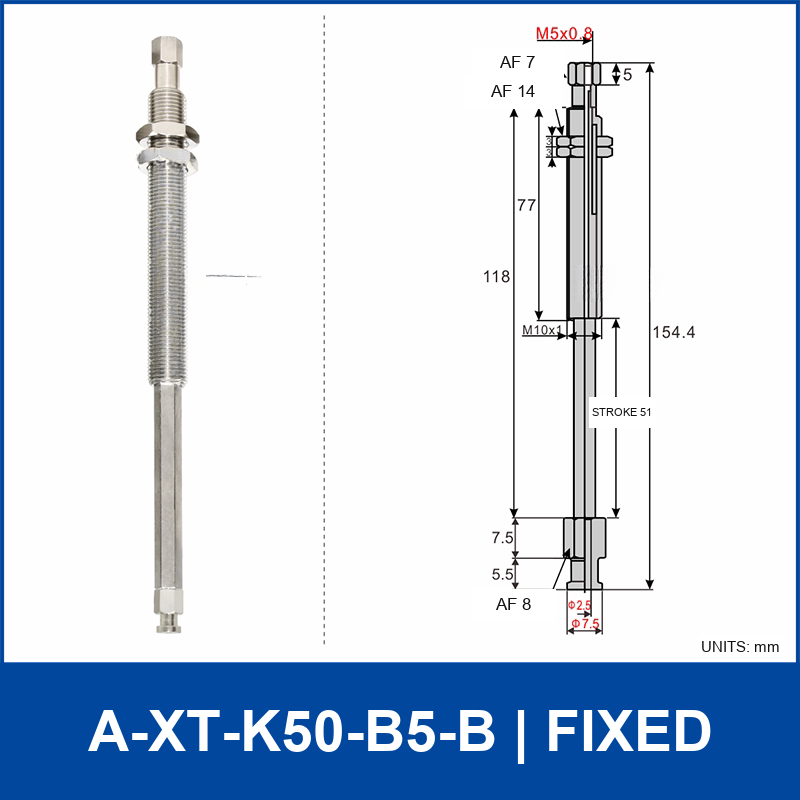

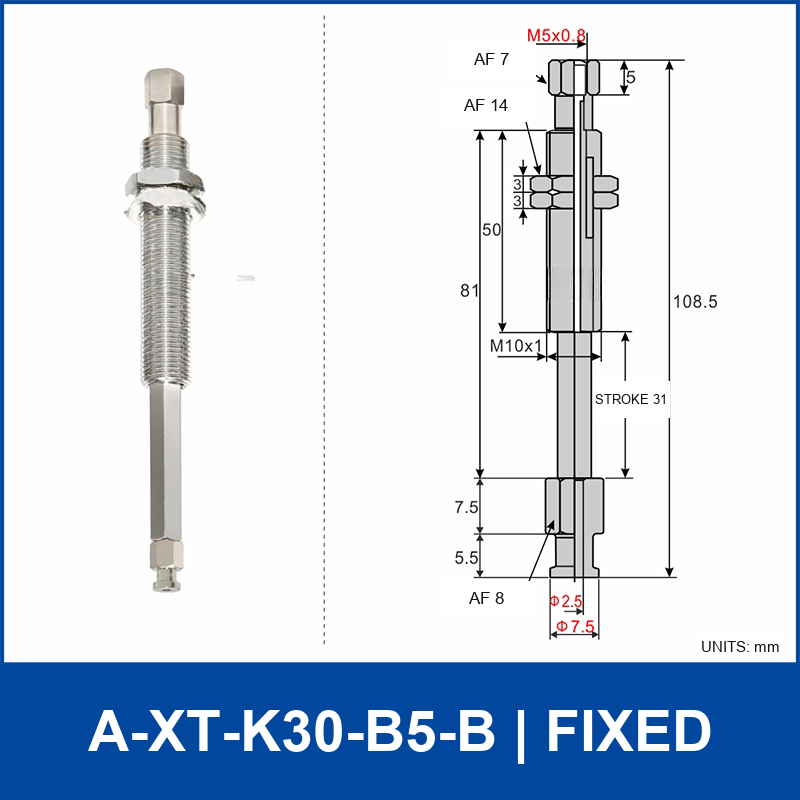

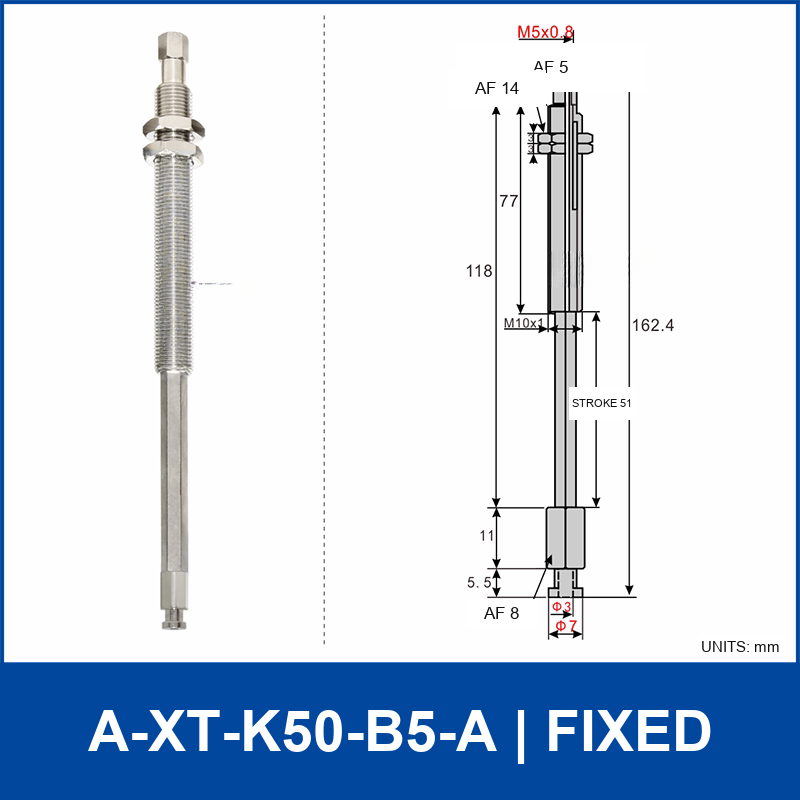

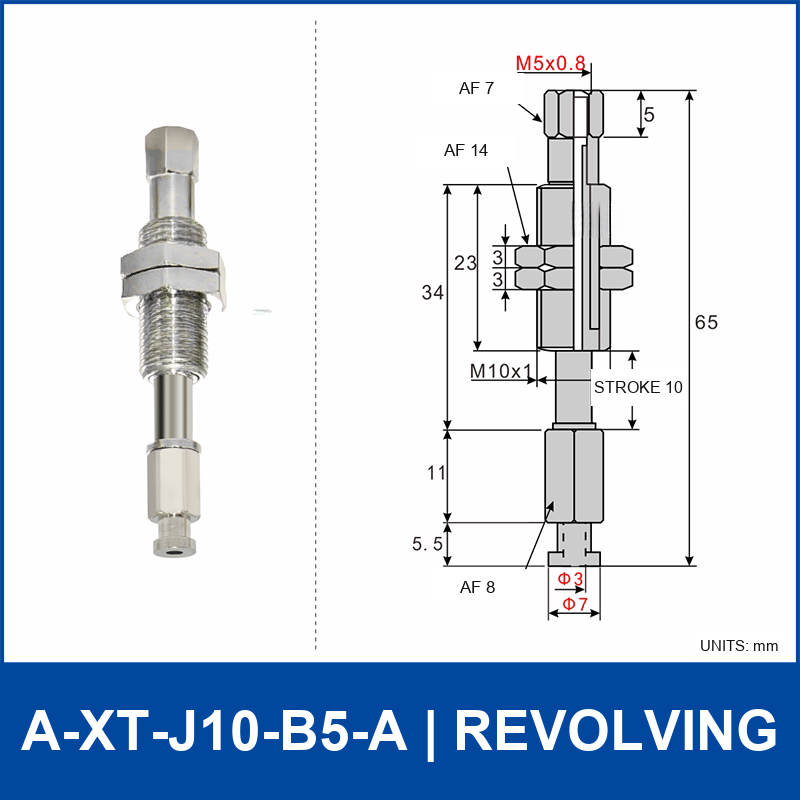

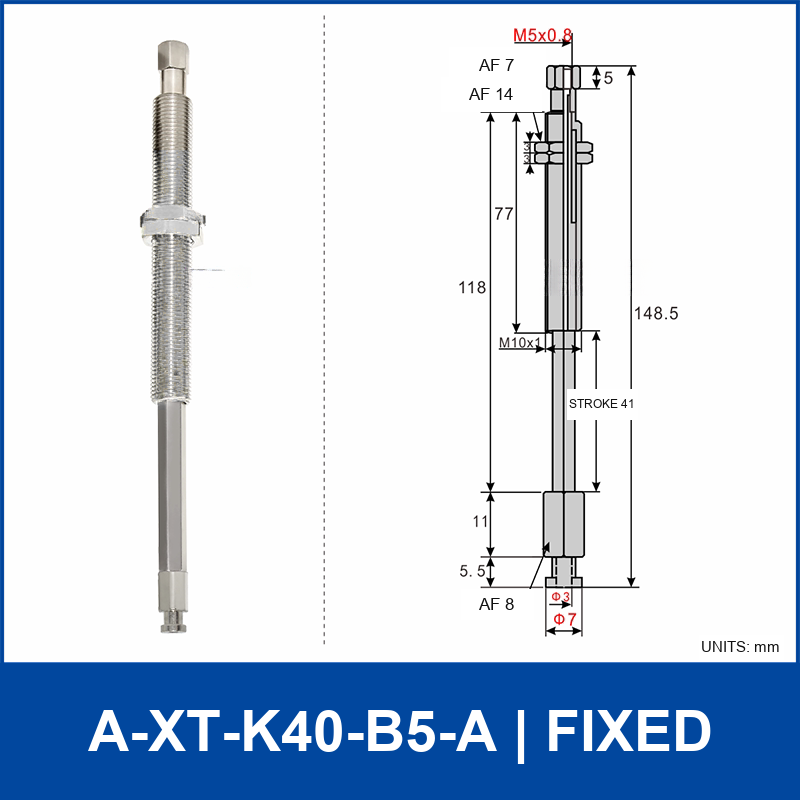

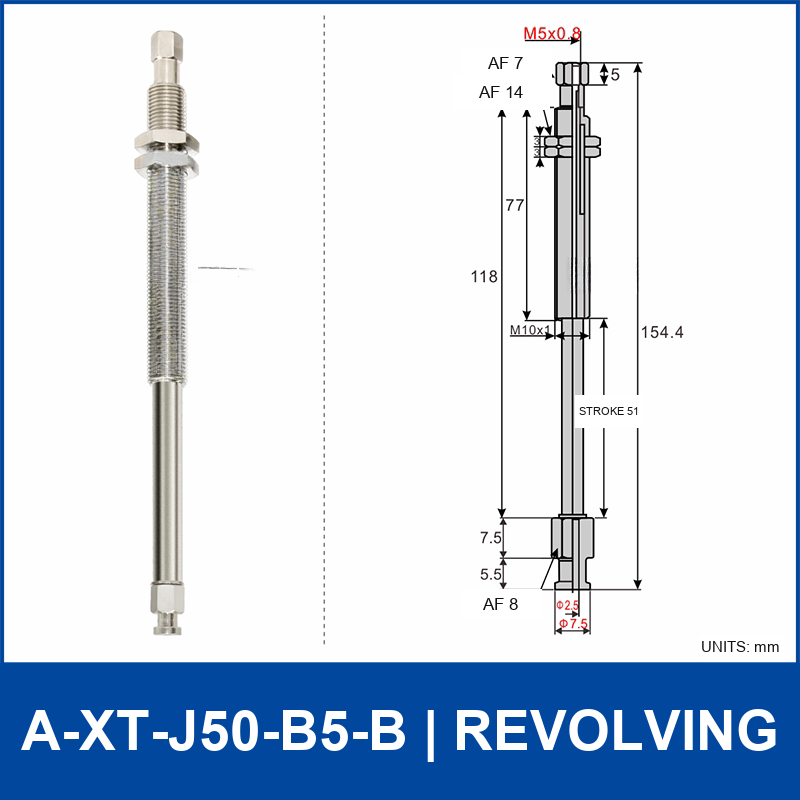

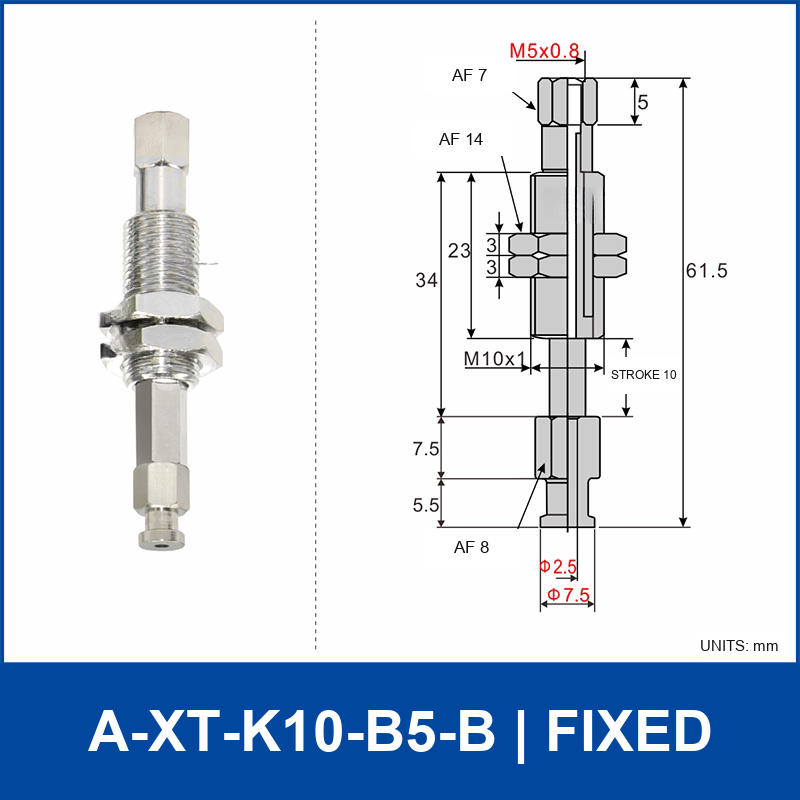

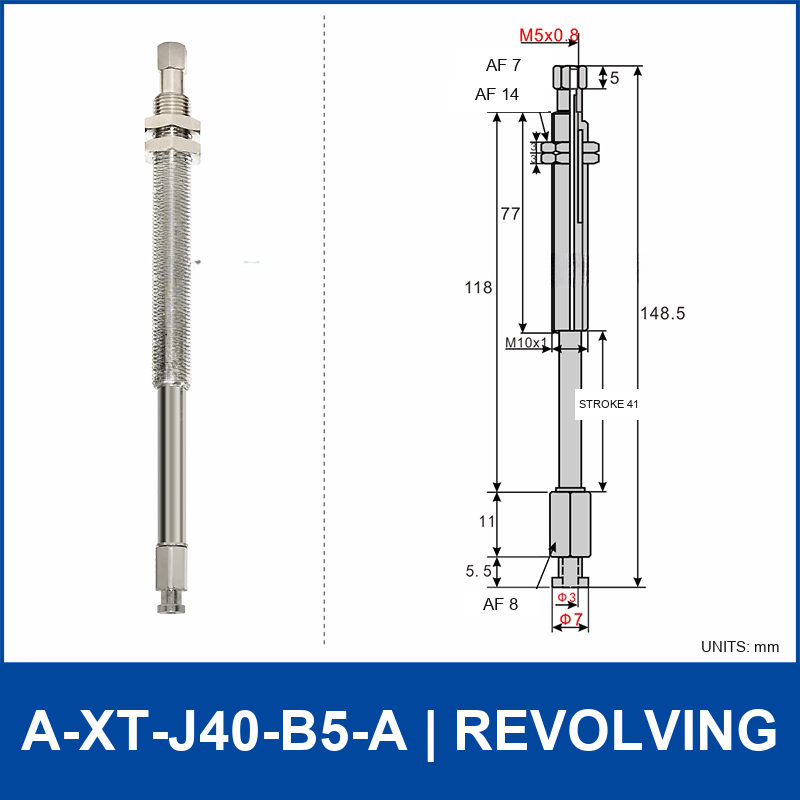

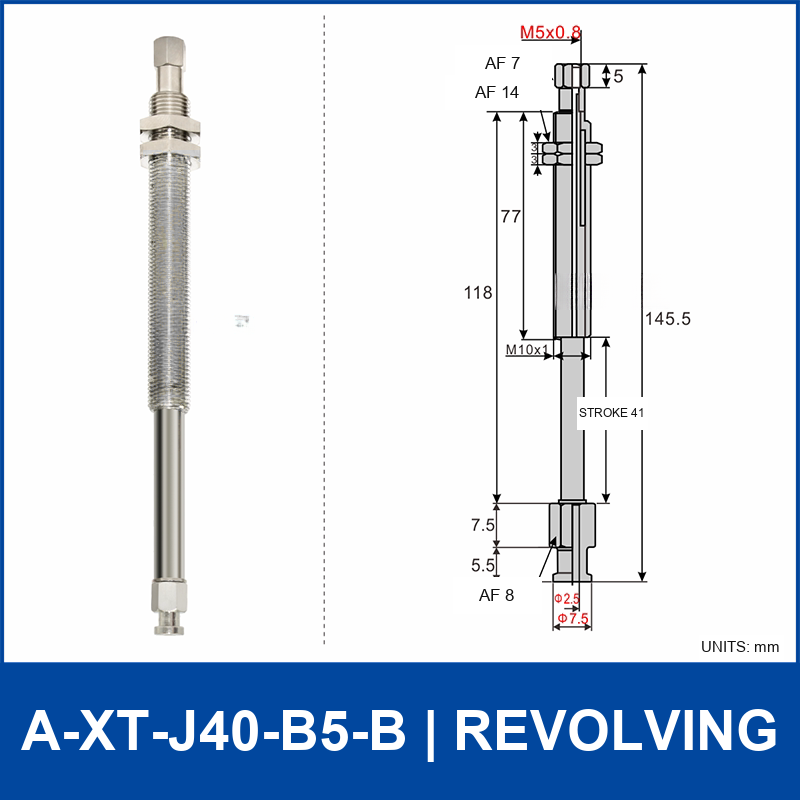

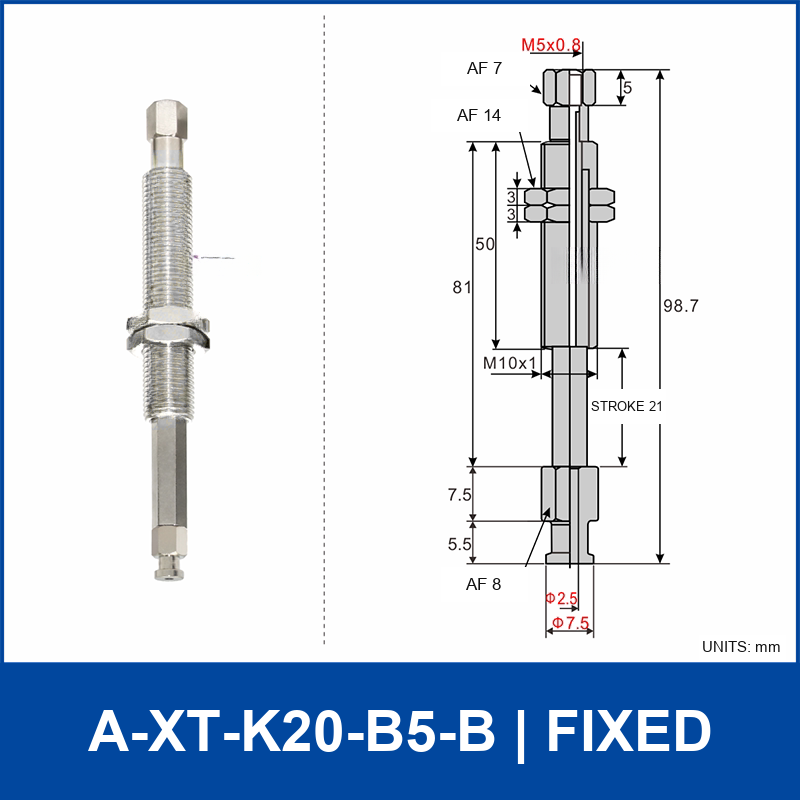

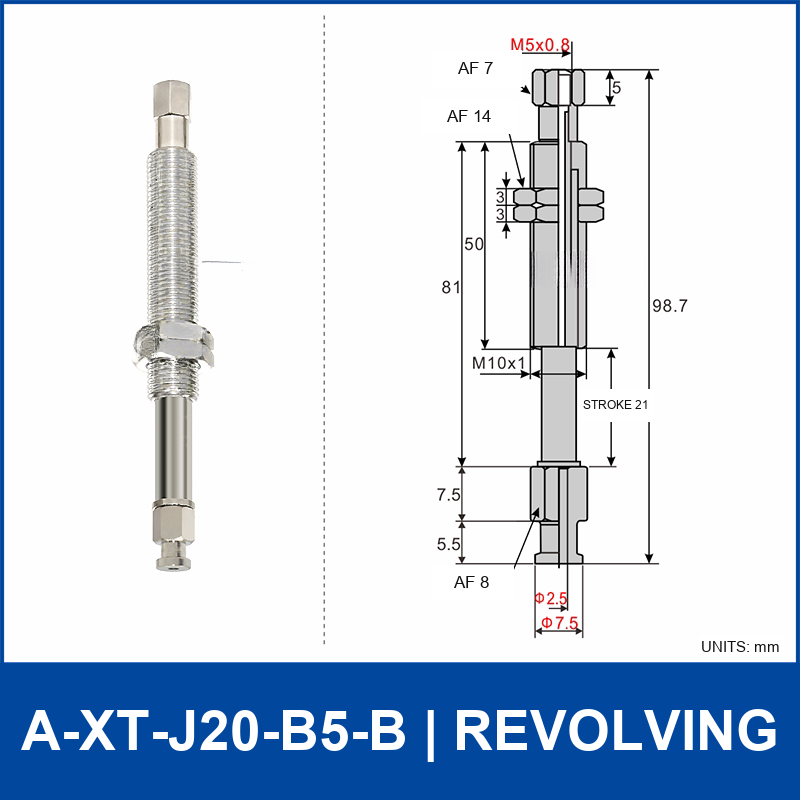

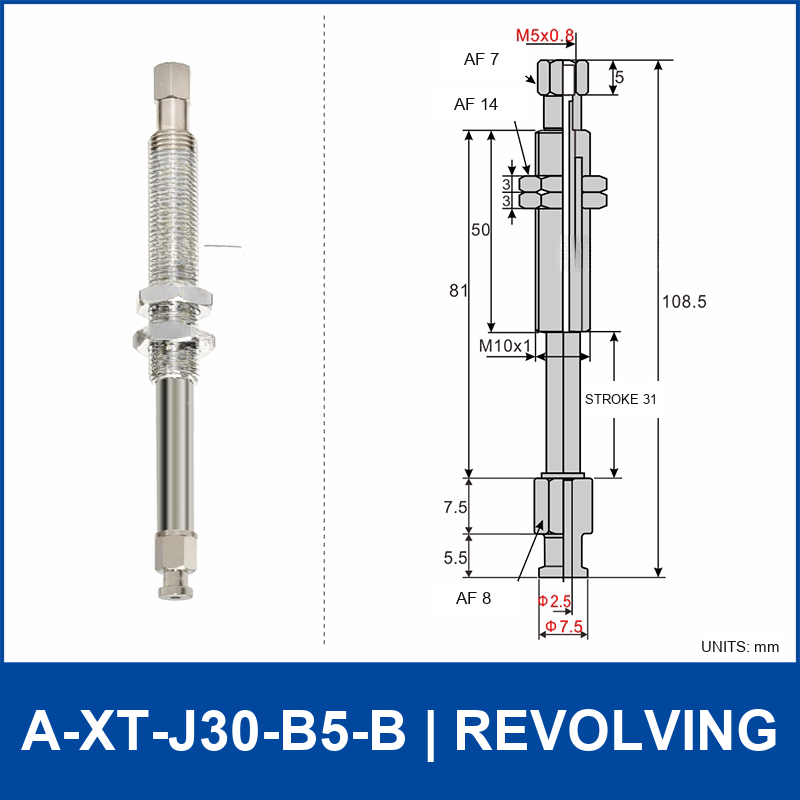

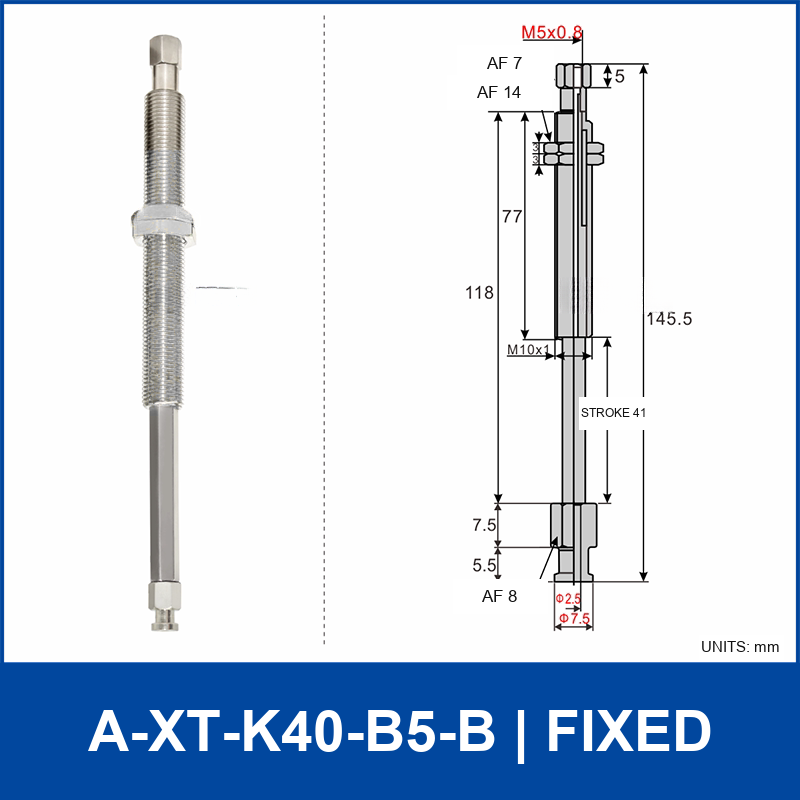

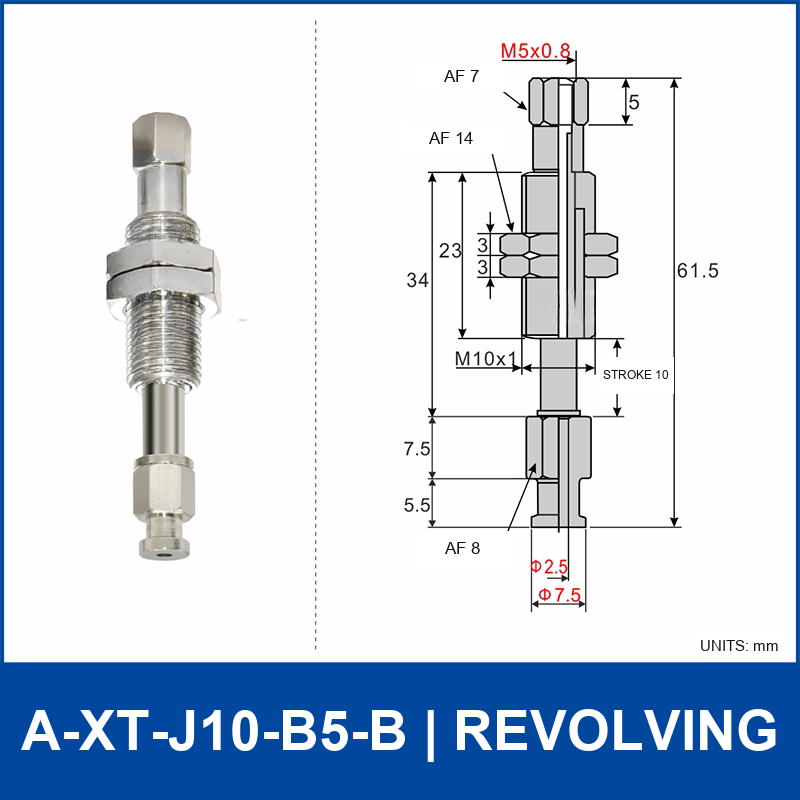

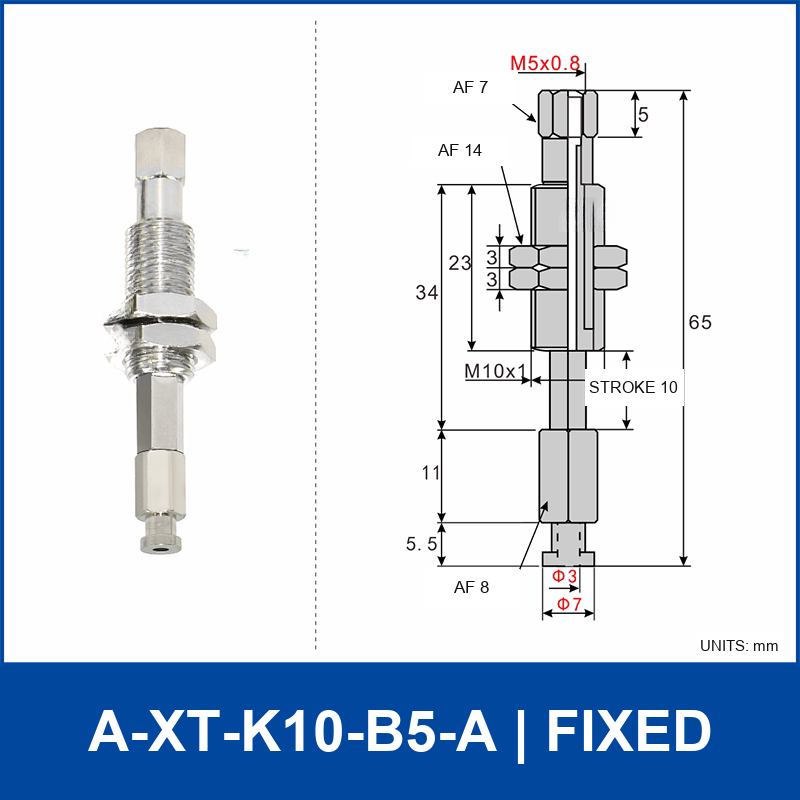

A-XT-[J or K][size]-B5-[A or B]: motion type, nominal size and configuration. Each option displays its matching product view and dimensional drawing.
Suitable for
- Industrial vacuum pick-and-place applications
- Robotic end-effectors and automated handling equipment
- Spring-loaded vacuum-cup mounting after compatibility checks
- Replacement and configuration work for compatible vacuum assemblies
Before use
Confirm the selected model code, drawing, thread interface, vacuum cup, installation dimensions, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
FAQ
Should I choose J or K? Choose J for the revolving version and K for the fixed version, then verify the complete drawing. Can I substitute A and B configurations? Confirm every listed dimension and stroke before treating configurations as interchangeable.
