A-PT1 Mini Vacuum Cup Mounts — Rotary or Non-Rotary, B5-A10

A-PT1 Mini Vacuum Cup Mounts — Rotary or Non-Rotary, B5-A10

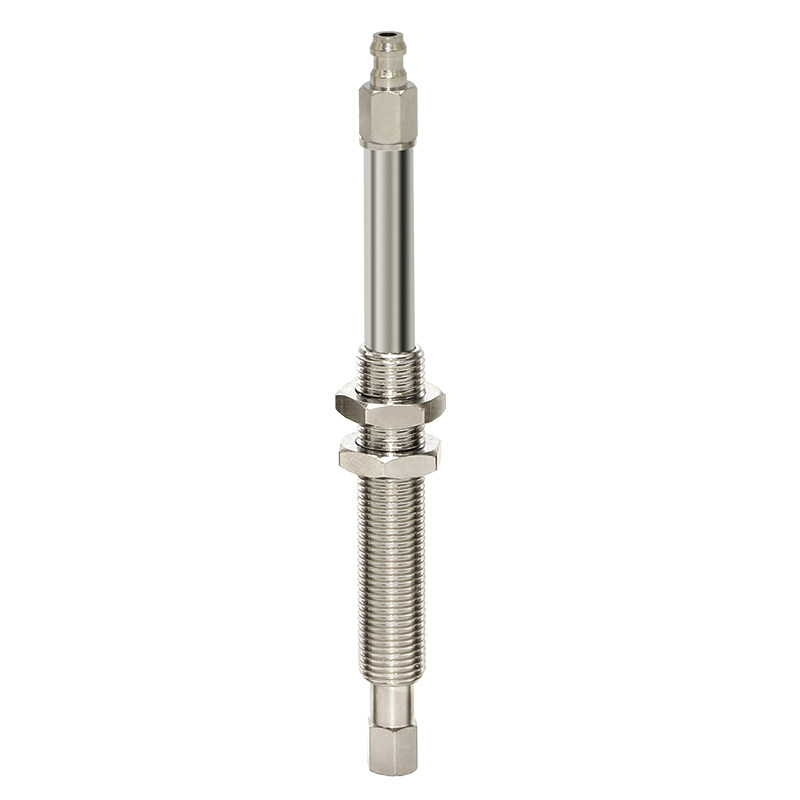

A-PT1 mini vacuum cup mounts for compatible automation tooling, vacuum gripping fixtures and mechanical assemblies. Select the full model code, motion type and size from the matching dimensional drawing before ordering.

Quick Model Finder

1. Choose the motion type: J models are rotary; K models are non-rotary.
2. Choose the size: select 10, 20, 30, 40 or 50 according to the required drawing and installation clearance.

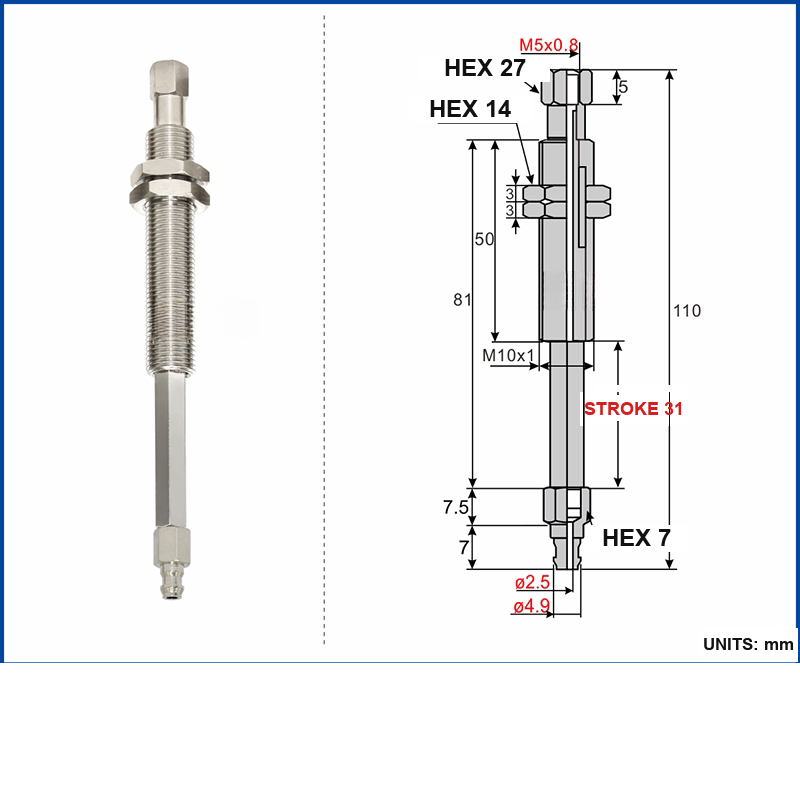

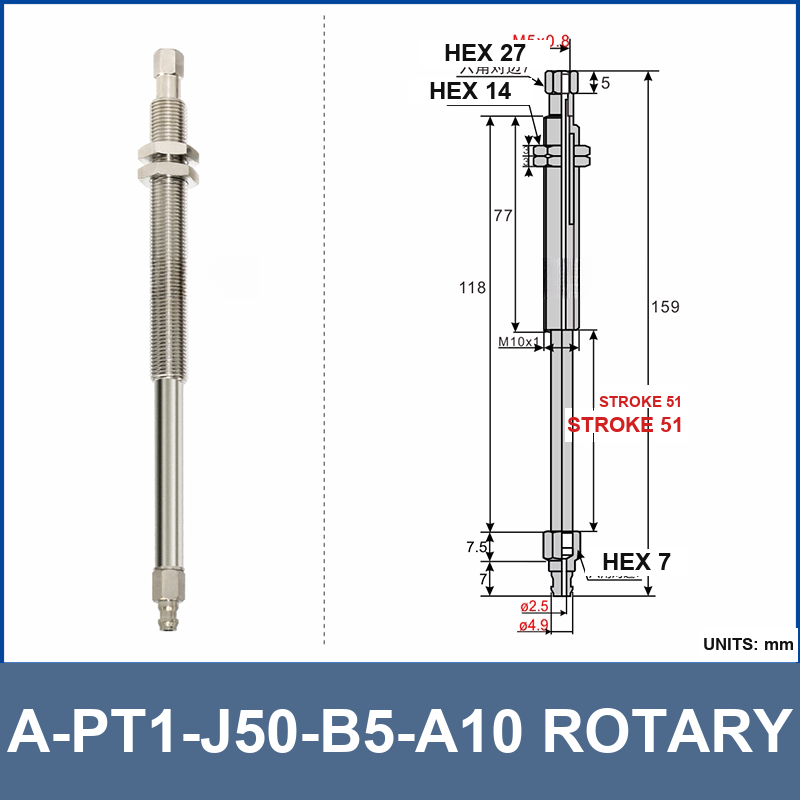

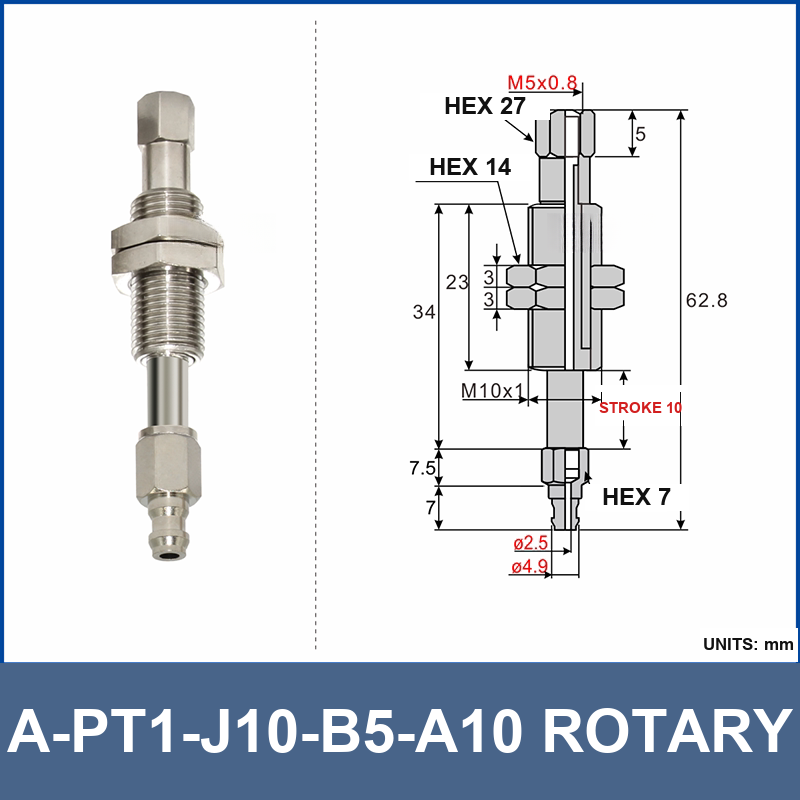

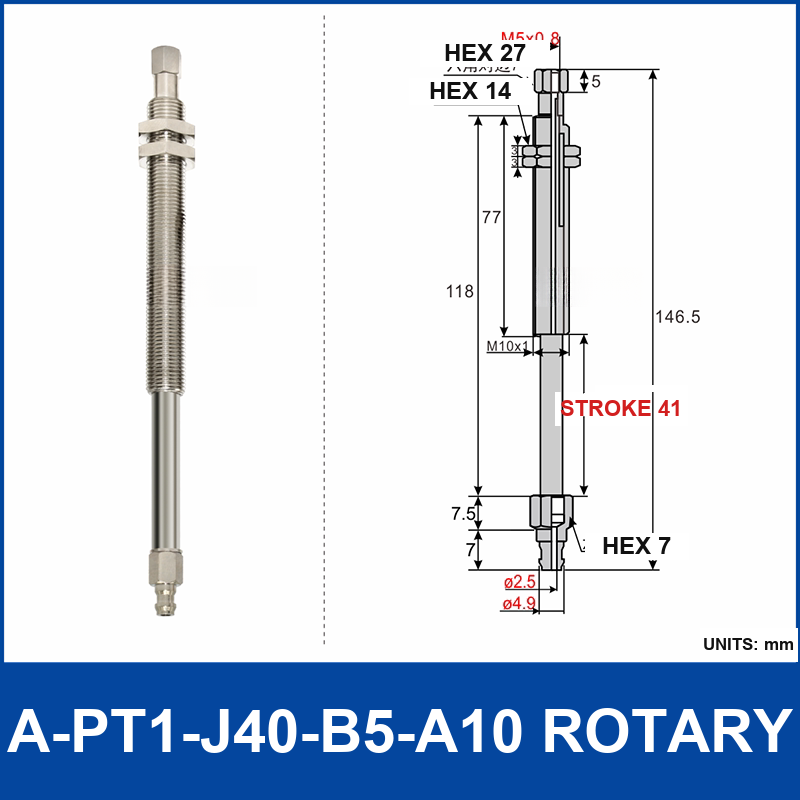

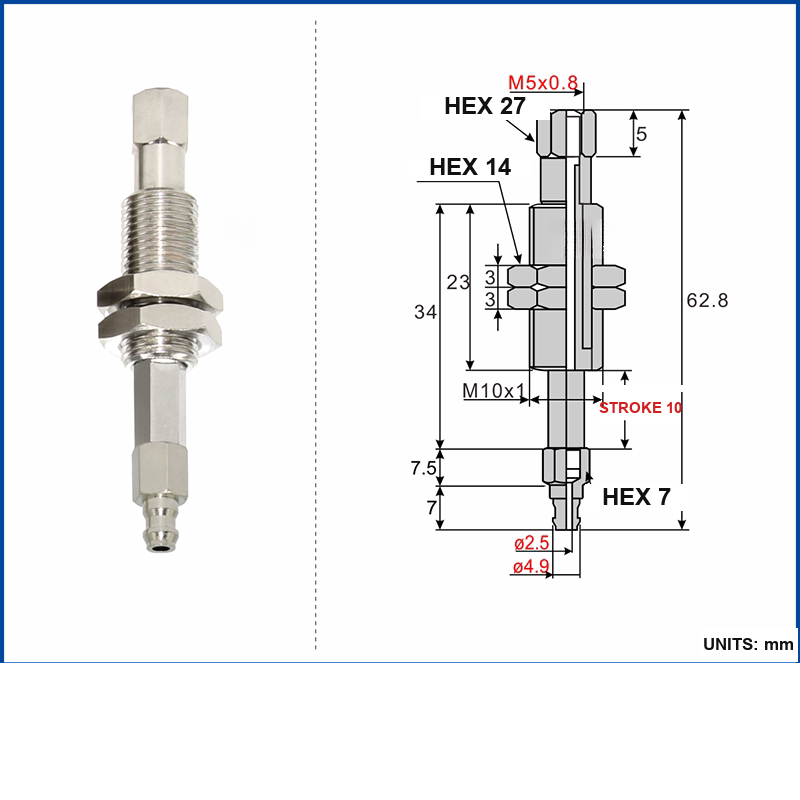

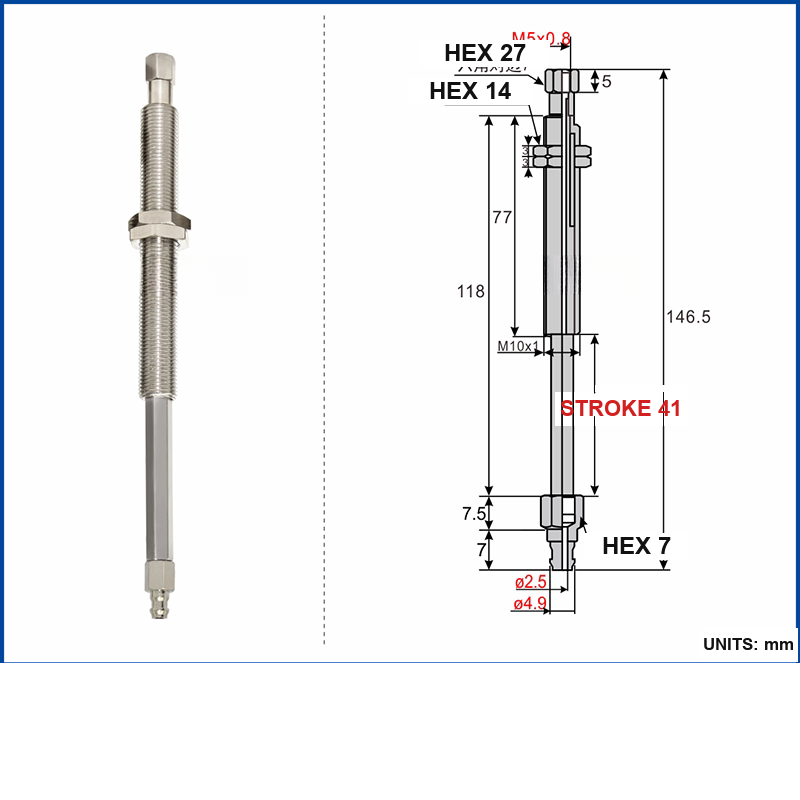

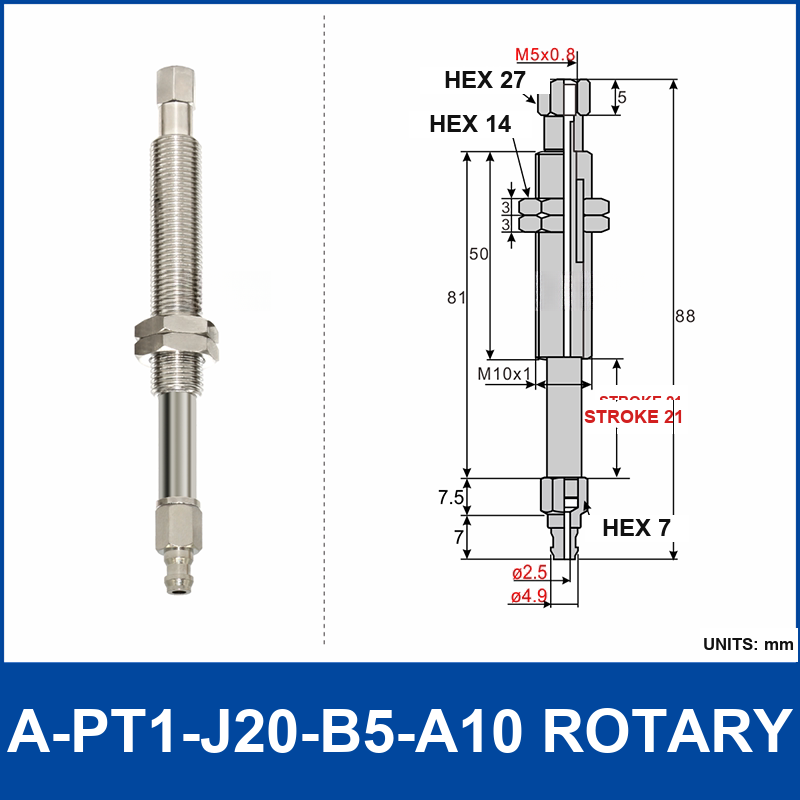

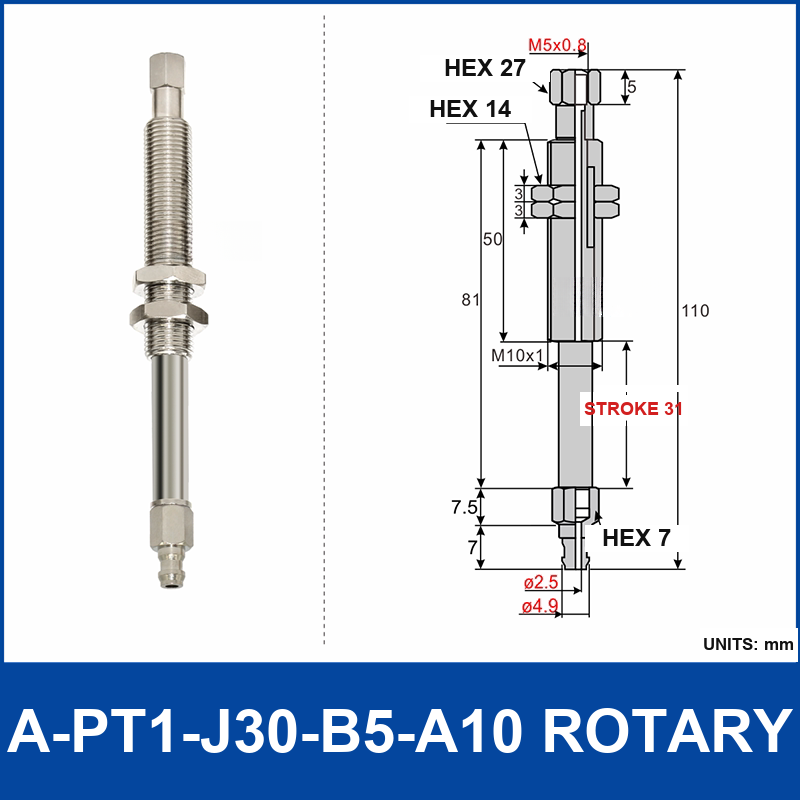

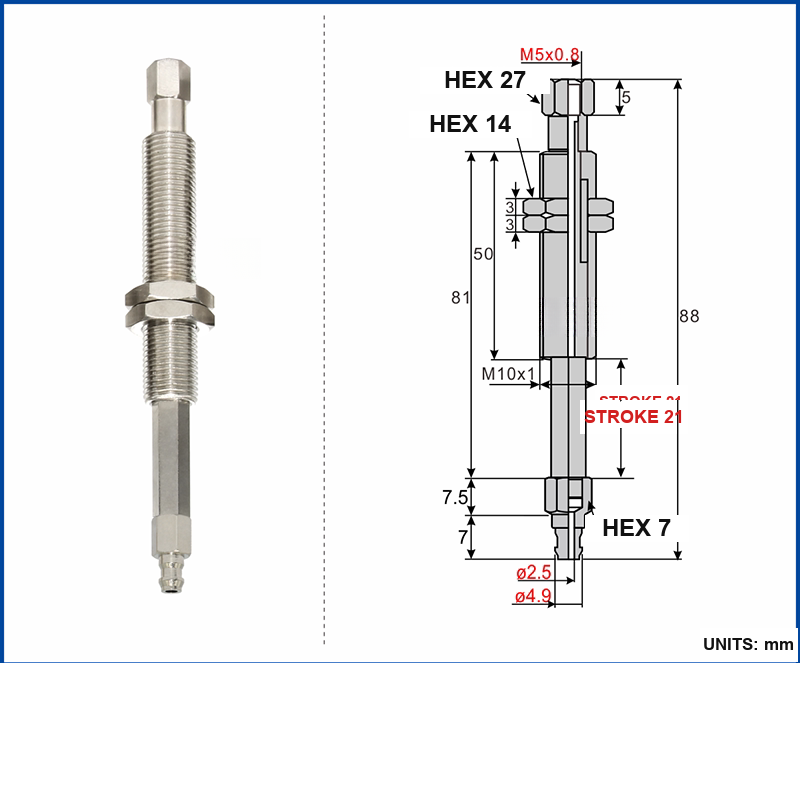

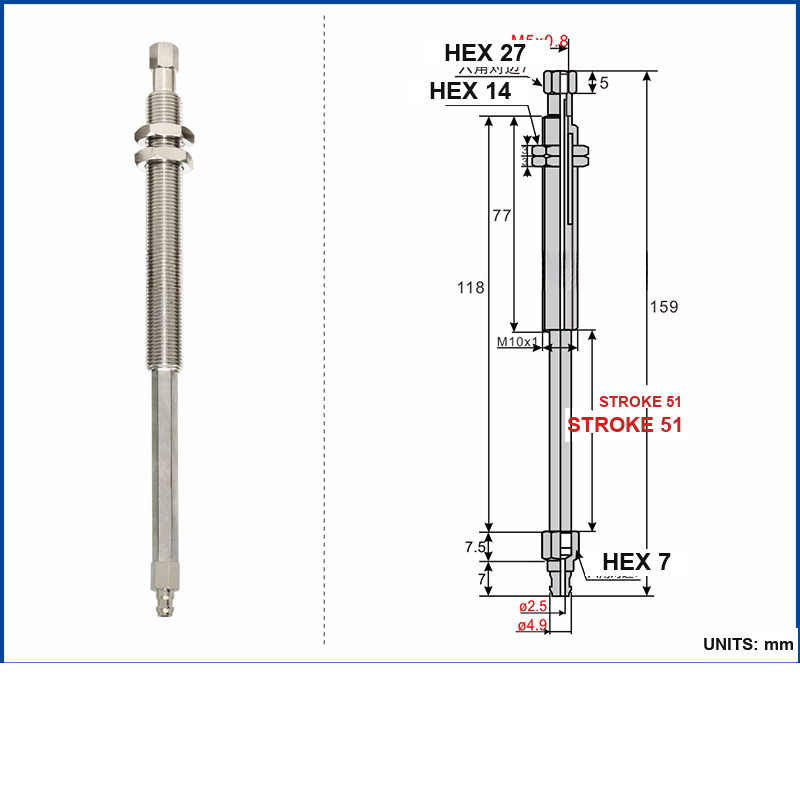

3. Confirm the assembly: check the selected image for the M5 × 0.8 and M10 × 1 threads, B5-A10 configuration, hex dimensions, travel reference and overall length.
4. Select the complete code: choose one listed A-PT1 model exactly as shown; do not combine values from different variants.

Model-code guide

A-PT1-[J/K][size]-B5-A10: J or K identifies the motion type, while the number identifies the selected size. Every selectable model has its own product view and dimensional drawing.

Suitable for

• Compatible vacuum gripping fixtures and robot end-effectors
• Automation tooling, mechanical alignment and buffer-mount assemblies
• Replacement work where the complete drawing and mating interfaces are confirmed

Before use

Confirm the complete model code, selected drawing, B5-A10 configuration, mating threads, motion requirement, travel, installation clearance, load, acceleration and operating environment before installation. No lifting-safety, food-contact, medical or regulatory certification is claimed.
