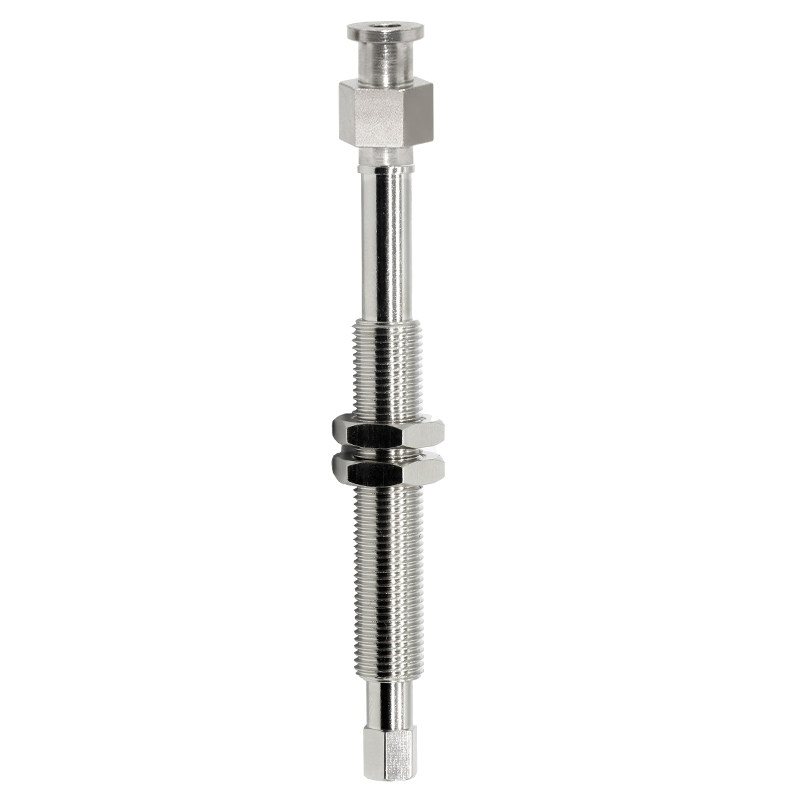

A-DT-J / A-DT-K Robot Buffer Fittings (B5)
A-DT-J / A-DT-K Robot Buffer Fittings
Robot buffer fittings for compatible automation tooling and mechanical assemblies. Select the full model code, motion type and configuration from the dimensional drawing before ordering.
Quick selection
- Choose the motion type: J models are rotatable; K models are non-rotating.

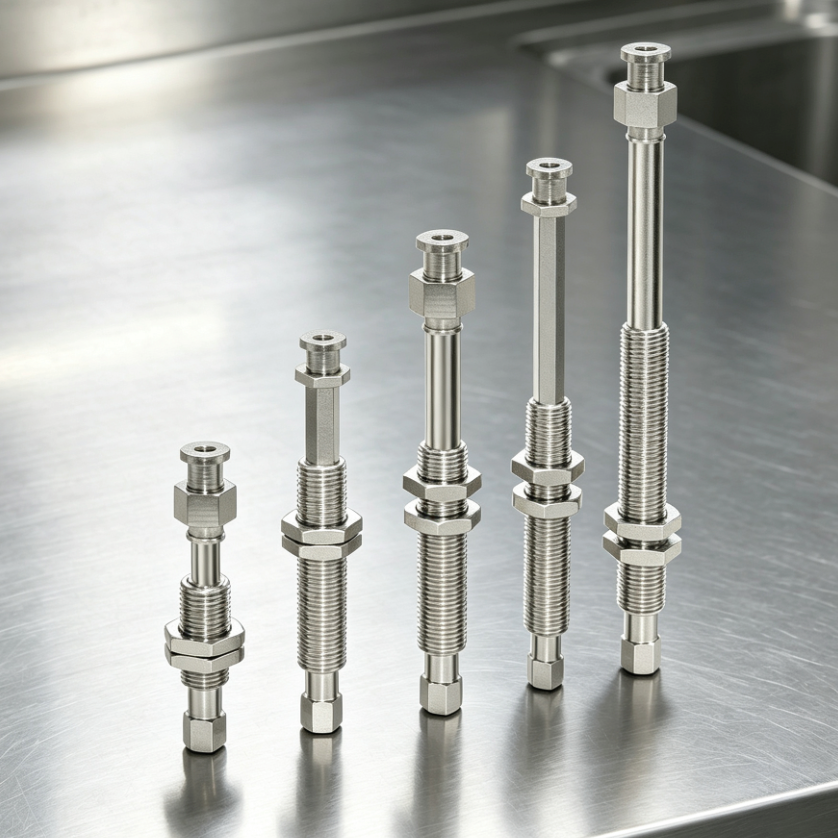

- Choose the size designation: select 10, 20, 30, 40 or 50 according to the required drawing and installation space.
- Choose the configuration: select configuration A or B only after matching the complete drawing to the mating assembly.

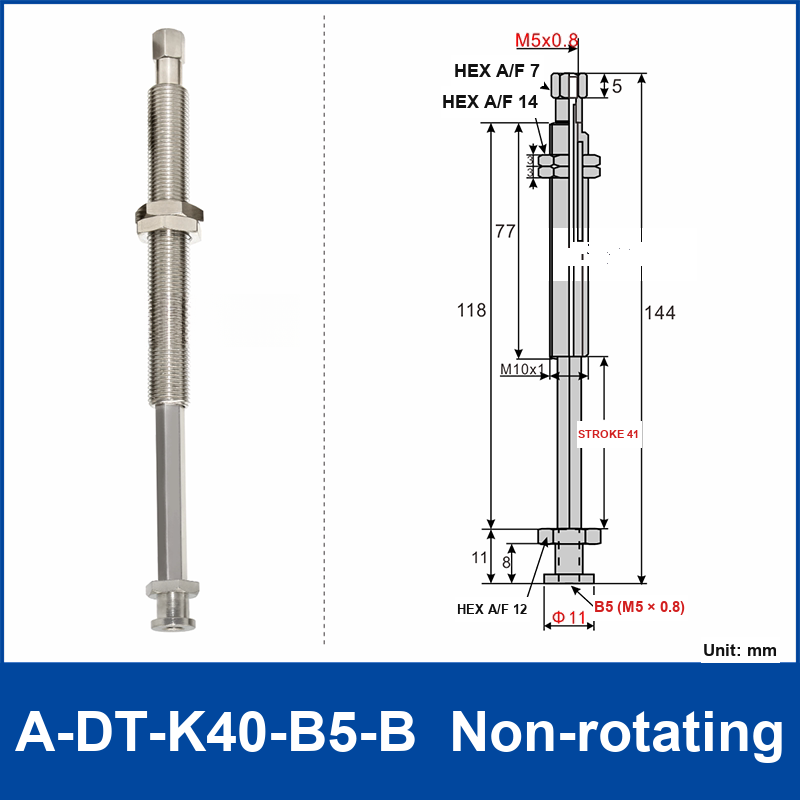

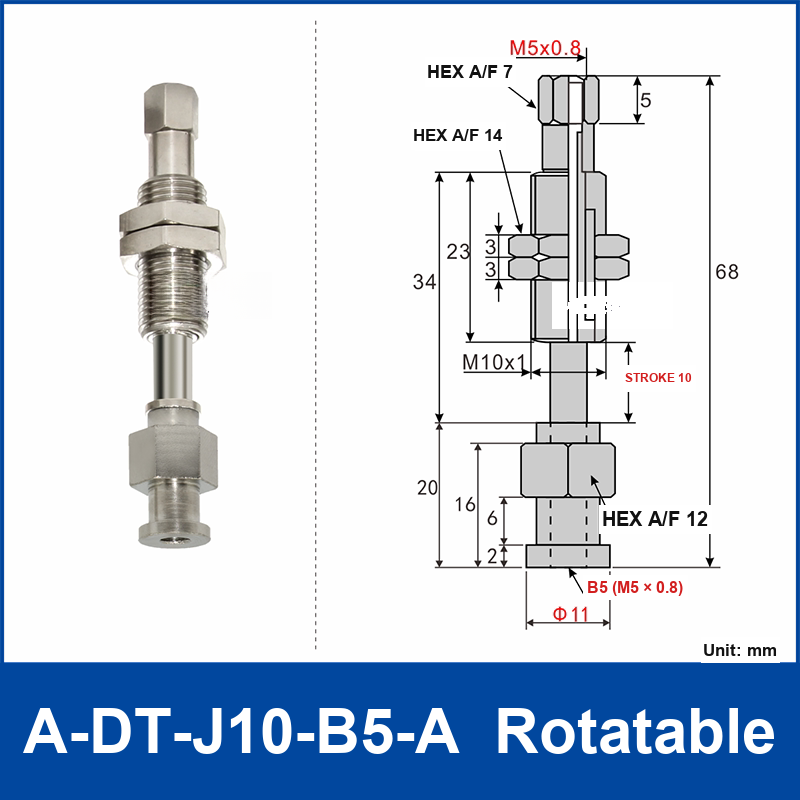

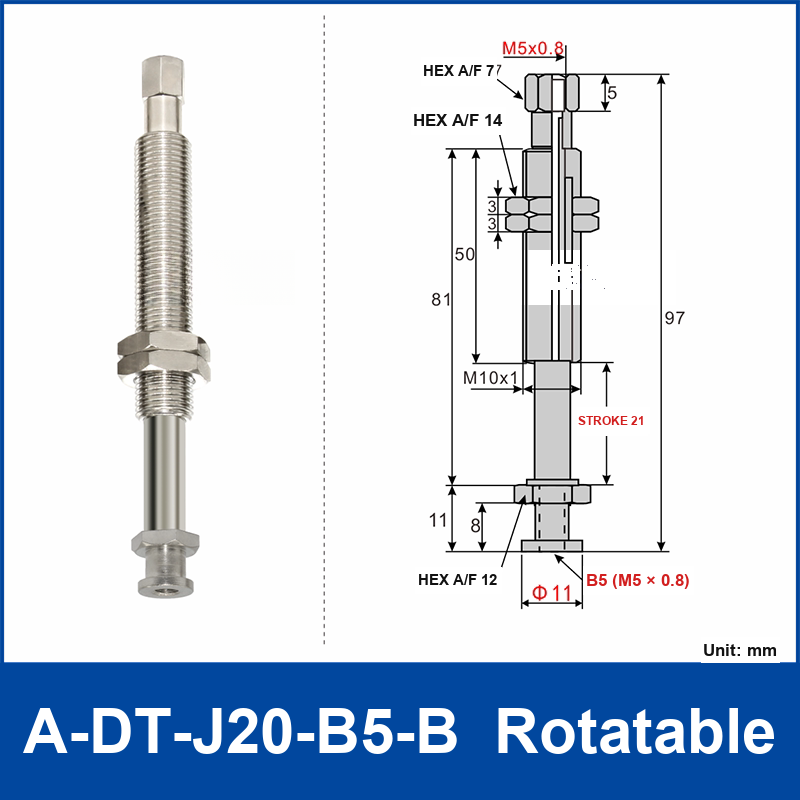

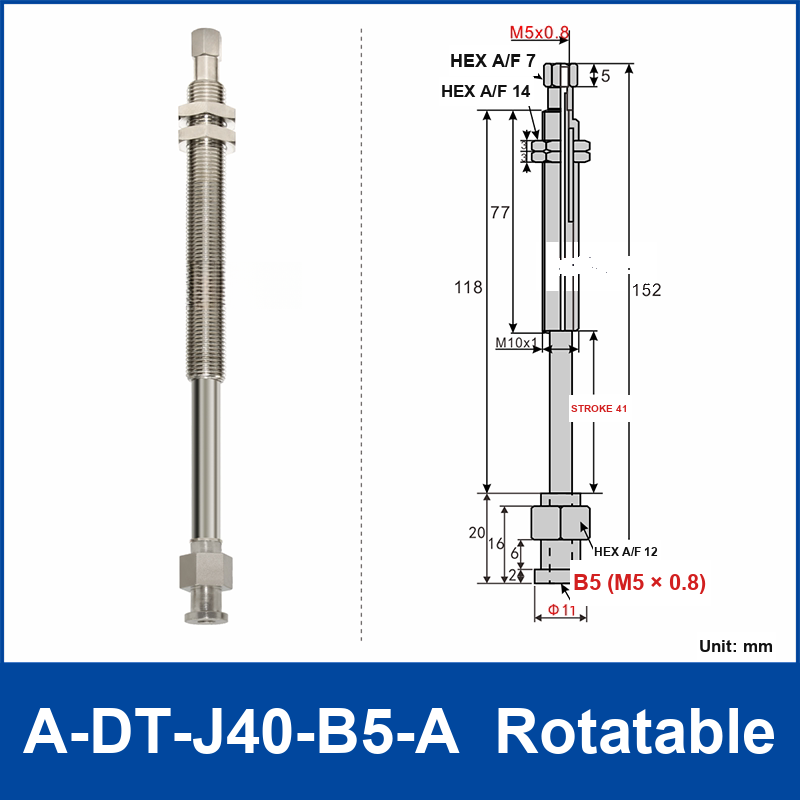

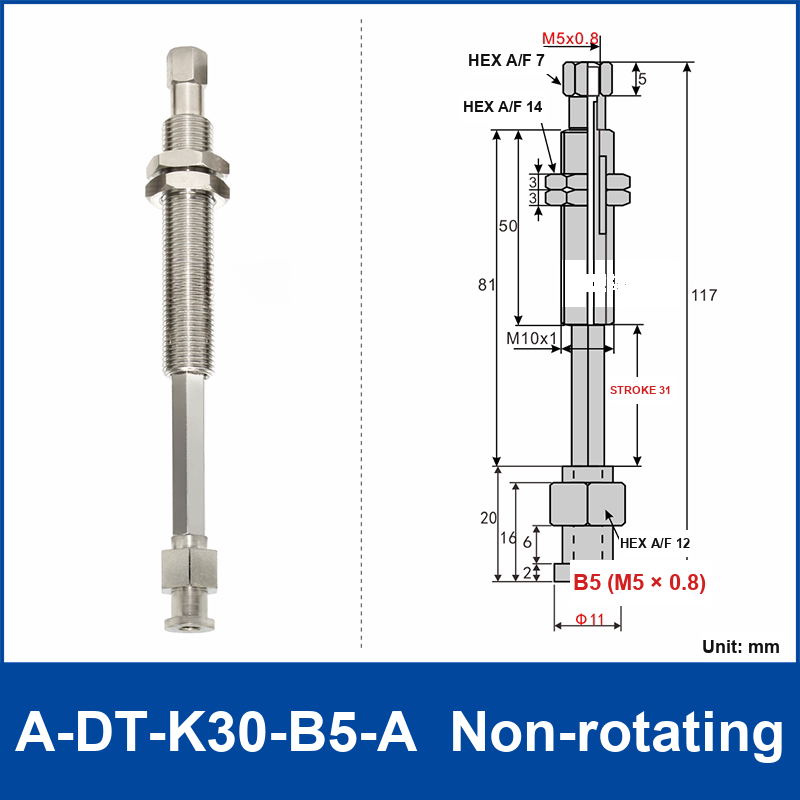

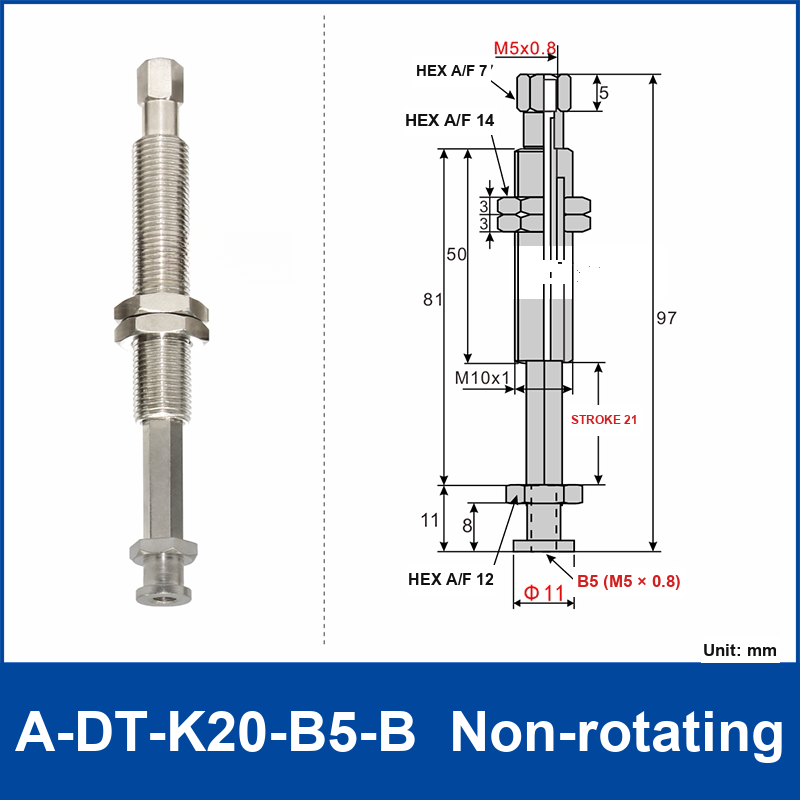

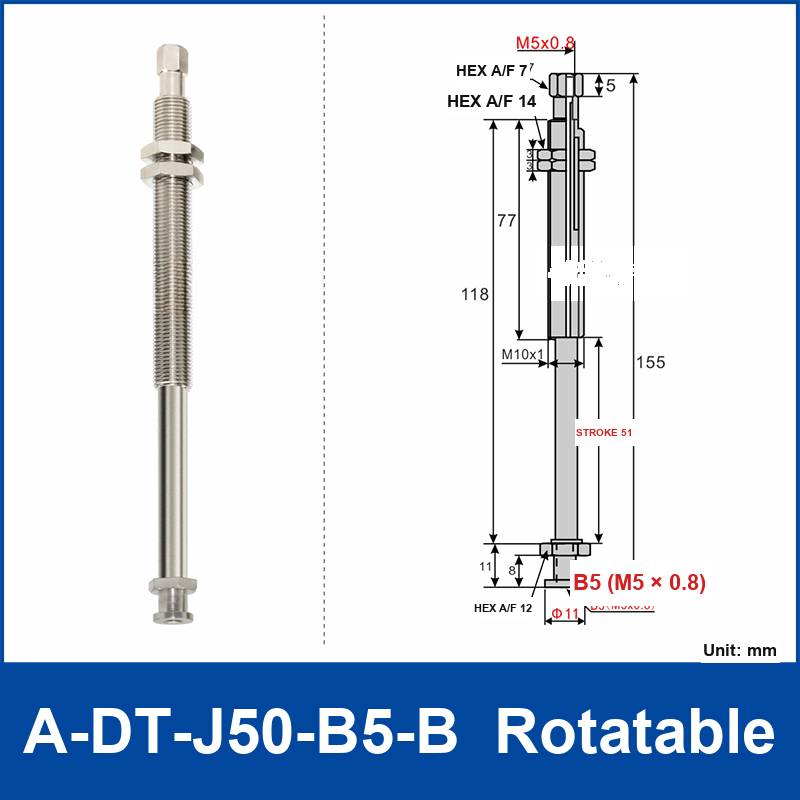

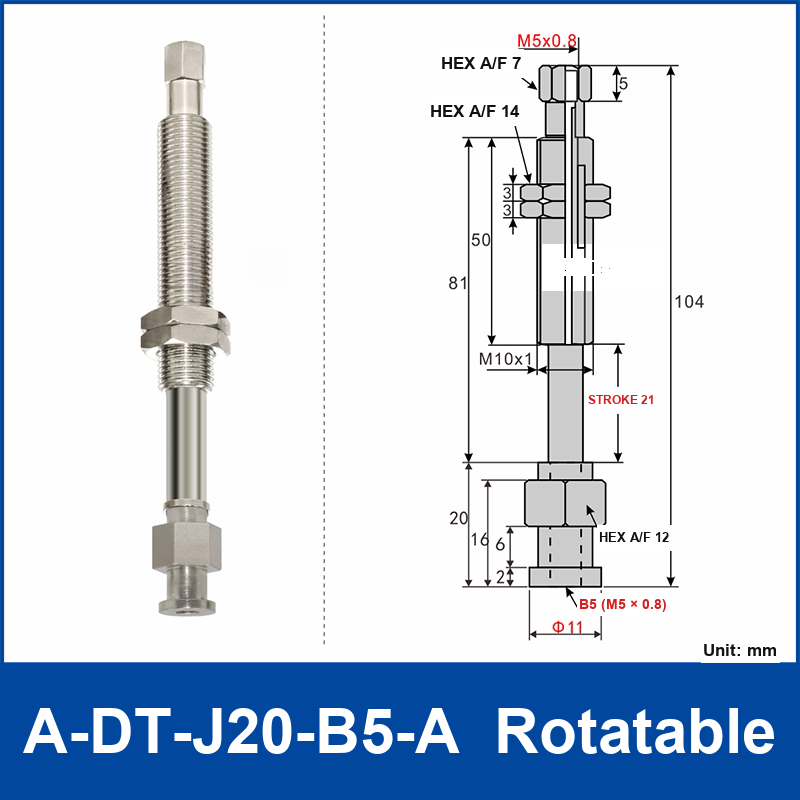

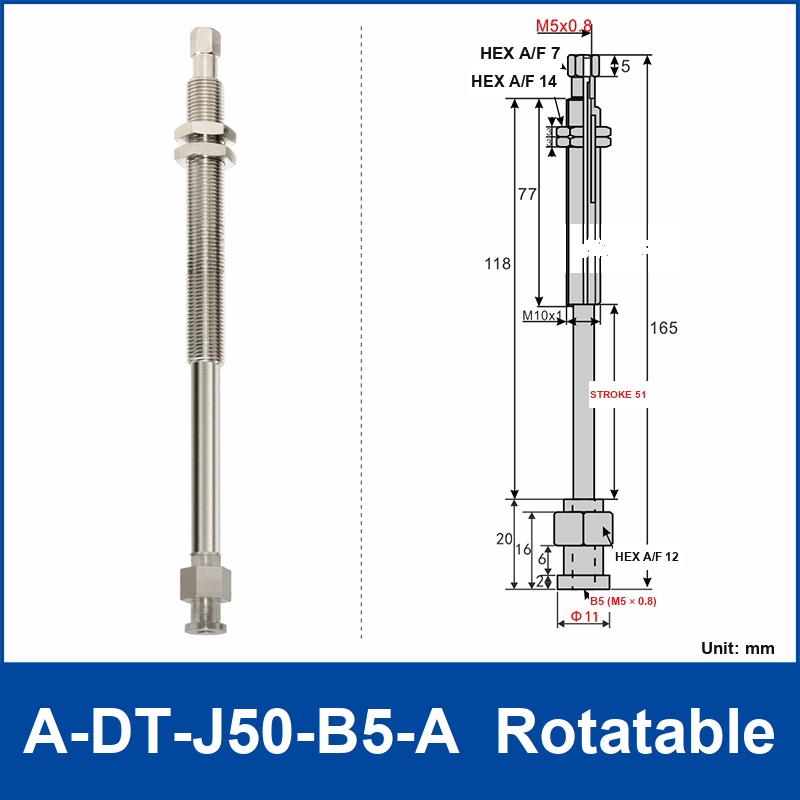

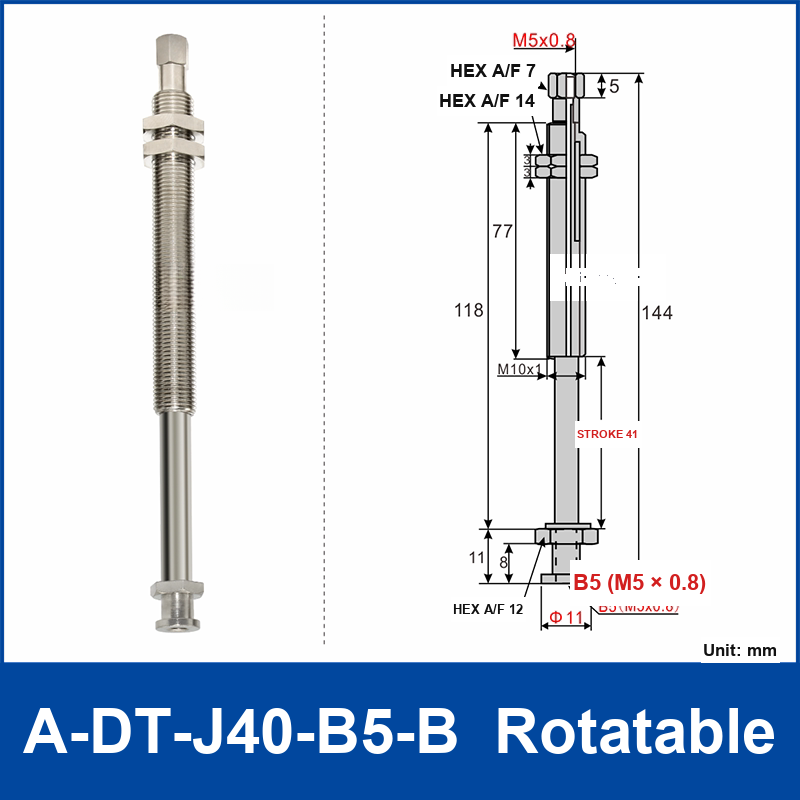

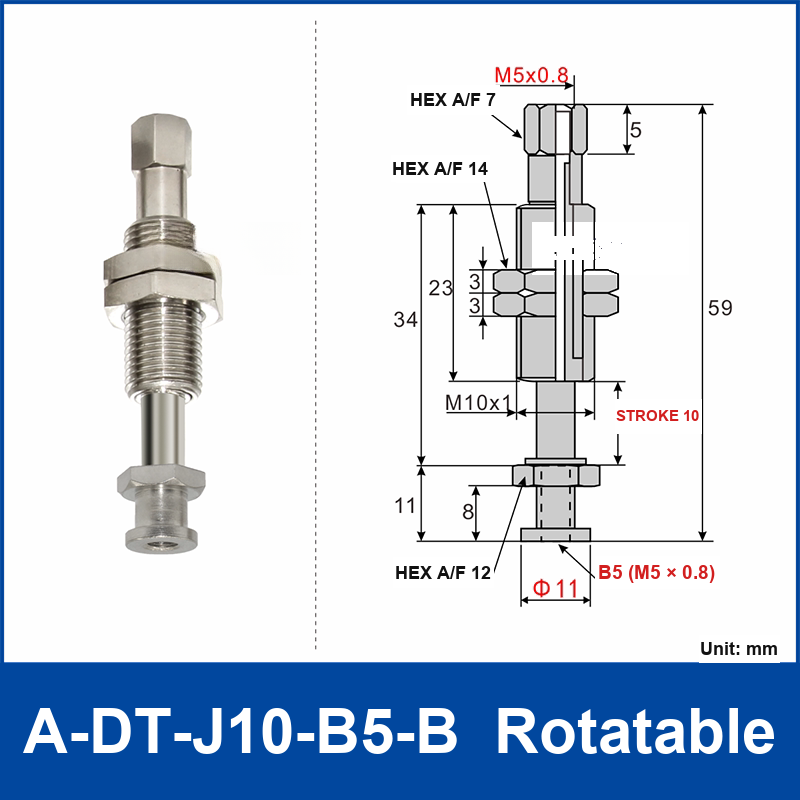

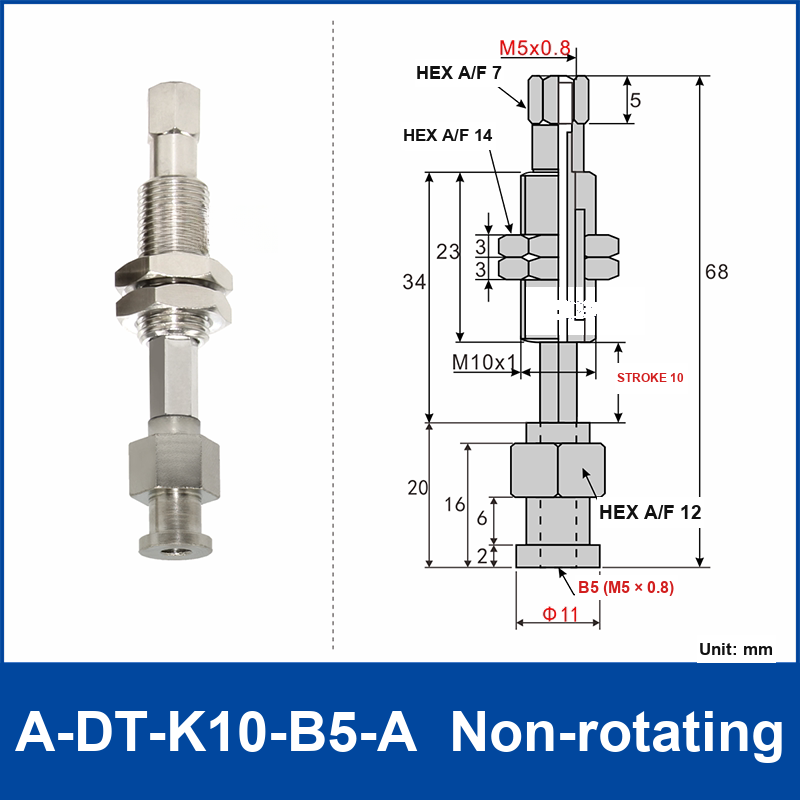

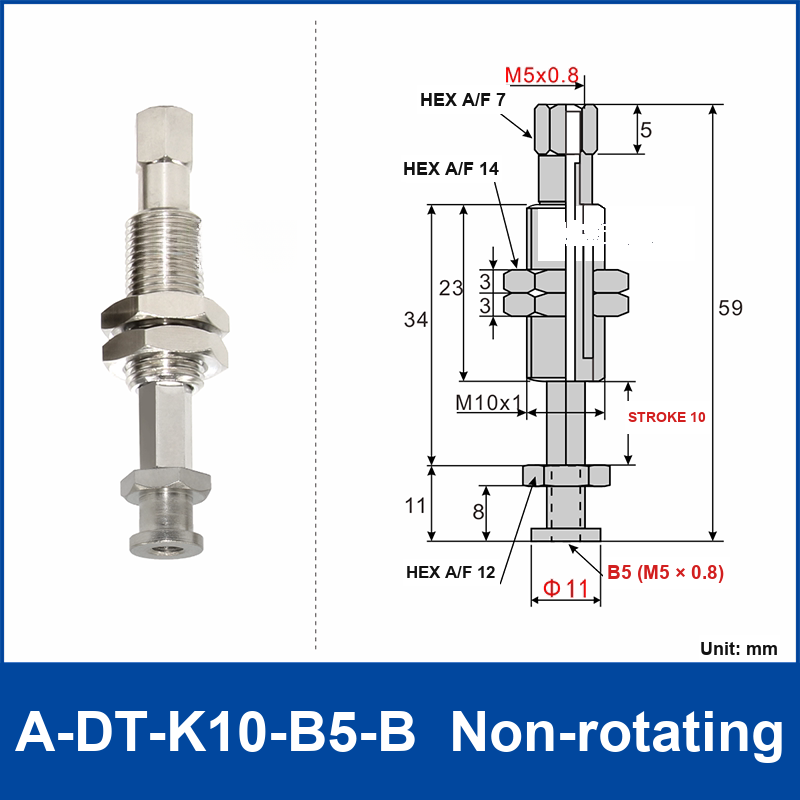

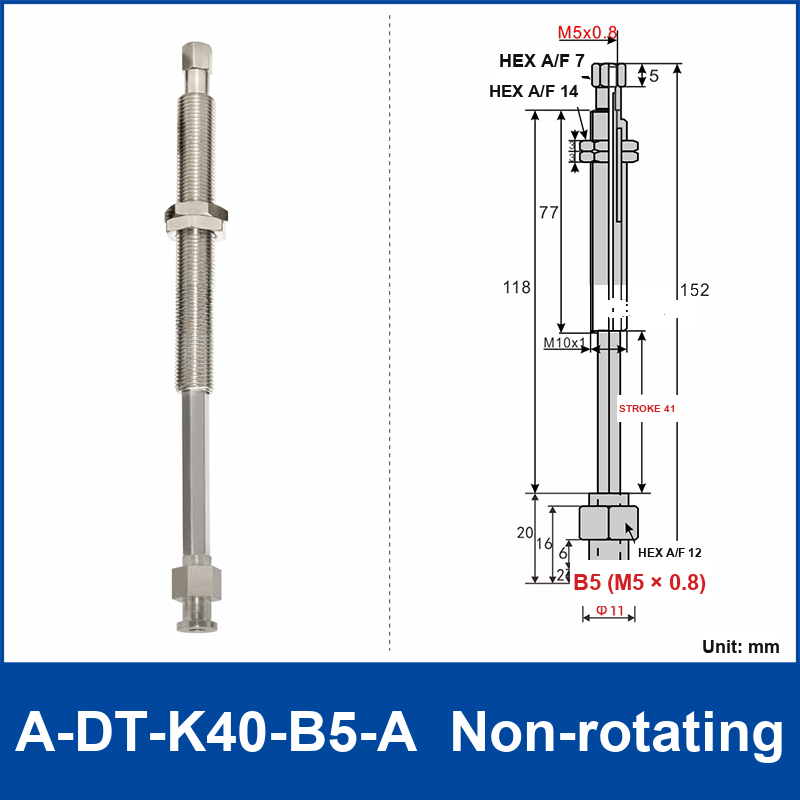

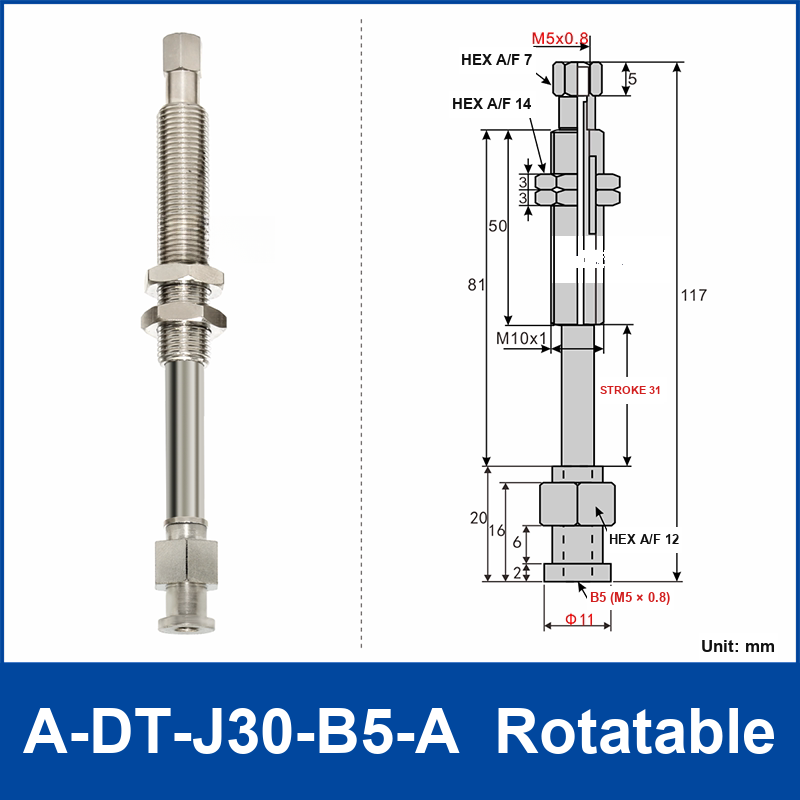

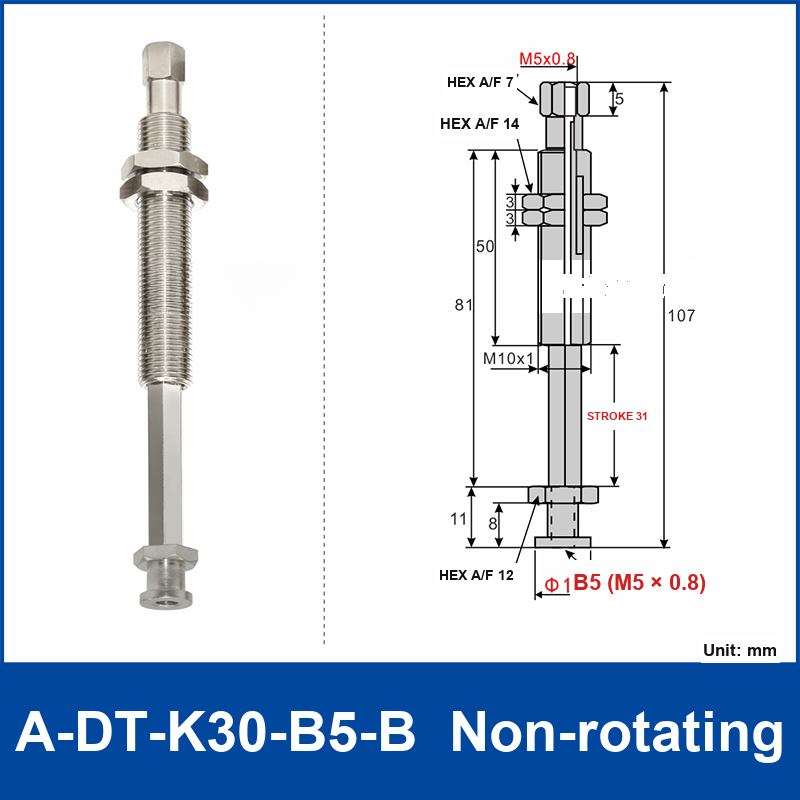

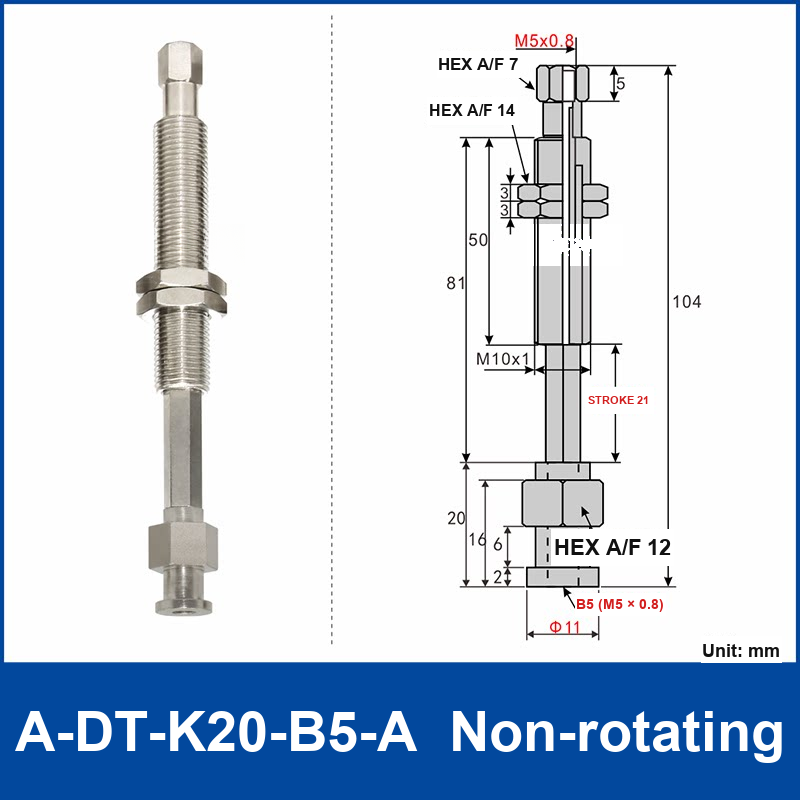

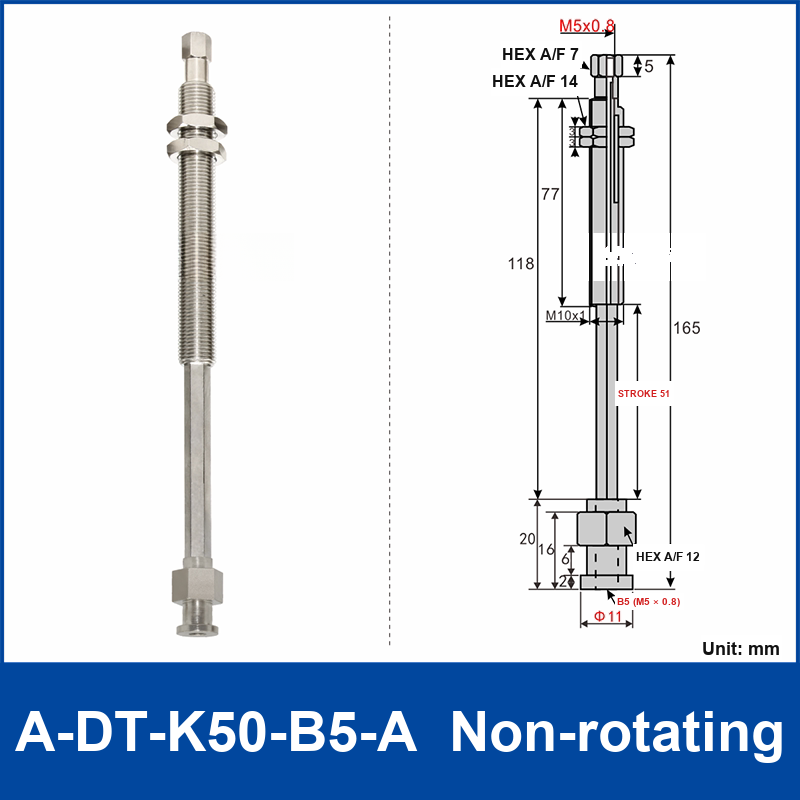

- Confirm connections: check the selected model image for the M5 × 0.8, M10 × 1 and B5 thread callouts, across-flat dimensions and travel reference.
Model code guide
A-DT-[J/K][size]-B5-[A/B]: J or K motion type, size designation, B5 series code and configuration A or B. Each option displays its matching product view and dimensional drawing.
Suitable for
- Compatible robot end-effectors and automation fixtures
- Buffering and mechanical alignment assemblies
- Replacement or retrofit work where the complete drawing has been matched
Before use
Verify the full model code, mating thread, dimensions, travel, installation clearance, motion requirement, load, acceleration and operating environment before installation. No lifting-safety, food-contact, medical or regulatory certification is claimed.
FAQ
How do I choose J or K? Choose J when the rotatable version is required; choose K when a non-rotating version is required. Are A and B interchangeable? Match the full selected drawing and mounting interfaces before ordering; do not assume configurations A and B are interchangeable.
