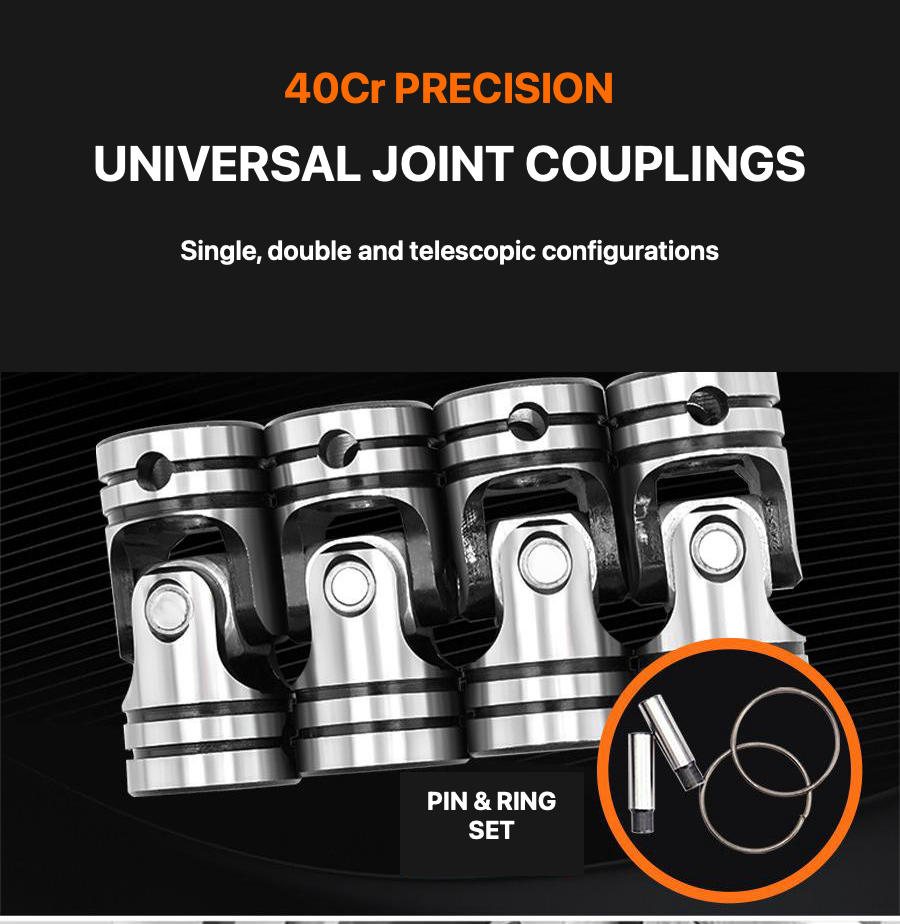

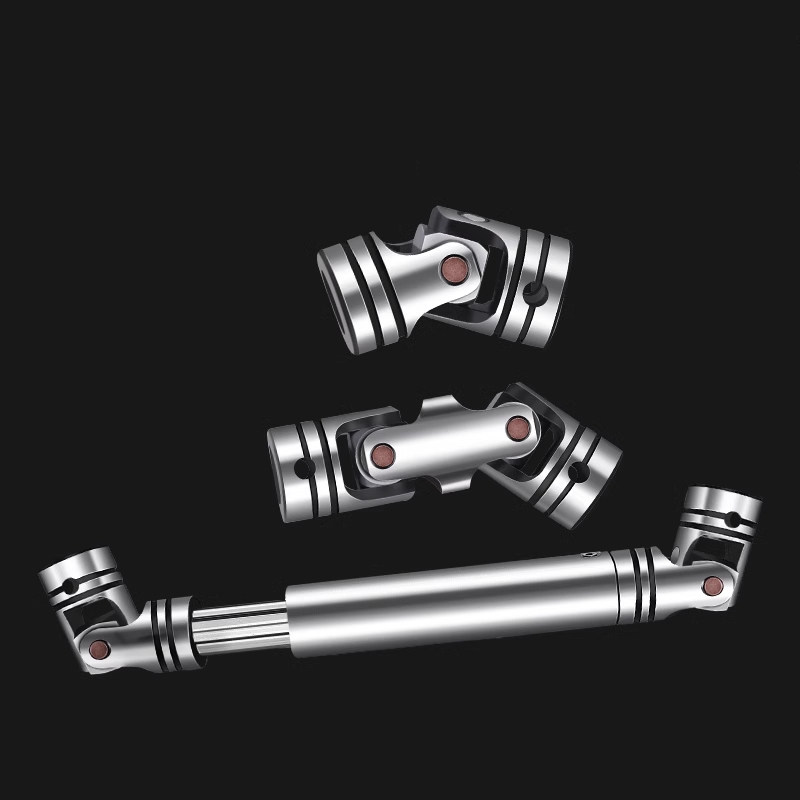

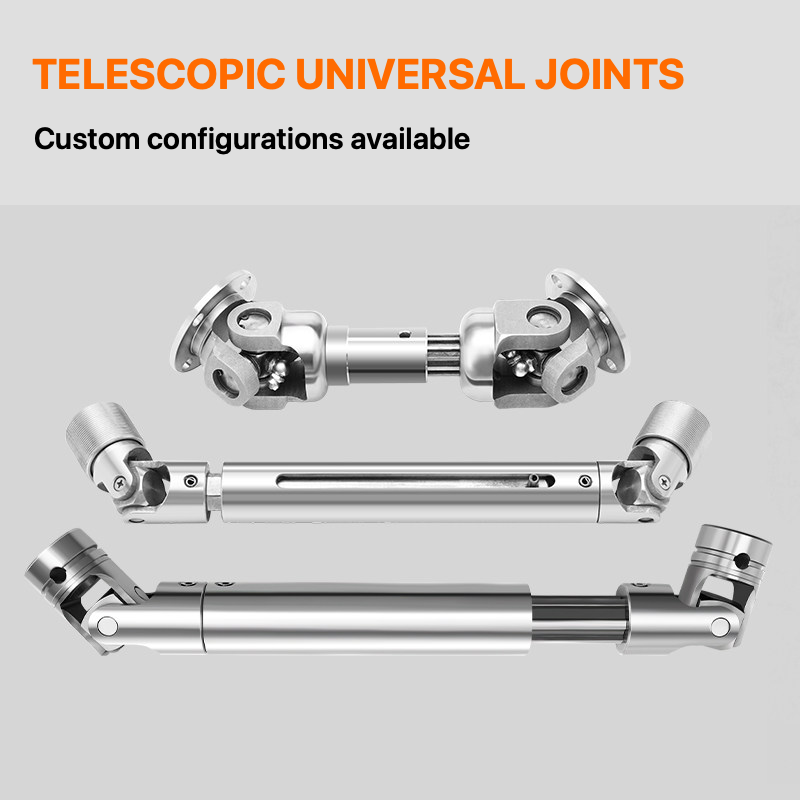

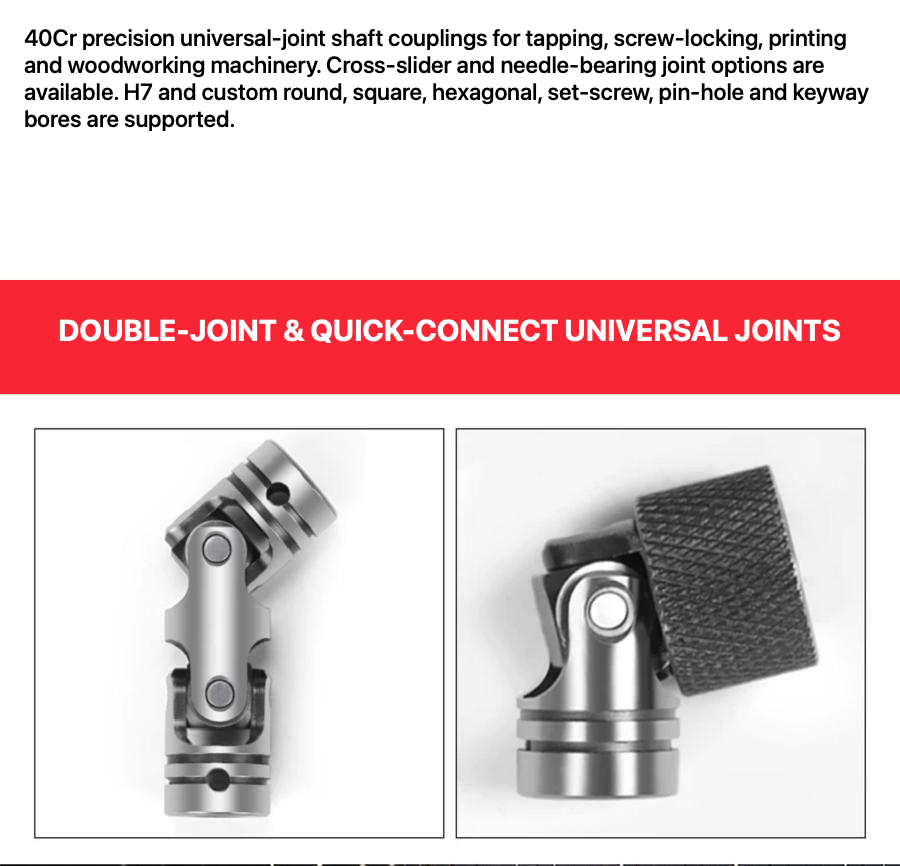

BOLTTE 40Cr Precision Universal Joint Shaft Couplings - Single, Double & Telescopic

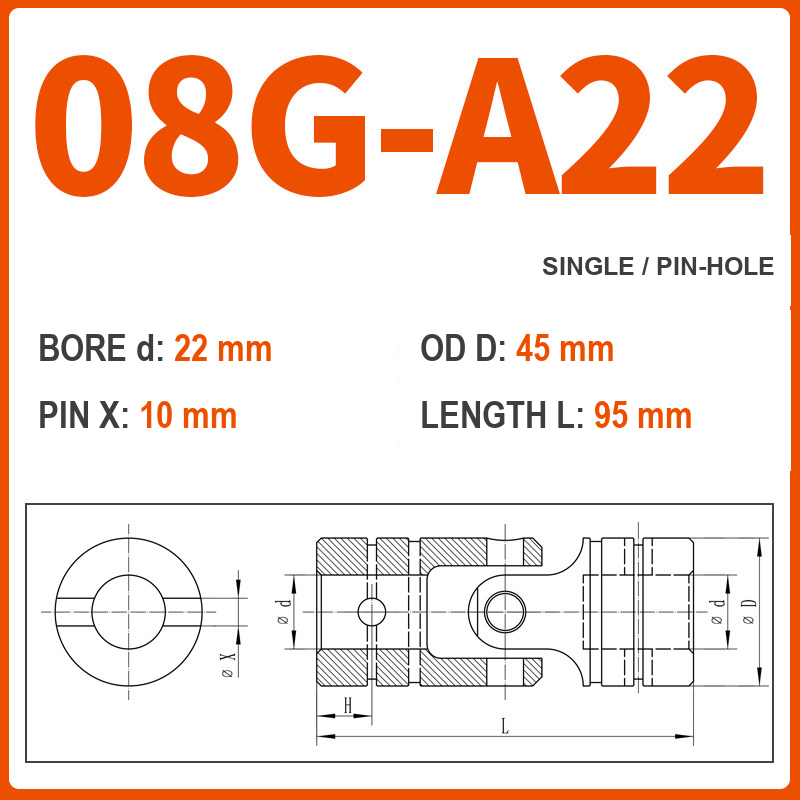

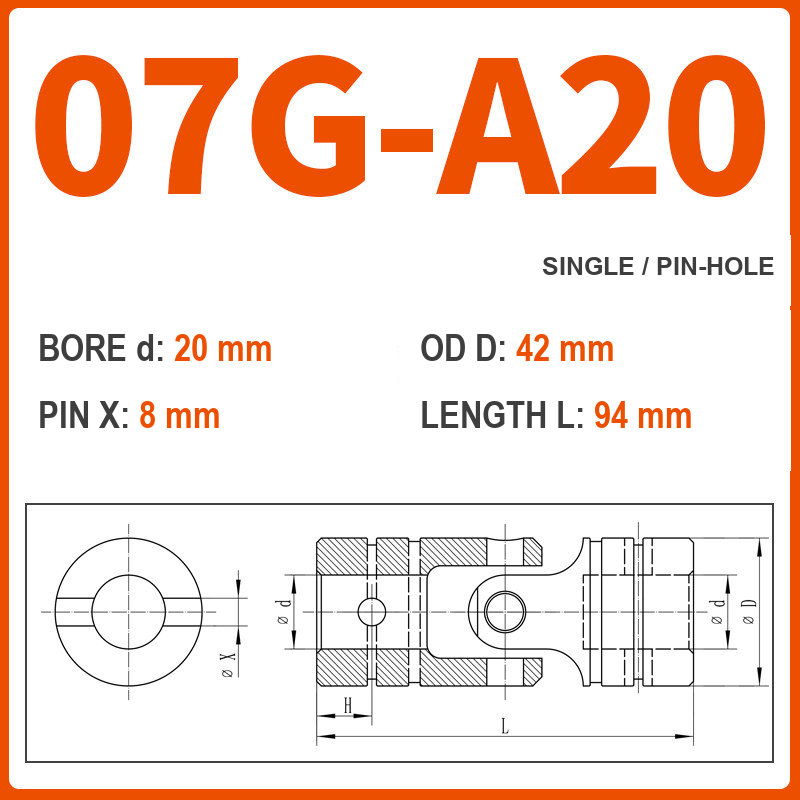

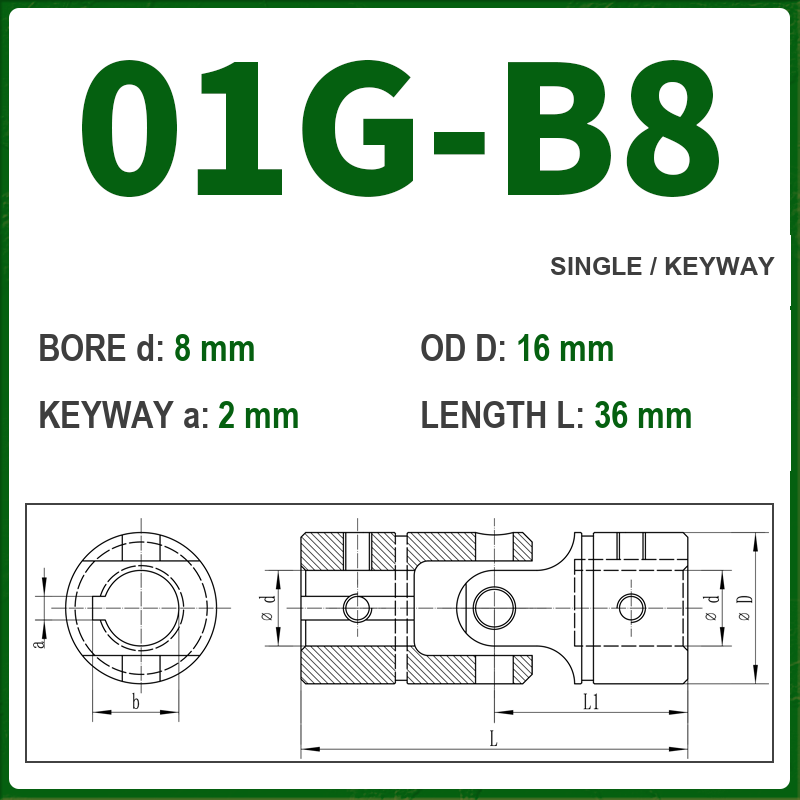

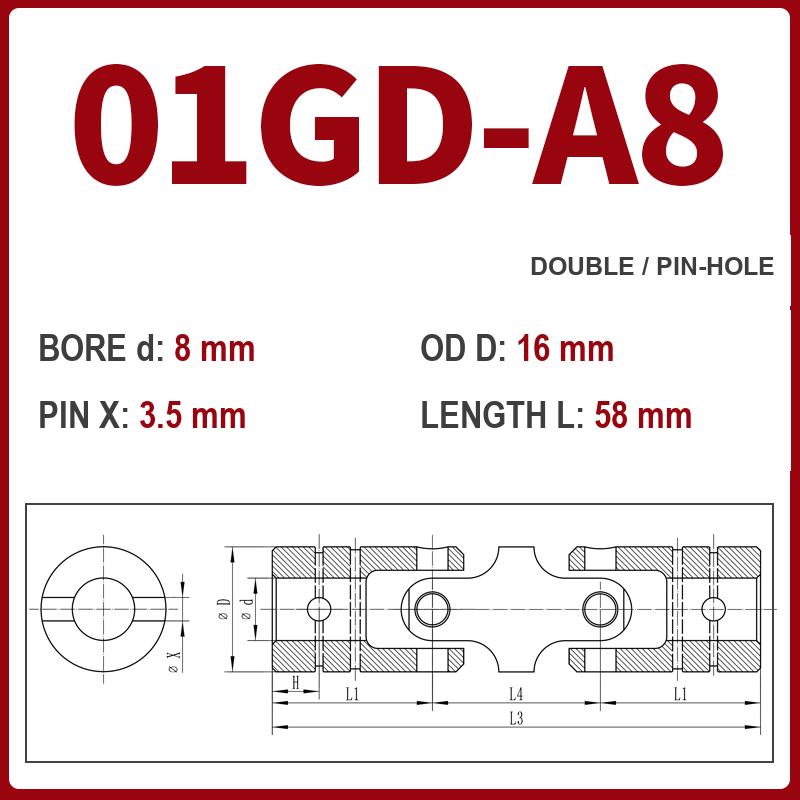

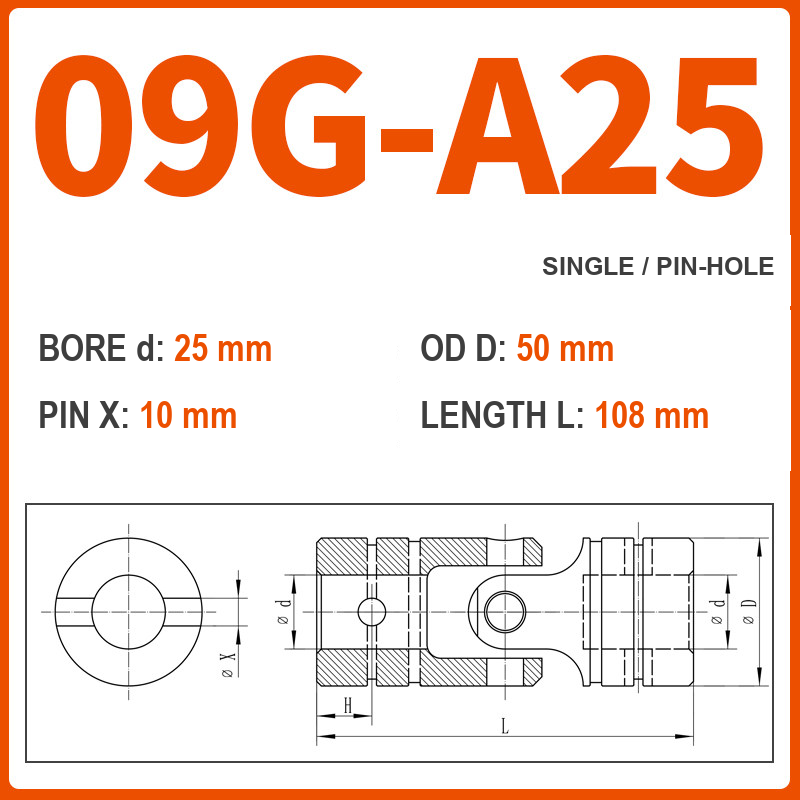

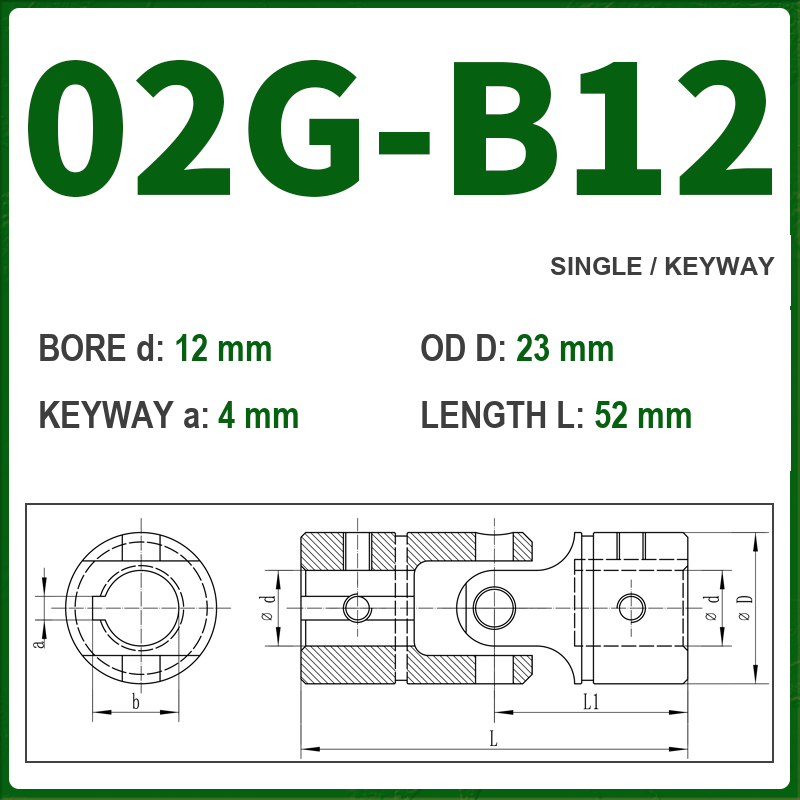

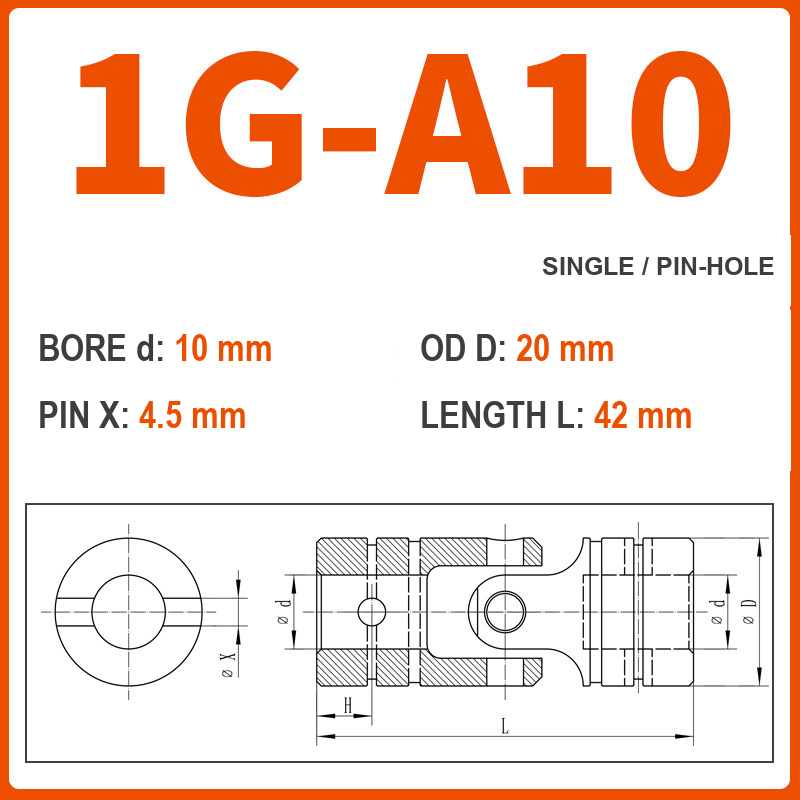

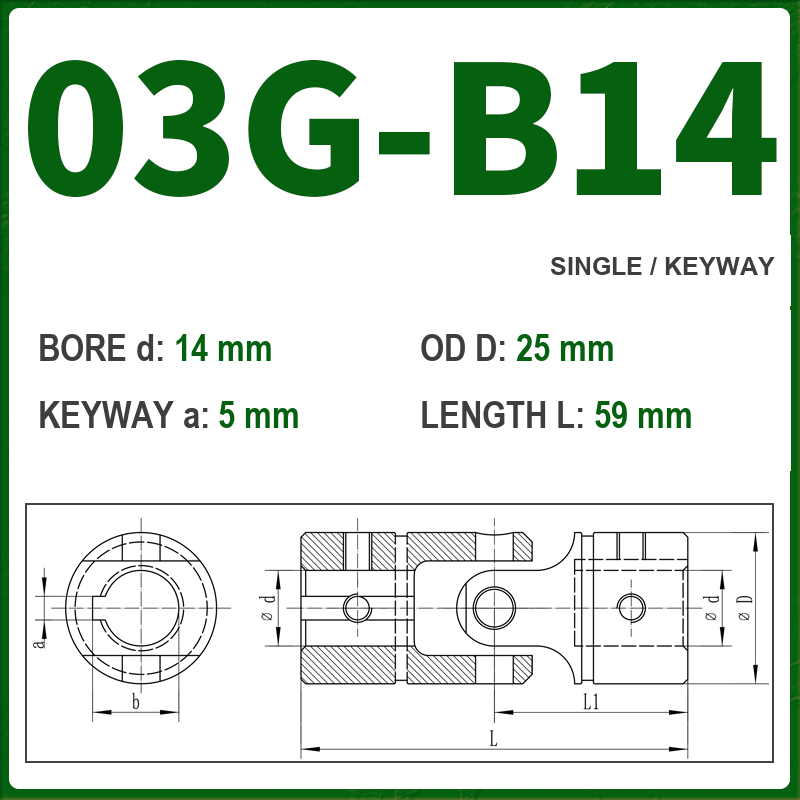

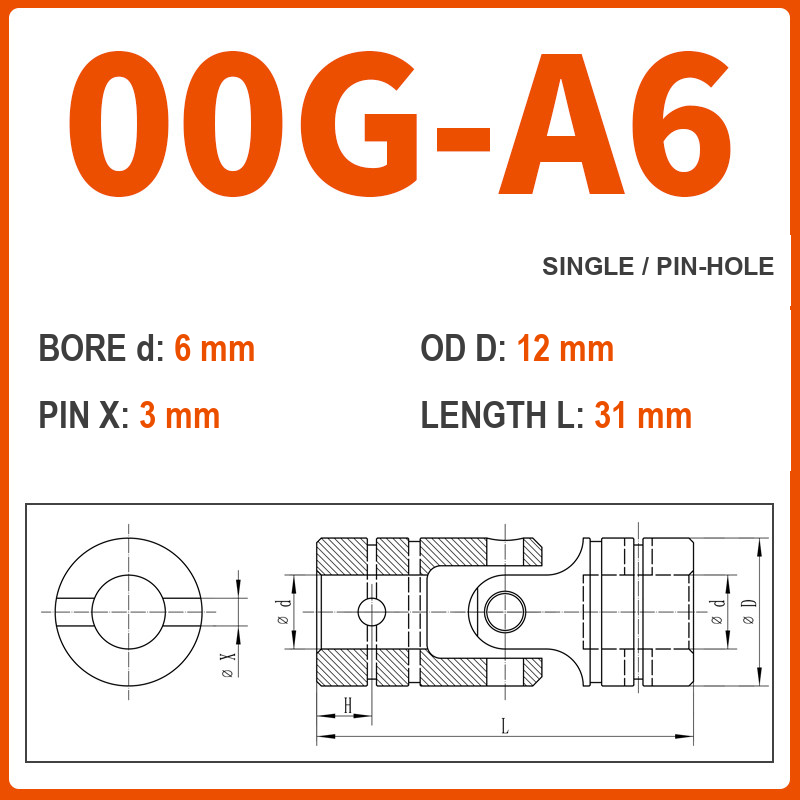

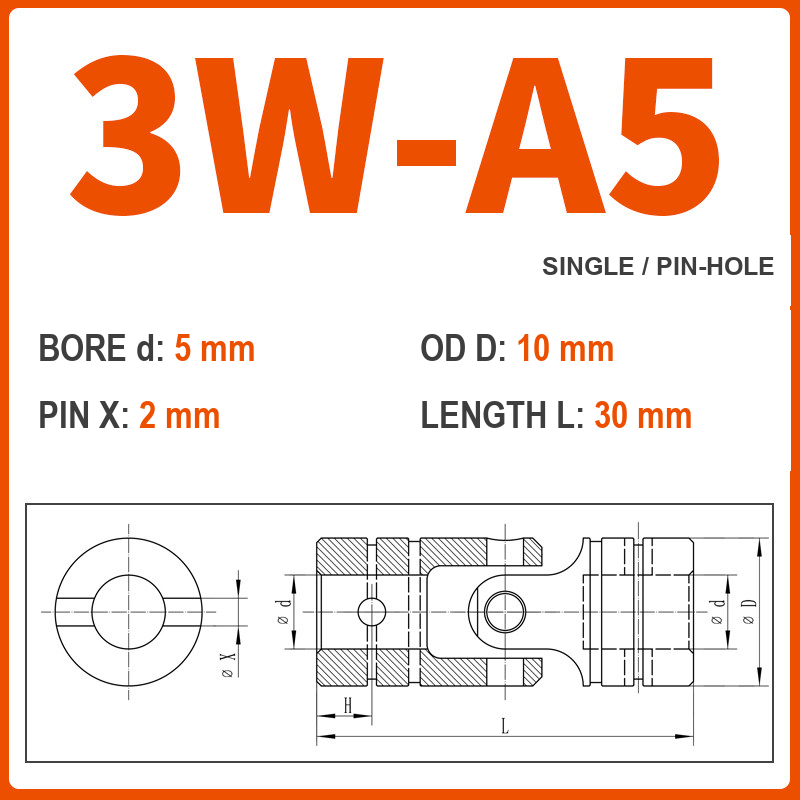

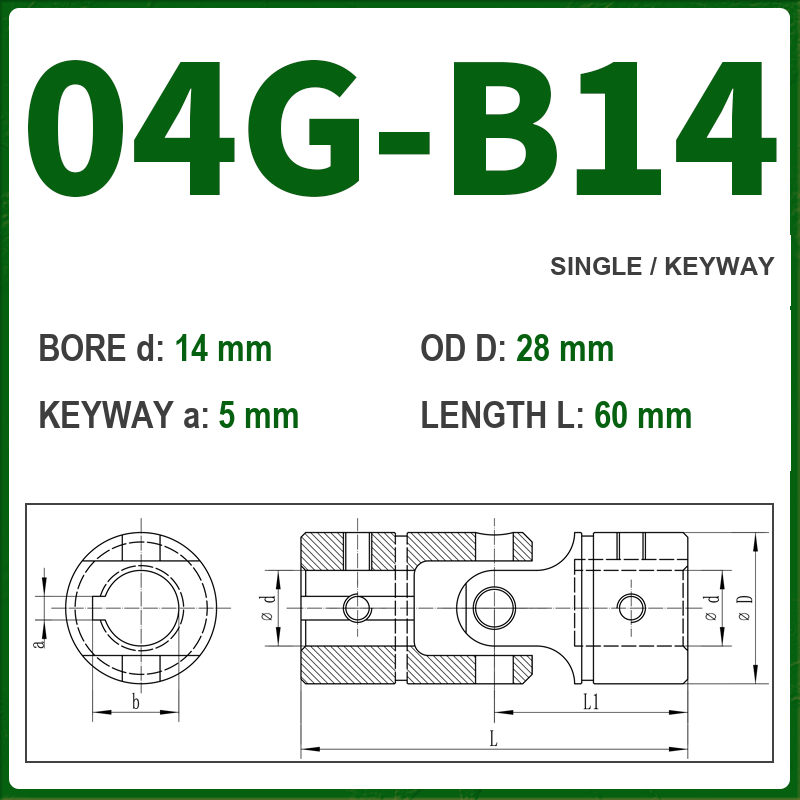

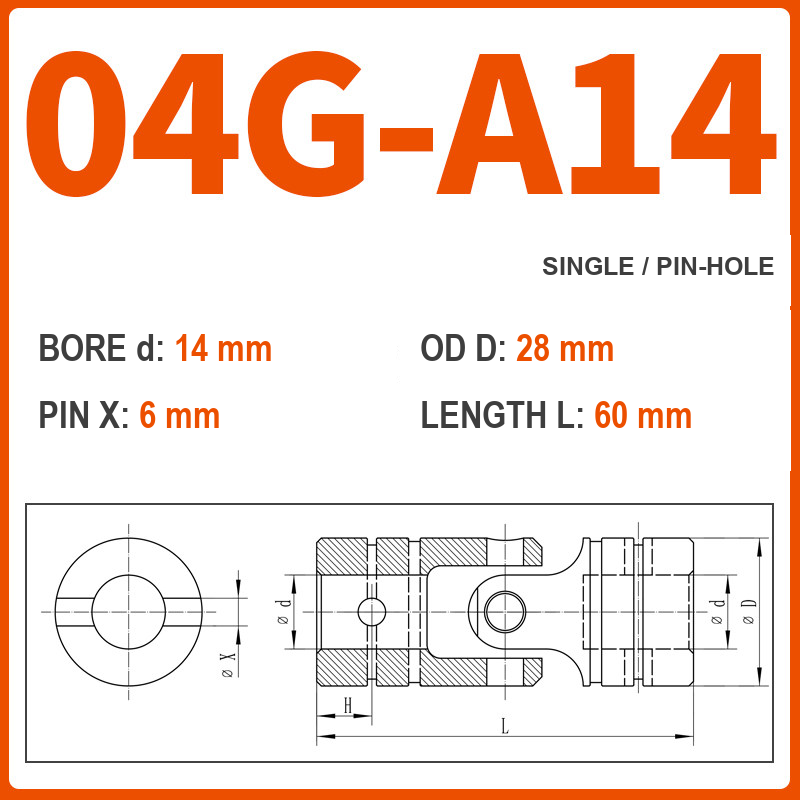

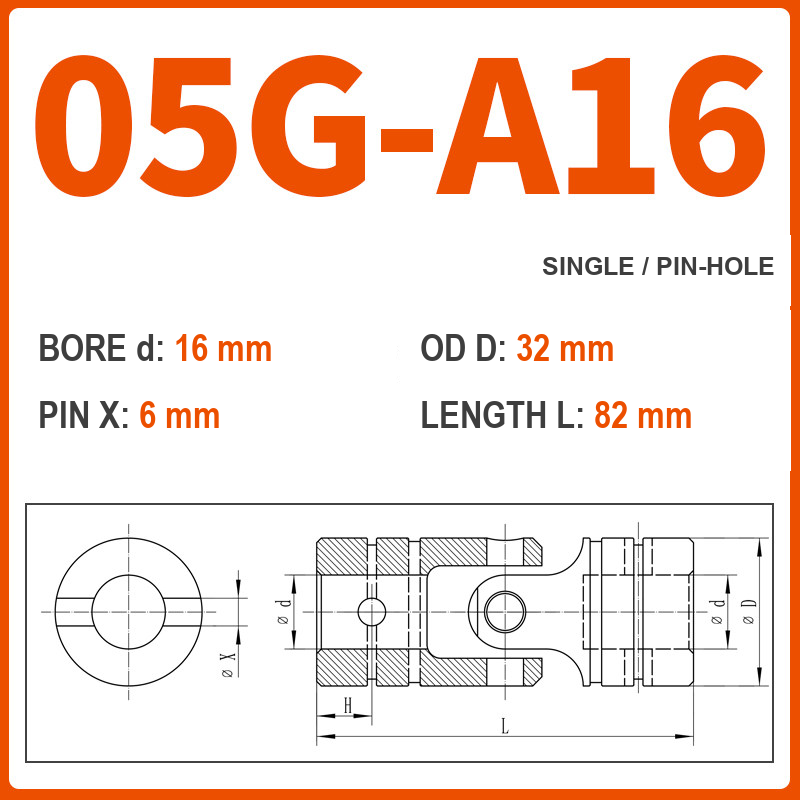

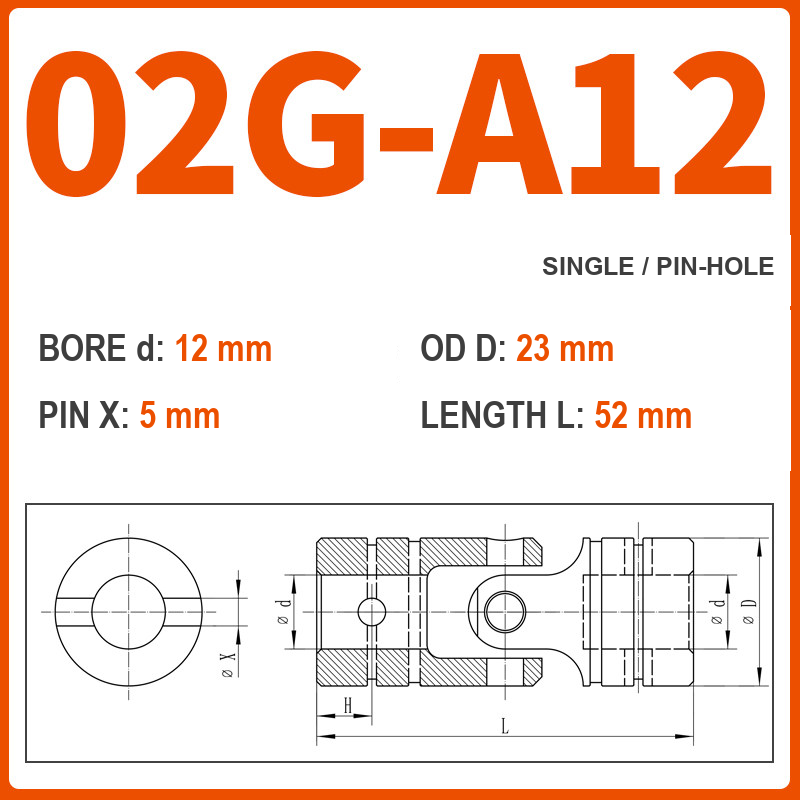

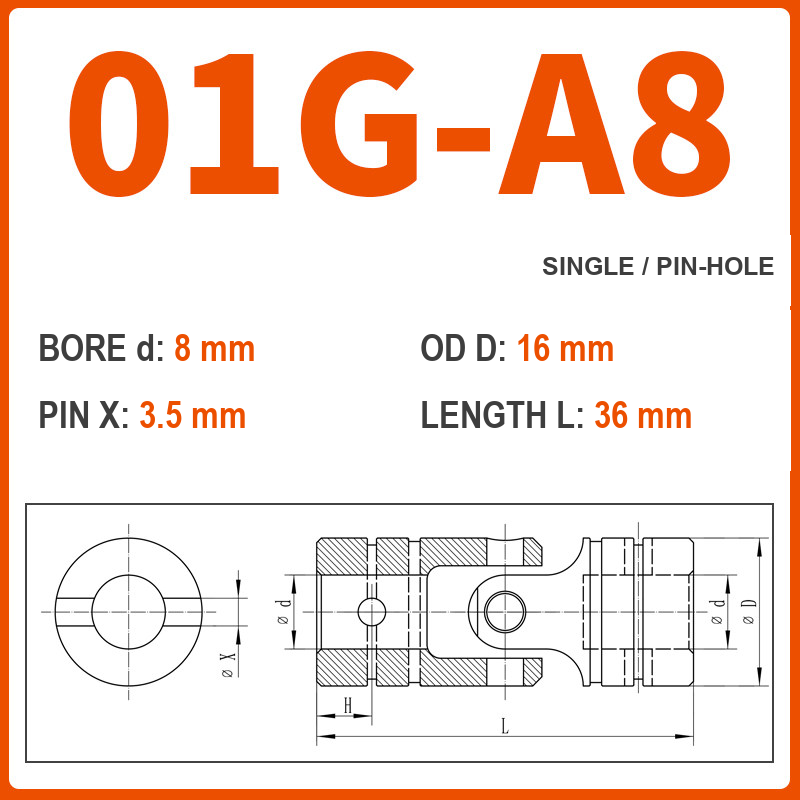

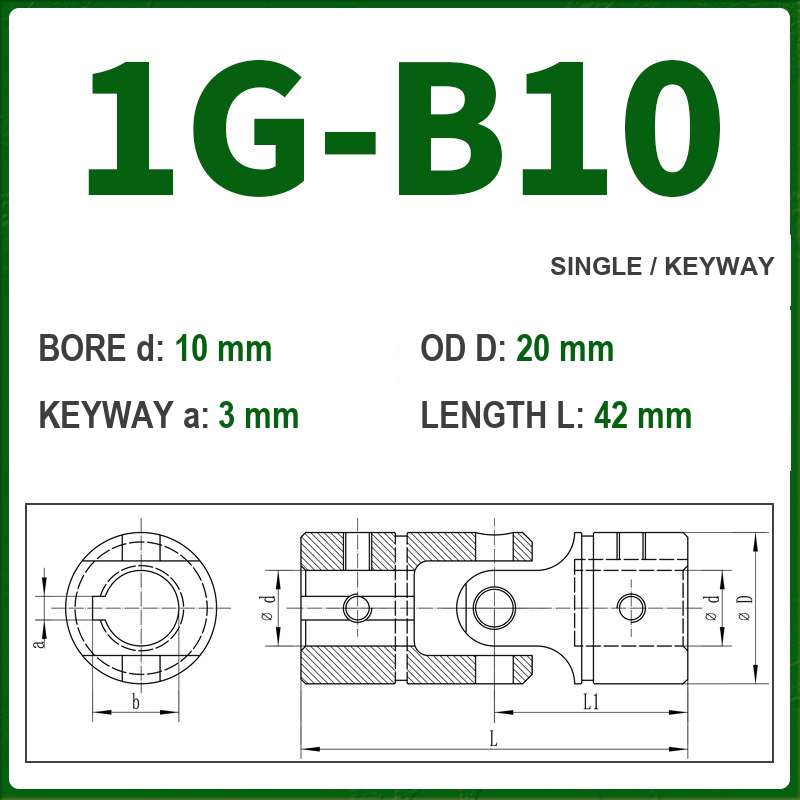

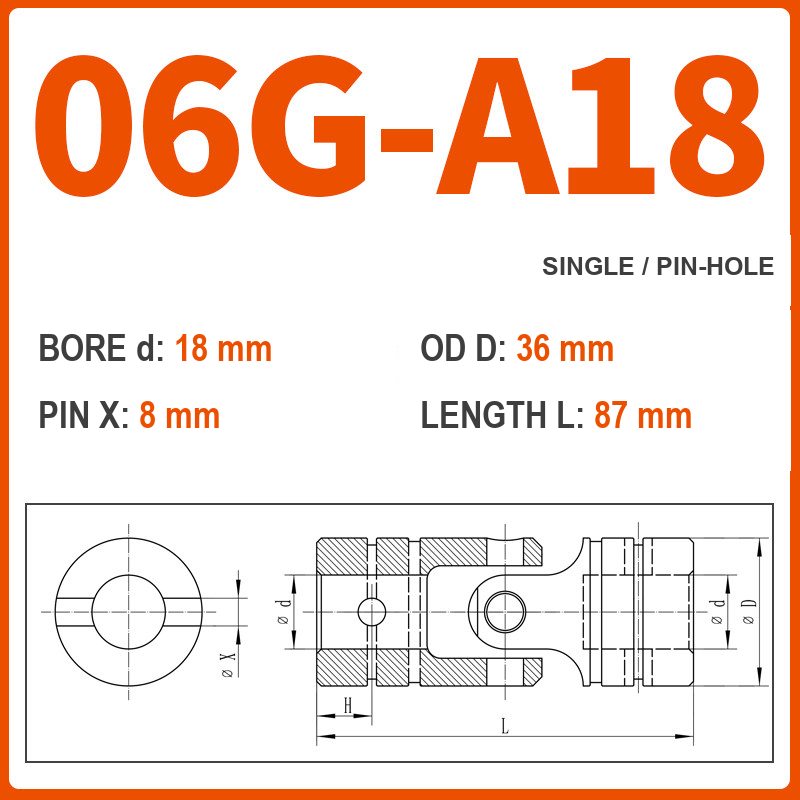

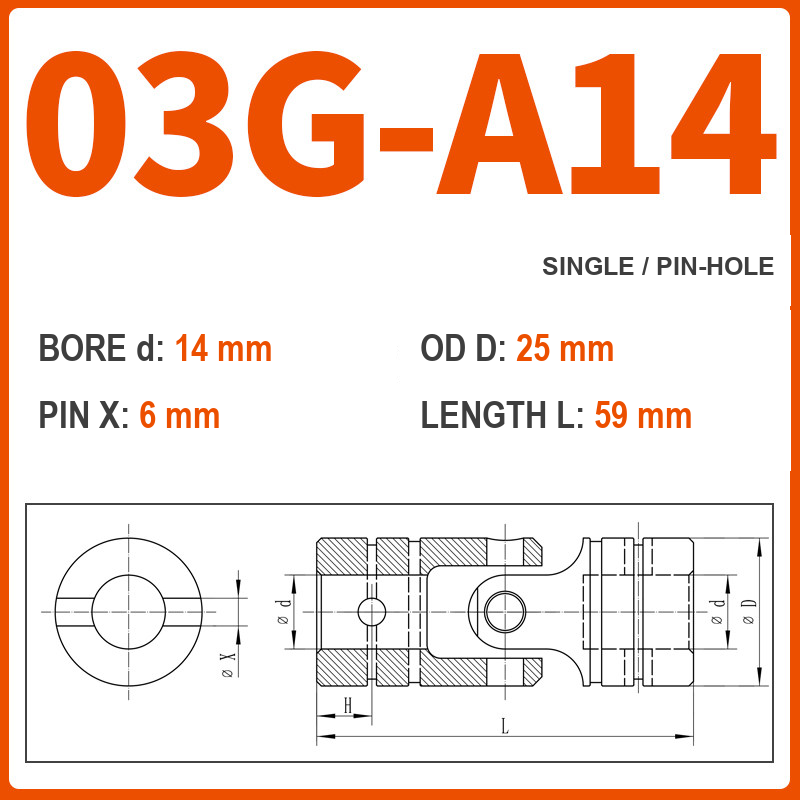

3W-A5 / Single Pin-Hole / Bore 5 x OD 10 x L 30 mm / Pin 2 mm 00G-A6 / Single Pin-Hole / Bore 6 x OD 12 x L 31 mm / Pin 3 mm 01G-A8 / Single Pin-Hole / Bore 8 x OD 16 x L 36 mm / Pin 3.5 mm 01G-A8 / Single Pin-Hole / Bore 8 x OD 16 x L 36 mm / Pin 3.5 mm / Black Oxide 1G-A10 / Single Pin-Hole / Bore 10 x OD 20 x L 42 mm / Pin 4.5 mm 02G-A12 / Single Pin-Hole / Bore 12 x OD 23 x L 52 mm / Pin 5 mm 03G-A14 / Single Pin-Hole / Bore 14 x OD 25 x L 59 mm / Pin 6 mm 04G-A14 / Single Pin-Hole / Bore 14 x OD 28 x L 60 mm / Pin 6 mm 05G-A16 / Single Pin-Hole / Bore 16 x OD 32 x L 82 mm / Pin 6 mm 06G-A18 / Single Pin-Hole / Bore 18 x OD 36 x L 87 mm / Pin 8 mm 07G-A20 / Single Pin-Hole / Bore 20 x OD 42 x L 94 mm / Pin 8 mm 08G-A22 / Single Pin-Hole / Bore 22 x OD 45 x L 95 mm / Pin 10 mm 09G-A25 / Single Pin-Hole / Bore 25 x OD 50 x L 108 mm / Pin 10 mm 01G-B8 / Single Keyway / Bore 8 mm / Keyway 2 mm / OD 16 x L 36 mm 1G-B10 / Single Keyway / Bore 10 mm / Keyway 3 mm / OD 20 x L 42 mm 02G-B12 / Single Keyway / Bore 12 mm / Keyway 4 mm / OD 23 x L 52 mm 03G-B14 / Single Keyway / Bore 14 mm / Keyway 5 mm / OD 25 x L 59 mm 04G-B14 / Single Keyway / Bore 14 mm / Keyway 5 mm / OD 28 x L 60 mm 05G-B16 / Single Keyway / Bore 16 mm / Keyway 5 mm / OD 32 x L 82 mm 06G-B18 / Single Keyway / Bore 18 mm / Keyway 6 mm / OD 36 x L 87 mm 07G-B20 / Single Keyway / Bore 20 mm / Keyway 6 mm / OD 42 x L 94 mm 08G-B22 / Single Keyway / Bore 22 mm / Keyway 6 mm / OD 45 x L 95 mm 09G-B25 / Single Keyway / Bore 25 mm / Keyway 8 mm / OD 50 x L 108 mm 10G-B30 / Single Keyway / Bore 30 mm / Keyway 8 mm / OD 58 x L 122 mm / Black Oxide 00G-Y6 / Single Set-Screw / Bore 6 x OD 12 x L 31 mm / M4 01G-Y8 / Single Set-Screw / Bore 8 x OD 16 x L 36 mm / M5 1G-Y10 / Single Set-Screw / Bore 10 x OD 20 x L 42 mm / M6 00GD-A6 / Double Pin-Hole / Bore 6 x OD 12 x L 49.5 mm / Pin 3 mm 01GD-A8 / Double Pin-Hole / Bore 8 x OD 16 x L 58 mm / Pin 3.5 mm 1GD-A10 / Double Pin-Hole / Bore 10 x OD 20 x L 68 mm / Pin 4.5 mm 02GD-A12 / Double Pin-Hole / Bore 12 x OD 23 x L 83 mm / Pin 5 mm 03GD-A14 / Double Pin-Hole / Bore 14 x OD 25 x L 94 mm / Pin 6 mm 04GD-A14 / Double Pin-Hole / Bore 14 x OD 28 x L 101 mm / Pin 6 mm 05GD-A16 / Double Pin-Hole / Bore 16 x OD 32 x L 125 mm / Pin 6 mm 06GD-A18 / Double Pin-Hole / Bore 18 x OD 36 x L 132 mm / Pin 8 mm 07GD-A20 / Double Pin-Hole / Bore 20 x OD 42 x L 149 mm / Pin 8 mm 08GD-A22 / Double Pin-Hole / Bore 22 x OD 45 x L 150 mm / Pin 10 mm 09GD-A25 / Double Pin-Hole / Bore 25 x OD 50 x L 173 mm / Pin 10 mm 10GD-A30 / Double Pin-Hole / Bore 30 x OD 58 x L 200 mm / Pin 12 mm 01GD-B8 / Double Keyway / Bore 8 mm / Keyway 2 mm / OD 16 x L 58 mm 1GD-B10 / Double Keyway / Bore 10 mm / Keyway 3 mm / OD 20 x L 68 mm 02GD-B12 / Double Keyway / Bore 12 mm / Keyway 4 mm / OD 23 x L 83 mm 03GD-B14 / Double Keyway / Bore 14 mm / Keyway 5 mm / OD 25 x L 94 mm 04GD-B14 / Double Keyway / Bore 14 mm / Keyway 5 mm / OD 28 x L 101 mm 05GD-B16 / Double Keyway / Bore 16 mm / Keyway 5 mm / OD 32 x L 125 mm 06GD-B18 / Double Keyway / Bore 18 mm / Keyway 5 mm / OD 36 x L 132 mm 07GD-B20 / Double Keyway / Bore 20 mm / Keyway 6 mm / OD 42 x L 149 mm 08GD-B22 / Double Keyway / Bore 22 mm / Keyway 6 mm / OD 45 x L 150 mm 09GD-B25 / Double Keyway / Bore 25 mm / Keyway 8 mm / OD 50 x L 173 mm 10GD-B30 / Double Keyway / Bore 30 mm / Keyway 8 mm / OD 58 x L 200 mm 01GR-8K3 / Single Quick-Release / d1 8 mm / d2 8K3 / OD 16 x L 38 mm 01GR-SW8 / Single Quick-Release / d1 8 mm / d2 SW8 / OD 16 x L 38 mm 1GR-10K4 / Single Quick-Release / d1 10 mm / d2 10K4 / OD 20 x L 42 mm 1GR-SW10 / Single Quick-Release / d1 10 mm / d2 SW10 / OD 20 x L 42 mm 02GR-12K4 / Single Quick-Release / d1 12 mm / d2 12K4 / OD 23 x L 52 mm 02GR-SW12 / Single Quick-Release / d1 12 mm / d2 SW12 / OD 23 x L 52 mm 01GA-A8-L130/170 / Telescopic Pin-Hole / Bore 8 x OD 16 mm / End L2 36 mm / Range 130-170 mm 1GA-A10-L150/200 / Telescopic Pin-Hole / Bore 10 x OD 20 mm / End L2 42 mm / Range 150-200 mm 02GA-A12-L160/190 / Telescopic Pin-Hole / Bore 12 x OD 23 mm / End L2 52 mm / Range 160-190 mm 03GA-A14-L170/200 / Telescopic Pin-Hole / Bore 14 x OD 25 mm / End L2 59 mm / Range 170-200 mm 04GA-A14-L190/210 / Telescopic Pin-Hole / Bore 14 x OD 28 mm / End L2 60 mm / Range 190-210 mm 05GA-A16-L230/280 / Telescopic Pin-Hole / Bore 16 x OD 32 mm / End L2 82 mm / Range 230-280 mm 06GA-A18-L250/300 / Telescopic Pin-Hole / Bore 18 x OD 36 mm / End L2 87 mm / Range 250-300 mm 07GA-A20-L250/280 / Telescopic Pin-Hole / Bore 20 x OD 42 mm / End L2 94 mm / Range 250-280 mm 08GA-A22-L295/345 / Telescopic Pin-Hole / Bore 22 x OD 45 mm / End L2 95 mm / Range 295-345 mm 09GA-A25-L330/380 / Telescopic Pin-Hole / Bore 25 x OD 50 mm / End L2 108 mm / Range 330-380 mm 01GA-B8-L130/170 / Telescopic Keyway / Bore 8 x OD 16 mm / End L2 36 mm / Range 130-170 mm 1GA-B10-L150/200 / Telescopic Keyway / Bore 10 x OD 20 mm / End L2 42 mm / Range 150-200 mm 02GA-B12-L160/190 / Telescopic Keyway / Bore 12 x OD 23 mm / End L2 52 mm / Range 160-190 mm 03GA-B14-L170/200 / Telescopic Keyway / Bore 14 x OD 25 mm / End L2 59 mm / Range 170-200 mm 04GA-B14-L190/210 / Telescopic Keyway / Bore 14 x OD 28 mm / End L2 60 mm / Range 190-210 mm 05GA-B16-L230/280 / Telescopic Keyway / Bore 16 x OD 32 mm / End L2 82 mm / Range 230-280 mm 06GA-B18-L250/300 / Telescopic Keyway / Bore 18 x OD 36 mm / End L2 87 mm / Range 250-300 mm 07GA-B20-L250/280 / Telescopic Keyway / Bore 20 x OD 42 mm / End L2 94 mm / Range 250-280 mm 08GA-B22-L295/345 / Telescopic Keyway / Bore 22 x OD 45 mm / End L2 95 mm / Range 295-345 mm 09GA-B25-L290/340 / Telescopic Keyway / Bore 25 x OD 50 mm / End L2 108 mm / Range 290-340 mm 09GA-B25-L330/380 / Telescopic Keyway / Bore 25 x OD 50 mm / End L2 108 mm / Range 330-380 mm
