BOLTTE Aluminum Jaw Couplings - 14-120 mm Outer Diameter

$34.00 USD $25.50 USD 25% OFF
Bereken bezorgkosten bij het afrekenen
BOLTTE Aluminum Jaw Couplings - 14-120 mm Outer Diameter
Model
Hoeveelheid
WhatsApp

BOLTTE Aluminum Jaw Couplings - 14-120 mm Outer Diameter

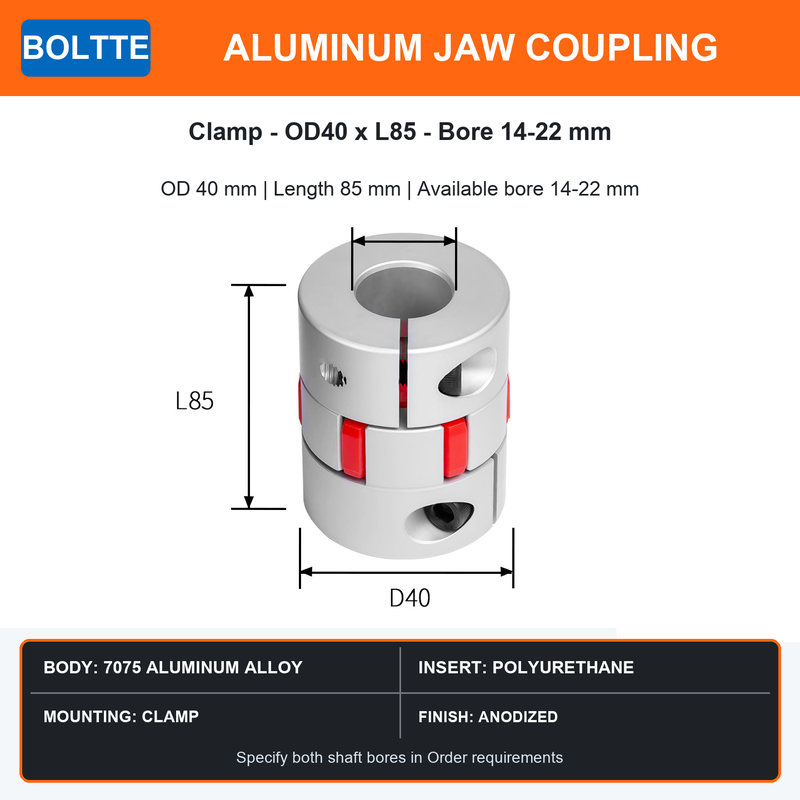

BOLTTE aluminum jaw couplings use 7075 aluminum-alloy hubs and a polyurethane insert for shaft-to-shaft connections. Select the exact model by mounting method, outer diameter, length and available bore range.

Model selection

  • Outer diameter range: 14 mm to 120 mm.
  • Length range: 22 mm to 160 mm.
  • Available bore range is listed separately for every model.
  • Mounting types include set-screw, clamp and three-jaw clamp configurations as shown by model.
  • Models OD80 x L130, OD95 x L126, OD105 x L140 and OD120 x L160 are unanodized by default; the remaining listed models are anodized.

Aluminum jaw coupling selection: fastening affects bore range

Select the hub fastening method before choosing the bore. The OD14 x L22 set-screw and clamp versions illustrate why outside dimensions alone do not identify the correct configuration.

Selection detailWhat to check
Set Screw / OD14 x L22Listed with a 3–8 mm available bore range.
Clamp / OD14 x L22Listed with a 3–6 mm available bore range.
Two shaft endsSpecify Bore 1 and Bore 2 and confirm any keyway and shaft-fit requirements.

Is any polyurethane spider suitable as a replacement?

No. Match the insert geometry, series and size to the actual hubs and confirm operating requirements. Similar colour or outside diameter is not sufficient.

Related selection references

Compare the drawings and intended function; these references are not a statement of direct interchangeability.

Order requirements

  • Enter Shaft Bore 1 and Shaft Bore 2 for the selected model; the two bores may be different within its listed range.
  • If a keyway is required, enter the keyway dimensions.
  • Confirm shaft diameters, alignment, clearance, speed, torque, fastening method and operating environment before installation.

All dimensions are shown in millimetres. Verify both shaft interfaces and the selected model before use.

BOLTTE aluminum jaw couplings product overview LM series aluminum jaw coupling product range Aluminum alloy zero-backlash jaw coupling Aluminum jaw coupling technical summary and model format Jaw coupling materials machining and configurations H7 bore inspection for aluminum jaw couplings Optional keyway and 3D chamfer details Polyurethane spider insert configurations Spider insert size chart for LM couplings LM coupling dimensions and torque data for 14 to 45 mm outer diameter LM coupling dimensions and torque data for 55 to 120 mm outer diameter Standard bore and keyway dimensions

Model / configuratie / SKU

BOLTTE Aluminum Jaw Couplings - 14-120 mm Outer Diameter
Model / configuratieSKU
Set Screw - OD14 x L22 - Bore 3-8 mm 3815209883859
Clamp - OD14 x L22 - Bore 3-6 mm 5218086476561
Clamp - OD20 x L25 - Bore 4-10 mm 3815209883848
Clamp - OD20 x L30 - Bore 4-10 mm 3815209883849
Clamp - OD25 x L30 - Bore 4-14 mm 3815209883850
Clamp - OD25 x L35 - Bore 4-14 mm 3815209883851
Clamp - OD30 x L35 - Bore 5-16 mm 3815209883852
Clamp - OD30 x L42 - Bore 5-16 mm 3815209883853
3-Jaw Clamp - OD30 x L35 - Bore 5-16 mm 5218086476559
3-Jaw Clamp - OD30 x L40 - Bore 5-16 mm 5218086476560
Clamp - OD35 x L40 - Bore 6-19 mm 6170898398445
Clamp - OD35 x L50 - Bore 8-19 mm 3815209883854
Clamp - OD40 x L40 - Bore 6-25 mm 4908010908966
Clamp - OD40 x L45 - Bore 6-22 mm 4908010908965
Clamp - OD40 x L50 - Bore 6-25 mm 3815209883855
Clamp - OD40 x L55 - Bore 6-25 mm 3815209883856
Clamp - OD40 x L60 - Bore 6-22 mm 5218086476555
Clamp - OD40 x L66 - Bore 6-25 mm 3815209883857
Clamp - OD40 x L75 - Bore 14-22 mm 3815209883858
Clamp - OD40 x L85 - Bore 14-22 mm 5665928314000
Clamp - OD45 x L55 - Bore 8-25 mm 3815209883860
Clamp - OD45 x L66 - Bore 8-25 mm 3815209883861
Clamp - OD45 x L75 - Bore 14-25 mm 3815209883862
Clamp - OD45 x L85 - Bore 14-25 mm 3815209883863
Clamp - OD55 x L55 - Bore 12-30 mm 5218086476554
Clamp - OD55 x L60 - Bore 12-30 mm 5218086476562
Clamp - OD55 x L66 - Bore 12-32 mm 3815209883864
Clamp - OD55 x L78 - Bore 12-32 mm 3815209883865
Clamp - OD55 x L95 - Bore 14-30 mm 3815209883866
Clamp - OD55 x L110 - Bore 14-30 mm 3815209883867
Clamp - OD65 x L80 - Bore 14-38 mm 5085048311253
Clamp - OD65 x L85 - Bore 14-38 mm 5665928313999
Clamp - OD65 x L90 - Bore 14-38 mm 3815209883868
Clamp - OD65 x L110 - Bore 14-38 mm 5218086476557
Clamp - OD65 x L130 - Bore 14-38 mm 5218086476556
Clamp - OD80 x L90 - Bore 14-45 mm 5085048311254
Clamp - OD80 x L102 - Bore 14-45 mm 5426595666269
Clamp - OD80 x L114 - Bore 14-45 mm 3815209883869
Clamp - OD80 x L130 - Bore 14-45 mm 5218086476558
Clamp - OD95 x L126 - Bore 18-55 mm 3815209883870
Clamp - OD105 x L140 - Bore 19-65 mm 3815209883871
Clamp - OD120 x L160 - Bore 30-70 mm 6081896763178
