Vacuum Nozzle Connection Sleeves and M6 Male Connector — 7 mm Connection
Vacuum Nozzle Connection Sleeves and M6 Connector
Choose a separate brass/copper-alloy or aluminum sleeve, or the M6 male nozzle connector. Each model image retains the supplied actual photographs, dimensions and feature arrows. The sleeve nozzle-side connection is 7 mm / 0.276 in. These are individual components, not complete pickup systems or a kit.
Available Configurations
| Selected component | Source SKU |
|---|---|
| Nozzle Connector — M6 Male, H23.5 mm / 0.925 in, Nozzle Bore 7 mm / 0.276 in | 5253408222048 |
| Brass Sleeve — H14.5 mm / 0.571 in, M5 Female | 4272848301766 |
| Brass Sleeve — H14.5 mm / 0.571 in, Bore 8 mm / 0.315 in | 4392484697394 |
| Brass Sleeve — H15 mm / 0.591 in, M5 Female | 5974905748753 |
| Brass Sleeve — H17 mm / 0.669 in, M5 Female | 4392484697395 |
| Brass Sleeve — H20 mm / 0.787 in, Bore 6 mm / 0.236 in | 5974905748754 |
| Brass Sleeve — H21.5 mm / 0.846 in, Bore 9 mm / 0.354 in, With Pin | 5961498112205 |
| Brass Sleeve — H22 mm / 0.866 in, Bore 8 mm / 0.315 in | 5975816790316 |
| Aluminum Sleeve — H22 mm / 0.866 in, Bore 8 mm / 0.315 in | 6017336602648 |
| Aluminum Sleeve — H23 mm / 0.906 in, Bore 3.5 mm / 0.138 in | 4978358152729 |
| Aluminum Sleeve — H23 mm / 0.906 in, Bore 5 mm / 0.197 in | 4748706762246 |
| Aluminum Sleeve — H23 mm / 0.906 in, M5 Female | 5856487413131 |
| Aluminum Sleeve — H23 mm / 0.906 in, Bore 6 mm / 0.236 in | 4813419090616 |
| Aluminum Sleeve — H23 mm / 0.906 in, Bore 9 mm / 0.354 in | 5695520778583 |
| Aluminum Sleeve — H24 mm / 0.945 in, Bore 8 mm / 0.315 in | 6017336602649 |
| Aluminum Sleeve — H25 mm / 0.984 in, Bore 5 mm / 0.197 in | 5023110102952 |
| Brass Sleeve — H25 mm / 0.984 in, Bore 6 mm / 0.236 in, With Pin | 6126523506757 |
| Aluminum Sleeve — H26 mm / 1.024 in, Bore 5 mm / 0.197 in | 4977637952908 |
| Aluminum Sleeve — H27 mm / 1.063 in, Bore 5 mm / 0.197 in | 4748706762247 |
| Aluminum Sleeve — H27 mm / 1.063 in, Bore 8 mm / 0.315 in | 5790376402667 |
| Aluminum Treated Sleeve — H27 mm / 1.063 in, Bore 5 mm / 0.197 in | 5435326333667 |

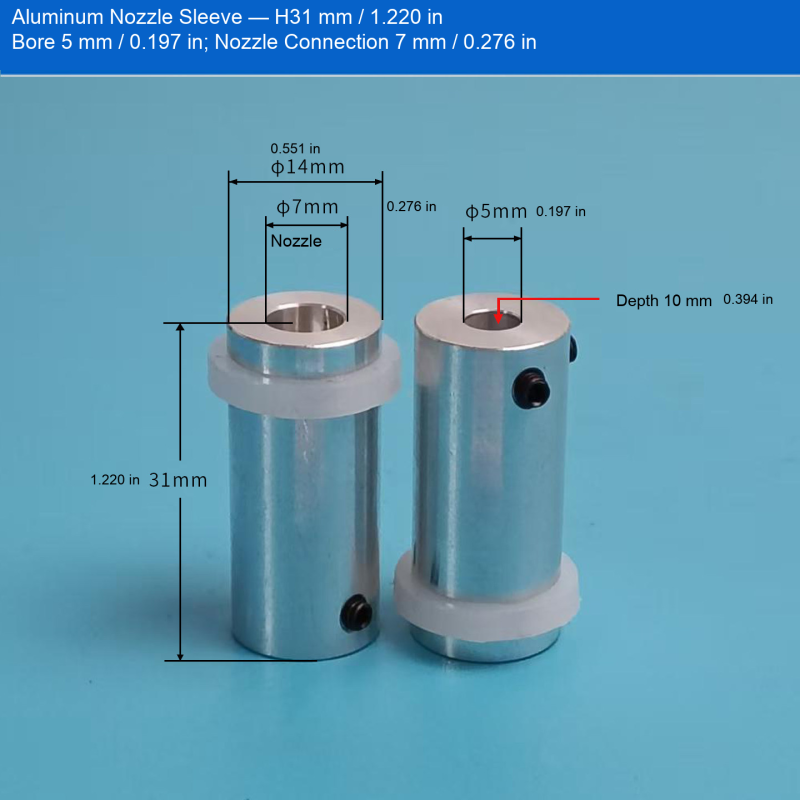

| Aluminum Sleeve — H31 mm / 1.220 in, Bore 5 mm / 0.197 in | 4618035552427 |
| Aluminum Sleeve — H31 mm / 1.220 in, M5 Female | 5524110082937 |
| Aluminum Sleeve — H31 mm / 1.220 in, Bore 6 mm / 0.236 in | 6100707091698 |
| Aluminum Sleeve — H40 mm / 1.575 in, Bore 5 mm / 0.197 in | 5313253400720 |
| Aluminum Sleeve — H54 mm / 2.126 in, Bore 5 mm / 0.197 in | 5524110082938 |
| Brass Sleeve — H78 mm / 3.071 in, M5 Female | 5877085199809 |
Interfaces and Dimensions
Select material, total height, bore diameter or M5 female thread, and the locating-pin option where specified. Retaining features, seal locations, insertion depths and outside diameters differ between sizes. Read the exact selected photograph rather than applying the dimensions of one sleeve to another. The H78 brass long sleeve shows a 17 mm head section, 14 mm head diameter and 10 mm stem diameter. The M6 male connector shows 23.5 mm total height, a 10 mm threaded section and a separately marked 12.5 mm lower section; do not treat those separate feature dimensions as a sum defining overall height.
Inches use 25.4 mm per inch and three decimal places. M5 and M6 remain metric thread names. Thread pitch, tolerance class, actual measured fit and vacuum sealing requirements must be confirmed against mating parts. A 7 mm nozzle connection is not interchangeable with a visually similar 5 or 6 mm connection.
Material and Treatment
Material follows the selected source option. Brass refers to the source copper-alloy sleeve; no exact alloy grade is supplied. The treated H27 aluminum option has a dark finish and is described by the supplier as treated/hardened, but no coating process, measured hardness or wear rating is provided. Sealing-ring material is not specified. Images of multiple components show different views or assembly context, not package quantity.
Selection and Installation
Compare the nozzle connection, bore or threaded interface, total height, head and body diameters, bore depth, locating-pin position, side holes and installation clearance to your equipment. Isolate equipment before replacement. Inspect sealing surfaces and retention features, keep the vacuum passage clean and check secure retention and actual pickup/release operation before production. Similar appearance is not evidence of universal machine compatibility.
Supply Scope
One selected sleeve or connector configuration is supplied. Pickup nozzles, independent holders, air fittings, shafts, motors and machines are not included. The source range photographs include other sizes for context and are not exact-model proof. Existing equivalent configurations, options with conflicting dimensions, unspecified assembled nozzle/fitting combinations, machining add-ons and generic custom rows are not offered here. Manufacturer names in supplier material do not establish genuine OEM manufacture.
Original Product and Assembly Photographs
