Custom Wool-Felt Lubrication Gears and Holder Assemblies
Made-to-drawing toothed wool-felt lubrication gears and holder assemblies for compatible gear-and-rack lubrication applications. Send your drawing or a dimensioned sample specification for a project-specific quotation.
Request a quote. The photographs are manufacturing references, not a ready-to-ship set or a priced pack.
Material, dimensions, tolerances, quantity, finishing, inspection and delivery terms are confirmed in the written quotation before ordering. Direct online purchasing is not available for this custom enquiry listing.
Product and Customization Details
| Product scope | toothed wool-felt lubrication gears and holder assemblies for compatible gear-and-rack lubrication applications |
|---|---|
| Material to confirm | Wool felt with optional metal hub, holder and lubricant inlet; grade and density to be confirmed |
| Custom features | Drawing-specific dimensions, mounting interfaces, materials and supply configuration |
| Dimensions and quantity | According to your approved drawing and quotation; no fixed pack quantity is implied |
| Ordering method | Send requirements for review and quotation before production |
Specification Notes

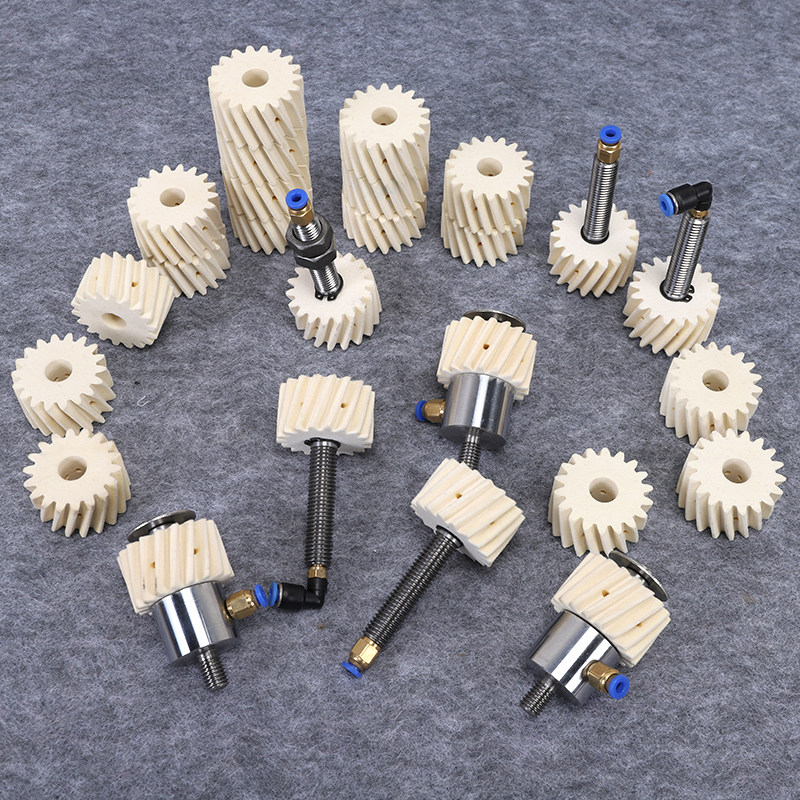

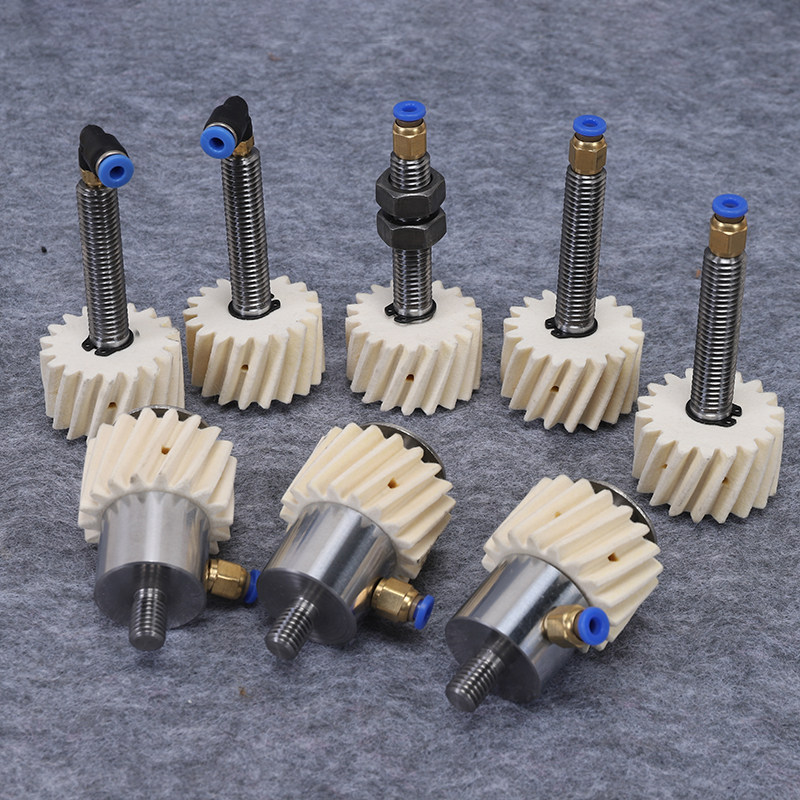

These felt gears distribute lubricant through contact with the mating gear or rack; they are not load-bearing transmission gears. Source photographs show bare gears, compact holders and longer threaded mounting assemblies. They do not establish exact module, tooth count, helix angle or rotation direction for each pictured item. Provide module, mating tooth profile, tooth count, pressure angle, helix hand and angle where applicable, face width, outside diameter, bore, holder dimensions and inlet connection. The source title mentions M2, but a confirmed drawing defines the supplied geometry. Confirm oil or grease compatibility, felt grade and density, lubricant supply and contact adjustment. No pump, grease gun, reservoir, automatic controller or fixed lubrication rate is implied. Each required component and quantity must be itemized.
Reference Configurations for Your Enquiry
Identify the required configuration and quantity in your enquiry. These are not automatically supplied together.

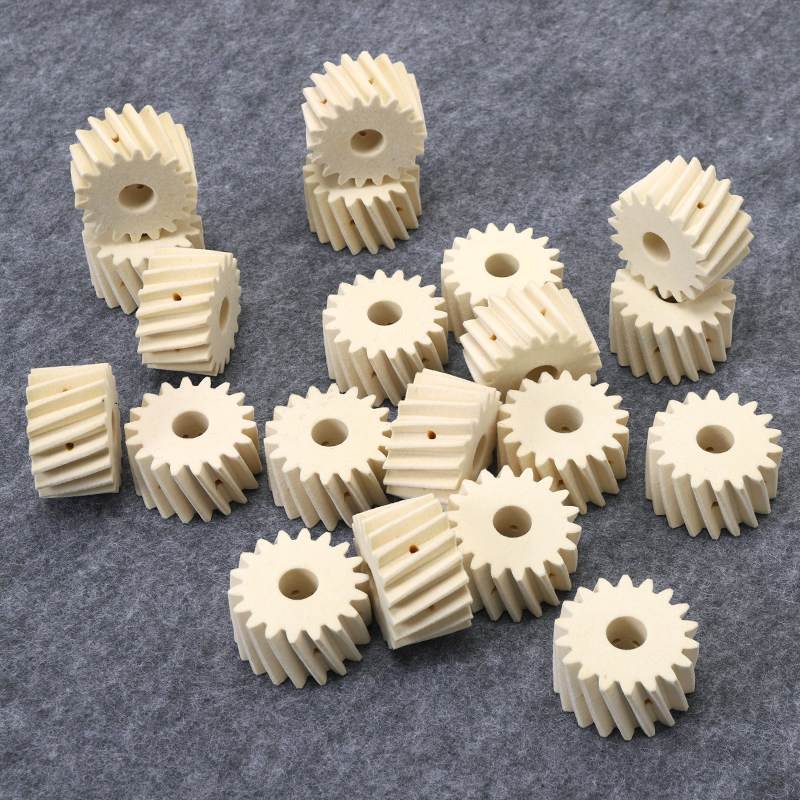

- Bare toothed felt lubrication gear

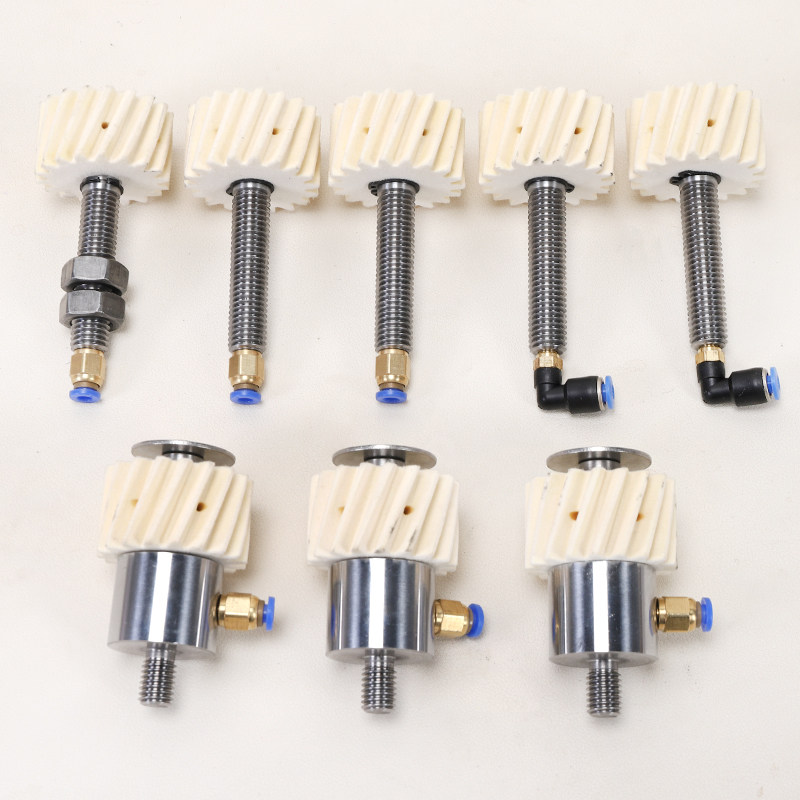

- Gear with compact metal hub or holder, when specified

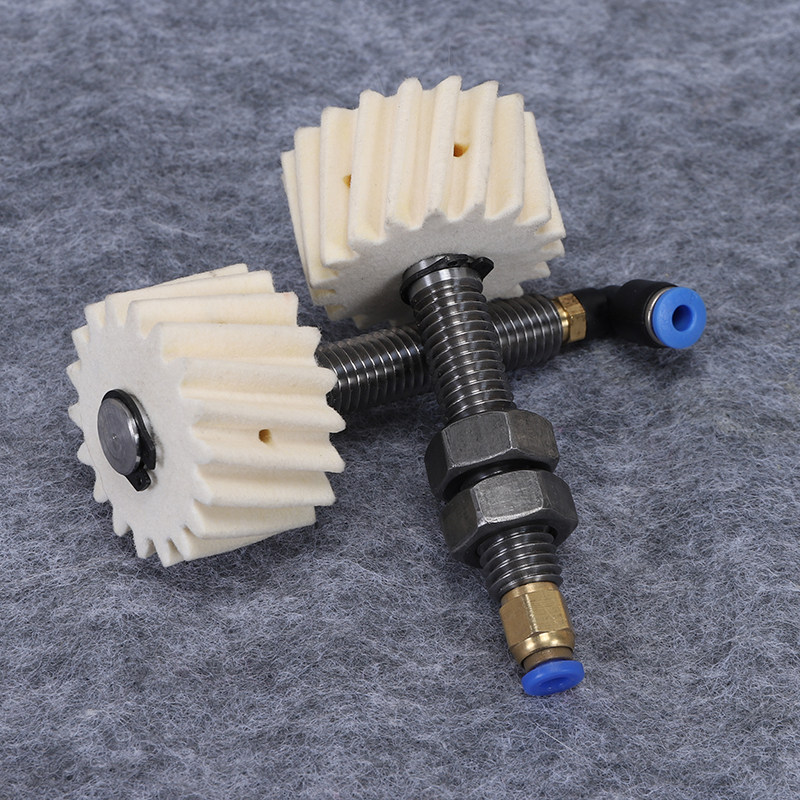

- Gear with extended threaded holder and inlet, when specified
- Module 2 enquiry reference; dimensions and tooth form to be confirmed
Information Needed for Your Quotation
- PDF or CAD drawing with units, revision, all dimensions and the required quantity for each part.
- Exact material grade and condition. Identify any material certification or traceability requirement.
- Critical fits and tolerances, datum references, surface roughness, holes, threads and edge requirements.
- Any heat treatment, coating, plating, polishing or other secondary operations required.
- Required inspection documents, packaging, delivery destination and requested schedule.
Reference Photographs
These original photographs illustrate shapes and machining examples. They do not establish exact dimensions, material grades, tolerances, included quantities or current stock. The delivered part follows the approved drawing and written order specification.
Review and Production Workflow
- Send the drawing or sample requirements, material and quantity.
- Review manufacturability and confirm unresolved dimensions, fits and finishes.
- Approve the written quotation and the final drawing revision.
- Confirm any first-article or inspection requirements before production.
Production, delivery, acceptance and custom-order terms are agreed in the quotation. No fixed lead time, universal tolerance or application certification is implied by the reference images.
