Non-standard custom manufacturing
Custom Guide Bushings and Flanged Sleeves — Made to Drawing
Made-to-drawing guide bushings, flanged sleeves, plain sleeves and custom locating bushes. Send your drawing or a dimensioned sample specification for a project-specific quotation.
Request a quote. The photographs are manufacturing references, not a ready-to-ship set or a priced pack.
Material, dimensions, tolerances, quantity, finishing, inspection and delivery terms are confirmed in the written quotation before ordering. Direct online purchasing is not available for this custom enquiry listing.
Product and Customization Details
| Product scope | guide bushings, flanged sleeves, plain sleeves and custom locating bushes |
|---|---|
| Material to confirm | Stainless steel, mold steel, brass, nylon or another drawing-specified material after review |
| Custom features | Bore and outside diameter, guiding length, flanges, shoulders, grooves and mounting features |
| Dimensions and quantity | According to your approved drawing and quotation; no fixed pack quantity is implied |
| Ordering method | Send requirements for review and quotation before production |
Specification Notes

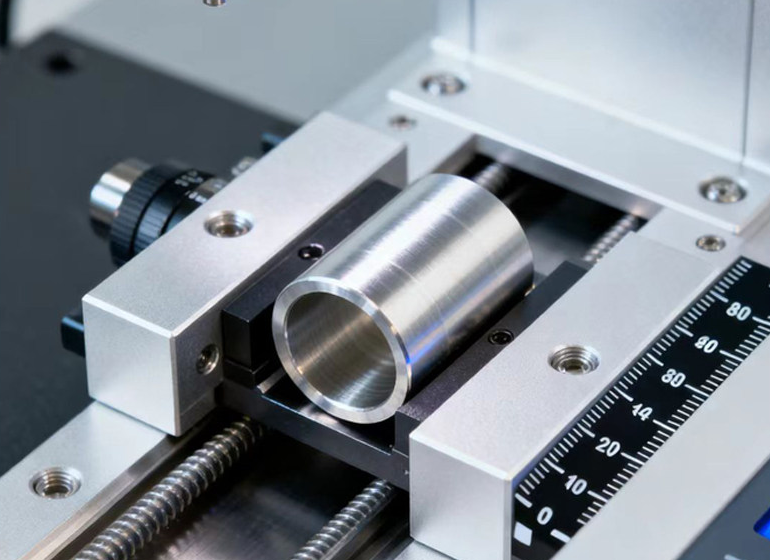

Select the bushing material and geometry for the intended guiding or locating interface. The source contains MSM guide-bushing and sleeve references, but no cross-brand interchangeability is established. Provide the mating shaft or pin dimensions, required fit, installed length, mounting bore, flange dimensions, lubrication conditions and any finish or heat-treatment requirement. Application images illustrate installation only; mating tools and assemblies are not included.
Information Needed for Your Quotation
- PDF or CAD drawing with units, revision, all dimensions and the required quantity for each part.
- Exact material grade and condition. Identify any material certification or traceability requirement.
- Critical fits and tolerances, datum references, surface roughness, holes, threads and edge requirements.
- Any heat treatment, coating, plating, polishing or other secondary operations required.
- Required inspection documents, packaging, delivery destination and requested schedule.

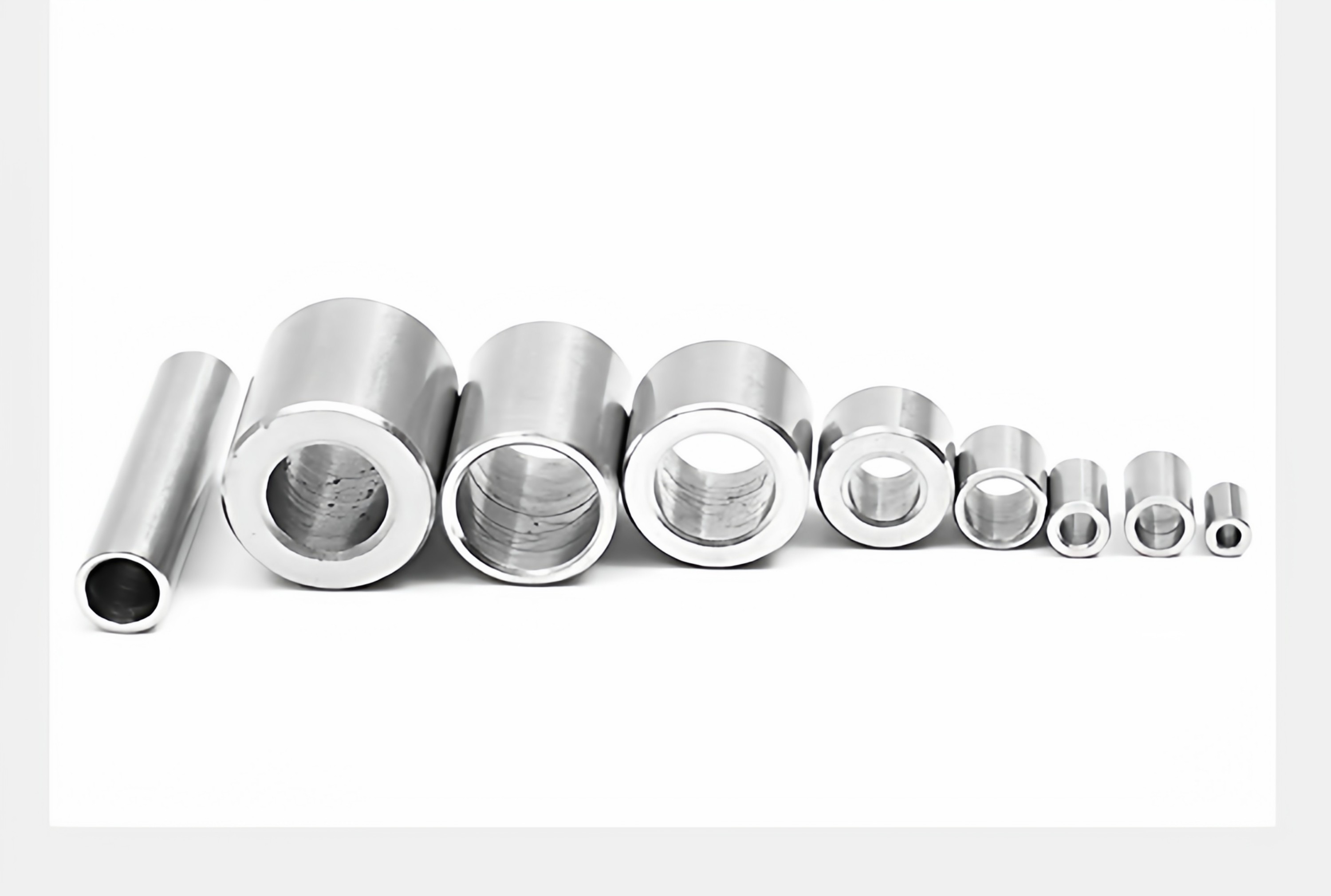

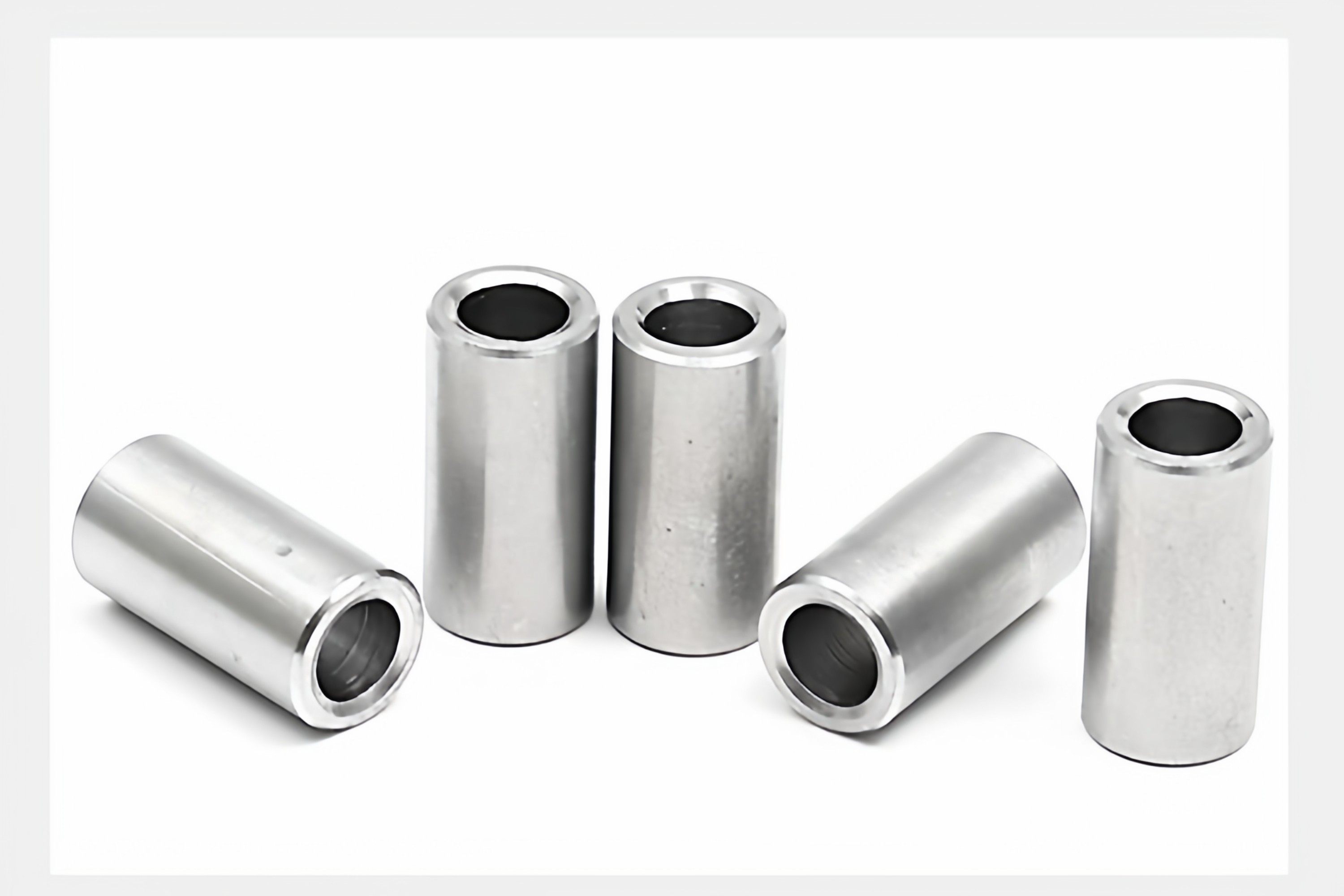

Reference Photographs
These original photographs illustrate shapes and machining examples. They do not establish exact dimensions, material grades, tolerances, included quantities or current stock. The delivered part follows the approved drawing and written order specification.
Review and Production Workflow
- Send the drawing or sample requirements, material and quantity.
- Review manufacturability and confirm unresolved dimensions, fits and finishes.
- Approve the written quotation and the final drawing revision.
- Confirm any first-article or inspection requirements before production.
Production, delivery, acceptance and custom-order terms are agreed in the quotation. No fixed lead time, universal tolerance or application certification is implied by the reference images.
