Custom 90-Degree Electrical Conduit Bend-Holding Test Fixtures
Made-to-drawing bend-holding fixtures for electrical conduit test specimens. Send your drawing or a dimensioned sample specification for a project-specific quotation.
Request a quote. The photographs are manufacturing references, not a ready-to-ship set or a priced pack.
Material, dimensions, tolerances, quantity, finishing, inspection and delivery terms are confirmed in the written quotation before ordering. Direct online purchasing is not available for this custom enquiry listing.
Product and Customization Details
| Product scope | bend-holding fixtures for electrical conduit test specimens |
|---|---|
| Material to confirm | Aluminum fixture is referenced in the source; confirm grade and finish |
| Custom features | Drawing-specific geometry, machine interfaces, materials and supply configuration; see the reference options below |
| Dimensions and quantity | According to your approved drawing and quotation; no fixed pack quantity is implied |
| Ordering method | Send requirements for review and quotation before production |
Specification Notes
Confirm conduit diameter, bend radius, 90-degree specimen geometry, fixing-point positions and the test method edition. The source mentions JG 3050-13 and GB/T 14823.2; the exact designation and test setup must be reviewed rather than treated as a compliance certificate. The source reference includes conduit sizes 16, 20, 25 and 50 mm, but groove layout and compatibility require a confirmed drawing. Any elevated-temperature testing requires separate confirmation of fixture and chamber suitability. No test chamber or conduit specimens are supplied by implication.
Source Reference Specifications
| Bend angle reference | 90° |
|---|---|
| Fixing-point spacing reference | 50 mm, subject to drawing confirmation |
Reference values require confirmation for the selected drawing. Standards mentioned identify the requested test arrangement; they are not certification or proof of compliance.
Reference Configurations for Your Enquiry
Identify the required configuration and quantity in your enquiry. These are not automatically supplied together.
- Aluminum conduit bend-holding fixture
Information Needed for Your Quotation
- PDF or CAD drawing with units, revision, all dimensions and the required quantity for each part.
- Exact material grade and condition. Identify any material certification or traceability requirement.
- Critical fits and tolerances, datum references, surface roughness, holes, threads and edge requirements.
- Any heat treatment, coating, plating, polishing or other secondary operations required.
- Required inspection documents, packaging, delivery destination and requested schedule.

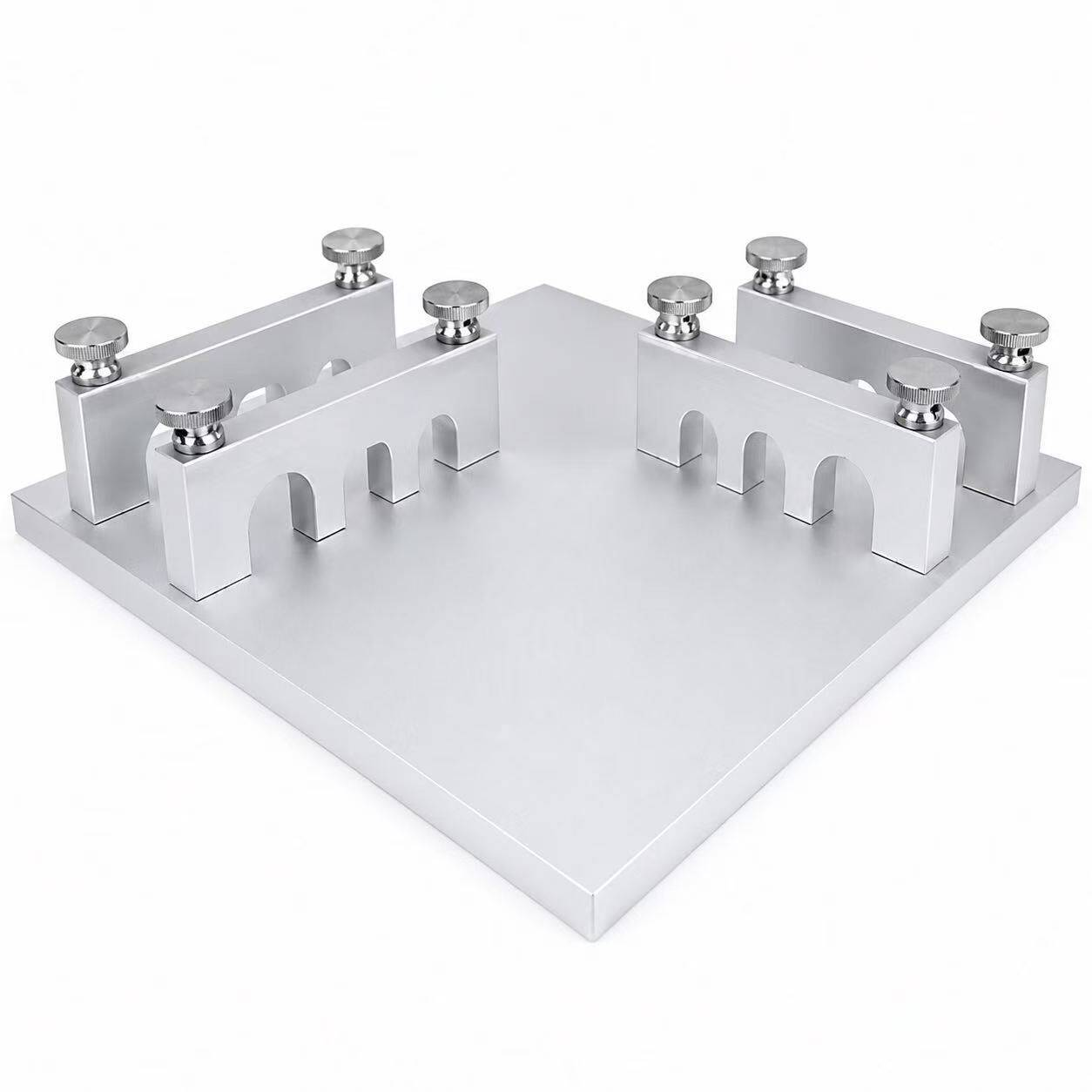

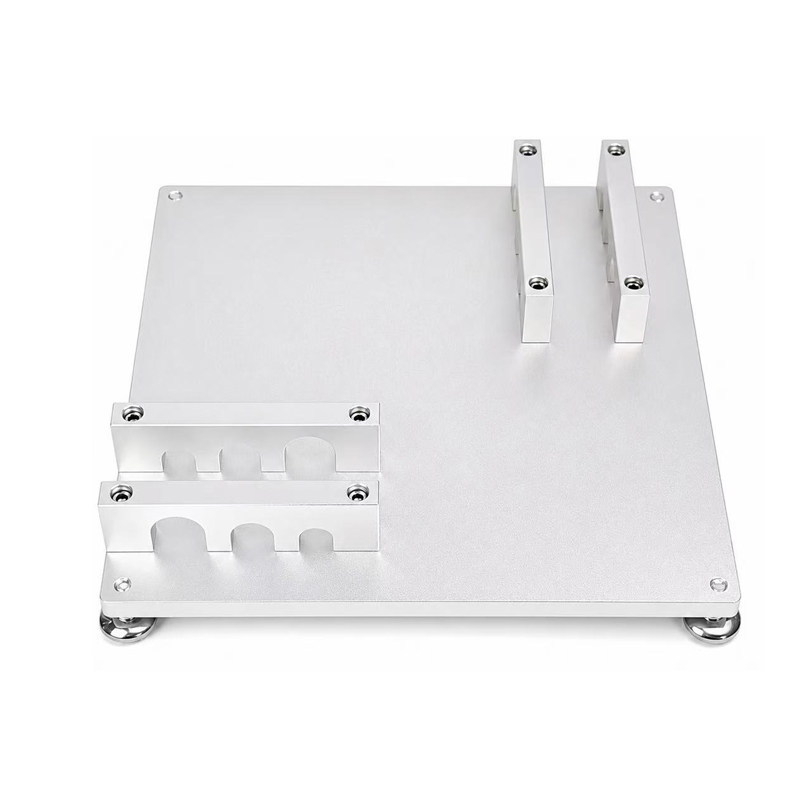

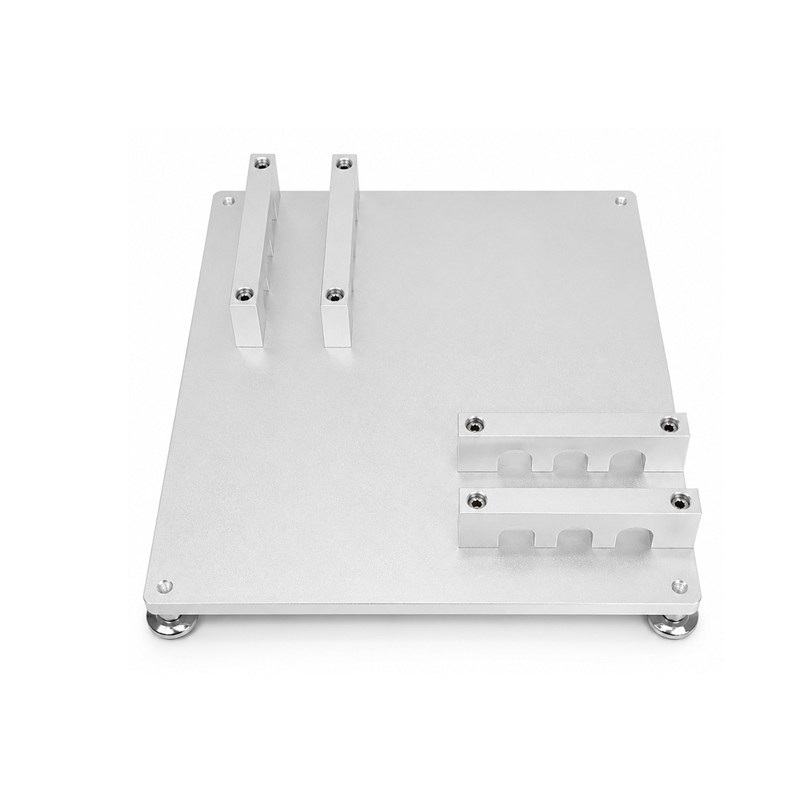

Reference Photographs
These original photographs illustrate shapes and machining examples. They do not establish exact dimensions, material grades, tolerances, included quantities or current stock. The delivered part follows the approved drawing and written order specification.
Review and Production Workflow
- Send the drawing or sample requirements, material and quantity.
- Review manufacturability and confirm unresolved dimensions, fits and finishes.
- Approve the written quotation and the final drawing revision.
- Confirm any first-article or inspection requirements before production.
Production, delivery, acceptance and custom-order terms are agreed in the quotation. No fixed lead time, universal tolerance or application certification is implied by the reference images.
