PP Luer-to-Hose-Barb Connector Packs and Single Red Luer-Style Plug

Luer-to-Hose-Barb Connector Packs and Single Red Plug

Polypropylene (PP) connectors with a hose-barb end and a Luer connection at the other end. The available bulk packs contain 200 or 500 connectors, depending on the selected model. Internal-thread and external-thread versions have different Luer-end profiles. Refer to the model-specific original photographs before ordering.

Models and Pack Quantities

Ordering

For a connector option, the displayed price is for one complete 200-piece or 500-piece pack as stated in the model name, not for one connector. The separate red external-thread plug option supplies one plug. Order quantity 1 means one selected pack or one red plug, respectively. Do not treat the inventory quantity as the number of loose connectors in a pack.

Dimensions and Fit

The size in the model name follows the original connector designation. It does not specify a matching hose inside diameter. Tip, barb, passage and overall dimensions are shown separately in the original drawings. Internal or external refers to the visible locking-thread style at the Luer end, not the hose barb. Match the actual mating connector profile and verify tubing fit before ordering. Inch equivalents are rounded conversions for reference.

Material and Use

The connector-pack bodies are specified as polypropylene (PP). The separate red plug does not identify an exact polymer grade. Colour and thread configuration vary by model. These are component connectors for compatible fluid-transfer or dispensing assemblies. The supplied data does not specify a working-pressure rating, operating-temperature range, sterility, medical approval or chemical-resistance test results. Confirm the intended fluid and operating conditions before use.

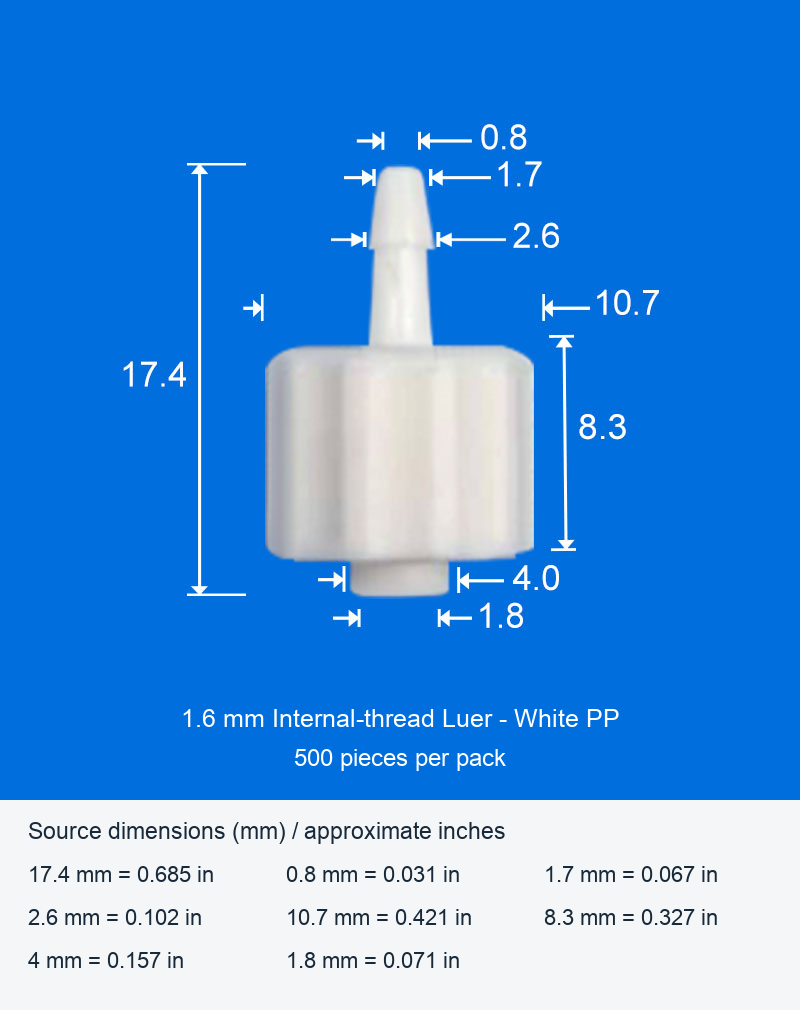

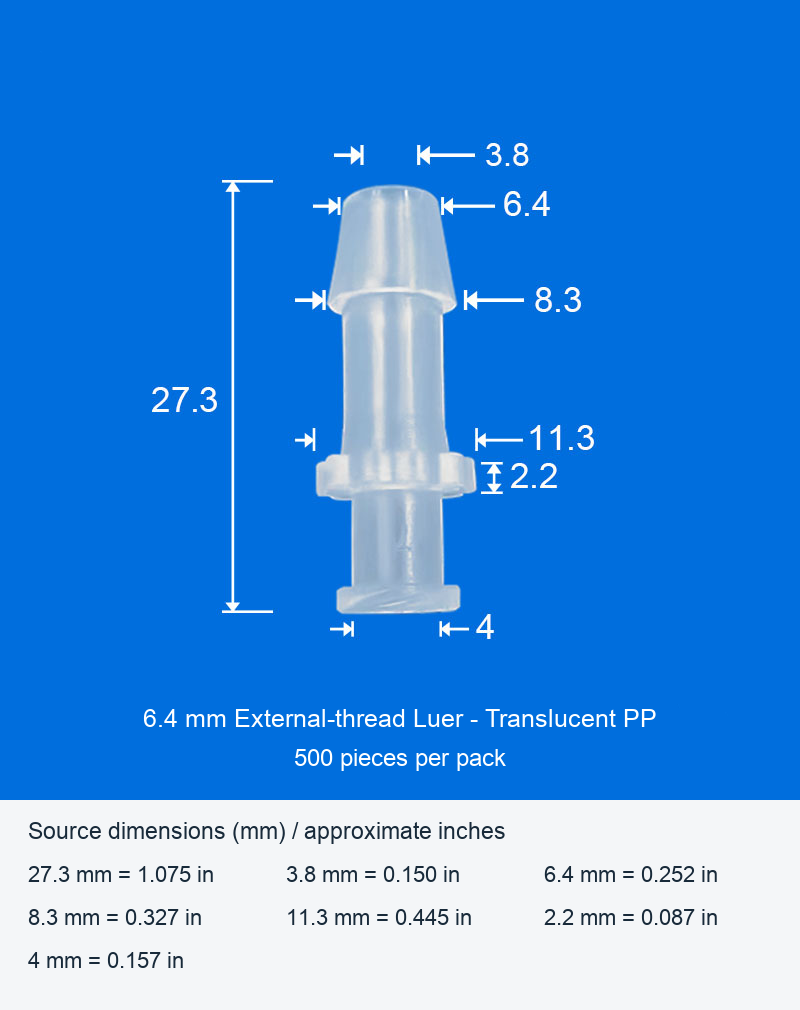

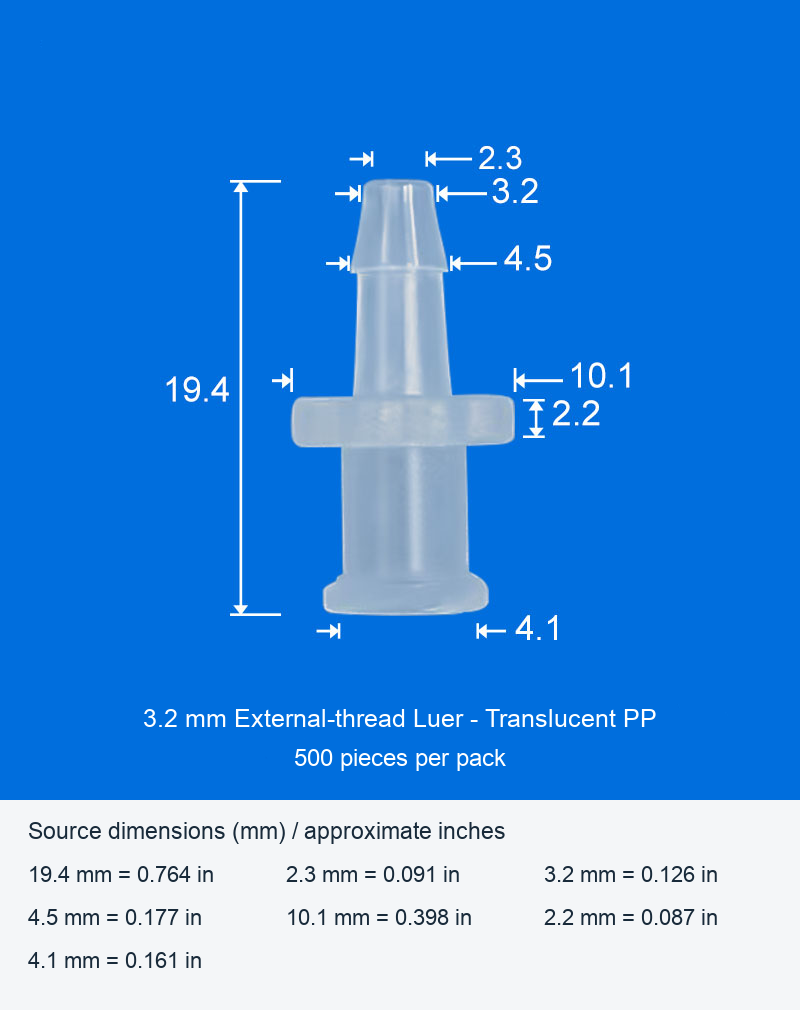

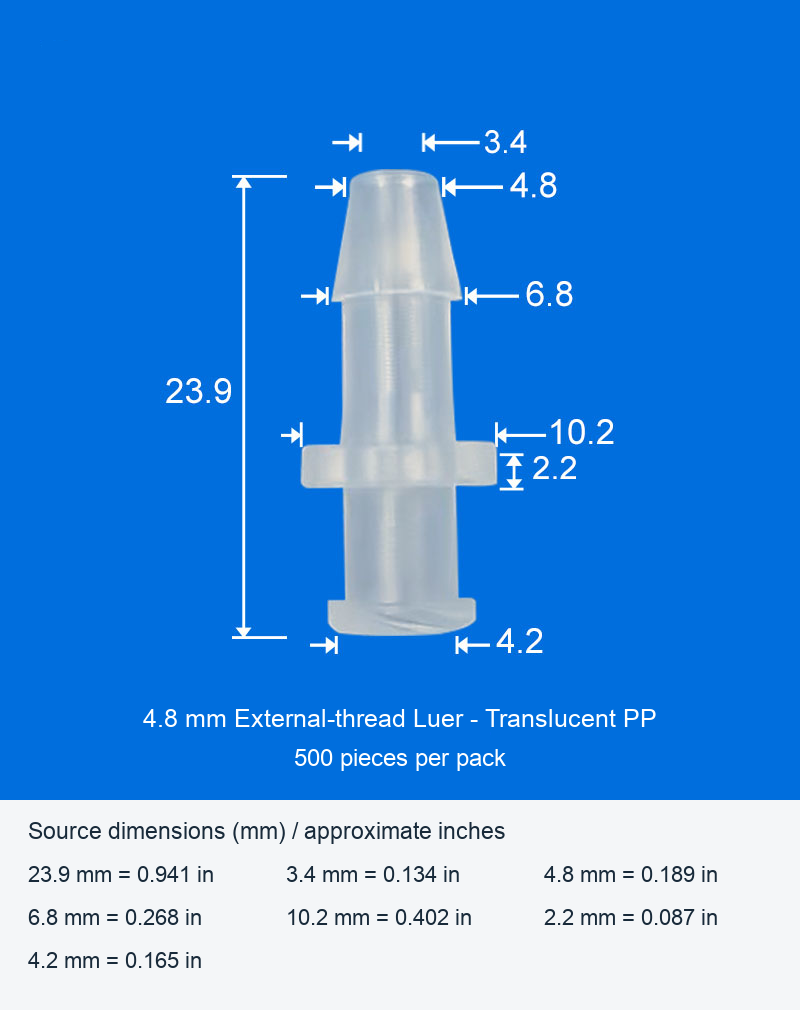

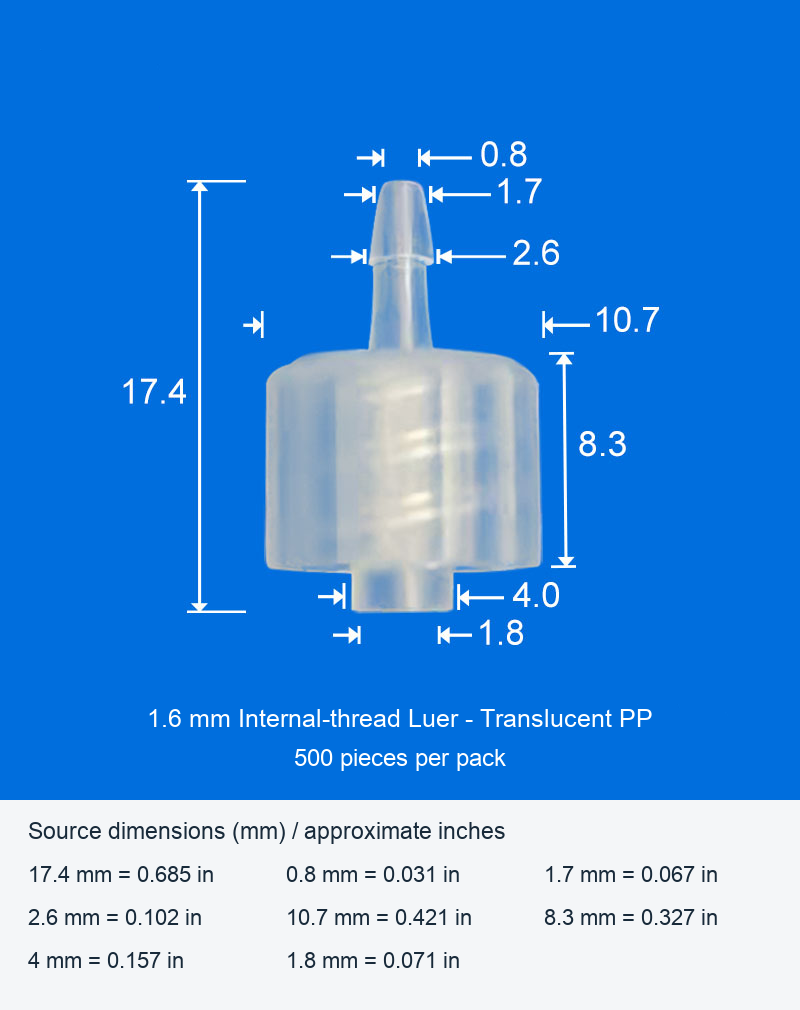

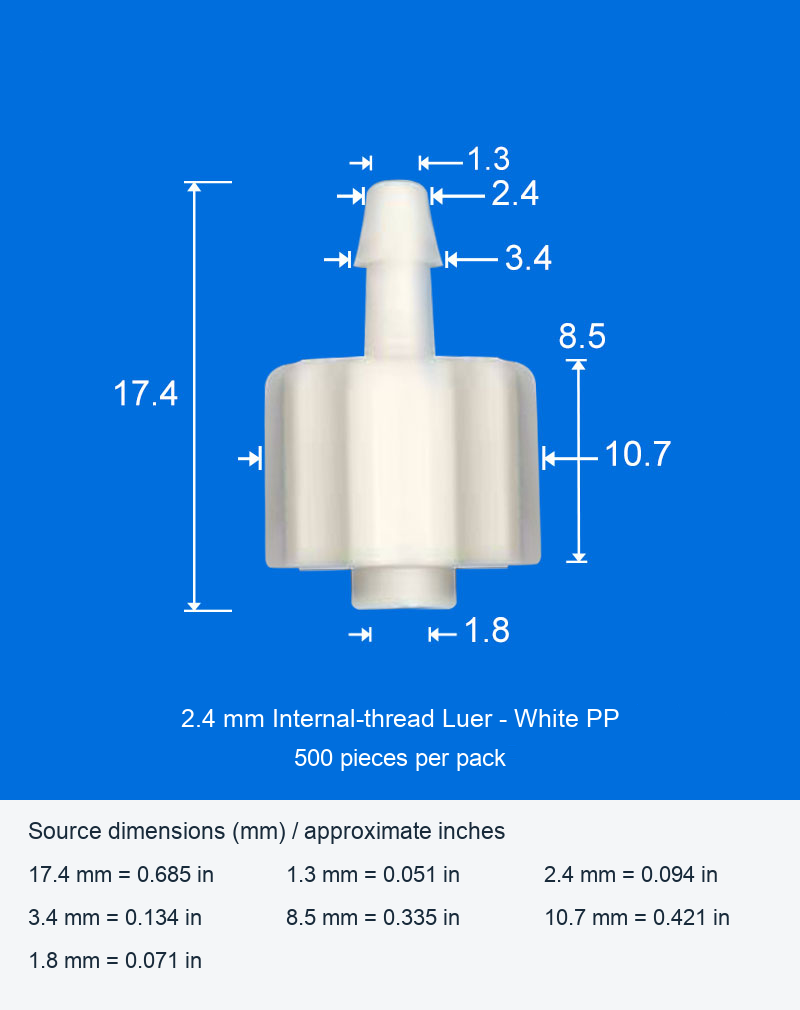

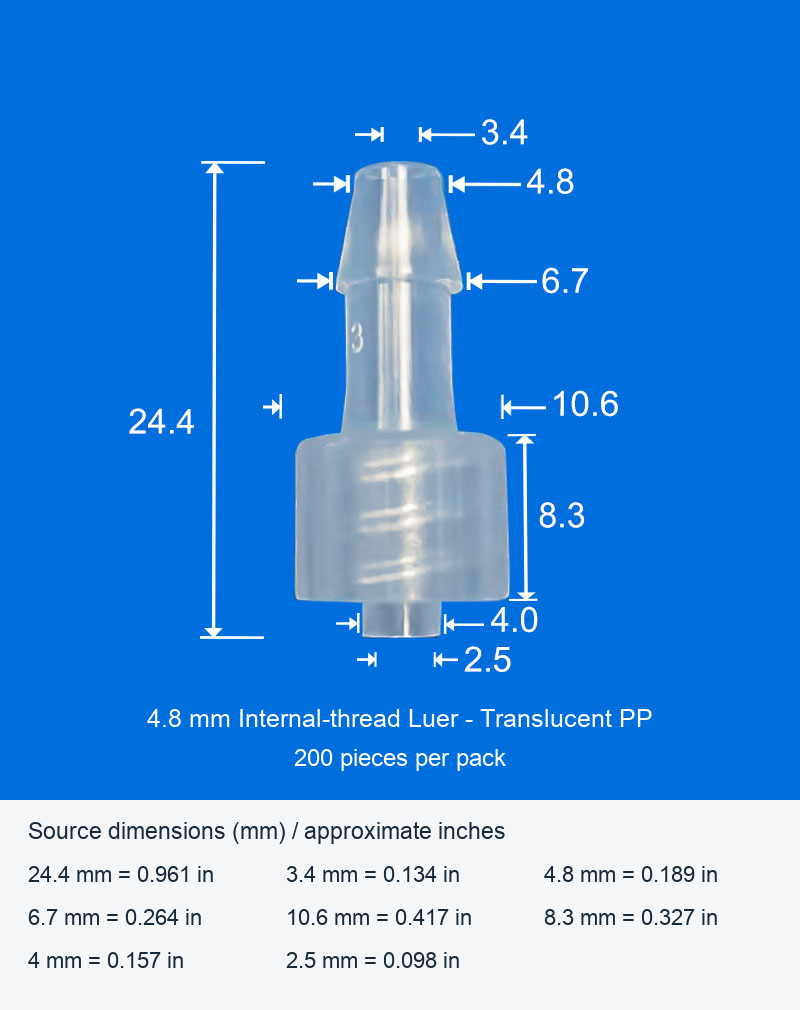

Original Product Photographs and Dimensions

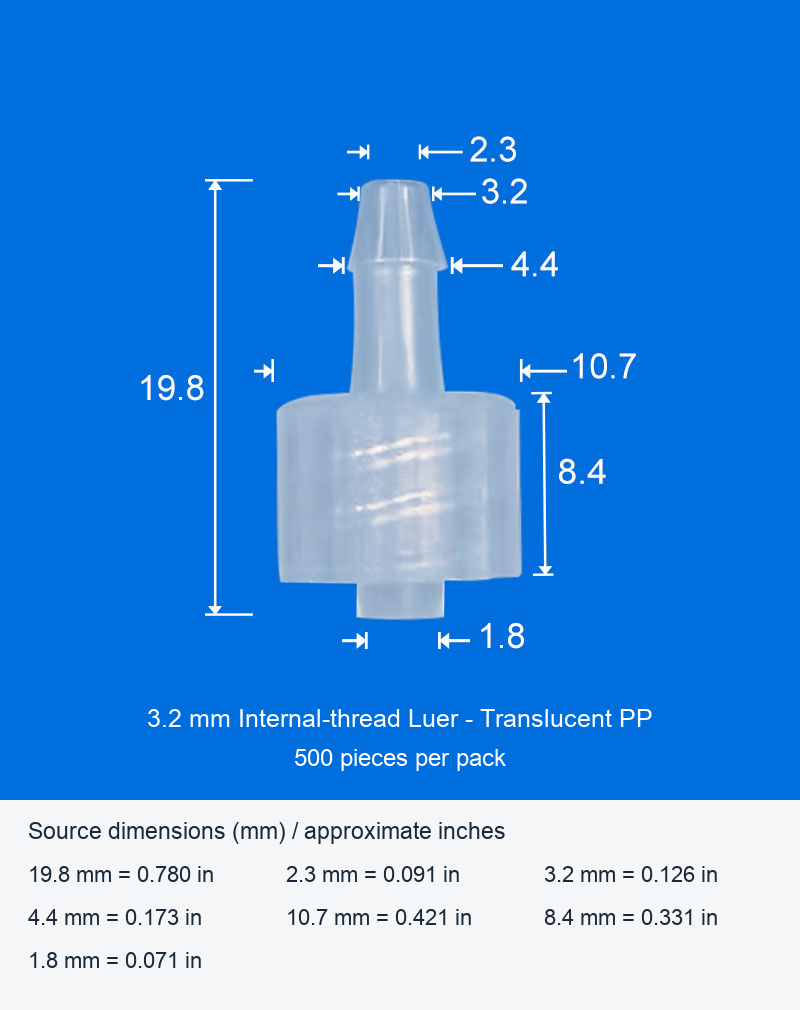

Each drawing shows the connector supplied in the selected pack. A single connector is photographed so its shape and dimensions can be seen. Pack contents are determined by the selected 200-piece or 500-piece model. Original product shapes, metric numbers, arrows and dimension lines are retained.

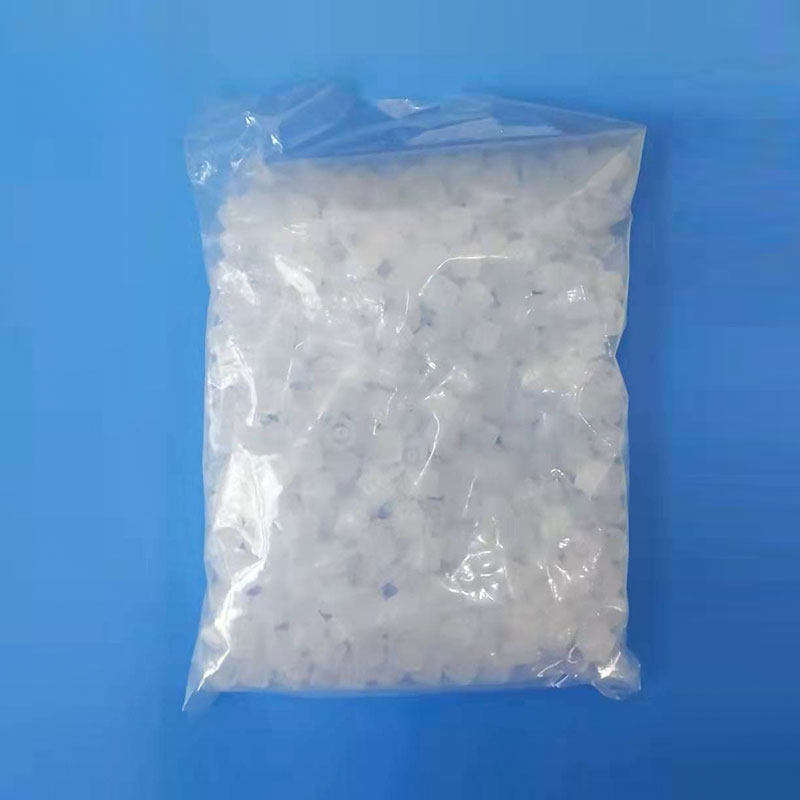

The first two photographs show examples of the original connector family and bulk packaging. They do not establish the size or number of pieces in the selected pack. Use the model-specific drawings and pack quantities stated above.

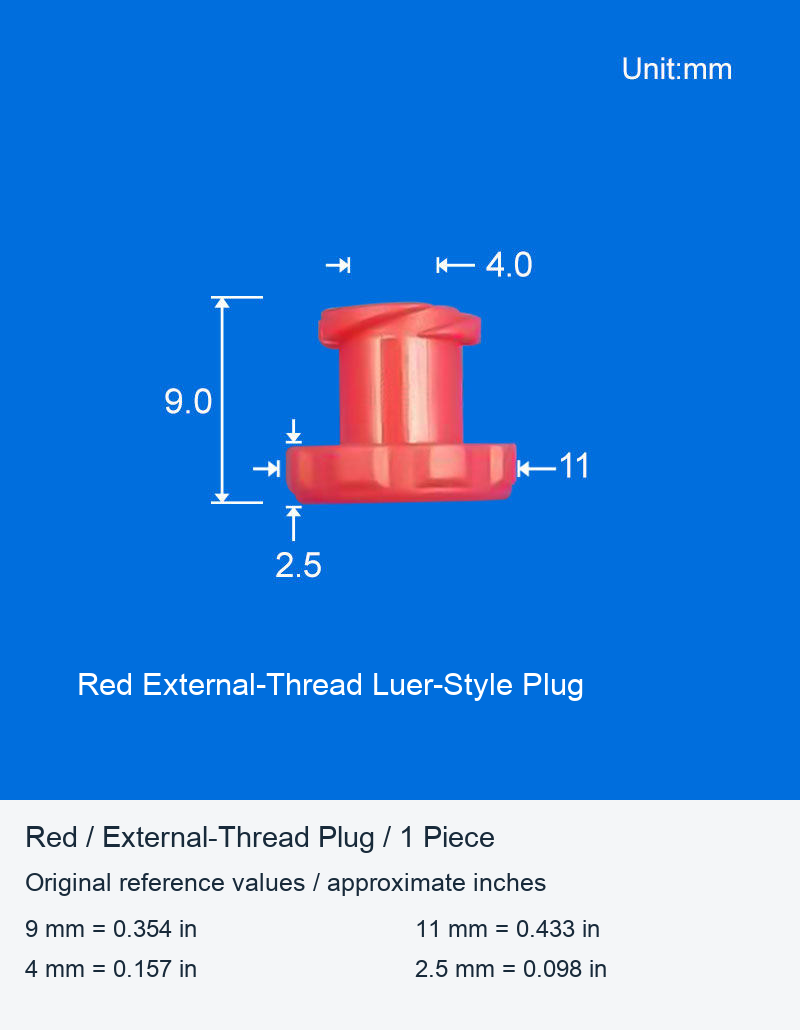

Separate Red External-Thread Plug, 1 Piece

This option is one red Luer-style external-thread plug, not a 200-piece or 500-piece connector pack. It has no hose barb and is not sold as a flow-through adapter. The corresponding original dimension photograph shows 9 mm overall height, 11 mm flange width, a 4 mm upper feature width and 2.5 mm flange thickness. Original metric values and arrows are retained; approximate inch equivalents are rounded to three decimals. Confirm actual mating connector and sealing requirements. No ISO fit, pressure rating, sterile condition, medical intended use or sealing-performance certification is supplied for this plug.
