Aluminum open flange shaft supports provide a split-clamp mounting point for linear shafts in machinery, fixtures and automation assemblies.
Configuration guide

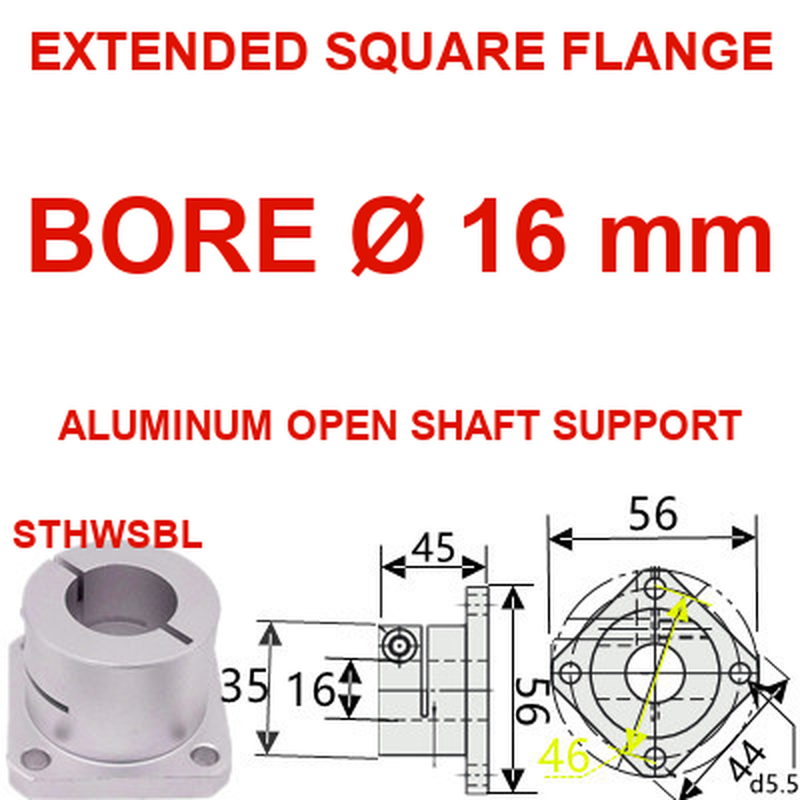

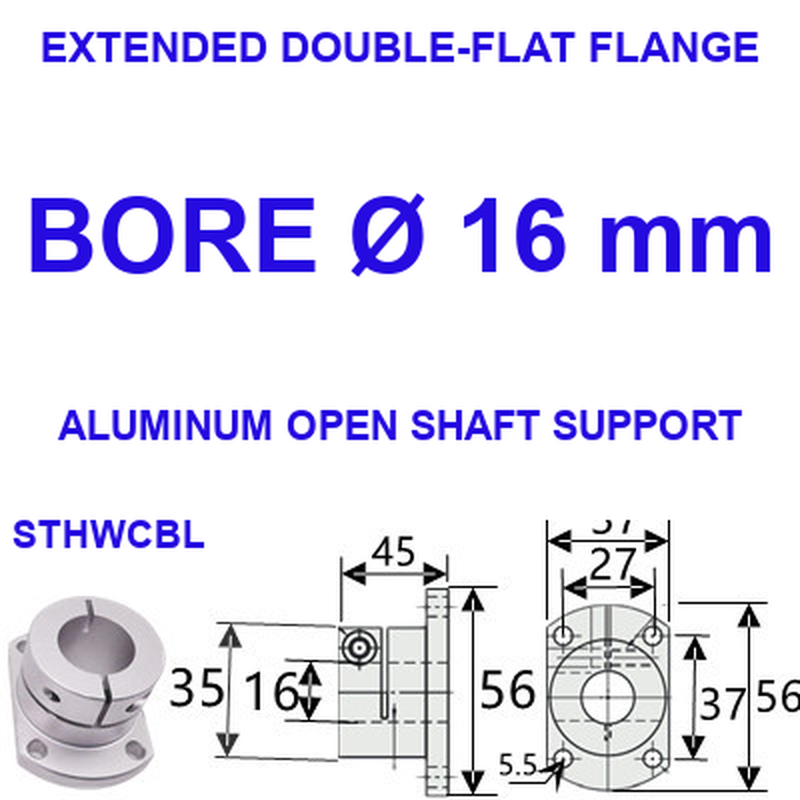

- Choose round, double-flat or square flange geometry to match the mounting surface.
- Extended versions provide additional axial support length.
- Select the model and 8-50 mm bore shown in the selector; each option is paired with its exact dimensional image.
Ordering and installation
- Verify the bore, flange dimensions, mounting-hole pattern and available installation space before ordering.
- Confirm shaft fit, alignment, clamping force, load and operating environment for the application.
- Include any application-specific requirements in the order requirements field.
