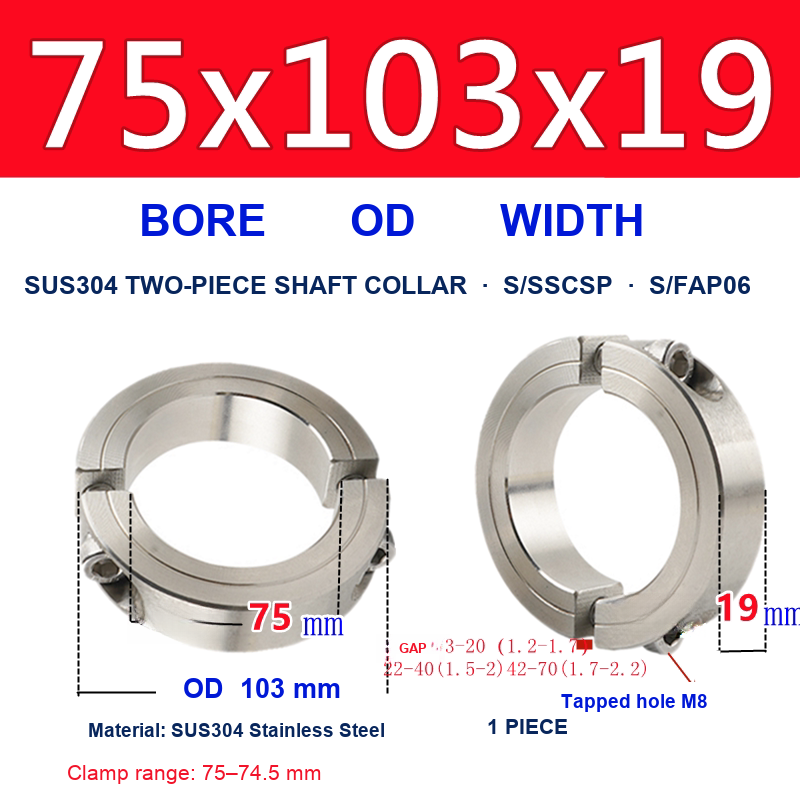

  • Standard | Bore 75 x OD 103 x Width 19 mm
1 / 1

BOLTTE 304 Stainless Steel Two-Piece Shaft Collars - 3-120 mm Bore

$40.00 USD $30.00 USD 25% OFF
Beräkna fraktkostnade i kassan
BOLTTE 304 Stainless Steel Two-Piece Shaft Collars - 3-120 mm Bore
Model
Kvantitet
WhatsApp

BOLTTE 304 Stainless Steel Two-Piece Shaft Collars - 3-120 mm Bore

Two-piece clamping shaft collars made from 304 stainless steel. Select the required model by bore, outer diameter, width and style.

Model selection

  • Metric collar bore sizes range from 3 mm to 120 mm; one separate 1 inch bore selection is also listed.
  • Standard, thickened and stepped configurations are available as identified in the model selector.
  • For stepped models, the selector states the overall width, boss outer diameter and boss height.
  • Images marked Illustrative image are selection references; verify the stated model before ordering.

Ordering notes

  • Verify the shaft diameter and the selected bore, outer diameter, width and clearance against the equipment.
  • Confirm fit, axial position, fastening access, load, speed, alignment and operating environment before installation.
  • The dedicated split shaft collar wrench is a separate, sold-separately accessory option; a collar selection does not include the wrench.

Product Details and Technical Reference

BOLTTE 304 stainless steel split shaft collar product overview
BOLTTE thickened 304 stainless steel shaft collar, 50 mm bore, 78 mm outer diameter and 40 mm width
BOLTTE stepped split shaft collar, 20 mm bore, 40 mm outer diameter, 24 mm boss diameter and 13 mm width
BOLTTE 304 stainless steel split shaft collar separated components
BOLTTE assembled 304 stainless steel split shaft collar

Modell / konfiguration / SKU

BOLTTE 304 Stainless Steel Two-Piece Shaft Collars - 3-120 mm Bore
Modell / konfigurationSKU
Standard | Bore 3 x OD 16 x Width 9 mm 5972892561241
Standard | Bore 4 x OD 16 x Width 9 mm 5972892561242
Standard | Bore 5 x OD 16 x Width 9 mm 5972892561243
Standard | Bore 6 x OD 16 x Width 9 mm 5407694683998
Standard | Bore 8 x OD 18 x Width 9 mm 5407694683999
Standard | Bore 8 x OD 25 x Width 8 mm 6205360086481
Standard | Bore 10 x OD 24 x Width 9 mm 5407694684000
Standard | Bore 10 x OD 30 x Width 10 mm 6205360086482
Standard | Bore 12 x OD 28 x Width 11 mm 5407695003001
Standard | Bore 12 x OD 30 x Width 10 mm 6205360086483
Standard | Bore 12 x OD 28 x Width 12 mm 6205360086484
Standard | Bore 13 x OD 30 x Width 11 mm 5407695003002
Standard | Bore 14 x OD 30 x Width 11 mm 5407695003003
Standard | Bore 15 x OD 34 x Width 13 mm 5407695003004
Standard | Bore 16 x OD 34 x Width 13 mm 5407695003005
Standard | Bore 16 x OD 35 x Width 10 mm 6205360086485
Standard | Bore 16 x OD 35 x Width 12 mm 6205360086486
Standard | Bore 16 x OD 40 x Width 15 mm 6205360086487
Standard | Bore 17 x OD 36 x Width 13 mm 5407695003006
Standard | Bore 18 x OD 36 x Width 13 mm 5407695003007
Standard | Bore 19 x OD 40 x Width 15 mm 5785138752682
Standard | Bore 20 x OD 40 x Width 15 mm 5407695003008
Standard | Bore 20 x OD 40 x Width 10 mm 5785138752683
Standard | Bore 20 x OD 40 x Width 12 mm 5785138752684
Standard | Bore 22 x OD 42 x Width 15 mm 5407695003009
Standard | Bore 23 x OD 42 x Width 15 mm 6205360086488
Standard | Bore 24 x OD 42 x Width 15 mm 5407695003010
Standard | Bore 25 x OD 45 x Width 15 mm 5407695003011
Standard | Bore 25 x OD 45 x Width 12 mm 5785138752685
Standard | Bore 26 x OD 45 x Width 15 mm 5407695003012
Standard | Bore 27 x OD 45 x Width 15 mm 5785138752686
Standard | Bore 28 x OD 48 x Width 15 mm 5407695003013
Standard | Bore 30 x OD 54 x Width 15 mm 5407695003014
Standard | Bore 30 x OD 52 x Width 12 mm 5785138752687
Standard | Bore 30 x OD 55 x Width 15 mm 5785138752688
Standard | Bore 31 x OD 54 x Width 15 mm 6205360086489
Standard | Bore 32 x OD 54 x Width 15 mm 5407695003015
Standard | Bore 33 x OD 54 x Width 15 mm 5785138752689
Standard | Bore 34 x OD 54 x Width 15 mm 5785138752690
Standard | Bore 35 x OD 57 x Width 15 mm 5407695003016
Standard | Bore 36 x OD 55 x Width 15 mm 5785138752691
Standard | Bore 37 x OD 55 x Width 15 mm 5785138752692
Standard | Bore 38 x OD 60 x Width 15 mm 5407695003017
Standard | Bore 40 x OD 60 x Width 15 mm 5407695003018
Standard | Bore 40 x OD 70 x Width 18 mm 5785138752693
Standard | Bore 42 x OD 70 x Width 18 mm 5407695003019
Standard | Bore 45 x OD 73 x Width 19 mm 5407695003020
Standard | Bore 47 x OD 73 x Width 19 mm 5785138752694
Standard | Bore 48 x OD 73 x Width 19 mm 5407695003021
Standard | Bore 50 x OD 78 x Width 19 mm 5407695003022
Standard | Bore 52 x OD 78 x Width 19 mm 5407695003023
Standard | Bore 55 x OD 82 x Width 19 mm 5407695003024
Standard | Bore 58 x OD 82 x Width 19 mm 5785138752695
Standard | Bore 60 x OD 88 x Width 19 mm 5407695003025
Standard | Bore 62 x OD 88 x Width 19 mm 5785138752696
Standard | Bore 65 x OD 93 x Width 19 mm 5407695003026
Standard | Bore 70 x OD 98 x Width 19 mm 5407695003027
Standard | Bore 75 x OD 103 x Width 19 mm 5785138752698
Standard | Bore 80 x OD 108 x Width 19 mm 5407695003028
Standard | Bore 85 x OD 112 x Width 19 mm 5785138752699
Standard | Bore 90 x OD 122 x Width 23 mm 5407695003029
Standard | Bore 95 x OD 125 x Width 23 mm 5785138752700
Standard | Bore 100 x OD 134 x Width 23 mm 5785138752701
Standard | Bore 105 x OD 134 x Width 23 mm 5785138752702
Standard | Bore 110 x OD 150 x Width 23 mm 5785138752703
Standard | Bore 115 x OD 150 x Width 23 mm 5785138752704
Standard | Bore 120 x OD 150 x Width 23 mm 5785138752705
Thickened | Bore 25 x OD 45 x Width 33 mm 5972892561244
Thickened | Bore 20 x OD 40 x Width 33 mm 5972892561245
Thickened | Bore 22 x OD 42 x Width 33 mm 5971684840778
Thickened | Bore 30 x OD 54 x Width 33 mm 5972892561246
Thickened | Bore 35 x OD 57 x Width 33 mm 5972892561247
Thickened | Bore 38 x OD 60 x Width 33 mm 5972892561249
Thickened | Bore 40 x OD 60 x Width 33 mm 5972892561248
Thickened | Bore 45 x OD 73 x Width 40 mm 5972892561250
Thickened | Bore 50 x OD 78 x Width 40 mm 5972892561251
Stepped | Bore 20 x OD 40 x Width 15 mm | Boss OD 24 x Height 2 mm 5971684840779
Stepped | Bore 25 x OD 45 x Width 15 mm | Boss OD 29 x Height 2 mm 5971684840780
Stepped | Bore 30 x OD 54 x Width 15 mm | Boss OD 35 x Height 2 mm 5971684840781
Standard | 1 in Bore 6152173386239
Stepped | Bore 35 x OD 57 x Width 15 mm | Boss OD 41 x Height 2 mm 6205360086490
Dedicated Split Shaft Collar Wrench 5927692761523
