QPM401B through QPM406B multi-stage vacuum generators combine a compact PA housing, integrated pressure gauge and high-flow pneumatic vacuum generation for automated handling systems.

Model selection

• Maximum vacuum: -90 kPa.
• Vacuum flow range: 354–1600 L/min.
• Recommended supply pressure: 4.5 bar.

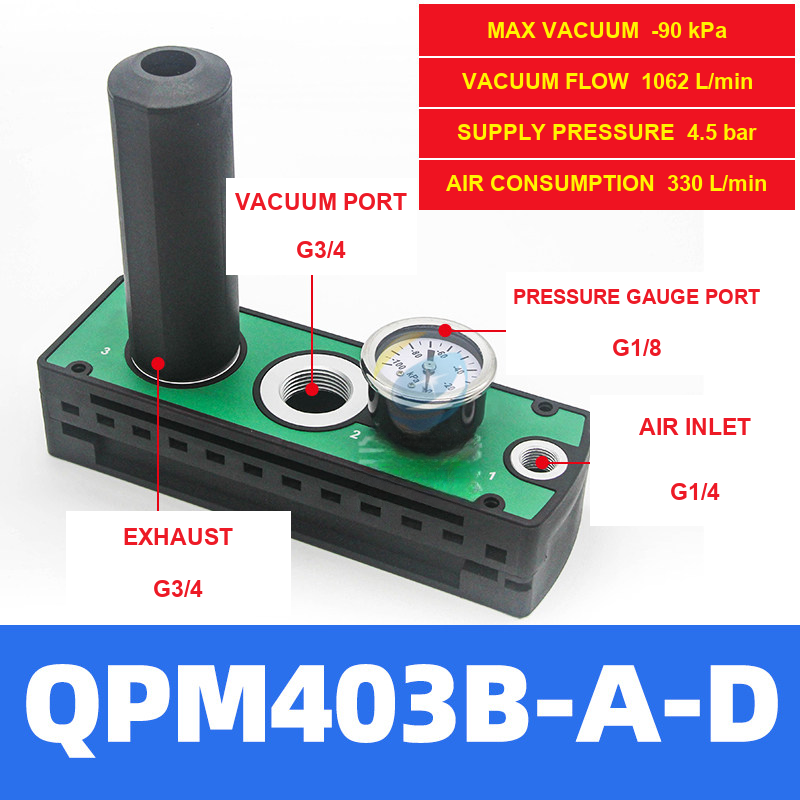

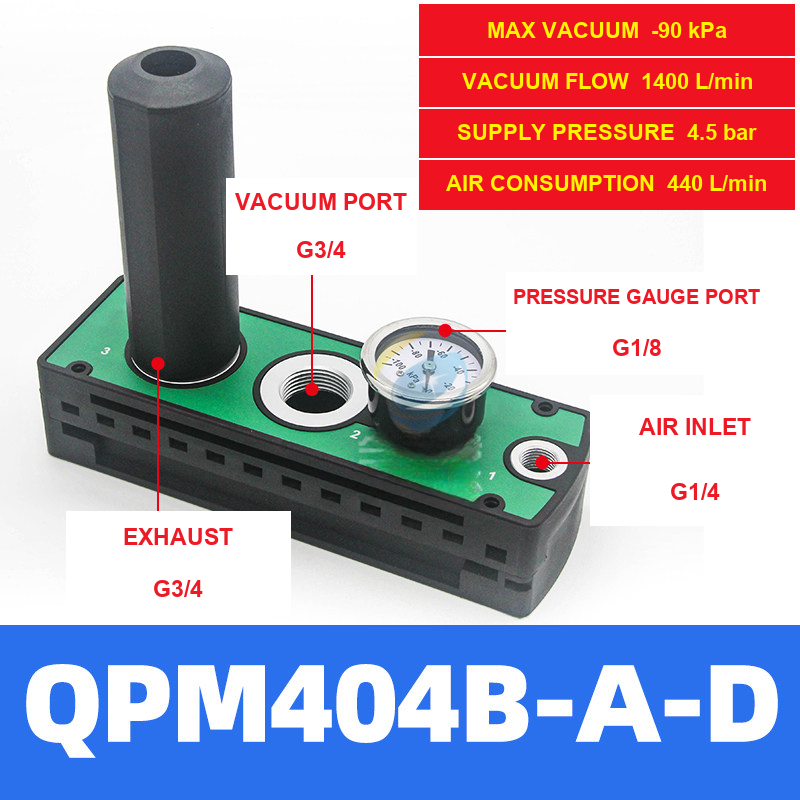

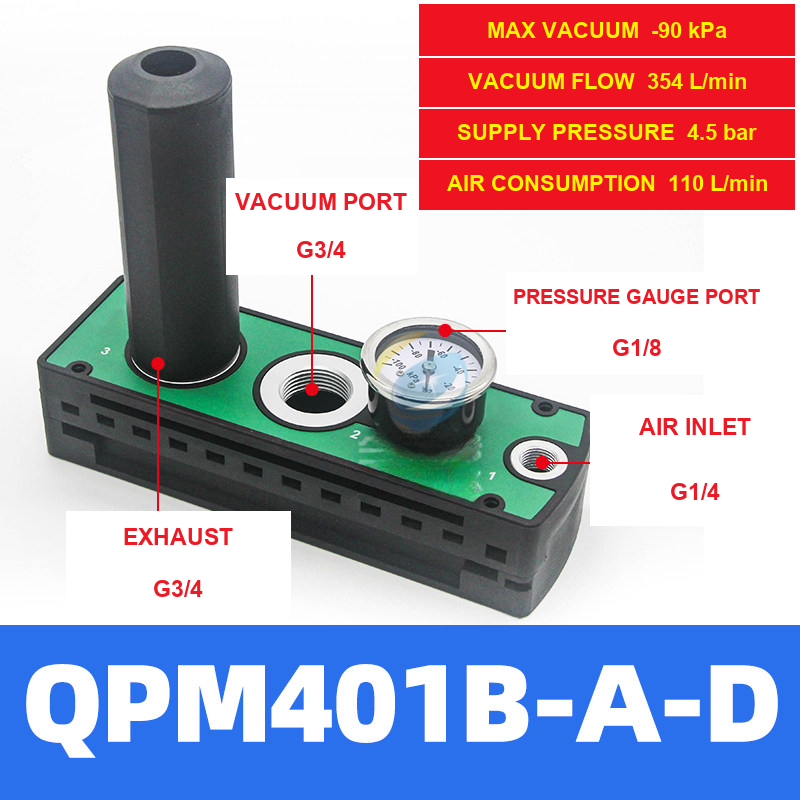

• QPM401B-A-D through QPM404B-A-D use G3/4 vacuum and exhaust ports.

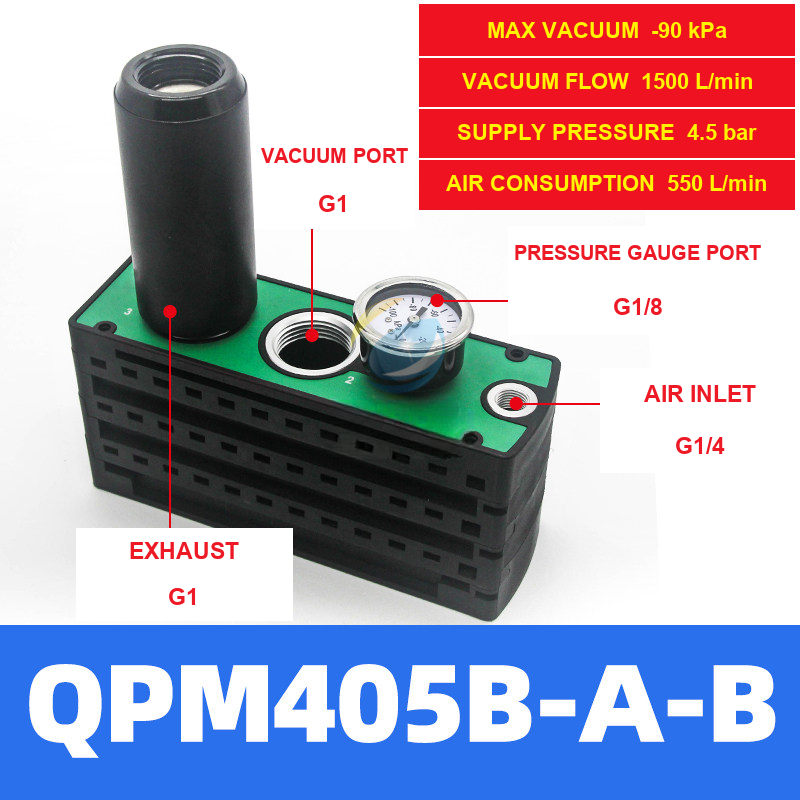

• QPM405B-A-B and QPM406B-A-B use G1 vacuum and exhaust ports.
• All models use a G1/8 pressure-gauge port and G1/4 air inlet.

Ordering and installation

• Select the exact model shown in the selector and verify vacuum flow, air consumption and port sizes before ordering.
• Confirm the available compressed-air supply, mounting space, tubing size, filtration and exhaust requirements.
• Check system load, duty cycle and operating environment for the application.
• Include any application-specific requirements in the order requirements field.
