LY-50T Conical Manual Vacuum Pickup Bulbs, White & Black, 50 mm

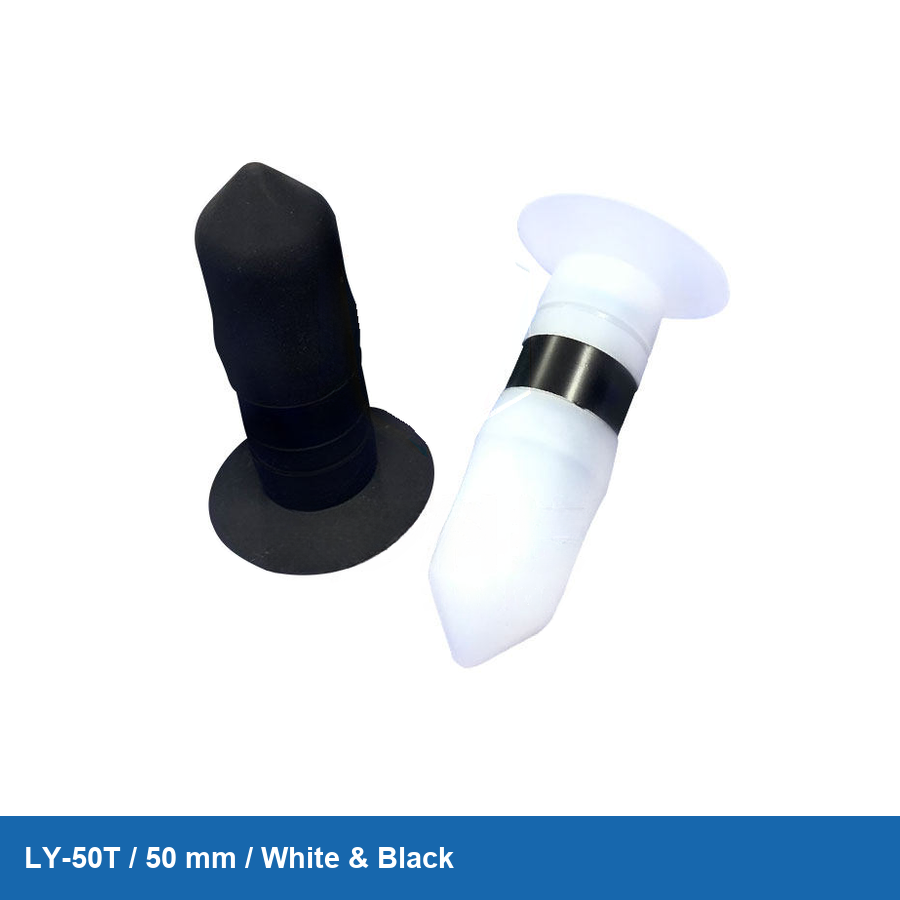

LY-50T Conical Manual Vacuum Pickup Bulbs

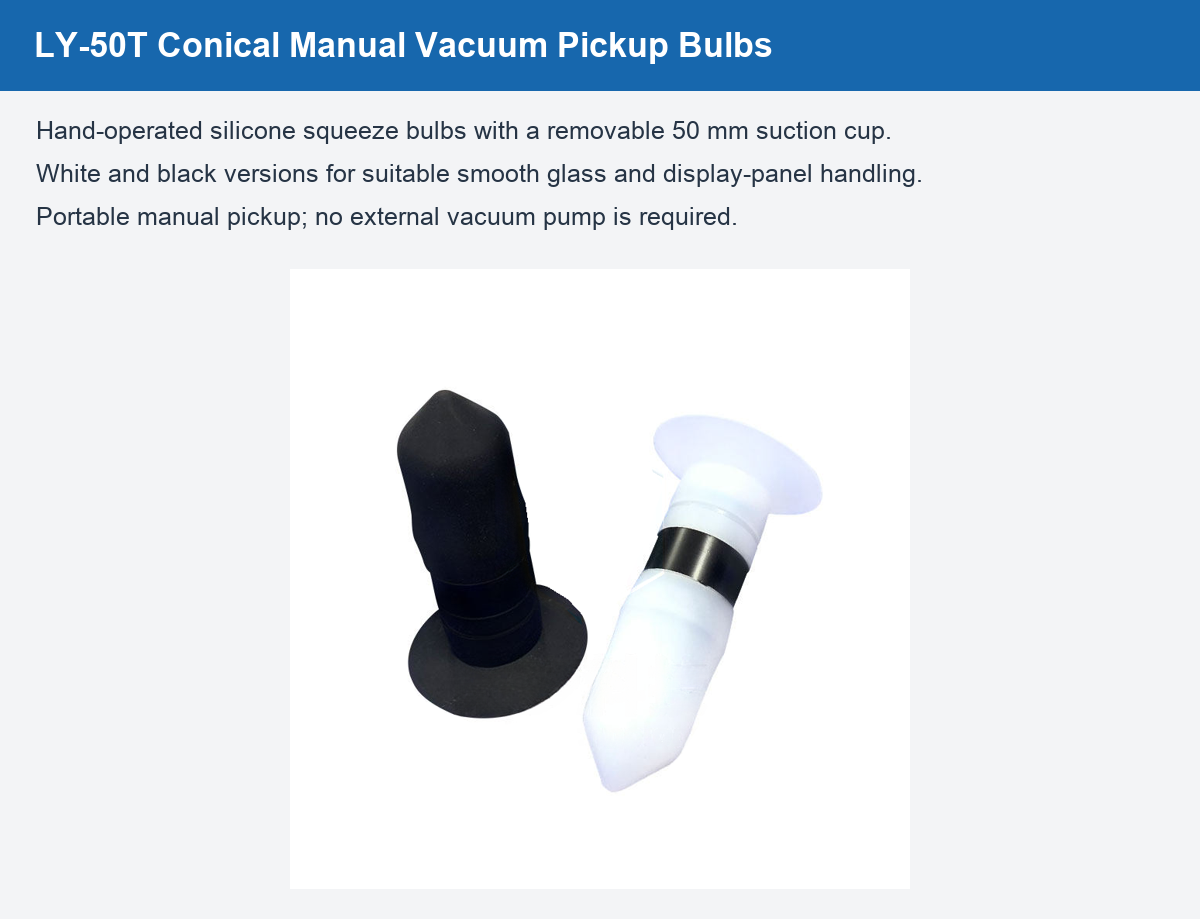

Hand-operated silicone squeeze-bulb pickup tools with a removable 50 mm suction cup. Select the white or black version for suitable smooth glass and display-panel handling.

Specifications

• Model: LY-50T

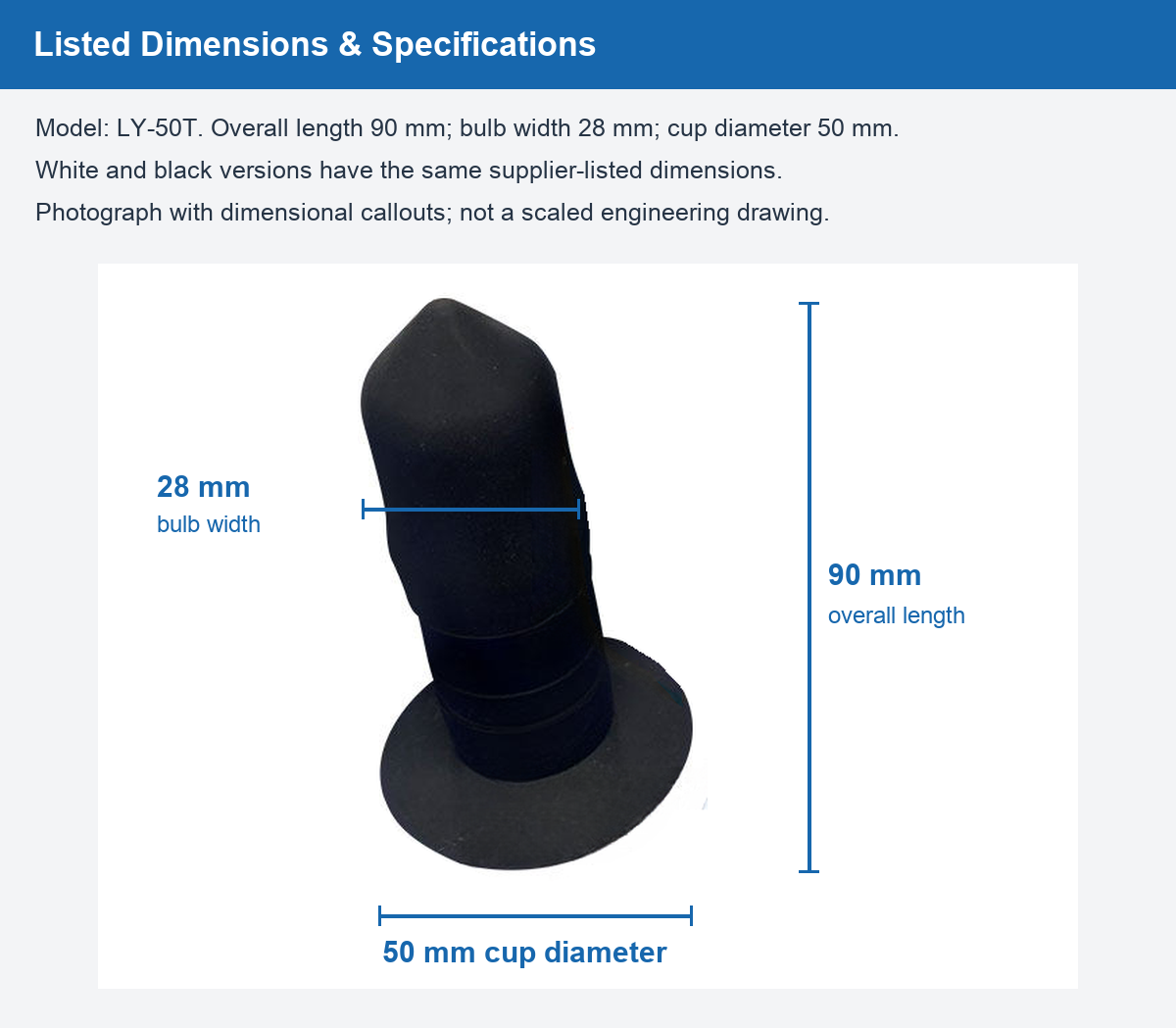

• Listed dimensions: 90 mm overall length × 28 mm bulb width × 50 mm cup diameter

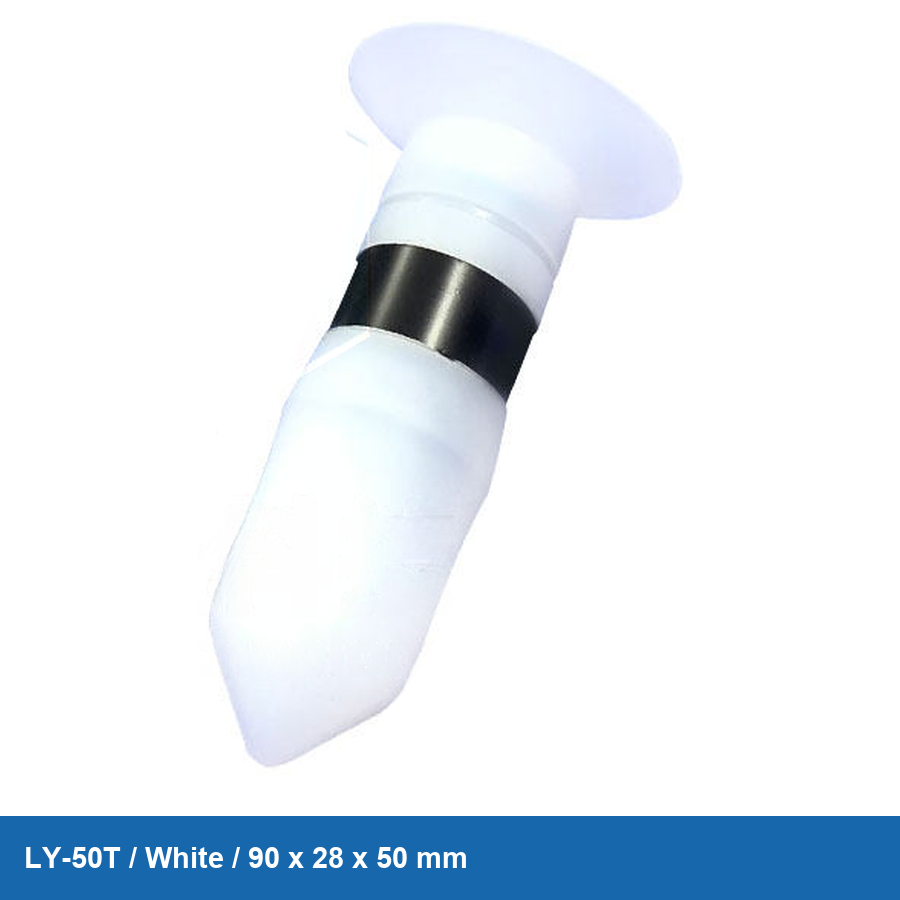

• Colors: white and black
• Material: silicone with a push-fit connector

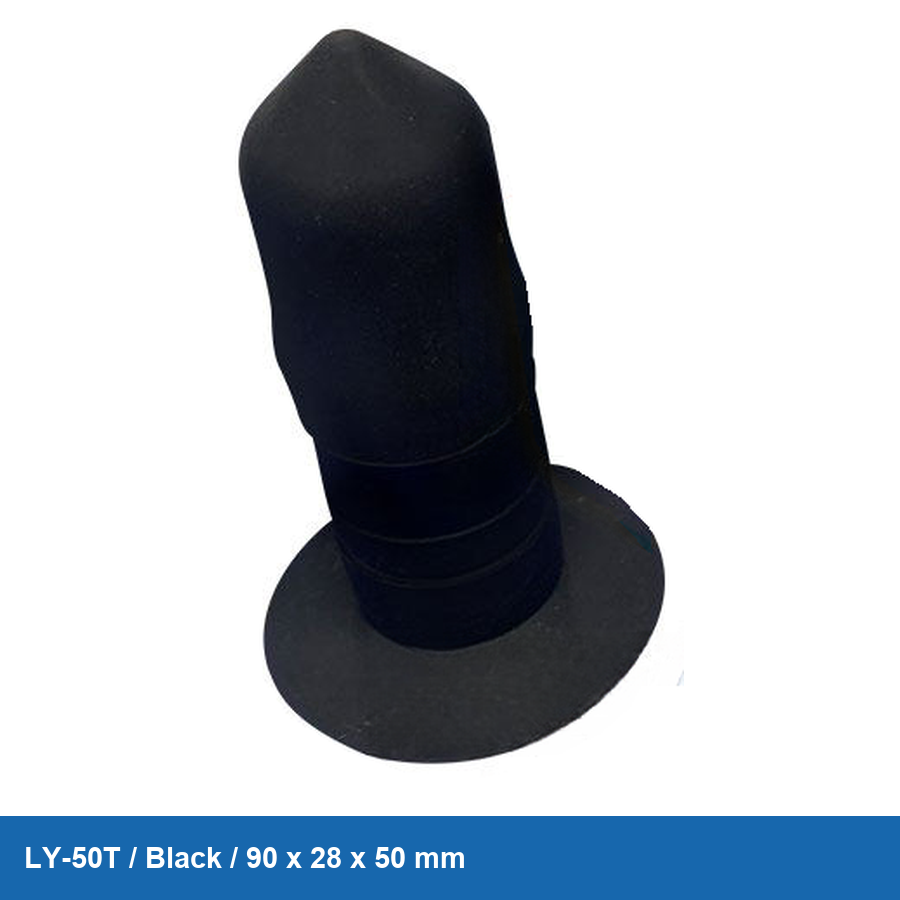

• Black version: supplier-described antistatic silicone, with resistance listed as 10⁶–10⁸ Ω

Applications / Suitable For

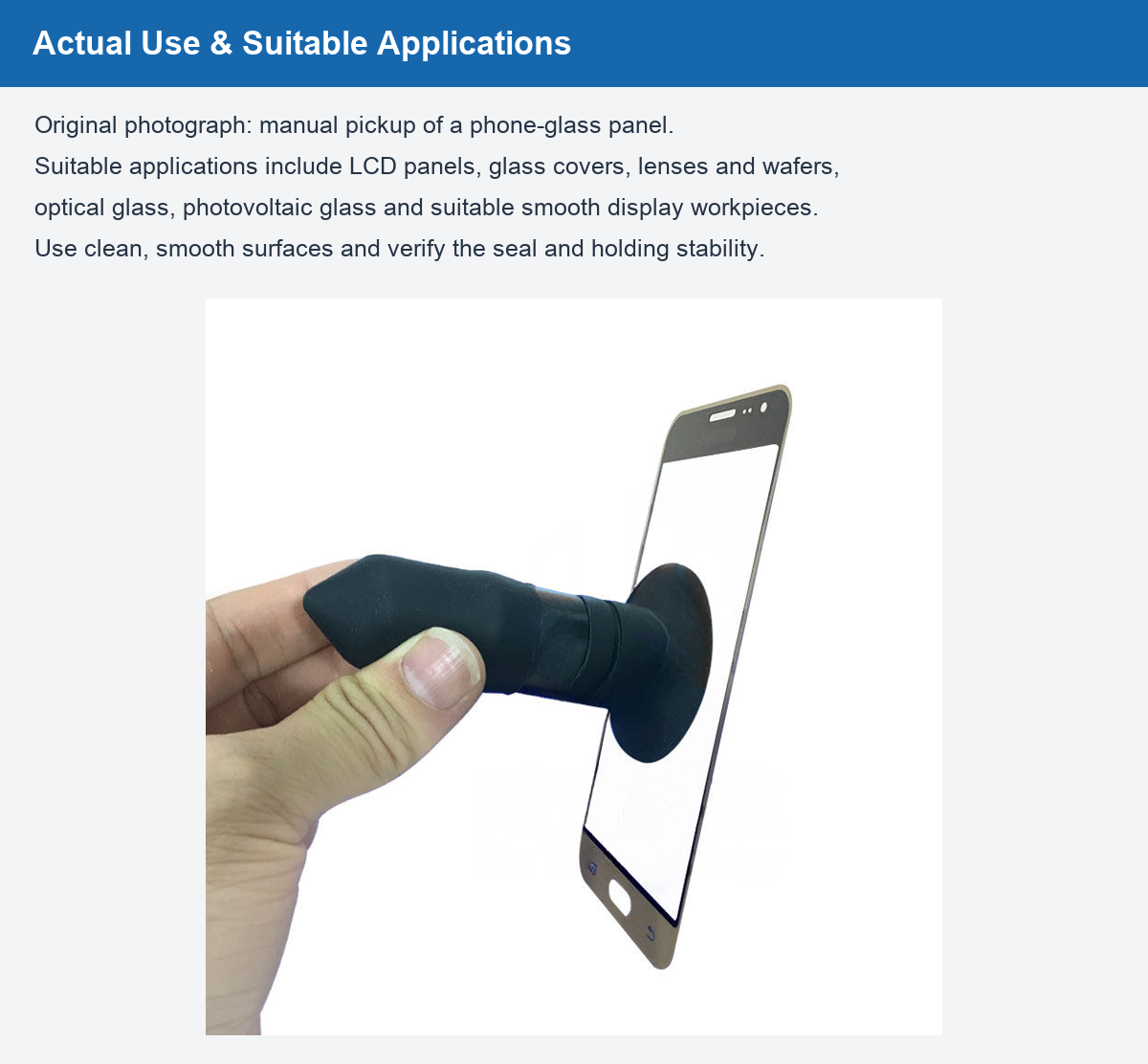

Suitable clean, smooth LCD panels, phone cover glass, lenses, semiconductor wafers, optical glass and photovoltaic glass workpieces. Manual squeeze-and-release operation; no external vacuum pump is needed.

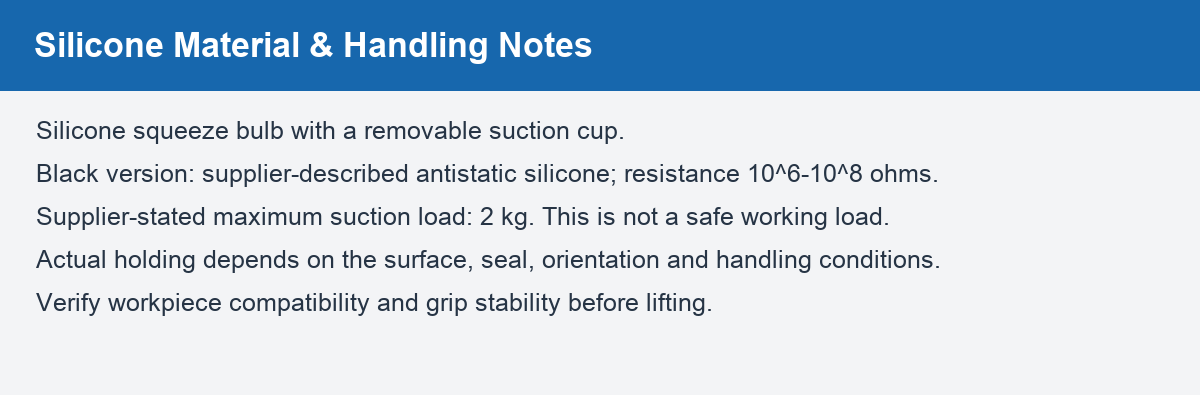

Handling notes

The supplier lists a maximum suction load of 2 kg. This is not a rated safe working load. Actual holding depends on the surface, seal, orientation and handling conditions. Verify compatibility and stability before use.

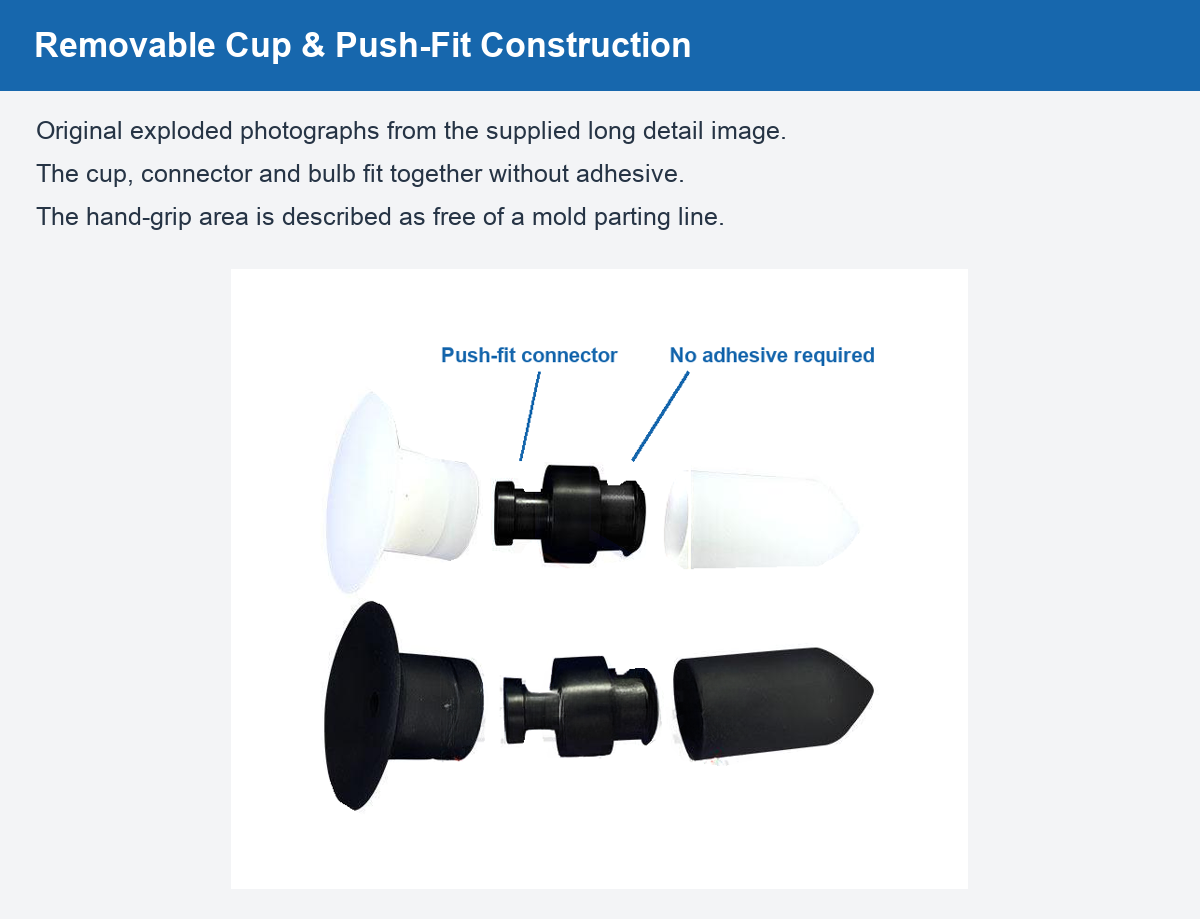

The cup and bulb use a push-fit connection without adhesive. The grip area is described as free of a mold parting line.
