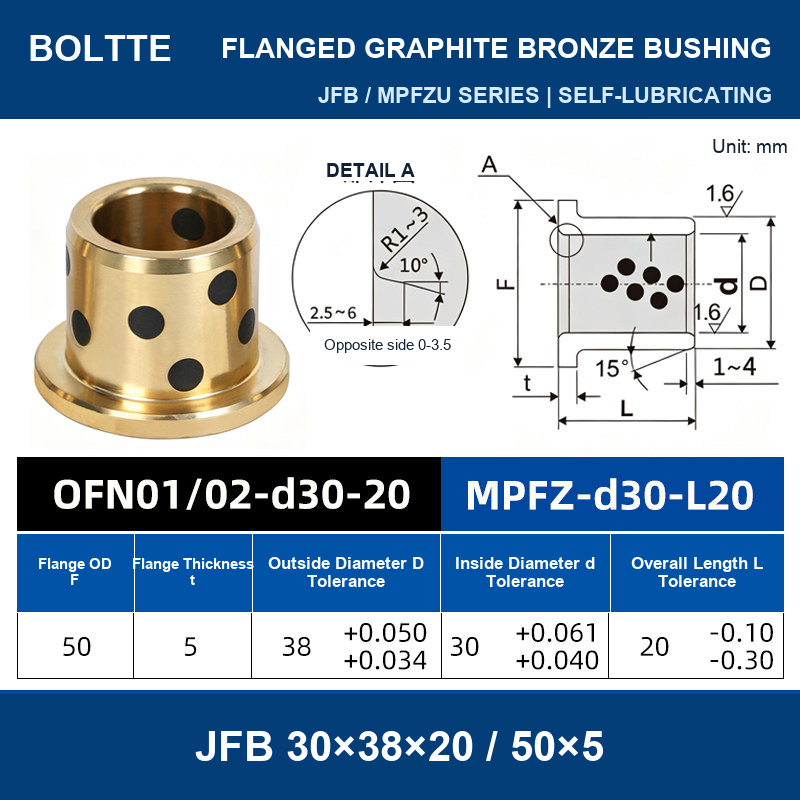

  • BOLTTE JFB flanged graphite bronze bushing - JFB 30×38×20 / 50×5
1 / 1

BOLTTE JFB Flanged Graphite Bronze Bushings - 5-120 mm Bore

$15.00 USD $11.25 USD 25% OFF
Bereken bezorgkosten bij het afrekenen
BOLTTE JFB Flanged Graphite Bronze Bushings - 5-120 mm Bore
Model / Dimensions
Hoeveelheid
WhatsApp

BOLTTE JFB Flanged Graphite Bronze Bushings - 5-120 mm Bore

JFB flanged bronze bushings combine a copper-alloy bearing body, solid-lubricant plugs and an integrated flange for compatible sliding and rotary bearing applications.

Product details

  • Series: JFB / MPFZU-style flanged self-lubricating bushing.
  • Material: copper-based alloy with embedded solid-lubricant plugs.
  • Available bore range: 5-120 mm.
  • Each technical image retains the source dimensional drawing and tolerance values for the selected model.

Model format

Dimensions are listed as inside diameter × outside diameter × overall length / flange outside diameter × flange thickness. All listed dimensions are in millimetres.

Ordering notes

  • Select the exact model and verify all dimensions and tolerances against the mating shaft and housing.
  • For a custom size, choose the custom option and provide a drawing or complete dimensions before production.
  • Confirm the required fit, load, speed, motion type, operating temperature and environment before ordering.

Product Details and Technical Reference

BOLTTE JDB graphite bronze bushings for self-lubricating applications
BOLTTE JFB flanged graphite bronze bushing product range
JDB graphite bronze bushing product features
JDB graphite bronze bushing material and wear resistance
JDB graphite bronze bushing self-lubricating performance
JDB graphite bronze bushing product information and performance data
JDB graphite bronze bushing industrial applications
JDB graphite bronze bushing product details
High-strength brass thrust washers with graphite plugs
Split bronze bushings and quality graphite plugs

Model / configuratie / SKU

BOLTTE JFB Flanged Graphite Bronze Bushings - 5-120 mm Bore
Model / configuratieSKU
Custom Size - Contact Us 6017256182784
JFB 5-8 (5×7×8 / 11×2) 6257367970231
JFB 5-10 (5×7×10 / 11×2) 6257367970232
JFB 5-10 (5×9×10 / 14×2) 5895814956214
JFB 5-12 (5×7×12 / 11×2) 6257367970233
JFB 5-12 (5×9×12 / 14×2) 5895814956210
JFB 5-15 (5×7×15 / 11×2) 6257367970234
JFB 5-15 (5×9×15 / 14×2) 5895814956211
JFB 6-15 (6×10×15 / 16×2) 6257367970283
JFB 5-20 (5×9×20 / 14×2) 6257367970235
JFB 6-8 (6×8×8 / 12×2) 6257367970236
JFB 6-10 (6×8×10 / 12×2) 6257367970237
JFB 6-10 (6×10×10 / 16×2) 5895814956203
JFB 6-12 (6×8×12 / 12×2) 6257367970238
JFB 6-12 (6×10×12 / 16×2) 5895814956212
JFB 6-15 (6×8×15 / 12×2) 6257367970239
JFB 6-20 (6×8×20 / 12×2) 6257367970240
JFB 8-10 (8×10×10 / 14×2) 6257367970241
JFB 6-20 (6×10×20 / 16×2) 5895814956204
JFB 8-10 (8×12×10 / 20×2) 5895814956205
JFB 8-8 (8×12×8 / 20×2) 6257367970198
JFB 8-12 (8×10×12 / 14×2) 6257367970242
JFB 8-12 (8×12×12 / 20×2) 5895814956206
JFB 8-15 (8×10×15 / 14×2) 6257367970243
JFB 8-15 (8×12×15 / 20×2) 5895814956207
JFB 8-20 (8×12×20 / 20×2) 5895814956208
JFB 8-20 (8×10×20 / 14×2) 6257367970244
JFB 8-25 (8×12×25 / 20×2) 5895814956209
JFB 8-30 (8×12×30 / 20×2) 5895814956213
JFB 10-8 (10×14×8 / 22×2) 5895814956215
JFB 10-10 (10×14×10 / 22×2) 5895814956202
JFB 10-12 (10×14×12 / 22×2) 5895814956216
JFB 16×2 / 10×12×10 6123417402226
JFB 16×2 / 10×12×12 6123417402227
JFB 16×2 / 10×12×15 6123417402228
JFB 16×2 / 10×12×20 6123417402229
JFB 10-15 (10×14×15 / 22×2) 5895814956201
JFB 10-20 (10×14×20 / 22×2) 5895814956217
JFB 10-25 (10×14×25 / 22×2) 5895814956218
JFB 10-30 (10×14×30 / 22×2) 5895814956219
JFB 12-10 (12×18×10 / 25×3) 6017256182786
JFB 12-10 (12×15×10 / 21×3) 6257367970245
JFB 12-12 (12×15×12 / 21×3) 6257367970246
JFB 12-12 (12×18×12 / 25×3) 6017256182787
JFB 12-15 (12×15×15 / 21×3) 6257367970247
JFB 12-15 (12×18×15 / 25×3) 6017256182788
JFB (12-18)12×18×18 / 25×3 6257367970211
JFB 12-20 (12×15×20 / 21×3) 6257367970248
JFB 12-20 (12×18×20 / 25×3) 6017256182789
JFB 12-25 (12×15×25 / 21×3) 6257367970249
JFB 12-25 (12×18×25 / 25×3) 6017256182790
JFB 12-30 (12×15×30 / 21×3) 6257367970250
JFB 12-30 (12×18×30 / 25×3) 6017256182791
JFB (12-35)12×18×35 / 25×3 6257367970210
JFB 12-40 (12×18×40 / 25×3) 6017256182792
JFB 12-45 (12×18×45 / 25×3) 6257367970223
JFB 12-50 (12×18×50 / 25×3) 6017256182793
JFB 13-10 (13×19×10 / 26×3) 6017256182794
JFB 13-10 (13×16×10 / 22×3) 6257367970224
JFB 13-12 (13×16×12 / 22×3) 6257367970225
JFB 13-12 (13×19×12 / 26×3) 6017256182795
JFB 13-15 (13×16×15 / 22×3) 6257367970226
JFB 13-15 (13×19×15 / 26×3) 6017256182796
JFB 13-20 (13×16×20 / 22×3) 6257367970227
JFB 13-20 (13×19×20 / 26×3) 6017256182797
JFB 13-25 (13×16×25 / 22×3) 6257367970228
JFB 13-25 (13×19×25 / 26×3) 6017256182798
JFB 13-30 (13×16×30 / 22×3) 6257367970229
JFB 13-30 (13×19×30 / 26×3) 6017256182799
JFB 13-35 (13×19×35 / 26×3) 6257367970251
JFB 14-10 (14×20×10 / 27×3) 6017256182800
JFB 14-12 (14×20×12 / 27×3) 6017256182801
JFB 14-15 (14×20×15 / 27×3) 6017256182802
JFB 14-20 (14×20×20 / 27×3) 6017256182803
JFB 14-25 (14×20×25 / 27×3) 6017256182804
JFB 14-30 (14×20×30 / 27×3) 6017256182805
JFB 14-35 (14×20×35 / 27×3) 6017256182806
JFB 15-10 (15×18×10 / 24×3) 6257367970252
JFB 15-10 (15×21×10 / 28×3) 6017256182807
JFB 15-12 (15×18×12 / 24×3) 6257367970253
JFB 15-12 (15×21×12 / 28×3) 6017256182808
JFB 15-15 (15×18×15 / 24×3) 6257367970254
JFB 15-15 (15×21×15 / 28×3) 6017256182809
JFB 15-20 (15×18×20 / 24×3) 6257367970255
JFB 15-20 (15×21×20 / 28×3) 6017256182810
JFB 15-25 (15×18×25 / 24×3) 6257367970256
JFB 15-25 (15×21×25 / 28×3) 6017256182811
JFB 15-30 (15×18×30 / 24×3) 6257367970257
JFB 15-30 (15×21×30 / 28×3) 6017256182812
JFB 15-35 (15×21×35 / 28×3) 6017256182813
JFB 15-40 (15×21×40 / 28×3) 6017256182814
JFB 16-10 (16×20×10 / 26×3) 6257367970258
JFB 16-10 (16×22×10 / 29×3) 6017256182815
JFB 16-12 (16×20×12 / 26×3) 6257367970259
JFB 16-12 (16×22×12 / 29×3) 6017256182816
JFB 16-15 (16×20×15 / 26×3) 6257367970260
JFB 16-15 (16×22×15 / 29×3) 6017256182817
JFB 16-16 (16×20×16 / 26×2) - Nonstandard Special 6257367970262
JFB 16-16 (16×20×16 / 26×3) 6257367970261
JFB 16-18 (16×20×18 / 26×3) 6257367970263
JFB 16-20 (16×20×20 / 26×3) 6257367970264
JFB 16-20 (16×22×20 / 29×3) 6017256182818
JFB 16-25 (16×20×25 / 26×3) 6257367970265
JFB 16-25 (16×22×25 / 29×3) 6017256182819
JFB 16-30 (16×20×30 / 26×3) 6257367970266
JFB 16-30 (16×22×30 / 29×3) 6017256182820
JFB 16-35 (16×20×35 / 26×3) 6257367970267
JFB 16-35 (16×22×35 / 29×3) 6017256182821
JFB 16-40 (16×20×40 / 26×3) 6257367970268
JFB 16-40 (16×22×40 / 29×3) 6017256182822
JFB 16-50 (16×22×50 / 29×3) 6017256182823
JFB 18-12 (18×24×12 / 32×3) 6017256182824
JFB 18-15 (18×24×15 / 32×3) 6017256182825
JFB 18-20 (18×24×20 / 32×3) 6017256182826
JFB 18-25 (18×24×25 / 32×3) 6017256182827
JFB 18-30 (18×24×30 / 32×3) 6017256182828
JFB 18-35 (18×24×35 / 32×3) 6257367970282
JFB 18-40 (18×24×40 / 32×3) 6017256182829
JFB 18-50 (18×24×50 / 32×3) 6017256182830
JFB 20×24×15 / 32×4 6257367970213
JFB 20×24×20 / 32×4 6257367970219
JFB 20×24×25 / 32×4 6257367970217
JFB 20×24×30 / 32×4 6257367970214
JFB 20×24×35 / 32×4 6257367970221
JFB 20×24×40 / 32×4 6257367970220
JFB 20×24×50 / 32×4 6257367970216
JFB 20×26×15 / 32×3 6257367970212
JFB 20×26×16 / 32×3 6257367970218
JFB 20×26×20 / 32×3 6257367970222
JFB 20×26×25 / 32×3 6257367970215
JFB 20×28×15 / 40×5 6017256182831
JFB 20×28×20 / 40×5 6017256182832
JFB 20×28×25 / 40×5 6017256182833
JFB 20×28×30 / 40×5 6017256182834
JFB 20×28×35 / 40×5 6017256182835
JFB 20×28×40 / 40×5 6017256182836
JFB 20×28×50 / 40×5 6017256182837
JFB 20×30×15 / 40×5 6017256182838
JFB 20×30×20 / 40×5 6017256182839
JFB 20×30×25 / 40×5 6017256182840
JFB 20×30×30 / 40×5 6017256182841
JFB 20×30×35 / 40×5 6017256182842
JFB 20×30×40 / 40×5 6017256182843
JFB 20×30×45 / 40×5 6017256182844
JFB 20×30×50 / 40×5 6017256182845
JFB 20×30×60 / 40×5 6017256182846
JFB 20×30×20 / 40×3 6017256182847
JFB 20×30×20 / 36×3 6017256182848
JFB 25×29×15 / 37×4 6257367970208
JFB 25×29×20 / 37×4 6257367970207
JFB 25×29×25 / 37×4 6257367970269
JFB 25×29×30 / 37×4 6257367970206
JFB 25×29×35 / 37×4 6257367970209
JFB 25×29×40 / 37×4 6257367970270
JFB 25×29×50 / 37×4 6257367970271
JFB 25×33×15 / 45×5 6018368227539
JFB 25×33×20 / 45×5 6018368227531
JFB 25×33×25 / 45×5 6018368227530
JFB 25×33×30 / 45×5 6018368227543
JFB 25×33×35 / 45×5 6018368227537
JFB 25×33×40 / 45×5 6018368227534
JFB 25×33×50 / 45×5 6018368227529
JFB 25×33×60 / 45×5 6018368227540
JFB 25×35×15 / 45×5 6018368227538
JFB 25×35×20 / 45×5 6018368227535
JFB 25×35×25 / 45×5 6018368227546
JFB 25×35×30 / 45×5 6018368227547
JFB 25×35×35 / 45×5 6018368227533
JFB 25×35×40 / 45×5 6018368227536
JFB 25×35×45 / 45×5 6018368227541
JFB 25×35×50 / 45×5 6018368227532
JFB 25×35×55 / 45×5 6018368227542
JFB 25×35×60 / 45×5 6018368227545
JFB 25×35×70 / 45×5 6257367970230
JFB 25×35×80 / 45×5 6018368227544
JFB 30×34×15 / 42×4 6257367970272
JFB 30×34×20 / 42×4 6257367970273
JFB 30×34×25 / 42×4 6257367970202
JFB 30×34×30 / 42×4 6257367970274
JFB 30×34×35 / 42×4 6257367970203
JFB 30×34×40 / 42×4 6257367970201
JFB 30×34×50 / 42×4 6257367970205
JFB 30×38×15 / 50×5 6018368227554
JFB 30×38×20 / 50×5 6018368227555
JFB 30×38×25 / 50×5 6018368227556
JFB 30×38×30 / 50×5 6018368227557
JFB 30×38×35 / 50×5 6018368227558
JFB 30×38×40 / 50×5 6018368227559
JFB 30×38×50 / 50×5 6018368227560
JFB 30×38×60 / 50×5 6257367970275
JFB 30×40×15 / 50×5 6018368227522
JFB 30×40×20 / 50×5 6018368227521
JFB 30×40×25 / 50×5 6018368227526
JFB 30×40×30 / 50×5 6018368227525
JFB 30×40×35 / 50×5 6018368227527
JFB 30×40×40 / 50×5 6018368227528
JFB 30×40×45 / 50×5 6257367970276
JFB 30×40×50 / 50×5 6018368227524
JFB 30×40×60 / 50×5 6018368227523
JFB 30×40×70 / 50×5 6257367970204
JFB 35×45×20 / 60×5 6018368227520
JFB 35×45×25 / 60×5 6018368227519
JFB 35×45×30 / 60×5 6018368227518
JFB 35×45×35 / 60×5 6018368227508
JFB 35×45×40 / 60×5 6018368227513
JFB 35×45×45 / 60×5 6257367970277
JFB 35×45×50 / 60×5 6018368227511
JFB 35×45×60 / 60×5 6018368227506
JFB 35×45×70 / 60×5 6018368227509
JFB 40×50×20 / 65×5 6018368227507
JFB 40×50×25 / 65×5 6018368227578
JFB 40×50×30 / 65×5 6018368227512
JFB 40×50×35 / 65×5 6018368227514
JFB 40×50×40 / 65×5 6018368227515
JFB 40×50×45 / 65×5 6018368227510
JFB 40×50×50 / 65×5 6018368227517
JFB 40×50×60 / 65×5 6018368227553
JFB 40×50×70 / 65×5 6018368227587
JFB 40×50×80 / 65×5 6018368227516
JFB 45×55×30 / 70×5 6018368227582
JFB 45×55×35 / 70×5 6018368227503
JFB 45×55×40 / 70×5 6018368227583
JFB 45×55×50 / 70×5 6018368227584
JFB 45×55×55 / 70×5 6257367970278
JFB 45×55×60 / 70×5 6018368227561
JFB 45×55×70 / 70×5 6257367970279
JFB 45×55×80 / 70×5 6257367970200
JFB 50×60×25 / 75×5 6257367970199
JFB 50×60×30 / 75×5 6018368227504
JFB 50×60×35 / 75×5 6018368227499
JFB 50×60×40 / 75×5 6018368227585
JFB 50×60×45 / 75×5 6018368227505
JFB 50×60×50 / 75×5 6018368227498
JFB 50×60×60 / 75×5 6018368227500
JFB 50×60×70 / 75×5 6018368227501
JFB 50×60×80 / 75×5 6018368227502
JFB 55×65×30 / 80×5 6018368227562
JFB 55×65×40 / 80×5 6018368227563
JFB 55×65×50 / 80×5 6018368227564
JFB 55×65×60 / 80×5 6018368227565
JFB 55×65×80 / 80×5 6018368227566
JFB 60×75×35 / 90×7.5 6018368227496
JFB 60×75×40 / 90×7.5 6018368227493
JFB 60×75×50 / 90×7.5 6018368227494
JFB 60×75×60 / 90×7.5 6018368227490
JFB 60×75×70 / 90×7.5 6018368227491
JFB 60×75×80 / 90×7.5 6018368227489
JFB 60×75×100 / 90×7.5 6018368227492
JFB 65×80×40 / 95×7.5 6018368227567
JFB 65×80×50 / 95×7.5 6018368227568
JFB 65×80×60 / 95×7.5 6018368227569
JFB 65×80×80 / 95×7.5 6018368227570
JFB 70×85×40 / 105×7.5 6018368227495
JFB 70×85×50 / 105×7.5 6018368227571
JFB 70×85×60 / 105×7.5 6018368227573
JFB 70×85×70 / 105×7.5 6018368227497
JFB 70×85×75 / 105×7.5 6018368227487
JFB 70×85×80 / 105×7.5 6018368227572
JFB 70×85×100 / 105×7.5 6018368227488
JFB 75×90×50 / 110×7.5 6018368227579
JFB 75×90×60 / 110×7.5 6018368227580
JFB 75×90×80 / 110×7.5 6018368227581
JFB 60×75×45 / 90×7.5 6018368227548
JFB 60×75×30 / 90×7.5 6018368227586
JFB 80×100×50 / 120×10 6018368227479
JFB 80×100×60 / 120×10 6018368227478
JFB 80×100×70 / 120×10 6018368227552
JFB 80×100×80 / 120×10 6018368227477
JFB 80×100×100 / 120×10 6018368227484
JFB 80×100×120 / 120×10 6018368227481
JFB 90×110×50 / 130×10 6018368227485
JFB 90×110×60 / 130×10 6018368227576
JFB 90×110×70 / 130×10 6257367970280
JFB 90×110×80 / 130×10 6018368227577
JFB 90×110×100 / 130×10 6018368227476
JFB 100×120×30 / 150×10 6018368227483
JFB 100×120×40 / 150×10 6018368227549
JFB 100×120×50 / 150×10 6018368227550
JFB 100×120×60 / 150×10 6018368227551
JFB 100×120×80 / 150×10 6018368227574
JFB 100×120×100 / 150×10 6018368227575
JFB 100×120×120 / 150×10 6257367970281
JFB 120×140×80 / 170×10 6018368227482
JFB 120×140×100 / 170×10 6018368227486
JFB 120×140×120 / 170×10 6018368227480

Misschien ook interessant

Get a Quote
\n\n
