BL Series Plastic Bag Vacuum Suction Cups & Fittings
$10.00 USD
$4.50 USD
55% OFF
Bereken bezorgkosten bij het afrekenen
BL Series Plastic Bag Vacuum Suction Cups & Fittings
Hoeveelheid
BL Series Plastic Bag Vacuum Suction Cups & Fittings
BL bellows vacuum cups are designed for flexible plastic bags, pharmaceutical packaging and food packaging. Options include white or red silicone, black NBR, complete assemblies and matching threaded fittings.
Select a model to view its matching material, dimensions and connector configuration.
Applications and Suitable Workpieces
BL Series Plastic Bag Vacuum Suction Cups & Fittings: These cups are designed for opening, separating and transferring flexible film, plastic bags and pouch-type packaging without relying on a rigid flat surface.
Recommended applications
- Plastic bags, flexible film, laminated pouches, stand-up pouches and light packaging materials.
- Bag opening, pouch feeding, filling and sealing machines, packaging robots and automated pick-and-place stations.
- Soft or unstable packaged products where a flexible lip or bellows stroke helps maintain contact.
Model and selection notes

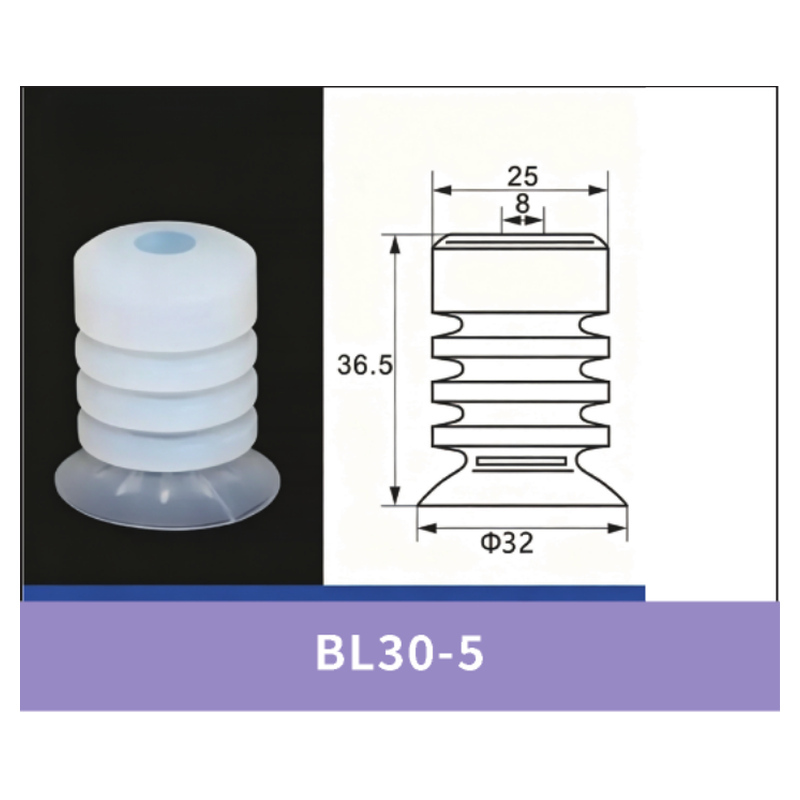

- BL30-5, BL40-5 and BL50-5 identify size. White/red silicone, black NBR, premium, cup-only and complete assembly variants must be matched by full code.
- Choose the exact cup geometry and diameter from the model image; small changes in lip shape can affect sealing on thin film.
- Silicone is commonly selected for flexible sealing and wider temperature capability; NBR is useful for wear resistance and lightly oily industrial conditions; conductive models are intended for static-sensitive handling where specified.
- Wrinkling, folds, perforations and very thin film can cause leakage. Test the actual film thickness, vacuum level and cycle speed before production.
