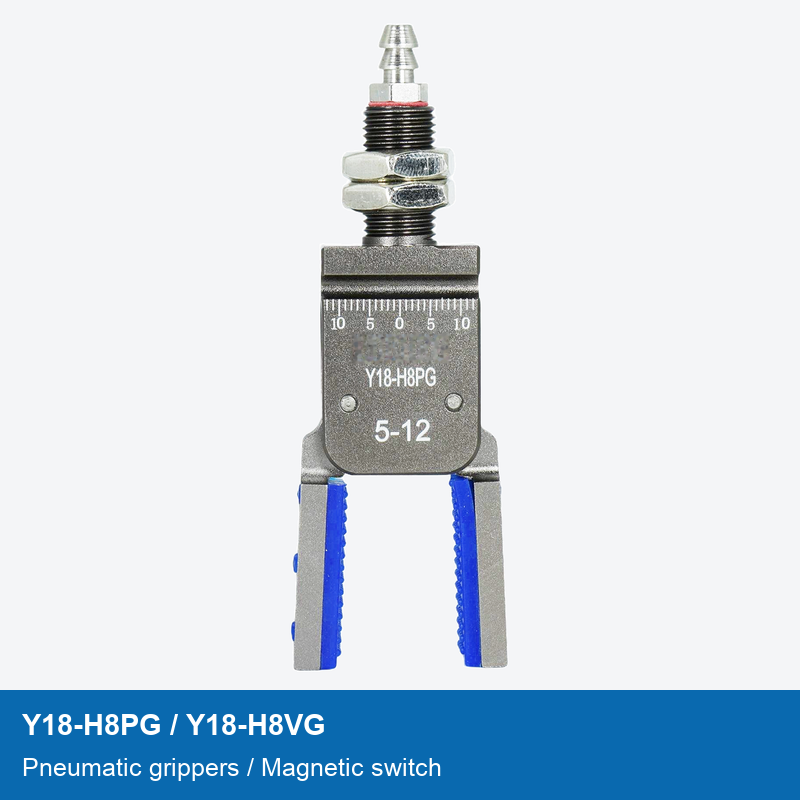

Y18-H8PG H8VG Mini Pneumatic Grippers, Silicone Pads and Magnetic Switch

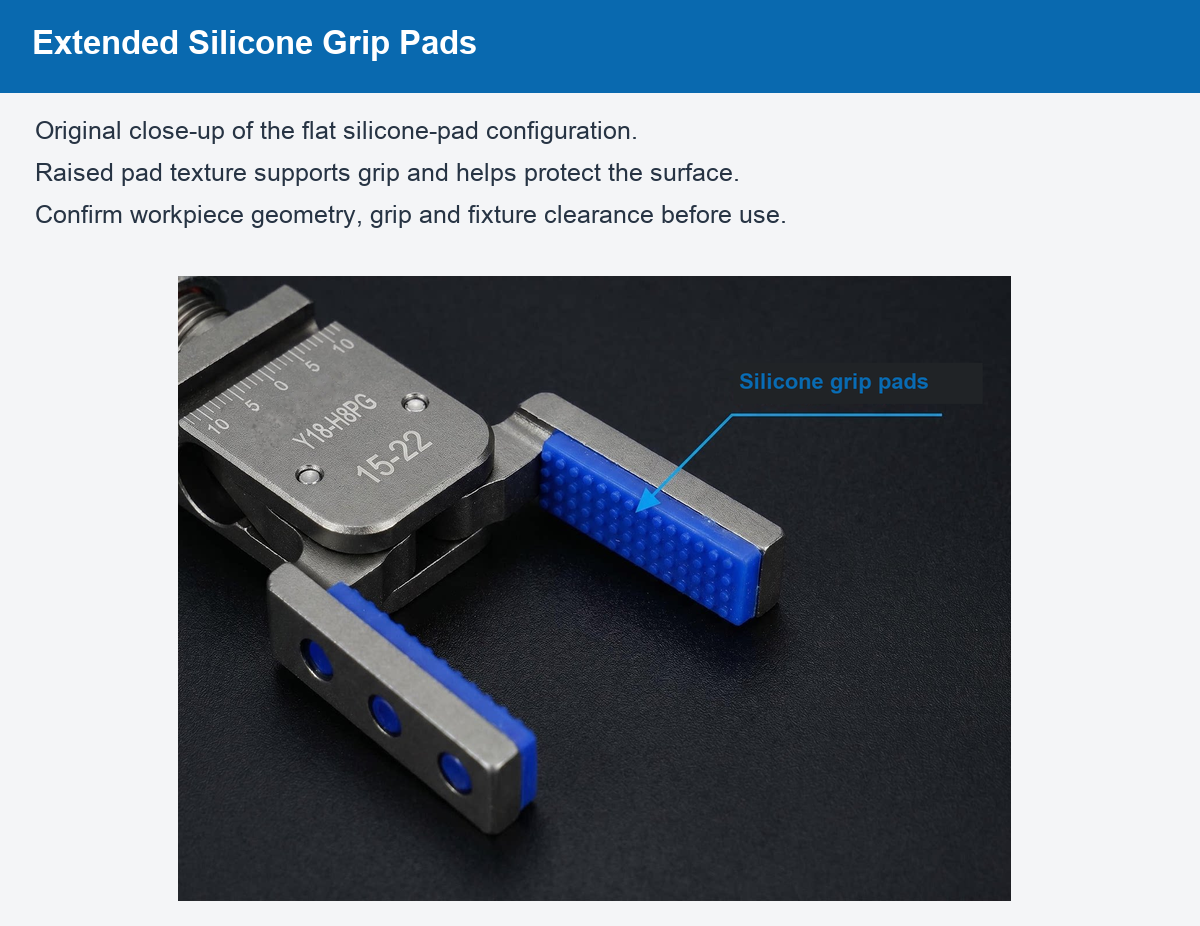

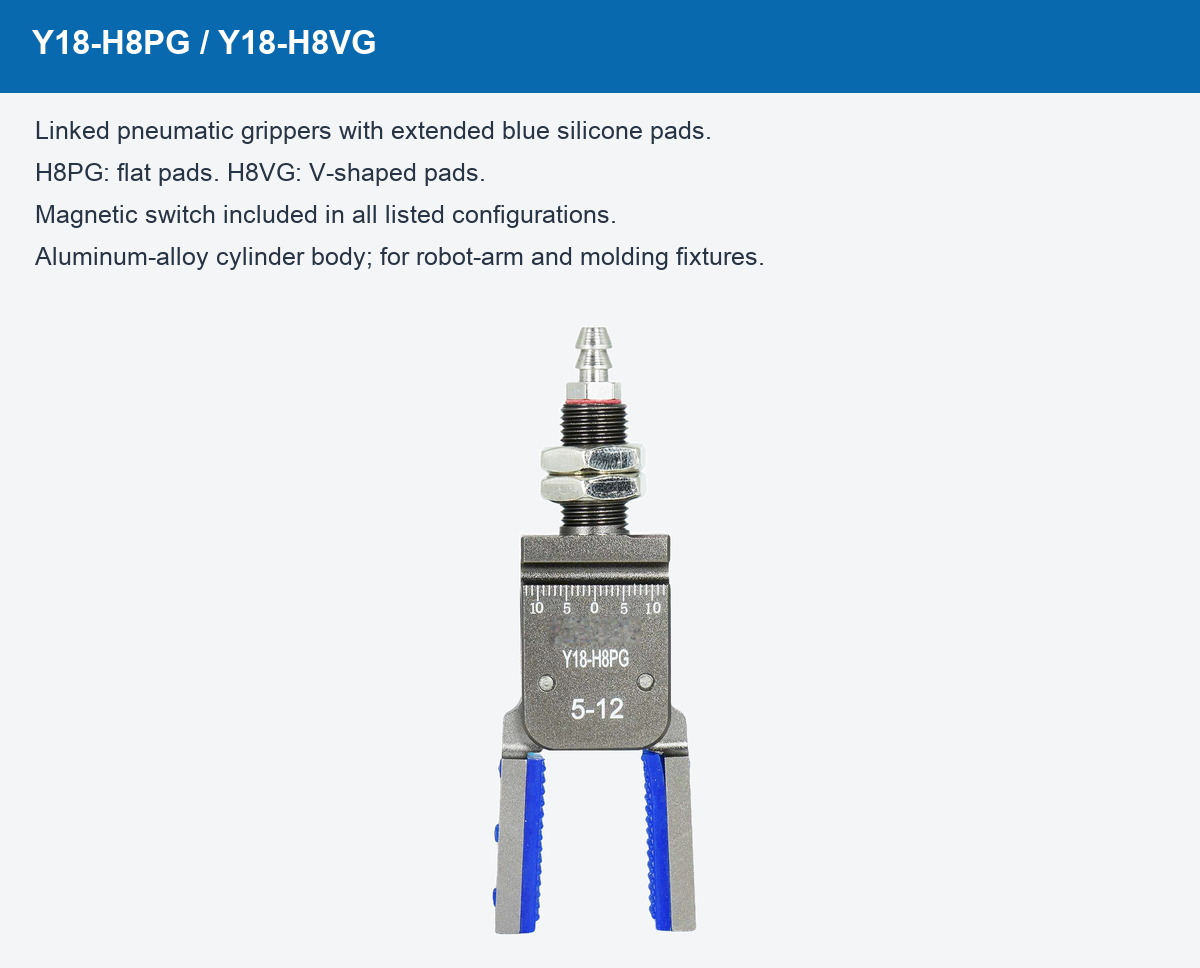

Linked pneumatic grippers with extended blue silicone jaw pads and an included magnetic switch. Select Y18-H8PG for flat pads or Y18-H8VG for V-shaped pads. The aluminum-alloy cylinder body and padded jaws are intended for robot-arm and injection-molding fixtures. Each listed model is sold separately.
Configuration and dimensions
Gripping ranges and dimensions below are supplied-source values, not independently measured ratings. The drawings label a 6-M5 hose-barb fitting for 6 mm tubing, an M10 mounting thread and a sensor groove. A 4 mm barb fitting is mentioned as an optional alternative, not an included additional fitting. Confirm tubing and fixture compatibility before ordering.

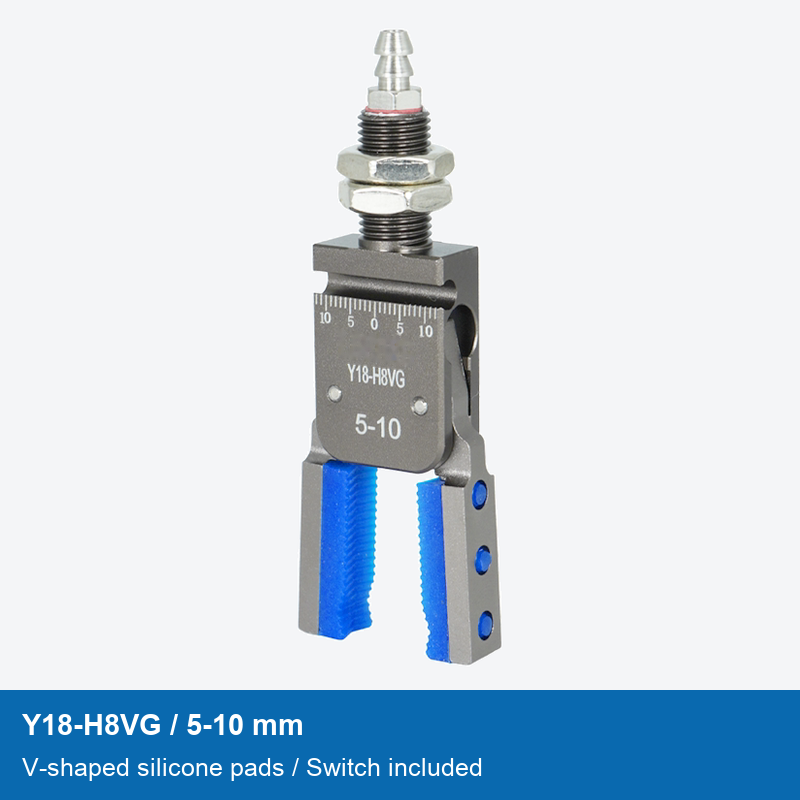

- Y18-H8VG / 5-10 mm / Magnetic switch

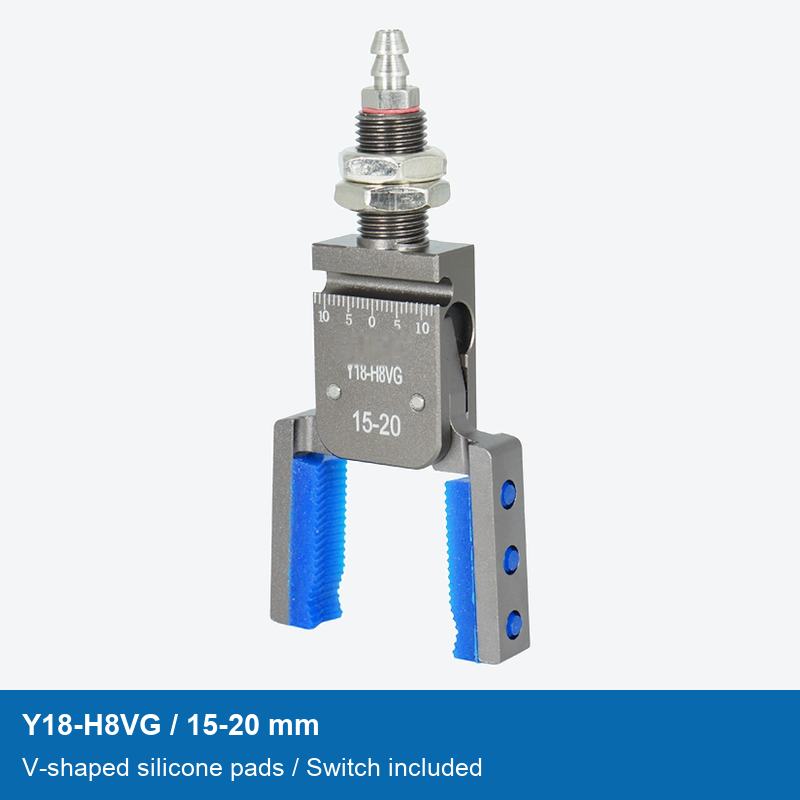

- Y18-H8VG / 15-20 mm / Magnetic switch

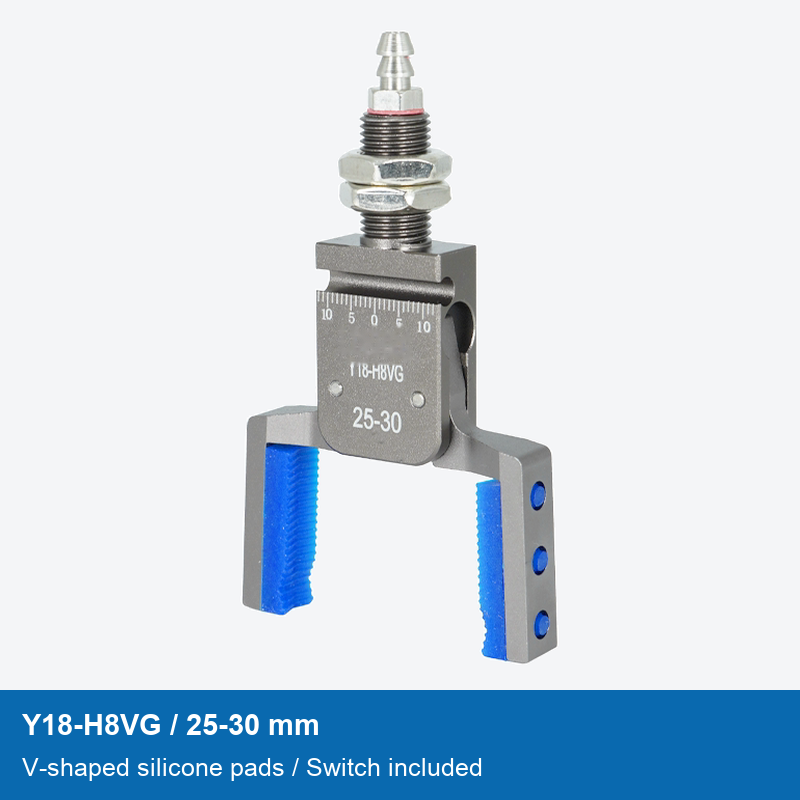

- Y18-H8VG / 25-30 mm / Magnetic switch

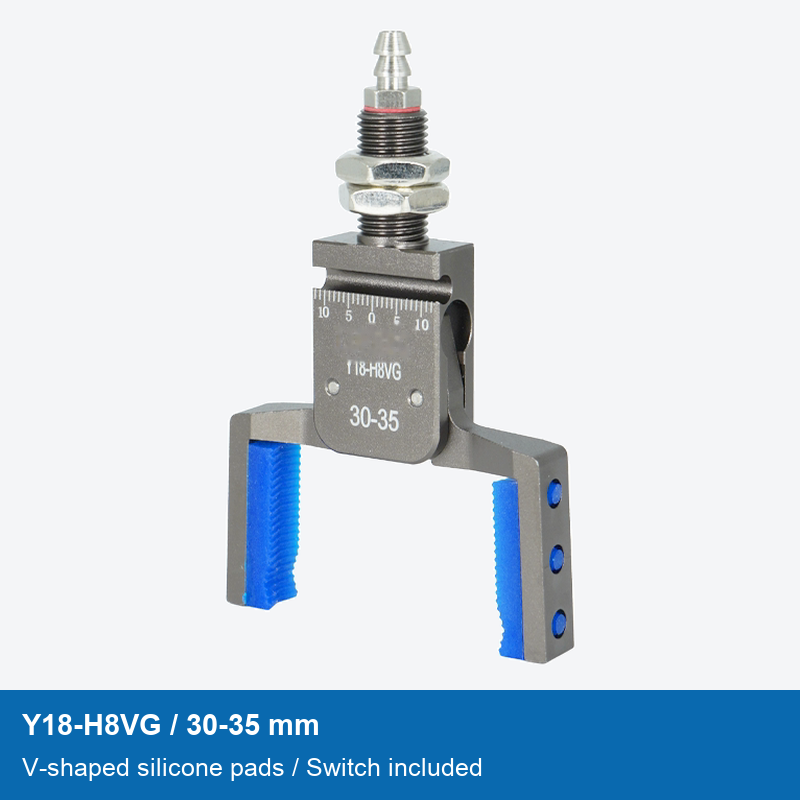

- Y18-H8VG / 30-35 mm / Magnetic switch

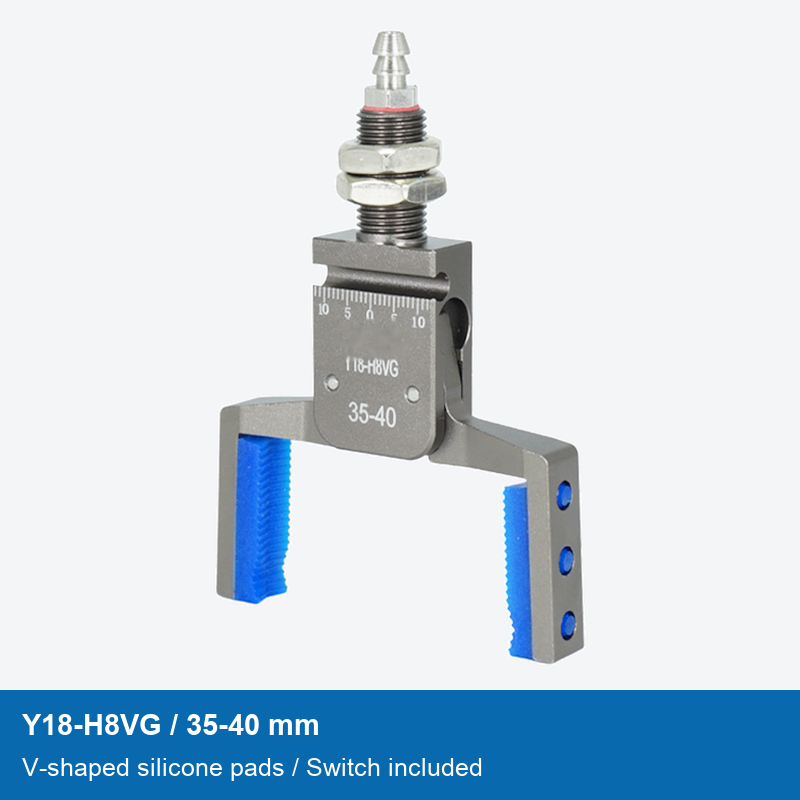

- Y18-H8VG / 35-40 mm / Magnetic switch

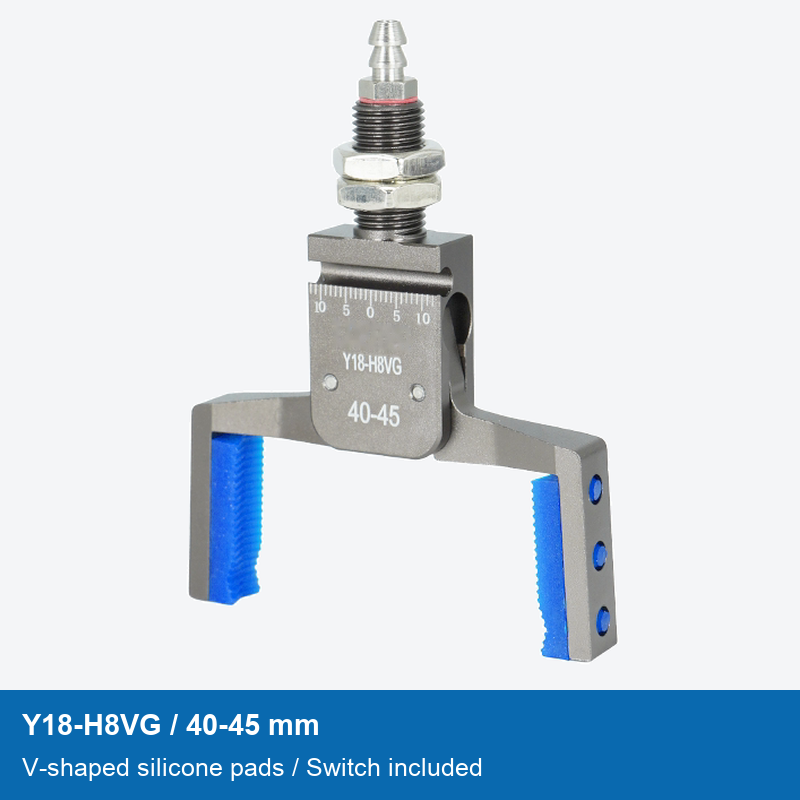

- Y18-H8VG / 40-45 mm / Magnetic switch

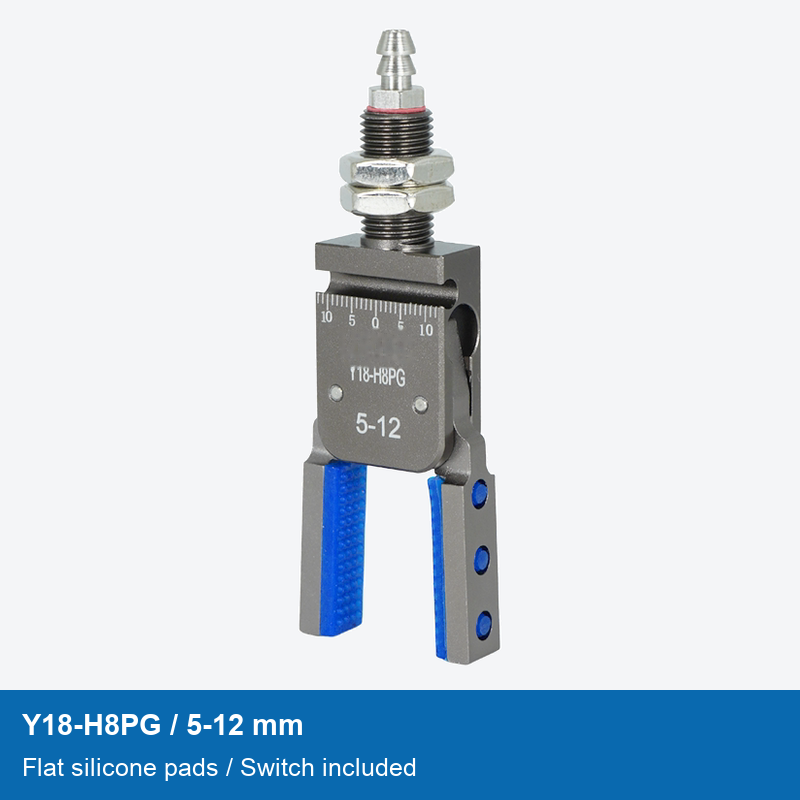

- Y18-H8PG / 5-12 mm / Magnetic switch

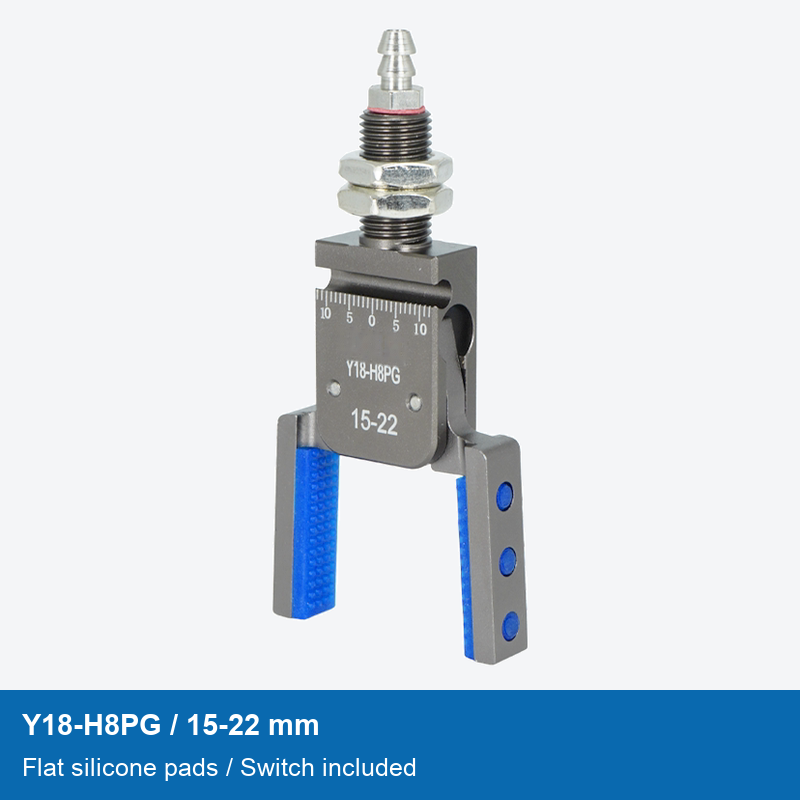

- Y18-H8PG / 15-22 mm / Magnetic switch

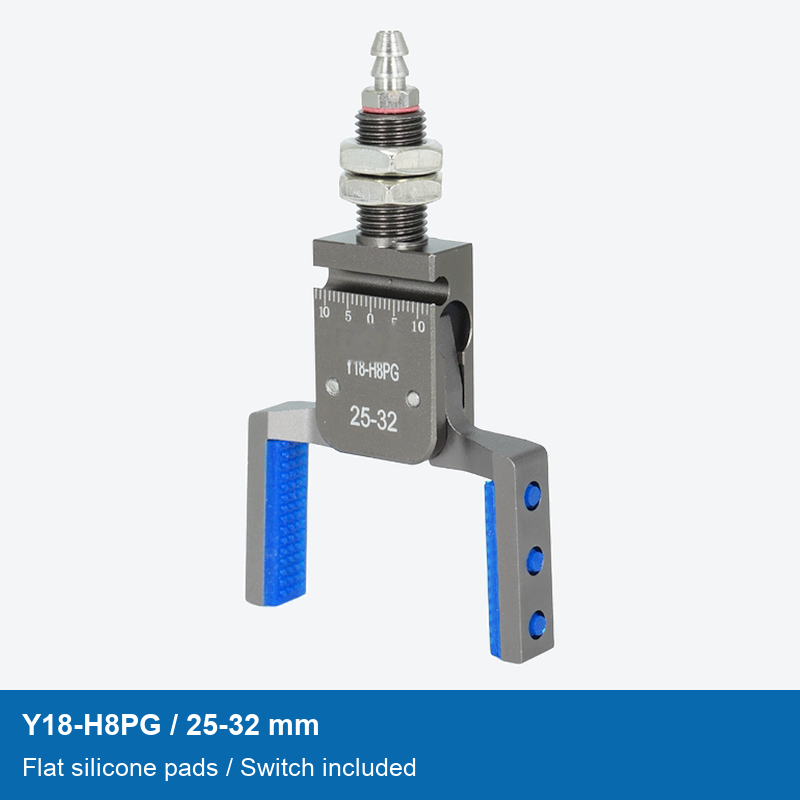

- Y18-H8PG / 25-32 mm / Magnetic switch

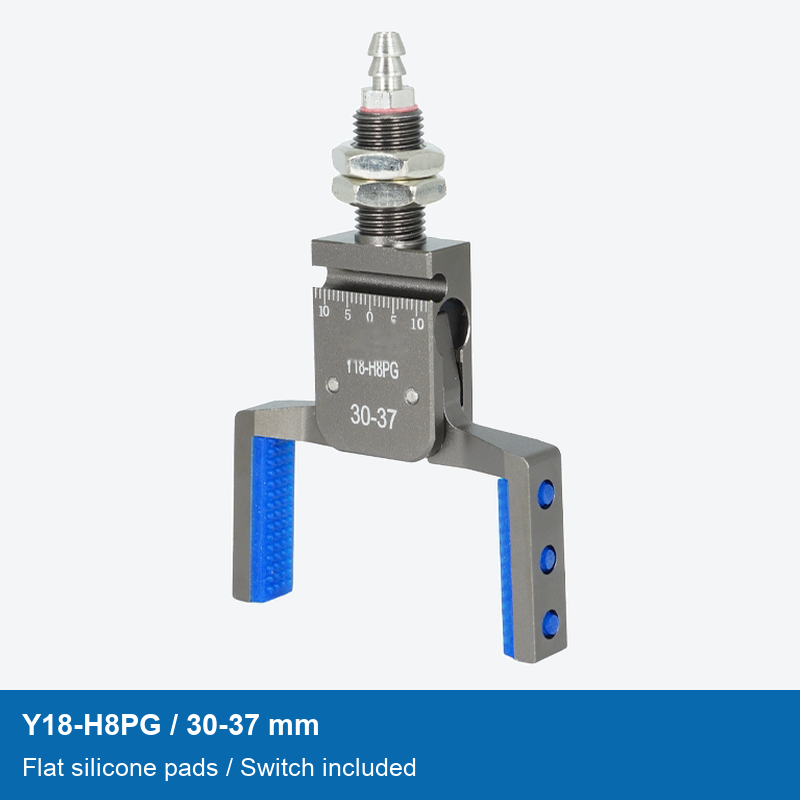

- Y18-H8PG / 30-37 mm / Magnetic switch

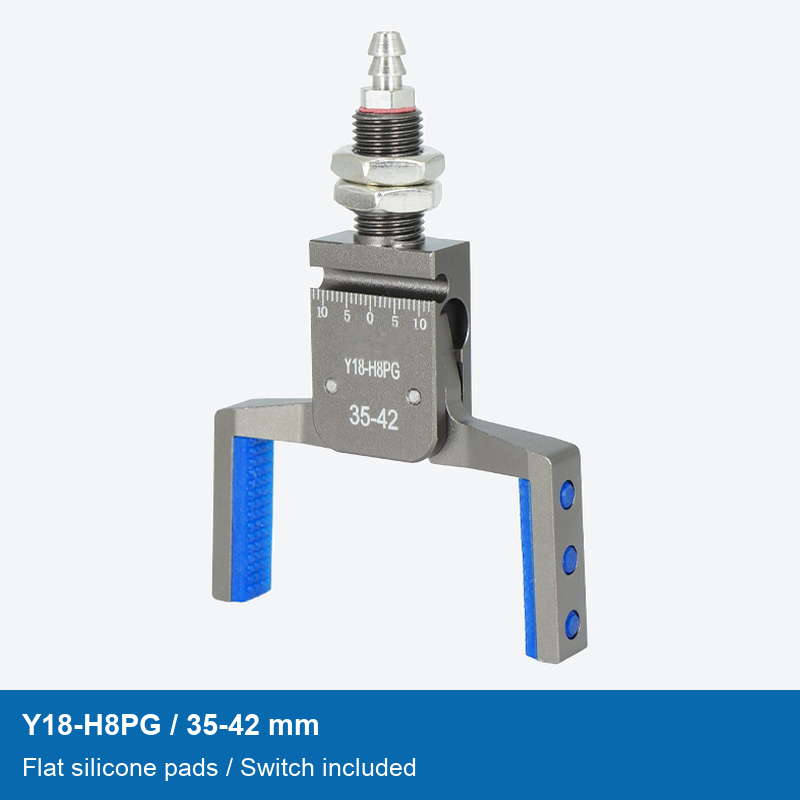

- Y18-H8PG / 35-42 mm / Magnetic switch

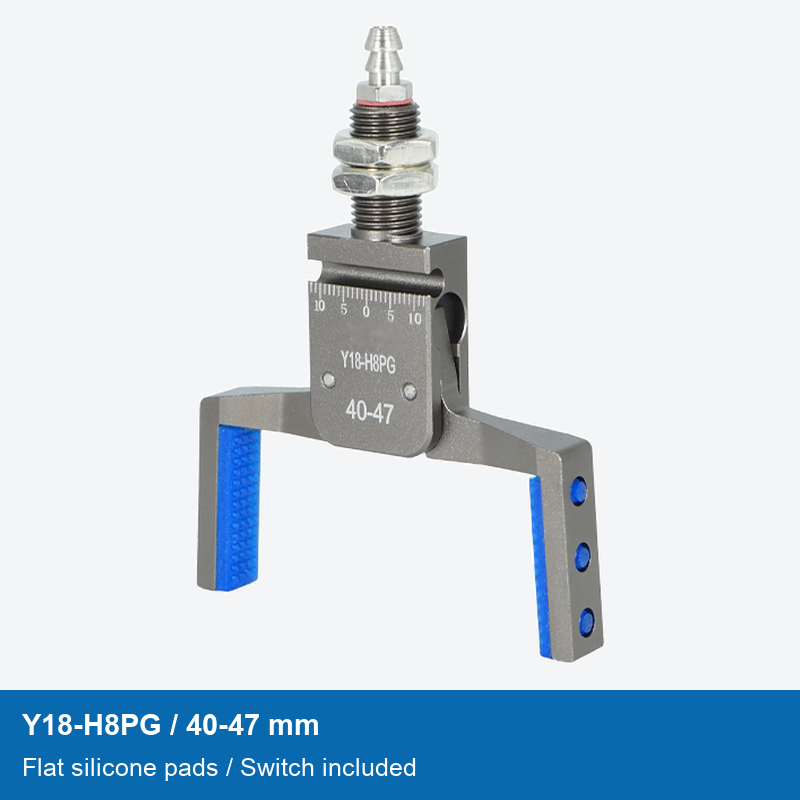

- Y18-H8PG / 40-47 mm / Magnetic switch
Use and ordering notes
Use with a suitable air supply. Confirm workpiece shape, grip stability, operating requirements and mounting clearance before installation. No verified load, operating pressure, temperature or cycle-life rating is supplied. The switch is included, but connector, wiring and voltage specifications must be confirmed for the actual control system.
Illustrated size reference (mm)

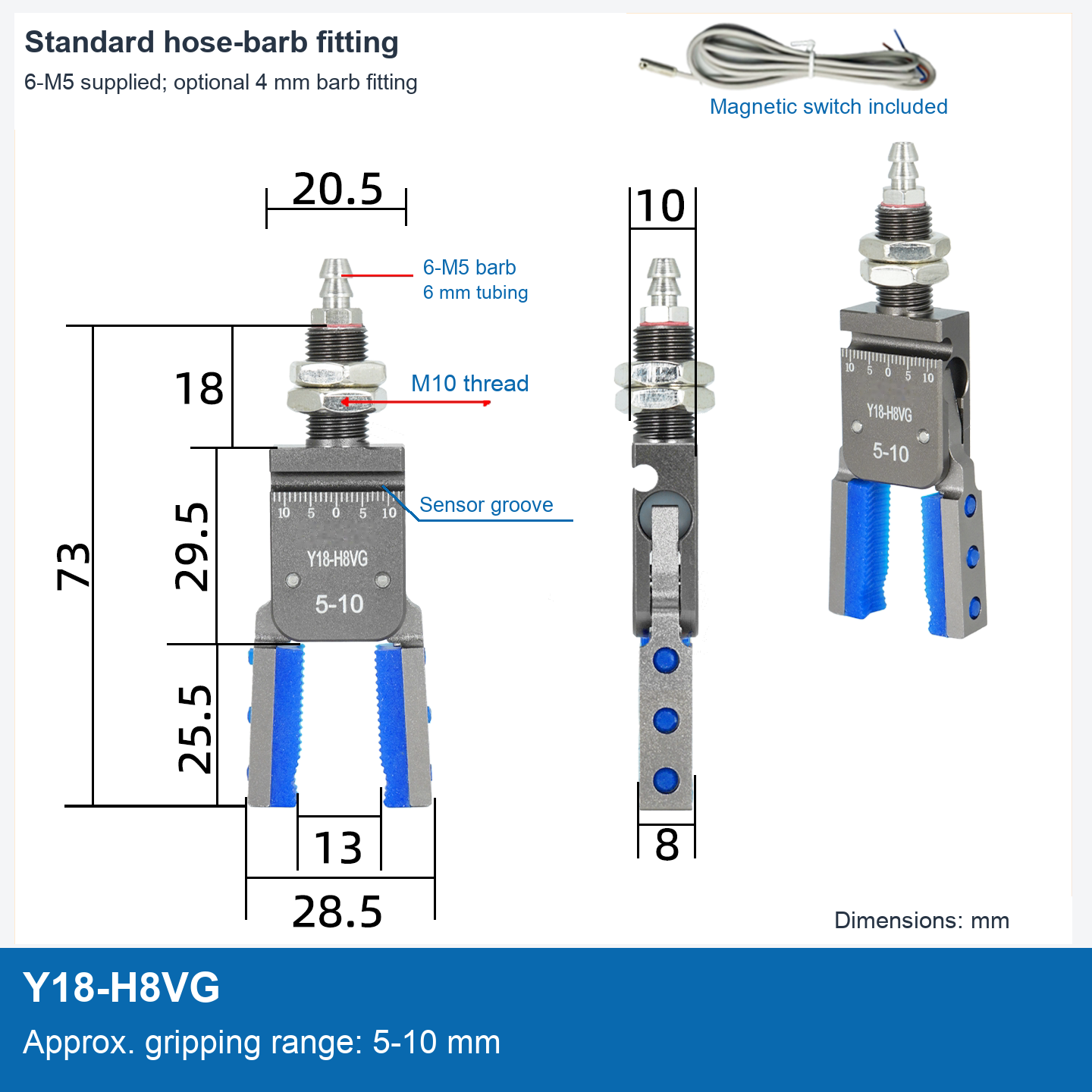

The shared drawings show a 73 mm overall illustrated height, 29.5 mm body section, 25.5 mm jaw section, 18 mm mounting section, 20.5 mm body width, 10 mm upper depth and 8 mm jaw-side thickness. Dimensions describe the illustrated positions, not rated stroke or maximum opening.
| Model / gripping range | Illustrated jaw gap | Illustrated overall width |
|---|---|---|
| Y18-H8VG / 5-10 mm | 13 | 28.5 |

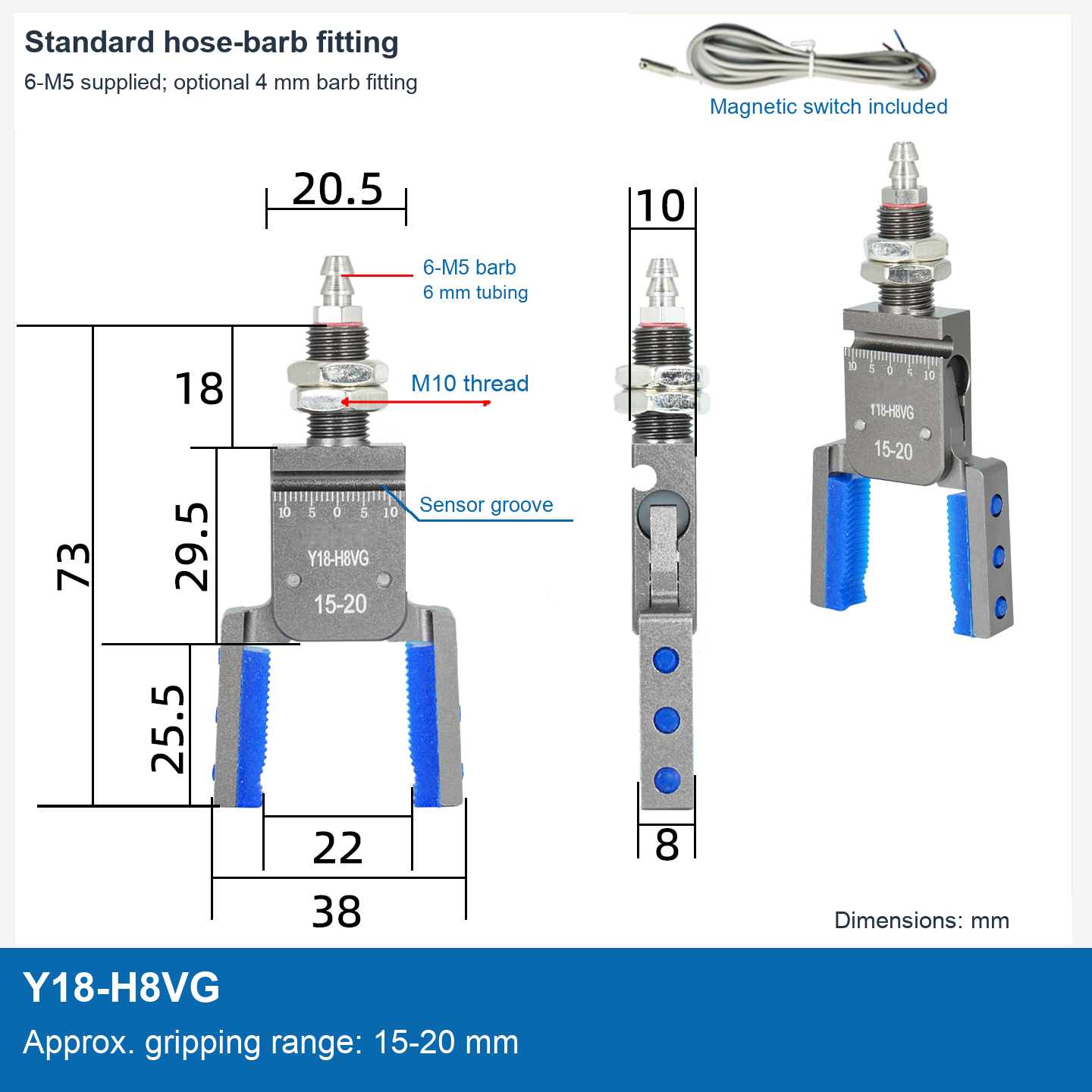

| Y18-H8VG / 15-20 mm | 22 | 38 |

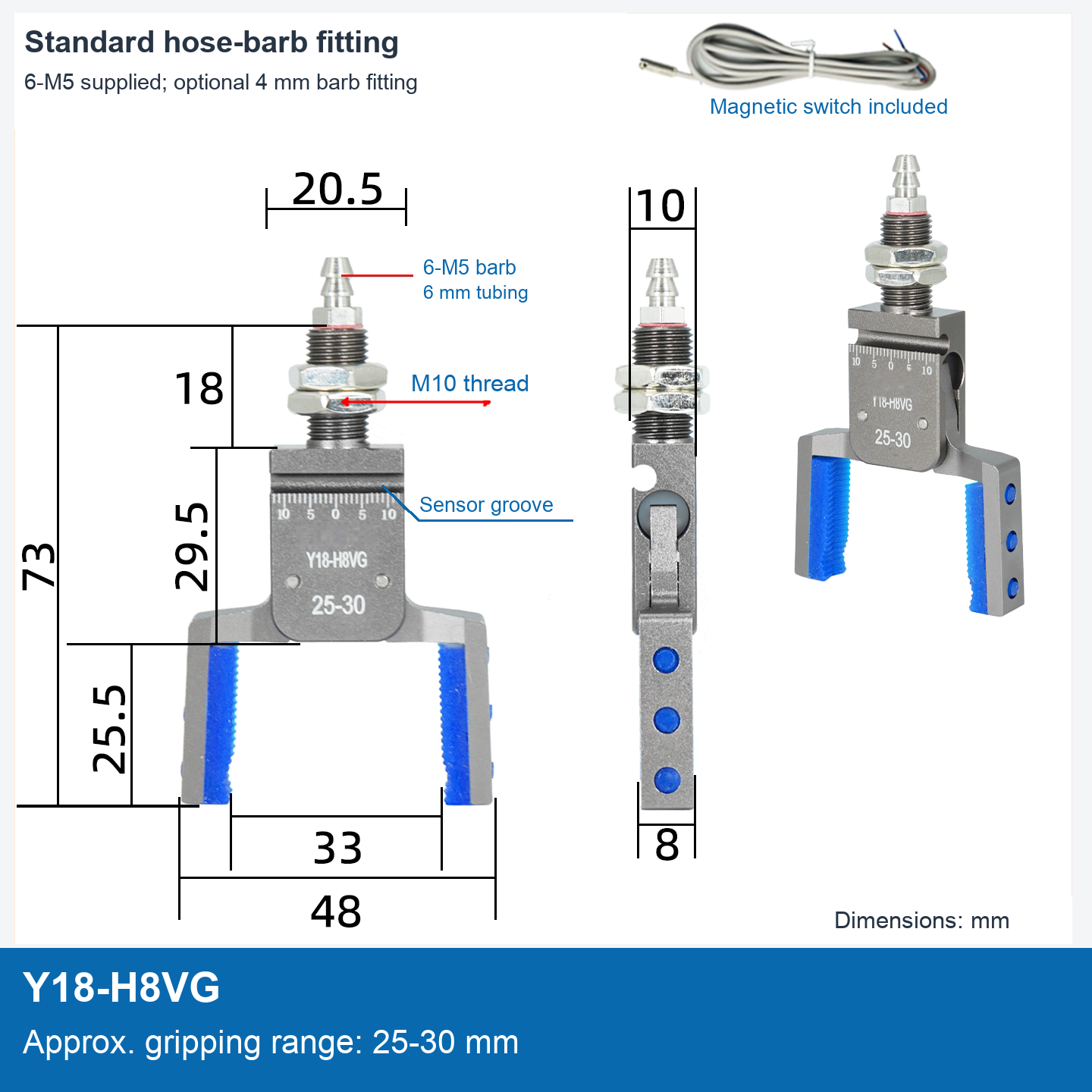

| Y18-H8VG / 25-30 mm | 33 | 48 |

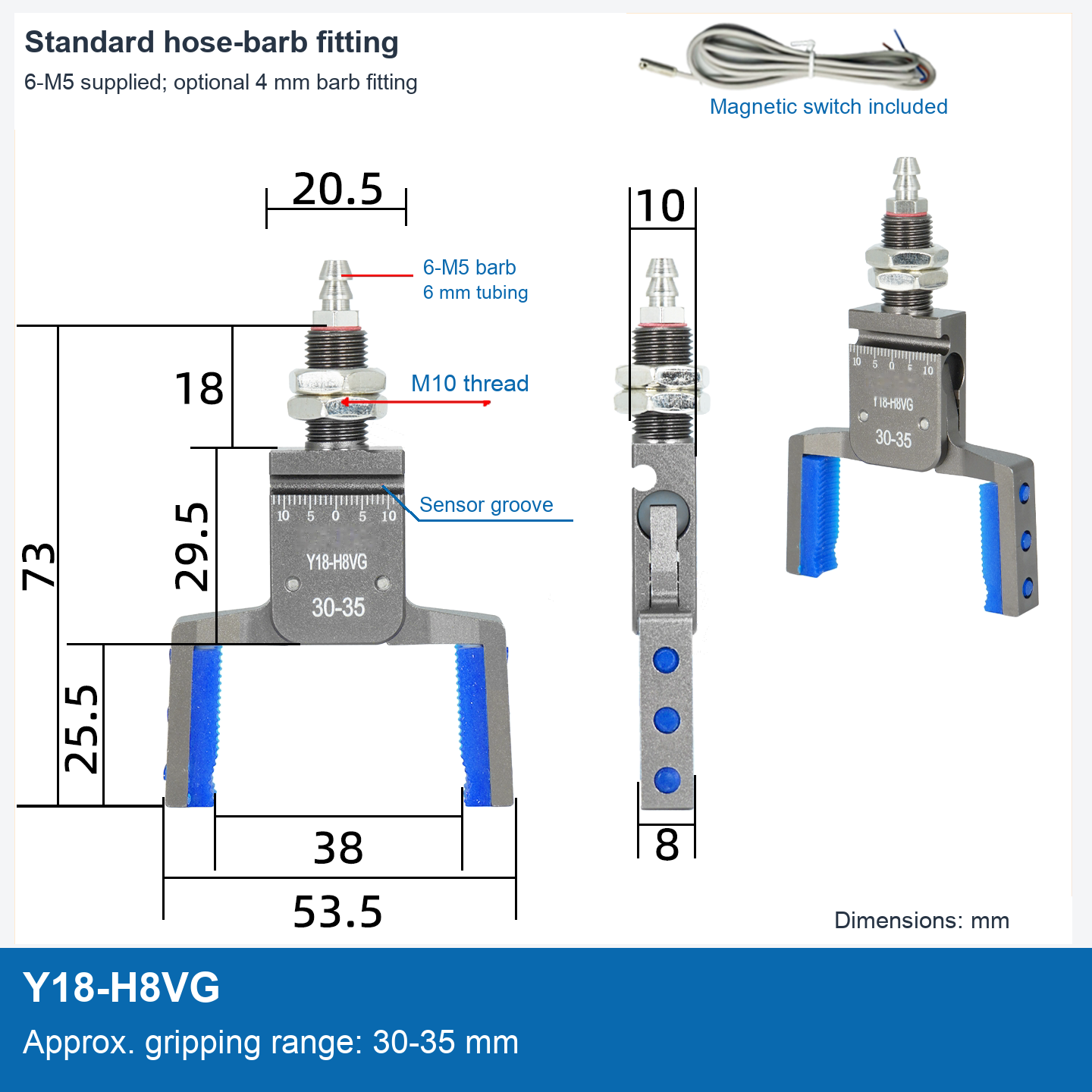

| Y18-H8VG / 30-35 mm | 38 | 53.5 |

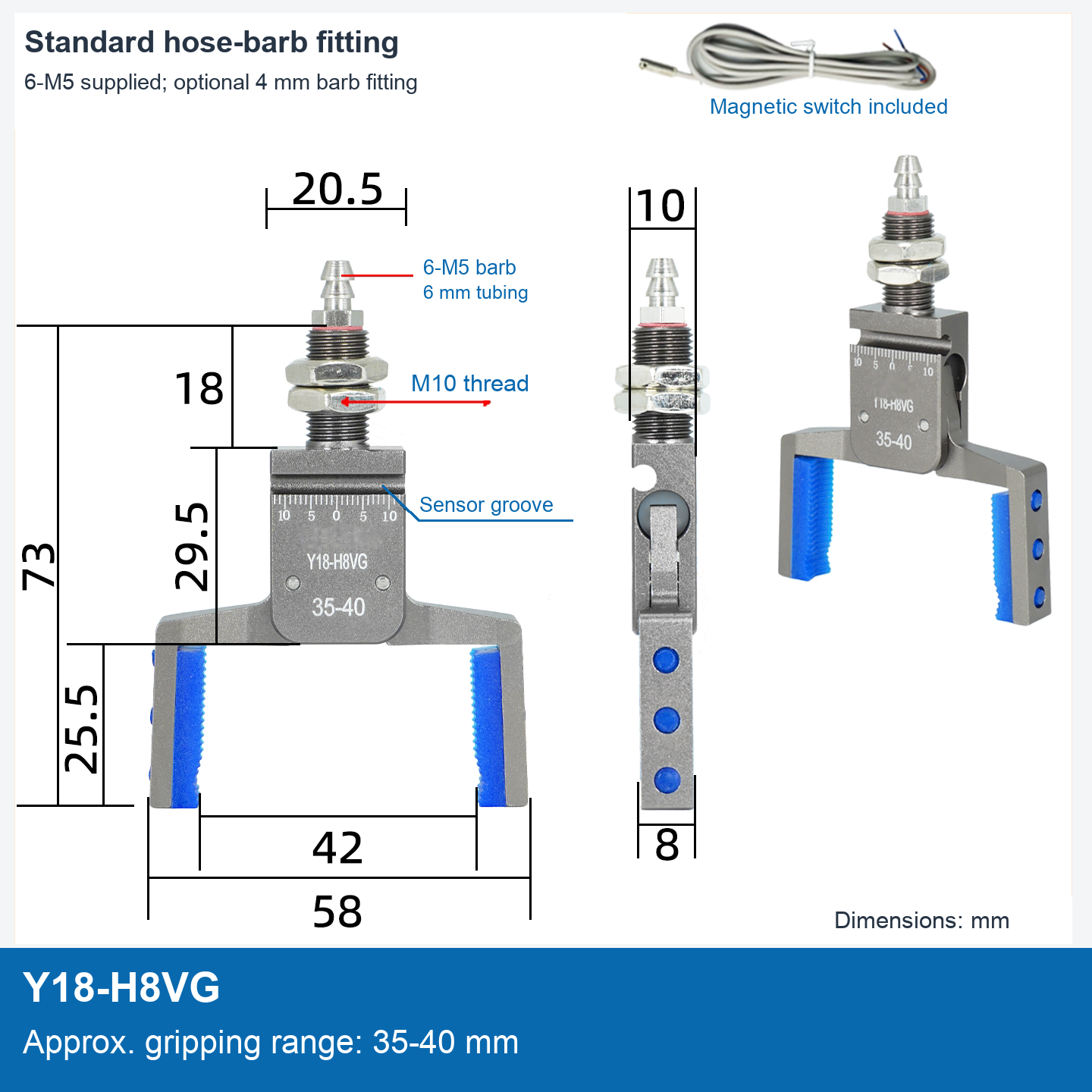

| Y18-H8VG / 35-40 mm | 42 | 58 |
| Y18-H8VG / 40-45 mm | 48 | 63.5 |

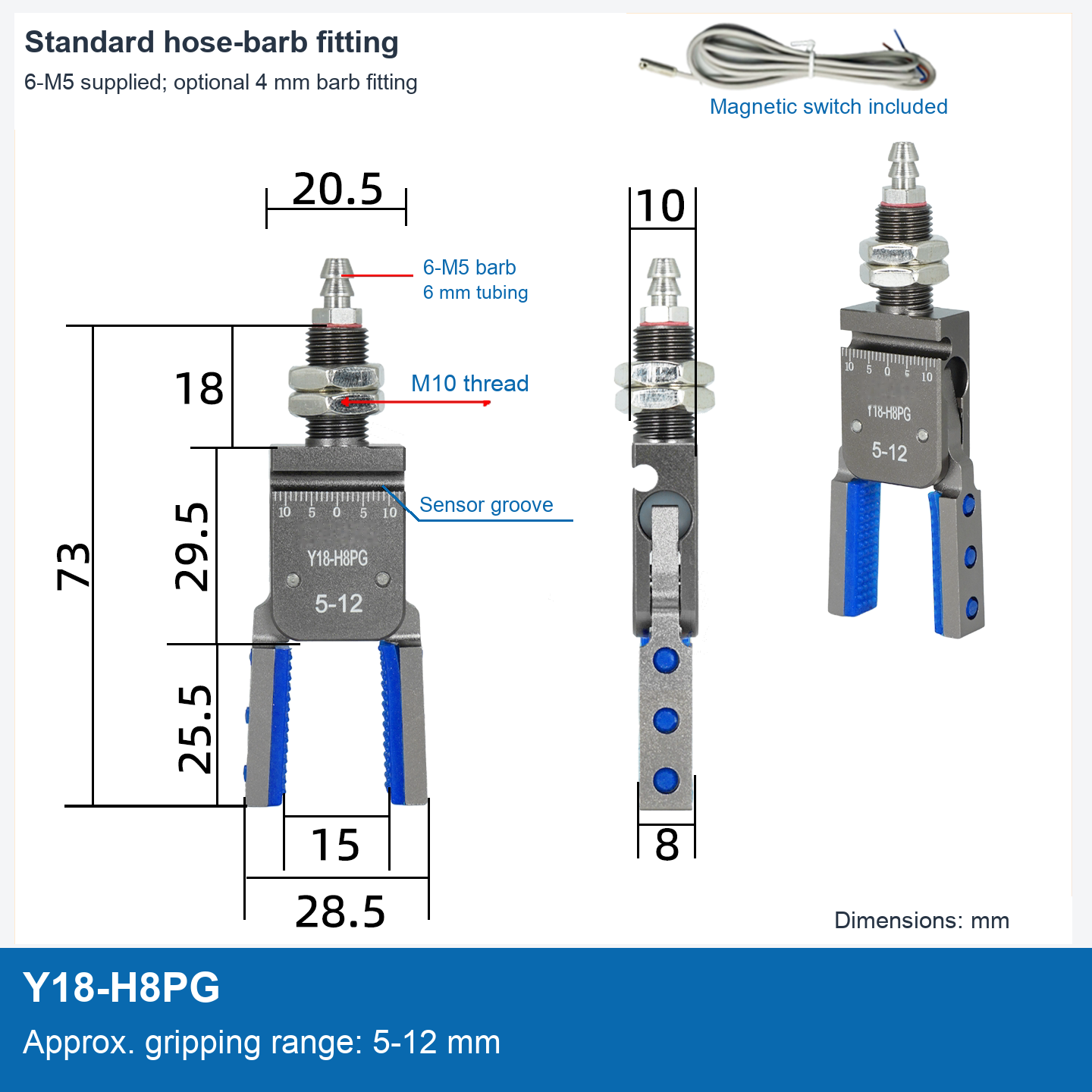

| Y18-H8PG / 5-12 mm | 15 | 28.5 |

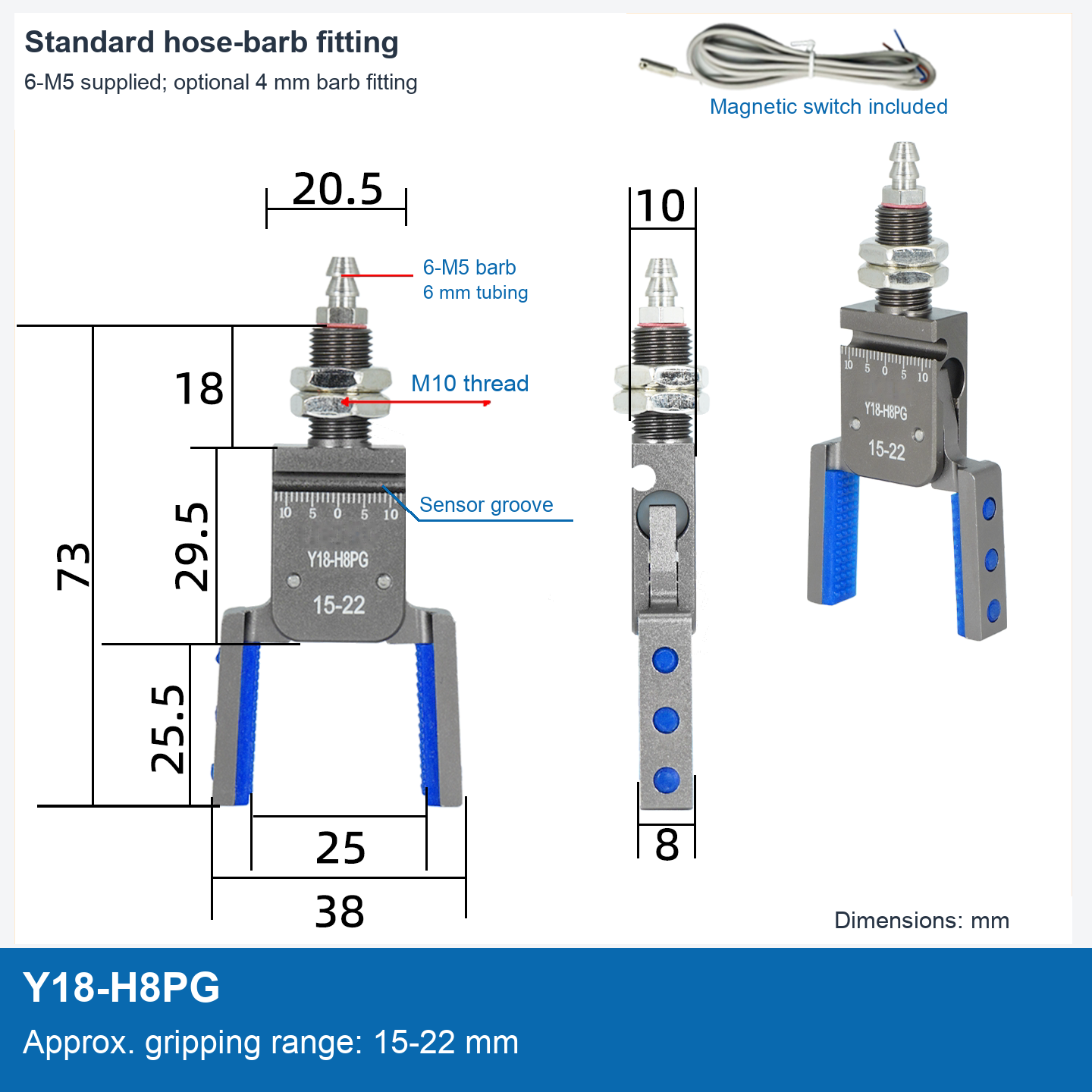

| Y18-H8PG / 15-22 mm | 25 | 38 |

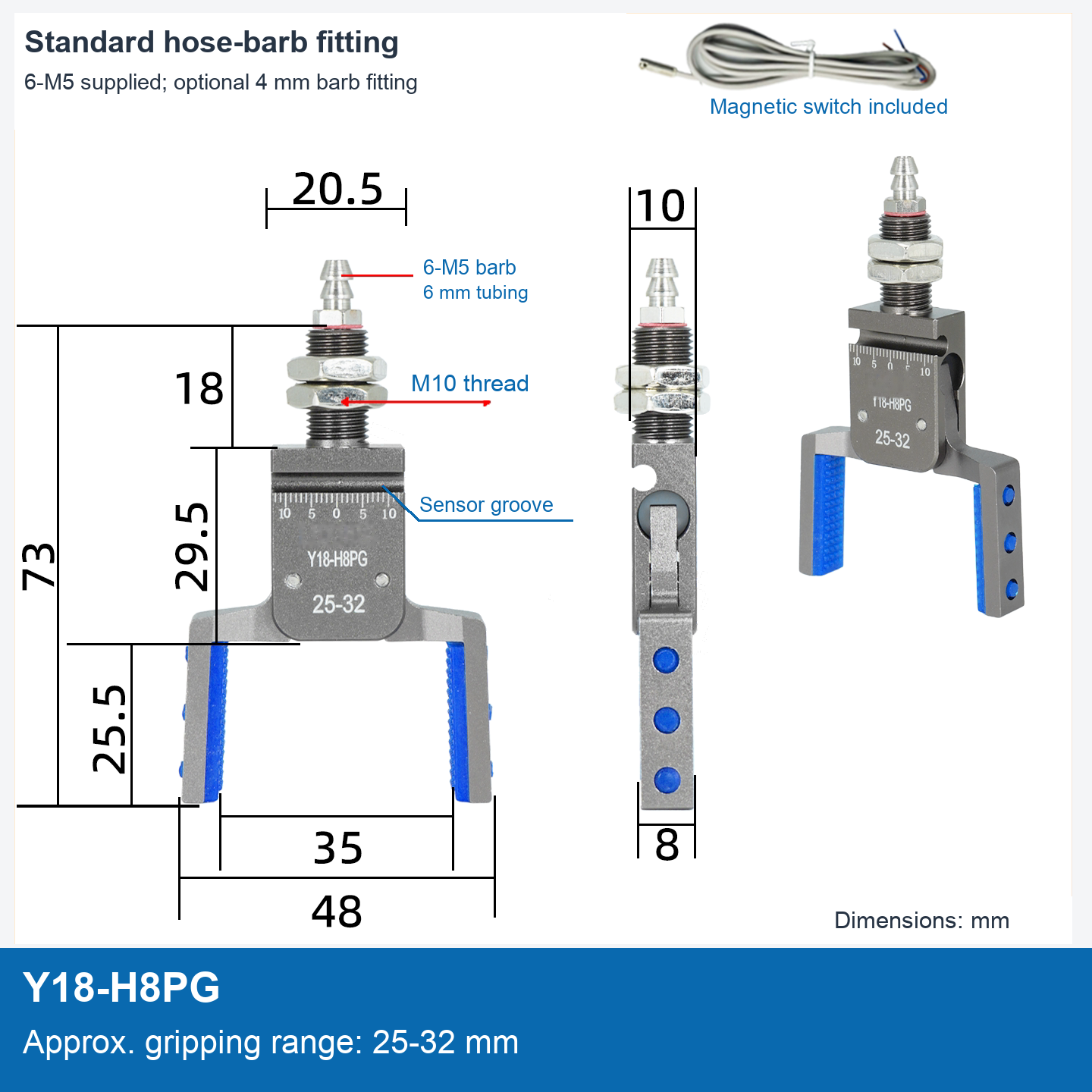

| Y18-H8PG / 25-32 mm | 35 | 48 |

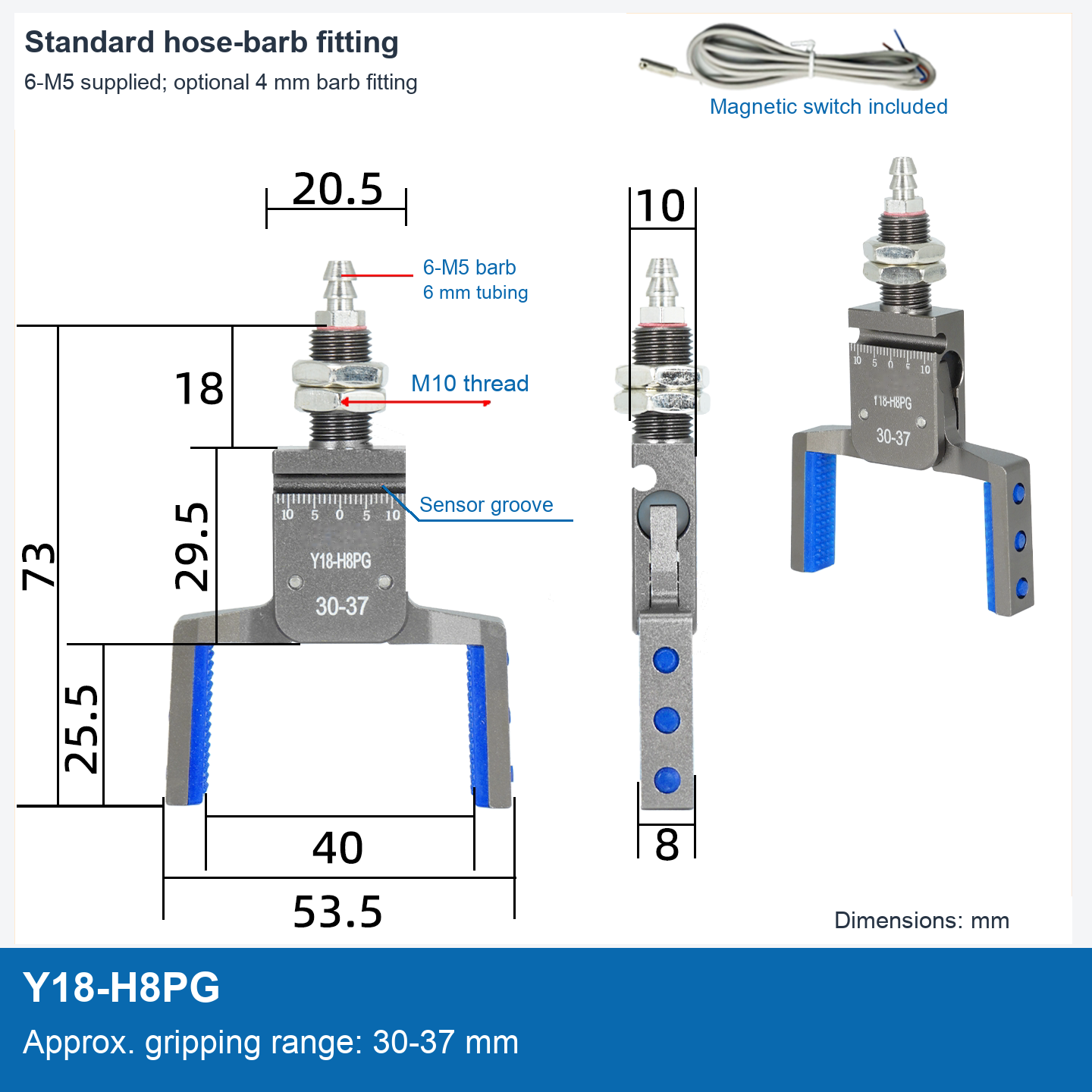

| Y18-H8PG / 30-37 mm | 40 | 53.5 |

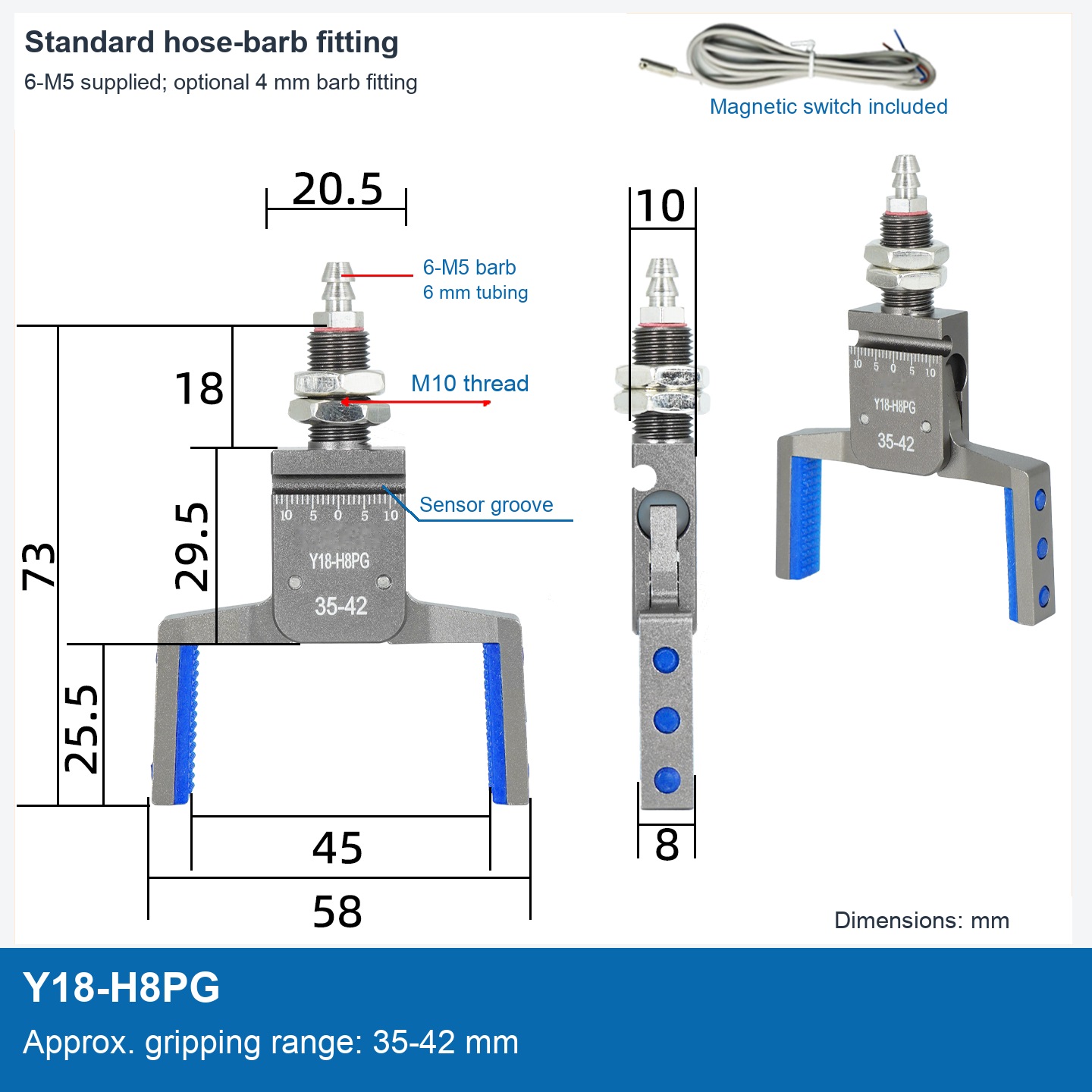

| Y18-H8PG / 35-42 mm | 45 | 58 |
| Y18-H8PG / 40-47 mm | 51 | 64 |

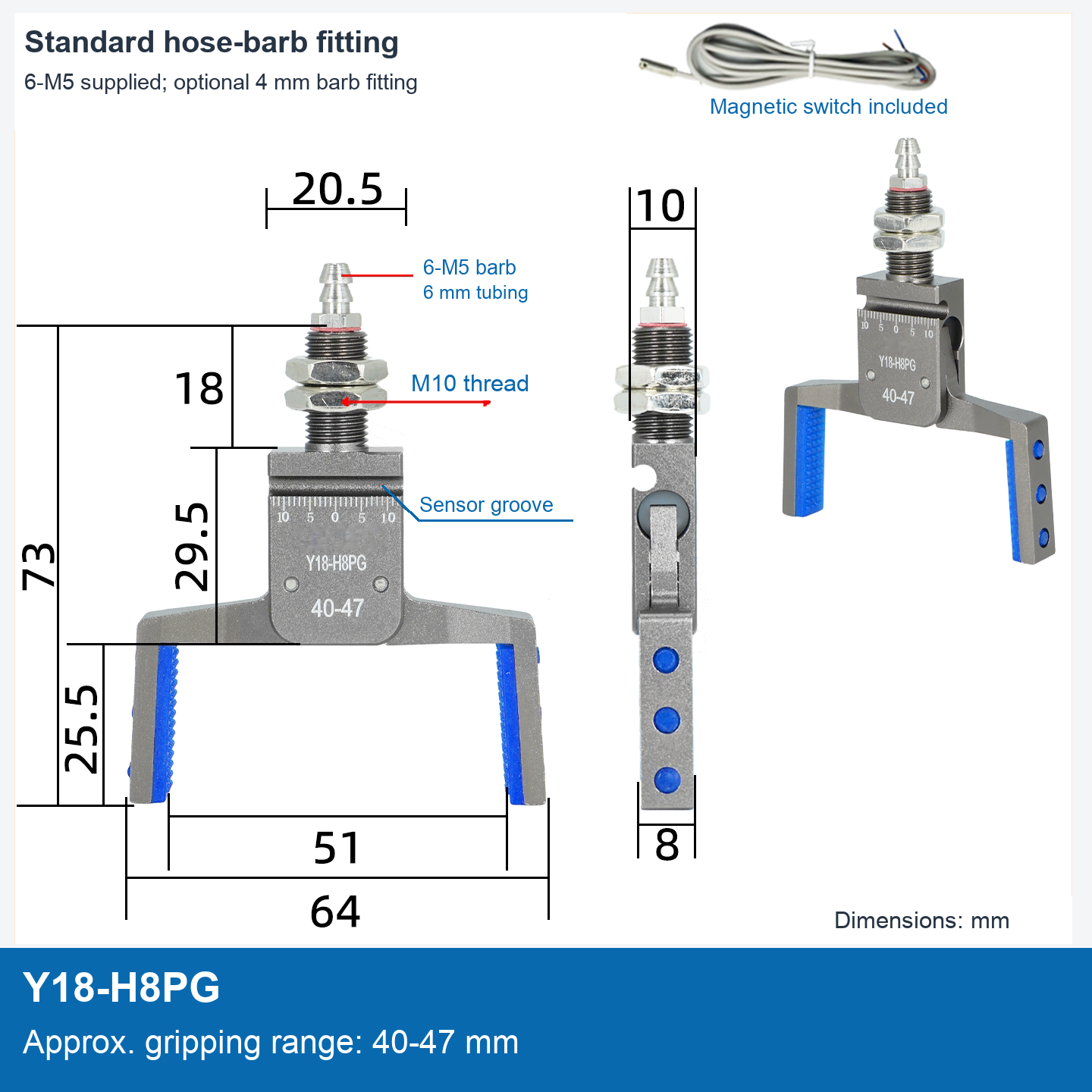

H8PG 40–47 mm: the supplied drawing labels an overall width of 64 mm. H8VG 40–45 mm labels 63.5 mm. These values are retained as supplied.
Modelo / configuración / SKU
| Modelo / configuración | SKU |
|---|---|
| Y18-H8VG / 5-10 mm / Magnetic switch | 6114426700787 |
| Y18-H8VG / 15-20 mm / Magnetic switch | 6114426700788 |
| Y18-H8VG / 25-30 mm / Magnetic switch | 6114426700789 |
| Y18-H8VG / 30-35 mm / Magnetic switch | 6114426700790 |
| Y18-H8VG / 35-40 mm / Magnetic switch | 6114426700791 |
| Y18-H8VG / 40-45 mm / Magnetic switch | 6114426700792 |
| Y18-H8PG / 5-12 mm / Magnetic switch | 6114426700794 |
| Y18-H8PG / 15-22 mm / Magnetic switch | 6114426700795 |
| Y18-H8PG / 25-32 mm / Magnetic switch | 6114426700796 |
| Y18-H8PG / 30-37 mm / Magnetic switch | 6114426700797 |
| Y18-H8PG / 35-42 mm / Magnetic switch | 6114426700798 |
| Y18-H8PG / 40-47 mm / Magnetic switch | 6114426700799 |
