Matrix Optical Fiber Sensor Product Information

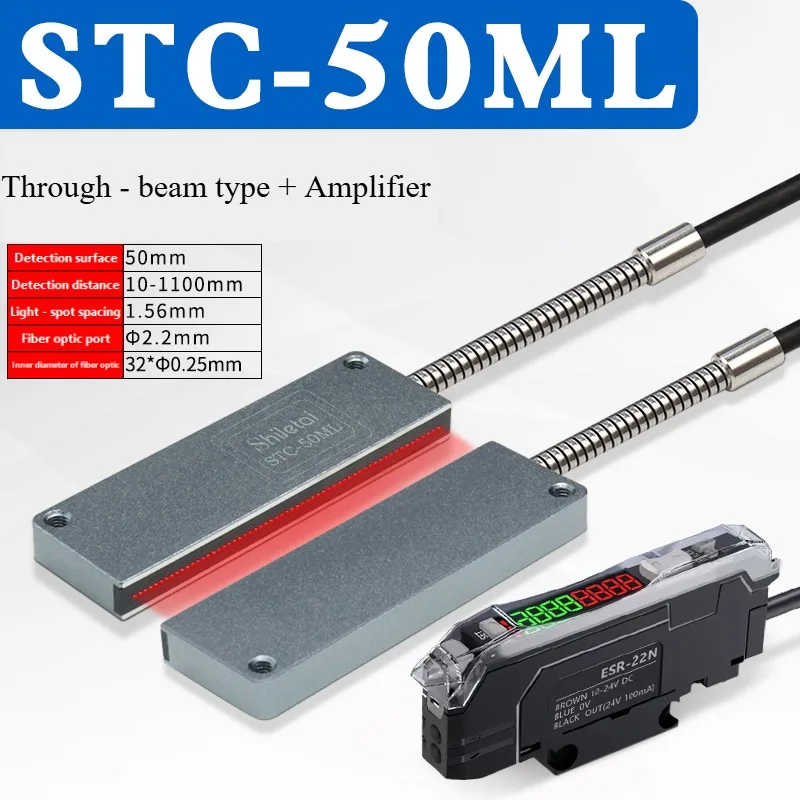

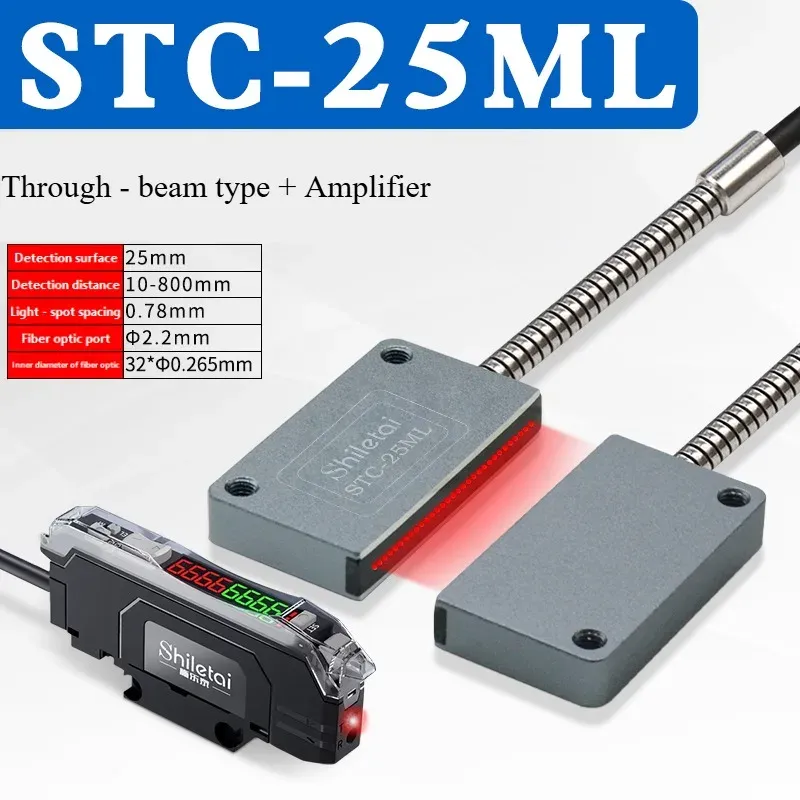

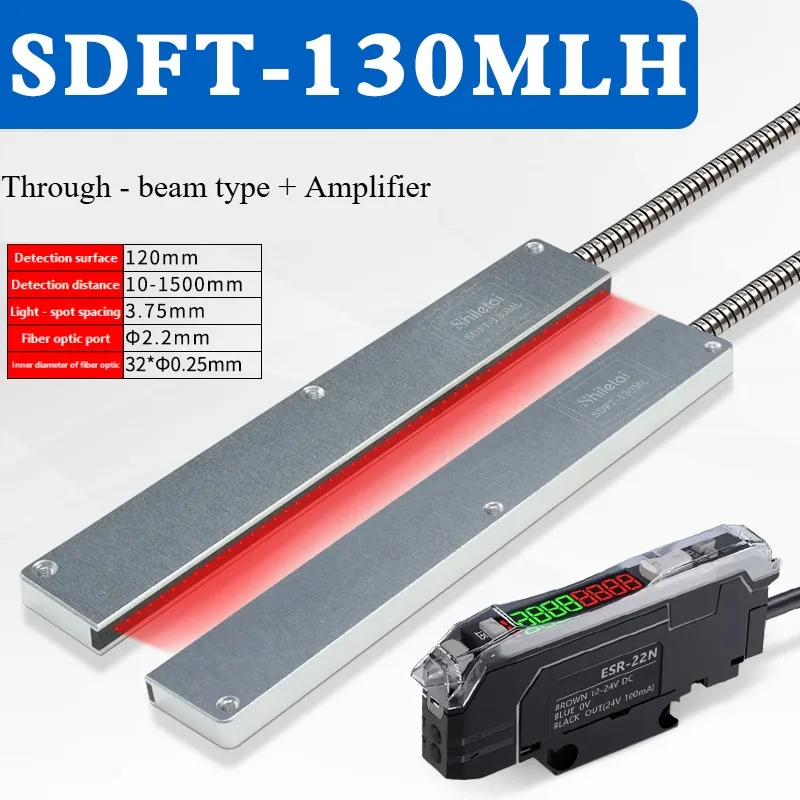

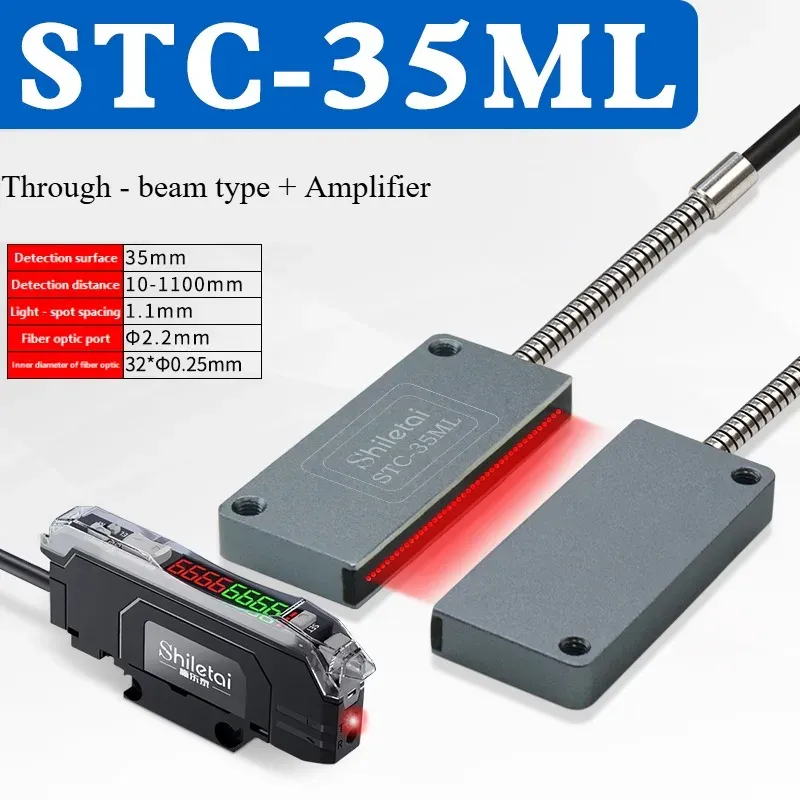

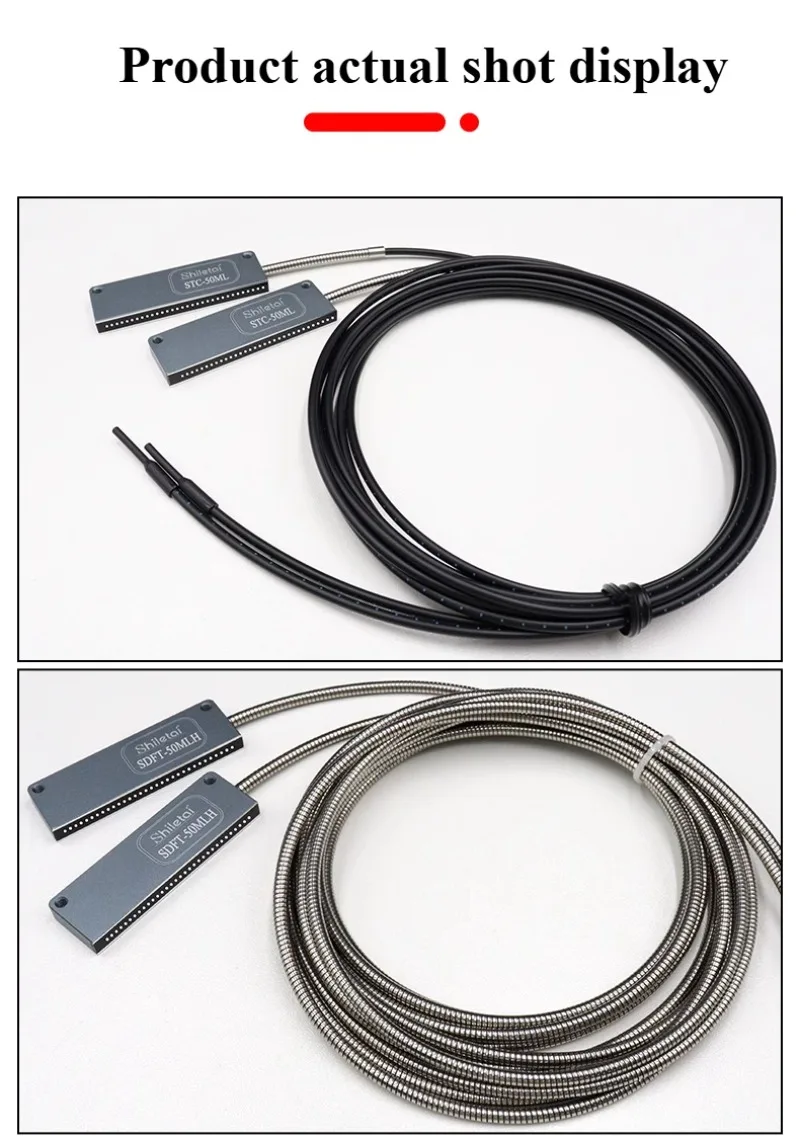

Contains rectangular fiber + amplifier combination, specific models include ESR-23N (upgraded), ESR-22N and other dual digital display products.
Functional features

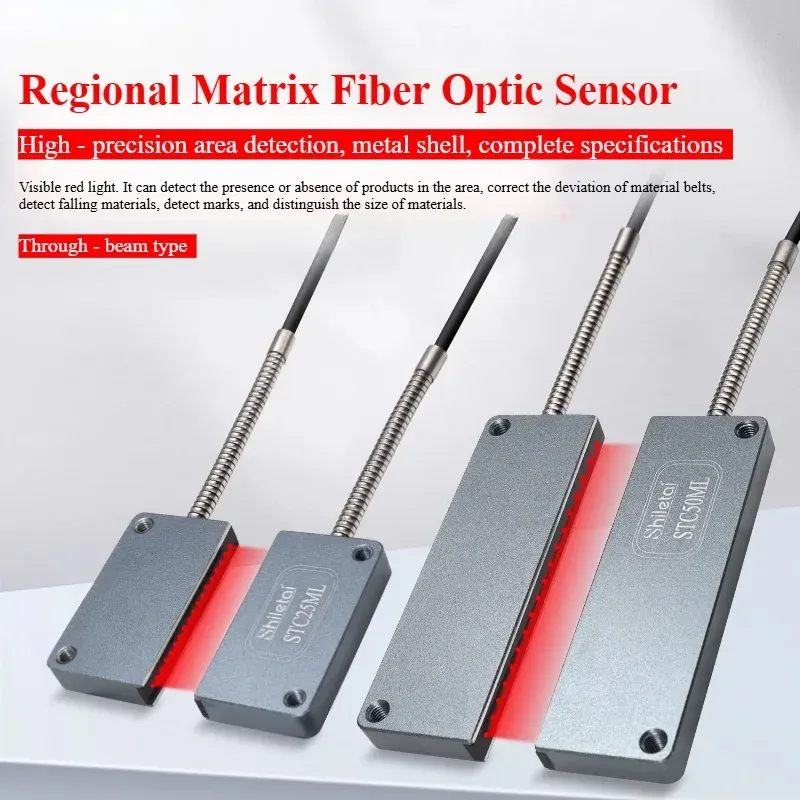

It can achieve high-precision area detection, distinguish between large and small objects, perform deviation correction detection, blanking detection, and pipeline piece marking detection.

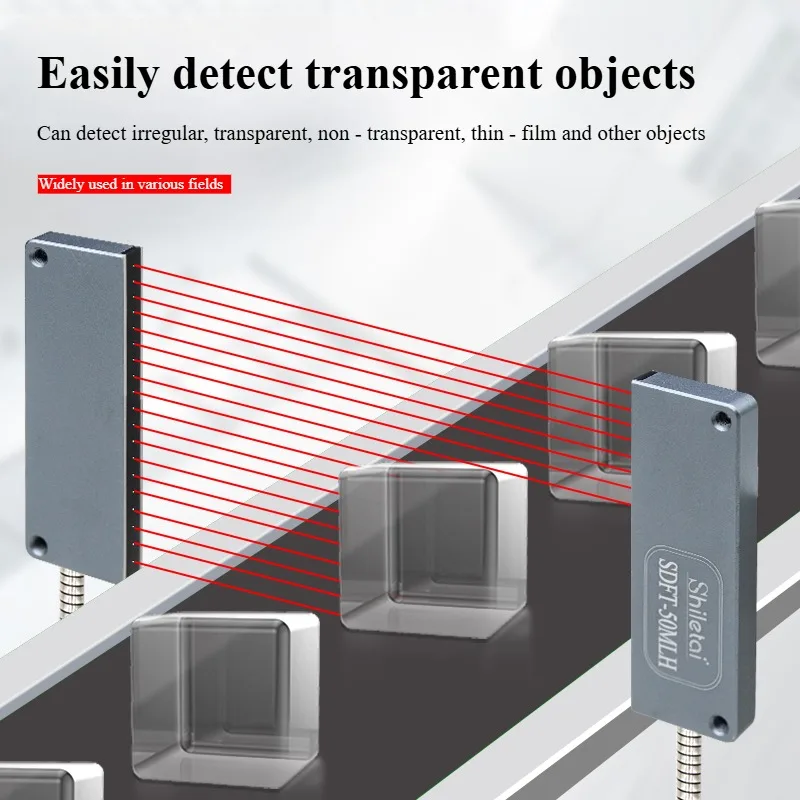

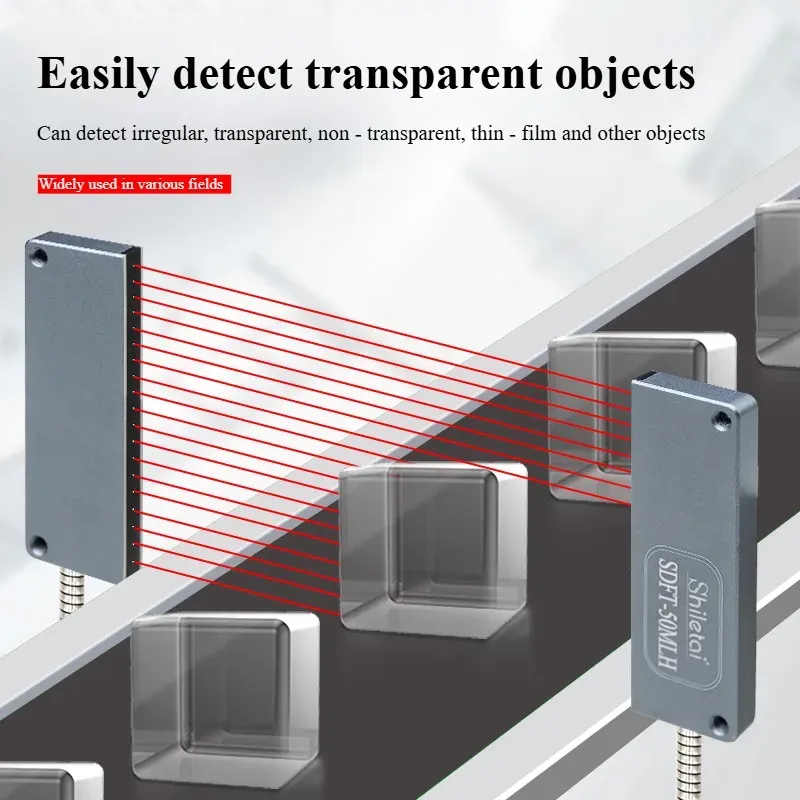

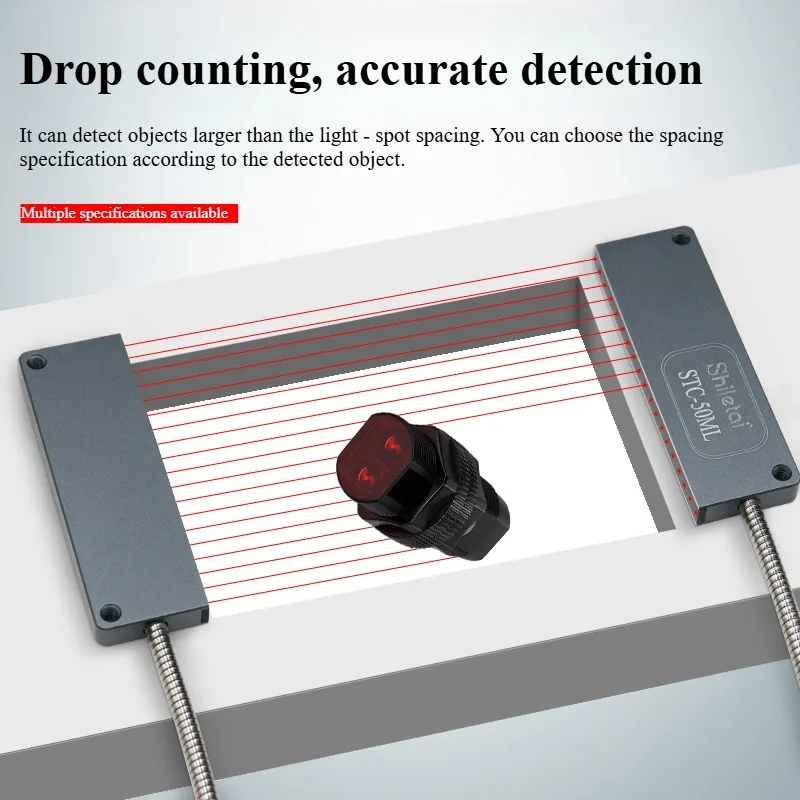

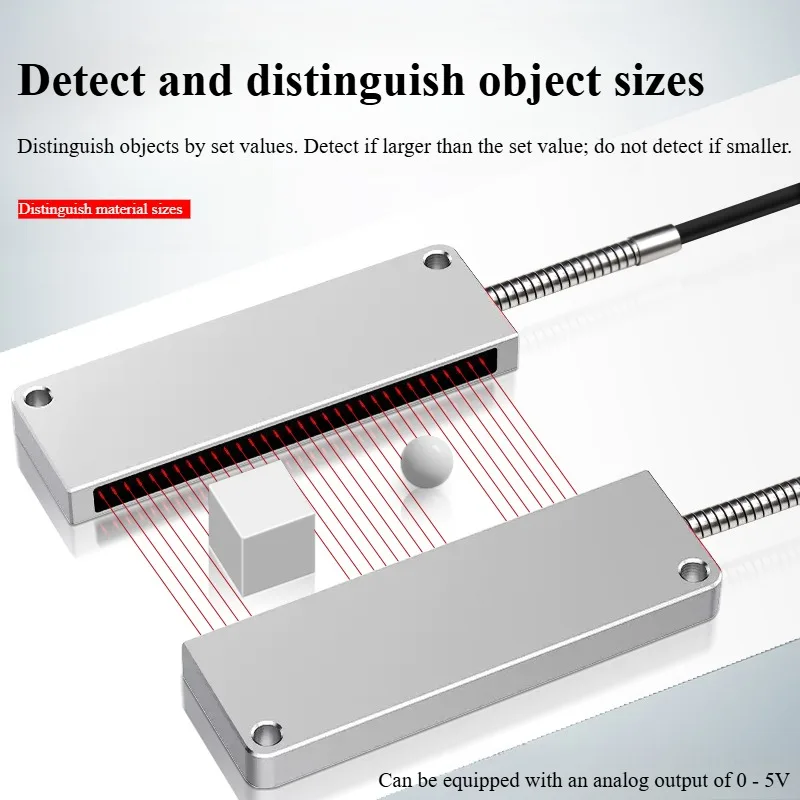

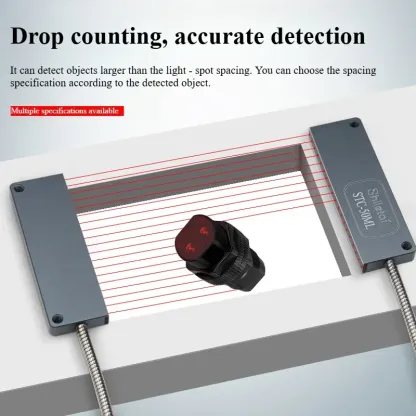

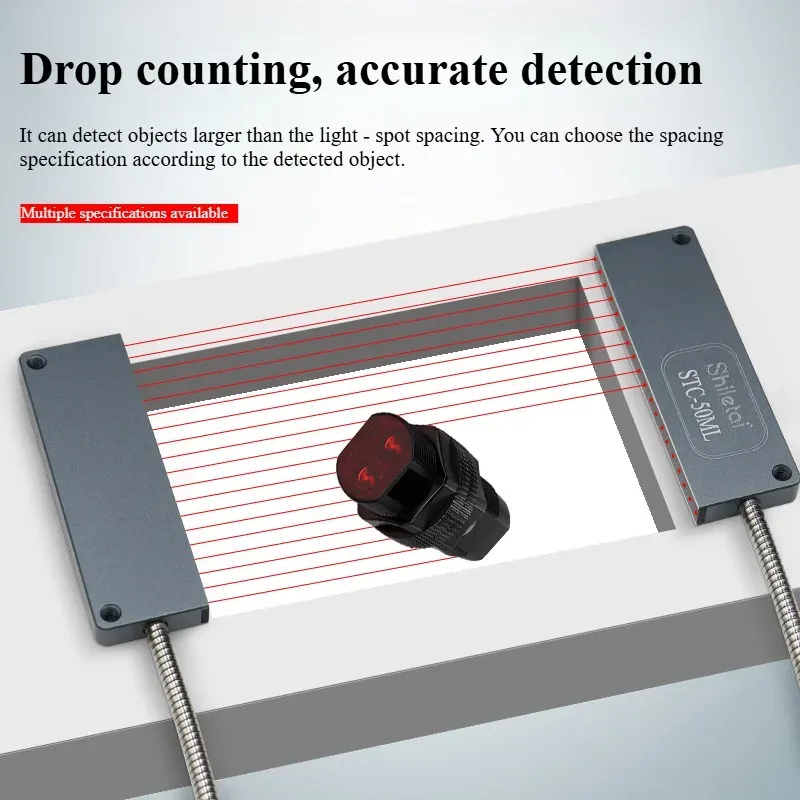

It can detect irregular, transparent, non-transparent, film and other objects, and can also detect objects falling and counting, and distinguish object sizes by setting values (greater than the set value for detection, less than no detection).
With visible red light, uniform light output, accurate detection, the smallest can detect φ 0.5MM objects, can detect swinging objects, hollow objects, etc.
Automatic compensation for dust and oil caused by numerical changes, stable performance.
Technical parameters
Power supply and output: DC 12-24V power supply, output mode is NPN, PNP, normally open and normally closed. ESR-23N response time is 50μs, ESR-22N response time is 80μs. Some can be matched with analog output 0-5V. Consumption current is less than 30mA, no load current is 12mA, maximum load current is 100mA.
Detection mode: Both ESR-23N and ESR-22N have delay mode/zone mode, and ESR-23N's 23N has automatic bias compensation function.
Detection distance: ESR-23N reflection 700MM, beam 1600MM; ESR-22N reflection 500MM, beam 1500MM.

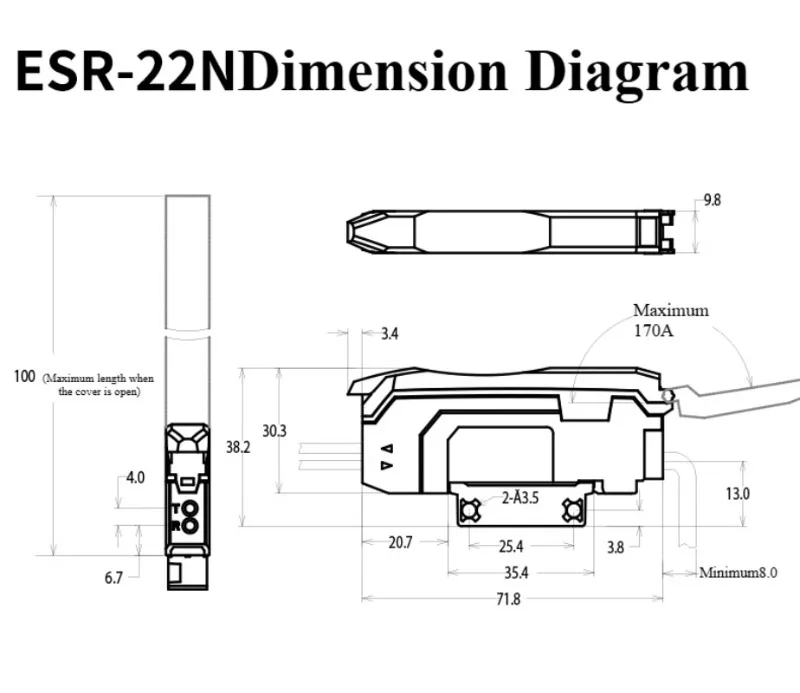

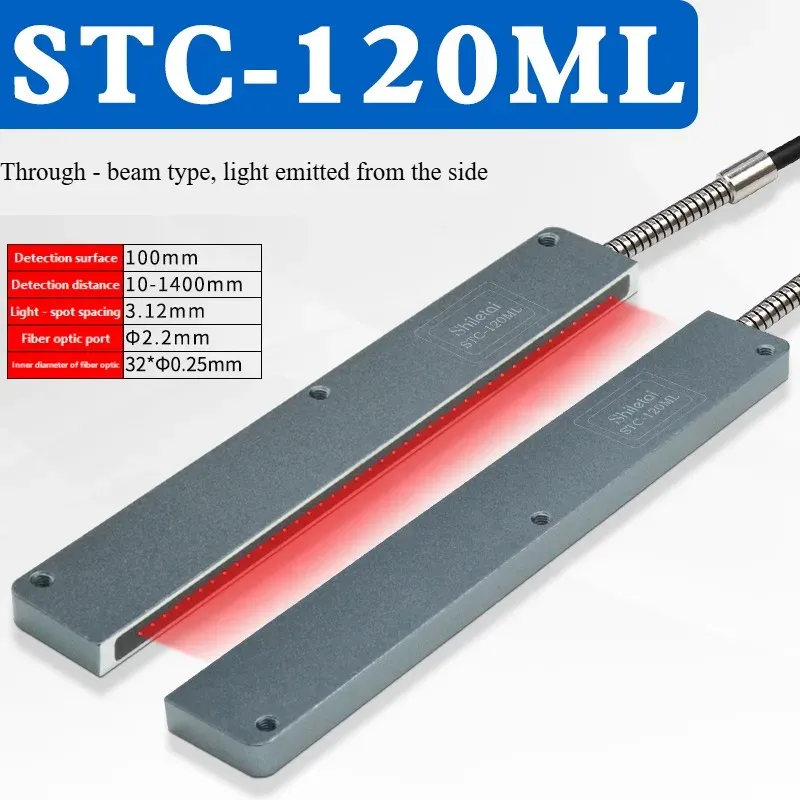

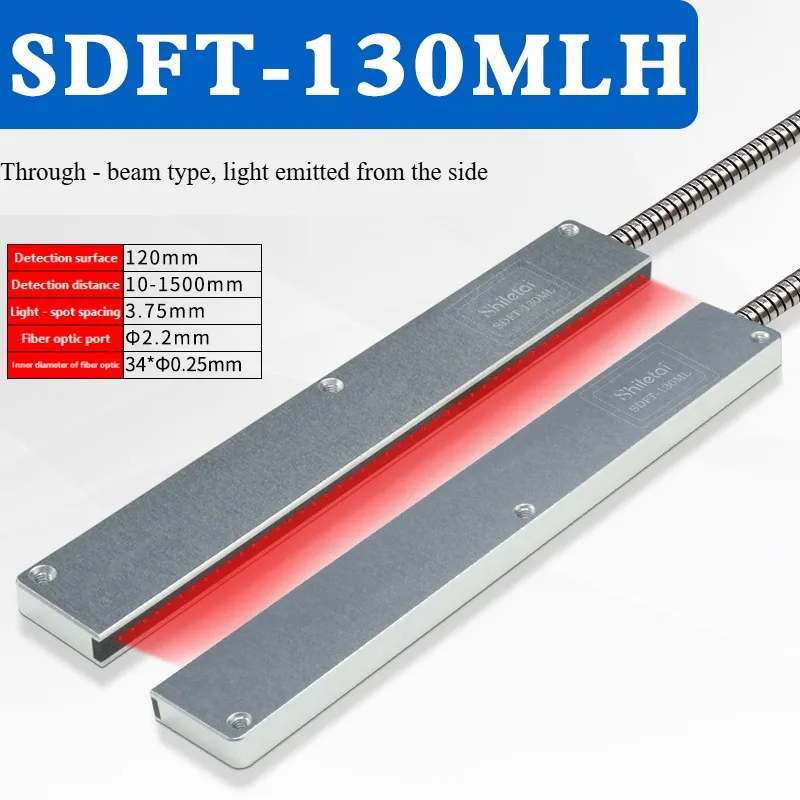

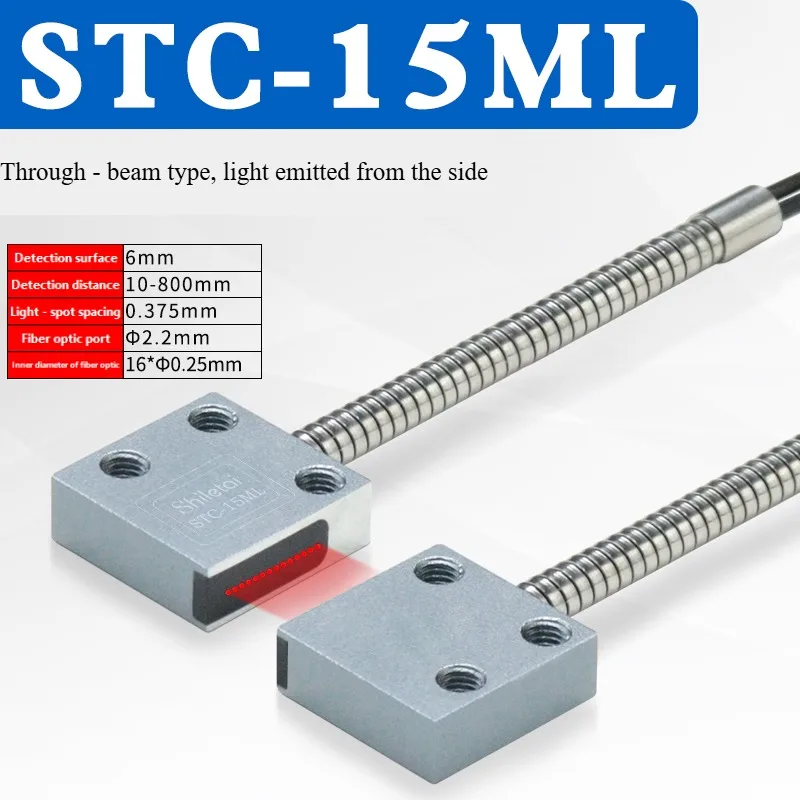

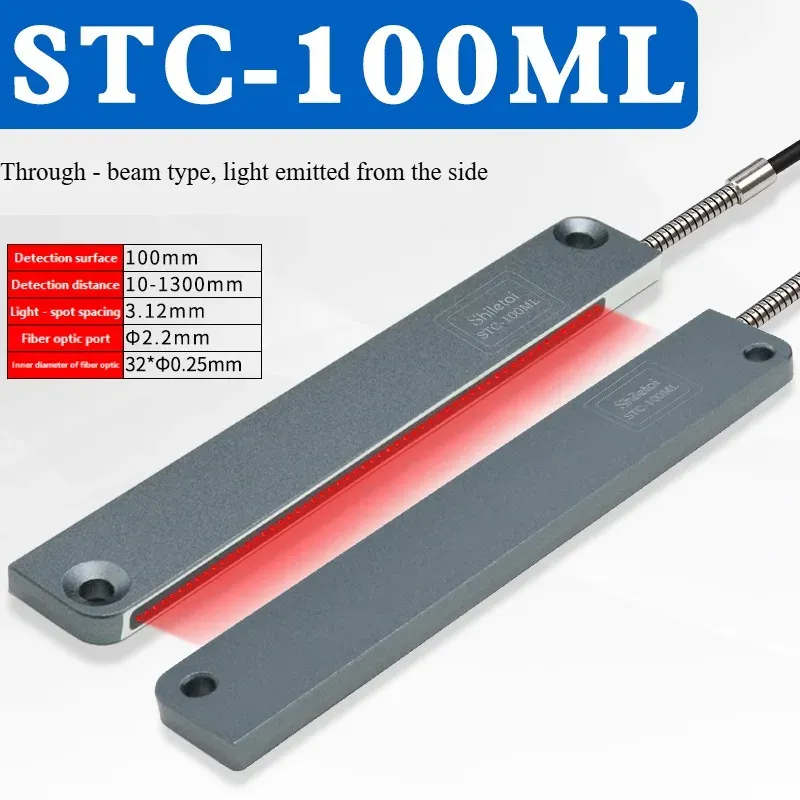

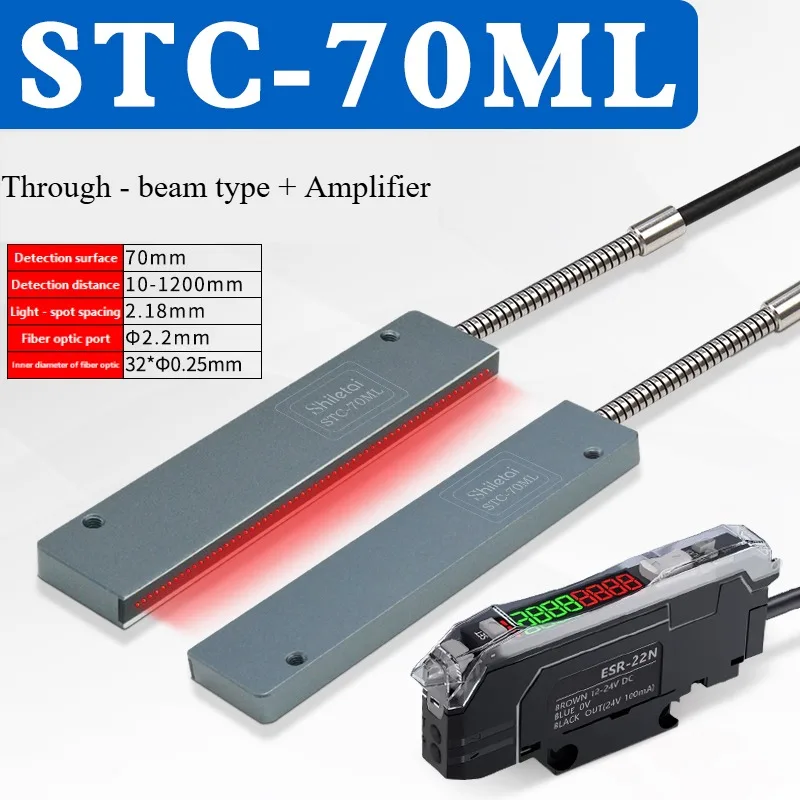

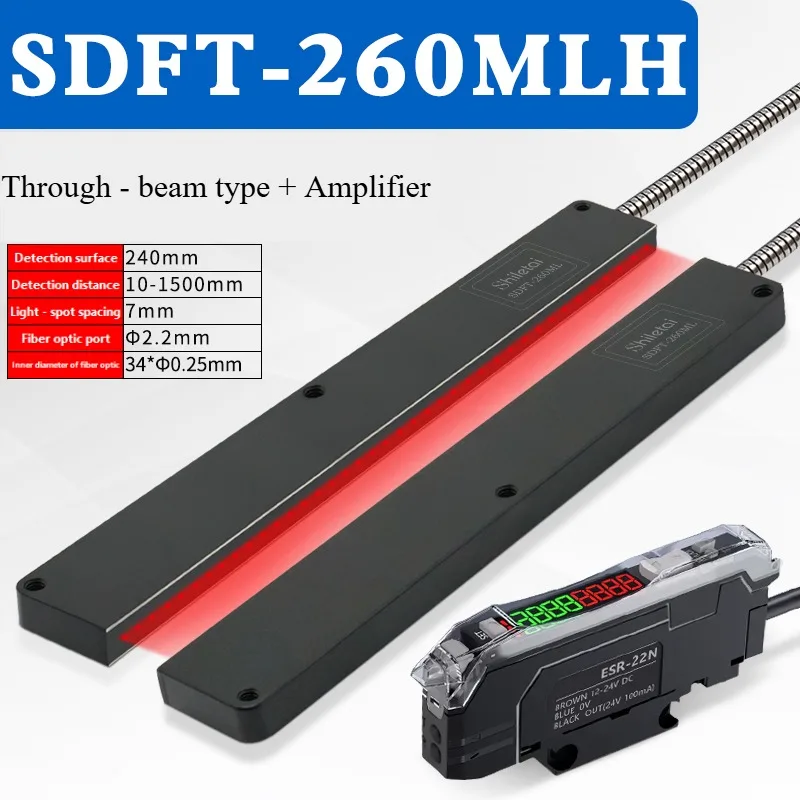

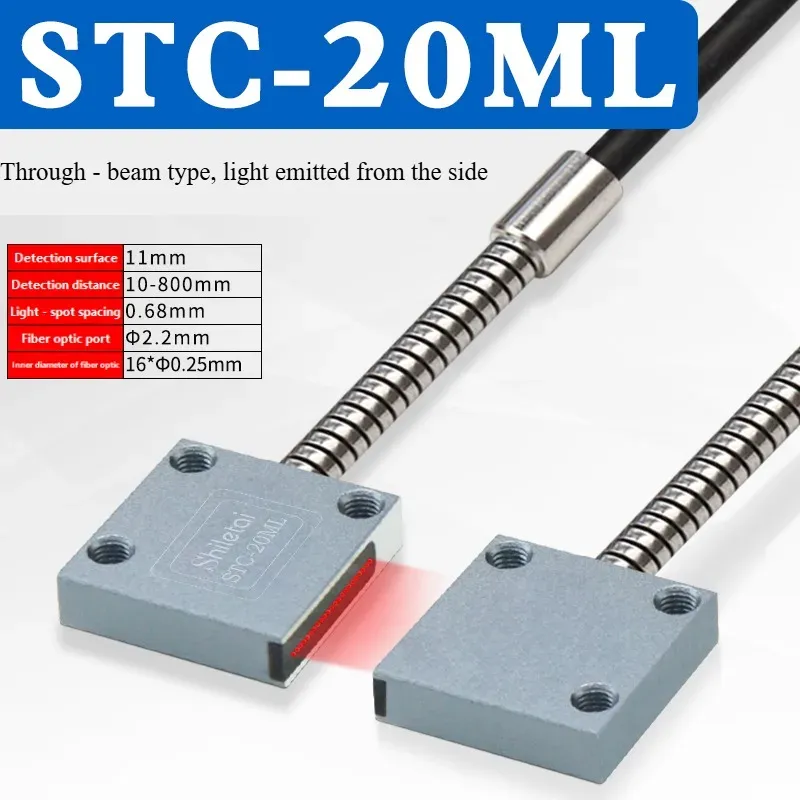

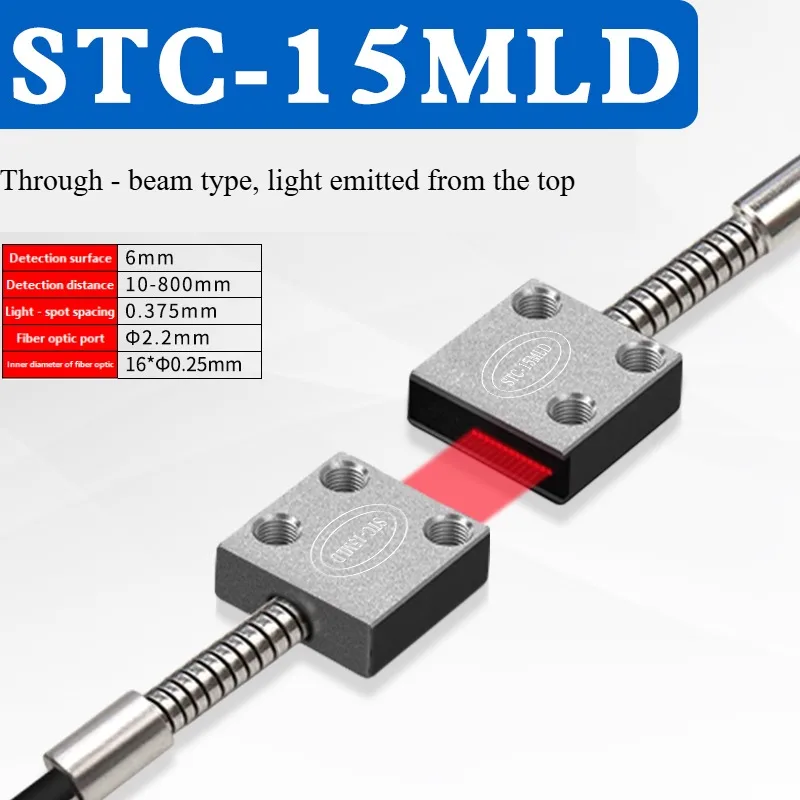

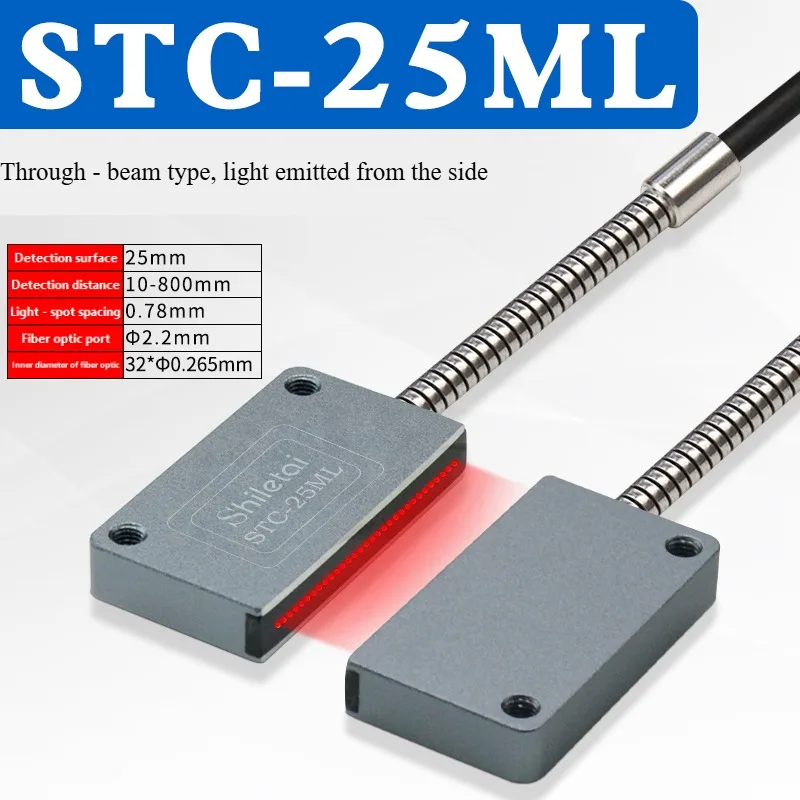

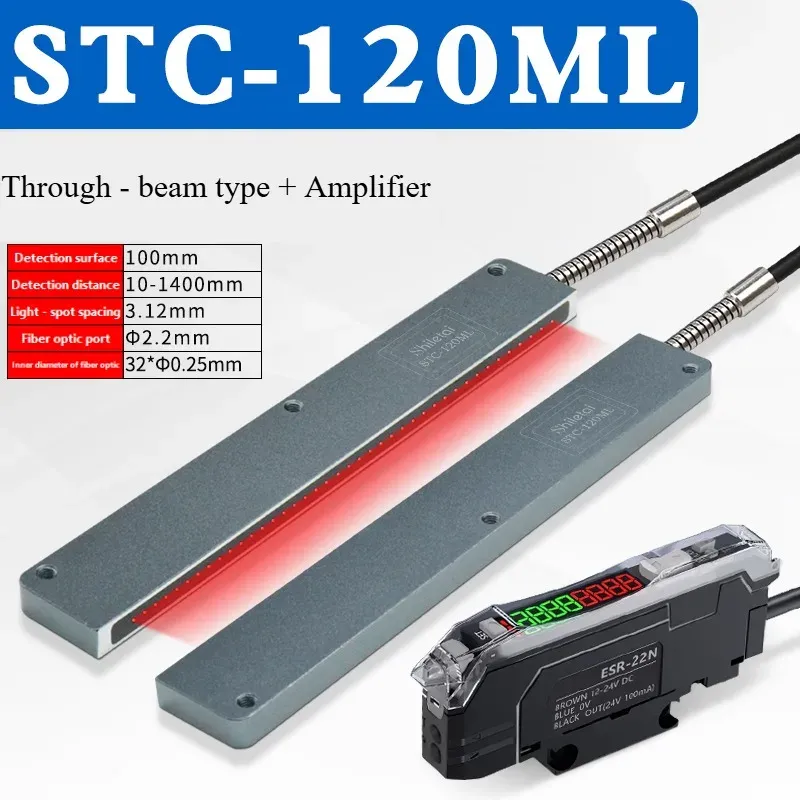

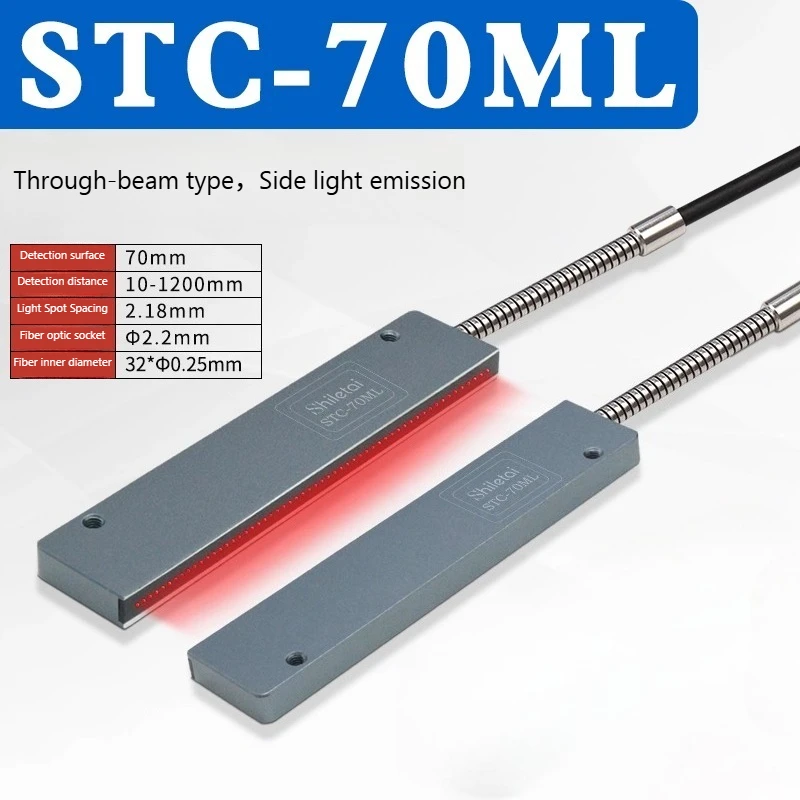

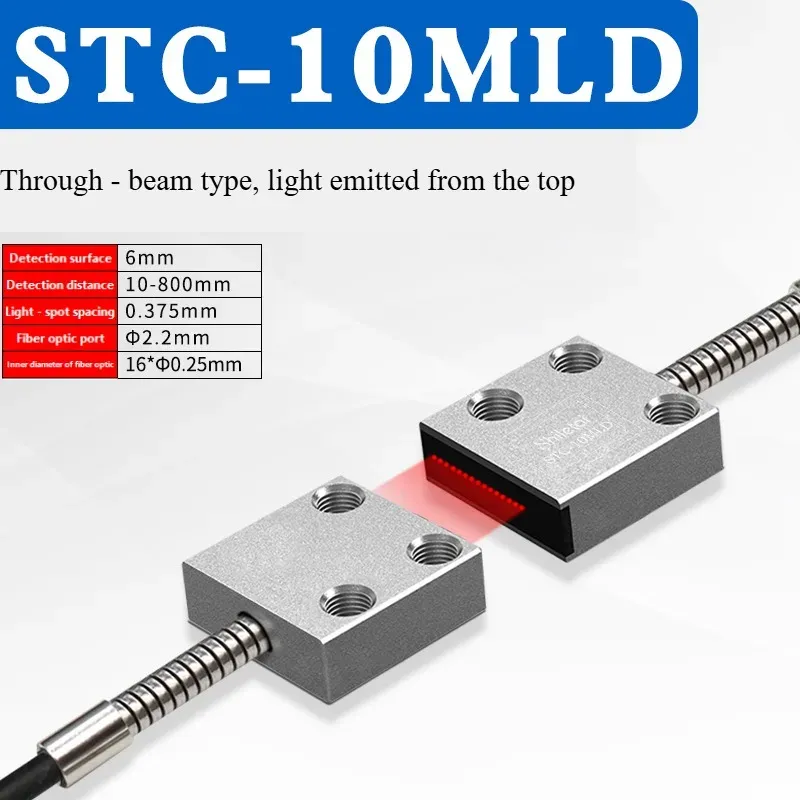

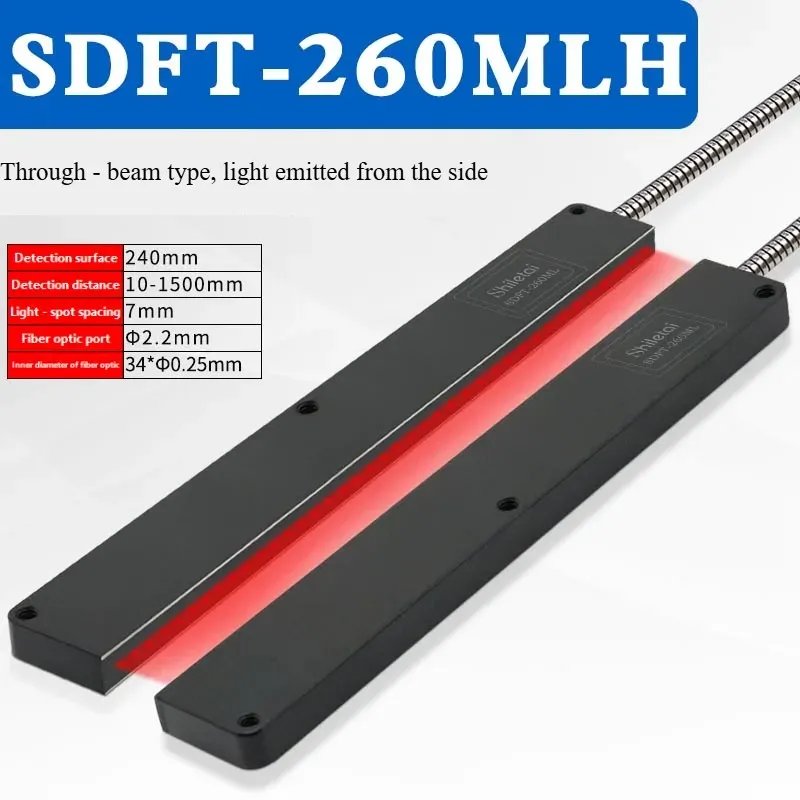

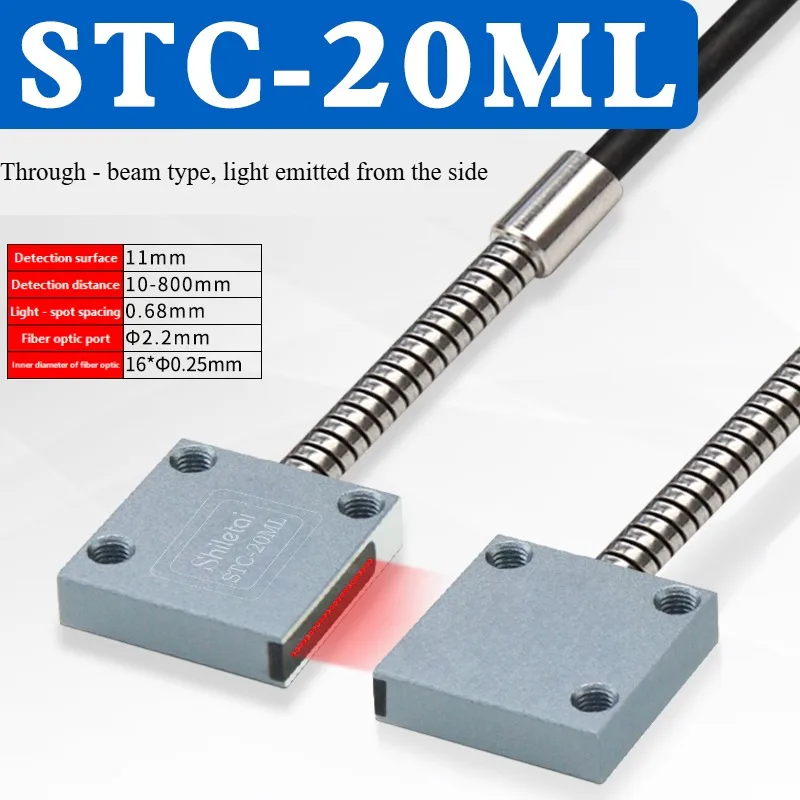

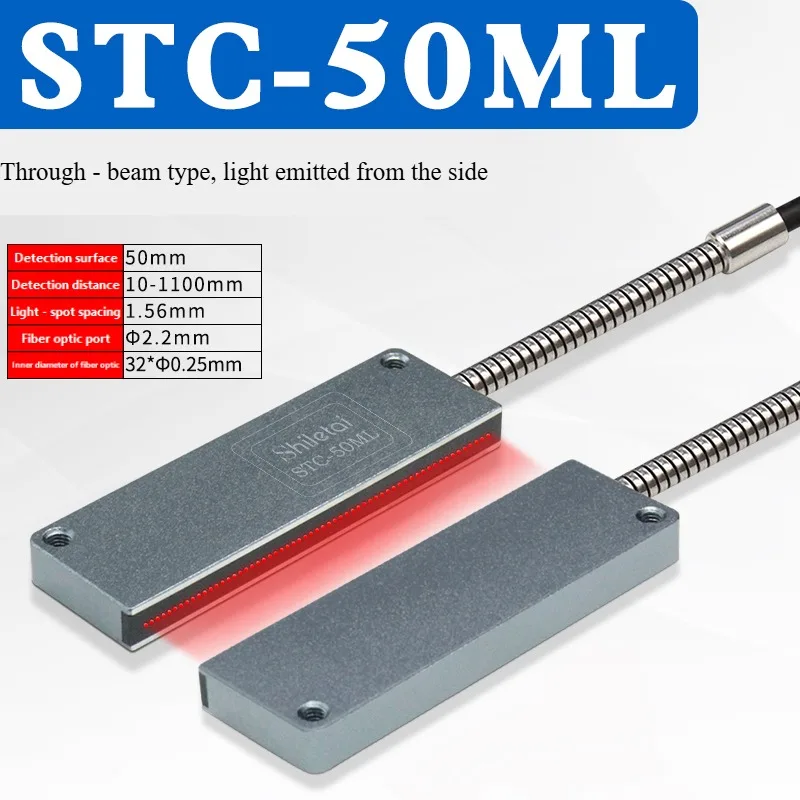

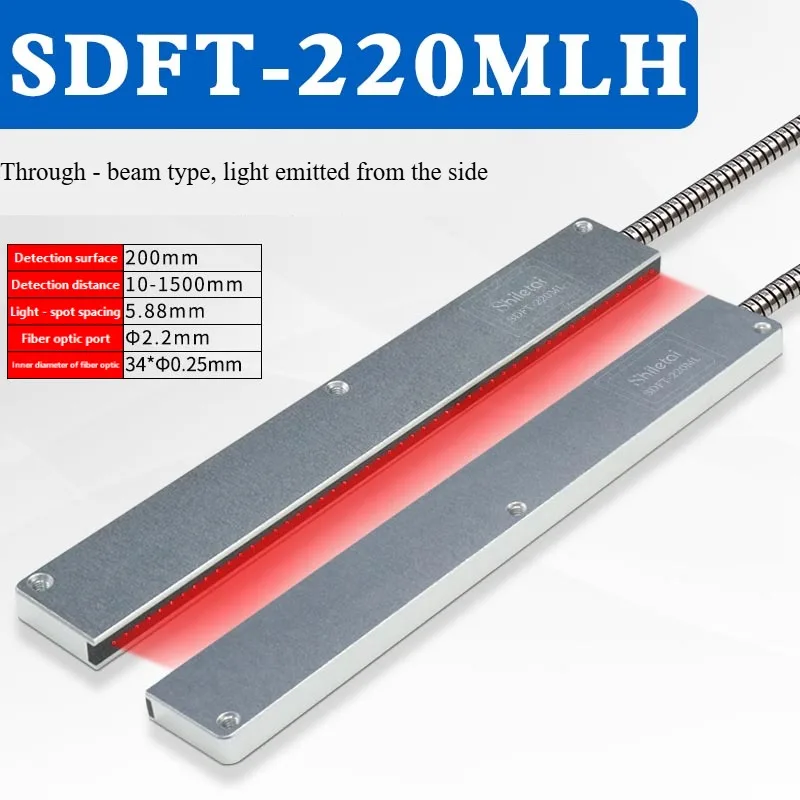

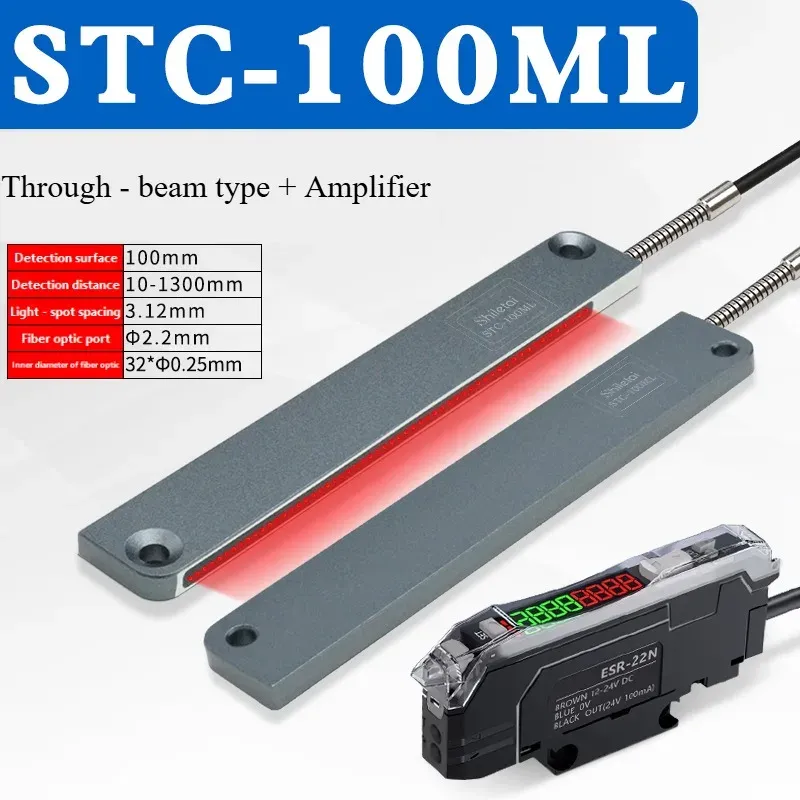

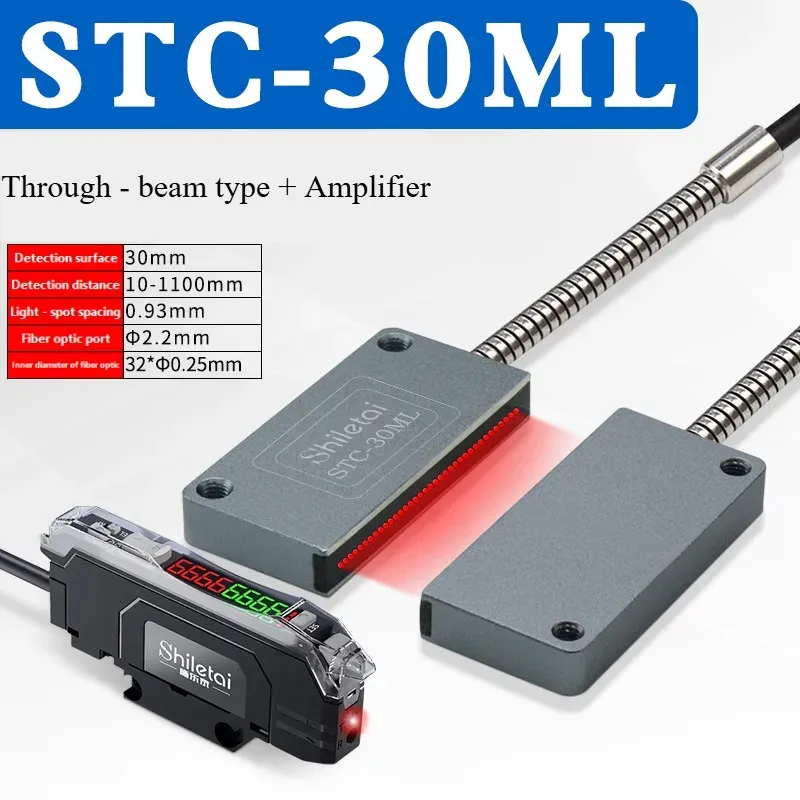

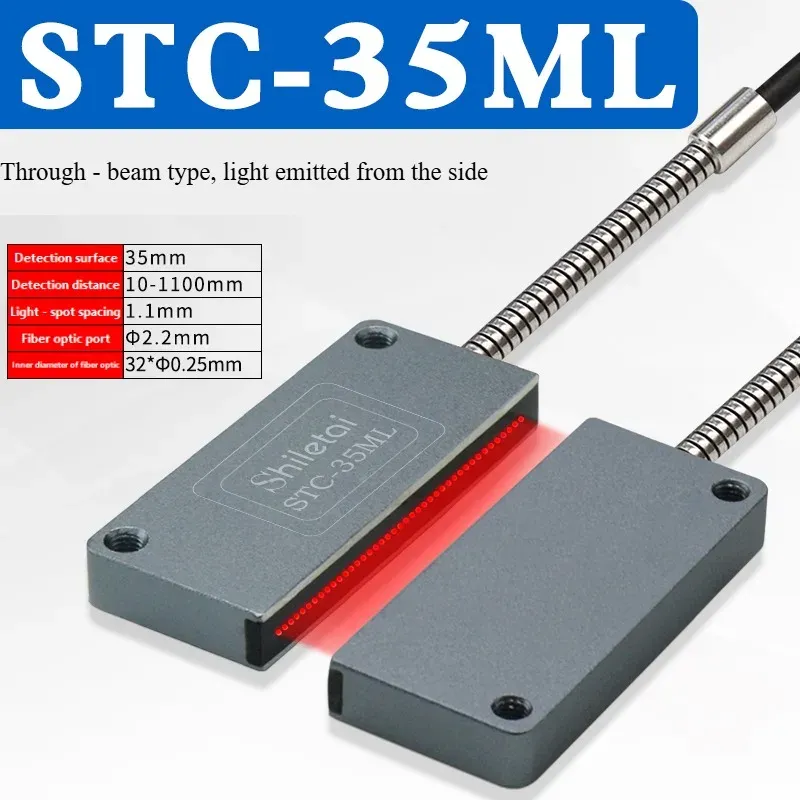

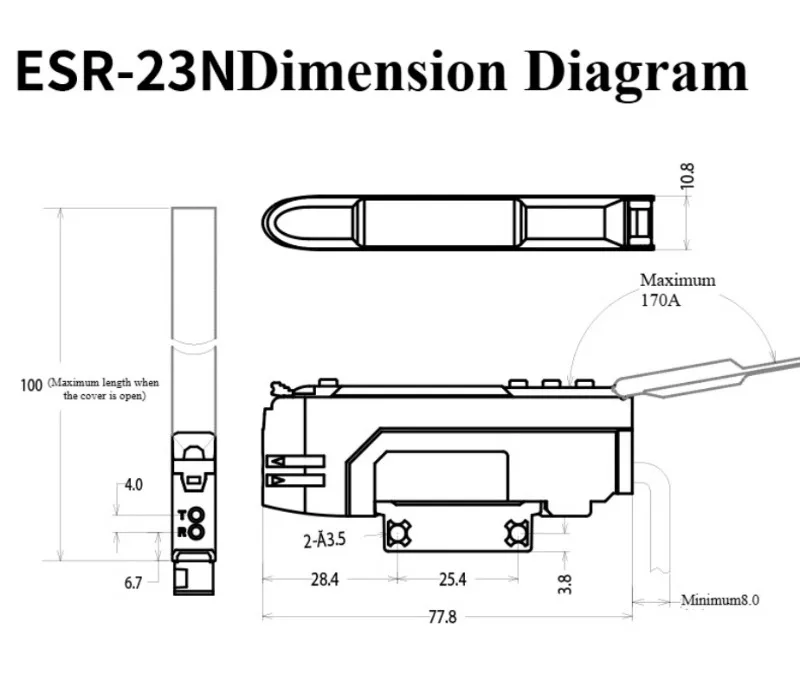

Size related: ESR-23N size is 781127MM, screen size 8MM32MM; ESR-22N size is 7310.527MM, screen size 7MM30.5MM. The cable length of various models is mostly 2 meters. Different models have different detection surfaces, light spot spacing and other parameters (such as previous STC series models). Bending radius R25, fiber socket 2.2mm, fiber inner diameter has 0.25mm16, 0.25mm32 and other specifications.
Other parameters: repeatability less than 5 - 10% (Sr), vibration resistance 10 - 55Hz, dual amplitude 1.5mm, XYZ axis for 2 hours, working environment temperature - 25 - + 55 ℃, with short circuit protection, overload current protection (protection point 180mA).
Use attention

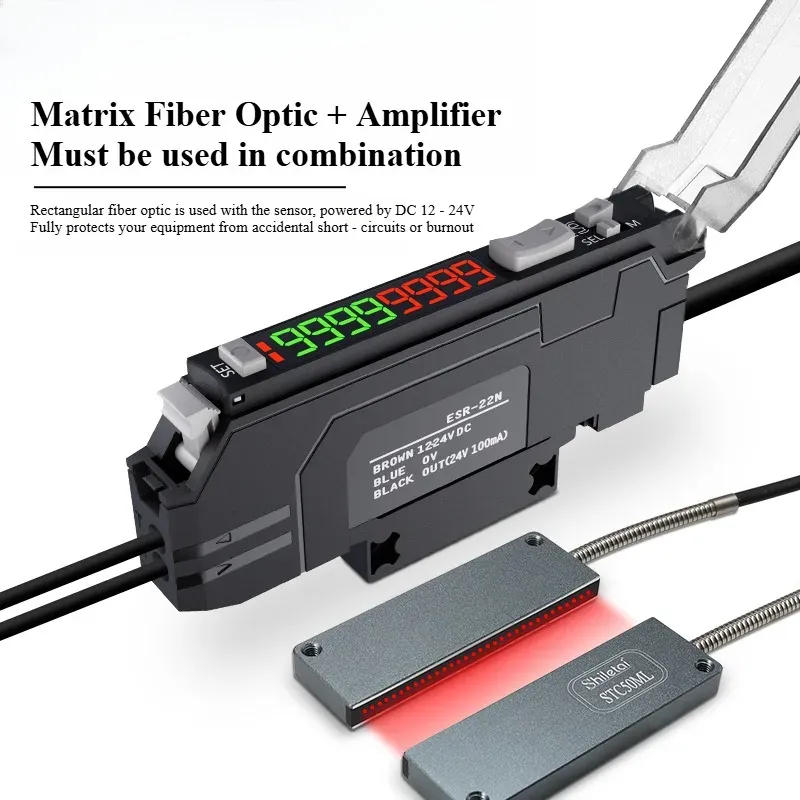

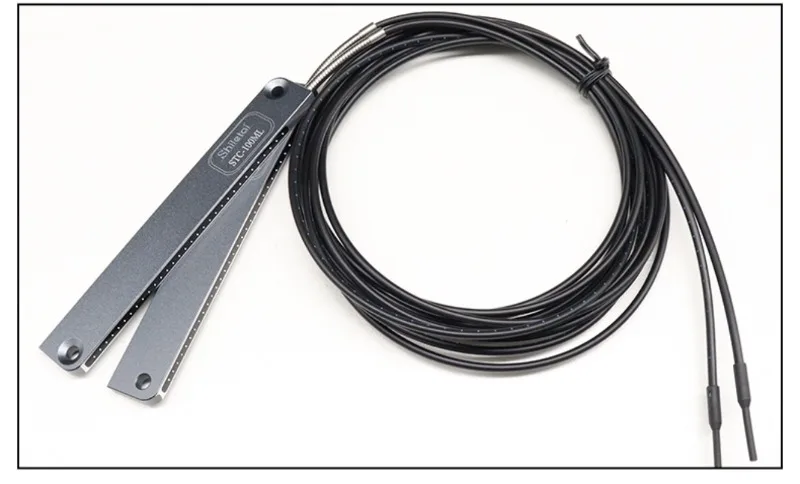

Rectangular fibers must be used with fiber amplifiers.

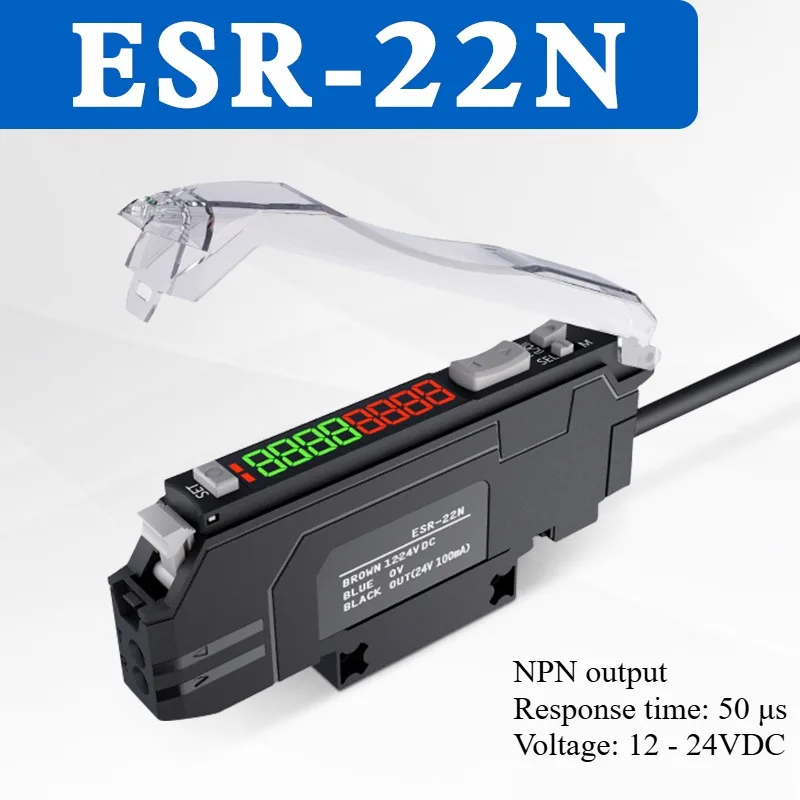

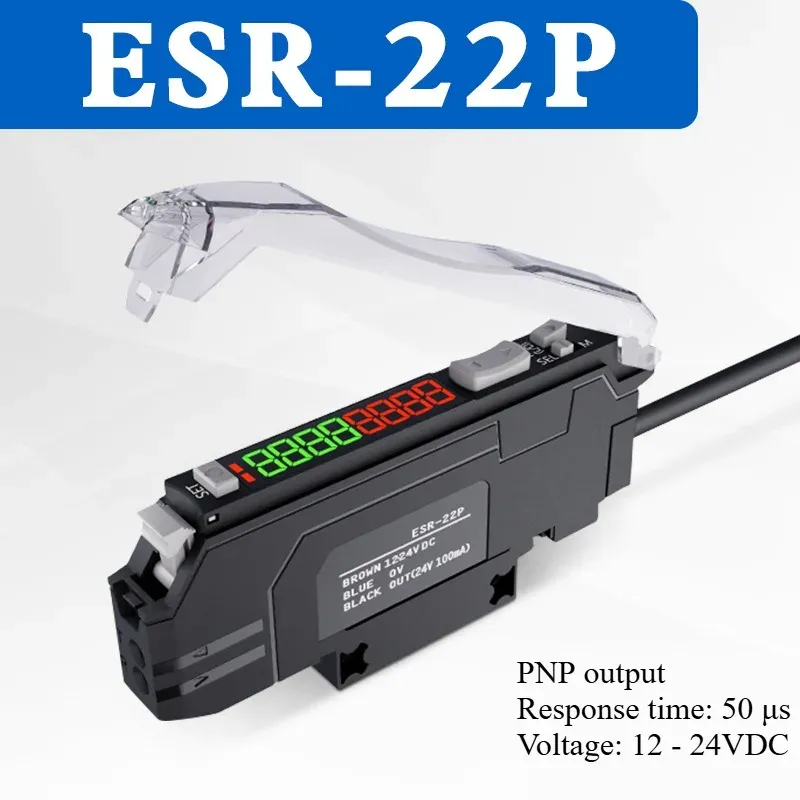

ESR-22N has two wiring methods: NPN and PNP. The brown wire is the positive electrode, the blue wire is the negative electrode, and the black wire is the output wire. The specific use needs to be determined according to the matching optical fiber.
