In today's fast-paced manufacturing and logistics environments, speed, precision, and reliability are non-negotiable. Whether you're in packaging, electronics, automotive, or general material handling, the ability to move products quickly and gently can make or break your operational efficiency. This is where pneumatic vacuum cup assembly sets come into play. These versatile tools are the unsung heroes of modern automation, providing a reliable way to handle a vast array of workpieces with ease.
At its core, a vacuum cup assembly set is a complete, ready-to-use solution for creating a vacuum-based material handling system. It combines all the essential components needed to generate, control, and apply vacuum pressure for lifting and moving objects.
These sets are designed for seamless integration with industrial manipulators and robots, making them a cornerstone of automated production lines. The key principle is simple yet powerful: by creating a pressure differential between the inside of a flexible vacuum cup and the outside atmosphere, the cup securely adheres to the surface of an object, allowing it to be lifted, moved, and precisely positioned.
Investing in a pre-configured vacuum cup assembly set offers numerous advantages over sourcing individual components:
- Time-Saving Convenience: Forget the hassle of researching, sourcing, and compatibility-checking dozens of separate parts. These sets come with everything you need, pre-selected to work together flawlessly.
- Cost-Effectiveness: Purchasing a complete kit is often more economical than buying components individually, and it eliminates the risk of ordering the wrong part.
- Optimized Performance: Each component is chosen to complement the others, ensuring maximum vacuum efficiency, reliability, and longevity.
- Simplified Installation: With all parts included and designed for easy connection, you can get your system up and running in a fraction of the time.

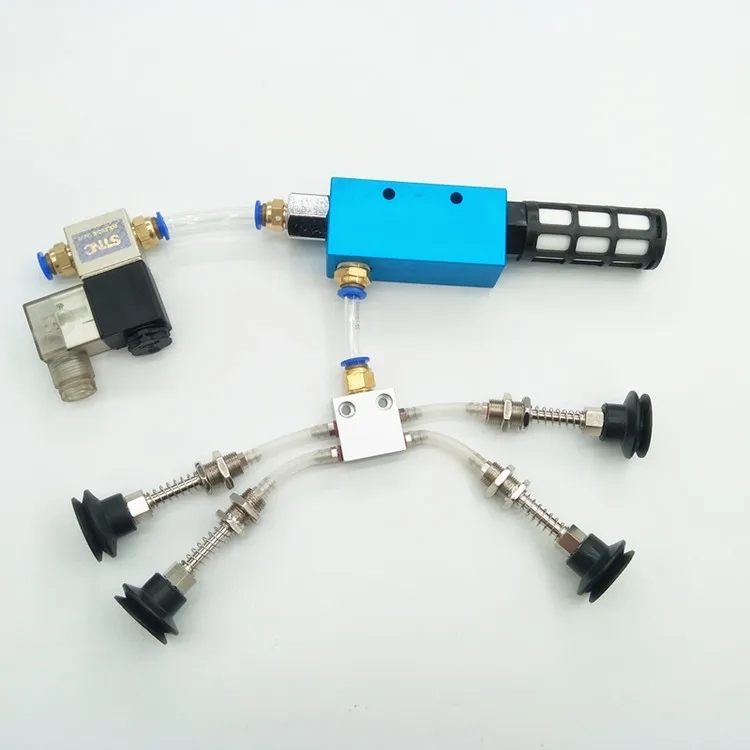

A high-quality vacuum cup assembly set is a symphony of precision-engineered parts. Let's break down the key components you'll find:
- Vacuum Generator (Ejector): The "heart" of the system, this device uses compressed air to create a vacuum. Our sets feature reliable EV-series generators (EV-20 or EV-25) for consistent performance.
- Solenoid Valve (2-position, 3-way): The "brain" that controls the airflow, turning the vacuum on and off. It's crucial for fast and responsive operation. Note: Please specify AC220V or DC24V when ordering.
- Muffler: Reduces noise from the exhaust air of the vacuum generator, creating a quieter and more pleasant work environment.
- Manifold/Diverter Valve: Distributes the vacuum to multiple suction cups. Available in 4, 6, or 8-port configurations, depending on your needs.
- Vacuum Cups (Suction Cups): The "hands" that make contact with the product. Our standard DP-30 cups are made from durable silicone, ideal for a wide range of surfaces.
- Cup Holders (Brackets): Sturdy metal supports (L71-M12) that securely mount the vacuum cups to your robot or manipulator arm.
- Tubing: High-quality 5x8 PU coiled tubes and 3x6 or 6mm silicone tubes ensure efficient and reliable vacuum transfer.
We understand that no two production lines are the same. That's why we offer three distinct sets to match your specific requirements:
These assembly sets are incredibly versatile and find applications across a wide spectrum of industries:
- Packaging Industry: Handling cardboard boxes, plastic bags, bottles, and sealed packages with speed and care.
- Electronics Manufacturing: Safely picking and placing delicate components like printed circuit boards (PCBs), screens, and semiconductors.
- Automotive Sector: Moving body panels, glass, interior components, and other parts without scratching or damaging the surface.
- Food & Beverage: Handling packaged goods, cartons, and even certain unpackaged food items with food-grade silicone cups.
- General Manufacturing: Any process that requires the quick, clean, and non-marking lifting of flat or slightly curved objects.
To ensure the longevity and safety of your vacuum cup assembly set, keep these points in mind:
- Requires a Compressed Air Source: The vacuum generator operates using compressed air. This system must be connected to an air compressor or pump; it cannot generate vacuum on its own.
- Custom Sizing: The standard DP-30 cups are suitable for most tasks, but we offer a full range of sizes from 6mm to 50mm. For applications requiring cups larger than 60mm, please contact our customer service for a custom quote.
- Voltage Selection: Double-check the voltage requirement (AC220V or DC24V) for the solenoid valve to match your control system before finalizing your order.
A pneumatic vacuum cup assembly set is more than just a collection of parts; it's an investment in the efficiency, reliability, and scalability of your operations. By choosing the right set for your needs, you're not just buying a product – you're unlocking a new level of speed and precision in your material handling processes.
If you're ready to streamline your production line and move products faster and lighter than ever before, explore our range of vacuum cup assembly sets today. Our team of experts is on hand to help you select the perfect configuration for your unique application.
Ready to take your material handling to the next level? Contact our sales team today to find the perfect vacuum cup assembly set for your business.
